How to Fix Wrong Countersink Specs Without Scrapping Parts?

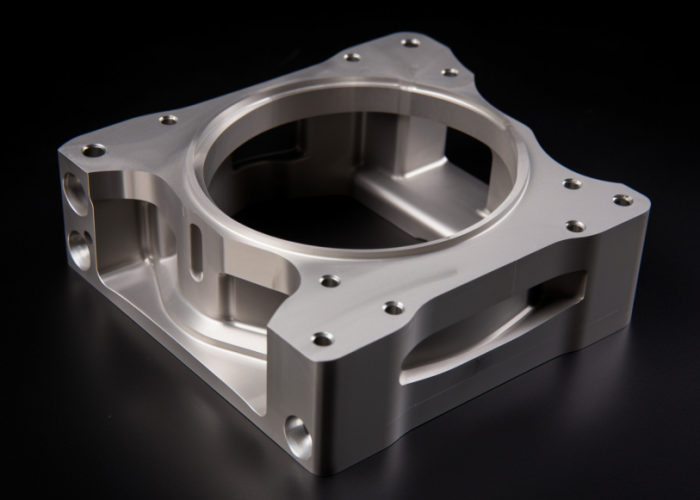

square support base, anodizing
Picture of Written by Miss Tee

Written by Miss Tee

Over 15 years of hands-on experience in CNC machining and sheet metal fabrication, supporting product teams across medical, aerospace, audio, and industrial sectors. Specializes in tolerance-critical parts, DFM consultation, and prototype-to-production transition support.

All Posts

Countersink specification errors after machining create costly decisions between scrapping parts and finding rework solutions. With years of experience salvaging mis-specified parts across aerospace, medical, and audio applications, most countersink problems have proven fixable without starting over.

Most countersink errors can be salvaged through re-machining, fastener substitution, or hardware workarounds at 20-40% the cost of remaking parts. Success depends on remaining wall thickness, material type, and tolerance requirements. Five proven methods exist: deeper re-machining, fastener switching, washer solutions, insert installation, and counterbore conversion.

Learn when rework compromises strength, which salvage methods suit each error, and how to specify countersinks right to prevent costly mistakes.

Table of Contents

What Are 5 Common Methods to Save Wrong Countersink Parts?

Five salvage methods handle different countersink errors with costs 20-60% lower than remaking parts: re-machining deeper (shallow countersinks, ~30% of remake cost), fastener switching (wrong angles, ~5% cost), finishing washers (oversized holes, ~10% cost), threaded inserts (damaged threads, ~40% cost), and counterbore conversion (mismatched geometry, ~50% cost). Choose based on your specific error type and remaining wall thickness.

Immediate Assessment Steps: Check these three measurements before selecting a method: wall thickness from countersink bottom to nearest edge (use calipers), current hole diameter vs. your screw head diameter, and remaining thread engagement if threads exist. These numbers determine which options are feasible.

Quick Decision Guide:

  • Countersink 0.5-2mm too shallow + correct angle → Re-machine deeper (requires 2mm+ wall thickness)
  • Wrong angle (82° made, need 100°) → Switch to flat head screws or use pan head with washers
  • Hole 1-3mm oversized for screw head → Add finishing washers or fender washers
  • Threads damaged during countersinking → Install threaded inserts
  • Completely wrong geometry → Convert to counterbore with socket head screws



From our design consultation experience, fastener switching works in 70% of cases and costs only 5-10% of remake expense. Re-machining succeeds when adequate material remains but may affect nearby tolerances within a 5mm radius. Washer solutions maintain original fastener specs but add 1-2mm to your assembly stack height.

Design Takeaway: Start with fastener switching if it doesn’t change your assembly requirements. If that won’t work, measure wall thickness carefully—aluminum needs 2mm minimum, stainless 1.5mm, plastics 3mm for safe rework.

Will Re-Countersinking Affect Flatness, Tolerances, or Part Alignment?

Re-countersinking typically affects tolerances within a 5-10mm radius, may introduce 0.02-0.05mm flatness variation, and can shift hole centerlines by ±0.01mm due to cutting forces. Check these measurements before and after rework to ensure assembly requirements are maintained.

Immediate Risk Assessment: Measure these now: distance from countersink edge to nearest tight tolerance (if under 8mm, high risk), current flatness of surrounding area with dial indicator, and hole position relative to datum features. These baseline measurements determine acceptable rework limits.

Light material removal under 0.5mm depth rarely affects nearby features. Deeper cuts create more cutting forces and heat, potentially warping thin sections or shifting tolerances. Aluminum parts show the most movement due to lower rigidity, while steel parts typically hold dimensions better during rework.

Critical features at risk include bearing surfaces, mating interfaces, or GD&T callouts within the affected zone. Parts with ±0.01mm tolerances on features within 8mm of the countersink face specification drift. Vacuum fixturing during rework minimizes but doesn’t eliminate dimensional changes.

Post-Rework Verification: Re-measure flatness, hole position, and critical dimensions within 10mm of rework. Compare against your baseline measurements to verify assembly requirements are still met. CMM inspection may be required for tight-tolerance applications.

Design Takeaway: Identify all critical dimensions within 10mm of the rework area and establish measurement baselines before proceeding. Budget time for re-inspection and potential corrective work on affected features.

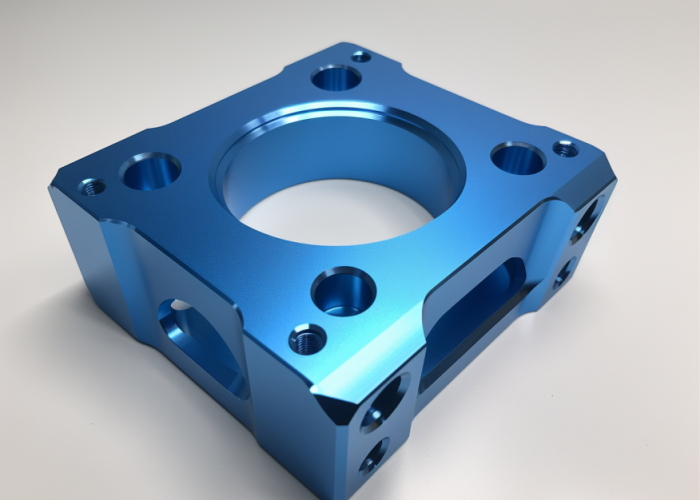

bead blasting, ss 304 fixture

Should Parts Be Scrapped or Countersinks Adjusted in Production?

Scrap when rework costs exceed 60% of remake cost, critical tolerances are within 5mm of rework area, or wall thickness is insufficient. Adjust when simple fixes cost under 40% of remake and don’t affect functional dimensions. Use this decision checklist to choose the most cost-effective path forward.

Decision Checklist:

  1. Cost threshold: Get rework quote – if over 60% of remake cost, scrap the part
  2. Tolerance proximity: Any ±0.01mm features within 5mm of countersink? If yes, high risk
  3. Wall thickness: Measure remaining material – need 2mm aluminum, 1.5mm steel minimum
  4. Timeline impact: Rework takes 3-5 days, remake takes 1-2 weeks
  5. Functional risk: Will rework affect sealing, bearing surfaces, or assembly fit?



Cost Estimation Questions for Your Machinist: “What’s setup time for rework versus new part? Will you guarantee dimensions after rework? What’s the risk of damaging nearby features?” These answers determine true rework cost including potential failures.

Most product developers choose rework when costs stay under $200 per part and no critical features are at risk. Above that threshold, remake often provides better predictability. For regulated industries, remake eliminates documentation complications from rework.

Design Takeaway: When rework quotes approach 50-60% of remake cost, factor in timeline risk and potential quality issues. A $300 rework that might fail versus a $400 remake with guaranteed results often favors the remake option.

Can Different Fasteners Match Existing Countersink Geometry?

Yes, switching fastener types often matches existing countersink geometry without part modification. Common solutions include flat head screws for 82° countersinks, pan head screws with washers for shallow countersinks, or socket head cap screws for oversized holes. This approach costs 5-10% of remake expense while maintaining assembly function.

Decision Framework by Problem:

  • Wrong countersink angle → Ask supplier for fasteners matching your existing angle
  • Countersink too shallow → Consider raised head fasteners (pan head, button head)
  • Hole oversized → Step up one fastener size if threads allow
  • Aesthetic requirements → Evaluate if flush mounting is truly necessary



Key considerations before switching include thread compatibility, assembly clearances, and functional requirements. Moving from M5 to M6 fasteners affects hole size and material stress. Raised head alternatives add 2-3mm to your assembly height. Socket head screws often provide higher strength but change the aesthetic completely.

Evaluate assembly implications early. Will additional fastener height interfere with mating parts? Do you have sealing requirements that limit head styles? Are there regulatory requirements for specific fastener grades? These factors determine which alternatives are viable.

Questions for Your Supplier: “Given my current countersink geometry [provide measurements], what fastener options maintain my strength and assembly requirements? What are the trade-offs in cost, availability, and lead time for each option?”

Design Takeaway: Fastener switching succeeds in 70% of countersink errors when assembly constraints allow flexibility. Confirm thread compatibility and clearance requirements before committing to alternative hardware to avoid creating new assembly problems.

blower block base for motor shaft encoder

Can Washers or Inserts Correct Shallow or Oversized Countersinks?

Washers work for countersinks up to 3mm oversized and add 0.5-1.5mm stack height, while inserts handle thread damage but require 3-5mm access clearance for installation tools. Both solutions cost $1-5 per fastener but may require customer approval for specification changes. Use these feasibility criteria to determine if hardware fixes match your project constraints.

Washer Feasibility Check: Measure oversized amount – washers work up to 3mm over screw head diameter but look progressively less professional. Stack height increases 0.8mm for finishing washers, 1.5mm for fender washers. Check if mating parts can accommodate this change and if raised fasteners affect your product’s aesthetic standards.

Insert Reality Check: Thread damage extending more than 2 thread depths usually requires inserts, but installation needs straight tool access and may not work in deep recesses or near walls. Inserts change your assembly from “hand tools only” to requiring special installation equipment, affecting your production process.

Implementation Considerations: Washers change the “flush mount” specification your customer approved and may trigger design review requirements. High-end products often can’t accept visible hardware changes that appear cost-cutting. Medical or aerospace applications require documentation updates for any fastener specification changes.

Quick Decision Criteria:

  • Oversized under 2mm + no appearance concerns = washers work
  • Thread damage + tool access available = inserts viable
  • Customer specification flexibility + cost pressure = either option
  • Regulatory documentation required = may not be worth the complexity



Design Takeaway: Hardware solutions work best for internal prototypes or cost-driven applications where appearance flexibility exists. For customer-facing or regulated products, the approval process for specification changes often makes part remake more practical than hardware workarounds.

Which Countersink Angle Works Best for Different Screws?

Most flat head screws use 82° angles (metric ISO 7991 standard), while some imperial screws use 90°. If you don’t have screw datasheets, measure with an angle gauge or request samples from your supplier before machining. Wrong angles create gaps, poor seating, and assembly problems that are expensive to fix.

Quick Angle Identification: Without datasheets, use an angle gauge on existing screws or request samples from suppliers. Most metric screws (M3, M4, M5, M6) follow the 82° ISO standard. Imperial screws vary more – some use 82°, others use 90°. When in doubt, ask your fastener supplier: “What head angle do these specific part numbers use?”

Sourcing Reality Check: 82° screws are widely available and cost-effective from most suppliers. 90° screws are common but have fewer finish options. Custom angles (100°, 60°) require special orders with longer lead times and higher costs. McMaster-Carr, Fastenal, and similar suppliers clearly list head angles in their specifications.

Communication on Drawings: Specify both the countersink angle AND the screw part number on your drawings. This prevents confusion between machinist and assembly teams. Call out “82° CSK FOR ISO 7991 M5 SCREW” rather than just “82° CSK” to ensure everyone understands the complete requirement.

Common Specification Problems: Suppliers sometimes substitute “equivalent” screws without checking head angles. Always confirm head angle specifications when changing screw suppliers or part numbers. Assembly teams may use incorrect screws if only the thread size is specified without head geometry details.

Design Takeaway: When specifying countersinks, always reference the specific screw part number and supplier to eliminate angle confusion. If multiple screw sources are needed, verify all options use the same head angle before finalizing countersink specifications.

plastic pom black,supported plate

What's the Minimum Wall Thickness Around Countersinks?

Minimum safe wall thickness is 2mm for aluminum, 1.5mm for steel, and 3mm for plastics, measured from the deepest countersink point to the nearest edge or thin section. Include manufacturing tolerances in your calculations and add 0.5mm safety margin for production parts. These limits prevent breakthrough, cracking, and structural failure.

Measurement Process: Use calipers to measure from the planned countersink bottom to part edges, nearby holes, internal cavities, and thin sections. Include your part tolerances – a ±0.1mm tolerance effectively reduces wall thickness by 0.1mm. Check multiple orientations since countersinks aren’t always perpendicular to the thinnest section.

Material Guidelines with Safety Margins:

  • Aluminum parts → 2.5mm preferred (2mm absolute minimum)
  • Steel parts → 2mm preferred (1.5mm absolute minimum)
  • Plastic parts → 3.5mm preferred (3mm absolute minimum)
  • Thin sheet metal → Often requires counterbores instead of countersinks



High-Risk Design Situations: Multiple countersinks near each other reduce effective wall thickness between them. Countersinks near part edges, existing holes, or internal cavities create stress concentrations. Plastic parts near heat sources may expand and reduce effective thickness during operation.

Alternative Solutions for Thin Walls: When calculations show insufficient thickness, consider counterbores with socket head screws, relocating fasteners to thicker sections, adding local reinforcement bosses, or using surface-mount fastening methods instead of through-holes.

Design Takeaway: Always add safety margin beyond calculated minimums, especially for production parts where material and machining variations occur. When wall thickness approaches limits, choose design alternatives rather than pushing manufacturing boundaries that could cause field failures.

How to Update Drawings to Prevent Countersink Issues?

Update drawings with specific fastener callouts, wall thickness verification notes, and clear revision documentation to prevent future countersink errors. Use this checklist to audit existing drawings and create foolproof specifications that eliminate manufacturing confusion. Proper drawing updates prevent 90% of countersink specification problems.

Immediate Drawing Audit: Check your current drawings for these common problems:

  • Generic “CSK 82°” callouts without fastener specifications
  • Missing wall thickness requirements or verification notes
  • Countersink dimensions without screw part numbers
  • Outdated fastener specifications from previous revisions

Required Drawing Elements Checklist:

  • Angle + diameter: “82° CSK ⌀8.4”
  • Fastener specification: “FOR ISO 7991 M5×16 FHCS”
  • Wall thickness note: “VERIFY 2mm MIN WALL THICKNESS”
  • Supplier reference: “CONFIRM FASTENER AVAILABILITY BEFORE MACHINING”
  • Inspection requirement: “VERIFY FLUSH SEATING ±0.2mm”

Quick Callout Templates:

  • Standard metric: “82° CSK ⌀8.4 FOR ISO 7991 M5×16 FHCS”
  • Imperial alternative: “90° CSK ⌀0.33 FOR #10-32 FHCS”
  • Shallow countersink: “CSK TO SEAT SCREW FLUSH ±0.2mm, VERIFY FASTENER SPEC”

Immediate Revision Actions:

  • Update all countersink callouts to include specific fastener part numbers
  • Add wall thickness verification notes near each countersink
  • Include fastener supplier contact information in drawing notes
  • Document revision reasons: “ADDED FASTENER SPEC TO PREVENT REWORK”



Team Communication Template: “Drawing revision [X]: Updated countersink callouts to include specific fastener specifications. All future machining requires fastener verification before cutting. Contact [supplier] at [phone] for fastener confirmation.”

Design Takeaway: Treat every countersink update as an opportunity to bulletproof your specifications. Use the checklist above to systematically eliminate ambiguity that causes costly manufacturing errors and rework cycles.

Conclusion

Countersink specification errors are recoverable through re-machining, fastener switching, or hardware solutions at 20-60% of remake costs. Success depends on measuring wall thickness, evaluating tolerance risks, and choosing methods that preserve assembly function. Contact us to explore manufacturing solutions tailored to your countersink and precision machining requirements.

Frequently Asked Questions

Most rework methods don’t affect structural integrity when properly executed within safe wall thickness limits. Document any specification changes and verify critical dimensions post-rework to maintain warranty coverage and traceability requirements.

 ISO 7991 covers metric flat head screws and corresponding countersink geometry. ASME B18.6.7 addresses imperial standards. Always reference the specific standard your fasteners follow rather than assuming generic angles or dimensions.

Focus on maintained functionality rather than the error itself. Explain how the solution preserves assembly requirements, delivery timeline, and cost targets. Provide before/after specifications if customer approval is required for design changes.

Rework usually takes 3-5 business days including setup and inspection, while remaking parts takes 1-2 weeks depending on material availability and queue time. Simple fastener switching can be implemented immediately with off-the-shelf hardware.

Yes, but ensure consistent torque specifications and load ratings across all fasteners. Mixed fastener types may require updated assembly instructions and different tooling for installation or service procedures.

Implement drawing review checklists that verify fastener specifications match countersink callouts. Require supplier confirmation of fastener availability before finalizing specifications. Include wall thickness calculations in design review processes.
