7 Design Tips to Save on Tight-Tolerance Parts

brass nut, turning

Design choices can dramatically impact the cost of tight-tolerance machining. Like choosing between a complex or simple recipe, smart design decisions can significantly reduce manufacturing costs while maintaining part functionality.

Seven key design adjustments can reduce tight-tolerance machining costs: Keep Precision Where It Matters, Simplify Your Design, Pick Materials Wisely, Smart Surface Finish Specs, use standard sizes, designing within machine capabilities, and Focus on Function.

Let’s explore each of these design adjustments in detail, understanding how they can help you achieve the precision you need while keeping costs under control.

Table of Contents

1.Keep Precision Where It Matters

Setting tight tolerances is like buying premium ingredients for a recipe – you only want to use them where they really matter. This strategy involves identifying which features actually need high precision and which don’t, similar to how you wouldn’t use expensive materials for every part of a product. Understanding this concept is crucial because applying tight tolerances everywhere can unnecessarily multiply your manufacturing costs by 2-24 times.

Only use tight tolerances on critical features

Understanding critical versus non-critical features is like knowing which parts of a car need precision engineering and which don’t. The engine parts need to be precise, but the cup holders don’t. In machining, some features directly affect product function while others don’t impact performance. Learning to distinguish between these can dramatically reduce costs while maintaining product quality.

Feature Analysis Guide:

Feature TypeTolerance LevelCost ImpactExample
Mating SurfacesTight (±0.001″)Necessary costBearing seats
Bearing FitsPrecise (±0.0005″)Critical functionShaft fits
Non-Contact AreasStandard (±0.005″)Cost savingsExternal surfaces
Reference FeaturesBasic (±0.010″)Maximum savingsMounting points

Cost Impact Analysis

The relationship between tolerances and cost is like a progressive tax system – each tighter level of precision comes with a dramatically higher cost. Understanding this relationship helps you decide where to spend your precision “budget.”

Cost Multiplication Effect:

  • Standard tolerance parts: Base manufacturing cost
  • Parts with ±0.005″ tolerance: Double the base cost
  • Parts with ±0.001″ tolerance: Four times the base cost
  • Parts requiring ±0.0001″: Up to 24 times more expensive

Use standard tolerances everywhere else

Implementing selective tolerancing is like creating a budget—you need a clear plan for allocating your precision requirements. This systematic approach helps ensure you don’t over-specify tolerances where they’re not needed.

Strategic Steps:

  • Create a clear map of all part features
  • Identify which features affect product function
  • Analyze interaction between different features
  • Document the reasoning behind each tolerance choice

Pro Tip: Create a visual tolerance map of your part using different colors for different tolerance levels. This will help you identify areas where you might be over-specifying precision.

aluminum vs ss

2. Simplify Your Design

Simple part geometry in precision machining is like using basic shapes to create art – it’s more efficient and cost-effective. Complex features require more setups, tools, and time, each adding cost. Simplifying your design can reduce machining costs by 30-50% while maintaining part functionality.

Minimize complex geometries

Design simplification in machining means reducing complex features to their simplest form while maintaining functionality. Like choosing between a complicated or simple path to reach the same destination, simpler designs are faster, more reliable, and less expensive to produce.

Impact of Design Complexity:

Feature TypeManufacturing ImpactCost Effect
Simple CurvesSingle tool, one setupBase cost
Deep PocketsMultiple tools, depth limits2x cost
Complex ContoursSpecial tooling, multiple setups3-4x cost
Internal FeaturesAdditional operations4-5x cost

Manufacturing Implications

Manufacturing implications refer to how design choices affect the actual machining process. Just as a complex recipe requires more cooking steps, equipment, and time, complex part designs create multiple challenges in the manufacturing process.

Multiple Tools Required:

  • Each different feature may need a separate tool
  • Tool changes add 1-2 minutes each to production time
  • Special tools can cost 2-3 times more than standard tools
  • More tools mean more chances for error

Cost Benefits

Cost benefits are the direct savings achieved through simpler designs. Like how a streamlined process saves resources, simpler part designs reduce multiple cost factors in manufacturing.

Measurable Savings:

  • 30-50% fewer machining operations
  • Setup time reduced by 40-60%
  • Tool costs reduced by 25-35%
  • Inspection time cut by 40%

Pro Tip: Review each complex feature and ask if a simpler design could achieve the same function. Often, slight design modifications can significantly reduce

grey egine cap nut, pom

3. Pick Materials Wisely

Material selection in precision machining is like choosing the right wood for furniture making – the material affects both cost and manufacturing ease. The right material choice can reduce machining costs by 20-40% through better machinability while still meeting performance requirements.

Material Selection Criteria

Material selection criteria means understanding how different materials affect machining costs and part performance. Like choosing ingredients that are both tasty and easy to cook with, we need materials that balance machinability with functional requirements.

Material Comparison Guide:

Material TypeMachinabilityCost ImpactBest For
6061 AluminumExcellentBase costGeneral purpose
7075 AluminumVery Good1.5x costHigh strength
1018 SteelGood1.2x costLow stress parts
304 StainlessFair2x costCorrosion resistance

Machinability Factors

Machinability factors are the characteristics that determine how easily a material can be machined to tight tolerances. These factors directly affect machining time, tool life, and overall costs.

Impact Analysis:

  • Cutting speed capabilities
  • Tool wear rates
  • Surface finish quality
  • Chip formation
  • Heat generation

Cost Considerations

Cost considerations encompass both material and processing costs. Like budgeting for a project, we need to consider all cost factors, not just the raw material price.

Total Cost Impact:

  • Raw material price
  • Machining time requirements
  • Tool consumption rates
  • Special handling needs
  • Post-processing requirements

Pro Tip: Consider free-machining grades of standard materials. These grades might cost slightly more but can reduce machining costs significantly.

pom spur gear

4. Smart Surface Finish Specs

Surface finish specification in precision machining is like choosing paint finishes for a car – premium finishes cost more and are only needed on visible surfaces. Strategic surface finish selection can reduce machining costs by 25-35% while maintaining product functionality. Understanding where to apply fine finishes is crucial for cost control.

Fine Finish Requirements

Fine finish requirements refer to specifying surface smoothness levels for different part areas. Like how a smartphone has a polished screen but a standard back cover, different part surfaces need different finish levels based on their function.

Surface Finish Cost Impact:

Finish LevelRa ValueCost ImpactApplication
Mirror0.1-0.2 Ra4x base costOptical/Sealing
Fine0.4-0.8 Ra2x base costMoving fits
Standard1.6-3.2 RaBase costGeneral use
Rough6.3+ Ra0.8x costNon-critical

Standard Finish Applications

Standard finish applications involve identifying where basic surface finishes are adequate. This approach saves significant machining time and cost while maintaining part functionality.

Cost Saving Areas:

  • Non-contact surfaces
  • Hidden features
  • Structural elements
  • Non-critical dimensions

Pro Tip: Create a surface finish map of your part, marking only critical surfaces for fine finishes. This visual guide helps prevent over-specification of expensive finishes.

plastic spur gears

5. Use Standard Sizes

Using standard sizes in precision machining is like using pre-made cabinet sizes in kitchen design – it’s faster, cheaper, and more reliable. Standard sizes can reduce costs by 15-30% through readily available tooling and simplified machining processes. Understanding this principle helps optimize both design and manufacturing costs.

Common Hole Sizes

Common hole sizes refer to using standard drill and bore dimensions that match readily available tools and fasteners. Like using standard screws instead of custom ones, this approach simplifies manufacturing and reduces costs.

Standard Size Benefits:

Size TypeCost ImpactTooling AvailabilityLead Time
StandardBase costImmediate1-2 days
Metric StandardBase costCommon stock1-2 days
Custom -0.001″2x costSpecial order1-2 weeks
Custom +0.003″3x costCustom made2-3 weeks

Standard Thread Options

Standard thread options mean using common thread sizes and pitches instead of custom specifications. This standardization reduces tooling costs and simplifies manufacturing.

Common Applications:

  • Industry-standard fasteners
  • Standard pipe threads
  • Metric thread sizes
  • UNC/UNF threads

Pro Tip: Always check standard size charts before specifying custom dimensions. Often, a standard size within 0.005″ of your custom size will work just as well.

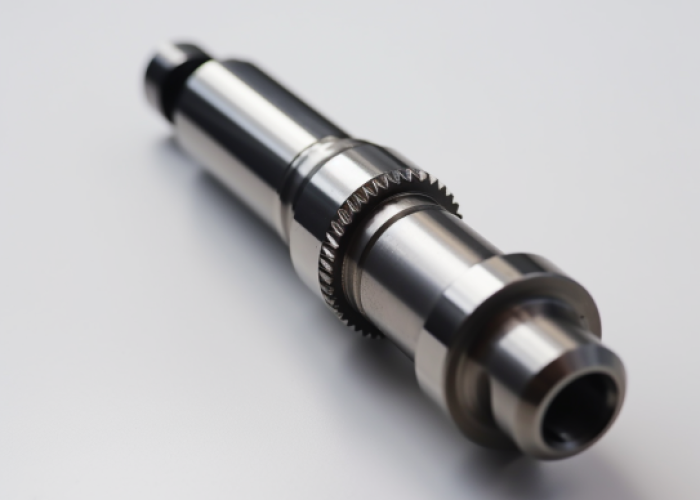

titanium metal shaft, transmission

6. Design for Your Machine

Designing for your machine capabilities is like cooking with the appliances you have rather than requiring specialty equipment. Understanding and working within your machine’s limitations can reduce setup costs by 40-50% and prevent expensive outsourcing. This principle ensures your design matches available manufacturing capabilities.

Machine Capability Limits

Machine capability limits refer to the actual performance boundaries of your manufacturing equipment. Like knowing your kitchen oven’s temperature range, understanding these limits helps create realistic designs.

Capability Analysis:

FeatureStandard MachineHigh-PrecisionCost Impact
Tolerance±0.002″±0.0005″3x cost
Size RangeUp to 20″Up to 40″2x cost
Surface Finish32 Ra8 Ra2.5x cost
ComplexityBasic featuresAdvanced4x cost

Standard Tooling Options

Standard tooling options involve using commonly available cutting tools rather than custom or specialty tools. This approach significantly reduces both cost and lead time.

Benefits:

  • Immediate tool availability
  • Lower replacement costs
  • Proven performance
  • Predictable result

Pro Tip: Request your machine shop’s capability sheet before finalizing designs. This ensures your specifications match available equipment capabilities.

round, type 1 anodizing

7. Focus on Function

Function-focused design means prioritizing what the part needs to do over how it looks. Like choosing a reliable car over a flashy one, this approach emphasizes practical performance over unnecessary precision. Understanding functional requirements can reduce manufacturing costs by 30-40% while maintaining part performance.

Practical Tolerances

Practical tolerances refer to specifying precision levels that match actual functional needs. Like using measuring cups in cooking instead of scientific scales when precise measurements aren’t critical, this approach matches precision to purpose.

Tolerance Application Guide:

Function TypeTolerance LevelCost ImpactExample Use
Precision Fit±0.001″High costBearing seats
General Fit±0.005″Medium costAlignment features
Basic Function±0.010″Base costMounting points
Non-Critical±0.020″Lowest costClearance areas

Alternative Design Options

Alternative design options involve finding different ways to achieve the same function. This means considering multiple approaches to solve design challenges, often finding simpler, more cost-effective solutions.

Design Alternatives:

  • Split features vs. complex machining
  • Assembly options vs. single-piece
  • Standard components vs. custom
  • Different mounting methods

Pro Tip: Always start design reviews by clearly stating the functional requirements. Often, simpler solutions become apparent when focusing on function over form.

brass nuts

Conclusion

Smart design choices dramatically impact tight-tolerance machining costs. Like a well-planned budget, these seven design tips help maximize value while maintaining quality.

Keys to takeaway:

  • Keep precision only where needed
  • Simplify design wherever possible
  • Choose materials wisely
  • Specify finishes strategically
  • Use standard sizes
  • Work within machine limits
  • Focus on function

Need help optimizing your precision part designs? Contact okdor’s engineering experts.

Frequently Asked Questions

Smart design choices reduce tight tolerance machining costs by 40-60%. Limiting precision to critical features saves 30%, using standard sizes saves 15%, and simplifying geometry saves another 15%.

Over-specifying tight tolerances across entire parts unnecessarily increases costs by 200-400%. Only critical mating surfaces need tight tolerances; other areas can use standard tolerances.

Simplifying part geometry saves the most money, reducing machining costs by 30-50% through fewer setups, standard tooling use, and reduced machining time.

Tolerances tighter than ±0.001″ increase costs exponentially. Moving from ±0.005″ to ±0.0005″ can multiply costs by 5-10 times due to special tooling and extra processing.

Using standard sizes reduces costs by 15-30% through readily available tooling and simplified machining. Custom sizes can double or triple costs due to special tooling requirements.

Specify fine finishes (Ra 16 or better) only for critical surfaces like sealing faces and precision fits. Standard finishes suffice for 80% of surfaces, reducing costs by 25-35%.
