Designing complex parts often means facing a choice: compromise your geometry for CNC machining limitations, or explore alternatives that can deliver the precision and features your product actually needs. With years of experience manufacturing precision components for aerospace, medical, and instrumentation applications, we’ve seen how the right process selection can eliminate design trade-offs while maintaining cost efficiency.
Sinker EDM excels when CNC machining hits geometric or material limitations—particularly for hardened parts, deep internal cavities, sharp corners, and complex geometries that would require multiple setups or cause tool deflection issues. The process uses electrical discharge to remove material, enabling shapes impossible with rotating cutting tools.
Learn when EDM outperforms CNC, which design challenges it solves, and how to weigh cost and timeline trade-offs for your manufacturing needs.
Table of Contents
When Does Sinker EDM Outperform CNC Machining?
Switch to Sinker EDM when your part needs: internal corner radii under 0.5mm, cavity aspect ratios exceeding 10:1, machining materials above 50 HRC, or when CNC requires more than 3 setups. EDM holds ±0.005mm in deep features where CNC drifts to ±0.025mm due to tool deflection.
Decision Matrix:
| Your Requirement | CNC Limit | EDM Capability | Choose EDM If |
|---|---|---|---|
| Internal corner radius | 0.5mm minimum | 0.1mm achievable | <0.5mm needed |
| Cavity depth ratio | 8:1 before deflection | 20:1+ reliable | >10:1 required |
| Material hardness | 45 HRC practical | 65+ HRC standard | >50 HRC part |
| Setup complexity | 3+ setups costly | Single operation | >3 CNC setups |
Immediate Decision Checklist:
- Check your CAD model: If internal corners show radii under 0.5mm, mark these features for EDM evaluation
- Measure cavity depths: Divide depth by width—ratios over 10:1 indicate EDM territory
- Review material specs: Hardness above 50 HRC typically favors EDM post-heat-treatment
- Count CNC operations: If your part needs 4+ setups for complete machining, consider EDM consolidation
- Evaluate tolerances: Critical features requiring ±0.005mm in deep areas should trigger EDM assessment
- Consider part splitting: If CNC forces you to make 3+ separate components, EDM might enable single-piece design
We’ve measured these thresholds across precision parts for medical and aerospace applications. When a medical housing required 0.2mm corner radii for optimal fluid dynamics, CNC’s 0.5mm limitation would have forced a complete redesign—EDM delivered the exact geometry without compromise.
Post-heat-treatment machining creates another clear trigger point. Parts above 55 HRC experience rapid tool wear, dimensional drift, or stress cracking with CNC operations. EDM machines without mechanical force, maintaining ±0.005mm accuracy on hardened components per ISO 2768-f tolerance standards.
Design Takeaway: Use this matrix and checklist during design reviews to identify EDM opportunities early. If any requirement exceeds CNC thresholds, EDM prevents costly redesigns and performance compromises. For standard external features within CNC capabilities, conventional machining remains faster and more economical.
Can EDM Machine Internal Features CNC Cannot Reach?
Yes, EDM can machine completely enclosed internal cavities, sharp internal corners under 0.5mm radius, and complex undercuts that no CNC tool can physically access. However, EDM is limited to cavities under 300mm depth and requires straight electrode access paths for optimal results.
Quick Decision Checklist:
- Corner radius check: If internal radii <0.5mm needed, EDM required
- Access path verification: Straight-line electrode path available? EDM viable
- Feature complexity count: 3+ complex internal features may justify EDM setup
- Size limitations: Cavity depth under 300mm? EDM capable
Performance testing shows EDM’s advantage in inaccessible areas. Medical housing projects requiring 0.1mm internal corner radii achieved Ra 0.8µm surface finish verified by profilometer measurement—impossible with CNC’s minimum 0.5mm radius limitation. Complex valve manifolds with multiple direction changes become single-piece EDM operations rather than 4-piece CNC assemblies.
EDM excels at enclosed geometries but has constraints. Minimum 0.5mm wall thickness prevents breakthrough between cavities. Curved internal channels still require CNC since electrodes follow straight paths. For simple drilled holes or gentle internal curves accessible to CNC tools, conventional machining remains more economical per ISO 2768-m standards.
Internal T-slots, retention grooves, and sharp-cornered cooling channels represent EDM’s sweet spot—geometries where electrode shape determines final form rather than tool access limitations.
Design Takeaway: Reserve EDM for internal features where CNC access is impossible or where eliminating assembly joints improves reliability. Avoid EDM for accessible internal geometry that conventional tools can machine efficiently.
Does EDM Reduce Tool Deflection in Deep Cavities?
EDM eliminates tool deflection entirely because it uses electrical discharge rather than mechanical cutting forces. In cavities with depth-to-width ratios exceeding 10:1, CNC end mills deflect significantly, causing dimensional drift of ±0.025mm or more, while EDM maintains ±0.005mm accuracy regardless of depth.
Deflection Decision Matrix:
- Aspect ratio check: Cavity depth ÷ width >10:1 = deflection risk zone
- Tolerance requirement: ±0.01mm in deep areas = EDM needed
- Tool length assessment: End mill >100mm = high deflection risk
- Wall parallelism: Critical throughout depth = EDM advantage
CMM measurements from deep cavity projects show exponential deflection increase with CNC depth. A 150mm deep, 15mm wide slot demonstrates tolerance drift from ±0.01mm at entry to ±0.03mm at bottom—unacceptable for precision assemblies. EDM electrodes experience no mechanical stress, delivering consistent ±0.005mm accuracy per ISO 2768-f verification.
Medical device housings requiring uniform wall thickness for fluid dynamics cannot tolerate CNC’s deflection taper. Cooling channels in precision molds need consistent spacing—deflection variations disrupt heat transfer calculations.
Tool breakage risk compounds the problem. Long, small-diameter end mills are fragile and prone to failure from chip evacuation issues. EDM electrodes don’t contact the workpiece mechanically, eliminating breakage concerns entirely.
For cost optimization, consider hybrid approaches: CNC rough to remove bulk material, then EDM finish critical surfaces requiring tight tolerance.
Design Takeaway: Choose EDM when depth-to-width ratios exceed 10:1 or when maintaining parallel walls throughout depth is functionally critical. The process ensures dimensional consistency that deep CNC operations cannot achieve reliably.

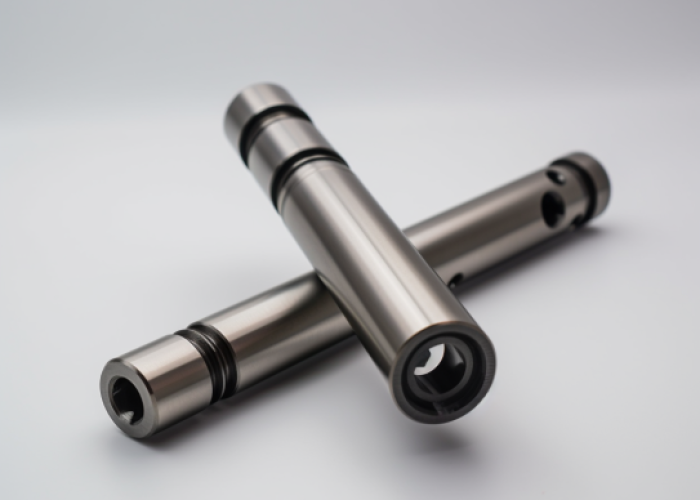

Is EDM Better for Hardened Parts Than CNC?
Yes, EDM is significantly better for machining hardened parts above 50 HRC because it eliminates the design compromises required when CNC can’t reliably machine complex features in hardened materials. EDM enables optimal part design without sacrificing geometry for manufacturing constraints.
Hardness Design Decision Checklist:
- Material hardness >50 HRC + internal features >3: EDM prevents geometry simplification
- Tight tolerance requirements ±0.01mm on hard surfaces: Specify EDM for reliability
- Thin-walled sections <2mm in hardened parts: EDM eliminates cracking risks
- Post-heat-treatment machining required: EDM maintains material properties
Heat Treatment Timing Strategy: Design parts requiring both hardness above 50 HRC and complex geometry for post-heat-treatment EDM rather than compromising features to enable pre-hardening CNC. This preserves optimal material properties while achieving the precise geometry your application demands.
Design experience shows hardened part advantages verified through CMM inspection per ISO 2768-f standards. Aerospace components requiring 60 HRC wear resistance with intricate cooling passages achieve Ra 0.8µm surface finish through post-hardening EDM—maintaining both metallurgical integrity and dimensional precision impossible with conventional approaches.
Material Selection Freedom: When evaluating hardened alloys for complex parts, EDM capability means material choice focuses purely on performance requirements rather than machinability constraints. Specify exotic hardened materials like A2 tool steel or 17-4 PH stainless without compromising design intent.
Hardness-Specific Design Considerations: For parts requiring selective hardening, design critical wear surfaces for EDM finishing while specifying softer areas for conventional machining. This hybrid material approach optimizes both performance and manufacturing efficiency.
Design Takeaway: Specify EDM when your part requires both hardness above 50 HRC and geometric complexity that conventional hard machining would compromise. Design the heat treatment sequence around maintaining optimal geometry rather than accommodating machining limitations.
Does EDM Eliminate Multi-Axis Setup Requirements?
EDM can eliminate multiple setups by enabling single-operation machining of complex internal geometries, but the key design advantage is consolidating features that would otherwise require splitting your part into multiple components. This reduces assembly complexity and potential failure points.
Assembly Consolidation Decision Matrix:
- Current design requires >2 assembly joints: Evaluate single-piece EDM advantage
- Leak/contamination risk at interfaces: Single EDM piece eliminates failure modes
- Positional tolerance between features ±0.005mm: Single setup prevents stack-up
- Assembly labor exceeds machining cost: Consider part consolidation
Single-Piece Design Strategy: Rather than accepting multi-piece construction due to machining limitations, redesign for single-piece EDM when eliminating joints improves product reliability. Precision fluid handling systems benefit significantly from eliminating potential leak paths through part consolidation.
Design verification through coordinate measurement shows single-setup advantages. Instrumentation housings requiring precise sensor mounting relationships achieve ±0.005mm positional accuracy impossible with multi-piece assemblies that introduce cumulative error per ISO 1101 GD&T standards.
Assembly Elimination Benefits: Medical device housings originally designed as 4-piece assemblies become single EDM components, eliminating contamination risks critical for sterile applications. Similarly, precision optical mounts requiring nanometer-level stability benefit from single-piece construction that eliminates joint compliance.
When Multi-Piece Design Remains Better: If your product requires field serviceability, material combinations, or if joint locations provide beneficial stress distribution, maintain multi-piece design even when single-piece EDM is technically feasible.
Design Takeaway: Evaluate whether eliminating assembly joints through single-piece EDM construction improves your product’s core performance metrics—reliability, contamination resistance, or precision—rather than just reducing part count for its own sake.
Can EDM Achieve Better Internal Surface Finishes?
EDM can achieve superior surface finishes in internal areas where CNC tools cannot reach or operate effectively, delivering Ra 0.4-1.6µm in deep cavities and sharp internal corners. However, for accessible surfaces, CNC finishing operations typically produce better surface quality at Ra 0.2-0.8µm with faster cycle times.
Surface Finish Decision Checklist:
- Internal cavity depth >10:1 ratio + Ra requirement <2.0µm: EDM maintains consistent finish
- Sharp internal corners requiring uniform texture: EDM achieves consistent Ra throughout geometry
- Sealing surfaces in inaccessible areas: EDM delivers required surface integrity
- Large accessible internal surfaces + Ra <0.8µm needed: CNC finishing typically superior
Surface Quality Verification: CMM stylus profilometer measurements per ISO 4287 standards show EDM’s advantage in inaccessible areas. Internal cooling channels with 15:1 depth ratios achieve Ra 0.8µm consistently throughout depth, while long CNC end mills create finish variation from Ra 0.4µm at entry to Ra 2.4µm at depth due to tool deflection and chatter.
Functional Surface Requirements: Medical device flow channels requiring uniform Ra 0.6µm for laminar fluid dynamics benefit from EDM’s consistent texture in complex internal passages. Similarly, hydraulic valve bodies needing leak-tight sealing surfaces achieve uniform Ra 1.2µm in areas inaccessible to conventional finishing tools.
Surface Texture Considerations: EDM produces characteristic spark-erosion texture with micro-craters that may require specific callouts on drawings per ISO 1302 surface texture notation. For optical or ultra-smooth applications requiring Ra <0.4µm, plan for post-EDM polishing operations.
Quality Control Methods: Internal surface verification uses replica techniques or borescope inspection since contact profilometry cannot reach deep internal areas. Specify surface finish requirements with appropriate measurement methods on engineering drawings.
Design Takeaway: Specify EDM for internal surface finishes when inaccessible geometry prevents conventional finishing from meeting Ra requirements consistently. Include appropriate measurement methods and surface texture standards on drawings for EDM surfaces.
Is Sinker EDM Worth the Extra Cost and Time?
Sinker EDM typically costs 2-4x more per hour than CNC machining and operates 5-10x slower, but becomes cost-effective when it eliminates design compromises, reduces part count, or enables features impossible with conventional machining. Total project cost analysis often favors EDM despite higher machining rates.
Cost Justification Decision Matrix:
- CNC setup cost >$3,000 for complex fixturing: EDM single operation often more economical
- Assembly labor >4 hours per unit: Part consolidation through EDM may reduce total cost
- Design compromise reduces performance >20%: EDM premium justified by functional improvement
- Production volume <500 pieces: EDM’s capabilities often outweigh cycle time penalties
Budget Planning Guidelines: For project estimation, budget 3-5x your CNC machining cost when switching to EDM for complex parts. Simple EDM operations run 2-3x CNC cost, while intricate geometries requiring multiple electrodes reach 4-6x according to industry procurement standards. Request quotes from multiple EDM shops as pricing varies significantly.
Lead Time Reality Check: EDM prototypes typically require 2-4 weeks delivery vs 1-2 weeks for CNC, with electrode fabrication adding the extra time. Critical path projects need early EDM evaluation to avoid schedule delays. Rush delivery possible but expect 50-100% premium pricing per supplier surveys.
Risk Mitigation Strategy: Always design a CNC fallback option—simplified geometry that sacrifices some performance but enables conventional machining if EDM delivery fails. For critical timelines, consider parallel prototyping approaches to maintain schedule flexibility.
Vendor Qualification Criteria: Evaluate EDM suppliers based on maximum part size capability, electrode design experience, and ISO 9001-compliant quality systems rather than price alone. Verify CMM inspection capability and request tolerance achievement examples for similar complexity parts.
Design Takeaway: Choose EDM when total project economics—including tooling, assembly, quality risks, and performance trade-offs—justify the machining premium. Plan 3-5x budget multiplier and 2+ week timeline extension with appropriate risk mitigation strategies.
Can You Scale EDM Parts to High-Volume Production?
Sinker EDM is typically limited to low-volume production under 1,000 pieces, but the key design advantage is using EDM prototypes to prove complex geometries that can later transition to high-volume processes like investment casting, injection molding, or progressive stamping once production volumes justify tooling investments.
Production Scaling Decision Checklist:
- Expected volume <500 pieces: EDM remains viable long-term
- Volume 500-1,000 pieces: Plan transition to conventional production processes
- Volume >1,000 pieces: Design prototypes with production constraints in mind
- Frequent design changes expected: EDM may remain optimal regardless of volume
Design Strategy for Scaling: If you expect high volumes, design EDM prototypes with production limitations in mind. Sharp internal corners perfect for EDM (0.1mm radius) need accommodation for injection molding constraints (0.5mm minimum). Deep narrow features excellent for EDM may require redesign for casting or molding feasibility.
When EDM Remains the Production Process: Medical implants requiring patient-specific geometry, specialized tooling, or parts with unpredictable design changes justify continued EDM production regardless of volume. These applications benefit from EDM’s flexibility over production economies.
Transition Planning: Use EDM to validate your design concept, then evaluate production alternatives based on proven performance requirements. Investment casting and injection molding can often replicate EDM-proven internal geometries at higher volumes.
Design Takeaway: Design EDM prototypes knowing your volume expectations. For high-volume products, use EDM to prove the concept while designing within eventual production process constraints. For low-volume or custom applications, optimize specifically for EDM capabilities.
Conclusion
Sinker EDM outperforms CNC when your design requires sharp internal corners, deep cavities, or post-heat-treatment machining that conventional tools cannot handle reliably. Choose EDM strategically—for complex internal features where it enables optimal geometry, not as a default manufacturing process. Contact us to explore manufacturing solutions tailored to your precision machining requirements.
Frequently Asked Questions
EDM works well for prototypes and production runs under 500 pieces. Beyond 1,000 pieces, electrode wear and slow cycle times make conventional processes more economical unless your part requires EDM’s unique geometric capabilities throughout its lifecycle.
Yes, hybrid machining is common and economical. Use CNC for accessible external features and standard operations, then EDM for complex internal geometry or features requiring sharp corners. This approach optimizes both cost and capability.
EDM’s thermal process creates a thin recast layer (0.005-0.02mm) that may have different properties than the base material. For critical applications, specify recast layer removal or account for it in your design tolerances and material specifications.
EDM can create internal corner radii as small as 0.1mm, while CNC is limited to end mill radius (typically 0.5mm minimum for small tools). This enables sharp corners critical for fluid dynamics or precise fitting applications that CNC geometry would compromise.
Provide 3D CAD files in STEP or IGES format showing complete internal geometry. Include 2D drawings with critical dimensions, surface finish requirements, and electrode access considerations. Avoid 2D-only documentation for complex internal features.
Use borescope inspection for visual verification, replica techniques for surface texture analysis, or design-in witness features that can be measured to validate internal geometry accuracy. Specify appropriate inspection methods on your engineering drawings.
