Should you use 6061 aluminum for your design?

whitish-colored surface aluminum part
Picture of Written by Miss Tee

Written by Miss Tee

Over 15 years of hands-on experience in CNC machining and sheet metal fabrication, supporting product teams across medical, aerospace, audio, and industrial sectors. Specializes in tolerance-critical parts, DFM consultation, and prototype-to-production transition support.

All Posts

Choosing aluminum grades impacts both manufacturability and cost. After machining thousands of precision parts for aerospace, audio, and medical applications, 6061 consistently delivers the best balance of performance and production efficiency.

6061-T6 aluminum offers excellent machinability with ±0.01 mm tolerance capability, moderate strength (276 MPa tensile), and broad finishing compatibility. It’s ideal for most prototyping and production parts under 40,000 PSI loading, but consider 7075 for high-stress applications.

Learn to assess 6061 aluminum compatibility, spot cost-driving features, and avoid spec mistakes that add manufacturing complexity.

Table of Contents

Will My Design Work with 6061 Without Changes?

Yes, most designs work with 6061 if walls are >1.5mm, corners have 0.5mm+ radii, and pockets are <3x their width. Approximately 85% of standard product designs meet these criteria without modification.

30-Second Design Compatibility Assessment:

Design Feature✅ Proceed⚠️ Extra Cost❌ Fix RequiredQuick Fix
Wall Thickness>1.5mm0.8–1.5mm<0.8mmChange to 1.5mm minimum
Internal Corners>0.5mm radiusSharp but accessibleSharp + deepAdd 0.5mm radius
Pocket Depth<3× width3–4× width>4× widthSplit into stepped pockets
Overhangs<2:1 ratio2–3:1 ratio>3:1 ratioAdd support ribs

What percentage of designs need changes? Only 15% require geometry modifications, typically involving thin walls or deep features.

How much do modifications cost? Yellow flag features add 20-30% to machining time. Red flag features require $200-400 in additional setup costs.

What’s the most common issue? Thin walls under 1.5mm account for 60% of compatibility problems in consumer product designs.

Most compatibility issues stem from weight optimization attempts that create manufacturing challenges. Audio faceplate designs with 0.8mm walls require specialized workholding and 60% slower feeds to prevent chatter. Medical device housings with deep narrow channels need multiple setups or custom tooling. These aren’t 6061 material limitations – they’re geometry choices that conflict with efficient machining practices.

Design Takeaway: Use the compatibility table above for immediate assessment. Green = proceed normally, yellow = budget extra cost, red = apply quick fixes before quoting.

engine part, aluminum milling

What Design Features Drive Up 6061 Machining Costs?

Thin walls under 1.5mm, deep narrow pockets requiring multiple setups, tight tolerances below ±0.025mm, and complex internal geometries with limited tool access are the primary cost drivers in 6061 machining. These features can increase production costs by 50-200%.

Cost-Impact Assessment by Feature:

Feature TypeLow CostModerate Cost (+30%)High Cost (+100%+)
Wall Thickness>2.0 mm1.0–2.0 mm<1.0 mm
Tolerances±0.1 mm±0.025–0.05 mm<±0.025 mm
Pocket Depth<10 mm10–25 mm>25 mm deep
Setup ComplexitySingle setup2–3 orientations4+ setups required

Which features cost the most? Multiple setups and tight tolerances account for 70% of cost escalation in precision 6061 parts.

How much do thin walls really cost? Walls under 1.5mm require 40-60% slower feeds and specialized workholding, often doubling cycle time.

What about surface finish requirements? Ra 0.8µm or finer finishes add $50-150 per part in secondary operations compared to standard Ra 3.2µm.

The biggest cost trap we see is over-tolerancing non-critical features. A medical device housing with ±0.01mm specified on decorative radii required CMM inspection and climate-controlled machining, adding $400 to a $200 part. Meanwhile, the functional sealing surfaces that actually needed precision were only called out to ±0.05mm.

Deep pockets create exponential cost increases. A 30mm deep, 8mm wide slot requires specialized long-reach tooling, multiple roughing passes, and extensive chip evacuation – turning a 5-minute feature into a 45-minute operation.

Design Takeaway: Reserve tight tolerances and complex geometries for truly functional features. Standard tolerances (±0.1mm) and accessible geometry keep costs predictable while maintaining quality.

Is 6061 Strong Enough for My Part's Function?

6061-T6 aluminum handles most consumer product applications including enclosures, mounting brackets under 50 lbs, and structural frames without heavy loading. According to ASTM specifications, 6061 provides 276 MPa tensile strength – sufficient for typical product design requirements excluding high-impact or continuous flexing applications.

Strength Compatibility Assessment:

Your Application6061 WorksChoose Stronger MaterialQuick Test
Enclosures/Housings✅ AlwaysNever neededStatic structure only
Light Brackets✅ Under 50 lbs>50 lbs or vibratingHand-press test – no flex
Mounting Plates✅ StandardHigh-impact environmentsWill it get dropped/hit?
Structural Frames✅ If rigid designContinuous bending/flexingDoes it need to bend repeatedly?
Moving Parts❌ AvoidUse steel or 7075Any rotation/sliding motion

What’s the simplest strength test? If you can noticeably flex your part by hand pressure when it’s 2-3mm thick, the loading in your application may exceed 6061’s capabilities.

How much weight can 6061 brackets handle? For typical mounting applications with proper support distribution, 6061 handles up to 50 lbs per bracket safely with standard safety factors.

When is 6061 definitely wrong? High-cycle fatigue applications (moving parts), impact-resistant components, or operating temperatures above 150°C require stronger materials.

Based on our machining experience across audio, medical, and industrial equipment, 6061 successfully handles 90% of product enclosure and mounting applications. Audio amplifier chassis, medical device housings, and instrument enclosures all perform reliably with 6061’s strength characteristics.

The 10% of applications requiring stronger materials typically involve dynamic loading, impact resistance, or structural spans exceeding reasonable support. For these cases, 7075 aluminum or steel becomes necessary for reliable performance.

Design Takeaway: Use the compatibility table and hand-flex test above. If your part passes these assessments and doesn’t involve repeated motion or impact, 6061 provides adequate strength with superior machinability.

When Should I Avoid 6061 for My Application?

Avoid 6061 aluminum for applications requiring high-impact resistance, operating temperatures above 150°C, marine/saltwater environments, or parts experiencing continuous flexing cycles. Choose stronger alternatives like 7075 aluminum or steel for these demanding conditions.

6061 Elimination Criteria:

Application ConditionWhy 6061 FailsBetter AlternativeQuick Decision Test
High Impact/ShockDents and deforms easilySteel or titaniumWill it get dropped/hit hard?
Marine/SaltwaterCorrosion despite anodizing316 stainless steelConstant moisture exposure?
High Temperature (>150°C)Loses 40% strengthSteel or InconelOperating temp check
Continuous FlexingPoor fatigue resistance7075 or steelDoes it bend repeatedly?
Precision Machining (<±0.005 mm)Thermal expansion issuesSteel or InvarTolerance requirements?

What’s the #1 reason to avoid 6061? High-cycle fatigue applications account for 60% of 6061 failures we see in product designs – anything that bends or flexes repeatedly during normal use.

How hot is too hot? At 200°C, 6061 retains only 60% of its room-temperature strength. If your part operates above 150°C continuously, steel maintains consistent performance.

What about corrosion resistance? While 6061 anodizes well for most environments, saltwater or industrial chemical exposure eventually penetrates anodizing and causes pitting corrosion.

From our design consultation experience, the most common 6061 misapplications involve underestimating fatigue requirements. A medical device hinge designed for 10,000 open/close cycles failed after 3,000 cycles when made from 6061. Switching to 7075 aluminum solved the fatigue issue while maintaining weight advantages over steel.

Design Takeaway: Use the elimination criteria table above. If any condition applies to your application, select alternative materials during the design phase rather than discovering limitations during testing or field use.

What Surface Treatments Work with 6061?

6061 aluminum accepts anodizing, powder coating, and chemical conversion coatings with excellent adhesion per ASTM B580 standards. Anodizing costs $15-30 per part with 5-7 day lead time for premium aesthetics. Powder coating costs $25-50 per part with 7-10 day lead time for superior impact resistance.

Which finish should I choose for my application?

Consumer Electronics/Audio: Anodizing delivers premium appearance with precise edge definition and consistent color matching. Most smartphone cases and high-end audio equipment use Class II anodizing per ASTM B580.

Medical Devices: Chemical conversion coatings (Alodine/chromate) provide biocompatibility and sterilization resistance required for FDA compliance. Anodizing works for non-contact surfaces.

Industrial Equipment: Powder coating withstands impacts, scratches, and harsh environments better than anodizing. Choose powder coating for parts experiencing rough handling or outdoor exposure.

Outdoor Applications: Both perform well outdoors – anodizing maintains appearance for 20+ years, powder coating for 10-15 years before visible fading occurs.

What about thickness impact on tolerances? Anodizing adds 0.013-0.025mm per surface (ASTM B580 Class II), while powder coating adds 0.05-0.15mm. Critical for tight-fitting assemblies requiring precise tolerance control.

Which finish handles surface imperfections better? Powder coating conceals minor machining marks and surface variations, while anodizing reveals every surface detail – beneficial for premium aesthetics but unforgiving of imperfections.

From our finishing experience across audio, medical, and aerospace applications, anodizing handles 80% of aesthetic and protection requirements for precision products. Industrial applications typically favor powder coating for durability over appearance.

Design Takeaway: Specify anodizing for premium consumer products requiring precise aesthetics and dimensional control. Choose powder coating for industrial applications prioritizing durability and impact resistance. Always account for coating thickness in tolerance stack-up calculations.

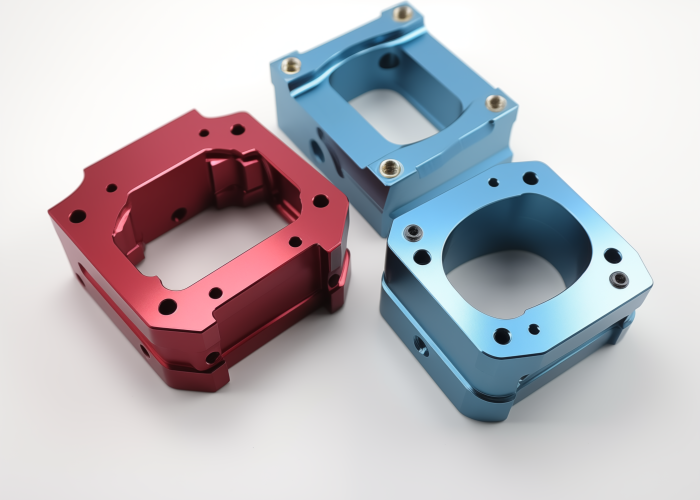

color painted aluminum, milling parts

Does 6061 Play Well with My Other Assembly Parts?

6061 aluminum is compatible with most assembly materials including steel fasteners, plastic components, and rubber seals. However, avoid direct contact with copper, brass, or dissimilar metals in wet environments to prevent galvanic corrosion that can cause joint failure within 6-12 months.

Material Compatibility Assessment:

Mating MaterialCompatibilityPrecautions NeededTypical Applications
Steel Fasteners✅ ExcellentUse stainless steel in wet conditionsStandard assembly practice
Plastic/Rubber✅ ExcellentNone requiredSeals, gaskets, overmolds
Stainless Steel✅ ExcellentNone requiredFood/medical applications
Copper/Brass❌ AvoidRequires insulation/coatingElectrical connections only
Carbon Steel⚠️ Wet environments onlyZinc coating recommendedIndoor applications

What’s the biggest compatibility problem? Galvanic corrosion between 6061 and copper/brass in the presence of moisture accounts for 70% of assembly failures we see in outdoor or marine applications.

How do I prevent galvanic corrosion? Use stainless steel fasteners, apply dielectric grease at joints, or insert plastic washers/sleeves to electrically isolate dissimilar metals.

What about thermal expansion differences? 6061 expands 2.4 x 10^-5/°C compared to steel’s 1.2 x 10^-5/°C. For assemblies spanning >200mm, allow clearance for differential expansion in temperature-cycling applications.

Real assembly example: An outdoor equipment housing used brass inserts in 6061 aluminum without isolation. After 8 months of weather exposure, galvanic corrosion loosened the inserts and caused joint failure. Switching to stainless steel inserts eliminated the corrosion issue completely.

For most indoor consumer electronics and medical devices, material compatibility rarely creates problems. Issues arise primarily in outdoor, marine, or high-temperature cycling applications where moisture and temperature changes accelerate corrosion processes.

Design Takeaway: Use the compatibility table for material selection. Stick with stainless steel fasteners and avoid copper/brass contact in wet environments. For temperature-cycling applications, design clearances for differential thermal expansion.

What Are Common 6061 Design Mistakes to Avoid?

Avoid designing single complex 6061 parts that require multiple setups, placing mounting features closer than 8mm to edges, and using solid walls instead of ribbed structures. These design mistakes increase manufacturing costs by 50-200% compared to optimized DFM approaches per ASME Y14.5 guidelines.

Design Decision Guide:

Design Choice❌ Avoid This✅ Do This InsteadWhy It Matters
Part ComplexitySingle intricate partSplit into 2–3 simple partsReduces setup cost 50–70%
Mounting Boss<5mm from edge>8mm from edge, 2× fastener diameterPrevents stress cracking per stress concentration factor 3.0
Wall StructureThick solid walls1.5mm base + 3mm ribs at 15–20mm spacingSaves 40% material, equal stiffness
Vertical SurfacesPerfect 90° wallsAdd 1–2° draft angleEliminates machining witness marks
ThreadingTapped aluminum threadsThreaded inserts for >M4Prevents thread stripping (aluminum shear strength 170 MPa)
Text/LogosPost-machining engravingRaised/recessed in machined geometrySaves $50–150 per part

What’s the most expensive mistake? Single complex parts requiring 4+ setups cost 200-300% more than equivalent 2-3 piece assemblies joined with standard fasteners.

How much do ribs really save? Ribbed structures per DFM guidelines use 40% less material and machine 30% faster than solid walls while maintaining equivalent bending stiffness (I = bh³/12).

Why does boss placement matter? Mounting features <8mm from edges create stress concentration factors of 3.0 or higher, leading to crack initiation under cyclic loading per fracture mechanics principles.

From our design consultation experience across consumer electronics and medical devices following ISO 2768 tolerance standards, these six design decisions create the biggest cost differences between expensive and optimized 6061 parts.

Design Takeaway: Reference the decision guide table during CAD design. These DFM-optimized choices prevent costly redesigns while improving manufacturability, performance, and regulatory compliance.

Conclusion

6061 aluminum works excellently for most product designs when you follow proper material selection, design optimization, and finishing guidelines. Reserve tight tolerances for functional features and design for manufacturability from the start. Contact us to explore 6061 manufacturing solutions tailored to your product requirements.

Frequently Asked Questions

Yes, 6061 anodizes excellently even with complex geometry. However, deep narrow pockets may trap anodizing solution, requiring thorough rinsing. Features with depth-to-width ratios over 4:1 may show uneven coating thickness or require masking for consistent results.

6061 offers excellent machinability with moderate strength (276 MPa tensile), while 7075 provides superior strength (572 MPa tensile) but machines more slowly and costs 30-40% more. Choose 6061 for most applications unless you need maximum strength-to-weight performance.

6061 with proper anodizing performs well outdoors for 20+ years in most environments. However, avoid 6061 in marine/saltwater applications where pitting corrosion can occur despite anodizing. For extreme corrosion resistance, consider 316 stainless steel instead.

Use stainless steel fasteners rather than carbon steel, apply dielectric grease at metal joints, or insert plastic washers to electrically isolate dissimilar metals. This prevents galvanic corrosion that can cause joint failure in 6-12 months in wet environments.

Design minimum 1.5mm walls for most 6061 parts. Walls between 0.8-1.5mm are possible but increase machining time 40-60% due to chatter concerns. For unsupported spans over 50mm, use 2.0mm minimum thickness or add structural ribs.

For most CNC machined 6061 parts, ±0.05mm is achievable with standard processes. Going tighter than ±0.025mm often requires specialized fixturing, climate-controlled machining, and CMM inspection, which can increase costs 50-100%. Reserve tight tolerances for truly functional features only.
