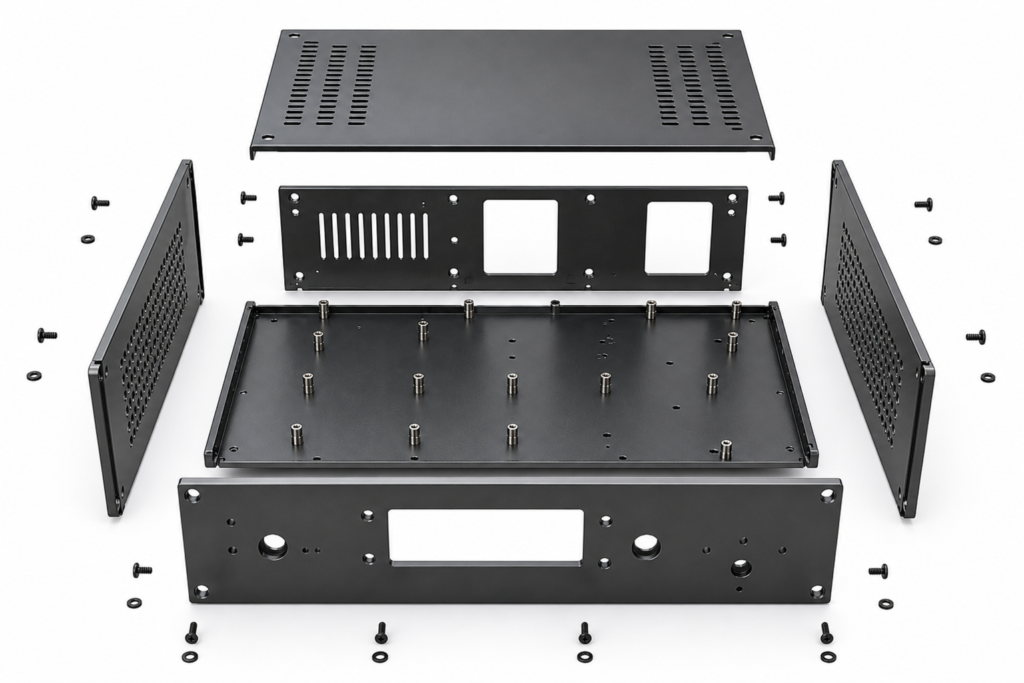

Why Your Amplifier Chassis Doesn’t Fit, Finish, or Assemble as Expected
Most amplifier chassis designs look correct in CAD.
But once parts are made, issues show up in fit, finish, and assembly — where small details turn into real problems.
Typical issues we see:
- connector cutouts slightly off from PCB positions
- tolerance stack causing panels or covers not to fit cleanly

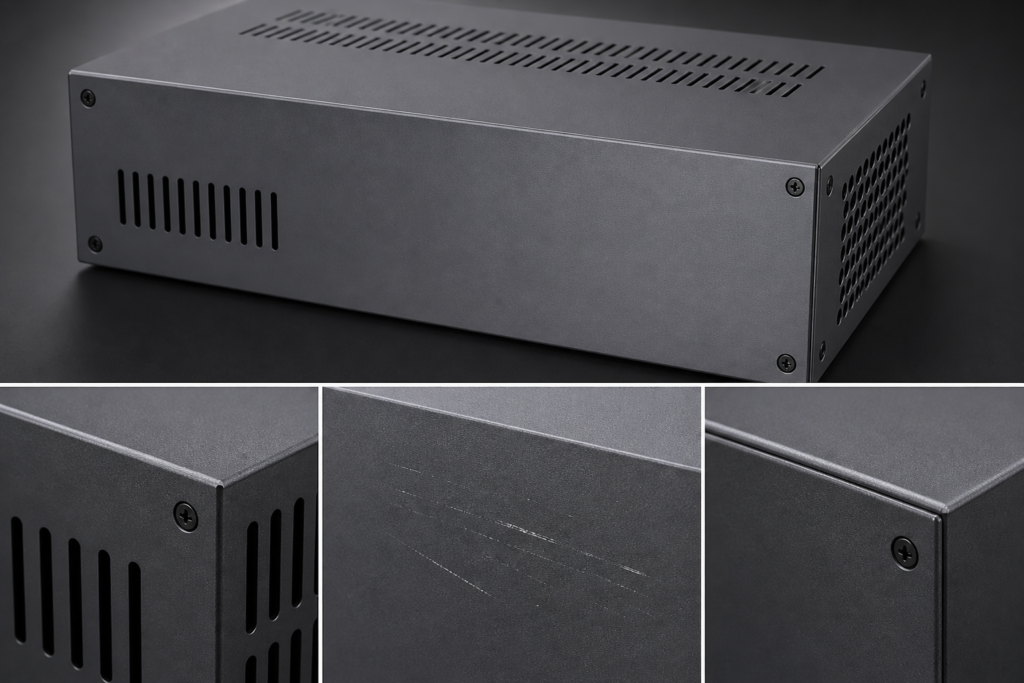

- finishes that look consistent on samples but shift in production
These problems don’t come from obvious design errors.
They come from how materials behave, how parts are fabricated, and how tolerances stack during assembly.
Before production, we review your drawing to identify what may not align, what may affect finish consistency, and what could cause assembly issues — so adjustments can be made early, not after parts are built.
Not Sure If Your Chassis Will Fit or Assemble Correctly?
Assembly issues don’t show in drawings. We flag them early.

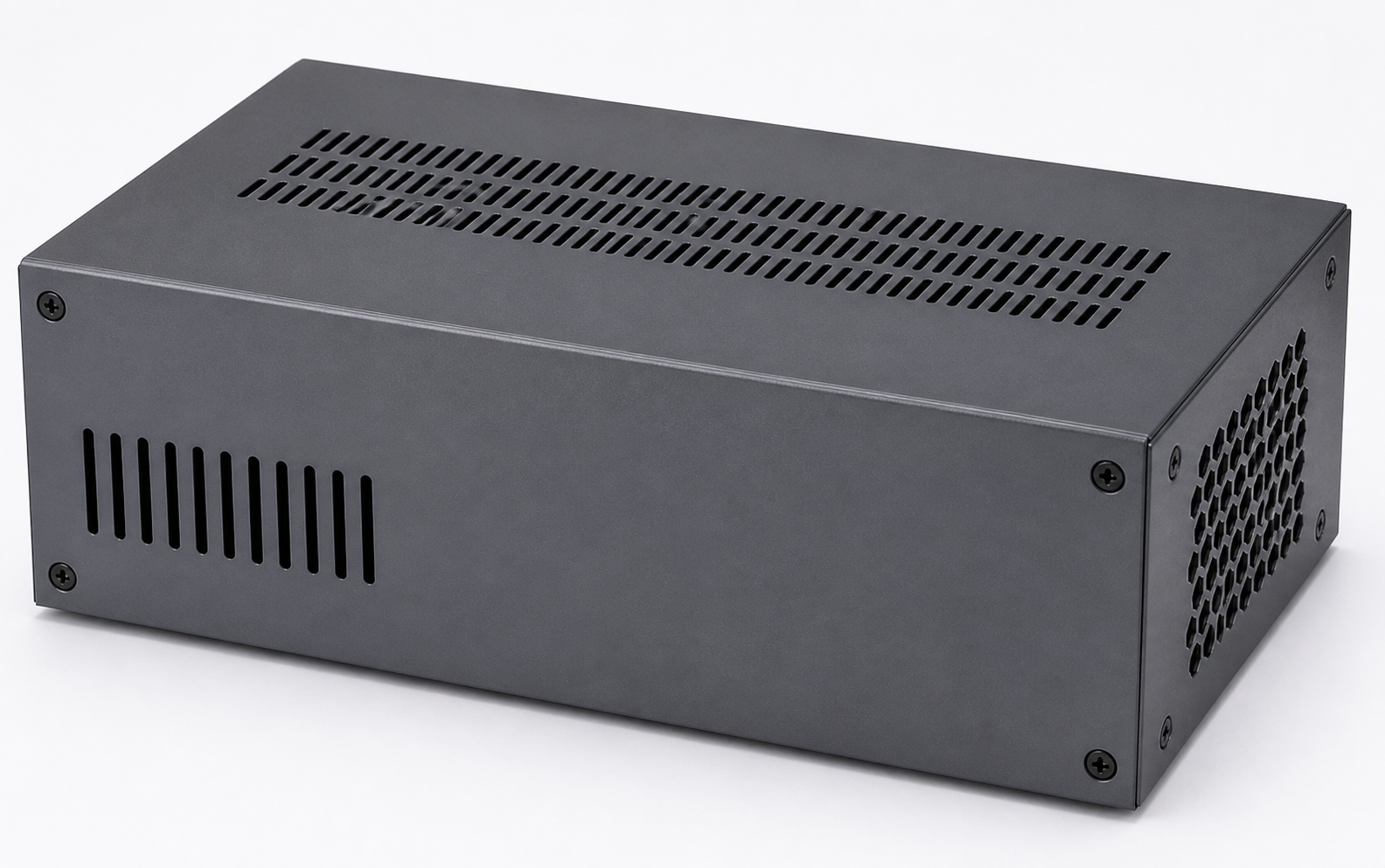

Aluminum vs Steel — What Actually Changes in Production
Material choice is often made early, but its impact shows up later—during fabrication, finishing, and final assembly.
Aluminum is commonly used for amplifier chassis because it is lightweight, easier to machine, and supports anodizing for a clean, premium surface. It also performs better for heat dissipation in compact designs.
Steel offers higher rigidity and better structural stability, especially in thinner sections. However, it requires coating instead of anodizing, which changes how the final product looks and how consistent the finish can be.
The differences are not just theoretical—they directly affect how your chassis behaves in production.
Aluminum vs Steel in Amplifier Chassis Manufacturing
| Factor | Aluminum | Steel |
|---|---|---|
| Weight | Lightweight, easier to handle | Heavier, increases overall product weight |
| Heat Dissipation | Better thermal conductivity | Lower heat transfer, may trap heat |
| Rigidity | Lower stiffness, may flex in thin sections | Higher rigidity, more stable structure |
| Deformation Risk | Higher risk if thickness/support is insufficient | More resistant to deformation |
| Surface Finish | Supports anodizing (clean, premium look) | Requires coating (powder coat, paint) |

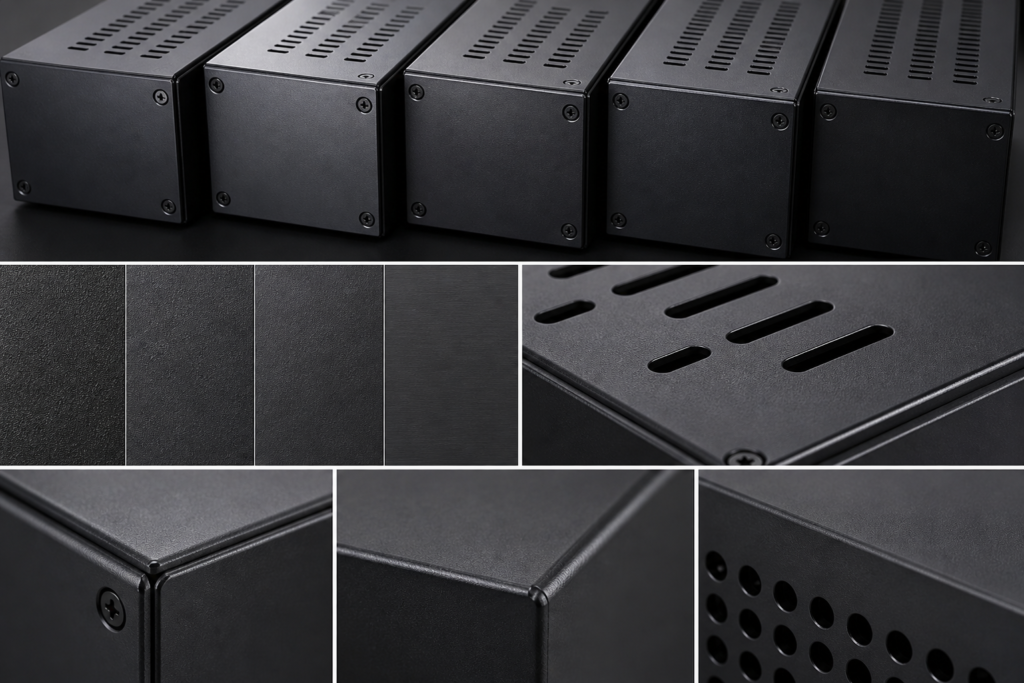

| Finish Consistency | Anodizing color may vary between batches | Coating more consistent but less “premium” |
| Machining & Bending | Easier to machine and form | Harder to process, may increase cost |
| Tolerance Stability | More sensitive to stress and finishing processes | More stable after fabrication |
| Cost Impact | Usually higher material cost | Lower material cost but higher processing effort |
Material selection is not just a design choice—it affects how your chassis performs during fabrication, finishing, and assembly.
When reviewing your drawing, we check whether the selected material matches:
- structural requirements
- thermal behavior
- surface finish expectations
When reviewing your drawing, we check whether the selected material fits your structure, heat, and finish requirements, and point out what should be adjusted to avoid issues in production.
How Thick Should an Amplifier Chassis Be?
Chassis thickness is often decided early, but its impact shows up later—during fabrication, finishing, and final assembly.
Designs that look correct on drawings can still run into problems if thickness is not properly balanced.
Typical thickness ranges used in amplifier chassis are:
- Aluminum: 2.0 – 4.0 mm
- Steel: 1.5 – 3.0 mm
These ranges are commonly used, but they are not fixed rules.
Where designs run into issues:
- below 2.0 mm aluminum → panels may flex, deform, or vibrate
- thin steel sections → may distort after bending
- thicker panels → increase machining time, cost, and assembly difficulty
- uneven thickness across panels → can lead to fit and alignment issues
We often see designs within these ranges still run into problems depending on layout, support structure, and mounting conditions.
The correct thickness depends on:
- overall chassis size
- internal component layout and mounting points
- required rigidity and vibration resistance
- material type and finishing process
When reviewing your drawing, we check whether the selected thickness provides enough structural support without introducing unnecessary weight or cost, and point out where adjustments may prevent deformation, alignment issues, or assembly problems.

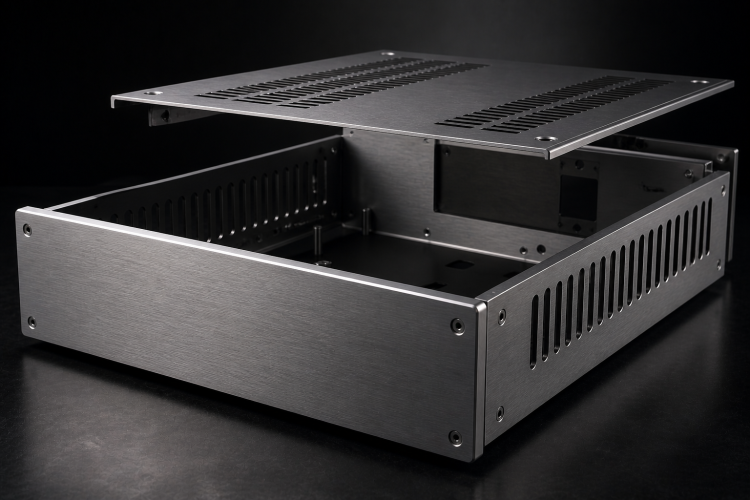

How Internal Layout Causes Assembly and Cooling Problems
Internal layout often looks correct in CAD, but problems appear later—during assembly or when the amplifier runs under load.
Common issues we see include:
- mounting points that don’t align cleanly with the enclosure
- connectors placed too close to panel edges, causing fit or tolerance problems
- components packed too tightly, making assembly difficult
- blocked airflow paths, leading to heat buildup inside the chassis
These issues are not always obvious in the design stage. In many cases, they only become visible after parts are made—when fixing them is costly and time-consuming.
Layout also directly affects assembly efficiency. Limited access to fasteners, tight clearances, or poor component positioning can increase assembly time and lead to inconsistent builds.
From a thermal perspective, layout determines how heat moves through the enclosure. Poor placement of heat-generating components can create localized hot spots, even if the overall design seems acceptable.
When reviewing your drawing, we check:
- alignment between components and enclosure features
- spacing for assembly and fastening
- airflow paths and heat dissipation routes
We identify what should be adjusted before production to avoid rework, overheating, and performance issues.
Why Front Panels Look Wrong After Machining
Front panels often look clean in CAD, but problems appear after machining and finishing—especially because this is the most visible part of the product.
Common issues we see include:
- internal corners that cannot be machined sharply, resulting in unexpected radii
- tight spacing between holes, buttons, or displays, leading to alignment variation
- thin sections around cutouts that deform during machining or finishing
- slight mismatches between front panel features and internal components
These problems are rarely obvious in the design stage. They often only become visible after machining and finishing, when the part is already complete and costly to rework.
Front panels are also highly sensitive to finishing. Brushed textures, anodizing, and engraving highlight even minor imperfections. Small inconsistencies that would not matter in internal parts become immediately noticeable on the front face.
Many designs fail not because they are incorrect, but because they exceed practical machining limits or do not account for finishing effects.
When reviewing your drawing, we check:
- whether feature sizes and spacing are manufacturable
- whether corners, edges, and cutouts will machine cleanly
- whether front panel features align with internal components
We identify what should be adjusted in feature size, spacing, and layout before production to avoid visible defects, misalignment, and inconsistent finish quality.

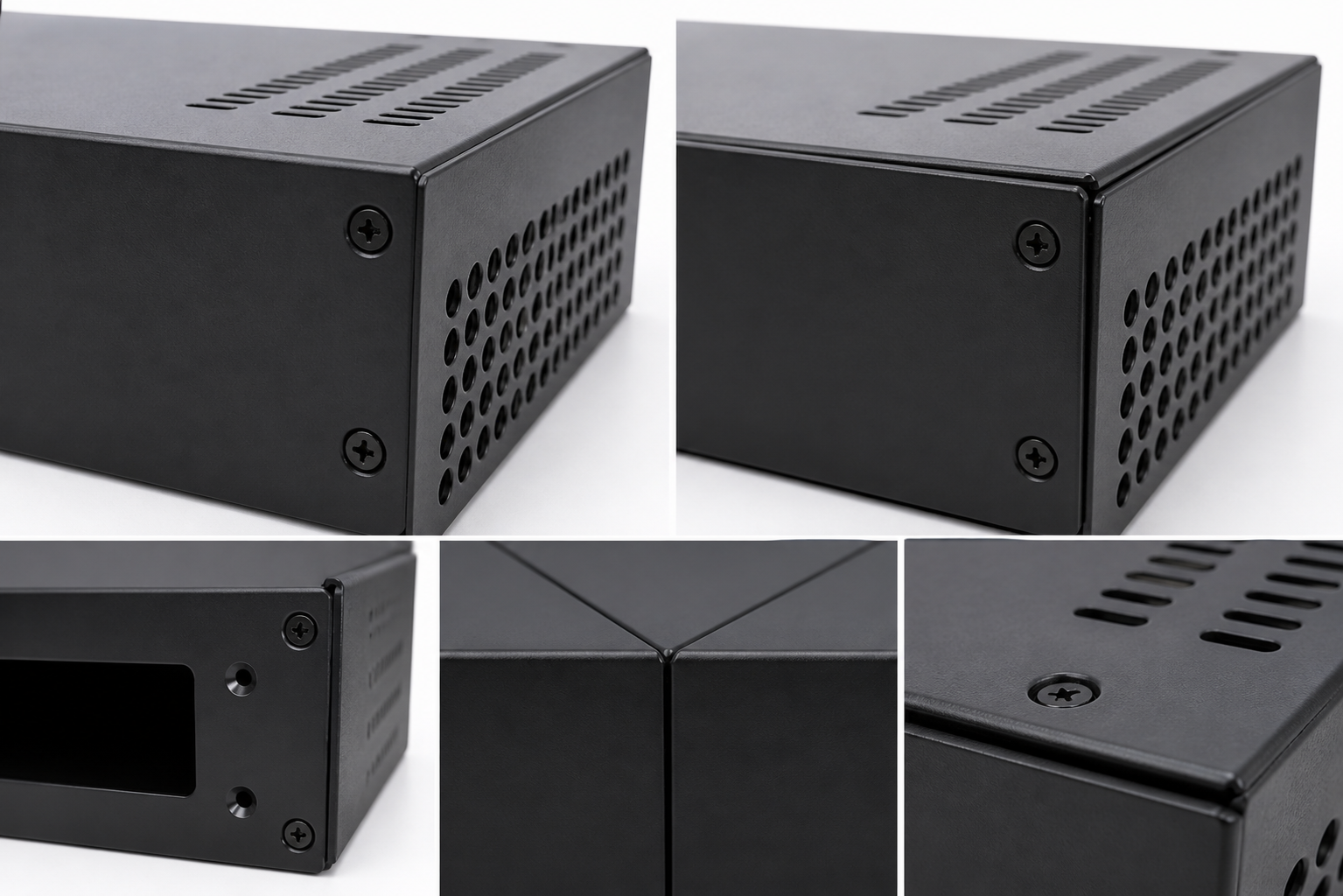

Why Amplifier Parts Fail to Align During Assembly
Parts that look aligned in CAD do not always align during assembly. Small deviations in machining, bending, and tolerance stack-up can create noticeable fit issues when components come together.
Common alignment problems include:
- mounting holes that shift slightly relative to PCB positions
- connectors that do not sit flush with panel cutouts
- stacked components creating cumulative offset
- panels that require force to fit, causing stress or distortion
These issues are not always visible in the design stage. In many cases, they only become obvious during assembly, when parts are already made and costly to modify.
Alignment problems are usually caused by a combination of factors rather than a single error. Tolerances across multiple parts, material movement during fabrication, and finishing processes all contribute to final positioning.
Even small variations can prevent clean assembly. A slight shift in hole position or panel geometry can lead to misalignment that affects both fit and appearance.
When reviewing your drawing, we check:
- how mounting points relate to enclosure features
- how tolerances accumulate across components
- whether connector positions will align with external panels
Based on this review, we point out the areas that may need adjustment so components can align correctly without rework, force fitting, or modification.

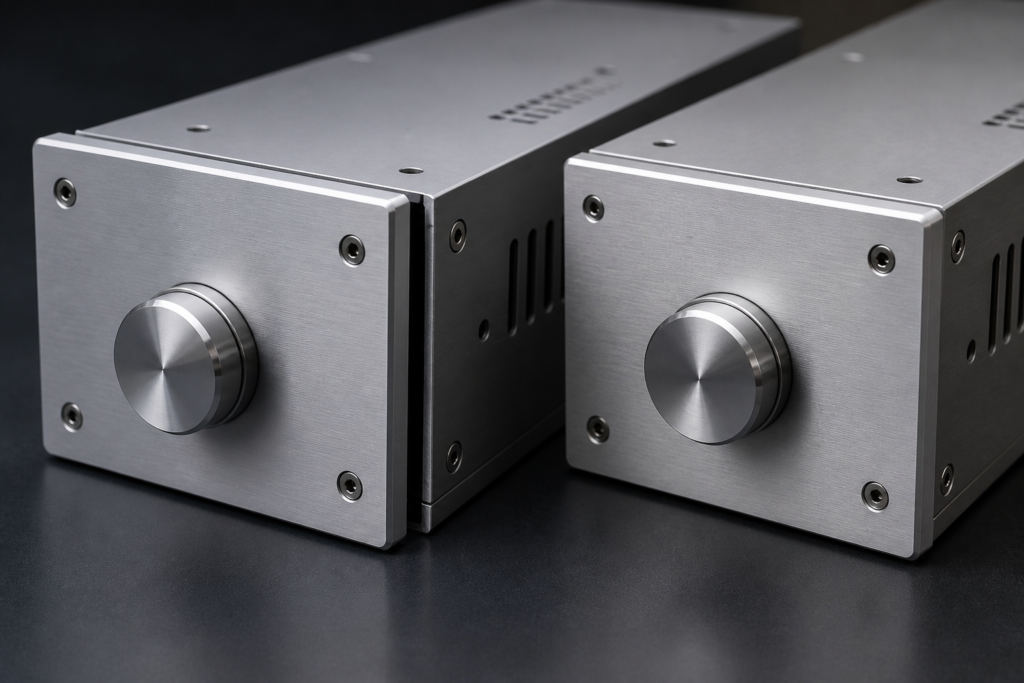

Tolerance Stack Issues That Affect Chassis Fit
Tolerance is often defined per feature, but problems appear when multiple tolerances combine across parts.
In amplifier chassis, even small variations can accumulate and affect final fit.
Typical tolerance-related issues include:
- hole positions drifting across multiple panels, causing misalignment
- gaps or interference between assembled parts
- connectors not aligning cleanly with external cutouts
- covers or panels not seating properly
These issues are rarely caused by a single dimension being out of spec. They result from how tolerances stack across components, especially in assemblies with multiple mating parts.
Tolerance stack-up becomes more critical when:
- multiple panels are assembled together
- components must align through different layers
- tight visual alignment is required on visible surfaces
In many cases, designs that look correct dimensionally still run into fit problems because tolerance interaction was not considered.
Once parts are manufactured, correcting these issues may require rework, slotting, or redesign of key features.
When reviewing your drawing, we evaluate:
- how tolerances accumulate across mating parts
- which dimensions control alignment and fit
- whether current tolerances are realistic for the process
We highlight where tolerance adjustments or design changes can improve fit and reduce the risk of assembly issues.
Why Connectors and Cutouts Don’t Line Up
Connector alignment issues are one of the most common problems in amplifier chassis assemblies. Designs may look correct in CAD, but small variations during fabrication can prevent connectors from aligning cleanly with panel cutouts.
Typical problems include:
- connectors sitting slightly off-center relative to panel openings
- insufficient clearance around cutouts, causing interference during assembly
- variation between PCB position and enclosure geometry
- connectors not sitting flush against the panel surface
These issues often come from how different components are referenced in the design. PCB layouts, mounting points, and enclosure features may each be correct individually, but not fully aligned as a system.
Small deviations in hole position, panel bending, or tolerance stack-up can shift connector positions enough to create visible or functional misalignment.
Connector and cutout alignment is especially sensitive because it affects both function and appearance. Even slight offsets can be noticeable on the exterior and may interfere with cable connections.
Once parts are produced, correcting these issues typically requires enlarging cutouts, modifying panels, or adjusting mounting features.
To avoid these problems, connector positions need to be evaluated together with PCB mounting and enclosure geometry. Cutout sizing and clearances should also account for real manufacturing variation.
Before production, your drawing can be reviewed to confirm alignment between components and enclosure features, and to identify where spacing, positioning, or tolerances may need adjustment to ensure connectors fit cleanly without modification during assembly.
Designing for Clean, Repeatable Assembly
Some amplifier chassis designs assemble smoothly every time. Others require adjustment, force, or operator judgment to make parts fit.
The difference is usually not complexity—it is how the design handles positioning, access, and tolerance in real assembly conditions.
Designs that assemble cleanly tend to:
- guide parts into position naturally without forcing alignment
- provide enough access for tools and fastening
- allow realistic clearances between mating components
- include simple features that control positioning, such as edges, slots, or references
Designs that cause problems often:
- rely on tight fits without accounting for variation
- require parts to be held or adjusted during fastening
- place fasteners in hard-to-reach locations
- depend on visual alignment instead of defined positioning features
These differences become visible during production. Assemblies that depend on manual adjustment tend to vary from unit to unit, increasing assembly time and the risk of damage or inconsistent appearance.
In amplifier chassis, this directly affects both function and perceived quality. Misalignment, uneven gaps, or stressed components often trace back to how the design handles assembly.
Before production, the design should be evaluated based on how it will actually be assembled, not just how it fits in CAD.
From this perspective, it becomes clear where positioning, access, or clearance needs to be adjusted so that parts can be installed consistently without force or rework.

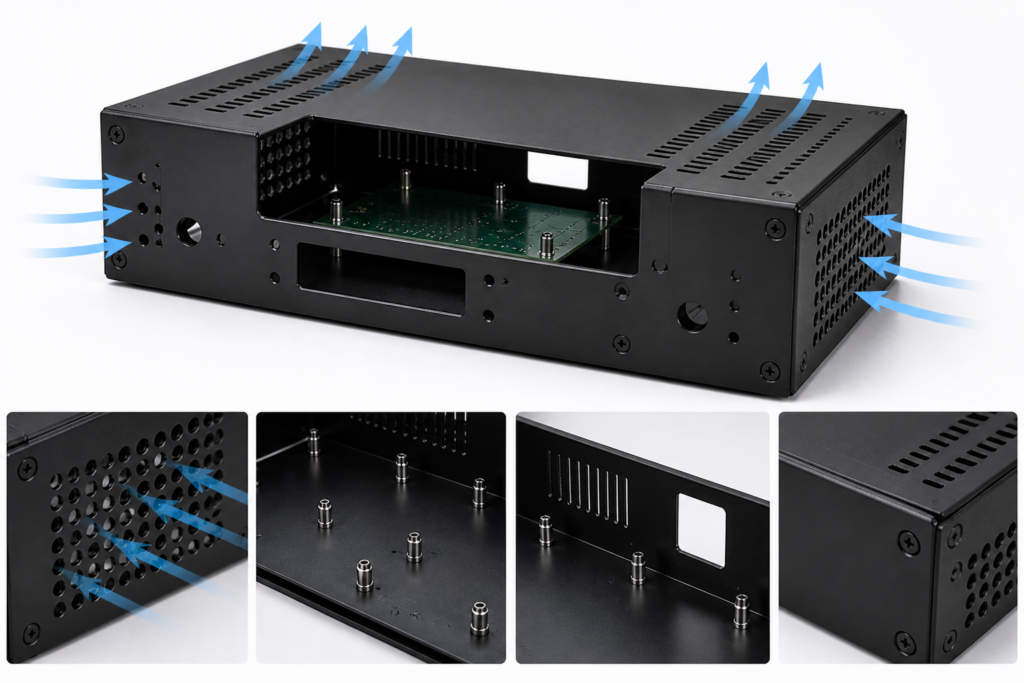

Why Heat Builds Up in Amplifier Enclosures
Heat problems usually come from three factors working together: where heat is generated, how it moves, and where it gets trapped.
In amplifier chassis, the enclosure is not just a cover. It becomes part of the thermal path. If heat-generating components are placed in areas with poor airflow, limited contact, or blocked escape paths, temperature can rise even when the design looks acceptable on paper.
A common mistake is treating heat as a component issue only. In practice, heat buildup is often caused by the interaction between:
- component placement
- panel material and thickness
- vent location
- internal spacing
- surface contact for heat transfer
- external airflow around the chassis
For example, a compact layout may save space but trap heat around transformers or power devices. A vent may look sufficient, but if it is not aligned with the actual heat source, it may have limited effect.
Reducing heat buildup typically involves:
- separating high-heat components from sensitive areas
- aligning vents with heat-generating zones
- avoiding enclosed pockets where heat cannot escape
- using panel contact or material properties to assist heat transfer
The key is not simply adding ventilation, but ensuring heat has a clear and continuous path to move out of the enclosure.
Design adjustments at this stage can reduce heat buildup significantly, but the effectiveness depends on how layout, material, and airflow work together in your specific design.
When Ventilation Becomes Critical
Not all amplifier designs require active ventilation. In many cases, heat can be managed through material choice, layout, and surface contact. The challenge is knowing when ventilation becomes necessary rather than optional.
Designs that rely only on passive heat dissipation tend to work when:
- power levels are moderate
- heat-generating components are well distributed
- the enclosure allows heat to spread through panels
Ventilation becomes critical when:
- heat sources are concentrated in a small area
- internal spacing restricts airflow
- enclosure size limits heat dissipation surface
- components operate under sustained load
In these situations, relying on enclosure material alone is usually not enough. Heat tends to accumulate in localized areas, especially around transformers, power modules, or tightly packed boards.
In many designs, overheating only becomes obvious after assembly or testing, when the enclosure traps heat more than expected. At that stage, adding ventilation often requires reworking panels or redesigning the enclosure.
Adding ventilation is not just about placing holes or slots. Effectiveness depends on:
- positioning vents near actual heat sources
- creating a path for air to enter and exit
- avoiding internal layouts that block airflow
Vent area alone does not guarantee cooling performance. Poor placement can limit airflow even when ventilation looks sufficient.
Design adjustments at this stage can significantly reduce heat buildup, but the right approach depends on how airflow, layout, and enclosure structure work together in your specific design.
Why Thin Metal Panels Warp After Fabrication
Thin panels are commonly used in amplifier chassis to reduce weight and cost. However, they are also more sensitive to stress during fabrication and finishing.
Panels that look flat in design can distort slightly after cutting, bending, or surface treatment. This distortion may be small, but it becomes visible when panels are assembled or aligned with other components.
Common causes of warping include:
- internal stress released during machining or laser cutting
- uneven forces introduced during bending
- material reacting to finishing processes such as anodizing or coating
- large flat areas without sufficient structural support
These effects are difficult to predict from drawings alone. A design that appears stable in CAD may still shift during real manufacturing processes.
Warping typically becomes noticeable when:
- panels no longer sit flush against mating surfaces
- gaps appear between assembled parts
- alignment across visible surfaces is inconsistent
In amplifier chassis, even slight deformation can affect both appearance and assembly quality.
Reducing the risk of warping usually involves:
- balancing thickness with panel size
- adding structural features such as bends, ribs, or supports
- avoiding large unsupported flat areas
- considering how finishing processes may affect material behavior
In many cases, deformation only becomes obvious after fabrication or finishing, when correction requires reworking parts or adjusting the design.
Evaluating these risks early helps avoid fit issues and visible defects, especially in designs with large panels or tight alignment requirements.
Are There Hidden Fit or Tolerance Issues in Your Design?
Send your drawing — we’ll flag alignment and tolerance risks early.
Why Some Amplifier Cases Look Cheap After Production
Two amplifier cases can use the same material, the same finish, and the same process—and still look completely different in quality.
The difference is rarely caused by a single factor. It usually comes from how small details combine across the design and manufacturing stages.
Designs that feel premium tend to have:
- consistent spacing and alignment across visible features
- clean edge transitions without distortion or rounding inconsistencies
- finishes that appear uniform across panels and surfaces
Designs that feel “cheap” often show subtle but noticeable inconsistencies:
- uneven gaps between panels or components
- slight misalignment in buttons, connectors, or display cutouts
- edges that look inconsistent after machining or finishing
- surfaces that reflect light unevenly due to finishing variation
These are not always design mistakes. Many of them come from how the design interacts with real manufacturing limits.
For example, a layout that pushes feature spacing too tightly may still be machinable, but small variations become visible on the final product. A finish that looks correct on a sample may behave differently across larger surfaces or multiple parts.
What makes this challenging is that these issues are often not visible until the product is assembled and viewed as a whole.
At that point, improving perceived quality usually requires reworking multiple elements rather than fixing a single feature.
A more reliable approach is to evaluate visible surfaces and alignment as a system, not as individual features.
From this perspective, it becomes clear where spacing, alignment, or finish expectations may need to be adjusted to achieve a consistent, premium appearance in production.
Surface Finish That Defines Product Quality
Surface finish is often judged as a final step, but most inconsistencies are created much earlier in the process.
In many cases, finish problems are not caused by the coating or anodizing itself, but by how the surface is prepared before finishing. Tool paths, machining marks, and edge conditions all influence how the final finish appears.
These differences are rarely visible on drawings or single samples. They become noticeable when multiple parts are finished and assembled together, especially on large or highly visible surfaces.
What looks consistent on one panel may appear uneven across a full chassis.
Surface Finish Options for Amplifier Chassis (Production Reality)
| Finish Type | Visual Effect | Where It Works Well | Common Issues in Production |
|---|---|---|---|
| Anodizing | Clean, metallic, premium | Aluminum front panels | Color variation between batches |
| Brushed + Anodized | Directional texture, high-end look | Visible surfaces | Inconsistent brushing direction across parts |
| Powder Coating | Solid color, uniform | Steel enclosures | Coating thickness may affect fit or edges |
| Sandblasting | Matte, non-reflective | Pre-treatment or standalone | Surface inconsistency if not controlled |
| Silk Screen / Laser Marking | Logos and labels | Branding areas | Alignment or contrast variation |
A key challenge is that finish quality is judged visually, not dimensionally. Even small variations in texture, color, or edge definition can change how the product is perceived.
Consistency across parts matters more than perfection on a single part.
From a production perspective, achieving this consistency depends on how machining, surface preparation, and finishing interact—not just on the finish type itself.
This is where many designs run into issues. The finish choice may be correct, but the underlying surface or geometry does not support a consistent result.
Evaluating finish expectations early helps avoid visible variation across panels, especially in designs where appearance is a key part of the product.
Front Panel Details That Make or Break Appearance
Front panels are judged as a whole, but small design details often determine whether the final product appears precise or inconsistent. Two designs can use the same material and finish, yet look very different once assembled. The difference usually comes from how individual features relate to each other in spacing, alignment, and proportion.
A clean, high-quality appearance is typically achieved when visible elements follow a consistent structure. The most sensitive details include:
- spacing between buttons, cutouts, and display areas
- alignment between connectors and panel openings
- consistency in margins and edge distances
- proportional relationships between different features
When these relationships are slightly off, the panel may still be functional but feel visually unbalanced.
These issues are rarely caused by machining accuracy alone. In many cases, the design itself introduces small inconsistencies that only become obvious once the panel is physically produced and viewed under real lighting conditions. What looks acceptable in CAD can become noticeable when the product is handled or compared across multiple units.
Front panel quality depends not only on precision, but on how intentionally the layout is structured as a complete visual system. Reviewing these details early helps reduce the risk of a product that is technically correct but visually inconsistent after production.
How to Get Clean Logos and Engraving on Metal
Logos and engraving often look sharp in design files, but the final result depends heavily on how the process interacts with material, surface condition, and feature size.
The biggest challenge is that engraving quality is limited by physical constraints, not just design accuracy. Very fine lines, small text, or tightly spaced details may not reproduce cleanly once applied to real metal surfaces.
Different methods produce different outcomes. Laser engraving, CNC engraving, and printing each behave differently in terms of edge sharpness, depth, and contrast. Choosing the wrong method for the design can lead to blurred edges, inconsistent depth, or poor visibility.
Clarity is typically affected by:
- line thickness and spacing between features
- surface condition before engraving (brushed, anodized, coated)
- contrast between engraved and surrounding areas
- scale of the logo relative to viewing distance
A logo that looks detailed on screen may lose definition if lines are too fine or contrast is insufficient after finishing.
In many cases, logo issues only become visible after finishing, when contrast and edge clarity are already fixed and difficult to correct. At that stage, improving the result usually requires reworking parts or adjusting the design.
Clean results usually come from simplifying fine details, adjusting line thickness, and matching the engraving method to the selected surface finish.
Reviewing logo details against the chosen process helps avoid unclear engraving and ensures the final mark remains readable and consistent across parts.
Which Finish Is Best for Amplifier Chassis?
There is no single “best” finish for amplifier chassis. The right choice depends on how the product will be used, how visible it is, and what level of consistency is expected in production.
Different finishes solve different problems. Choosing the wrong one does not usually cause failure, but it often leads to issues with appearance, durability, or assembly fit.
A practical way to evaluate finishes is to match them to real use conditions rather than visual preference alone.
Finish Selection by Use Case
| Finish Type | Best For | What It Delivers | Where It Can Go Wrong |
|---|---|---|---|
| Anodizing (Aluminum) | Premium front panels | Clean metallic look, good durability | Color variation between batches |
| Brushed + Anodized | High-end visible surfaces | Directional texture, refined look | Brushing inconsistency across parts |
| Powder Coating (Steel) | Structural enclosures | Strong coverage, uniform color | Thickness may affect fit and edges |
| Sandblasting | Matte appearance | Reduces reflection, hides minor marks | Surface inconsistency if not controlled |
| Laser Marking | Logos and labels | High contrast on anodized surfaces | Limited effect on non-treated metals |
How to Decide
The decision usually comes down to three priorities:
- Appearance → anodizing or brushed finishes for visible panels
- Durability → powder coating for protective outer structures
- Consistency across production → finishes less sensitive to batch variation
A common mistake is selecting a finish based on a single sample. What looks good on one part may behave differently across multiple panels or production runs.
Another factor is how finish interacts with the design itself. Tight fits, thin edges, or complex geometries can behave differently depending on coating thickness or surface treatment.
In many cases, the finish choice is correct, but the design does not fully support it in production.
Choosing the right finish is less about preference and more about how material, geometry, and production conditions work together.
Evaluating these factors early helps avoid appearance issues, fit problems, or inconsistencies that only become visible after parts are finished and assembled.
Why Brushed and Anodized Finishes Become Inconsistent
Brushed and anodized finishes are often selected for a premium look, but they are also among the most sensitive to variation across multiple parts. A single panel may appear correct on its own, yet differences become noticeable once panels are assembled together. This is where inconsistency shows up—not in individual parts, but in how they compare side by side.
The challenge comes from how these finishes interact with surface direction and preparation. Even small differences in machining or brushing orientation can change how light reflects across the surface. As a result, panels that meet the same specification may still appear visually different when placed next to each other.
In practice, variation often appears as:
- brushing directions that are slightly misaligned between panels
- subtle differences in surface texture after machining
- uneven reflection across adjacent parts
- edges and corners reacting differently compared to flat surfaces
These effects are not always caused by poor finishing. They often result from parts being processed individually rather than as a matched set. Orientation during brushing or finishing can also shift the final appearance, even when the same process is applied.
This is why a prototype may look consistent, but variation becomes visible in production when multiple panels are involved. Each part can meet specification on its own, yet still appear inconsistent when assembled.
Reducing this risk usually requires controlling how visible parts are prepared and processed together, rather than relying on finish specification alone. Evaluating this early helps avoid a situation where parts pass inspection individually but fail visually at the assembly level.
Why Anodizing Color Changes Between Batches
Surface defects usually don’t come from machining—they happen after finishing, during handling, transport, or assembly. This is why parts can pass inspection but still arrive with visible scratches.
The most common causes are:
- parts contacting each other during stacking or movement
- insufficient protection between processes
- large flat or exposed surfaces that pick up marks easily
- sharp edges that create contact points during handling
Brushed and anodized surfaces are especially sensitive because they reflect light. Even minor scratches that are barely visible in production can become obvious once the product is assembled.
Preventing these defects is less about one step and more about how parts move through production. In practice, this usually involves:
- separating parts to avoid direct contact
- applying protective films on visible surfaces
- controlling how parts are stacked and transported
- considering edge and surface exposure in the design
The challenge is that these issues are rarely visible until final assembly or unpacking, when fixing them means rework or rejection.
Reducing this risk requires thinking beyond machining and finishing, and considering how parts will be handled throughout production. Designs and processes that account for this early are far less likely to show visible defects at the final stage.
How to Prevent Scratches on Amplifier Cases
Surface defects usually don’t come from machining—they happen after finishing, during handling, transport, or assembly. This is why parts can pass inspection but still arrive with visible scratches.
The most common causes are:
- parts contacting each other during stacking or movement
- insufficient protection between processes
- large flat or exposed surfaces that pick up marks easily
- sharp edges that create contact points during handling
Brushed and anodized surfaces are especially sensitive because they reflect light. Even minor scratches that are barely visible in production can become obvious once the product is assembled.
In practice, reducing these defects usually involves:
- separating parts to avoid direct contact
- applying protective films on visible surfaces
- controlling how parts are stacked and transported
- considering edge and surface exposure in the design
These defects are often only discovered at final inspection or assembly, when parts are already finished and difficult to replace. Even small marks can lead to part rejection or shipment delays.
Reducing this risk depends on how parts are handled throughout production, not just how they are machined or finished. Designs and processes that account for this early are far less likely to show visible defects at the final stage.
Will Your Chassis Look Right Before You Release It for Production?
We review finish, edges, and panel details before visual defects get locked in.
Why Amplifier Designs Fail in Production
Many amplifier chassis designs work in prototypes but fail in production. The difference is not the design itself—it’s how consistently it performs when repeated.
In prototypes, small issues are often adjusted during assembly. In production, those same issues repeat across every unit.
What typically breaks in production:
- alignment issues that repeat across all parts
- tight fits that make assembly inconsistent
- finish variation between batches
- features that rely on manual adjustment
Production removes flexibility. What worked once must now work the same way every time.
Another gap is that prototypes are built under controlled conditions, while production introduces variation from multiple setups, handling, and process differences. This exposes weaknesses that were not visible before.
Designs that perform reliably in production are those that tolerate variation, assemble without adjustment, and maintain consistency across units.
Recognizing these risks early helps avoid rework, delays, and unexpected failures when scaling up.
Why Prototypes Don’t Match Final Production
Most designs are validated in CAD or with a single prototype, but this does not guarantee they will behave the same way in production.
From a manufacturing perspective, validation is not about whether parts can be made. It is about whether they will assemble consistently and look the same across multiple units.
What experienced engineers actually check:
- whether parts still align when tolerances shift
- whether panels sit flush without manual adjustment
- whether visible surfaces stay consistent across parts
- whether assembly can be completed without force
These issues are rarely obvious in drawings. They only appear when variation is introduced across multiple parts.
The key difference is that production removes ideal conditions. A design that depends on perfect alignment may work once, but fail when repeated.
Designs that perform well in production usually tolerate variation, assemble naturally, and maintain consistency without adjustment.
Validating from this perspective helps catch issues early—before they turn into rework, delays, or inconsistent builds.
How to Validate Fit and Finish Before Manufacturing
Validating fit and finish before manufacturing is not about checking if parts match the drawing. It is about confirming that they will still fit and look consistent once real production variation is introduced.
Most designs are reviewed under ideal conditions. In production, small variations in machining, bending, and finishing begin to interact—and this is where issues appear. Designs that rely on perfect alignment or manual adjustment often pass early checks but fail once this variation is introduced.
What experienced engineers focus on during validation:
- whether parts still align when tolerances shift in opposite directions
- whether panels sit flush without relying on manual adjustment
- whether visible surfaces remain consistent across multiple parts
- whether assembly works without forcing or repositioning
These issues are rarely visible in CAD or single prototypes. They appear when multiple parts are produced and assembled together.
The key difference is that production removes flexibility. What works once must now work the same way every time.
Designs that perform well in production usually tolerate variation, assemble naturally, and maintain consistent appearance without adjustment.
Catching these risks early avoids problems that only appear after parts are produced and assembled.
What We Check in Your Amplifier Chassis Before Quoting
Most suppliers take your drawing and send a price.
The problem is, many production issues don’t come from machining—they come from things that were never questioned before the order.
Before quoting, we look at where your design might run into trouble once it’s made repeatedly and assembled under real conditions.
What tends to cause issues later:
- features that rely on tight alignment across multiple parts
- tolerances that are hard to hold consistently in production
- panel shapes that may distort after fabrication
- connector positions that look right in CAD but shift in assembly
- finishes that may not match across multiple panels
These aren’t usually design mistakes. They’re assumptions that work once, but don’t hold up when variation is introduced.
That’s why problems often show up after parts are made, not before.
Catching them at this stage makes a big difference. It’s much easier to adjust a drawing than to deal with rework, delays, or inconsistent results after production starts.
What Problems We Help You Avoid Before Production
Most production issues don’t come from complex mistakes. They come from small details that were never questioned early on.
These are the kinds of problems that typically show up after parts are made—when changes are already expensive.
What we often see in real projects:
- parts that technically meet drawings but don’t align during assembly
- panels that don’t sit flush due to tolerance stack-up
- connectors that miss their cutouts by a small but visible margin
- finishes that look consistent on one part but not across multiple panels
- thin sections or large flat areas that deform after fabrication
- designs that only assemble correctly with manual adjustment
None of these usually stop a part from being made. That’s why they often pass through quoting without being flagged.
The problem is, once production starts, these issues repeat across every unit.
At that stage, fixing them means rework, delays, or accepting inconsistent results.
Catching them early is not about perfection. It’s about removing the risks that only show up when everything has to work the same way every time.
How DFM Feedback Prevents Assembly and Finish Issues
The problems described earlier don’t come from obvious mistakes. They come from small assumptions in the design that only break once production starts.
DFM feedback works by changing those assumptions before parts are made.
In practice, this shifts the design from fragile to stable:
- alignment changes from “must be exact” → to “tolerates small variation”
- assembly changes from “needs adjustment” → to “fits naturally”
- tolerances change from “tight everywhere” → to “controlled where it matters”
- finish changes from “looks right on one part” → to “stays consistent across parts”
Instead of relying on ideal conditions, the design is adjusted to behave reliably under real production variation.
This is why DFM is not just a review step. It directly affects how the design performs when repeated across multiple units.
The result is not a different product—it’s a version that assembles more consistently, looks more uniform, and requires less correction during production.
That’s what prevents issues from showing up later. Instead of fixing problems after production, DFM feedback removes the conditions that cause them in the first place.
What Drives the Cost of a Custom Amplifier Chassis
Cost is rarely driven by one factor. It’s usually the result of how the design behaves in production, especially when parts need to be made consistently.
From a manufacturing perspective, cost increases when more control, more setups, or more handling is required to keep parts within spec.
What typically drives cost up:
- tight tolerances across multiple features
→ require slower machining, more inspection, and sometimes secondary adjustments - complex geometries
→ increase setup time, tool changes, and positioning effort - high appearance requirements
→ demand more consistent surface preparation and stricter process control - additional features (threads, inserts, precision cutouts)
→ add extra operations and handling steps - designs sensitive to variation
→ require more effort to keep parts consistent across batches
Another factor is how the part flows through production. Designs that need careful repositioning, extra protection, or manual correction tend to cost more—not because they are complex, but because they are harder to control.
This is why two designs that look similar can have very different costs. The difference is not what is drawn, but how much effort is needed to produce it reliably.
Understanding this makes it easier to see where cost comes from—and where it can be reduced without affecting performance.
How to Reduce Cost Without Sacrificing Quality
Reducing cost is not about removing features. It’s about simplifying the parts of the design that are difficult to control in production but don’t add real functional value.
From a manufacturing perspective, cost drops when the part becomes easier to machine, inspect, and assemble consistently.
Where cost can usually be reduced:
- over-specified tolerances
→ allow faster machining, fewer inspection points, and less risk of parts being rejected - complex geometries
→ reduce setup changes, repositioning, and tool path complexity - unnecessary finishing requirements
→ lower the need for strict surface control and reduce variation between parts - features that add extra operations
→ fewer secondary processes like threading, inserts, or manual handling - designs sensitive to variation
→ reduce the need for adjustment, rework, or sorting parts during assembly
In real production, these factors compound. A design that looks only slightly more complex can require significantly more time, handling, and control to produce reliably.
This is why some parts cost more—not because they are larger or stronger, but because they are harder to keep consistent.
The key is to focus precision where it actually affects function, and simplify everything else.
Designs that follow this approach usually cost less, assemble more easily, and produce more consistent results across batches.
Why Suppliers Quote the Same Design Differently
It’s common to receive very different quotes for the same design. This is not just about pricing—it usually reflects how each supplier evaluates the work behind the drawing.
From a manufacturing perspective, the difference often comes from how much effort is included to produce the part consistently.
What causes quotes to vary:
- tolerance interpretation
→ some suppliers assume ideal conditions, others plan for real variation and include extra control - process planning
→ different setups, tooling, or sequencing can change production time significantly - inspection and quality control
→ stricter checks add cost, but reduce the risk of parts not fitting or matching - handling and rework risk
→ designs that are harder to control may require extra effort to avoid defects - finish consistency requirements
→ maintaining visual consistency across parts often needs tighter process control
In practice, lower quotes often assume fewer complications. Higher quotes usually reflect the effort required to manage variation and maintain consistency.
This is why two suppliers can price the same drawing differently. They are not always quoting the same level of control, risk, or expected outcome.
Comparing quotes is not just about the number—it’s about understanding what is included, and what risks may appear later.
Ready to Move Forward Without Costly Surprises?
we’ll review it and point out fit, finish, and manufacturing risks before you commit.
What to Send for an Accurate Amplifier Chassis Quote
Getting an accurate quote is not just about sending a drawing. The more complete the information, the fewer assumptions are needed—and the fewer surprises later.
Missing details don’t stop a quote, but they often lead to revisions, delays, or changes after production starts.
What helps produce a clear and reliable quote:
- 2D drawings (PDF) + 3D files (STEP/IGES)
→ ensures both dimensions and overall geometry are understood - material specification
→ aluminum, steel, thickness, or any specific grade requirements - tolerances (if critical areas exist)
→ especially for fit, alignment, or assembly-related features - surface finish requirements
→ anodizing, powder coating, brushing, or appearance expectations - quantity and expected volume
→ affects process selection and pricing - assembly or usage context (if relevant)
→ helps identify alignment or fit risks early
In practice, the most common delays come from unclear or missing information. Suppliers then have to make assumptions, which often leads to back-and-forth or revised quotes.
Another issue is that drawings alone don’t always show how parts will be used. Small details about assembly or appearance expectations can make a big difference in how the part is planned and priced.
Providing this information upfront helps ensure the quote reflects real production conditions—not just an estimate based on incomplete data.
Not Sure If Your Design Will Work? Let’s Check Before You Commit
we’ll review it and flag issues before they turn into rework or delays.
