Bend Radius Basics
What is Bend Radius?
Radius bends refer to the curvature formed when a flat metal sheet is bent. The bend radius, a crucial parameter in sheet metal fabrication, is the distance from the neutral axis to the inner surface of the bend.
The neutral axis is an imaginary line within the sheet metal, where neither compression nor tension occurs during bending. A proper bend radius ensures that the sheet metal part maintains its integrity and functionality after forming.
Inside vs. outside bend radius
The inside bend radius is the radius of the inner surface of the bend, while the outside bend radius is the radius of the outer surface. The material thickness determines the difference between the inside and outside bend radii.
In sheet metal bending, it is essential to consider both inside and outside bend radii to create flanges, brackets, and other components with the desired dimensions and appearance.
Minimum bend radius
The minimum bend radius is the smallest radius at which a given material can be bent without cracking or experiencing other damage, such as excessive thinning or deformation. Factors like material type, thickness, and the forming method influence it.
Adhering to the minimum bend radius is vital for maintaining the structural integrity and durability of sheet metal parts, especially in applications where components are subjected to high stress or dynamic loads.
Material thickness
Material thickness plays a significant role in determining the bend radius for sheet metal parts—generally, the thicker the material, the larger the required bend radius to prevent cracking or deformation.
For instance, thin sheet metal can be bent with smaller radii, while plate thickness requires larger radii to accommodate the material’s increased resistance to bending. Designers and fabricators need to consider material thickness when calculating bend radius to ensure the production of reliable and high-quality sheet metal components.
Calculation and Related Parameters
Bend radius formula
The bend radius formula is a critical aspect of sheet metal bending calculations, which helps determine the appropriate radius for a given material and thickness. A commonly used formula for calculating the minimum inside bend radius is:
Minimum Inside Bend Radius = Material Thickness × Bend Radius Factor
The bend radius factor depends on the material being used and is usually provided by the manufacturer or available in material handbooks. This factor accounts for the material’s tensile reduction value, ensuring the bend radius is suitable for the specific material.
Bend allowance and setback calculations
Bend allowance and setback are essential parameters in sheet metal bending that influence the part’s final dimensions. Bend allowance is the length of the neutral axis between the bend lines or the arc length of the bend.
The setback is the distance between the mold line of the bend and the start of the bend radius. Both bend allowance and setback can be calculated using the material thickness, bend radius, bend angle, and other factors like die width and tensile reduction percentage.
Factors affecting bend radius calculations
Several factors affect bend radius calculations, including:
- Material type: Different materials have unique properties that influence their bendability, such as the material’s tensile reduction value, which impacts the minimum bend radius.
- Material thickness: Thicker materials generally require larger bend radii to prevent cracking or deformation.
- Bend angle: The angle at which the material is bent can affect the bend allowance, setback, and minimum bend radius.
- Grain direction: Bending sheet metal parallel to the grain direction may require larger bend radii to avoid cracking or deformation.
Forming method: The forming operation, such as air bending or coining, can influence the required bend radius.
Calculations for common materials
- Mild steel: A common rule of thumb is that the minimum inside bend radius should equal the material thickness. If the material is 0.125 inches thick, the minimum inside bend radius would be 0.125 inches.
- Stainless steel: Stainless steel typically requires a larger minimum bend radius than mild steel, usually around 1.5 times the material thickness.
- Aluminum: Aluminum is more flexible than steel, and the minimum bend radius can be as small as the material thickness or even less, depending on the specific alloy.
Remember that these are general guidelines, and it is always recommended to consult material data sheets or manufacturers for accurate bend radius information for a particular material.
Guidelines for Sheet Metal Bending
Material minimum bend radius recommendations
Different materials require specific minimum bend radii to ensure the structural integrity of sheet metal parts. Here are some recommended minimum bend radii for common materials:
- Mild steel: Minimum inside bend radius equal to the material thickness.
- Stainless steel: Minimum inside bend radius approximately 1.5 times the material thickness.
- Aluminum: Minimum inside bend radius equal to or less than the material thickness, depending on the alloy.
Refer to the material’s data sheet or consult the manufacturer for precise bend radius information.
Sheet metal bending rule
A general rule of thumb for bending sheet metal is that the minimum bend radius should be equal to the material thickness of mild steel, 1.5 times the material thickness of stainless steel, and similar to or less than the material thickness of aluminum.
However, it is essential to note that these are only guidelines, and the actual minimum bend radius may vary depending on the specific material and application.
Consistent bend radius and orientation
Maintaining a consistent bend radius and correct bend orientation is crucial for producing high-quality sheet metal parts. Inconsistent bend radii can lead to uneven stress distribution, causing premature part failure or deformation.
The correct bend orientation ensures that the part fits and functions as intended within the assembly. Additionally, the right direction helps minimize visible lines and material thinning, resulting in aesthetically appealing sheet metal components.
Grain direction
Grain direction is the orientation of the metal’s crystalline structure, which can significantly impact the bendability of sheet metal. Bending parallel to the grain direction may require larger bend radii, as the material is more prone to cracking or deformation.
Conversely, bending perpendicular to the grain direction allows for smaller bend radii, as the material exhibits increased flexibility. Designers and fabricators should consider grain direction when bending operations to avoid part defects and ensure optimal performance.

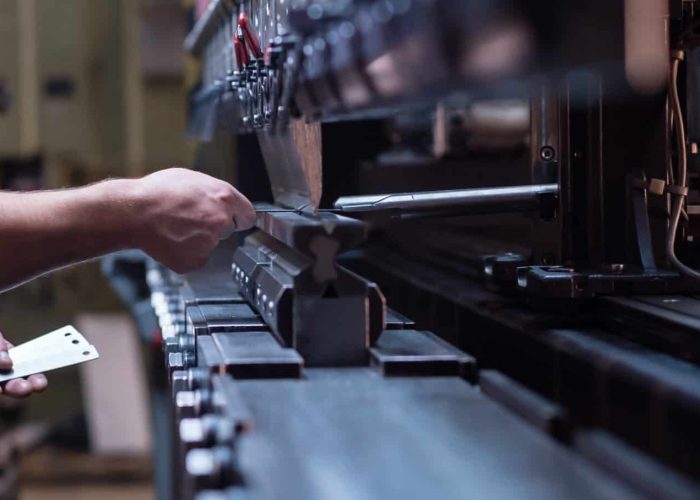

Minimizing bend radius with standard tools

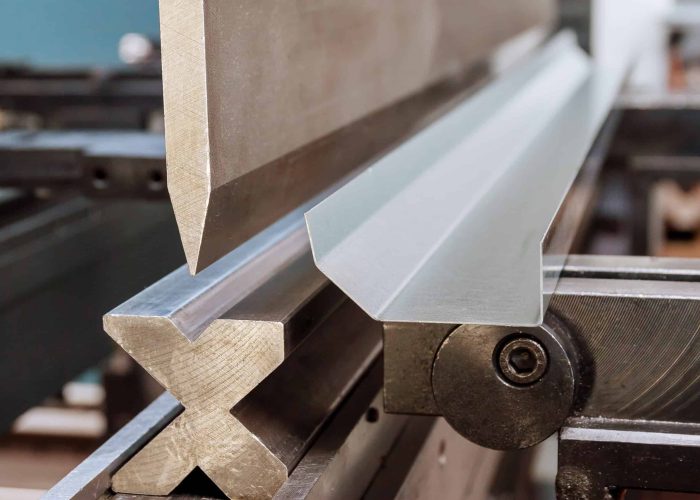

Standard tooling, such as press brake dies and punches, accommodates a range of bend radii. To achieve the minimum bend radius for a specific material, designers and fabricators should select the appropriate tooling based on material thickness, bend angle, and desired bend radius.
Proper tool selection helps achieve the minimum bend radius and ensures consistent, high-quality bends while minimizing material waste and manufacturing costs.
Considerations
Material's tensile reduction and bend reduction
The material’s tensile reduction percentage is a crucial factor in sheet metal bending, representing the material’s resistance to deformation during bending. Bend deductions account for the material’s tensile reduction percentage and help calculate the precise length of the flat sheet required to produce a part with the desired dimensions.
By incorporating bend deductions into their calculations, designers and fabricators can minimize material waste and ensure accurate sheet metal components are created.
Optimal bend radius design
When designing sheet metal parts, it’s essential to consider optimal bend radii that maintain the part’s structural integrity and functionality without causing material cracking or deformation.
Designers should consult material data sheets or manufacturers to determine the appropriate minimum bend radii for their specific material and thickness. Additionally, they should consider factors like grain direction, bend angle, and forming method to ensure the creation of high-quality sheet metal parts.
Surface finishes
Surface finishes, such as anodizing, powder coating, and plating, can affect the bend radius of sheet metal parts. These finishes can increase the material’s brittleness, necessitating larger bend radii to prevent cracking or deformation during bending.
Designers and fabricators should consider the effects of surface finishes on bend radius when planning their sheet metal bending operations and adjust their bend radii and forming methods accordingly.
Bending stress management
Outside setbacks refer to the distance between the outer edges of two bends originating from the same plane. Proper management of outside setbacks is essential for maintaining the part’s dimensional accuracy and preventing excessive stress accumulation.
To minimize the stresses caused by bending, designers should consider factors like material type, material thickness, and bend radius when determining outside setbacks. Additionally, they should plan the sequence of bends to control spring back, ensure consistent bend radii, and avoid over-stressing the material.
Industry Applications and Best Practices
Commercial and aerospace applications

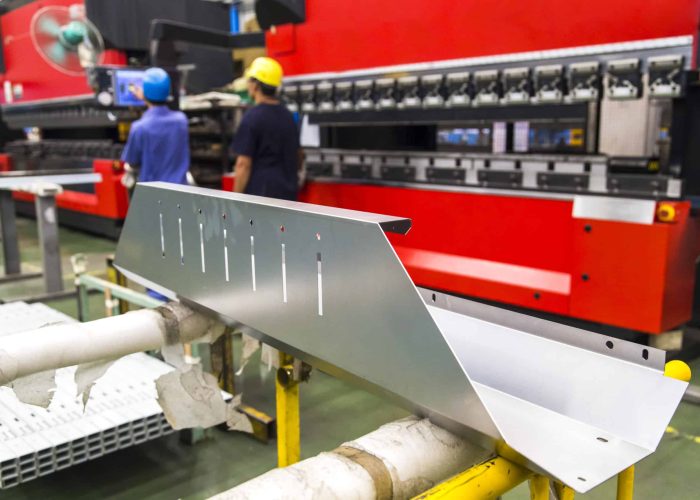

Sheet metal bending is widely used across various industries, including commercial and aerospace applications.
In commercial sheet metal bending, components like brackets, enclosures, and panels are commonly produced for multiple sectors, including automotive, electronics, and construction.
Aerospace applications often require precise and high-performance sheet metal parts, such as aircraft and spacecraft components, which must adhere to strict manufacturing tolerances and meet specific material requirements.
Challenges and solutions
Thin sheet metal bending presents unique challenges, such as material distortion, cracking, and spring back. To overcome these challenges, designers and fabricators can employ the following solutions:
- Selecting the appropriate bend radius: Choosing the correct bend radius based on the material type and thickness makes it possible to minimize the risk of cracking and deformation.
- Using specialized tooling: Precision toolings, such as air bending or coining dies, can help maintain accuracy and control material deformation during thin sheet metal bending.
- Grain direction consideration: Bending perpendicular to the grain direction can reduce the risk of material cracking or distortion.
- Controlled bending sequences: Planning the bending sequence carefully can help manage spring back and maintain the desired part dimensions.
By considering these factors and employing best practices, fabricators can successfully bend thin sheet metal while maintaining the part’s structural integrity and dimensional accuracy.
Conclusion
The importance of bend radius knowledge
Understanding bend radius is essential for successful sheet metal fabrication, as it directly impacts the part’s structural integrity, functionality, and appearance.
Knowledge of bend radius allows designers and fabricators to create high-quality, reliable, and aesthetically pleasing sheet metal parts that meet the requirements of various industries, including automotive, aerospace, and electronics.
By considering factors like material type, material thickness, grain direction, and surface finishes, designers and fabricators can optimize bend radii and ensure the production of durable and accurate sheet metal components.
The benefits of bend radius calculations
Mastering bend radius calculations and guidelines provide numerous benefits in sheet metal fabrication. These benefits include:
- Improved part quality: Proper bend radius calculations help maintain the structural integrity of sheet metal parts, minimizing the risk of cracking, deformation, and premature part failure.
- Increased efficiency: By understanding bend radius guidelines, fabricators can optimize their forming methods and tooling, reducing material waste and manufacturing costs.
- Enhanced design capabilities: Designers well-versed in bend radius calculations and guidelines can create more complex and intricate sheet metal parts, expanding the possibilities for innovative product design.
- Greater consistency: Accurate bend radius calculations and adherence to guidelines ensure consistent bend radii across multiple parts, contributing to overall product quality and performance.
By mastering bend radius calculations and guidelines, designers and fabricators can elevate their sheet metal fabrication capabilities, producing high-quality parts that meet the demands of various industries and applications.
FAQS
The minimum bend radius for mild steel typically equals the material thickness. However, this value may vary depending on the specific steel alloy and the steel mill’s recommendations.
The inside radius of a bend can be calculated using a bend deduction or bend allowances formula, which accounts for material thickness, bend angle, and other factors specific to the sheet metal part being fabricated.
Sheet metal gauge numbers represent the thickness of sheet metal. Higher gauge numbers indicate thinner sheets, while lower gauge numbers correspond to thicker sheets. A conversion chart can determine the exact sheet thickness in inches or millimeters based on the gauge number.
Finishing operations, such as anodizing, powder coating, or plating, can affect the bend radius by increasing the material’s brittleness. As a result, larger bend radii may be required to prevent cracking or deformation during bending. Consider the effects of surface finishes when planning sheet metal bending operations, and adjust bend radii and forming methods accordingly.
Metal thickness directly impacts the minimum bend radius, as thicker materials often require larger bend radii to prevent cracking or deformation during bending. Consult the material’s data sheet or manufacturer for bend radii listed based on metal thickness.
To manage outside setbacks, consider material type, thickness, and bend radius when determining the distance between the outer edges of two bends originating from the same plane. Proper management of outside setbacks helps maintain the part’s dimensional accuracy and prevents excessive stress accumulation.

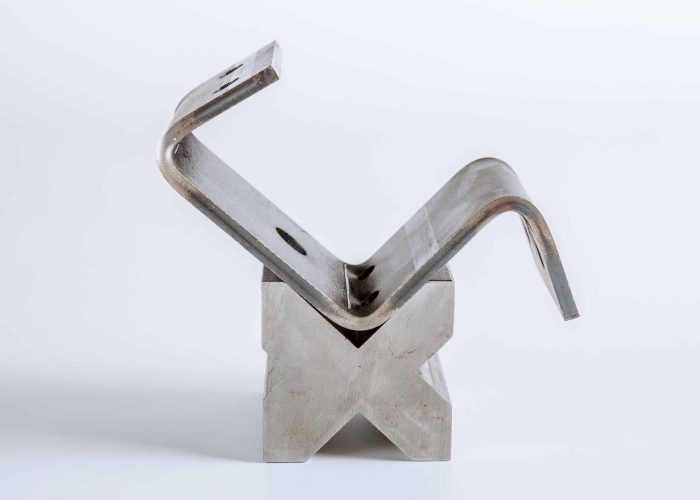

The v cross-section of a die is an important consideration when bending sheet metal, as it helps determine the final bend radius. Wider v cross-sections result in larger bend radii, while narrower v cross-sections produce tighter bend radii.
To achieve the minimum bend radius, consider material type, thickness, grain direction, and tooling selection. Consult material data sheets or manufacturers for accurate minimum bend radius data, and use the appropriate tooling to ensure consistent, high-quality bends.
The standard minimum bend radius for mild steel is equal to the material thickness; for stainless steel, it is approximately 1.5 times the material thickness; and for aluminum, it is equal to or less than the material thickness, depending on the alloy.
