Ever wondered about metals that stand strong against bending? – Carbon Steel, Titanium, Tungsten, and Inconel are known for their bending resistance. Each metal’s unique composition makes it a critical player in numerous applications.
This post delves into the world of Carbon Steel, Titanium, Tungsten, and Inconel, revealing why they resist bending and their key roles in various industries.
Table of Contents
Unbendable Metals
High Carbon Steel
High Carbon Steel, a staple in metal fabrication, excels in applications requiring the bending of metal sheets. Despite its strength, which makes it resistant to bending, techniques like press brake and rotary bending are employed to shape it.
The sheet metal bending process for High Carbon Steel involves calculating the bend allowance and considering the bend radius to achieve the desired angle and shape. Its use in sheet metal parts, where material thickness and corrosion resistance are critical, showcases its versatility in bending.
| High Carbon Steel Grade | Carbon Content | Bending Properties |
| AISI 1050 | Approx. 0.50% | Moderate difficulty in bending, requires proper heat treatment |
| AISI 1060 | Approx. 0.60% | Challenging to bend, can be brittle |
| AISI 1070 | Approx. 0.70% | Increased hardness, bending can lead to cracking without careful processing |
| AISI 1080 | Approx. 0.80% | Very hard, difficult to bend without specialized methods |
| AISI 1090 | Approx. 0.90% | Extremely hard, high risk of cracking during bending |
| AISI 1095 | Approx. 0.95% | Among the hardest, very difficult to bend, prone to cracking |
| C70, C75, C80, etc. | Varies | Difficulty in bending increases with carbon content, requires specialized techniques |
Titanium
Titanium, often used in sheet metals for aerospace and medical applications, presents a unique challenge for metal workers. While its lightweight nature is advantageous, the bending sheet metal process requires precise control over factors like bend angle and inside bend radius.
Methods like air bending and V bending are often used to achieve the desired geometry while maintaining material integrity. The sheet thickness of Titanium demands careful consideration to prevent cracking, especially when creating sharp internal corners.
| Titanium Alloy Grade | Tensile Strength (MPa) | Bending Properties |
| ASTM Grade 5 | Approx. 897 | Challenging to bend due to strength |
| Titanium 10-2-3 | Up to 1241 | Very difficult to bend |
| Ti-6242 | Approx. 931 | High resistance to bending |
| Ti-6246 | Approx. 1172 | Extremely resistant to bending |
| IMI 550 | Approx. 1104 | Hard to bend |
| Beta C | Approx. 1172 | Very challenging to bend |
| IMI 834 | Approx. 1030 | Significantly hard to bend |
Tungsten
Bending Tungsten sheet metal is complex due to its extreme hardness and high melting point. Techniques like hot bending are essential to achieve the desired bend, as the material’s surface responds differently than milder metals like mild steel.
The bending angle and bend lines must be meticulously planned, often involving custom bending tools and a hydraulic press. In metal sheet fabrication, Tungsten’s bending properties are typically considered for applications where high heat resistance is necessary.
| Grade | Description | Bending Properties |
| Pure Tungsten | Extremely high melting point and hardness. | Very difficult to bend at room temperature, often requires high-temperature processes. |
| Tungsten Alloys | Often alloyed with other metals for improved ductility. | Bending properties vary based on the alloying elements but generally remain challenging to bend. |
Inconel
Inconel‘s ability to retain strength at high temperatures makes bending challenging yet crucial in its applications. Sheet metal bending methods for Inconel include die and rotary bending, focusing on maintaining the desired bend radius and angle. Metal workers often use a combination of heat treatment and mechanical force, employing bending machines and press brakes to manipulate this corrosion-resistant material into the desired shape. The material thickness and bend allowance are critical factors in achieving the required angle and ensuring the part’s functionality in high-stress environments.
| Grade | Description | Bending Properties |
| Inconel 600 | Nickel-chromium alloy, known for its resistance to high temperatures and corrosion. | Can be difficult to bend, requires precise control and often heat treatment. |
| Inconel 718 | Nickel-chromium alloy, known for its high strength and corrosion resistance, especially at high temperatures. | Challenging to bend due to its strength, typically requires specialized bending methods. |
Each of these metals, with their unique bending characteristics, plays a pivotal role in metalworking, pushing the limits of manufacturing processes and enabling the creation of complex, curved shapes and different shapes in modern engineering and technology.
comparative overview of key properties and uses of each material
Property High Carbon Steel Titanium Tungsten Inconel
Strength High High Extremely High Very High
Weight Heavier Lightweight Heavy Moderate
Bendability Challenging Moderate Difficult Challenging
Corrosion Resistance Moderate High Moderate Extremely High
Melting Point Moderate High Very High High
Main Uses Construction, Aerospace, Light Bulbs, Jet Engines,
Automotive Medical Implants Aerospace Nuclear Reactors
Bending Techniques Press Brake, Air Bending, Hot Bending Die Bending,
Rotary Bending V Bending Rotary Bending
Heat Resistance Moderate High Extremely High Extremely High
Bending tips for Rigid Metals
Bending High Carbon Steel Sheet Metal
- Techniques: In the sheet metal bending process of High Carbon Steel, techniques like coining, air bending, V bending, and roll bending are used. These methods are selected based on the sheet metal’s thickness and the desired bend angle.

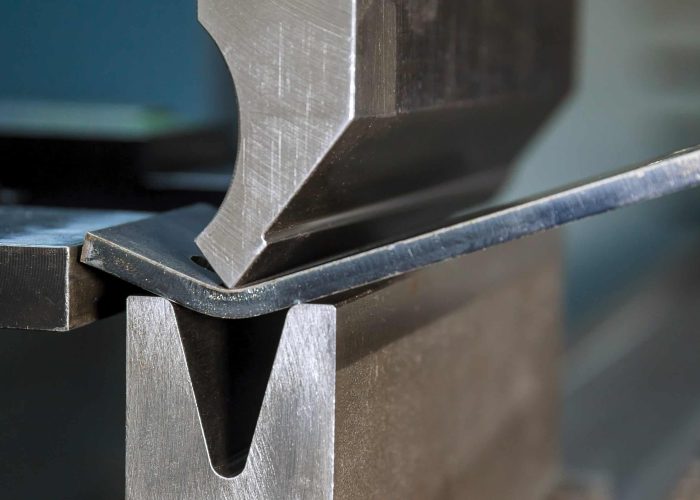

- Press Brake and Bend Allowance: Press brake tools are vital in bending sheet metal, where calculating bend allowance and considering bending force are crucial for precision.
- Challenges in Bending Process: Understanding the neutral axis and k factor is essential in bending metal sheet parts of Carbon Steel to maintain the desired bend line and angles.
Bending Titanium Sheet Metals
- Precision Techniques: Bending titanium sheet metals involves using specialized equipment like high-speed steel forming rolls and dies. The bending process requires careful attention to bend angles and edge bending to prevent sharp internal corners.
- Heat Treatment: Heating the titanium sheet metal using methods like hot forming is crucial to avoid brittleness during bending.
- Finishing Process: Post-bending techniques like laser cutting and grinding ensure smooth edges and accurate flange length.
Bending Tungsten Sheet Metal
- Handling and Skill: Bending tungsten sheet metal requires special handling due to its strength and crack sensitivity. The bending process includes understanding the sheet thickness and applying bending force accordingly.
- Bending Guidelines: When bending tungsten sheet metals, it’s important to consider factors like the rolling direction, the bend radius, and the die angle for effective bending.
Bending Inconel Sheet Metal
- Machining Challenges: Inconel sheet metal, known for its hardness and corrosion resistance, requires specific methods like die bending and partial bending. The manufacturing process involves understanding the material’s thickness and applying appropriate bending force.
- Tool Application: The application of cutting tools, like punch presses and v-shaped dies, plays a significant role in bending Inconel sheet metal. Properly applying pressure pads and maintaining sharp cutters are key to achieving the desired geometry.
Heat Treatment and Mechanical Processes in Bending
Heat treatment is essential in the bending process of these metals, especially for Titanium and Tungsten. It ensures the material does not become brittle and maintains the desired shape. Mechanical processes like bending machines and properly pushing the metal through press brakes are integral in shaping these metals.
Solutions in Manipulating Hard-to-Bend Sheet Metals
Maintaining the right temperature, using the correct bending methods like air bending or roll bending, and ensuring the proper application of bending tools are crucial challenges. Solutions involve a combination of appropriate heat treatment, precise mechanical processes, and specialized equipment to achieve the desired results in sheet metal bending processes.
Industrial Applications and Challenges
High Carbon Steel
– Construction and Sheet Metal Bending: Widely used in construction, carbon steel is integral in the sheet metal bending process for building structures, utilizing methods like air bending, roll bending, and press brake techniques. Its thickness and flexibility make it ideal for bending into various flat patterns and shapes.
– Automobile Industry: In the manufacturing process of vehicles, carbon steel sheet metal parts are bent to desired angles using different bending methods like V bending and edge bending, ensuring structural integrity and efficiency.
– Machinery and Tools: High carbon steel’s hardness is beneficial in producing machinery where parts are properly pushed and formed using bending machines and techniques like wipe bending and u bending.
Titanium
Aerospace and Automotive Industries: Titanium’s strength-to-weight ratio is crucial in aerospace and automotive applications, where precision in sheet metal bending and forming is achieved through advanced bending methods and machinery, including laser cutting and pressure pads.
Tungsten
– Jewelry and Alloys: Tungsten carbide, used in jewelry making, undergoes bending and shaping processes where techniques like V bending and wipe bending are employed to achieve the desired sharp corners and angles.
– Arc Welding and Military Equipment: In arc welding and military equipment manufacturing, Tungsten’s resistance to heat and strength is manipulated using specific bending methods and tools, ensuring sharp internal corners and precise bend angles.
Inconel
Aerospace, Oil and Gas, Marine Applications: In these sectors, Inconel sheet metals are bent and shaped using advanced sheet metal bending processes and machines, considering factors like the k factor, bend angles, and thickness of the material to meet the demanding requirements of these industries.
Navigating the Complexities of Working with Rigid Metals
In industrial applications, the bending and shaping of these metals pose unique challenges. Advanced bending methods like roll bending, air bending, and v-shaped dies are crucial. The manufacturing process involves careful consideration of the metal’s thickness, bend angles, and the use of pressure pads and bending machines to achieve the desired shape without compromising the metal’s integrity. These challenges are tackled through a combination of innovative engineering, skilled labor, and the use of specialized equipment and techniques.
Conclusion
High Carbon Steel, Titanium, Tungsten, and Inconel are remarkable for their specific properties: Carbon Steel for its versatility and durability, Titanium for its exceptional strength-to-weight ratio, Tungsten for its extreme hardness and high melting point, and Inconel for its superior heat and corrosion resistance. These unique characteristics make them indispensable in various industrial and technological applications.
Frequently Asked Questions
Material thickness directly affects the minimum bend radius and required bending force. Thicker or high-tensile-strength materials may not conform to standard bending rules and often require larger bend radii to avoid material failure.
Bending along the grain direction of the metal requires less force but increases the risk of cracking on the outside bend radius. Bending across the grain requires more force but can achieve tighter inside bend radii without surface damage.
Common defects include cracking, springback, and localized stress effects. Inappropriate bend radii, excessive bending force, or stress concentrations from processes like laser cutting can cause these.
V-bending is versatile for various bend angles and is suitable for different material thicknesses. U-bending is specifically used for channel bends and is ideal when a U-shaped cross-section is required.
Materials with higher ductility, like mild steel and soft aluminum, can be bent to sharper radii and are more adaptable to different bending methods. In contrast, materials with lower ductility require a more careful selection of bending methods to prevent cracking.
Bending high-tensile metals requires managing strain hardening and avoiding cracking. These materials often necessitate larger bend radii and precise control over bending forces to maintain material integrity.
Wipe bending involves shaping the metal around a die, which differs from V-bending, where the metal is pressed into a die. It’s often used for larger radius bends and to avoid sharp internal corners.
A press brake is essential for precise bending, allowing control over bend angles and force application. It’s crucial for achieving accurate and repeatable bends, especially in complex parts.
The V bending method is preferred for its versatility in handling a wide range of bend angles and material thicknesses. It’s efficient for both short and long production runs due to its quick setup and adjustment capabilities.
The K factor represents the ratio of the neutral axis’s location to the material thickness and affects how the material stretches during bending. Accurate calculation of the K factor is essential for precise bending results, especially in determining the flat pattern layout.
