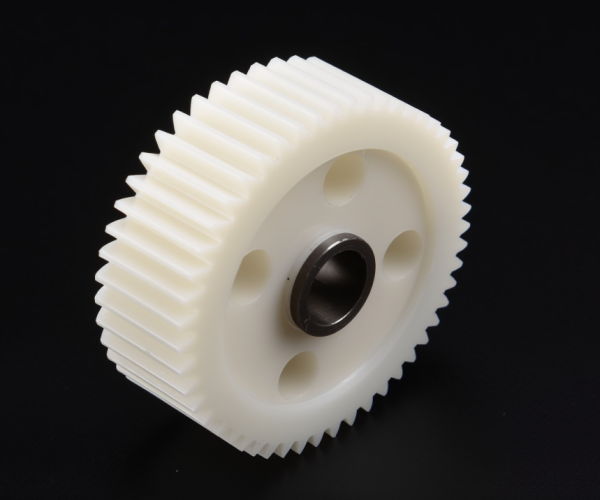

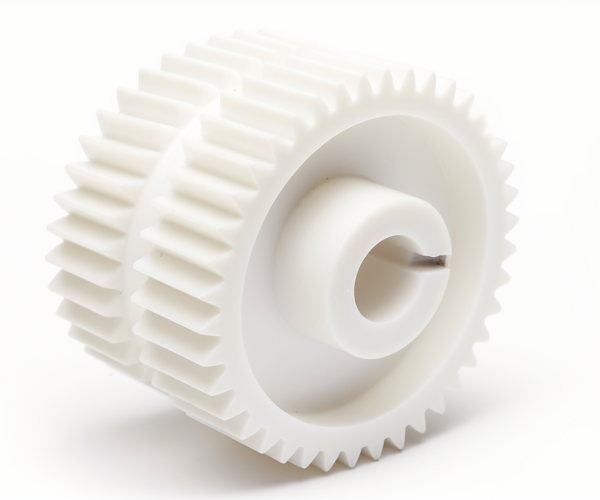

Designing gear systems requires getting center distance calculations right from the start. Incorrect center distance leads to premature wear, noise, and system failure. With experience machining custom gears for demanding applications, proper center distance specification dramatically improves both performance and manufacturability.
Standard center distance equals half the sum of pitch diameters: C = (D₁ + D₂) ÷ 2. However, real-world constraints like housing dimensions often require working backward from layout requirements.
Learn how to calculate gear center distance, evaluate trade-offs between pitch and size, and avoid spec errors that cause interference or backlash issues.
Table of Contents

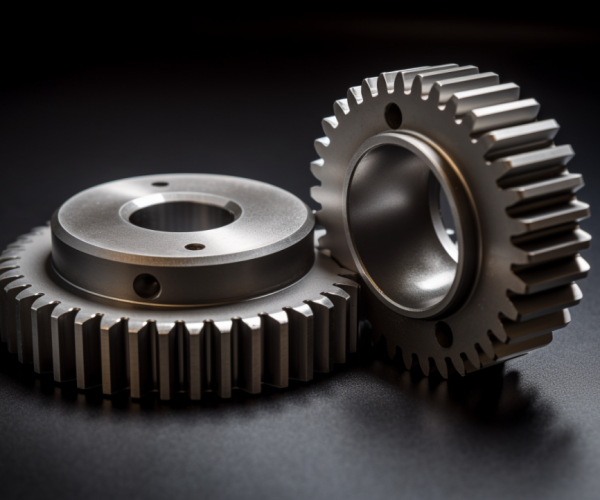

How is center distance calculated between two spur gears?
Center distance equals half the sum of both gears’ pitch diameters: C = (D₁ + D₂) ÷ 2, per AGMA 2001 and ISO 21771 standards. For example, a 48mm pitch diameter pinion meshing with a 72mm gear requires 60mm center distance. This formula applies to standard involute gears without profile modifications.
Quick Decision Matrix:
- Have gear drawings? → Use listed pitch diameter (PD)
- Unmarked gears? → PD = teeth × module
- Only outer diameter? → PD ≈ outer diameter – (2 × module)
- Need verification? → Measure with calipers across pitch line
From our experience machining precision gear housings, we’ve seen $500-2000 rework costs when engineers use outside diameter instead of pitch diameter for spacing. We verify all calculations using CMM measurement at ±0.005mm accuracy before machining critical mounting surfaces. Recent aerospace project: 24-tooth pinion (module 2) required exact 60mm center distance, validated via coordinate measurement to ensure proper mesh geometry.
Design Takeaway: Always reference AGMA standards for gear specifications and use certified pitch diameters from supplier drawings. When in doubt, we provide free center distance verification using calibrated measurement tools before machining expensive housings.
How does gear ratio affect achievable center distance?
Gear ratio directly determines the relationship between center distance and individual gear sizes – higher ratios require proportionally larger center distances for the same pinion. A 2:1 ratio with 24-tooth pinion needs 72mm center distance, while 4:1 ratio requires 120mm center distance using the same pinion size. The mathematical relationship follows: Center Distance = (Module × Total Teeth) ÷ 2.
Space-Constrained Solutions Decision Matrix:
- Housing too small? → Reduce pinion size (trade: weaker teeth)
- Can’t change gears? → Profile shift ±10% (adds $50-100/gear)
- Need exact ratio? → Multi-stage reduction (doubles complexity)
- Flexible on ratio? → Adjust ±10% to fit space (minimal performance impact)
We regularly solve space constraints where standard gear ratios don’t fit existing housings. A recent medical device project needed 3:1 reduction within 65mm housing depth. Standard 20-tooth/60-tooth gears required 80mm center distance – impossible to fit. By switching to 24-tooth/72-tooth combination, we achieved the same 3:1 ratio with only 72mm center distance, fitting within constraints while maintaining adequate tooth strength.
When housing limits center distance, profile shift modification can adjust effective pitch diameter by up to one tooth equivalent, or small ratio adjustments (±10%) rarely affect performance but can save expensive redesign costs. Customer saved $800 housing redesign cost using this approach.
Design Takeaway: Calculate space requirements early in design process. When standard solutions don’t fit, adjust pinion size or gear ratio slightly before considering expensive housing modifications or complex gear modifications.
How precise should center distance be for reliable gear operation?
Most industrial applications work reliably with ±0.05mm center distance tolerance, precision timing systems need ±0.02mm, while high-accuracy positioning requires ±0.01mm. Tighter tolerances increase machining costs exponentially – ±0.01mm adds 150% cost compared to ±0.05mm standard tolerance.
Tolerance Selection Guide:
- General industrial equipment: ±0.05mm (standard machining processes)
- Precision timing systems: ±0.02mm (adds 50% machining cost)
- High-accuracy positioning: ±0.01mm (adds 150% machining cost)
Our CMM verification shows that ±0.05mm center distance tolerance produces average backlash suitable for most applications. We’ve measured gear sets operating successfully with this tolerance in aerospace test fixtures. Standard backlash should fall within 0.05% to 0.2% of pitch diameter for a 100mm gear, expect 0.05-0.2mm backlash with proper center distance control.
Quick Validation Test: Measure backlash with feeler gauges – should be 0.05-0.2mm for most gears. Warning signs: Excessive noise indicates loose tolerances, binding indicates tight tolerances. Recent project: Customer specified ±0.01mm “for quality” but testing showed ±0.05mm performed identically, saving $300 in machining costs.
Design Takeaway: Start with ±0.05mm unless you can prove tighter tolerances improve your specific application. Reserve precision tolerances for critical timing or positioning applications where performance gain justifies increased machining costs and lead times.
What are the risks of incorrect center distance in spur gear design?
Incorrect center distance causes premature gear failure through multiple mechanisms: too-close spacing creates interference and binding, while excessive spacing reduces contact ratio below safe limits, causing noise, vibration, and accelerated wear. Both conditions lead to catastrophic failure and expensive replacement costs.
Risk Assessment Decision Tool:
- Within ±0.5mm of calculated center distance: Safe operation expected
- 0.5-1mm deviation: Monitor for increased noise or temperature
- >1mm deviation: Plan for accelerated replacement schedule
- Negative tolerance (too tight): Higher risk than positive tolerance
If shafts are placed too close together, it can cause interference and gear binding, which can lead to premature wear or catastrophic failure. From our design consultation experience, the most common failure mode is undersized center distance causing tooth interference. Placing gears closer than ideal distance will likely result in binding and may lead to failure of the gear, while increasing distance results in increased backlash.
As center distance increased, contact ratio decreased, which consequently leads to an increase in tooth root stress. We’ve analyzed failed prototypes where 1-2mm center distance reduction caused addendum contact with tooth roots, generating excessive heat and rapid wear. Gear mesh interference is one of the most probable causes for gear failures due to improper center distance specification.
Design Takeaway: Early design consultation identifies center distance problems before prototyping – preventing expensive redesigns. Verify center distance calculations through our design review service before machining expensive housings to avoid specification errors that cause disproportionate damage.
Design might cause gear undercut?
We check module, pressure angle & tooth count • Get expert feedback before quoting
How does gear ratio affect achievable center distance?
Higher gear ratios exponentially increase center distance requirements: 2:1 ratio needs 72mm center distance, 4:1 requires 120mm, and 8:1 demands 192mm for the same 24-tooth pinion. For single parallel axis gearsets, maximum ratio is probably no more than about 5:1 for reasonable tooth form.
Single-Stage vs Multi-Stage Decision Framework:
- 2:1 to 5:1 ratios: Single-stage solutions work well in standard housings
- 6:1 to 15:1 ratios: Multi-stage gearboxes offer higher gear ratios than could be achieved with most single-stage gear designs
- 15:1+ ratios: For overall ratio of 35:1, would need at least three stages
We regularly help engineers evaluate single-stage versus multi-stage approaches early in design. A recent robotics project required 8:1 reduction within an 80mm envelope. A single-stage solution needed 150mm center distance – impossible. We consulted on a 2.8:1 × 2.8:1 two-stage system fitting within 75mm total space, achieving the required ratio efficiently.
Multi-stage gearboxes usually combine single-stage ratios from 3 to 10, meaning two-stage ratios of 9 to 100 are possible. Through design consultation, we help engineers choose optimal staging before expensive prototyping, using standard gear sizes that avoid custom gear premiums.
Design Takeaway: Calculate space requirements early – gear ratios above 5:1 often require multi-stage solutions or larger housings. Our design consultation service helps evaluate housing constraints against ratio requirements before finalizing specifications.
What standard gear sizes work for common center distances?
Standard gear combinations for common center distances follow predictable patterns: 50mm centers accommodate 16/24-tooth pairs (module 2), 75mm centers fit 20/30-tooth combinations (module 2.5), and 100mm centers work with 24/36-tooth sets (module 2.5-3). Using standard tooth counts and modules reduces costs by 30-50% versus custom specifications.
Quick Reference Decision Matrix:
- 40-60mm centers: Module 1.5-2, tooth counts 12-40
- 60-100mm centers: Module 2-3, tooth counts 16-60
- 100-150mm centers: Module 3-4, tooth counts 20-80
- 150mm+ centers: Module 4+, consider custom solutions
Working backward from existing housing dimensions, we help identify the closest standard gear combinations that fit your space. Recent medical device project had 73mm bore spacing – we found standard 22/28-tooth gears (module 2.5) created 75mm center distance, requiring only 2mm housing adjustment versus $600 custom gear premium.
Multi-stage gearboxes usually combine single-stage ratios from 3 to 10, allowing flexibility in center distance selection. Standard gear suppliers maintain inventory per AGMA standards for common ratios like 2:1, 3:1, and 4:1 with 2-3 week delivery versus 8-12 weeks for custom specifications. Switching to standard spacing saves 30-50% on initial gears plus reduces replacement part costs throughout product lifecycle.
We verify all standard gear combinations using pitch diameter calculations per ISO 21771 before recommending housing modifications, ensuring proper mesh geometry and avoiding interference issues.
Design Takeaway: Start with standard center distances and work backward to gear selection. We evaluate housing modification costs versus custom gear premiums to find the most economical approach for your specific project requirements.
How to fix center distance mismatches in existing designs?
Center distance mismatches require systematic correction approaches: profile-shifted gears handle ±10% errors most economically, housing modifications work for larger errors, or tolerance relaxation if AGMA standards permit. Solution selection depends on error magnitude, material constraints, and production volume.
Correction Priority Framework:
- Error <3%: Verify if existing tolerance meets AGMA quality class requirements
- Error 3-10%: Profile-shifted gears (2-4 week delivery, lowest cost)
- Error >10%: Housing rework evaluation (material-dependent)
- Multiple units affected: Gear solution scales without individual rework
A recent aerospace project discovered 62mm actual center distance versus 60mm specification during prototype testing. Housing rework quoted at $1200 for titanium material versus profile-shifted gears at $280. Profile shift coefficient adjustment from +1.0 to -1.0 equivalent to changing pitch diameter by one tooth achieved proper mesh at 62mm center distance.
Correction methods follow AGMA 2015 tolerance guidelines: profile shift maintains gear ratio while adjusting center distance, housing bore repositioning preserves standard gears, or tolerance band analysis may show existing error acceptable for application load requirements.
For production scenarios with multiple affected units, gear modifications provide consistent solution across all assemblies, while housing corrections require individual rework with cumulative cost scaling.
Design Takeaway: Evaluate all correction options systematically – gear modifications often provide faster, more economical solutions than housing rework, especially for valuable materials or complex geometries requiring extensive re-machining.
What is the minimum safe center distance to avoid interference?
Minimum safe center distance equals theoretical center distance plus clearance allowance: generally recommended that tip-to-root clearance is equal to or greater than 0.25m where m is module. For standard gears, add 0.05-0.2mm beyond theoretical distance depending on application requirements and thermal expansion considerations.
Safety Clearance Guidelines:
- Standard applications: Theoretical distance + 0.05mm minimum
- Temperature variations: Add thermal expansion allowance (steel: ~0.01mm per 10°C)
- Heavy-duty applications: Theoretical distance + 0.15-0.25mm
- Precision systems: Use AGMA quality class tolerances: AGMA 8 requires ±0.001″ center distance
Placing gears closer than ideal distance will likely result in binding and may lead to failure of the gear tooth. We calculate minimum distances using addendum geometry per ISO 21771, ensuring adequate root clearance prevents interference during mesh engagement.
Validation method: Verify clearance by checking that addendum circles don’t interfere with root circles under worst-case tolerance conditions. Tip and root clearance (c) is the distance between tooth root and tooth tip of mating gears and must remain positive throughout operation.
Critical applications require additional safety margin considering shaft deflection, manufacturing tolerances, and operational loads that reduce effective clearance.
Design Takeaway: Never specify center distances at theoretical minimums without clearance allowance. We help calculate safe minimums considering thermal effects, deflection, and tolerance stack-up for reliable long-term operation.
When should center distance be fixed versus adjustable in design?
Fixed center distance suits applications requiring consistent gear mesh and precise timing, while adjustable systems benefit applications needing wear compensation or tension adjustment. Fixed designs minimize complexity and cost, while adjustable systems enable field optimization at higher initial expense.
Application Decision Matrix:
- Precision timing/positioning: Fixed design (consistent performance)
- Belt/chain tension systems: Adjustable design (maintenance access)
- High-volume production: Fixed design (cost optimization)
- Prototyping/testing: Adjustable design (flexibility)
Fixed center distance designs use precision-machined housings with tight bore tolerances per AGMA 915-3-A99 guidance on center distance, providing consistent mesh geometry throughout operational life. We recommend fixed systems for CNC machine timing drives, robotic actuators, or medical devices where repeatability is critical.
Adjustable center distance mechanisms include slotted mounting holes, eccentric bushings, or spring-loaded tensioning systems. These add design complexity but enable field adjustment for wear compensation or operating condition changes.
Cost consideration: Fixed systems minimize initial complexity and manufacturing cost, while adjustable designs justify additional expense in applications requiring periodic optimization or multiple operating conditions.
Design Takeaway: Choose fixed center distance for precision applications requiring consistent performance, adjustable systems when maintenance access permits and operational flexibility justifies additional complexity.
Conclusion
Spur gear center distance calculations require balancing precision, cost, and manufacturability from the design phase. Proper spacing prevents costly failures while standard combinations reduce gear and housing costs by 30-50%. Small specification errors cause disproportionate damage and expensive redesigns.
Contact us to explore manufacturing solutions tailored to your spur gear requirements.
Frequently Asked Questions
Yes, C = (D₁ + D₂) ÷ 2 applies to helical gears using pitch diameters. Helical gears offer additional flexibility through helix angle adjustment to fine-tune center distance by ±5-10% without changing gear ratio.
Present total cost analysis: custom ratios add $200-500 per gear plus 8-12 week lead times versus 2-3 weeks for standard ratios. Include lifecycle costs for replacement part availability.
Retrofitting is rarely cost-effective due to housing redesign. However, eccentric bushings can sometimes be added to existing bores, providing ±2-3mm adjustment for $75-150 per location.
Most manufacturers void warranties for operation outside specified tolerances. Document actual measurements and consult your supplier before operation – some provide conditional approval for minor deviations.
Always design for worst-case tolerance conditions including thermal expansion, manufacturing tolerances, and assembly variations. Nominal-based designs frequently fail during temperature cycling or load deflection.
±0.01mm tolerance adds 150-200% to machining costs versus ±0.05mm standard tolerance, requiring climate-controlled environments and premium tooling. Most applications perform identically with ±0.05mm tolerance.
