Anodizing removal questions arise frequently in CNC machining projects when design changes, coating defects, or rework requirements surface after parts are already anodized. As a precision CNC machining service provider, we regularly help engineers and product developers navigate anodizing removal decisions, weighing feasibility against cost and dimensional impact. Understanding removal options early prevents costly delays and helps optimize part specifications for both initial production and potential future modifications.
Yes, anodizing can be effectively removed from CNC aluminum parts using chemical, electrochemical, or mechanical methods. The process strips the 10-25 μm anodic oxide layer, returning parts to their original machined dimensions, though surface finish and tight tolerances may be affected.
Find the best anodizing removal methods by part geometry, alloy type, and finish needs—plus tips on re-anodizing vs. replacing for cost-efficiency.
Table of Contents

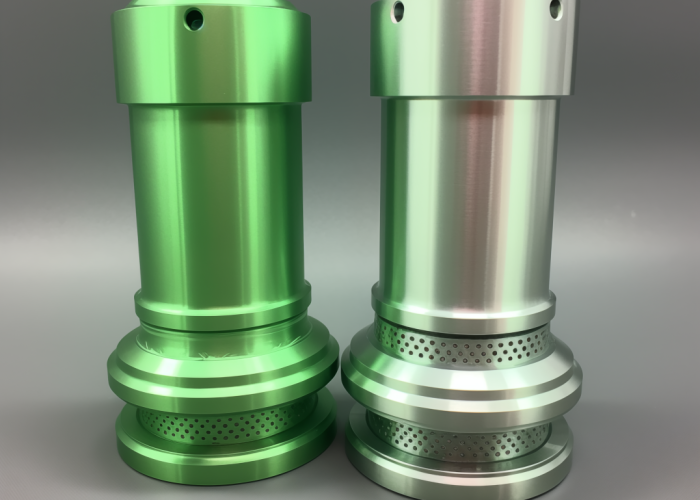

Can Anodizing Be Removed from CNC Aluminum Parts?
Yes, anodizing can be removed from aluminum CNC parts using three proven methods: chemical stripping, electrochemical removal, and mechanical techniques. Chemical stripping with sodium hydroxide is most effective, dissolving the complete oxide layer within 5-15 minutes.
The removal process works on all standard anodizing types:
- Clear anodizing (12-15 μm thickness)
- Colored anodizing (15-20 μm thickness)
- Hard coat anodizing (25-75 μm thickness)
Chemical removal demonstrates 95%+ success rates on typical CNC parts, with complete coating dissolution regardless of color or thickness. Electrochemical removal offers precision control for complex geometries using controlled electrical current. Mechanical methods work for accessible surfaces but may affect dimensional accuracy.
This process proves essential for rework scenarios, prototype modifications, and correcting anodizing defects when design requirements change post-production. Success depends on anodizing thickness and aluminum alloy composition, with 6061 and 7075 responding predictably to removal treatments.
Design Takeaway: Anodizing removal is technically feasible for most CNC aluminum parts, making it a viable solution for design changes without requiring complete part replacement.
Does Anodizing Removal Change Part Dimensions?
Yes, anodizing removal changes part dimensions by 0.01-0.05 mm as the coating layer is stripped away. Parts return to original machined dimensions, but this dimensional change affects tight-tolerance features and critical mating surfaces.
Dimensional impact by anodizing type:
- Clear anodizing: Parts grow 0.024-0.030 mm (12-15 μm per surface)
- Colored anodizing: Parts grow 0.030-0.040 mm (15-20 μm per surface)
- Hard coat anodizing: Parts grow 0.050-0.100 mm (25-50 μm per surface)
Tight-tolerance features (±0.01 mm) frequently fall outside specification after removal, requiring inspection verification. Internal threads become loose-fitting as the coating that reduced their effective diameter is eliminated. External features grow by the full coating thickness, potentially creating interference issues in precision assemblies where exact fit was calculated with anodizing in place.
This dimensional impact proves critical for bearing fits, shaft tolerances, and threaded connections where functionality depends on precise dimensions. General housing features and non-critical surfaces show less concern, though overall geometry returns to pre-anodizing measurements. Post-removal CMM inspection often reveals that previously acceptable parts now require machining adjustments.
Design Takeaway: Always verify critical dimensions after anodizing removal, as tight-tolerance features may fall outside specification and require subsequent machining operations to restore proper fit.
Does Aluminum Alloy Affect Anodizing Removal?
Yes, aluminum alloy composition directly affects removal uniformity and final appearance. 6061 alloy strips evenly with consistent results, while 7075 shows surface variation and 2024 requires the most extensive post-processing due to varying copper content.
Alloy-specific removal characteristics:
- 6061-T6: Uniform stripping, minimal surface variation, consistent gray appearance
- 7075-T6: Uneven removal patterns, potential copper staining, requires additional cleaning
- 2024-T3: Significant surface variation, copper discoloration, longest post-cleaning requirements
Higher copper content in 7075 and 2024 alloys creates localized resistance to removal, resulting in patchy appearance and requiring additional chemical treatment cycles. 6061’s lower copper content enables uniform coating dissolution with minimal surface etching or discoloration. These alloy differences become most apparent on large, flat surfaces where inconsistent removal creates visible patterns.
The material choice impacts both removal predictability and cosmetic results. Parts intended for visible applications perform best with 6061, while functional components in 7075 may accept the surface variation. Material properties and strength characteristics remain unchanged, but visual appearance varies significantly between alloy types.
Design Takeaway: Specify 6061 aluminum when uniform post-removal appearance is required, as higher-strength alloys like 7075 may show surface inconsistencies that require additional finishing operations.
How Much Does Anodizing Removal Cost?
Anodizing removal costs $15-45 per part depending on method, size, and complexity. Chemical stripping is most economical for standard parts, while electrochemical removal costs more but offers superior precision for critical components.
Cost breakdown by removal method:
- Chemical stripping: $15-25 per part (most common approach)
- Electrochemical removal: $35-45 per part (precision applications)
- Mechanical removal: $20-35 per part plus refinishing costs
Batch processing reduces individual part costs by 20-30% when multiple components require removal simultaneously. Complex geometries with deep recesses or intricate features increase labor time, adding $10-15 to standard pricing. Hazardous waste disposal fees add $8-12 per processing batch regardless of part quantity, making larger batches more cost-effective per component.
Additional cost factors include part size (larger parts require more chemicals and time), coating thickness (hard coat anodizing takes longer to remove), and post-removal requirements. Environmental compliance documentation adds expense for regulated industries, while expedited processing increases costs by 25-40% over standard lead times.
Total project cost often represents 40-60% of original anodizing expense, excluding potential refinishing operations. When factoring subsequent machining or surface treatment requirements, removal costs may exceed manufacturing replacement parts for production quantities.
Design Takeaway: Factor removal costs into project budgets early, as total expense including disposal fees and potential refinishing often exceeds original anodizing investment.

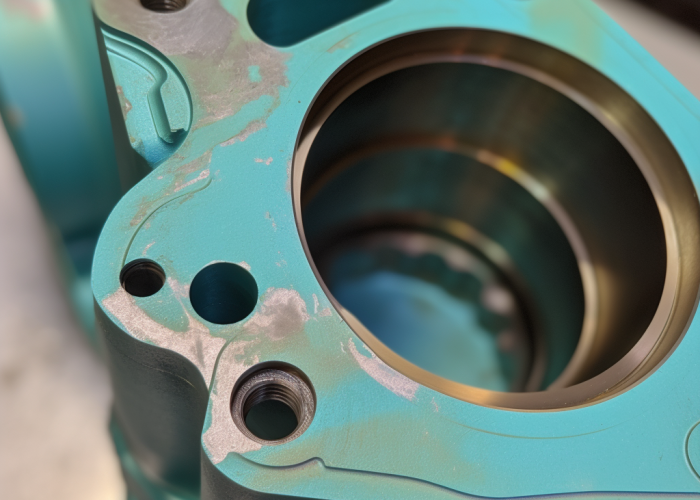

What Surface Finish Remains After Anodizing Removal?
Anodizing removal exposes the original machined aluminum surface with a matte gray appearance and slightly increased surface roughness. The exposed surface shows natural aluminum color but may display subtle etching patterns from the removal process.
Surface finish characteristics post-removal:
- Standard removal: Ra increases by 0.4-0.8 μm from original machined finish
- Electrochemical removal: Maintains closest to original surface quality
- Chemical removal: May show slight directional etching patterns
The exposed aluminum develops natural oxide formation within 2-4 hours, creating the characteristic matte gray appearance typical of raw aluminum. Surface texture remains acceptable for functional applications where appearance isn’t critical, but cosmetic parts typically require additional treatment. Machining marks and tool patterns from original CNC operations become visible again without the anodizing layer masking them.
Mating surfaces often need refinishing to maintain original fit specifications, as the removal process can alter surface texture enough to affect sealing or friction characteristics. Deep recesses may show more aggressive etching due to chemical concentration, while accessible surfaces strip more uniformly.
The surface accepts standard aluminum treatments including re-anodizing, powder coating, or mechanical finishing. However, achieving premium cosmetic appearance typically requires light machining or abrasive finishing to eliminate etching patterns and restore uniform surface texture.
Design Takeaway: Plan for surface refinishing operations if parts require specific appearance standards or critical surface performance after anodizing removal.
Can Parts Be Re-Anodized After Removal?
Yes, aluminum parts can be successfully re-anodized after removal with proper surface preparation. The process requires thorough cleaning and chemical etching to ensure optimal adhesion of the new anodic coating.
Re-anodizing process requirements:
- Complete chemical neutralization of stripping agent residues
- Fresh surface etching for uniform oxide layer formation
- Standard anodizing preparation and pre-treatment cycles
Surface preparation removes all traces of removal chemicals that interfere with new oxide formation. The aluminum must achieve virgin material cleanliness standards before re-anodizing, requiring specialized cleaning beyond normal preparation. Fresh etching creates optimal conditions for uniform coating adhesion.
Re-anodized parts achieve identical coating thickness, color consistency, and durability compared to first-time anodizing. This capability enables color changes, specification updates, or defect correction without material waste.
Design Takeaway: Re-anodizing delivers equivalent performance to original anodizing when proper surface preparation protocols are followed, making it viable for specification changes and defect correction.
Conclusion
Anodizing removal is feasible but requires careful consideration of dimensional changes, alloy selection, and cost implications. Chemical stripping works best for most applications, though surface refinishing may be needed. Contact us to explore manufacturing solutions tailored to your anodizing removal and CNC machining requirements.
Frequently Asked Questions
Chemical removal takes 1-2 days including cleaning. If re-anodizing is needed, add 2-3 days for surface preparation. Factor an additional week for inspection and potential refinishing of critical surfaces.
We provide CMM verification for tight-tolerance features, surface finish measurements, and dimensional reports showing changes from original specifications. Documentation includes before/after comparisons for critical dimensions.
Yes, but disassembly is often required to prevent chemical damage to other materials. We evaluate each assembly and recommend the most cost-effective approach: removal or selective part replacement.
Removal costs $15-45 per part plus potential refinishing, often totaling 40-60% of original anodizing cost. For single prototypes, removal is usually cheaper. For production quantities, new parts may be more economical.
We machine critical surfaces post-removal to restore required tolerances and surface finishes. This service is quoted separately and adds 2-4 days depending on part complexity and feature accessibility.
Specify 6061-T6 if uniform post-removal appearance matters. 7075-T6 removes successfully but may require additional surface treatment for cosmetic applications. We can advise during design review.
