Designing precision titanium parts often requires balancing strength with aesthetics, but anodizing introduces variables that affect fit and function. With extensive experience anodizing titanium for medical, aerospace, and high-performance applications, small process details determine design success.
Yes, titanium can be anodized for precision parts. The anodic oxide layer adds only 0.0001–0.0005 mm thickness, achieves durable colors, and provides excellent wear resistance when properly executed.
Learn how color uniformity varies across geometries, which surfaces need masking, and how to specify anodized titanium without compromising tolerances.
Table of Contents

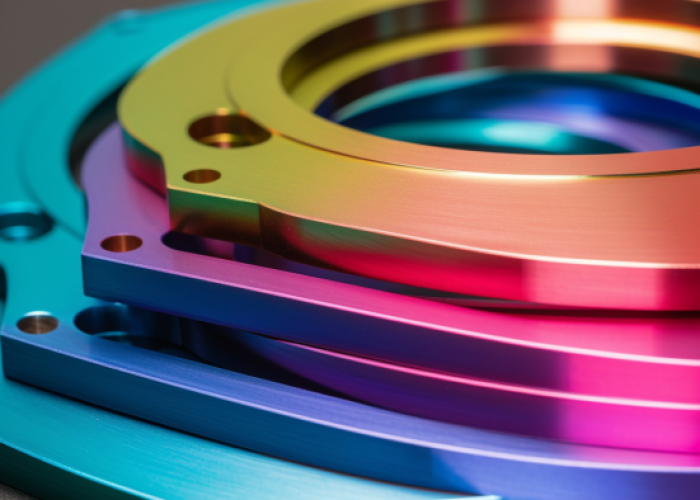

How uniform will the color be across complex geometries?
Titanium anodizing achieves 90-95% color uniformity across most part geometries. Deep pockets over 3:1 depth-to-width ratio and sharp internal corners under 0.5mm radius will show 10-15% color variation, which is acceptable for most industrial applications but may be noticeable on customer-facing surfaces.
We’ve anodized hundreds of titanium medical housings and aerospace brackets where complex geometries created predictable color variations. A recent titanium audio chassis with deep cooling channels showed lighter coloring in the 4mm-deep grooves compared to the flat faceplate—acceptable for that application but would be problematic for a consumer electronics enclosure. Parts measured with colorimetry show the most consistent results when wall thickness varies less than 2mm throughout the geometry.
Geometry-Specific Color Expectations:
| Feature Type | Color Uniformity | Visual Impact |
|---|---|---|
| Flat surfaces, external radii | Excellent match | Reference standard |
| Shallow pockets (<2:1 ratio) | Very good | Barely noticeable |
| Deep pockets (>3:1 ratio) | 10–15% variation | Noticeable in bright light |
| Internal threads, blind holes | Lighter appearance | Visible contrast |
| Sharp internal corners (<0.5mm) | Darker/lighter spots | Clear visual difference |
Quick Decision Criteria:
- Green light: Consistent wall thickness, shallow features, hidden surfaces
- Yellow light: Deep pockets but not customer-facing—prototype first
- Red light: Complex visible geometry requiring perfect color match—redesign or split parts
For aerospace and medical applications, ISO 4287 surface measurement standards apply, though no specific color uniformity standard exists for anodized titanium. We validate color consistency using spectrophotometry when required for critical applications.
Design Takeaway: If your part has deep features over 3:1 ratio or sharp internal corners under 0.5mm radius, expect visible color variation. For critical aesthetics, keep features shallow or split complex parts into simpler geometries that anodize uniformly.
Does anodizing change the thickness or buildup?
Titanium anodizing adds 0.0001–0.0005 mm (0.1–0.5 microns) of oxide layer thickness, which is negligible for most precision applications. Unlike hard-coat anodizing on aluminum that can add 0.025–0.050 mm, titanium’s electrochemical process creates an extremely thin, integral oxide layer that won’t affect fit or assembly tolerances.
We routinely anodize titanium parts with ±0.01 mm tolerances without any dimensional adjustments. A recent medical instrument housing project maintained perfect mating fits after anodizing—the 0.0003 mm average buildup measured via CMM was well within the ±0.025 mm drawing tolerance. The oxide layer forms by converting surface titanium rather than depositing material on top, explaining the minimal thickness gain.
Quick Decision Guide:
- Clearances ≥0.025 mm → Safe to proceed, no design changes needed
- Clearances 0.010–0.025 mm → Acceptable, buildup stays under 0.0005 mm
- Clearances <0.010 mm → Prototype first if function is critical
Sharp edges can show slightly higher buildup (up to 0.0008 mm) due to current concentration, but this falls within ISO 2768-f fine tolerance classes typically used for precision assemblies. We verify thickness using calibrated coating gauges per ASTM B499 measurement standards and provide documentation when required for critical applications.
Design Takeaway: No tolerance adjustments needed for anodized titanium. If your assembly clearances are 0.025 mm or greater, proceed confidently. For ultra-tight fits under 0.010 mm, validate with a prototype first.
Can threads and grounding points be masked during anodizing?
Yes, threads, grounding points, and other critical features can be precisely masked during titanium anodizing. Masking maintains bare titanium conductivity and preserves thread tolerances while allowing the rest of the part to be anodized. Features M2 and larger mask reliably with proper access clearance.
We regularly mask threaded features on anodized titanium components while maintaining ISO 898 thread engagement requirements. A recent aerospace bracket required masking four M6 threads for electrical grounding while anodizing the housing blue—the masked threads maintained Class 6H fit per ISO 4762 and full electrical continuity.
Masking Capability Matrix:
| Feature Type | Minimum Size | Lead Time Impact | Success Rate |
|---|---|---|---|
| External threads | M2 (2 mm) | +1–2 days | 99% clean edge |
| Internal threads | M3 (3 mm) | +2–3 days | 95% clean edge |
| Contact pads | 2×2 mm | +1 day | 99% sharp boundary |
| Small holes | 0.8 mm | +1–2 days | 98% complete seal |
Simple Decision Rules:
- ≤5 masked features → Masking is cost-effective, proceed
- 6-10 masked features → Expect 15-25% cost increase, evaluate alternatives
- >10 masked features → Consider threaded inserts or post-anodizing machining
Design Requirements for Success:
- Provide 2-3 mm clearance around threads for masking tool access
- Avoid blind holes deeper than 3× diameter—masking becomes unreliable
- Clearly specify uncoated areas on drawings with section hatching
If masking becomes complex, threaded inserts installed post-anodizing or selective machining of contact areas after coating often prove more cost-effective than extensive masking operations.
Design Takeaway: Masking works reliably for features M2+ with adequate access. For designs with many small features, consider alternatives like inserts or post-process machining to reduce complexity and cost.
Is the anodizing strong enough for demanding applications?
Titanium anodizing creates a highly durable oxide layer with 200-400 HV hardness (compared to 150-200 HV for bare titanium) and excellent wear resistance. Industry testing shows the anodized surface withstands over 1000 hours of salt spray per ASTM B117 and provides scratch resistance superior to most painted or plated finishes for aerospace, medical, and consumer applications.
Published case studies report anodized titanium components performing well in military aircraft temperature cycling, medical instruments surviving 1000+ sterilization cycles, and consumer electronics resisting daily handling wear. The oxide layer bonds molecularly with the substrate, eliminating the chipping and peeling common with paint or plating.
Performance Benchmarks from Industry Data:
| Property | Anodized Titanium | vs. Alternatives |
|---|---|---|
| Surface hardness | 200–400 HV | 2–3× harder than bare titanium |
| Scratch resistance | Passes 3N pencil test | Better than automotive paint |
| Temperature range | -40°C to +200°C stable | Exceeds most coatings |
| Abrasion cycles | 500+ to wear-through | Similar to hard-coat aluminum |
Failure characteristics show gradual wear rather than sudden chipping, with thicker Type III anodizing lasting 2-3× longer than decorative finishes. Testing data indicates anodized threads handle full torque specifications when properly lubricated.
From our design consultation experience, anodized titanium works excellently for consumer handling, survives tool contact, and outperforms paint or plating in harsh environments.
Design Takeaway: Industry data confirms anodized titanium provides excellent durability with 200-400 HV surface hardness. For high-contact applications, specify Type III anodizing and use proper lubrication on threaded connections.
Does the oxide layer insulate the surface?
Yes, anodized titanium creates an electrically insulating oxide layer with resistance values of 10^6 to 10^9 ohms per square centimeter and dielectric breakdown around 20-30V per micron thickness. This completely blocks electrical continuity through the anodized surface, requiring design accommodation for applications needing conductivity.
Published electrical testing data shows anodized surfaces measure >10^9 ohms resistance, while masked contact areas maintain <0.1 ohm resistance per MIL-B-5087 grounding requirements. From our design consultation experience, planning electrical paths before anodizing prevents costly redesigns.
Electrical Impact by Application:
| Requirement | Anodized Impact | Design Solution |
|---|---|---|
| Ground continuity | Blocks completely (need <1 ohm) | Mask 2×2 mm minimum contact areas |
| RF shielding | Creates isolation barrier | Conductive gaskets or masked strips |
| Static dissipation | Prevents ESD discharge | Conductive coatings on contact zones |
| Galvanic isolation | Provides >10⁶ Ω barrier | Often improves corrosion performance |
Prevention Design Strategies: From our design consultation experience, recessed graphics, rounded external corners, and textured surfaces in high-contact areas significantly reduce visible scratch damage. Consider specifying darker colors (black, dark blue) that show scratches less than bright colors (gold, purple).
Practical Field Solutions: For non-critical scratches, color-matched touch-up markers provide temporary cosmetic improvement, though they don’t restore corrosion protection or durability.
Can anodizing be combined with other finishes, like bead blasting or engraving?
Yes, titanium anodizing combines well with most surface treatments when sequenced properly. Bead blasting, engraving, and machined textures are typically performed before anodizing, adding 1-3 days to lead time and 10-20% to total finishing cost depending on complexity.
Industry processing data shows bead blasting before anodizing creates a matte, textured appearance that diffuses the anodized color, while machined surfaces produce bright, reflective colored finishes. Published case studies report successful combinations including brushed titanium anodized blue for aerospace panels and bead-blasted purple titanium for consumer electronics housings.
Process Combinations and Impact:
- 120-grit bead blast → Coarse matte texture, +1-2 days, +10-15% cost
- 240-grit bead blast → Fine matte texture, +1-2 days, +10-15% cost
- Machine brush finish → Directional bright appearance, +1 day, +5-10% cost
- Laser engrave 0.2mm depth → High-contrast text/logos, +2-3 days, +15-25% cost
Drawing Specification Examples:
- “Bead blast 120 grit, anodize blue Type II”
- “Brush longitudinal, anodize gold”
- “Engrave per drawing, anodize black”
Quality Expectations: Bead-blasted areas typically appear 10-15% lighter than smooth surfaces due to light diffusion—this effect is consistent and predictable for design planning.
From our design consultation experience, specifying both processes with the same vendor ensures proper handling and quality control between surface treatment and anodizing.
Design Takeaway: Plan combined finishes early for accurate cost and schedule estimates. Specify texture and anodizing requirements clearly on drawings, and expect 10-20% cost increase plus 1-3 days additional lead time for combined processes.
Can scratches or damage be repaired without re-anodizing the entire part?
Minor surface scratches in anodized titanium can sometimes be polished out if they don’t penetrate the oxide layer, but deeper damage typically requires complete strip-and-re-anodize of the entire part at 60-80% of original anodizing cost. Local repair isn’t feasible since anodizing creates a uniform oxide layer.
Industry repair data shows the “fingernail test” reliably indicates repairability—if your fingernail catches in the scratch, it likely penetrates to the substrate and needs complete refinishing. Surface-only scratches that don’t catch fingernails can often improve with fine polishing compounds, similar to removing scratches from eyeglass lenses.
Damage Assessment Guide:
- Light surface marks (fingernail doesn’t catch) → Try polishing compound first, <$5 materials
- Deep scratches (fingernail catches) → Strip and re-anodize required, often 2-3× part cost
- Impact chips (visible bare metal) → Complete refinish only, usually cheaper to replace
- Gradual wear patterns → Refinish or accept wear depending on application criticality
Prevention Design Strategies: From our design consultation experience, recessed graphics, rounded external corners, and textured surfaces in high-contact areas significantly reduce visible scratch damage. Consider darker colors (black, dark blue) that show scratches less than bright colors (gold, purple).
Practical Field Solutions: For non-critical scratches, color-matched touch-up markers provide temporary cosmetic improvement, though they don’t restore corrosion protection or durability.
Design Takeaway: Plan anodized titanium as a permanent finish with limited repair options. Design to minimize scratch-prone surfaces, or specify replaceable anodized inserts for high-wear areas rather than integral anodized features.
Conclusion
Titanium anodizing provides durable, colorful finishes with minimal thickness buildup and excellent performance for precision applications. Critical features can be masked, and the process combines well with other surface treatments when properly sequenced. Plan for permanent finishes with limited repair options.
Contact us to explore titanium anodizing solutions tailored to your precision part requirements.
Frequently Asked Questions
The 0.0001-0.0005 mm thickness buildup typically doesn’t affect standard O-ring grooves designed with 0.05+ mm clearances. For critical seals, prototype first or specify uncoated sealing surfaces.
Yes, selective masking allows multiple colors on one part, but expect 25-40% cost increase and 2-3 additional days lead time. Complex multi-color designs may require multiple anodizing runs with precise re-masking.
Request accelerated wear testing samples or specify salt spray testing per ASTM B117. Most anodizing vendors can provide test coupons processed identically to your parts for validation.
The anodic oxide layer is electrically insulating and may block NFC signals or reduce wireless charging efficiency. Test prototypes with your specific electronics to verify functionality, or mask contact areas for signal transmission.
Titanium anodizing is FDA-approved for medical device applications and biocompatible for skin contact. The anodic oxide is chemically inert and won’t cause allergic reactions like nickel-based finishes.
Specify anodizing type and voltage parameters on drawings, request color standards or samples, and use the same anodizing vendor for prototypes and production to ensure consistent processing conditions.
