Custom gear pricing depends on more than material costs — it’s about which specifications drive expense and where you have flexibility. Small changes in tolerances, materials, or surface finishes can dramatically impact both cost and lead time for precision gear manufacturing.
The biggest cost drivers in custom gear orders are material selection, tolerance requirements, surface finish specifications, and batch size. Module/pitch standardization, heat treatment complexity, and geometric features also significantly affect pricing.
Learn which gear specs offer cost flexibility, how materials impact machining time, and when standard modules are the best choice—based on CNC insights.
Table of Contents
What Factors Most Affect the Price of Ordering Custom Gears?
Material grade, tolerance class, and surface finish specifications create the biggest cost variations in custom gear quotes. Moving from standard steel alloys to stainless or specialty materials can double or triple quotes. AGMA tolerance classifications and surface finish requirements beyond standard machining capabilities drive the largest price escalations – often 50-150% increases over baseline specs.
The most expensive specification mistakes happen when engineers over-tolerance non-critical features or specify premium materials where standard alloys perform adequately. Common red flags include: calling for AGMA Class 10 tolerances on gear blanks (when only tooth profiles need that precision), specifying stainless steel for indoor dry environments, or requiring ground finishes on non-contact surfaces.
Key decision framework: Ask yourself three questions before finalizing specs: (1) Does this tolerance affect gear meshing or assembly fit? (2) Will my operating environment actually corrode standard steel? (3) Do I need this surface finish for function or just appearance? Most cost escalation comes from “better safe than sorry” specifications that don’t improve performance.
For typical industrial applications, AGMA Class 8 tolerances handle most precision requirements, 4140 steel provides adequate strength up to moderate loads, and standard machined finishes work fine for non-meshing surfaces.
Design Takeaway: Use a performance-first approach – specify premium features only where they solve actual functional requirements, not as insurance against unknown problems.

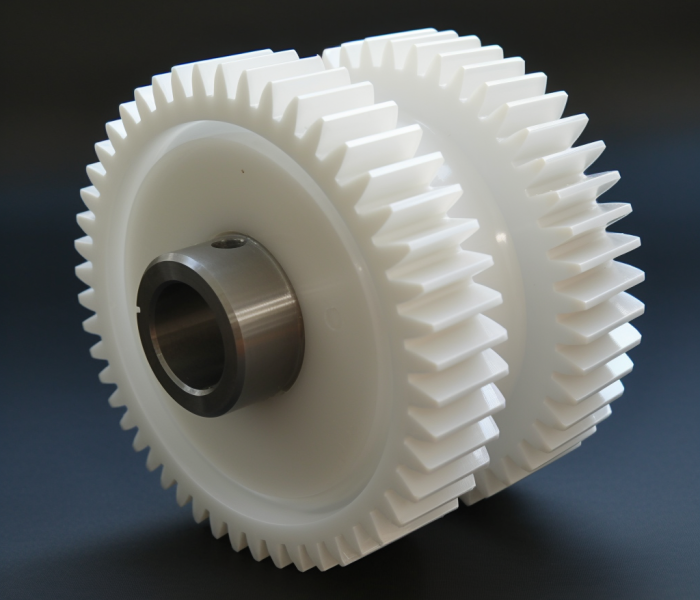

Which gear material balances performance with lower cost?
4140 steel heat-treated offers the best strength-to-cost balance for most custom gear applications, while 6061-T6 aluminum works well for lighter-duty applications. Choose based on your actual load requirements rather than assuming premium materials are always better.
Material Selection by Load Requirements:
- Light loads (servo drives, encoders): 6061-T6 aluminum – adequate strength, easy modifications during development
- Moderate loads (industrial positioning, instrument drives): 4140 steel heat-treated – proven performance for most precision applications
- Heavy-duty applications: Consider upgraded steel grades before jumping to exotic alloys
- Corrosive environments only: 316 stainless steel when washdown or chemical exposure is genuine
Most engineers overestimate their strength requirements or choose stainless “just in case” for indoor equipment. Standard heat-treated steel handles the majority of industrial gear applications effectively, while aluminum works well for development phases where design changes are likely.
Quick validation check: If your gear operates indoors without chemical exposure, question any supplier recommending stainless steel. Ask for specific justification beyond general “better quality” explanations.
Design Takeaway: Start with your actual operating loads and environment – most applications don’t require premium materials despite common assumptions.
How does material type affect the overall gear order price?
Material choice creates significant cost variations in gear quotes because premium alloys carry both higher raw material costs and processing complexity. The impact is most pronounced in smaller quantities where material premiums aren’t spread across volume.
Standard steel represents your cost baseline. Stainless steels typically carry substantial material premiums and may require specialized processing capabilities that limit supplier options. Exotic alloys compound this effect with even higher material costs and longer lead times due to limited supplier availability.
Cost evaluation red flags: Watch for stainless steel specified for indoor applications, exotic alloys without clear environmental justification, or premium materials chosen for prototype quantities where standard grades would allow faster iteration and lower development costs.
The cost penalty hits hardest on smaller orders where setup costs and material premiums aren’t amortized across quantity. For development work, standard materials often provide better value by enabling cost-effective design iterations.
Design Takeaway: Require specific performance justification for premium materials – environmental conditions, regulatory requirements, or proven load necessities rather than precautionary specifications.
Looking to reduce custom gear costs?
We help cut cost via design, tolerances & materials • Share your drawing — get suggestions
Would a standard module or pitch save money over custom sizing?
Yes, using standard modules (1.0, 1.25, 1.5, 2.0, 2.5) typically reduces costs by 30-50% because we already stock the necessary cutting tools and can avoid custom tooling fabrication. Custom modules require specialized hob manufacturing which adds $500-800 in tooling costs plus 2-3 weeks lead time regardless of quantity.
From our gear manufacturing experience, most precision applications work perfectly with standard modules when engineers allow ±2-3mm center distance flexibility during design. We’ve successfully produced gears for servo systems, instrument drives, and positioning equipment using standard modules instead of originally specified custom sizing.
Design flexibility assessment: If you’re in the design phase, choose the nearest standard module and adjust your center distances accordingly. For example, if calculations suggest 1.75 module, both 1.5 and 2.0 standard modules typically work with minor mounting adjustments – the performance difference is negligible while cost savings are substantial.
When custom modules are justified: Retrofit applications with fixed mounting points, mating with existing non-standard gears, or space-critical assemblies where even 2-3mm center distance changes won’t work. We’ve handled these situations, but they require custom tooling investment.
Design Takeaway: Build center distance flexibility into your initial design specifications – this single decision eliminates custom tooling costs and reduces lead times significantly.
How do surface finish requirements affect gear pricing?
Surface finish specifications beyond Ra 3.2 μm can increase gear costs by 40-70% due to secondary grinding operations and extended machining time. We’ve found most gear applications perform adequately with standard CNC-machined finishes, making tight surface specs a frequent over-specification.
Our standard finish capabilities and applications:
- Standard CNC finish (Ra 3.2-6.3 μm): Handles most industrial gears, enclosed drives – represents our baseline pricing
- Improved finish (Ra 1.6-3.2 μm): Achievable with fine tooling passes – adds 20-30% to machining time
- Ground finish (Ra 0.8-1.6 μm): Requires secondary grinding setup – adds 40-70% cost premium
From our production experience, the biggest cost mistakes happen when engineers specify ground finishes on gear blanks, mounting surfaces, or bores that don’t affect performance. We focus surface finish requirements on tooth flanks only when noise reduction is genuinely critical for the application.
Manufacturing insight: High-speed applications above 1000 RPM may benefit from improved tooth flank finishes for noise reduction, but standard finishes work fine for most precision positioning and servo applications under 500 RPM.
Design Takeaway: Specify surface finish requirements only where they affect function – gear meshing characteristics or noise performance – rather than applying uniform premium finishes across all surfaces.
Can heat treatment be simplified without hurting performance?
Yes, many gear applications can use simpler heat treatments while maintaining adequate performance – through-hardening often works as well as complex case hardening for moderate-load applications. We’ve successfully delivered gears with basic heat treatment (28-32 HRC through-hardening) for servo drives, positioning systems, and instrument applications where engineers originally specified expensive case hardening processes.
Heat treatment performance differences from our experience:
- Through-hardening: Provides uniform hardness throughout, adequate wear resistance for most precision applications, handles moderate loads reliably
- Case hardening: Creates hard surface layer with tough core, extends wear life in high-cycle applications, justified for continuous operation above moderate loads
From our manufacturing perspective, through-hardening costs approximately $40-60 per gear while case hardening typically runs $120-180 per piece. Most indoor precision equipment – servo systems, positioning drives, instrumentation – operates well within through-hardened steel capabilities for years of reliable service.
Application assessment: Through-hardening works well for intermittent operation, clean environments, and applications where gear replacement during equipment lifetime is acceptable. Case hardening makes sense for continuous operation, contaminated environments, or when gear failure creates significant downtime costs.
Manufacturing insight: We’ve seen engineers specify case hardening for prototype gears seeing limited test cycles, or indoor applications where basic hardening provides decades of service without wear issues.
Design Takeaway: Evaluate your actual operating conditions and failure consequences – most precision applications don’t require case hardening complexity and costs.
Does ordering larger batches reduce unit gear costs?
Yes, batch quantities significantly impact unit costs – moving from prototype quantities (1-5 pieces) to small production runs (25-50 pieces) typically reduces unit costs by 40-60%. Setup costs, programming time, and tooling preparation represent fixed expenses that get distributed across quantity, making larger batches much more cost-effective.
Quantity planning strategy for uncertain demand:
- Conservative approach: Order 25-30 pieces if you expect any repeat orders or design iterations – breaks even if you use 60-70% of quantity
- Development projects: Consider batching prototype quantities rather than multiple single-piece orders
- Production planning: If demand uncertainty is high, 50-piece initial orders typically provide good unit costs while limiting inventory risk
From our manufacturing data, setup time for custom gears typically runs 2-4 hours regardless of quantity. On single prototypes, this setup cost hits the unit price directly, while larger batches spread it across volume.
Risk assessment insight: We’ve helped customers reduce total project costs by batching slightly higher quantities initially, even when future demand was uncertain. The unit cost savings often offset inventory risk, especially for development projects expecting multiple iterations.
Design Takeaway: Consider your total project needs, not just immediate requirements – moderate quantity increases often provide better economics even with demand uncertainty.
Could adjusting gear size or thickness maintain strength but cut cost?
Yes, optimizing gear geometry often maintains required strength while reducing material costs and machining time – increasing diameter while reducing face width frequently achieves equivalent torque capacity at lower cost. We’ve successfully redesigned gears to reduce material volume by 20-30% while maintaining performance through geometric optimization.
Safe geometry optimization approaches:
- Increase diameter within space limits: Generally maintains or improves torque capacity while using similar material
- Reduce face width conservatively: Start with 10-15% reductions and verify against your torque requirements
- Simplify gear blanks: Remove unnecessary material from non-functional areas without affecting tooth strength
Strength validation guidance: Torque capacity scales roughly with diameter cubed but only linearly with face width – this means modest diameter increases can offset face width reductions effectively. However, verify any geometry changes against your actual load calculations rather than assuming equivalency.
Conservative optimization examples: Reducing face width from 1″ to 0.85″ on a 4″ diameter gear typically saves 10-15% material while maintaining most torque capacity. Increasing diameter from 4″ to 4.25″ while reducing face width to 0.75″ often provides equivalent strength with material savings.
When to avoid geometry changes: Fixed mounting configurations, mating with existing gears, or space-critical assemblies where diameter increases won’t fit.
Design Takeaway: Focus on diameter optimization first since it provides the best strength-to-material ratio – face width reductions should be secondary and verified against your load requirements.
Conclusion
Custom gear costs depend primarily on material selection, tolerance specifications, and batch quantities – with standard modules and simplified heat treatments offering the biggest savings opportunities. Focus premium specifications only on performance-critical features while using standard approaches elsewhere. Contact us to explore manufacturing solutions tailored to your gear requirements.
Frequently Asked Questions
Challenge recommendations for stainless steel in indoor applications, case hardening for intermittent use, ground finishes on gear blanks, or custom modules when standard sizing could work with minor design adjustments.
Yes, specifying ISO 2768-m tolerances for non-critical features saves engineering time and reduces quotes. Focus detailed tolerancing only on gear tooth profiles, bore concentricity, and surfaces that mate with existing components.
Allow ±3-5mm center distance adjustment in your initial design. This flexibility enables standard module selection and can reduce gear costs by 30-40% compared to custom modules requiring special tooling.
If your gear quote seems high, check if you’ve specified tight tolerances on non-critical features. Reserve ±0.01mm specs for gear tooth accuracy and bore concentricity only. Mounting surfaces work fine with standard ±0.05mm tolerances, significantly reducing costs.
Focus on maintaining required torque capacity and center distance compatibility. Geometry changes that increase diameter while reducing face width often maintain strength while reducing costs, but verify against your load calculations.
Custom gears typically become cost-competitive around 25-50 pieces. Below 25 pieces, consider if standard gears with bushings or adapters might work for prototyping before committing to custom manufacturing.
