Choosing the right counterbore affects assembly function, fastener accessibility, and manufacturing cost. With experience machining precision components for aerospace, medical, and industrial sectors, small counterbore decisions often prevent costly redesigns and assembly complications.

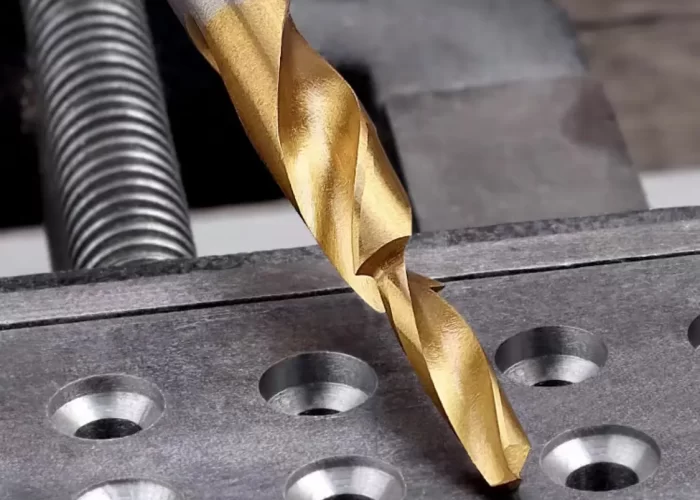

Counterboring creates a flat-bottomed, enlarged recess allowing fastener heads to sit flush with or below the surface for improved function and aesthetics. The process requires drilling a pilot hole first, then machining precise diameter and depth specifications using specialized counterbore tools matched to your fastener requirements.
This guide helps product developers and engineers choose the optimal counterbore solution for their specific requirements.
Table of Contents
When Should I Use Counterbores in My Design?
Counterbores are essential when fastener heads must sit flush or below the surface for aesthetics, safety clearance, or functional performance. Use them when protruding hardware interferes with moving parts, creates snag hazards, or compromises smooth mating surfaces.
Use counterbores when your design has:
- Aesthetic requirements where visible fastener heads detract from appearance
- Safety concerns where protruding hardware creates snag or injury risks
- Functional needs for smooth mating surfaces between components
- Clearance constraints where standard fasteners interfere with moving parts
- High-vibration environments requiring increased fastener bearing area
We routinely achieve ±0.01 mm depth control on counterbored assemblies using precision boring tools with CMM verification. In medical device housings, counterbores eliminate the 0.5-2.0 mm protrusion that creates contamination risks in sterile environments. For high-vibration assemblies, the increased bearing surface area prevents fastener loosening compared to standard installations.
Three design scenarios demand counterbores: aesthetic requirements where visible fasteners detract from appearance, safety applications where protruding hardware creates interference risks, and functional assemblies requiring smooth surface contact. Audio equipment faceplates need flush mounting for professional appearance, while aerospace panels require smooth aerodynamic surfaces without hardware protrusion.
Counterbores solve clearance problems in tight assemblies where standard fastener heads interfere with adjacent components or moving mechanisms. Non-critical dimensions follow ISO 2768-m tolerances, while functional surfaces requiring precise engagement need tighter depth control with documented inspection.
Design Takeaway: Specify counterbores when flush mounting directly supports your product’s functional, safety, or aesthetic requirements. If surface profile, clearance, or appearance affects design performance, counterbores become essential design elements.
Counterbores vs. Alternative Fastening Methods
Counterbores cost 20-40% more than standard through-holes but provide superior aesthetics and functionality when flush mounting is required. Compare against threaded inserts, surface-mount fasteners, and standard bolts based on assembly requirements and budget constraints.
Key comparison factors:
- Cost: Standard through-holes ($0.50/hole) vs counterbores ($0.75-1.20/hole) vs threaded inserts ($1.50-3.00/hole)
- Aesthetics: Counterbores provide completely flush surfaces, threaded inserts offer near-flush mounting, standard fasteners protrude 2-8mm
- Strength: Threaded inserts excel in thin materials, counterbores work best in thick sections, standard fasteners offer maximum pull-out resistance
- Rework capability: Threaded inserts allow easy fastener replacement, counterbores require permanent installation, standard fasteners offer easiest maintenance
For aluminum enclosures under 6mm thick, threaded inserts often outperform counterbores by distributing loads across more material. In steel assemblies over 10mm thick, counterbores provide adequate strength with better appearance than surface-mounted alternatives. Robotics housings frequently choose counterbores over alternatives due to smooth surface requirements that prevent debris accumulation.
Standard through-holes with washers work well for non-critical applications where 3-5mm protrusion doesn’t affect function. Threaded inserts suit applications requiring frequent disassembly or when base material thickness limits counterbore depth.
Design Takeaway: Choose counterbores when flush aesthetics justify the cost premium over standard fastening. For functional assemblies where appearance matters less than strength or serviceability, evaluate threaded inserts or standard fasteners first.
Which Counterbore Type Fits My Application?
Standard counterbores handle 80% of applications using common fasteners, while specialized types solve specific design challenges. Match counterbore type to your fastener style, material thickness, and access requirements for optimal performance.
Counterbore type selection guide:
- Standard counterbores: Fixed diameter/depth for socket head cap screws, fillister heads – best for general assemblies
- Adjustable counterbores: Variable dimensions for non-standard fasteners – ideal for prototyping or custom hardware
- Aircraft counterbores: Countersunk profiles for flush-head screws – required for aerodynamic surfaces
- Tapered counterbores: Angled profiles for high-precision fits – used in aerospace and automotive applications
We machine standard counterbores for 90% of aluminum projects using M3-M12 socket head cap screws, achieving Ra 1.6μm finishes in 6061-T6 material. Aircraft counterbores require specialized tooling but deliver Ra 0.8μm finishes essential for painted aerospace surfaces. Adjustable types add 30-50% to setup time but eliminate custom tooling costs for prototype quantities under 50 pieces.
For instrumentation panels, standard counterbores in aluminum provide the smooth aesthetics required for laboratory equipment. Automotive assemblies often specify tapered counterbores to ensure precise component alignment under thermal cycling. Industrial machinery uses blow-back counterbores when access is limited to the back side of assemblies.
Cap screw counterbores match ISO 4762 socket head dimensions, while fillister head types accommodate smaller screw profiles in thin materials where standard counterbores would compromise structural integrity.
Design Takeaway: Start with standard counterbores unless your application has specific constraints. Specialized types add complexity but solve access, precision, or fastener compatibility challenges that standard types cannot address.
How Do I Specify Counterbore Dimensions and Tolerances?
Specify counterbore diameter 0.1-0.2mm larger than fastener head diameter, with depth 0.5-1.0mm deeper than head height. Use standard tolerances for non-critical features, tightening only when precise fastener seating affects function.
Critical dimension specifications:
- Diameter tolerance: ±0.05mm for standard applications, ±0.02mm for precision fits
- Depth tolerance: ±0.05mm for non-critical, ±0.01mm when gasket compression matters
- Surface finish: Ra 3.2μm standard, Ra 1.6μm for painted surfaces, Ra 0.8μm for optical assemblies
- Pilot hole relationship: Maintain 0.1mm minimum wall thickness between pilot and counterbore
We achieve ±0.01mm depth control using boring bars with digital readouts and CMM verification on aluminum parts. For pharmaceutical equipment housings, ±0.02mm diameter tolerance ensures consistent gasket sealing across production batches. Over-specifying to ±0.005mm increases machining time by 40-60% with minimal functional benefit in most applications.
Socket head cap screws require counterbore diameter = head diameter + 0.15mm clearance, with depth = head height + 0.75mm minimum. ISO 2768-m applies to non-critical surfaces, while functional interfaces may need geometric dimensioning per ASME Y14.5 standards for position and concentricity control.
Thin-wall applications under 3mm require careful depth specification to maintain structural integrity. Always specify pilot hole diameter and depth separately from counterbore dimensions to ensure proper tool sequencing and avoid breakthrough issues.
Design Takeaway: Reserve tight tolerances for surfaces affecting assembly function or sealing performance. Standard tolerances reduce machining complexity while providing adequate clearance for most fastener applications.
What Are the Key Design Applications for Counterbores?
Counterbores solve four distinct design challenges: hiding fasteners for clean aesthetics, mounting bearings with precise positioning, creating smooth mating surfaces, and meeting regulatory surface requirements. Each application drives different specification priorities.
Fastener concealment dominates consumer and architectural applications where visible hardware detracts from design intent. Audio equipment faceplates rely on counterbores to maintain the seamless appearance customers expect, while furniture manufacturers use them to hide attachment points beneath wooden plugs. The aesthetic goal drives surface finish requirements more than dimensional precision.
Bearing and component mounting represents the most technically demanding application. We machine counterbored bearing seats in 7075-T6 aluminum achieving ±0.005mm concentricity for high-speed spindle assemblies where any eccentricity causes vibration. Linear guide mounting requires consistent counterbore depth across multiple points to ensure proper preload distribution and smooth motion.
Mechanical assemblies need counterbores when protruding fasteners interfere with sealing gaskets, sliding mechanisms, or rotating components. Industrial equipment access panels use counterbores to create smooth surfaces that facilitate cleaning and prevent debris accumulation in food processing or pharmaceutical environments.
Precision engineering applications in aerospace and medical devices often mandate counterbores to meet strict surface profile requirements. These applications prioritize dimensional control and documented inspection over cost optimization.
Design Takeaway: Identify your primary goal first – aesthetics, precision positioning, or functional clearance. This determines whether you need to prioritize surface finish, positional accuracy, or simply reliable fastener concealment at the lowest cost.
How Do Material Choices Affect Counterbore Performance?
Material selection determines achievable surface finish, dimensional precision, and machining cost for counterbored features. Aluminum offers the best balance of machinability and performance, while specialized materials serve specific functional requirements.

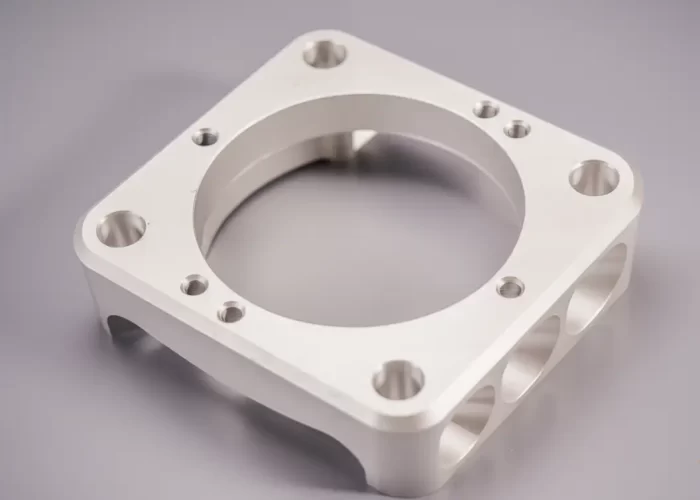

6061-T6 aluminum delivers optimal results for most counterbore applications. We consistently achieve Ra 0.8μm finishes using standard carbide tools at 3000 RPM, with dimensional stability that maintains specified clearances across temperature variations. The material’s forgiving machinability allows tight tolerances without specialized tooling or excessive setup time.
Stainless steel 316L requires 40% slower cutting speeds and generates more heat, but provides essential corrosion resistance for marine or medical applications. The harder material tends to work-harden during machining, making counterbore depth consistency more challenging to achieve. However, when biocompatibility or chemical resistance matters, the machining difficulties become acceptable trade-offs.
7075-T6 aluminum suits high-stress applications where counterbored features must withstand significant loads or vibration. The increased hardness creates slightly rougher surface finishes but provides superior fatigue resistance for bearing mounting applications.

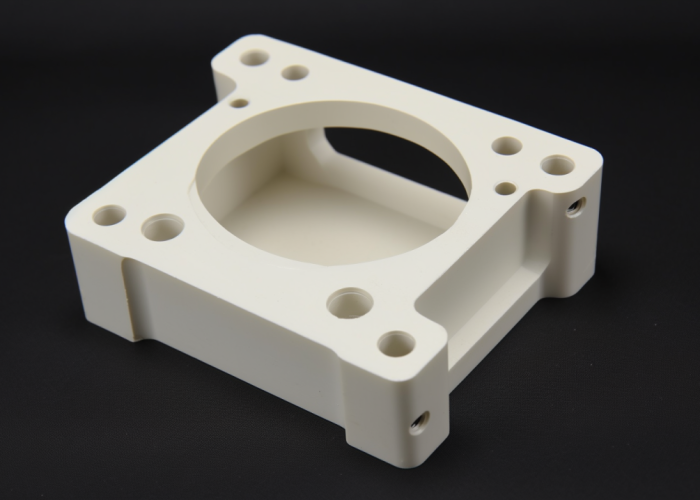

Plastic materials like Delrin machine quickly and cost-effectively but require temperature control during production. Thermal expansion can cause dimensional variations that affect fastener fit, particularly in counterbores where clearance is already minimal.
Design Takeaway: Start with 6061-T6 aluminum unless specific functional requirements demand alternatives. The material choice should align with your application’s primary challenge – corrosion resistance, strength, or cost optimization.
What Design Mistakes Should I Avoid with Counterbores?
The most costly mistake is specifying counterbores where simpler fastening methods would work equally well. Over-engineering counterbore features increases manufacturing complexity and cost without proportional functional benefits.
Insufficient material thickness causes the most structural problems. When counterbore depth plus pilot hole breakthrough leaves less than 1.5x screw diameter of material, the remaining wall often cracks under load or thermal stress. We’ve seen thin-wall enclosures fail catastrophically because designers didn’t account for the material removed by counterboring operations.
Over-specifying tolerances on non-functional features represents the most common cost driver. Decorative counterbores requiring ±0.01mm depth control cost 60% more to machine than ±0.05mm versions with identical visual appearance. The tighter specification forces slower cutting speeds, additional inspection steps, and potential rework without improving the end product.
Poor pilot hole concentricity creates downstream problems that are expensive to correct. When pilot holes wander from the intended centerline, counterbore tools can’t create uniform wall thickness around the fastener. This causes uneven fastener seating, compromised aesthetics, and potential stress concentration points.
Ignoring the relationship between fastener type and counterbore geometry leads to assembly problems. Socket head cap screws need specific diameter and depth relationships that differ from fillister head or button head fasteners. Mismatched specifications cause binding, incomplete seating, or inadequate engagement.
Design Takeaway: Question whether counterbores truly add value to your specific application before specifying them. When they’re necessary, focus tight tolerances only on features that affect function, and always verify adequate material thickness remains after machining.
Conclusion
Counterbore selection depends on balancing functional requirements with manufacturing cost – tight tolerances only where performance demands it. Choose standard types for most applications, specify appropriate materials for your environment, and ensure adequate wall thickness for structural integrity. Contact us to explore counterbore manufacturing solutions tailored to your product requirements.
Frequently Asked Questions
Yes, but specify looser tolerances (±0.1mm) to accommodate thermal expansion. Machine at controlled temperatures and allow 24-hour stabilization before final inspection to ensure dimensional accuracy.
Not recommended for structural fasteners. Maximum counterbore depth would be 1.5mm, leaving insufficient engagement for reliable fastening. Consider threaded inserts or surface-mount alternatives instead.
Ra 1.6μm provides adequate paint adhesion and appearance. Ra 0.8μm adds cost without visual benefit under typical coating thickness. Ra 3.2μm may show through thin paint films.
Specify concentricity between pilot hole and counterbore per ASME Y14.5. Use rigid setups, sharp drill bits, and proper cutting speeds. Consider pre-drilling pilot holes in a separate operation for better accuracy.
Only when precise fastener seating affects assembly function – gasket compression, bearing alignment, or optical positioning. Aesthetic applications rarely justify the 60% machining cost increase.
Minimum 12mm total thickness – M6 screw diameter (6mm) × 1.5 + counterbore depth (3mm) + pilot hole breakthrough (1.5mm). Thinner materials risk cracking under load or thermal cycling.
