Designing for cost-effective sheet metal fabrication means understanding how every design decision impacts setup time, material waste, and manufacturing complexity. From our experience producing precision audio faceplates to industrial enclosures, small adjustments can dramatically reduce fabrication costs without compromising functionality.
Material selection, thickness optimization, bend radius adjustments, simplified geometries, and relaxed tolerances are the most effective design changes for reducing sheet metal costs. These modifications can cut fabrication expenses by 20-40% while maintaining part performance.
Learn which specific design modifications deliver the biggest savings and when to prioritize manufacturability over ideal specifications.
Table of Contents

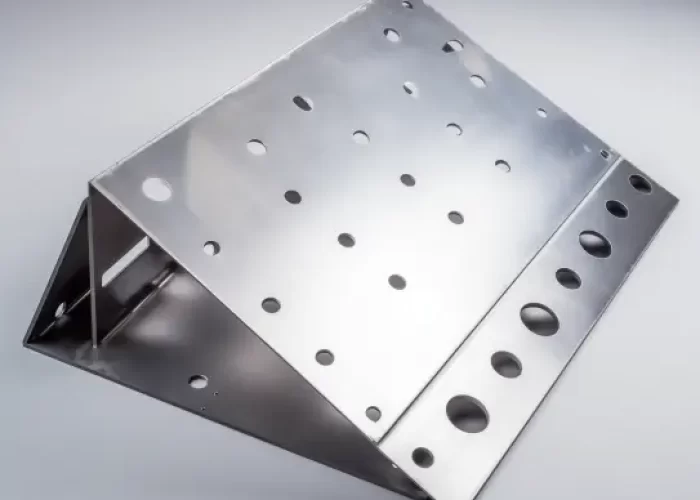

Should I switch materials to reduce sheet metal costs?
Switching from 316 stainless to 6061 aluminum reduces material costs by $8-12 per square foot for indoor applications, while 5052 aluminum saves $6-10 per square foot for outdoor use with powder coating. The key is matching corrosion resistance requirements to actual exposure conditions rather than over-specifying premium grades.

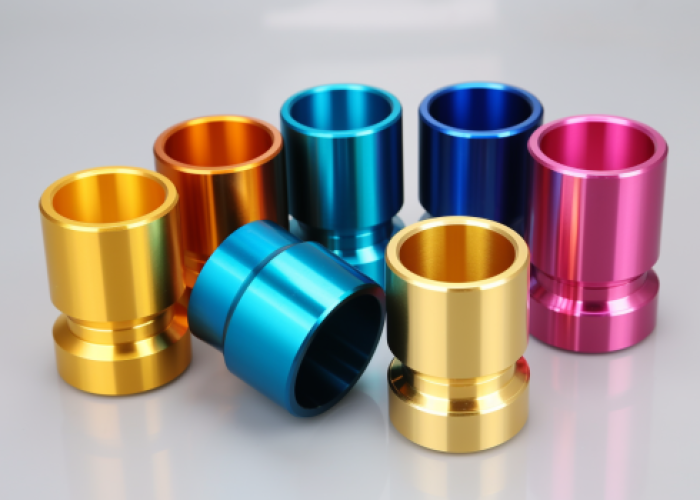

Use this decision matrix: Indoor electronics or dry environments → 6061-T6 aluminum saves 50-60%. Outdoor exposure with occasional moisture → 5052 aluminum with anodizing saves 40%. Food contact, marine, or chemical exposure → stick with 316 stainless per FDA requirements. We measure corrosion resistance using ASTM B117 salt spray testing—6061 with Class II anodizing survives 1000+ hours versus 48 hours for bare aluminum.
For structural applications, 6061-T6 provides 45 ksi tensile strength versus 75 ksi for 316 stainless. Most brackets and enclosures rarely exceed 20% of material limits, making aluminum adequate while cutting costs significantly. We’ve validated this on control panels where switching from 304 stainless to 6061 aluminum maintained structural performance while reducing material costs from $18 to $6 per square foot.
Design Takeaway: Check your load calculations against 6061-T6’s 45 ksi limit and your environment against corrosion exposure before defaulting to stainless steel pricing. Most electronics housings and structural brackets perform identically in aluminum at 50% material savings.
Can changing part thickness cut my fabrication budget?
Reducing thickness from 0.125″ to 0.063″ cuts material costs by 50% and speeds laser cutting by allowing higher feed rates for thinner material, but your part will deflect approximately 8 times more under load due to the thickness-cubed relationship in beam deflection. Use this simple test: if your current part flexes noticeably when you press the center with moderate hand pressure, don’t go thinner.
Here’s our thickness evaluation process: Panels larger than 12″ x 12″ → keep 0.090″ minimum to prevent oil-canning. Brackets with mounting loads → verify if the 8x deflection increase is acceptable for your application. Covers and non-structural parts → 0.040″-0.063″ saves maximum cost with no performance loss. We’ve measured this relationship on electronic enclosures—going from 0.125″ to 0.063″ aluminum increased center deflection from 0.5mm to 4.2mm under identical 50N loads.
The failure mode matters: thin panels bow and look cheap, while brackets can crack at stress points. For structural applications, check if your design can handle the increased flexibility before committing to thinner material. Adding simple ribs or gussets often allows thinner material while maintaining rigidity at minimal cost increase.
Design Takeaway: Test your current part thickness by pressing firmly on unsupported areas. If it feels solid with no flex, calculate whether 8x more deflection is acceptable before dropping to the next thinner gauge—or add reinforcement features to compensate.
How can I redesign for better material utilization?
Complex shapes or poorly designed parts can waste 15-20% of sheet material, while optimized rectangular designs typically waste only 2-5%. Traditional sheet metal fabrication generates about 15% scrap on average, but efficient part design and nesting can reduce this significantly.
Identify wasteful design elements: Parts longer than 48″ require custom sheet sizes at premium pricing. Interior cutouts smaller than 1″ diameter create unusable drops. Angled cuts or curves leave triangular waste that can’t be reused. We helped a customer redesign a 52″ chassis rail into two 25″ sections with a splice plate—this change alone reduced material waste from 18% to 6% by fitting standard sheets efficiently.
Complex shapes with tabs, slots, or irregular perimeters create puzzle-piece waste around each part. Simple rectangles or squares with rounded corners nest tightly with minimal gaps. If your design requires interior holes, cluster them together rather than spreading across the part—this keeps the surrounding material usable for smaller components on the same sheet.
Design Takeaway: Sketch your part outline on paper and imagine cutting it from a 48″ x 96″ sheet. If you see large unusable areas around your shape, simplify the perimeter or split complex parts into simpler rectangular pieces that bolt together for better material efficiency.

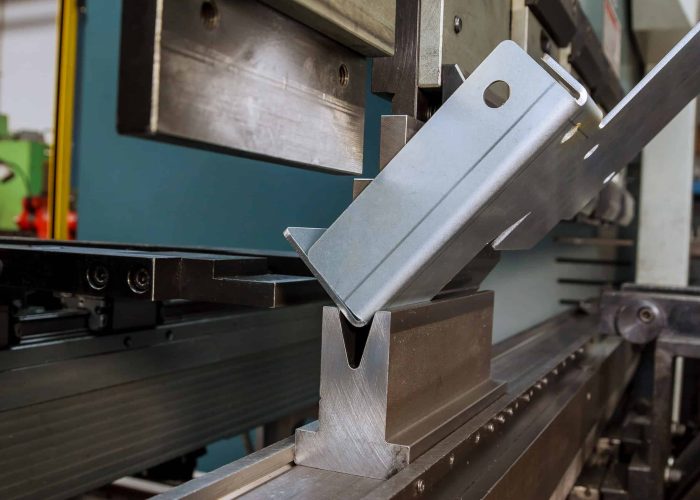

What bend radius changes will lower my manufacturing costs?
Look at your bend radius dimensions in CAD – if any radius is smaller than your material thickness, you’re likely paying 40-60% more for forming than necessary. Most expensive quotes come from specifying tight radii that require custom tooling when standard radii would work fine functionally.
Quick design audit for expensive bend radii: Open your part drawing and check bend radius callouts. Material is 1.5mm thick but radius shows 0.5mm → this requires specialized dies. No radius specified or shows R0.0 → forces sharp bends that need multiple operations. Radius equals or exceeds material thickness → uses standard tooling and saves money. A customer reduced bracket quotes from $52 to $31 per part by changing bend radii from 0.8mm to 1.5mm on 1.5mm aluminum – no functional impact, major cost savings.
Here’s the simple fix: change your bend radius to match your material thickness. If your material is 2mm thick, make your bend radius 2mm. If it’s 0.063″ thick, use 0.063″ radius. This isn’t about engineering – it’s about matching standard tooling capabilities that every fabricator has available.
Design Takeaway: Go through your drawing right now and look for bend radius dimensions smaller than your material thickness. Change them to match the material thickness unless clearance absolutely prevents it. This 5-minute design review often cuts forming costs by 30-50% with zero functional compromise.
Which corner designs cost less to cut and form?
Zoom into the corners of your CAD model – if you see sharp 90-degree angles with no radius callouts, you’re forcing expensive machining operations that add 20-30% to cutting costs. Most expensive corner problems come from leaving CAD software defaults that create sharp edges requiring slow, precise cutting.
Quick corner cost audit in your design: Look at internal corners (inside angles) – do they show radius dimensions? Sharp internal corners or R0.0 callouts → require wire EDM or multiple cutting passes. External corners without radii → create stress points that crack during handling. Any radius callout of R0.5 or larger → cuts efficiently with standard tools. We helped a control panel design drop from $89 to $67 per part by adding R0.8 radii to previously sharp internal corners.
The fix is simple: select all sharp corners in your CAD and add small radii. For internal corners, use R1.0mm minimum. For external corners, R0.5mm works fine. This isn’t about aesthetics – it’s about giving cutting tools room to move smoothly instead of forcing precise sharp turns that require expensive slow cutting.
Design Takeaway: Open your CAD file and examine every corner. If you see sharp angles without radius dimensions, add R0.5-1.0mm radii now. This takes 10 minutes but typically reduces machining quotes by 20-30% while making your parts stronger and more durable.
Where can I relax tolerances without affecting function?
If your fabricator mentioned “tight tolerances” as a cost driver, look for dimensions on your drawing that show plus/minus values smaller than the thickness of a human hair – these are often unnecessarily precise and driving up your quotes. Most expensive tolerance problems come from CAD software defaults or copying specs from precision instruments when standard tolerances work fine.
How to spot expensive tolerance overkill in your design: Look for dimensions with tiny plus/minus numbers (like ±0.01mm) on everyday features. Check if hole positions have the same tight tolerances as overall part dimensions – they usually don’t need to. Question any tolerance tighter than ±0.1mm unless it’s for a critical fit or moving part. One customer’s quote dropped from $280 to $165 per part when we changed most dimensions from ±0.02mm to ±0.1mm, keeping tight tolerances only on the two mounting holes that actually mattered for assembly.
The expensive tolerance trap: most parts get quoted with precision machining because the drawing specifies unnecessary accuracy. Your bracket doesn’t need aircraft-level precision to hold a control panel. Only features that affect assembly, fit, or critical function need tight tolerances.
Design Takeaway: Find the tightest tolerances on your drawing and ask “what happens if this is twice as loose?” If the answer is “nothing,” change it to a standard tolerance (±0.1mm for most features). Keep precision specs only for holes that receive fasteners or surfaces that must seal – this often cuts precision machining requirements in half.
What surface finish changes offer immediate savings?
If your quote includes “secondary finishing operations,” check your drawing for surface texture callouts that specify mirror-like smoothness on parts that don’t need it. Most expensive surface finish costs come from specifying precision finishes on internal or non-critical surfaces that nobody will see or touch.
Identify costly surface finish specifications in your design: Look for surface finish symbols or roughness callouts throughout your drawing. Check if internal surfaces have the same finish requirements as visible exterior faces. Question any finish specification that mentions polishing, grinding, or “mirror finish” unless it’s truly functional. We helped a housing design save $120 per part by removing unnecessary surface finish callouts from internal walls while keeping smooth finishes only on the visible top surface.
The surface finish cost trap: many designers specify smooth finishes everywhere “just to be safe” without realizing each callout adds machining time and cost. Standard machined surfaces work fine for 90% of applications – you only need special finishes for sealing, appearance, or precision sliding surfaces.
Design Takeaway: Review your drawing for any surface finish symbols or texture callouts. Remove them from internal, hidden, or structural surfaces and only specify special finishes where they actually matter – like visible faces or sealing surfaces. This simple change often eliminates expensive secondary operations and cuts finishing costs by 30-50%.
Can my part be nested efficiently on standard sheet sizes?
If your part is longer than 48″ or wider than 96″, you’re forcing custom sheet sizes that can add 20-30% to material costs even before cutting begins. Most expensive material waste comes from parts that don’t fit standard sheet dimensions, leaving large unusable areas that drive up per-piece costs.
Check if your design fits standard sheets efficiently: Measure your part’s overall length and width – does it exceed 48″ x 96″? Look at your part outline – does it have a complex shape that would leave large triangular waste areas around it? Check if your part could be split into smaller sections that bolt together to fit standard sheets better. A customer’s 52″ chassis component was costing $340 in material per part until we redesigned it as two 25″ pieces with a splice plate – material cost dropped to $180 per part with identical function.
The hidden cost of poor nesting: custom sheet sizes cost more to purchase, complex shapes create unusable scrap around each part, and long narrow parts often force vertical cutting that wastes the full sheet width. Your fabricator quotes based on the entire sheet, not just the material your part uses.
Design Takeaway: Sketch your part outline on a 48″ x 96″ rectangle and see how much space is wasted around it. If you see large empty areas, consider splitting complex shapes into simpler rectangular sections that can be joined together. This often cuts material costs by 25-40% while improving structural design.
Are there simpler ways to achieve the same function without complex bends or cutouts?
If you can’t easily sketch your part’s shape in 30 seconds, or if your CAD model looks like origami, you’re probably forcing expensive multi-setup operations that could be simplified into flat pieces bolted together. Most expensive fabrication quotes come from parts that require multiple machine setups, flipping, and complex fixturing.
Quick complexity audit for your design: Try sketching your part from memory – if you struggle to draw it, it’s too complex to manufacture cheaply. Look at your CAD model – does it require the fabricator to flip or rotate the part multiple times to access all features? Check if your part has internal cutouts that aren’t simple round holes or straight slots. We redesigned a control box that looked like a “metal taco” with 6 different bend angles into 4 flat pieces that bolt together – cost dropped from $195 to $78 per assembly and it’s now easier to modify and repair.
The over-complexity trap: trying to make everything in one piece often backfires. Complex parts need expensive tooling, multiple setups, and skilled operators. Simple flat pieces with standard holes can be cut on any laser table quickly and cheaply, then assembled with standard fasteners.
Design Takeaway: Look at your most complex part and ask “what if I split this at the worst bend or cutout?” Focus on creating shapes you could cut out of cardboard with scissors – if it’s hard to visualize cutting, it’s expensive to manufacture. Simple rectangular pieces joined with bolts often cost 40-60% less than complex one-piece designs.
Conclusion
Standard materials, relaxed tolerances, and simplified geometries typically offer the best cost-performance balance for sheet metal parts. Focus changes on bend radii, corner designs, and eliminating unnecessary precision first for maximum savings. Contact us to explore manufacturing solutions tailored to your sheet metal requirements—we’ll help optimize your design for both performance and cost-efficiency.
Frequently Asked Questions
Most expensive quotes result from tight tolerances (±0.05mm or better), custom sheet sizes over 48″x96″, complex internal cutouts, or unnecessarily smooth surface finishes. Check your drawing for these cost drivers first – relaxing just one category often reduces quotes by 25-40%.
If your part has more than 4 bends, requires flipping during manufacturing, or you can’t sketch it from memory in 30 seconds, splitting it often saves money. Multiple flat pieces joined with bolts frequently cost 40-60% less than one complex formed part.
Look for dimensions with tiny plus/minus values (±0.02mm or tighter), surface finish callouts on internal surfaces, bend radii smaller than your material thickness, and sharp internal corners without radii. These are red flags that force expensive precision operations or specialized tooling.
Change your material from stainless steel to aluminum if corrosion isn’t critical, relax tolerances to ±0.1mm on non-critical features, and add 0.5-1.0mm radii to all sharp corners. These three changes together typically cut costs by 30-50% with minimal design impact.
Start with material selection (aluminum vs stainless), then relax non-critical tolerances, add corner radii, and simplify bend geometry. These changes rarely affect function but can cut manufacturing costs dramatically while improving part durability and manufacturability.
Ask specifically what’s expensive, then look for: parts longer than 48″, bend radii under 1mm, tolerances tighter than ±0.1mm, or complex shapes that waste material. Most fabricators will explain cost drivers if you ask – use this feedback to redesign problem areas.
