Unexpected CNC turning costs often stem from design features that require specialized tooling, extended machining time, or complex setups. With decades of precision turning experience serving aerospace, medical, and industrial clients, small design adjustments can dramatically reduce costs while maintaining part performance.
Ten design features consistently increase CNC turning expenses: tight tolerances, thin walls, deep cavities, non-standard holes, sharp internal corners, curved surfaces, aesthetic features, multiple finishes, unusual threads, and multi-setup requirements. Understanding their cost impact helps optimize designs early.
Discover key cost drivers, smart design alternatives, and expert tips to balance precision with budget-friendly manufacturing.
Table of Contents
What's the Tightest Tolerance CNC Turning Can Hold?
Most CNC turning operations reliably achieve ±0.05 mm (±0.002″) tolerances for general features, while critical dimensions can reach ±0.013 mm (±0.0005″) with proper setup and tooling. Tighter tolerances than ±0.013 mm require specialized equipment, extended cycle times, and significantly increase costs. Understanding these limits helps optimize designs for both performance and budget.
Typical CNC turning tolerance ranges:
- ±0.05 mm (±0.002″) – Standard for non-critical features and overall dimensions
- ±0.025 mm (±0.001″) – Achievable for mating surfaces and bearing seats
- ±0.013 mm (±0.0005″) – Precision applications requiring specialized equipment
In our experience machining precision components for aerospace and medical applications, standard turning tolerances of ±0.05 mm work well for non-critical features like overall lengths and non-mating diameters. We routinely hold ±0.025 mm on shaft diameters, bearing bores, and threaded features using live tooling and controlled machining centers. For ultra-precision applications requiring ±0.013 mm or tighter, we employ Swiss-style lathes with temperature-controlled environments to minimize thermal expansion effects.
Achieving tight tolerances becomes exponentially more expensive below ±0.025 mm. Parts requiring ±0.013 mm tolerances typically add 30-50% to machining time due to slower feeds and finish cuts with fresh tooling. Additionally, every dimension under ±0.025 mm requires CMM verification rather than standard micrometers, extending inspection time.
Per ISO 2768-m standards, general tolerances apply to non-specified dimensions, typically ±0.1 mm for features under 30 mm length.
Design Takeaway: Reserve tolerances tighter than ±0.025 mm for truly critical features like bearing fits or seal grooves. Use ±0.05 mm for standard features to balance cost and performance effectively.

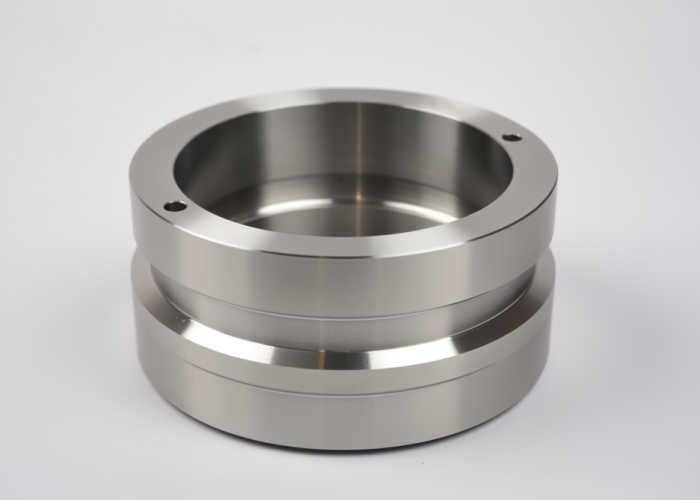

How Do Thin Walls Affect CNC Turning Costs?
Thin walls below 1.0 mm significantly increase CNC turning costs due to deflection, vibration, and the need for specialized fixturing and reduced cutting parameters. Walls thinner than 0.8 mm for metals or 1.5 mm for plastics often become cost-prohibitive to machine due to chatter and distortion challenges. Understanding wall thickness limitations helps balance weight reduction goals with manufacturing economics.
Critical wall thickness guidelines for turning:
- 1.0 mm minimum for reliable production without cost penalties
- 0.8 mm achievable with specialized setup and slower speeds
- 0.5 mm possible but requires custom tooling and extended cycle times
In our experience turning aerospace housings and medical components, walls thinner than 1.0 mm require significant process modifications. Thin-walled parts are prone to deformation from cutting forces, creating elliptical shapes or “waist-shaped” distortion where parts become smaller in the middle. We employ high-speed machining with reduced depths of cut, specialized soft jaws for uniform clamping pressure, and sometimes internal supports to maintain part rigidity during machining.
The cost impact becomes dramatic below 0.8 mm wall thickness. Cycle times typically increase 40-60% due to lighter cuts, slower feeds, and multiple finishing passes. Higher spindle speeds and lower feed rates are essential to minimize deflection risks while maintaining dimensional accuracy. Additionally, thin walls require CMM verification rather than standard gauging, adding inspection time and cost.
Per ASME B31.3 standards for process piping and ISO 2768 general tolerance guidelines, wall thickness directly impacts both structural integrity and dimensional control capabilities.
Design Takeaway: Maintain 1.0 mm minimum walls for standard turning operations. If weight reduction requires thinner walls, consider ribbing or internal supports to maintain rigidity while keeping critical sealing surfaces at recommended thickness.
How Deep Can CNC Turn Cavities and Holes Cost-Effectively?
CNC turning efficiently machines holes to 4 times their diameter depth using standard drill bits, while depths beyond 6x diameter require specialized tooling and typically increase costs by 50-80%. Standard practice limits hole depth to 4x diameter, though deeper holes up to 10x diameter are manufacturable with significant cost increases due to machining difficulties. Understanding these depth-to-diameter ratios helps engineers optimize designs for both functionality and manufacturing economics.
Industry-standard depth guidelines:
- 4:1 diameter ratio – Cost-effective using standard HSS or carbide drill bits
- 6:1 diameter ratio – Requires coolant-through tooling and peck drilling cycles
- 10:1 diameter ratio – Demands specialized deep-hole drilling equipment
From our experience manufacturing hydraulic manifolds and precision shafts, holes within 4x diameter maintain excellent surface finish (Ra 1.6-3.2 μm) and positional accuracy using standard turning centers. A 20 mm diameter hole can reliably reach 200 mm depth, but proper chip evacuation and cooling become critical to maintaining hole quality. Beyond 6x diameter, we employ gun drilling techniques with guided boring bars and high-pressure coolant systems to achieve Ra 0.8 μm finishes on critical bearing surfaces.
Deep holes require extended cycle times due to frequent chip clearing, reduced feed rates, and potential tool changes. Manufacturing costs escalate because specialized long drills cost 3-5x more than standard tooling, and deeper holes require CMM verification rather than plug gauges for dimensional control. Per ISO 4762 standards for socket head cap screws, standard engagement depths rarely exceed 3x diameter, making ultra-deep holes functionally unnecessary in most applications.
Design Takeaway: Specify hole depths within 4x diameter for standard turning operations. For deeper functional requirements like coolant passages, consider stepped diameters, cross-drilling, or approaching from multiple surfaces to maintain cost-effectiveness while meeting performance needs.
Can CNC Turning Create Sharp Internal Corners?
CNC turning tools are cylindrical and cannot create truly sharp internal corners—the minimum internal radius equals the cutting tool radius, typically 0.5-2.0 mm. Standard turning operations always produce a radius when cutting internal features, with tool geometry determining achievable corner radii. For sharp corners below 0.5 mm radius, alternative processes like EDM become necessary, significantly increasing costs.
Achievable internal corner radii:
- Tool radius minimum – Equal to cutting tool radius (0.5-2.0 mm)
- Practical minimum – 0.2-0.5 mm using small diameter tools
- Sharp corners – Require EDM or secondary operations
In precision housing and bearing seat manufacturing, internal corners inherently receive a radius matching the tool nose radius. Attempting to machine corners equal to tool radius causes excessive tool stress, chatter marks, and poor surface finish. We recommend designing internal radii at least 30% larger than tool radius for optimal results and reduced cycle times.
When sharp corners are required for assembly interfaces, design modifications like dog-bone undercuts or T-bone fillets accommodate mating parts effectively. Wire EDM can achieve internal corners as sharp as 0.05 mm radius, but this process is significantly slower and more expensive than conventional turning.
Per ISO manufacturing standards, internal fillet radius should be greater than 1/3 of cavity depth to prevent tool breakage and ensure stable machining conditions.
Design Takeaway: Design internal corners with radii at least 0.5-1.0 mm for standard turning operations. For assemblies requiring sharp interfaces, use dog-bone undercuts rather than secondary operations to maintain cost-effectiveness.
What Surface Finishes Are Standard for CNC Turning?
Standard CNC turning achieves Ra 1.6-3.2 μm surface finish as-machined, with precision operations capable of Ra 0.8-1.6 μm using optimized cutting parameters. Understanding achievable surface finishes helps engineers specify appropriate requirements based on part function rather than over-specifying unnecessarily costly finishes.
Standard turning surface finish ranges:
- Ra 3.2 μm – As-machined finish for structural components and non-critical surfaces
- Ra 1.6 μm – Standard precision finish for bearing journals and mating surfaces
- Ra 0.8 μm – High-grade finish for sealing surfaces and stressed components
From our experience manufacturing precision spindles for medical equipment and aerospace bearing housings, Ra 1.6 μm finishes work well for most bearing applications and provide excellent wear resistance. For hydraulic cylinder rods and sealing surfaces, Ra 0.8 μm finishes prevent fluid leakage and reduce friction in high-pressure systems. Aluminum components naturally achieve finer finishes than steel due to superior machinability characteristics.
Surface finish directly impacts part performance—smoother finishes reduce friction and wear in moving assemblies, improve corrosion resistance, and enhance paint adhesion for cosmetic applications. However, each finish level below Ra 1.6 μm requires additional finishing operations and specialized inspection methods.
Per ASME Y14.36M surface finish standards, as-machined finishes provide optimal dimensional stability without secondary operations that may affect part geometry.
Design Takeaway: Specify Ra 1.6-3.2 μm for general applications and reserve Ra 0.8 μm finishes only for sealing interfaces, bearing surfaces, or high-wear components where enhanced surface quality directly improves functional performance.
What Thread Specifications Keep CNC Costs Down?
Standard metric (M) and unified (UNC/UNF) threads reduce CNC turning costs significantly compared to custom specifications, while limiting thread length to 3 times hole diameter prevents unnecessary machining time and tool wear. Using standard drill sizes and ISO 965 tolerance classes (6H internal/6g external) eliminates custom tooling requirements. Understanding standard thread specifications helps optimize designs for both functionality and manufacturability.
Cost-effective thread specifications:
- Standard threads – Metric (M6, M8, M10) and Unified (1/4-20, 3/8-16) series
- Thread length – Maximum 3x hole diameter for optimal strength without waste
- Standard tolerances – ISO 965 medium class (6H/6g) for general applications
From our experience manufacturing threaded components for medical devices and aerospace assemblies, standard metric threads like M6×1.0 and M8×1.25 significantly reduce costs due to readily available taps and threading tools. Custom thread pitches require special tooling that can add 20-30% to production costs and extend lead times. For blind holes, we recommend leaving at least 0.5x diameter unthreaded length at the bottom to prevent tap breakage.
Thread engagement beyond 1.5x diameter provides minimal strength improvement but increases machining time substantially. Through-holes simplify threading operations compared to blind holes due to easier chip evacuation and reduced tap loading.
Per ISO 965 threading standards, medium tolerance class threads balance manufacturing cost with adequate fit for most applications.
Design Takeaway: Specify standard metric or unified threads with maximum 3x diameter length and ISO 965 medium tolerance class. Reserve custom thread specifications only when standard threads cannot meet functional requirements.
Conclusion
Tolerances tighter than ±0.025 mm, thin walls below 1.0 mm, and non-standard specifications drive up CNC turning costs exponentially. Stick with standard tolerances, reasonable wall thickness, and ISO specifications unless functionally required. Smart design choices balance precision with cost-effectiveness. Contact us to explore manufacturing solutions tailored to your CNC turning requirements.
Frequently Asked Questions
Walls below 1.0 mm are possible but increase costs significantly due to vibration and deflection issues. Consider increasing to 1.0 mm or adding internal ribs for strength.
Ra 1.6 μm works for most applications including bearings. Specify Ra 0.8 μm only for critical sealing surfaces or high-wear components where smoothness affects performance.
M8×1.25 standard coarse thread provides excellent strength. Fine pitch M8×1.0 offers slightly better precision but requires more careful machining and costs more.
Minimum 0.5 mm radius for standard tooling. Sharp corners require EDM or secondary operations that can double machining costs for that feature.
5:1 depth-to-diameter ratio requires specialized deep-hole drilling and increases costs substantially. Consider stepped diameters or drilling from both ends for better economics.
For most rotating shafts, ±0.05 mm works well. Specify ±0.025 mm only for precision bearing journals or high-speed spindles where tight fits are critical for performance.
