Product developers often struggle with gear selection, unsure which type delivers the best performance, fits their space constraints, or matches their budget. With over 15 years of CNC machining experience producing custom gears for aerospace, medical, and industrial applications, we’ve seen how the right gear choice early in design can dramatically reduce manufacturing costs and improve product reliability.
The main gear types for CNC manufacturing include spur gears (simplest, parallel shafts), helical gears (quieter operation), bevel gears (intersecting shafts), worm gears (high torque reduction), and planetary gears (compact, high-torque applications). Selection depends on torque requirements, space constraints, noise limits, and shaft arrangements.
Match gear types to your application, avoid costly over-engineering, and choose designs that boost CNC precision and manufacturing efficiency.
Table of Contents
What Are the Main Gear Types and Their Key Differences?
The five primary CNC gear types are: spur gears (parallel shafts, ±0.02 mm tolerance), helical gears (15-45° helix angle, quieter operation), bevel gears (intersecting shafts, typically 90°), worm gears (10:1 to 100:1 ratios), and planetary gears (3-10x torque multiplication). Selection depends on shaft orientation, torque requirements, and noise limits.
Key Gear Types at a Glance:
- Spur Gears – Straight teeth, parallel shafts, simplest CNC manufacturing
- Helical Gears – Angled teeth (15-45°), 20-30% quieter operation
- Bevel Gears – Conical shape, 90° intersecting shafts, automotive differentials
- Worm Gears – High reduction ratios (10:1 to 100:1), self-locking capability
- Planetary Gears – Compact design, 3-10x torque multiplication, robotics applications

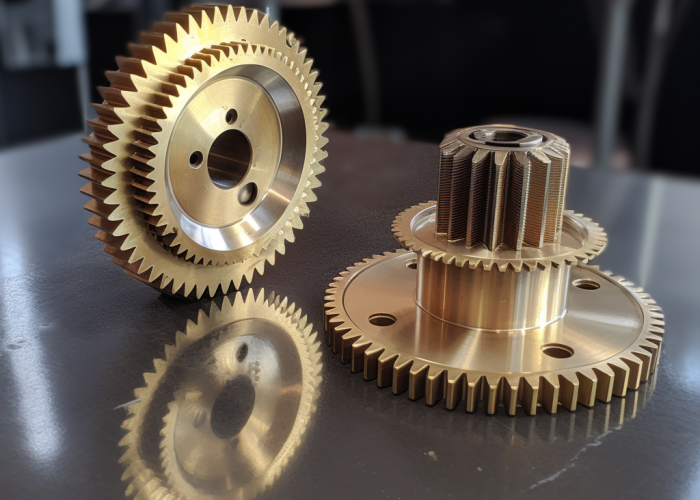

Spur gears provide the most straightforward CNC manufacturing with straight teeth parallel to the shaft axis. Standard tolerances of ±0.02 mm are achievable on modern CNC equipment, making them cost-effective for parallel shaft applications in gearboxes and machinery. Noise levels typically range from 65-75 dB under load.

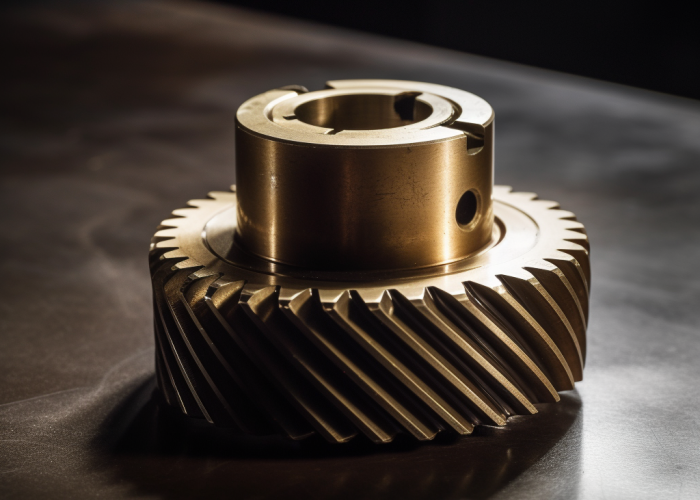

Helical gears feature teeth cut at 15-45° angles, engaging gradually to reduce vibration by 20-30% compared to spur gears. This smoother operation comes with increased machining complexity due to the helical toolpath requirements. Surface finishes of Ra 1.6 μm are standard for automotive transmission applications.
Bevel gears use conical geometry for 90° shaft intersections, with straight or spiral tooth configurations. Spiral bevel gears handle higher speeds and loads but require 5-axis CNC capability for proper tooth geometry. Worm gear systems achieve reduction ratios from 10:1 to 100:1 in compact packages, with self-locking capability when lead angles are below 5°.
Design Takeaway: Match gear type to shaft arrangement first—parallel (spur/helical), intersecting (bevel), or non-intersecting (worm). Consider noise requirements early, as helical designs reduce sound levels by 8-12 dB over spur gears at 15-20% higher machining cost.
How Do You Choose Between Spur and Helical Gears?
Spur gears suit cost-focused parallel shaft applications with ±0.02 mm tolerance on 3-axis CNC. Helical gears reduce noise by 8-12 dB but cost 20-30% more due to complex machining requirements.
Spur vs Helical Performance Comparison:
- Manufacturing Cost – Spur: Baseline cost, Helical: +20-30% higher
- CNC Requirements – Spur: 3-axis standard, Helical: 4-axis preferred
- Noise Level – Spur: 65-75 dB, Helical: 55-65 dB operation
- Tolerance Achievable – Both achieve ±0.02 mm on modern equipment
- Axial Force – Spur: Zero thrust, Helical: Moderate to high thrust
- Load Distribution – Spur: Instantaneous engagement, Helical: Gradual contact
Spur gears offer the most economical solution for parallel shaft power transmission, with straight teeth that engage along the full face width simultaneously. Manufacturing tolerances of ±0.02 mm are readily achievable on conventional 3-axis equipment using standard end mills, making them ideal for cost-sensitive gearboxes where ambient noise exceeds 70 dB.

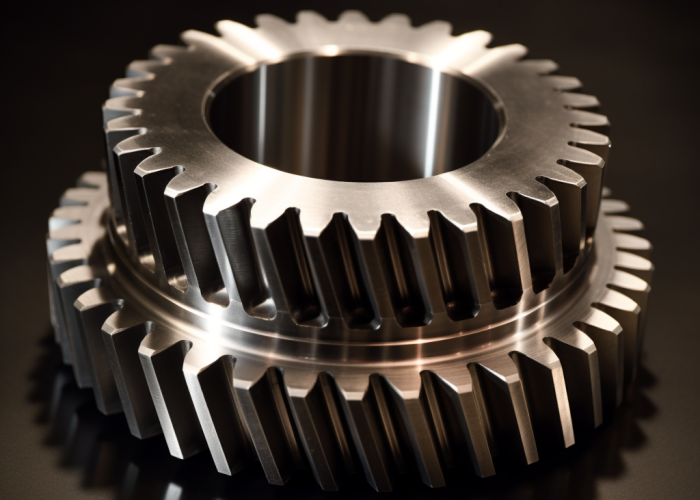

Helical gears feature teeth cut at 15-45° helix angles, creating gradual engagement that reduces vibration and noise. Optimal helix angles of 20-25° balance smooth operation with manageable axial thrust—angles above 30° require robust thrust bearing systems. Surface finishes of Ra 1.6 μm are standard for precision applications.
Load characteristics differ significantly between types. Spur gears concentrate forces along the entire tooth width simultaneously, while helical designs distribute engagement across 2-3 teeth, reducing individual tooth stress by 15-25%. However, helical gears generate axial forces requiring additional bearing support.
Design Takeaway: Choose spur gears for industrial machinery where cost trumps noise concerns. Select helical gears for consumer products, automotive transmissions, or any application requiring operation below 60 dB noise levels.
Which Gear Types Handle the Highest Torque Applications?
Worm gears achieve 100:1 reduction ratios with 500+ Nm capacity and self-locking capability. Planetary systems deliver 3-10x torque multiplication with 95-98% efficiency in compact packages.
High-Torque Gear Performance Specifications:
- Worm Gears – 100:1 max ratio, 500+ Nm capacity, 50-90% efficiency, self-locking
- Planetary Systems – 10:1 typical ratio, 1000+ Nm capacity, 95-98% efficiency, compact
- Spiral Bevel – 6:1 max ratio, 800+ Nm capacity, 92-96% efficiency, right-angle drive
- Load Distribution – Planetary: Multiple planet gears, Worm: Single contact point
- Applications – Lifting equipment, robotics, wind turbines, servo drives
Worm gear systems excel in applications requiring both high reduction ratios and back-drive prevention. Lead angles below 5° provide reliable self-locking, essential for lifting equipment and positioning systems. We machine bronze worm wheels rated for 500+ Nm continuous operation, with efficiency varying from 50% (high ratios) to 90% (low ratios) based on geometry and lubrication.
Planetary gear arrangements distribute loads across multiple planet gears, enabling exceptional torque handling in minimal space. Three-planet configurations multiply input torque by 3-10x while maintaining 95-98% efficiency. Load sharing reduces individual gear stress, making them ideal for robotics servo drives and wind turbine applications where power density is critical.
Torque verification follows ISO 6336 standards for gear load calculations, with prototype testing confirming rated capacities. CMM inspection ensures tooth geometry meets design specifications for optimal load distribution and service life.
Design Takeaway: Select worm gears when self-locking capability and high reduction ratios are required. Choose planetary systems for maximum torque density and efficiency in space-constrained applications.
What Gears Work Best in Limited Space Designs?
Planetary gears achieve highest torque density with 3-10x multiplication in compact envelopes. Internal gears reduce radial space by 30-40% through inside-rim tooth placement.
Space-Efficient Gear Comparison:
- Planetary Systems – 60-80% smaller volume, 3-planet configuration, maximum torque density
- Internal Gears – 30-40% radial space reduction, teeth inside rim, compact mechanisms
- Manufacturing – Both achievable on modern CNC equipment with ±0.02 mm tolerance
- Verification – CMM inspection per ISO gear standards ensures proper fit
- Applications – Robotics joints, medical devices, aerospace actuators
Planetary gear systems achieve maximum power density by distributing loads across multiple planet gears orbiting a central sun gear. A 3-planet arrangement handles 3-5 times the torque of equivalent single gear pairs within the same envelope diameter. A 50mm planetary gearbox can replace a 120mm conventional gear train in robotics applications where space is critical.
Internal gears mount teeth on the inside circumference, allowing the driving pinion to operate within the gear’s envelope. This configuration reduces overall mechanism diameter by 30-40% compared to external arrangements. We machine internal ring gears with 0.02 mm tooth spacing accuracy for medical devices requiring miniaturized assemblies.
Quality verification uses CMM measurement per ISO 1328 standards to ensure tooth positioning within ±0.01 mm tolerances. Load testing confirms rated performance using calibrated torque equipment.
Design Takeaway: Choose planetary systems for maximum torque in round envelopes. Select internal gears when radial space is the primary constraint and external arrangements exceed packaging dimensions.
When Should You Use Specialized Gears Like Worm or Bevel?
Use bevel gears for intersecting shaft applications at 90° angles. Select rack and pinion for rotary-to-linear conversion with ±0.01 mm positioning accuracy.
Specialized Gear Selection Guide:
- Bevel Gears – 90° intersecting shafts, 15-20% higher load capacity (spiral design)
- Rack & Pinion – Linear accuracy ±0.01 mm per ISO 4156, up to 2000mm travel
- Manufacturing – Bevel needs 5-axis CNC, rack uses standard 3-axis equipment
- Quality Control – AGMA standards for bevel design, laser measurement for rack accuracy
Bevel gears transmit power between intersecting shafts at 90° angles in machine tool drives. Straight bevel gears offer simpler manufacturing, while spiral bevel designs require 5-axis CNC but provide 15-20% higher load capacity per AGMA 2003 guidelines. The angled tooth contact distributes loads more effectively than straight configurations.
Rack and pinion systems convert rotary motion to precise linear travel for CNC machine axes and steering systems. The linear rack meshes with a circular pinion to achieve positioning accuracies of ±0.01 mm over travel lengths up to 2000mm. We maintain ±0.005 mm pitch accuracy through careful machining and laser interferometer verification.
Design Takeaway: Select bevel gears when your design requires right-angle power transmission per industry standards. Choose rack and pinion systems for applications needing precise linear motion conversion with verified accuracy.
Which Gear Types Are Most Cost-Effective to Manufacture?
Spur gears offer the lowest manufacturing cost with simple 3-axis CNC machining and ±0.02 mm tolerances. Rack and pinion systems provide cost-effective linear motion solutions using standard tooling.
Cost-Effective Manufacturing Options:
- Spur Gears – Lowest cost baseline, 3-axis CNC capability, standard end mill tooling
- Rack & Pinion – Linear motion at 40-60% lower cost than ball screws
- Internal Gears – Cost-effective for space-constrained designs vs external alternatives
- Simple Bevel – Straight bevel more economical than spiral designs
- Quality Standards – ISO 2768 general tolerances sufficient for most applications
Spur gears represent the most economical gear manufacturing option, using straight-cut teeth that require only basic 3-axis CNC equipment and standard end mills. We regularly machine spur gears achieving ±0.02 mm tolerances using conventional tooling, making them ideal for cost-sensitive applications like industrial machinery and conveyor systems where noise isn’t a primary concern.
Rack and pinion manufacturing offers significant cost advantages over precision ball screws for linear motion applications. Standard rack cutting uses linear interpolation programming on 3-axis equipment, reducing complexity compared to curved gear geometries. Material costs remain lower since racks require less precise steel grades than hardened ball screw assemblies.
Internal gears can reduce overall system costs despite slightly higher machining complexity. By eliminating external gear housings and reducing mechanism footprint, total assembly costs often decrease even when individual gear costs increase. Simple straight bevel gears provide economical right-angle drives when spiral designs aren’t functionally required per AGMA guidelines.
Design Takeaway: Choose spur gears for maximum cost efficiency in parallel shaft applications. Select rack and pinion systems when linear motion is needed at lower cost than precision alternatives.
How Do Noise Requirements Affect Gear Selection?
Helical gears reduce noise by 8-12 dB compared to spur gears through gradual tooth engagement. Planetary systems achieve quietest operation with multiple mesh points smoothing vibration.
Quiet Gear Design Solutions:
- Helical Gears – 8-12 dB quieter than spur, gradual engagement reduces vibration
- Planetary Systems – Multiple mesh points, typically 50-60 dB operation
- Double Helical – Smooth operation without axial thrust complications
- Noise Levels – Spur: 65-75 dB, Helical: 55-65 dB, Planetary: 50-60 dB
- Applications – Consumer products, medical devices, precision equipment
Helical gears achieve significant noise reduction through gradual tooth engagement, where multiple teeth contact simultaneously instead of the sudden engagement of spur gears. The 20-25° helix angle creates sliding contact that distributes loads smoothly, reducing vibration transmission. We’ve measured 8-12 dB noise reductions in precision equipment where operation below 65 dB is required for user comfort.
Planetary gear systems achieve the quietest operation through load distribution across multiple mesh points simultaneously. The multiple planet gears create overlapping engagement cycles that smooth out individual gear noise peaks, typically achieving 50-60 dB operation levels suitable for medical equipment and high-end consumer products requiring whisper-quiet performance.
Double helical gears eliminate axial thrust while maintaining helical noise benefits, ideal for applications requiring both quiet operation and simplified bearing arrangements. However, noise reduction benefits must be weighed against increased manufacturing complexity for each specific application.
Design Takeaway: Select helical gears when noise reduction is critical and justifies additional manufacturing considerations. Choose planetary systems for applications requiring the quietest possible operation per ISO noise measurement standards.
Conclusion
Gear selection success depends on matching type to application requirements—spur for cost efficiency, helical for quiet operation, planetary for compact high-torque needs, and specialized designs for unique shaft arrangements. Proper selection early in design prevents costly revisions and optimizes both performance and manufacturability. Contact us to explore gear manufacturing solutions tailored to your product requirements.
Frequently Asked Questions
Gears must have identical pitch and pressure angle to mesh correctly. You cannot directly combine spur gears with different modules or mix metric and inch specifications without proper adapters.
Gear noise comes from sudden tooth engagement and manufacturing tolerances. Helical gears reduce noise by 8-12 dB through gradual engagement, while proper surface finishing and tight tolerances minimize vibration.
Steel provides maximum strength and durability, while brass offers good machinability. Plastics like acetal work for light loads and quiet operation. Consider load requirements, environment, and noise constraints when selecting materials.
Standard tolerance is ±0.02 mm for most gear applications, sufficient for general machinery. Precision applications may require ±0.01 mm, which increases manufacturing cost but ensures proper meshing and reduced backlash.
Gear ratio equals input teeth divided by output teeth. Higher ratios (3:1, 4:1) increase torque but reduce speed, while lower ratios provide speed advantages. Consider your torque and speed requirements when selecting ratios.
Metric gears use module (center-to-center distance between teeth), while inch gears use pitch. Gears must have the same module or pitch to mesh properly. Most modern applications use metric systems.
