Why ECU Enclosures Change After Prototype Approval
ECU enclosures often behave differently after prototype approval because early sample builds are usually assembled more carefully, more slowly, and with far more manual adjustment than real production conditions.
A prototype may still look stable during validation while small enclosure sensitivities remain hidden in the background. Engineers naturally help difficult covers align, reposition harnesses by hand, or tighten hardware more carefully during low-volume builds.
Typical early-build behavior includes:
- connector fit being adjusted manually during installation
- covers being repositioned slightly before closure
- harnesses being routed carefully around tighter enclosure areas
- assembly teams spending extra time around difficult fit-up regions without formally flagging the issue
Once production begins, those small manual corrections disappear quickly. The same enclosure now has to build consistently across repeated daily assembly, multiple operators, coating variation, and sustained manufacturing pace.
Many production problems therefore begin not because the enclosure suddenly changes, but because production no longer protects the design from smaller fit-up sensitivities that were quietly absorbed during prototype assembly.
Why Connectors Stop Aligning After Coating
Connectors often stop aligning consistently after coating because added surface buildup gradually changes usable fit clearance around connector openings, mounting surfaces, and surrounding fastening areas.
The issue is usually subtle during early assembly. Connectors may still insert successfully, yet installation force and seating feel begin changing once coated surfaces start reducing the remaining margin around tighter connector layouts.
Typical production-floor signs include:
- connectors requiring more insertion pressure after coating
- connector seating feel changing between otherwise identical builds
- coated opening edges creating uneven fit-up during assembly
- assembly teams repeatedly adjusting the same connector areas during installation
Powder coating buildup commonly ranges around 60–100 μm per coated surface, meaning tighter connector openings can gradually lose several tenths of a millimeter of usable insertion margin once multiple coated surfaces begin interacting together during final assembly.
These conditions become more noticeable in denser electronics housings where connector spacing, mounting hardware, and surrounding enclosure geometry already leave limited remaining fit clearance before coating is applied.
Even small reductions in usable insertion space can gradually change connector seating behavior, assembly consistency, and installation feel once production assembly starts repeating across larger build volumes.

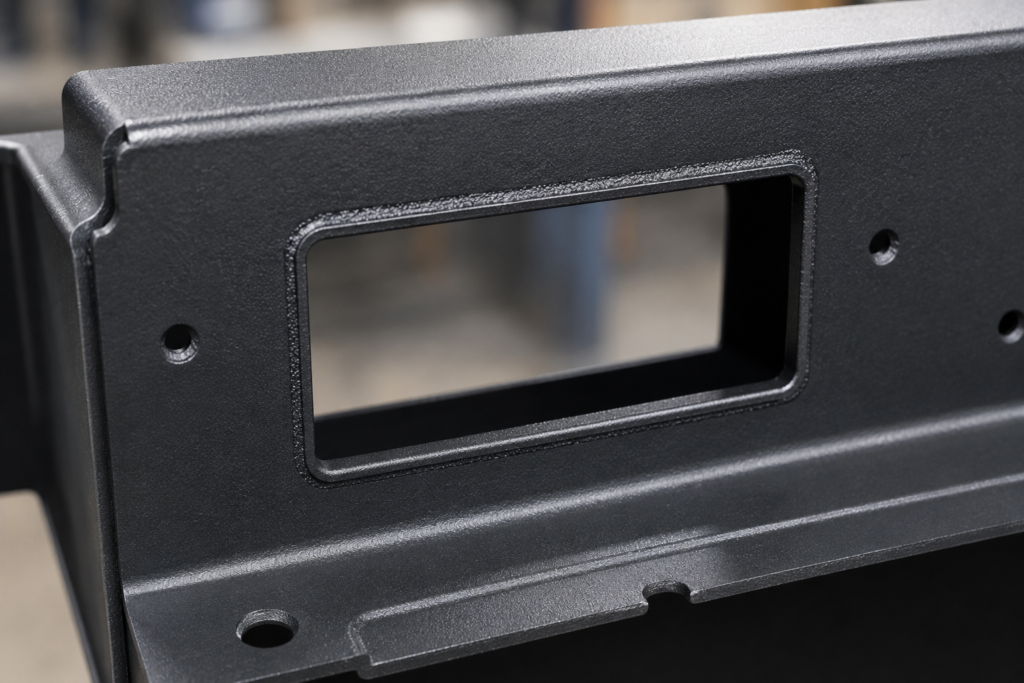

Why Connector Openings Become Tighter After Finishing
Connector openings can start feeling noticeably different after finishing even before dimensional inspection shows obvious failure.
In many cases, the connector still inserts successfully, yet installation feel begins changing once coating buildup slightly reduces usable insertion space around tighter opening edges.
Typical production-floor behavior includes:
- connectors requiring more insertion force after coating
- opening edges creating slight drag during installation
- connector seating feeling less smooth between builds
- installation teams slowing down around tighter connector areas during fit-up
The change is often gradual rather than immediate. A connector may still pass dimensional inspection and complete assembly normally, while technicians already notice that insertion no longer feels as smooth or repeatable as earlier builds.
Powder coating buildup commonly ranges around 60–100 µm per coated surface. On tighter connector openings, even small coating accumulation around edges can noticeably affect insertion feel before creating obvious dimensional rejection.
This is why connector-related production problems often begin as changing installation feel long before the enclosure reaches clear assembly failure.
Why Wiring Space Disappears During Final Assembly
Wiring layouts that looked manageable during early enclosure reviews can become much tighter once real harnesses, connector bodies, fastening hardware, and hand access all compete for the same internal space.
Early sample builds may still route successfully because assembly teams move more slowly and adjust wiring manually during fit-up.
Typical early-build behavior includes:
- harnesses being repositioned repeatedly during closure
- connector access tightening after routing is completed
- assembly teams changing routing order during fit-up
- wiring bundles pressing against covers during final closure
The issue is rarely one major layout mistake. More often, usable routing space gradually shrinks once real cable stiffness, bend radius, connector size, and installation movement all begin interacting inside the completed enclosure.
These problems become easier to notice in tighter electronics housings where harness bundles and fastening hardware leave very little flexibility for routing variation during final assembly.
Even small routing changes can eventually affect closure feel, installation access, and assembly speed once production teams repeat the same wiring process continuously across daily builds.
Why Grounding Becomes Less Reliable After Coating
Grounding often becomes less reliable after coating because painted or powder-coated mating surfaces gradually reduce how consistently metal-to-metal contact behaves across repeated assembly and service cycles.
The issue is usually not complete grounding failure. More often, grounding consistency changes gradually once coated enclosure seams, fastening areas, and contact surfaces begin carrying assembly load during repeated tightening and reassembly.
Typical production and service observations include:
- grounding areas tightening differently between assemblies
- enclosure seams feeling less consistent during reassembly
- fastening pressure changing contact behavior around the same grounding locations
- service teams repeatedly checking the same enclosure contact points during maintenance
Grounding reliability depends heavily on stable conductive contact between mating metal surfaces. Once coating begins separating or partially covering those contact regions, fastening pressure and seam consistency start playing a much larger role in maintaining repeatable enclosure contact behavior.
These conditions often become more noticeable around enclosure seams, grounding tabs, and repeated fastening areas where opening cycles gradually change how consistently the same metal contact surfaces continue seating over time.
Even small variation in conductive contact behavior can gradually create larger troubleshooting effort and assembly inconsistency once repeated production and service cycles begin exposing less forgiving grounding regions across the enclosure.
Will Your ECU Enclosure Still Assemble Cleanly After Production Starts?
Many enclosure issues only appear after coating, harness installation, and repeated production builds begin.
Why ECU Covers Stop Closing Smoothly After Harness Installation
ECU covers often stop closing smoothly after harness installation because wiring bundles, connector backshells, and fastening hardware begin competing for the same closure space inside the housing.
The problem usually appears during final fit-up rather than early enclosure review. Covers may still close successfully, yet closure force and seating feel begin changing once real harness stiffness and routing pressure start interacting with surrounding enclosure structures.
Typical production-floor signs include:
- harness bundles pushing against covers during tightening
- one enclosure edge seating correctly while another area resists closure
- fastening feel changing depending on harness routing position
- assembly teams repeatedly repositioning wiring before final closure
Larger harness bundles and shielded cable routing often require wider bend radius during assembly, making tighter enclosure layouts much less forgiving once the housing reaches full wiring condition.
These conditions become more noticeable in denser electronics housings where covers, brackets, connectors, and harness routing leave very limited remaining clearance during final closure.
Even small changes in wiring position can gradually affect closure pressure, cover seating behavior, and fastening consistency once repeated production assembly begins exposing tighter routing conditions across the same enclosure regions.

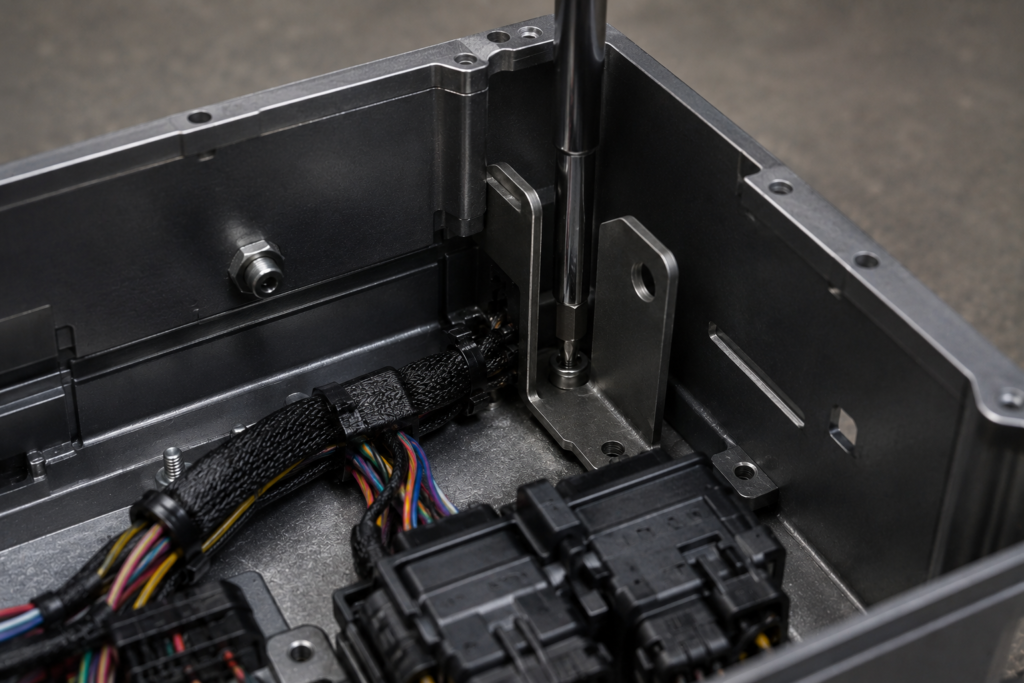

Why Fasteners Become Harder to Reach During Assembly
Fasteners often become harder to reach during assembly because surrounding brackets, harnesses, connector bodies, and enclosure panels gradually reduce usable tool and hand access once the housing reaches final fit-up condition.
A fastening point may appear fully accessible during early enclosure review, yet become much harder to tighten once nearby hardware is installed around the same assembly area.
Typical production-floor behavior includes:
- screwdrivers approaching fastening points at awkward angles
- operators repositioning harnesses just to reach mounting screws
- tightening tools contacting nearby enclosure walls or brackets
- assembly teams slowing down around deeper fastening locations during final fit-up
The issue is usually not one major dimensional mistake. More often, usable access space gradually shrinks once connector backshells, cable routing, mounting hardware, and surrounding enclosure geometry all compete for the same working area.
These access problems become easier to notice in tighter electronics housings where even small changes in harness position or bracket placement can affect how easily technicians reach fastening locations during assembly.
Even when the enclosure still fits correctly, difficult fastener access can gradually slow tightening speed, increase assembly frustration, and create more inconsistent installation behavior between builds.
Why Panel Alignment Changes Depending on Assembly Order
Panel alignment often changes depending on assembly order because enclosure panels stop behaving independently once fastening pressure begins loading multiple enclosure surfaces together during final fit-up.
One assembly may align cleanly, while another using the same parts begins showing different panel seating behavior simply because hardware was tightened in a different sequence.
Typical production-floor behavior includes:
- one panel edge seating correctly while another side lifts slightly during tightening
- alignment changing after nearby fastening points are secured
- assembly teams loosening and retightening covers to improve fit-up
- visible seam consistency shifting between otherwise identical builds
These changes become more noticeable once surrounding brackets, covers, and enclosure panels all begin transferring fastening load into the same enclosure regions during assembly.
In tighter electronics housings, even small differences in tightening order can noticeably affect panel seating feel, seam consistency, and closure alignment during final fit-up.
This is why enclosure assemblies that appear dimensionally identical can still behave differently depending on how the final assembly sequence is performed on the production floor.
Why Internal Brackets Shift Connector Position During Tightening
Connector alignment may still appear correct during early fit-up, yet begin changing slightly once internal brackets, fastening pressure, and surrounding enclosure loading start pulling against the same mounting areas during final assembly.
In many electronics housings, internal brackets do more than hold components in place. Once hardware is fully tightened, the bracket itself can begin transferring assembly load back into nearby connector panels or mounting surfaces.
This usually becomes visible during final tightening rather than during loose trial assembly.
Common production-floor signs include:
- connector position changes slightly after nearby hardware is tightened
- one fastening point improves alignment while another area shifts out of position
- connector seating feels different depending on tightening sequence
- assembly teams begin adjusting bracket pressure during fit-up to maintain connector seating consistency
In tighter connector layouts, positional movement of even 0.2–0.4 mm after bracket tightening can begin affecting insertion feel and seating consistency during final assembly.
These conditions often become more noticeable in thinner sheet metal housings or tighter enclosure structures where surrounding panels and brackets leave less remaining margin once the housing reaches full tightening load.
As production continues, assembly teams may gradually begin compensating differently around the same bracket locations just to maintain consistent connector seating between builds.
Why Thin ECU Panels Become Less Consistent in Production

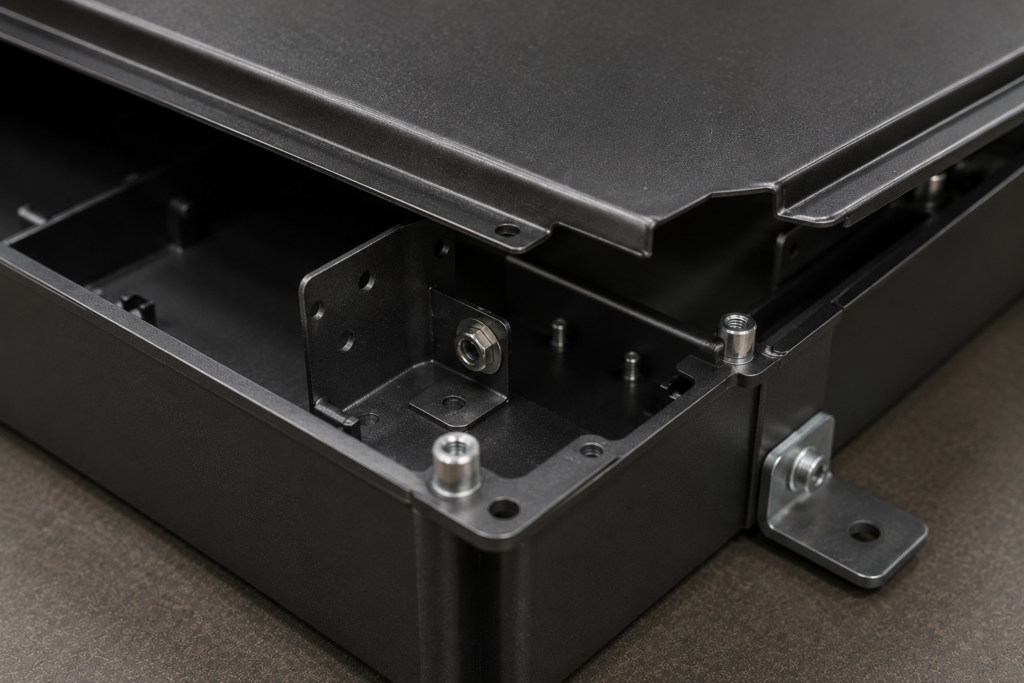

Thin ECU panels often react differently during tightening because lower-stiffness sheet metal responds more noticeably once fastening load begins concentrating into smaller enclosure areas.
The panel may still pass dimensional inspection, yet tightening behavior starts changing once brackets, covers, and surrounding hardware begin loading the same unsupported panel regions during assembly.
Typical production-floor behavior includes:
- one enclosure surface tightening flatter while another flexes more noticeably
- panel edges responding differently after nearby hardware is secured
- fastening feel changing across larger cover surfaces during fit-up
- assembly teams adjusting tightening pressure around thinner enclosure regions
These behaviors become easier to notice in longer panel spans or thinner sheet metal covers where stiffness depends heavily on bends, ribs, nearby mounting features, and surrounding enclosure support.
Even small differences in fastening load or bracket pressure can create visible changes in panel response once the enclosure moves into repeated production assembly.
This is why thin enclosure panels may still remain dimensionally acceptable while closure feel, panel seating, and visible fit behavior begin changing between builds during production.
Why ECU Covers Flex More After Hardware Installation
ECU covers often flex more after hardware installation because internal brackets, connector assemblies, and mounted components begin transferring localized load back into the same enclosure surfaces during final assembly.
The flex is usually not obvious during loose fit-up. Covers may initially appear stable, yet begin reacting differently once the enclosure reaches full installed condition with surrounding hardware fully tightened.
Typical production-floor observations include:
- one cover corner seating correctly while another area flexes during tightening
- fastening feel changing depending on nearby hardware position
- cover pressure becoming uneven after surrounding brackets are installed
- assembly teams tightening covers in different sequences to improve seating consistency
Mounted hardware can gradually change how enclosure force distributes across larger cover surfaces, especially once brackets and connectors begin concentrating load around the same fastening regions during final assembly.
These effects become easier to notice in wider cover areas where enclosure stiffness relies heavily on bends, ribs, or nearby structural support to resist localized flex during tightening.
As repeated assembly cycles continue, even small changes in hardware position or fastening pressure can gradually affect cover feel, seating consistency, and enclosure closure behavior across production builds.
Will Your ECU Enclosure Behave Differently After Final Installation?
Some enclosure fit, closure, and mounting issues only appear after full hardware, harnesses, and brackets are installed together.
Why Vehicle Vibration Changes ECU Mounting Behavior
ECU mounting behavior can start changing after repeated assembly and service because mounting tabs, fastening surfaces, and surrounding brackets no longer seat exactly the same way after multiple tightening and reopening cycles.
The change is usually subtle at first. Mounting hardware may still tighten normally, yet enclosure seating feel begins reacting differently once the same mounting areas experience repeated installation, removal, and reassembly during production or maintenance work.
Typical production and service observations include:
- mounting points tightening differently after repeated reopening
- enclosure seating pressure changing around the same bracket locations
- fastening feel becoming less even during reassembly
- service teams adjusting the same mounting areas repeatedly during installation
The issue is rarely caused by one major dimensional shift. More often, repeated tightening pressure and localized contact loading gradually change how mounting tabs and surrounding enclosure surfaces continue seating during later assembly cycles.
These behaviors become easier to notice around thinner mounting tabs or less-supported enclosure regions where repeated fastening pressure concentrates into smaller contact areas during installation and service work.
Even when inspection dimensions still remain acceptable, repeated reopening and reassembly can gradually change how the enclosure sits, tightens, or reacts around the same mounting locations.
Why ECU Mounting Tabs Lose Flatness During Production
ECU mounting tabs can lose flatness during production because repeated fastening pressure, handling, coating, and localized enclosure loading gradually change how smaller mounting surfaces continue seating during assembly.
The change is often small enough to avoid immediate visual detection. Mounting tabs may still pass dimensional inspection, yet begin reacting differently once fastening load starts concentrating repeatedly around the same tab regions during production builds.
Typical production-floor observations include:
- one mounting tab seating flatter while another requires additional tightening force
- enclosure pressure feeling uneven across different mounting points
- fastening sequence changing how evenly the housing sits during installation
- assembly teams adjusting the same tab areas repeatedly during fit-up
In longer production runs, even flatness variation around 0.3–0.6 mm can begin affecting how evenly mounting tabs contact surrounding brackets or support surfaces during installation.
These behaviors become more noticeable in thinner sheet metal tabs where repeated fastening pressure leaves less structural support against localized movement during tightening.
Even small mounting-tab variation can eventually change how evenly the enclosure sits, tightens, or aligns during repeated production assembly.
Why ECU Panel Fit Changes After Thermal Cycling
ECU panel fit often changes after thermal cycling because repeated heating and cooling gradually alter how enclosure panels and fastening areas continue seating once the housing moves through real operating conditions.
The change is usually gradual rather than immediately visible. Enclosure seams that felt uniform during early builds may begin tightening unevenly after repeated temperature exposure, especially around longer panel spans and tighter fastening areas.
Common production and field signs include:
- panel gaps changing slightly after repeated hot-cold operating cycles
- covers seating differently during service reassembly
- fastening feel becoming uneven around the same enclosure edges
- service teams repeatedly adjusting the same panel areas after temperature exposure
Aluminum expands roughly 23 µm/m·°C, meaning longer enclosure spans can gradually change how evenly panels continue seating once repeated heating and cooling cycles begin affecting the same fastening areas over time.
Even small thermal-related movement across longer enclosure seams can gradually change enclosure seating behavior, especially in tighter electronics housings where covers, brackets, and mounting points leave less remaining margin for repeated panel movement.
As thermal cycles continue accumulating, service and assembly teams may begin encountering larger variation in seam feel, panel seating, and closure consistency even though the enclosure still remains dimensionally acceptable during inspection.
Why Heat Starts Building Up Around Harness Areas
Harness areas often become harder to manage inside ECU enclosures because larger wiring bundles, connector backshells, fastening hardware, and surrounding brackets gradually crowd the same internal enclosure space during final assembly.
Early sample builds may still appear manageable while assembly teams carefully reposition harnesses during fit-up. Once production pace increases, those tighter routing regions become much harder to work around consistently.
Typical production and service observations include:
- harness bundles pressing against covers during closure
- connector zones becoming harder to access after routing is completed
- service teams spending more time around dense wiring regions during maintenance
- assembly teams repeatedly repositioning harnesses to complete fit-up cleanly
The issue is rarely caused by one major routing mistake. More often, usable working space gradually shrinks once real harness stiffness, connector size, fastening hardware, and enclosure movement all begin competing inside the completed housing.
These conditions become easier to notice in denser electronics enclosures where wiring bundles and surrounding hardware leave very little free movement during assembly or service access.
Even small increases in harness density can eventually affect closure feel, installation access, and assembly speed around the same enclosure regions during repeated production builds.
Why ECU Covers Become Harder to Remove During Service Work
ECU covers often become harder to remove during service work once surrounding harnesses, connector backshells, and nearby brackets begin limiting usable removal space around the enclosure after full vehicle installation.
A common service scenario is that the fasteners remove normally, yet the cover itself no longer lifts out cleanly from the housing.
Instead, service teams may begin encountering:
- one cover edge releasing while another side remains trapped near harness routing
- connector backshells blocking the normal removal path
- covers requiring repositioning before clearing surrounding brackets
- nearby components needing partial loosening just to create enough removal clearance
These problems usually become more noticeable after repeated service cycles because harness routing, cover edges, and surrounding contact areas stop behaving exactly like early prototype assemblies once the enclosure reaches full installed condition inside the vehicle.
In tighter electronics housings, even small reductions in usable removal clearance can significantly change service behavior, especially once repeated opening cycles begin affecting the same cover edges and surrounding access paths over time.
As maintenance cycles continue accumulating, service teams may gradually begin changing removal sequence or adjusting surrounding hardware simply to maintain repeatable access around the same enclosure areas.
Why Repeated Opening Starts Damaging Contact Areas
Repeated opening and reassembly can start damaging enclosure contact areas because the same cover edges, coated seams, and mating surfaces keep sliding, rubbing, and compressing against each other during every service cycle.
The wear is usually subtle at first. Covers may still reinstall normally, yet contact surfaces begin showing visible change once the same enclosure regions experience repeated removal and reseating.
Typical field and service observations include:
- coating wear marks appearing around repeated contact seams
- cover edges developing polished or rubbed contact zones
- seam edges beginning to drag differently during removal or reinstallation
- service teams noticing covers no longer reseat as smoothly after repeated opening cycles
These changes become easier to notice around coated mating seams where repeated cover movement slowly changes how surfaces slide or compress against each other during service work.
In tighter electronics housings, repeated opening cycles can concentrate wear around the same enclosure edges, seam corners, and contact surfaces once covers are removed and reseated frequently.
Even small wear marks around seam edges or coated mating surfaces can eventually change how covers reseat, slide, or align during later service assembly.
Why Threaded Areas Become Less Consistent After Repeated Assembly
Threaded areas often become less consistent after repeated assembly because the same fastening holes, threaded inserts, and surrounding contact surfaces continue absorbing tightening load during every production and service cycle.
The change usually appears gradually rather than as immediate thread failure. Fasteners may still tighten successfully, yet the same threaded locations can begin reacting differently after repeated opening and reassembly over time.
Typical production and service observations include:
- tightening feel changing around the same threaded holes
- fastening resistance becoming less uniform between assemblies
- threaded areas requiring more careful alignment during reassembly
- service teams beginning to tighten the same fastening points more cautiously during maintenance work
In directly tapped sheet metal areas, repeated tightening can gradually change how evenly fastening force transfers into the surrounding enclosure surface, especially once covers and brackets continue loading the same threaded regions during repeated service cycles.
Threaded inserts, PEM hardware, and repeated fastening locations can gradually begin showing more variation during reassembly once opening cycles start concentrating wear around the same seating surfaces and contact edges over time.
Even small changes in threaded seating behavior can gradually affect fastening consistency, cover alignment feel, and service repeatability once the enclosure undergoes repeated assembly and maintenance access across longer operating life.
Could Small ECU Fit Problems Start Slowing Your Production Line?
Many enclosure issues stay manageable during prototypes, then begin creating rework, slower builds, and repeated adjustments once production volume increases.
Why ECU Assembly Slows Down Even After Inspection Passes
ECU assembly often slows down even after inspection passes because production assembly depends on repeatable fit behavior, not just dimensional approval of individual parts.
The slowdown usually appears gradually on the assembly floor. Enclosures may still pass inspection successfully, yet operators begin spending more time around the same installation areas during repeated builds.
Typical production-floor observations include:
- operators pausing longer before final cover closure
- connector seating requiring extra hand repositioning during fit-up
- assembly sequence changing between operators on the same enclosure build
- fastening areas being loosened and retightened more frequently during assembly
These delays are often caused by smaller assembly behaviors stacking together across repeated builds. Slight coating buildup, harness pressure, bracket loading, and closure interaction may each remain acceptable individually, yet still slow production rhythm once they begin affecting the same enclosure regions repeatedly during final assembly.
In higher-volume production, even a few additional seconds spent adjusting closure position, harness routing, or connector seating can gradually create noticeable differences in assembly consistency and operator workflow between otherwise approved builds.
As production continues, assembly teams may gradually begin developing different fit-up habits around the same enclosure areas simply to maintain repeatable build flow across daily production work.
Why Small ECU Enclosure Issues Create Larger Launch Delays Later
Small ECU enclosure issues often create larger launch delays later because repeated fit-up interruptions begin spreading beyond assembly and into validation, pilot coordination, and production planning activities.
The issue is rarely one major enclosure failure. Early builds may still complete successfully, yet the same smaller problems begin reappearing often enough that multiple teams start revisiting the same enclosure areas during launch preparation.
Typical launch-stage behavior includes:
- pilot builds stopping repeatedly around the same enclosure regions
- validation teams repeating checks on otherwise approved assemblies
- engineering teams returning to the same fit-up concerns between builds
- production teams adjusting assembly sequence to keep pilot output moving
Many launch delays begin with enclosure behaviors that individually still appear manageable:
- connectors seating slightly differently between builds
- covers needing repositioning during closure
- harness routing slowing fit-up around the same assembly areas
- mounting regions reacting differently during installation
As pilot activity increases, these repeated interruptions start affecting more than assembly alone. Validation timing stretches, engineering review loops repeat, and pilot-line coordination becomes harder to stabilize across daily builds.
What initially looked like a small enclosure adjustment can therefore become a much larger launch problem once multiple teams begin losing time around the same repeated production behaviors.
Why ECU Enclosures Behave Differently After Full Assembly
ECU enclosures often behave differently after full assembly because the housing reaches a much heavier and more constrained condition once all covers, brackets, harnesses, connectors, and mounting hardware are fully tightened together.
Many enclosures still appear stable during loose fit-up. The change usually appears during the final tightening stages, when surrounding hardware begins loading the same enclosure regions simultaneously.
Typical production-floor observations include:
- covers closing normally during loose assembly but reacting differently after final tightening
- connector seating changing once nearby brackets reach full load
- one enclosure corner tightening evenly while another area begins resisting closure
- assembly teams reopening the same enclosure regions after final fit-up is completed
The issue is rarely caused by one defective component. More often, the enclosure simply behaves differently once the housing reaches its true installed condition with full hardware pressure applied across surrounding surfaces.
For example, a cover may sit evenly during early assembly stages, then begin shifting slightly once nearby brackets, harness bundles, and fastening points all begin loading the same enclosure surface during final tightening.
These late-stage behavior changes become easier to notice in tighter electronics housings where covers, brackets, and harness routing leave very little flexibility once the enclosure reaches full assembly load.
Even when inspection dimensions still remain acceptable, the enclosure may begin reacting very differently once every surrounding component is finally tightened into place together.
Why ECU Assembly Starts Depending on Operator Workarounds
ECU assembly often starts depending on operator workarounds when the enclosure no longer builds consistently using the standard assembly sequence alone.
The change usually appears quietly on the production floor. The enclosure may still pass inspection and functional testing, yet experienced operators begin developing their own methods to keep the build moving smoothly.
Typical production-floor behavior includes:
- operators changing closure sequence to prevent cover shift during tightening
- specific harnesses being moved by hand before connector seating will complete correctly
- certain fastening points being loosened temporarily during fit-up
- newer assemblers struggling with builds that experienced operators complete routinely
In some cases, two operators following the same work instruction may still build the enclosure differently because repeated production experience teaches them where the housing tends to resist closure, shift during tightening, or react differently after full assembly load.
These unofficial workarounds often develop around the same enclosure regions repeatedly, especially where harness pressure, connector positioning, and cover seating all begin affecting assembly behavior during final fit-up.
Assembly consistency may begin depending less on the enclosure itself and more on which operator already knows how to manage the recurring fit-up behavior.
Why ECU Assembly Problems Start Creating Cross-Team Friction
ECU assembly problems often start creating cross-team friction when different departments begin experiencing the same enclosure behavior in completely different ways during production and launch activities.
Assembly teams may see the issue as a fit-up problem. Validation teams may treat it as a repeatability concern. Manufacturing engineers may focus on assembly timing, while sourcing teams may believe the issue comes from fabrication consistency.
Typical launch and production behavior includes:
- assembly teams repeatedly reporting the same enclosure areas during builds
- validation teams requesting additional checks on otherwise approved assemblies
- manufacturing engineers adjusting process flow around recurring fit-up interruptions
- suppliers being asked to recheck dimensions even when inspection data still passes
In many cases, the enclosure itself still technically meets drawing requirements. The friction begins because repeated assembly behavior no longer matches what each team expected during production ramp-up or validation planning.
These situations often become more difficult once different teams begin creating their own explanations for the same enclosure behavior:
- assembly blaming dimensional variation
- engineering blaming assembly sequence
- sourcing questioning fabrication consistency
- validation delaying approval until fit behavior stabilizes
Eventually, teams may begin spending more time debating the source of the problem than resolving the enclosure behavior itself.
Why ECU Enclosures Become Slower to Assemble Over Time
ECU enclosures often become slower to assemble over time because operators gradually stop trusting the build to go together smoothly without extra checking or adjustment.
The slowdown is usually subtle at first. Early production may run normally, yet repeated daily assembly begins creating small hesitation moments around the same enclosure areas during fit-up.
Typical production-floor behavior includes:
- operators pausing briefly before final cover closure
- fastening speed slowing around the same enclosure regions
- harness position being rechecked before tightening completely
- assemblers testing fit by hand before committing to final closure
In most of the cases we worked with, the enclosure still passes inspection and functional testing. The assembly slowdown develops because repeated fit-up variation gradually changes operator confidence in how predictably the housing will behave during routine builds.
Even a 5–10 second hesitation repeated across hundreds of assemblies can noticeably affect production rhythm once operators begin adding extra checking, repositioning, or cautious tightening during normal assembly work.
These slowdowns often appear around enclosure areas that repeatedly create small uncertainty during closure, harness routing, or final tightening rather than obvious dimensional failure.
Over time, the enclosure may still remain technically acceptable, yet the build process itself gradually becomes more tiring, slower, and less natural for the assembly team to repeat consistently every day.
Why Pilot Builds Already Show Growing Assembly Variation
Pilot builds often start showing growing assembly variation because the enclosure no longer behaves exactly the same from unit to unit once production-style assembly begins repeating daily.
The issue usually appears before any major dimensional problem is detected. One pilot unit may assemble smoothly, while the next build using the same parts and work instruction begins reacting differently during closure, connector seating, or final tightening.
Typical pilot-line observations include:
- one enclosure closing normally while another requires extra fit-up attention
- connector seating feel changing between consecutive builds
- fastening pressure feeling different across otherwise identical assemblies
- pilot teams stopping repeatedly around the same enclosure regions to confirm fit behavior
Unlike prototype assembly, pilot builds expose the enclosure to repeated handling, repeated tightening, and continuous production-style assembly across multiple units in a short period of time.
Small fit differences that were barely noticeable during early validation can become much more visible once dozens of pilot units begin moving through the same build process every day.
These early pilot-line differences are important because they often reveal where enclosure behavior already depends too heavily on careful handling or ideal assembly conditions to maintain repeatable fit-up.
The same enclosure design may begin showing wider build-to-build variation even while individual parts still remain within drawing specification.
Why Small Production Variations Become Much More Visible at Scale
Small production variations become much more visible at scale because high-volume assembly leaves far less time for operators to manually absorb fit-up inconsistency during daily production.
At lower quantities, small closure hesitation or minor alignment differences can often be corrected naturally during assembly without seriously affecting output. Once production volume increases, the same small variation begins repeating too frequently for operators to keep compensating manually without slowing the line.
Typical high-volume production behavior includes:
- assembly teams no longer stopping to “fine-tune” closure position during builds
- small fit-up hesitation becoming more noticeable across repeated assemblies
- operators skipping manual adjustment steps to maintain production pace
- recurring enclosure trouble spots appearing more consistently between shifts
Many of these issues are not caused by major dimensional failure. Instead, small assembly differences that once felt manageable during prototypes or pilot builds begin creating larger production pressure once the enclosure must assemble continuously at full production speed.
For example, an extra 5–10 seconds spent adjusting one closure area may feel insignificant during pilot builds, yet become hours of lost assembly capacity once repeated across full production shifts.
At production scale, operators no longer have time to compensate manually for every small enclosure inconsistency while still maintaining stable assembly rhythm and output targets.
As manufacturing volume increases, enclosure behaviors that once depended on careful handling or extra adjustment gradually become much more visible once production speed removes the ability to quietly absorb variation during normal assembly flow.
Why Production ECU Builds Behave Differently from Early Samples
Production ECU builds often behave differently from early samples because early sample assemblies are usually protected by slower build pace, closer engineering attention, and manual adjustment during fit-up.
Sample units may appear stable during validation, yet many small enclosure behaviors are quietly compensated for during low-volume assembly without becoming obvious during approval review.
Typical early-sample behavior includes:
- engineers adjusting cover position manually during closure
- harnesses being moved slightly to complete fit-up cleanly
- connector seating being corrected by hand during assembly
- extra time being available to work through tighter enclosure areas carefully
These adjustments are often small enough that the enclosure still appears fully acceptable during sample evaluation.
Once production begins, those same hidden corrections usually disappear. Assembly teams no longer have time to manually “help” the enclosure through every difficult closure, alignment, or routing condition during daily builds.
An enclosure that assembled smoothly during sample validation may therefore begin behaving very differently once production operators repeat the same process continuously at real production speed.
In many cases, the production issue is not caused by a new dimensional failure. The difference is that early samples were unintentionally protected by slower assembly pace, experienced handling, and extra fit-up attention that no longer exists during full production.
Why Early ECU Samples Miss Long-Term Assembly Problems
Early ECU samples often miss long-term assembly problems because the enclosure simply has not gone through enough repeated assembly, opening, handling, and service exposure yet.
During early validation, sample units may only experience a small number of build cycles under careful assembly conditions. Covers still close normally, fastening areas still feel stable, and connector seating may appear fully acceptable during short-term evaluation.
Typical early-sample conditions include:
- limited repeated opening and reassembly during testing
- slower fastening during fit-up
- more careful handling around tighter enclosure areas
- fewer repeated assembly cycles on the same enclosure surfaces
Many long-term assembly behaviors only begin appearing after the enclosure experiences continuous daily production use over time.
For example:
- closure feel may gradually change after repeated opening cycles
- fastening behavior may become less consistent after sustained reassembly
- cover seating may begin reacting differently after repeated handling
- assembly teams may start slowing around the same enclosure areas after months of daily builds
Early sample builds may only experience a handful of assembly cycles, while production enclosures can go through repeated opening, inspection, rework, and service access continuously during normal manufacturing activity.
The enclosure may therefore appear stable during early validation simply because it has not yet accumulated enough real production exposure for smaller assembly sensitivities to become visible.
Could Your ECU Enclosure Create Production Problems After Release?
Some enclosure issues only appear after repeated builds begin. Send your drawing before release, and we’ll help identify fit-up, closure, and fabrication risks before production starts.
Why ECU Enclosures Slow Down Final Vehicle Installation
ECU enclosures often slow down final installation because the housing must fit into a much tighter and more restricted environment than early bench assembly conditions.
An enclosure that feels easy to assemble on a workbench may become much harder to position once technicians install it inside the final installation environment. Tool access tightens, hand movement becomes limited, and nearby hardware reduces usable installation space quickly.
Typical installation behavior includes:
- mounting bolts becoming harder to start after harness routing is finished
- connectors requiring awkward hand angles during installation
- covers or brackets touching nearby components during fit-up
- technicians moving harnesses repeatedly just to complete mounting
Many of these slowdowns are not caused by major enclosure failure. Small fit-up sensitivities simply become much more noticeable once surrounding structure limits access and movement during final installation.
For example, a connector that inserts smoothly during bench assembly may suddenly require careful positioning once nearby brackets and surrounding hardware block straight insertion angle during installation.
These problems become easier to notice in crowded packaging zones where harnesses, brackets, cooling hardware, and surrounding components all compete for the same installation space.
Technicians may begin slowing down around the same ECU locations simply because the enclosure no longer inserts, aligns, or closes smoothly once the surrounding installation hardware is fully in place.
Why Rework Starts Spreading Across Production Builds
Rework often starts spreading across production builds when small enclosure corrections stop being isolated events and begin appearing repeatedly across multiple assemblies during daily production.
At first, the issue may affect only one or two builds. A cover needs extra repositioning, a connector requires another seating attempt, or a harness must be moved again before closure completes correctly.
Typical production-floor behavior includes:
- the same enclosure areas being reopened across different builds
- operators expecting adjustment before final closure is completed
- similar fit-up corrections appearing between shifts or assembly stations
- partially assembled units being pulled aside for the same repeated fixes
Many of these rework patterns are not caused by major dimensional failure. The problem is that small enclosure behaviors begin repeating consistently enough that correction activity starts becoming part of normal production instead of occasional adjustment.
For example, a closure issue that initially affects only a few assemblies can gradually spread across larger production batches once the same fit-up behavior begins appearing repeatedly during daily builds.
These patterns become more noticeable once assembly teams start recognizing the same enclosure trouble spots before the build is even finished.
Over time, rework may begin spreading through production not because the enclosure suddenly fails, but because repeated small corrections slowly become expected behavior across normal assembly flow.
Why Suppliers Quietly Change Fabrication Details During Production
Suppliers sometimes quietly change fabrication details during production because small process adjustments can make the enclosure easier to build, fit, or keep stable at manufacturing scale.
The enclosure drawing may still remain unchanged, yet production teams begin modifying how certain features are fabricated or handled once daily manufacturing repeatedly exposes the same difficult assembly areas.
Typical production-floor changes include:
- bend sequence being adjusted to improve part fit
- fastening order changing to reduce closure difficulty
- deburring methods varying between batches
- operators handling certain enclosure areas differently during fabrication or assembly
In those cases that we worked with, these changes are not intended to alter the enclosure design itself. The adjustment usually happens because the original fabrication approach becomes harder to maintain consistently once the enclosure enters sustained production flow.
For example, a bend order that worked smoothly during prototype builds may begin creating more fit-up variation once the same enclosure is fabricated continuously across larger production batches.
These process shifts often happen quietly because production teams focus on keeping builds moving smoothly while reducing repeated assembly hesitation around the same enclosure regions.
Even small fabrication-process changes can eventually alter how covers close, seams seat, or mounting areas align between different production batches.
Why Suppliers Ignore Growing Assembly Variation
Upload Your ECU Enclosure Drawing Before Production Release
Many ECU enclosure problems do not appear until repeated production builds begin — when closure variation, connector fit issues, harness interference, and assembly delays are already spreading across the line.
A drawing that looks stable during prototype or pilot stages can still create production problems once the enclosure reaches real assembly volume and full installed conditions.
Upload your ECU enclosure drawing before release, and we’ll help review:
- enclosure areas that may become harder to assemble later
- connector and harness regions with limited installation margin
- fabrication details that can create build-to-build differences
- mounting and cover areas that may react differently after full tightening
- enclosure features likely to trigger repeated adjustment during production
It’s far easier to correct these issues before production release than after operators begin slowing builds, adjusting assembly sequence, or revisiting the same enclosure regions repeatedly during manufacturing.
Before Releasing Your ECU Enclosure, Check the Production Risks First
We help review manufacturability risks before fabrication starts.
