Designing for CNC prototyping requires balancing learning objectives with cost and timeline constraints. Smart material selection accelerates validation while preventing expensive redesigns.
Start with 6061 aluminum for structural parts and Delrin for flexible components—these materials solve 85% of prototype validation needs at lowest cost. Choose based on your biggest design risk: geometry validation, environmental testing, or assembly function.
Learn frameworks for matching materials to design needs, avoiding over-specification, and scaling production effectively.
Table of Contents
How do I match prototype material to your design requirements?
Use 6061-T6 aluminum for structural parts and Delrin (POM) for flexible components—these materials solve 85% of prototype validation needs. Choose based on your part’s critical function: aluminum for strength testing, Delrin for repeated flexing, stainless steel for harsh environments.
Immediate material decisions for specific design challenges:
Thin-walled enclosures (1-3mm walls)? → 6061-T6 aluminum machines cleanly without deflection and holds ±0.025mm tolerances. We’ve prototyped thousands of thin-wall housings—aluminum reveals structural weaknesses that softer materials mask. If aluminum cracks, your production part likely will too.
Snap-fits or living hinges? → Delrin (POM) flexes repeatedly without breaking, mimicking injection-molded plastic behavior. Aluminum snaps immediately and teaches nothing about your design. We’ve tested Delrin prototypes through 50+ assembly cycles successfully.
Threaded assemblies requiring torque testing? → 6061 aluminum threads handle realistic assembly forces (10-15 Nm for M4 screws). Plastic prototype threads strip too easily, hiding potential overtightening issues that destroy production assemblies.
High-temperature exposure (100°C+)? → 316 stainless steel or PEEK, depending on chemistry requirements. Standard aluminum softens above 150°C, giving false performance data.
The key insight: prototype materials should reveal design problems, not hide them. We’ve seen projects saved by discovering wall thickness issues in $60 aluminum prototypes rather than $500 production tooling.
Design Takeaway: Use this material matrix to eliminate guesswork. Focus your time validating geometry and tolerances—not optimizing material selection during prototyping.
Can this material handle my part geometry and features?
Check your thinnest walls, deepest pockets, and tightest internal radii first—these features determine material machinability more than overall part complexity. We’ve machined thousands of intricate parts and learned that specific geometric constraints, not general “complexity,” drive material selection and success rates.
Critical geometry limits by material:
6061-T6 Aluminum – handles most challenging features: Minimum wall thickness 1.2mm, pocket depth-to-width ratios up to 4:1, internal radii as tight as 0.5mm. We routinely machine complex audio enclosures with multiple internal chambers and thin mounting bosses without cracking or deflection.
Delrin (POM) – excellent for complex internal geometry: Minimum walls 1.5mm, exceptional for deep pockets and undercuts since it machines without work hardening. Perfect for gears with intricate tooth profiles or housings with complex internal routing that would be difficult in metals.
Stainless steel (316) – requires geometry modifications: Minimum walls 2.0mm, avoid sharp internal corners (0.8mm radius minimum). Work hardening makes deep, narrow features problematic. We often recommend geometry adjustments for stainless parts to prevent tool breakage.
Problem geometries that force material changes: Sharp internal corners cause stress concentrations in brittle materials. Deep, narrow slots (>5:1 aspect ratio) create chip evacuation issues in work-hardening alloys. Thin cantilevers under 1mm fail in most materials except specialized plastics.
Design Takeaway: Review your CAD for minimum wall thickness, internal radii, and pocket depths before finalizing material choice. Use our geometry limits above to catch manufacturability issues early.
Can this material meet my tolerance needs?
For parts that need to fit together, specify ±0.05mm for aluminum prototypes—tighter tolerances rarely improve assembly but always increase cost. Most fit issues we troubleshoot stem from clearance design or tolerance stacking, not machining accuracy. Focus on proving your assembly works before optimizing precision.
Common tolerance scenarios and solutions:
“My shaft/hole assembly is too tight” → Add 0.1-0.2mm clearance beyond your production intent. Prototype surface finishes are rougher (Ra 3.2µm vs 1.6µm production), effectively reducing clearances. We machine H7/g6 fits with extra 0.15mm clearance for realistic assembly testing.
“Parts are loose – bolts won’t hold properly” → Check material thickness variations, not hole positions. Sheet metal prototypes vary ±0.1mm in thickness, affecting bolt engagement. This is usually design validation, not a tolerance problem.
“Should prototype tolerances match production specs?” → No – use ±0.05mm for fit validation, then optimize later. We’ve seen teams spend 3x prototype budgets chasing ±0.01mm precision that teaches nothing about assembly function. Save tight tolerances for production.
“My CAD shows 0.2mm gap but parts bind up” → Tolerance stack-up through multiple features. Five features at ±0.05mm can create 0.5mm total variation. Design critical assemblies with single-datum machining when possible.
Material-specific tolerance capabilities: 6061 aluminum achieves ±0.025mm on critical features, Delrin reaches ±0.05mm standard, stainless steel requires ±0.05mm minimum due to work hardening effects during cutting.
Design Takeaway: Use ±0.05mm as your standard prototype tolerance. Add extra clearance for moving assemblies. Reserve tight tolerances for validating critical interfaces only.
What material should I use to simulate my production plastic?
Use Delrin (POM) for most plastic simulation—it machines cleanly and behaves similarly to common injection molded plastics in assemblies. From prototyping hundreds of plastic parts destined for injection molding, we’ve learned that matching mechanical behavior matters more than matching exact material properties during validation.
Direct plastic simulation recommendations:
For general housings, enclosures, brackets → Delrin (POM) mimics ABS, PC, and nylon behavior in assemblies. Similar stiffness and thermal expansion prevent false design feedback. We prototype most injection-molded enclosures in Delrin—fits and tolerances translate reliably to production.

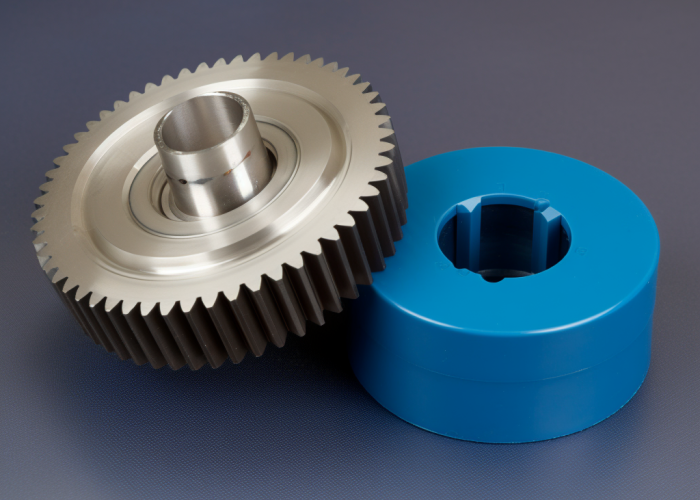

For gears, bushings, sliding components → Delrin excels at low-friction applications. Coefficient of friction (0.15-0.25) matches production plastics like nylon and acetal. We’ve prototyped gear trains that run smoothly in Delrin and perform identically in injection molded nylon.
For flexible snap-fits or living hinges → Delrin handles repeated flexing without breaking. Unlike aluminum that snaps immediately, Delrin validates your snap-fit geometry through 50+ assembly cycles. Critical for proving cantilever beam designs work before tooling.
For high-temperature applications (100°C+) → PEEK when chemistry demands it, otherwise stick with Delrin for geometry validation. PEEK costs 10x more than Delrin—only justify it when thermal or chemical requirements eliminate other options.
The key insight: don’t prototype with your exact production plastic unless absolutely necessary. Most injection molding plastics can’t be CNC machined effectively, and attempting to match exact material properties often teaches less about design functionality than using proven prototype materials.
Design Takeaway: Start with Delrin for 90% of plastic part prototypes. Focus on validating geometry, fits, and assembly sequence rather than material optimization during prototyping phase.
How do I prototype transparent or flexible design elements?
For transparent parts: clear acrylic (PMMA) handles simple geometry well, but avoid complex internal features. For flexible elements: very limited CNC options—consider design modifications or alternative methods. Most developers overestimate what CNC can achieve with specialized materials, leading to budget overruns and timeline delays.
CNC options for transparent prototyping:
Clear acrylic (PMMA) – best transparency, geometric limitations → Works for flat panels, simple curves, basic enclosures with 3mm minimum walls. Excellent optical clarity, machines cleanly with proper speeds. We prototype display covers and optical windows successfully, but avoid sharp internal corners that cause stress cracking.
Clear polycarbonate – more durable, harder to finish → Better impact resistance than acrylic but requires polishing for optical quality. Good for protective covers that need both transparency and mechanical strength. More expensive and time-consuming to achieve clear finish.
Clear PETG – easier machining than PC → Moderate clarity, good for concept validation rather than optical testing. Machines without cracking issues but optical quality inferior to acrylic. Useful when you need transparent geometry proof without perfect clarity.
CNC options for flexible prototyping:
Limited flexible CNC materials available → Soft plastics like TPU generally can’t be CNC machined effectively due to material deformation during cutting. Most “flexible” prototype requirements need design modifications or alternative prototyping methods.
When to modify your approach: Complex transparent geometry or truly flexible elements often require 3D printing, thermoforming, or prototyping rigid versions first to validate core functionality.
Design Takeaway: Use clear acrylic for simple transparent features, but plan geometry constraints early. For flexibility requirements, consider whether rigid prototype testing can validate your core design assumptions first.
Will this material handle my part's environment?
Match your material’s weakest environmental limit to your harshest operating condition—temperature, chemicals, or corrosion usually determine material viability more than mechanical properties. From prototyping parts for medical, aerospace, and industrial applications, we’ve learned that environmental failures happen suddenly and completely, unlike gradual mechanical wear.
Environmental material selection by operating conditions:
High temperature exposure (100-200°C) → 316 stainless steel handles continuous heat without softening. 6061 aluminum begins losing strength above 150°C, while most plastics deform at 80°C. We prototype heated enclosures and exhaust components in stainless steel to validate thermal expansion effects on assemblies.
Chemical exposure (solvents, acids, cleaning agents) → 316 stainless steel or PEEK depending on chemistry severity. Standard aluminum corrodes in acidic environments, Delrin swells in certain solvents. For medical device housings requiring aggressive cleaning, we default to 316 stainless for realistic chemical resistance testing.
Outdoor/marine environments → 316 stainless steel for salt exposure, 6061 with anodizing for general weather. Standard aluminum corrodes rapidly in marine environments without protective coating. We prototype outdoor enclosures in anodized aluminum or stainless depending on proximity to salt water.
Food contact applications → 316 stainless steel or food-grade PEEK only. FDA compliance requires specific material certifications that standard aluminum and Delrin lack. Medical-grade applications have similar restrictions requiring certified material sources.
Standard indoor environments → 6061 aluminum handles most indoor conditions without degradation. Room temperature, low humidity, minimal chemical exposure—aluminum prototypes accurately represent long-term performance in these conditions.
Design Takeaway: Identify your harshest environmental condition first, then select material that exceeds those requirements. Environmental failures often happen catastrophically rather than gradually, making material selection critical for realistic prototype testing.
How does material availability affect prototype timelines?
When facing material delays, substitute with 6061 aluminum for geometry validation while sourcing production materials in parallel—this approach saves 2-4 weeks without compromising design learning. We’ve guided hundreds of projects through material availability challenges by separating validation objectives from material optimization.
Timeline scenarios and immediate solutions:
Exotic material delayed 3+ weeks (PEEK, titanium, Hastelloy) → Start with 6061 aluminum prototype immediately. Validate all geometry, tolerances, and assembly function. Material cost drops from $300+ to $50, timeline accelerates by 21+ days. Reserve exotic material for final confirmation after design lock.
Specialty grade certification delays (medical, aerospace) → Use standard 316 stainless steel for functional testing. Certified materials add 1-2 weeks for documentation and traceability. Standard grades prove mechanical performance while certified materials process separately.
Large/thick sections requiring mill-direct ordering → Modify prototype geometry to use standard stock sizes. 6-inch thick plate takes 4+ weeks to source, but 2-inch thick provides same design validation with 2-day material availability.
Customer insists on production material for prototype → Explain validation strategy: “Aluminum prototype confirms geometry and assembly work correctly. Production material confirms performance specs separately.” Focus stakeholder attention on design risk reduction vs material matching.
Material substitution decision matrix: Use standard materials when testing fit, assembly, and geometry (90% of prototype value). Reserve exotic materials when testing environmental limits, fatigue, or regulatory compliance.
Design Takeaway: Separate geometry validation from material performance testing. Most design problems surface regardless of material choice—find them quickly with available materials, then confirm with production specs.
Will my chosen material impact production scaling?
Most scaling issues come from prototype-to-production material family mismatches—aluminum prototypes intended for plastic production, or custom alloys that don’t scale economically. The key question: will your production process use the same material family as your prototype?
Common scaling scenarios and solutions:
“Aluminum prototype → injection molded plastic production” → Expect design changes for moldability. Sharp corners, thin walls, and complex undercuts that machine easily may require geometry modifications. Draft angles (1-3°), wall thickness consistency (2-4mm), and rib reinforcement become critical for injection molding.
“Steel prototype → high-volume steel production” → Material costs stay high but processes scale well. Machined steel prototypes translate directly to production machining or can inform casting/forging tool design. Expect similar per-part costs unless switching to different steel grades.
“Expensive material prototype → cost pressure in production” → Plan material substitution strategy early. PEEK prototypes costing $300+ may need aluminum or steel alternatives for production economics. Test critical performance requirements separately from general functionality.
“Custom alloy/grade → production supplier limitations” → Verify supplier availability at volume before committing. Exotic materials often have limited supplier bases, creating supply chain risks and pricing leverage issues at production scale.
“Prototype works perfectly but production quotes are 10x higher” → Usually indicates process mismatch, not material issue. CNC prototypes may need transition to casting, forging, or molding for economic production volumes.
Design Takeaway: Validate your production material strategy during prototype phase. Ask suppliers about volume pricing and process alternatives before locking in material specifications that create scaling bottlenecks.
What are common material selection mistakes to avoid?
When stuck between material options, choose the simpler, cheaper alternative first—most functional requirements are met by standard materials, and exotic choices often solve problems you don’t actually have. Use this decision framework to evaluate whether your material choice makes sense.
Material choice validation framework:
“Should I use aluminum or plastic for this bracket?” → Ask: what loads and environment will it see? Aluminum handles higher loads and temperature, plastic costs less and resists corrosion. Match material strength to actual requirements, not perceived “quality.”
“Is PEEK worth $300 vs $50 aluminum for my application?” → Justify each requirement: temperature >150°C, chemical resistance, electrical insulation. If aluminum meets your performance needs, PEEK adds cost without benefit. Reserve exotic materials for specific performance gaps.
“Customer wants titanium but I think aluminum works” → Document performance requirements objectively. Compare tensile strength, weight, corrosion resistance against actual application demands. Often, titanium’s benefits don’t justify 5-10x cost premium.
“Engineer specified exotic material – is it necessary?” → Ask for specific performance justification. Requirements like “aerospace grade” or “medical quality” may not require exotic alloys. Many applications work fine with standard materials meeting appropriate specifications.
“Material choice seems expensive – what are alternatives?” → Question each specification: tolerance, surface finish, strength, environment. Often, one over-specified requirement drives exotic material choice when standard materials with process modifications work equally well.
Design Takeaway: Start with 6061 aluminum or 316 stainless steel—they solve 80% of prototype needs. Upgrade only when you can document specific performance requirements that standard materials can’t meet.
Conclusion
Smart material selection accelerates prototype learning while controlling costs—use 6061 aluminum for most structural validation and Delrin for plastic simulation. Focus on proving geometry and assembly function first, then optimize materials for production. Contact us to explore manufacturing solutions tailored to your prototype material requirements.
Frequently Asked Questions
6061 aluminum at $50-75 per part handles most structural validation needs. Only upgrade materials when you hit specific limitations aluminum can’t test, like flexibility or extreme temperatures.
No. Use the same material family (aluminum-to-aluminum, plastic-to-plastic) but focus on geometry validation with readily available materials. Confirm performance with production specs after design is proven.
Yes. 6061 aluminum validates assembly sequence and tolerance stack-ups reliably. Add 0.1-0.2mm extra clearance to account for surface finish differences compared to production parts.
Under $100 per part for most validation needs. If material costs exceed this, question whether you’re testing design function or trying to match production specifications too early.
Delrin flexes repeatedly without breaking, making it ideal for snap-fits and living hinges. Aluminum snaps immediately and teaches nothing about flexible design performance.
Only when testing specific environmental limits (high temperature, chemical resistance) or regulatory requirements that standard materials can’t simulate accurately.
