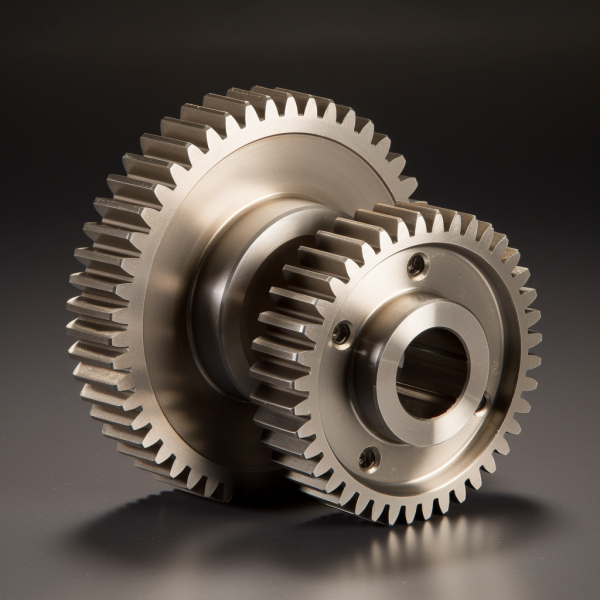

Gear noise isn’t just a post-production issue — it’s often rooted in pressure angle and contact ratio decisions made early in design. But tweaking these specs isn’t always straightforward. You might gain quieter meshing at the cost of backlash, strength, or tooling compatibility.
Lower pressure angles (like 14.5°) and higher contact ratios (CR ≥1.6) generally reduce gear noise by promoting smoother engagement and longer tooth overlap. However, these changes may increase backlash or require custom tooling. For quieter drives, helical gears with CR >1.8 often offer the best balance.
Learn how to reduce gear noise by tuning pressure angle and contact ratio—plus tips to boost quietness without increasing size or compromising performance.
Table of Contents
When should gear noise be addressed in development cycle?
Gear noise should be addressed before CAD is finalized and before off-the-shelf gear specs are locked in. This typically means during early mechanical design reviews — not during quoting or prototyping.
We frequently machine gear housings, plates, and custom shafts where the pressure angle, center distance, or gear type was chosen based on availability — not acoustic behavior. By the time noise becomes a concern, those decisions are already embedded in the geometry, leaving no room to optimize without cost.
If your product requires reduced operational noise — whether for comfort, compliance, or perceived quality — bring it up during:
- Preliminary gear pairing and layout
- Initial spec selection from gear catalogs
- DFM consultation before final drawing release
At this point, small shifts in pressure angle, contact ratio, or gear width can still be made — and their downstream impact on backlash, meshing, or cost can be evaluated with your machining partner.
Design Takeaway:
Treat gear noise as a design constraint, not a test-phase discovery. Once a housing is machined or a gear spec is fixed, noise problems are hard — and expensive — to solve. The lowest-cost time to optimize for quiet operation is before tolerances are called out and gear specs are committed.
Which pressure angle minimizes noise without sacrificing strength?
A lower pressure angle, such as 14.5°, generally reduces gear noise by increasing rolling contact — but it also weakens tooth strength. A 20° pressure angle offers a better balance between noise reduction and load capacity in most CNC-machined gear systems.
From a design-for-machining perspective, 20° is the industry default for spur and helical gears because it fits standard cutters and supports stronger tooth geometry. It produces slightly more sliding contact (hence more noise) than 14.5°, but this is often offset by better wear resistance and tooling availability.
If your design calls for higher contact ratio or quieter operation, 17.5° is sometimes used as a middle ground — but this typically requires custom tooling and may limit off-the-shelf compatibility. For noise-sensitive applications, it’s better to optimize contact ratio or use helical gears than push pressure angle too low and lose strength.
Design Takeaway:
20° pressure angle is the best all-around choice for balancing strength and moderate noise control. If acoustic performance is critical, consider boosting contact ratio instead of reducing pressure angle — that way, you avoid sacrificing load capacity or increasing cost through custom tooling.
How can contact ratio be increased without enlarging the gear size?
You can raise contact ratio without increasing gear size by adjusting profile shift, using finer pitch, or switching to helical gears. Each method increases tooth overlap — which reduces noise — without expanding the gear diameter or center distance.
In CNC-cut gear projects, we often see contact ratios of 1.4–1.5 on standard 20° spur gears, which can result in light vibration or tonal noise under load. By using a helical gear with a moderate helix angle (10–15°), you can push CR above 1.8 without changing gear size. This leads to smoother meshing and quieter operation.
Profile shift is another design-level technique: positive profile shift (x > 0) increases tooth thickness and can raise CR, but must be applied carefully to avoid undercutting or root thinning — and it requires communication with your gear supplier to ensure proper tooling setup.
Design Takeaway:
Use helical gears or profile-shifted spur gears to raise contact ratio when size is constrained. These strategies allow quieter meshing while maintaining your existing footprint — but confirm feasibility early to avoid custom setups or misalignment during CNC machining or housing assembly.
Balancing pressure angle & contact ratio?
We optimize both for quiet, durable gears • Get review on trade-offs before production
What are the effects of changing pressure angle on fit and assembly?
Changing the pressure angle alters the gear tooth shape and base pitch — which means gears with different pressure angles are not interchangeable, even if their module or diametral pitch is the same. A 14.5° gear won’t mesh properly with a 20° gear — it leads to misalignment, noise, and rapid wear.
When preparing parts for gear alignment, pressure angle changes affect how gear bores, hubs, spacers, and housings must be dimensioned to maintain backlash, center distance, and tooth clearance. If you’re machining a housing for a gearset, and the customer later switches to 14.5° instead of 20°, it may throw off meshing depth or create excessive play.
We’ve seen real examples where customers sourced off-the-shelf 14.5° gears to reduce noise but didn’t update the CAD specs — and their machined housing didn’t support proper center distance. The result: scrap parts and extra setups.
Design Takeaway:
Pressure angle isn’t just a gear vendor spec — it affects fit, backlash, and housing geometry. Always confirm pressure angle before machining gear bores, keyways, or mounting plates. Switching from 20° to 14.5° or vice versa after machining will likely require redesign.
Which low-noise gear specs are compatible with off-the-shelf tooling?
A 20° pressure angle with a contact ratio of 1.4–1.6 is standard for most off-the-shelf spur gears — and sufficient for moderate noise control. If quieter operation is needed without custom tooling, consider helical gears with 15–20° helix angle, which raise contact ratio and smooth engagement.
We often machine gear-related parts (shafts, housings, faceplates) where the designer wants reduced noise but can’t justify custom cutters. In these cases, we recommend sticking to:
- 20° pressure angle (readily available gear cutters and stock gears)
- Mod 1.0–2.5 or DP 20–32 (widely available)
- Helical gears with CR >1.8 (many standard suppliers offer these pre-cut)
Avoid 14.5° pressure angle unless you’re working with legacy parts — modern cutters and stock gear catalogs overwhelmingly support 20°. Also note that higher CR from helical teeth improves noise without changing pressure angle — this is the easiest low-noise upgrade when working within commercial constraints.
Design Takeaway:
Use 20° pressure angle and standard modules to keep tooling cost low while reducing noise. For quieter systems, swap to standard helical gears with moderate helix angles — you’ll gain contact ratio without requiring custom hob or shaping tools.
When are helical gears better than adjusting pressure angle or contact ratio?
Helical gears are the better choice when you need lower noise but can’t adjust gear size, pressure angle, or contact ratio without creating sourcing or machining issues. Standard helical gears provide higher contact ratios (CR >1.8) and smoother engagement — often without changing center distance or requiring custom tools.
We’ve worked with engineers who tried to lower pressure angle from 20° to 14.5° or apply profile shift to raise CR — only to run into problems like:
- Custom cutter requirements
- Changes in center distance that didn’t match the housing
- Increased backlash sensitivity
In contrast, switching to a standard 20° helical gear with a 15–20° helix angle often solves the noise problem without creating new fitment issues. The helix adds axial overlap, which increases contact ratio without touching the gear’s outer diameter or requiring design changes.
Use helical gears when:
- You’ve finalized the housing layout and don’t want to adjust center distance
- Noise is a late-stage concern
- You need a standard part that fits without re-engineering the assembly
- You’re already near the limits of pressure angle or CR in your spur gear setup
Design Takeaway:
If quiet operation is a requirement and you can’t adjust pressure angle or gear size easily, switch to a standard helical gear. It’s the most reliable low-noise upgrade that doesn’t force major design changes or add tooling cost.
How does pressure angle affect backlash and tolerance stacking?
Higher pressure angles reduce tooth engagement width and increase backlash sensitivity — which can amplify even small tolerance variations across your housing, shafts, and bearings. 14.5° gears require tighter alignment to avoid binding; 20° gears are more tolerant to real-world machining and assembly variation.
We’ve seen cases where a product used 14.5° spur gears to reduce noise, but center distance was off by 0.03 mm in the final housing. The result: meshing interference, noisy operation, and premature wear. All from what seemed like a minor shift in bore location.
Backlash is especially sensitive to:
- Pressure angle (lower angle = tighter mesh = less backlash tolerance)
- Shaft and housing bore tolerances
- Accumulated variation from multiple stacked fits (bearings + spacers + keyways)
If you’re targeting tight backlash (≤0.02 mm), consider:
- Holding center distance to ±0.01 mm
- Specifying positional GD&T on bores
- Using CMM or pin-gauge inspection for bore-to-bore distances
- Preloading bearings to reduce axial float
Design Takeaway:
20° pressure angles are more forgiving for backlash and tolerance stacking — especially in CNC-machined housings or multi-part assemblies. If you’re using 14.5° or tighter meshes, tighten your GD&T and confirm your stack-up doesn’t exceed backlash spec.
What specifications should be given to gear suppliers to reduce noise?
To reduce gear noise, specify pressure angle, contact ratio, pitch accuracy, and allowable backlash — not just module or tooth count. Leaving these details out often leads to default assumptions that increase vibration or tonal whine in operation.
Many engineers rely on catalog values or assume standard tolerances will be “good enough.” But if you’re designing around stock gears, or building a system where perceived quality matters, it’s worth getting more specific.
For quieter performance, include:
- Pressure angle (e.g., 20° standard, 14.5° legacy)
- Gear type and helix angle
- Minimum contact ratio (≥1.6 if possible)
- Target backlash range (e.g., 0.02–0.05 mm)
- Gear quality grade (DIN 6 or AGMA Q10 for reduced pitch variation)
Also clarify axial float limits, bore positioning tolerances, and how the gear will be mounted. Even well-made gears can become noisy if misaligned by a loose shaft fit or uneven housing flatness.
Design Takeaway:
The easiest way to prevent noise is to spec for it directly. Don’t rely on “default” gears — define contact ratio, backlash, and gear grade upfront, and ensure your mating components (brackets, plates, shafts) are toleranced to support consistent meshing.
How can gear noise be validated before committing to production?
Gear noise can be validated during prototyping using acoustic tests, torque ripple checks, or in-assembly test rigs. Doing this before release prevents costly fixes like damping foams or re-machined housings after launch.
Too often, teams freeze gear specs based on vendor data alone — assuming CR and backlash values will translate into quiet performance. But true noise behavior depends on the full system: housing rigidity, shaft alignment, and load paths.
You don’t need an advanced NVH lab to get actionable results:
- Use a simple test fixture with full mounting geometry
- Apply load conditions representative of real use
- Record sound signatures with a directional mic and FFT app
- Monitor torque ripple with encoder-equipped test shafts
Even short-term wear testing can reveal harmonic whine or impact chatter caused by center distance drift or incorrect mesh depth.
Warning signs during validation include:
- Tonal spikes at meshing frequency or its harmonics
- Load-induced clatter at low RPM
- Uneven wear patterns on gear flanks
Design Takeaway:
Validate gear noise at prototype stage using your actual mounting layout — not just catalog specs. A simple test rig or torque sensor can expose issues early, giving you time to adjust tolerances or switch to quieter gearing options.
What is the simplest way to achieve quieter gears without redesigning the system?
Swapping spur gears for standard helical ones is the simplest way to reduce gear noise without changing system layout or part geometry. It’s often a drop-in fix that doesn’t require new machining setups — but delivers a major upgrade in acoustic performance.
Helical teeth engage gradually and carry load across multiple points, which softens vibration and eliminates the sharp meshing impact common in spur gears. In projects where performance complaints arise late in development, a gear swap is often the only practical fix that doesn’t require redoing the entire drive system.
Here’s why it works:
- Contact ratio improves (often CR >1.8)
- Meshing is smoother — less impulse, less tonal whine
- Tooth load is spread along the face width
- Many helical sets are available in standard specs
You’ll still need to manage the axial thrust introduced by the helix angle — meaning bearing selection and housing stiffness must be considered — but this is often easier than adjusting tooth geometry, backlash, or center distance.
Design Takeaway:
If the system is already designed and gear noise is a last-minute issue, switching to a standard helical gear is your best option. It’s a clean, cost-effective solution that avoids redesign and often fits within the original housing and alignment scheme.
Conclusion
Pressure angle and contact ratio are powerful levers for controlling gear noise — but only when applied with manufacturability in mind. We help teams optimize specs before machining begins. Contact us to explore manufacturing solutions tailored to your gear-driven product’s performance, tolerance, and acoustic requirements.
Frequently Asked Questions
For reduced noise and smoother mesh, start with:
- DIN 6 or better for precision-machined gears
- AGMA Q10–Q12 if sourcing from North American suppliers
Higher grades reduce pitch variation and minimize tonal noise at speed — especially important for audio, appliance, or medical products.
Lower grades (DIN 8–10) may be fine for industrial or low-RPM systems.
Yes — if gear noise, wear, or bearing alignment are critical. For example:
- Ra ≤ 1.6 µm on shaft journals improves consistency in backlash
- Ra ≤ 0.8 µm on housing faces reduces tilt in gear stack-ups
Unfinished cast or milled surfaces can introduce angular misalignment that amplifies gear noise or shortens life.
Add finish specs selectively — not on every surface, but where alignment and repeatability matter.
Often no — helical gears with the same module and pressure angle can maintain the same center distance as spur gears.
However, verify:
- Helix angle doesn’t shift pitch diameter
- Axial thrust won’t affect bearing seats
Face width fits within the housing
Always check against your CAD model and consult your CNC vendor to confirm bore-to-bore spacing stays valid.
Yes — and you should. CNC machining partners like us can flag:
- Over-specified tolerances that raise cost
- Bore spacing that might not hold backlash
Geometric features that complicate fixturing or QA
We often review early-stage drawings to help optimize tolerancing for both noise control and manufacturability. It’s faster and cheaper than discovering issues after prototyping.
Be specific. Don’t just say “low noise” — instead, include:
- Gear specs: pressure angle, CR, backlash range
- Housing tolerance limits
- Noise priority (e.g., tonal whine vs chatter vs vibration)
Assembly conditions: load, speed, enclosure materials
This lets your vendor advise on surface finishes, alignment features, or alternate setups that better support your goals.
Backlash of 0.02–0.05 mm is achievable for most small gear systems, but only if bore position, shaft fit, and housing flatness are tightly controlled. Below 0.02 mm, even thermal expansion or bearing float can cause interference.
If your application demands ultra-low backlash, we recommend:
- Center distance tolerances within ±0.01 mm
- Ground or preloaded shafts
Confirming stack-up with a CMM
These tolerances may require hardened alignment pins or jig grinding, so discuss with your machining partner early.
