Choosing between spur, helical, and planetary gears can make or break your engineering project. Each gear type offers unique ratio capabilities that directly impact performance, size, and cost. This guide cuts through the complexity to help you select the perfect gear system for your specific manufacturing needs.
Spur, helical, and planetary gears are distinct types of gearing systems with unique characteristics and applications. Their gear ratios differ in terms of calculation methods, typical ranges, and capabilities. Spur gears (1:1 to 6:1) are the simplest and most efficient but noisiest. Helical gears (3:2 to 10:1) offer smoother operation and higher load capacity. Planetary gears (3:1 to 10:1) provide the highest reduction ratios in compact packages with multiple configuration options.
Want to know which gear type will deliver the best results for your project? Keep reading to explore the seven critical differences that will guide your decision and help you avoid costly design mistakes.
Table of Contents
Spur Gear Ratios

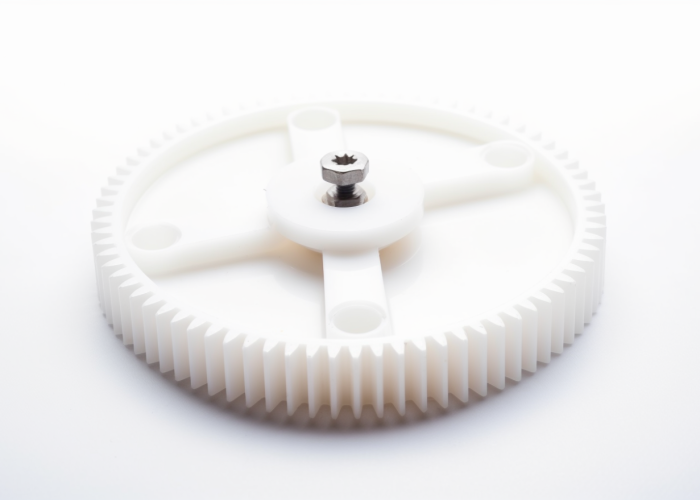

Spur gears represent the most fundamental approach to gear systems in our comparison of gear ratio types. These gears feature straight teeth that run parallel to the axis of rotation, creating a simple and direct power transmission path. The calculation for spur gear ratios follows a straightforward formula: Gear ratio = Number of teeth on driven gear / Number of teeth on driving gear. This direct relationship makes spur gear calculations accessible even to those new to gear design. Spur gears typically operate in a ratio range of 1:1 to 6:1, making them ideal for applications requiring moderate speed reduction without complex gearing arrangements.
When comparing gear ratios across different types, spur gears stand out for their simple and cost-effective design that’s easy to manufacture. They provide efficient power transmission between parallel shafts and deliver precise and consistent speed ratios. However, they produce higher noise levels, especially at increased speeds, have limited load capacity compared to helical and planetary options, and are typically larger for equivalent ratios. Unlike helical gears, spur gears create no axial thrust forces during operation, which simplifies mounting requirements.
Spur gears excel in applications where cost, efficiency, and simplicity are priorities, and where noise considerations are secondary. They’re commonly used in clocks and timers, simple gearboxes, low-speed open drives, conveyors, and agricultural equipment. When selecting between gear types based on ratio requirements, spur gears offer the most straightforward solution for moderate reduction needs.
Helical Gear Ratios
Building on our exploration of gear ratio comparisons, let’s examine helical gears, which offer distinct advantages over their spur counterparts. Helical gears introduce a significant design innovation with teeth cut at an angle to the axis of rotation. This angled approach creates several performance advantages that directly impact their gear ratio capabilities and applications.
The calculation for helical gear ratios is similar to spur gears but with an important distinction – it must account for the helix angle. This additional factor makes calculations slightly more complex but enables the unique benefits of helical gearing systems. While spur gears are limited to smaller ratios, helical gears typically operate in a ratio range of 3:2 to 10:1, offering greater versatility for applications requiring both smooth operation and higher reduction ratios.
When comparing gear ratios across types, helical gears deliver smoother operation due to gradual tooth engagement, significantly reducing noise and vibration compared to spur gears. Their design allows for higher load capacity and the ability to handle higher speeds than equivalently sized spur gears. However, the angled tooth design creates axial thrust forces during operation, requiring appropriate thrust bearings in the system design.
While very efficient, helical gears experience slightly higher friction than spur gears due to the sliding action of the angled teeth, making them the middle ground in our gear ratio comparison in terms of efficiency. They’re commonly used in automotive transmissions, heavy machinery, and applications where noise reduction is critical while still requiring substantial gear ratios.
Planetary Gear Ratios
After examining spur and helical gear options in our gear ratio comparison, we now turn to planetary gear systems, which represent the most sophisticated configuration among these three types. Planetary systems consist of a central sun gear, orbiting planet gears, and an outer ring gear working in harmony to deliver impressive ratio capabilities in compact packages.
The planetary gear ratio calculation involves a more complex relationship: Gear Ratio = (Number of Teeth on Ring Gear + Number of Teeth on Sun Gear) / Number of Teeth on Sun Gear. This mathematical relationship allows planetary systems to achieve higher reduction ratios in limited space. While spur and helical gears have more modest ratio capabilities, planetary gears typically operate in a ratio range of 3:1 to 10:1 in a single stage, with multi-stage arrangements capable of achieving much higher ratios, sometimes exceeding 100:1.
In our comparison of gear ratio systems, planetary gears stand out for their compact design with high load capacity, as they distribute loads across multiple planet gears, allowing for higher torque transmission in smaller packages. They offer unmatched configuration flexibility, where multiple gear ratios are possible by fixing different components (sun, carrier, or ring), providing exceptional design versatility.
Planetary systems can achieve higher reduction ratios in a single stage compared to single-mesh spur or helical arrangements. While highly efficient for their size, planetary systems have slightly lower efficiency than simple spur gears due to multiple mesh points. They excel in applications requiring high torque in limited space, including automotive transmissions, robotics, heavy machinery, and precision instruments where compact size and higher gear ratios are essential design requirements.
Key Differences in Gear Ratios
After exploring each gear type individually, let’s directly compare the critical differences between spur, helical, and planetary gear ratios that engineers must consider when selecting the optimal system for their applications.
- Complexity: The design sophistication increases significantly across gear types.
- Spur gears: Simplest design with straightforward calculations
- Helical gears: Moderate complexity with angled teeth considerations
- Planetary gears: Most complex, requiring precise coordination between multiple components
- Load Capacity: The ability to handle force varies dramatically, affecting application suitability.
- Planetary gears: Highest load capacity due to load distribution across multiple planet gears
- Helical gears: Intermediate load handling with increased tooth contact area
- Spur gears: Lowest load capacity among the three types
- Efficiency: Power transfer effectiveness differs between gear systems, impacting energy consumption.
- Spur gears: Highest efficiency (up to 98-99%) due to direct tooth engagement
- Helical gears: Close second (96-98%) despite slight losses from sliding contact
- Planetary systems: Slightly lower efficiency (94-98% per stage) due to multiple mesh points
- Noise Characteristics: Sound levels vary significantly and can be a deciding factor in sensitive environments.
- Helical gears: Quietest operation due to gradual tooth engagement
- Planetary systems: Moderate noise levels
- Spur gears: Noisiest option, particularly at higher speeds and loads
- Axial Forces: Thrust considerations affect mounting requirements and system design.
- Helical gears: Generate significant axial thrust requiring thrust bearings
- Spur gears: Produce minimal axial forces
- Planetary gears: Typically produce minimal axial forces
- Ratio Range: The achievable speed reduction varies considerably between gear types.
- Planetary gears: Highest reduction ratios (3:1 to 10:1 in single stage, much higher in multi-stage)
- Helical gears: Moderate ratio ranges (3:2 to 10:1)
- Spur gears: Limited ratio options (1:1 to 6:1)
- Size Considerations: Space efficiency differs dramatically when achieving equivalent ratios.
- Planetary gears: Most compact solution for equivalent ratios
- Helical gears: Require intermediate space
- Spur gears: Typically need the largest footprint to achieve the same ratio
Understanding these seven key differences allows engineers to make informed decisions when selecting gear ratio systems, balancing performance requirements with design constraints to achieve optimal results in their custom manufacturing projects.
| Factor | Spur Gears | Helical Gears | Planetary Gears |
|---|---|---|---|
| Complexity | Simplest design with straightforward calculations | Moderate complexity with angled teeth considerations | Most complex, requiring precise coordination between multiple components |
| Load Capacity | Lowest load capacity among the three types | Intermediate load handling with increased tooth contact area | Highest load capacity due to load distribution across multiple planet gears |
| Efficiency | Highest efficiency (up to 98-99%) due to direct tooth engagement | Close second (96-98%) despite slight losses from sliding contact | Slightly lower efficiency (94-98% per stage) due to multiple mesh points |
| Noise | Noisiest option, particularly at higher speeds and loads | Quietest operation due to gradual tooth engagement | Moderate noise levels |
| Axial Forces | Produce minimal axial forces | Generate significant axial thrust requiring thrust bearings | Typically produce minimal axial forces |
| Ratio Range | Limited ratio options (1:1 to 6:1) | Moderate ratio ranges (3:2 to 10:1) | Highest reduction ratios (3:1 to 10:1 in single stage, much higher in multi-stage) |
| Size | Typically need the largest footprint to achieve the same ratio | Require intermediate space | Most compact solution for equivalent ratios |
Selection Guide for Engineers
When selecting the optimal gear ratio system for your specific application, consider these key factors to guide your decision-making process. This practical framework will help you navigate the trade-offs between spur, helical, and planetary gear systems.
Application Requirements Assessment
Begin by clearly defining your application’s specific needs:
- Required Ratio Range: Determine the exact speed reduction needed. For lower ratios (1:1 to 6:1), spur gears may suffice. For moderate ratios (up to 10:1), consider helical gears. For higher ratios, especially in limited space, planetary systems are often necessary.
- Available Space: Evaluate your space constraints carefully. In tight spaces where high ratios are needed, planetary gears offer the most compact solution. When space is less restricted, simpler spur or helical options may be more cost-effective.
- Noise Sensitivity: For quiet environments like medical equipment or office machinery, prioritize helical gears. In industrial settings where noise is less concerning, spur gears might be acceptable. Planetary systems offer a middle ground.
- Load Requirements: Match your load needs to the appropriate gear type. Heavy loads generally require planetary or helical systems, while lighter loads can be
Cost-Benefit Considerations
Balance performance requirements against budget constraints:
- Manufacturing Complexity: Spur gears offer the lowest production costs, followed by helical gears, with planetary systems being the most expensive to manufacture precisely.
- Maintenance Implications: Consider long-term maintenance needs. Spur gears generally require less maintenance but may need noise damping. Helical gears need thrust bearing attention. Planetary systems require more complex maintenance but often last longer under heavy use.
- Energy Efficiency: In applications where power consumption is critical, the slightly higher efficiency of spur gears may justify their selection despite other limitations.
Application-Specific Recommendations
- Precision Positioning: For applications requiring exact positioning, spur gears offer the most direct and predictable movement.
- Smooth Operation: When smooth operation is critical, helical gears excel due to their gradual tooth engagement.
- High-Power Density: When maximum power must be transmitted in minimal space, planetary systems are often the only viable option.
By systematically evaluating these factors against your specific requirements, you can select the gear ratio system that optimally balances performance, space, cost, and maintenance considerations for your custom manufacturing application.
Conclusion
When selecting between gear ratio systems, consider the seven key differences highlighted. Spur gears offer simplicity and efficiency; helical gears provide smooth, quiet operation; planetary gears deliver high ratios in compact packages. Match your choice to specific application needs, balancing performance requirements with space constraints and cost considerations for optimal results.
Frequently Asked Questions
Helical gears generate axial thrust because their angled teeth create forces in both the rotational and axial directions during operation. This requires appropriate thrust bearings in the system design but enables smoother, quieter operation compared to spur gears.
Helical gears offer the best noise reduction among the three types due to their gradual tooth engagement pattern. This makes them ideal for noise-sensitive applications where operation sound levels must be minimized.
Spur gears are ideal for applications requiring simple, efficient power transmission with moderate ratios, including conveyor systems, clocks, timers, and basic machinery where noise isn’t a primary concern and cost-effectiveness is important.
Helical gears are slightly less efficient than spur gears (96-98% vs 98-99%) due to the sliding contact created by angled teeth. However, this slight efficiency trade-off provides significantly quieter operation and higher load capacity.
Yes, while single-stage planetary gears typically achieve ratios up to 10:1, multi-stage planetary systems can reach much higher ratios—often exceeding 100:1 by connecting multiple planetary stages in series, making them excellent for high-reduction applications.
The size efficiency of gear systems is determined by the gear type (planetary being most compact), the required ratio (higher ratios generally require more space), tooth size (affecting strength), and arrangement configuration (especially for planetary systems).
