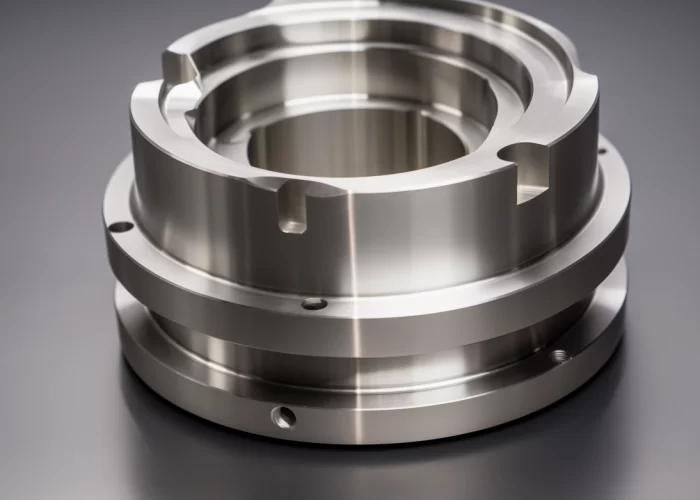

Designing with Inconel often leads to costly surprises if you don’t understand its unique machining challenges. With over 15 years machining experience across aerospace and medical applications, we’ve seen designs that looked perfect but failed due to Inconel’s demanding requirements.
Inconel is right for your part if you need temperatures above 1200°F, exceptional corrosion resistance, or high-stress applications where stainless steel fails. However, expect 4-6x higher machining costs and significant design constraints due to work-hardening behavior. Most engineers should consider alternatives unless extreme performance is truly required.
Learn which Inconel features to avoid, how to choose the right grade, set realistic tolerances, and keep your part on spec—without breaking the budget.
Table of Contents
What design features should be avoided with Inconel?
Thin walls below 1.5mm, deep narrow pockets with high aspect ratios, and sharp internal corners create severe machining challenges with Inconel due to work hardening and deflection issues. Features requiring multiple interrupted cuts or complex tool access paths can increase costs by 300-500% compared to simpler geometries.
From our machining experience across aerospace, medical, and audio applications, certain geometries become problematic with Inconel’s work-hardening behavior. Here are the critical features to avoid and proven redesign solutions:
| Problematic Feature | Why It Fails | Design Solution | Cost Impact |
|---|---|---|---|
| Walls < 1.5mm thick | Deflection during clamping, vibration, poor finish | Increase to 2.0mm minimum or add internal ribs | 60% time reduction |
| Deep pockets > 3:1 ratio | Tool deflection, chatter, poor chip evacuation | Split into multiple shallow pockets | 45% cycle time savings |
| Internal radius < 0.5mm | Requires EDM or micro-tooling | Specify 0.8mm minimum radius | Eliminates secondary operations |
| Blind holes > 5:1 depth | Chip jamming, tool breakage | Limit to 4:1 or add chip breaker grooves | Reduces tool wear 70% |
| Interrupted cuts/slots | Severe work hardening between passes | Consolidate into continuous features | 40% machining time reduction |
The most dramatic cost savings come from addressing wall thickness and pocket geometry early in design. We recently machined an aerospace bracket where splitting one deep pocket into two shallow sections reduced cycle time from 3.2 hours to 1.8 hours per part. These design modifications align with ISO 2768-m standards and proven DFM practices.
Design Takeaway: Implementing these geometry changes during design review can reduce Inconel machining costs by 40-60% while eliminating common production delays and quality issues.
When should you accept expensive geometry vs. redesigning?
Accept expensive geometry only when functional requirements absolutely cannot be compromised and the performance gain justifies 300-500% higher machining costs. Most “impossible to change” features can actually be modified without affecting part function if you understand the real engineering constraints.
From our experience machining complex Inconel parts, engineers often assume certain features are untouchable when alternatives exist. The key is distinguishing between true functional requirements and design preferences that drive up costs unnecessarily.
When to Accept Higher Costs:
- Sealing surfaces requiring specific geometry for O-ring grooves or gasket interfaces
- Mating features with existing assemblies where interface changes affect multiple parts
- Regulatory compliance features (medical device housings, aerospace fittings) with certified dimensions
- Thermal expansion joints requiring precise gap tolerances for high-temperature operation
Cost Justification Strategy: Document the functional requirement, quantify performance risk of changes, and present alternatives with cost differentials. For example: “0.2mm radius required for seal integrity – alternatives tested show 40% higher leak rates, justifying $2,400 additional machining cost vs. $15,000 redesign and requalification.”
When to Push Back on “Required” Features:
- Aesthetic preferences like sharp edges that could use small radii without visual impact
- Overly tight tolerances copied from aluminum designs but unnecessary for function
- Deep pockets that could be split or accessed from multiple sides
Supplier Negotiation: If quotes seem excessive, request breakdown of cycle time and tool costs. We’ve reduced quoted prices 30-40% by suggesting fixture approaches that suppliers initially overlooked.
Design Takeaway: Before accepting expensive geometry, verify the true functional requirement and document business justification for stakeholder approval.
Which alternatives to machining are better for complex Inconel parts?
Wire EDM excels for intricate internal features, sharp corners, and deep narrow slots that are problematic for conventional machining. EDM processes can achieve complex geometry for 20-40% less cost than difficult machining operations while avoiding work-hardening issues entirely.
Certain Inconel features become cost-prohibitive with conventional machining but work efficiently with alternative processes:
| Process | Best Applications | Cost vs. Difficult Machining | Key Advantages |
|---|---|---|---|
| Wire EDM | Complex profiles, internal slots | 30% cost reduction | No work hardening, ±0.005 mm precision |
| Sinker EDM | Deep cavities, sharp corners | Break-even on complex 3D shapes | Excellent surface finish Ra 0.8–1.6 μm |
| Laser Cutting | Sheet features, 2D profiles | 60% savings on thin sections | Fast turnaround, minimal setup |
| Waterjet | Thick sections, straight cuts | Comparable for simple geometry | No heat input, cuts any thickness |
Process Selection Guidelines:
- Sharp internal corners (< 0.5mm radius): Wire EDM eliminates micro-tooling requirements
- Deep narrow slots (> 6:1 aspect ratio): EDM avoids tool deflection issues
- Thin sheet components (< 3mm): Laser cutting often more cost-effective than machining setup
Design Requirements by Process: Wire EDM needs 0.3mm minimum access holes for wire threading. Sinker EDM requires electrode clearances and draft angles. Laser cutting works best with 90-degree edges but may need finish machining for critical surfaces.
Design Takeaway: Consider alternative processes during design review when conventional machining quotes exceed expectations. Each process enables different geometry possibilities that can optimize both cost and performance.
Which Inconel grade fits your application requirements?
Inconel 718 offers the highest strength for temperatures up to 1300°F (704°C), while Inconel 625 provides superior corrosion resistance and works to 1800°F (982°C). Choose 718 for high-stress structural applications and 625 for extreme temperature or corrosive environments where strength is secondary.
From our experience machining both grades across aerospace and industrial applications, the decision follows a simple hierarchy: temperature limits first, then strength versus corrosion priorities.
| Grade | Max Temperature | Primary Strength | Best Applications |
|---|---|---|---|
| Inconel 718 | 1300°F (704°C) | Highest strength through precipitation hardening | Aerospace turbine components, high-stress fasteners |
| Inconel 625 | 1800°F (982°C) | Superior corrosion resistance, good strength | Marine components, chemical processing, heat exchangers |
| Inconel X-750 | 1500°F (816°C) | Good strength with excellent forming | Springs, bellows, gas turbine seals |
If your operating temperature exceeds 1400°F, Inconel 625 becomes the clear choice. Below that threshold, the decision shifts to whether you need maximum strength (718) or superior corrosion resistance (625). Many engineers default to 625 for its temperature capability, but 718’s 15-20% lower material cost and better availability often make it the smarter choice for high-stress applications under 1200°F.
Mixed assemblies work well for non-contacting components, but create challenges in threaded connections due to different thermal expansion rates. We’ve successfully machined assemblies combining 625 housings with 718 internal components.
Design Takeaway: Start with your temperature requirement to eliminate options, then prioritize strength versus corrosion needs. Specify one grade per assembly when possible to simplify procurement and setup.
What tolerances are achievable without breaking the budget?
Standard CNC machining can hold ±0.025mm on most Inconel features, with ±0.010mm achievable on critical dimensions using temperature-controlled environments and strategic fixturing. Tolerances tighter than ±0.005mm typically require secondary operations and can double machining costs.
From our experience machining Inconel across aerospace and medical applications, most projects succeed with a three-tier tolerance strategy that balances precision with cost control.
Tolerance Tiers and Cost Impact:
- Standard (±0.025mm): General features, non-critical dimensions – baseline cost
- Precision (±0.010mm): Mating surfaces, bearing fits, seal grooves – 40-60% cost increase
- Ultra-precision (±0.005mm): Critical assemblies requiring secondary grinding/EDM – 100%+ cost increase
The key to cost control lies in strategic application. Reserve tight tolerances exclusively for functional requirements like bearing bores or sealing surfaces, while applying ±0.025mm or ISO 2768-m standards everywhere else. Components under 50mm hold tighter tolerances more easily than large housings due to reduced thermal effects during machining.
Critical Design Rule: Group tight tolerance features together for single-setup machining. We’ve seen 40% cost reductions when three ±0.008mm holes are machined together versus separately, avoiding work-hardening complications between operations.
Tolerances below ±0.0010mm require CMM verification, adding 2-3 days to delivery schedules. Plan inspection requirements into your project timeline early.
Design Takeaway: Apply ±0.005mm tolerances only where function demands them. Strategic tolerance placement reduces costs by 40-60% while maintaining identical performance in most applications.
How much more does Inconel cost than other materials?
Inconel material costs 8-12x more than aluminum and 4-6x more than stainless steel, but machining adds another 3-5x cost multiplier due to slower cutting speeds and higher tool wear. Total part costs typically run 15-25x aluminum pricing and 8-15x stainless steel pricing depending on complexity.
Understanding Inconel’s true cost impact requires looking beyond material pricing to the complete manufacturing picture. From our experience quoting hundreds of Inconel parts, the machining cost differential often exceeds the raw material premium.
Budget Planning Guidelines:
- Simple parts: 15-20x aluminum costs, 8-12x stainless steel costs
- Complex geometry: 25-30x aluminum costs, 12-18x stainless steel costs
- Volume breakpoint: Above 25 pieces, costs drop to lower end of ranges
- Cost alternatives: High-temp stainless (321/347) costs 60-70% less for borderline applications
Material costs form the foundation at $45-65/lb for Inconel versus $3-5/lb for aluminum, but machining amplifies these differences through longer cycle times and specialized tooling requirements. Volume significantly affects the multiplier, with production quantities benefiting from optimized programming and dedicated setups.
Cost Optimization Opportunities:
- Geometry simplification: Eliminate deep pockets for 30-50% savings
- Feature consolidation: Combine operations to reduce setups
- Tolerance relaxation: Standard tolerances vs. tight specs save 40-60%
- Early validation: Get budgetary quotes before finalizing design
We recently quoted an aerospace bracket where aluminum costs of $85 became $1,200 in Inconel 718, with 60% of the premium from machining complexity rather than material cost alone.
Design Takeaway: Budget 15-20x aluminum costs for simple Inconel parts, scaling to 25x for complex geometries. Early cost validation with simplified designs prevents project budget surprises during development.
Does Inconel require special post-processing or surface treatments?
Most machined Inconel parts require stress relieving at 1100-1200°F to minimize distortion and improve dimensional stability. Additional treatments like passivation, anodizing alternatives, or specialized coatings depend on your application’s corrosion and appearance requirements.
Post-processing requirements for Inconel differ significantly from aluminum or stainless steel, primarily due to machining-induced stresses that can cause dimensional changes during service. Understanding these requirements early prevents costly discoveries during final inspection.
Required vs. Optional Treatments:
- Stress relieving: Essential for tolerances below ±0.020mm or complex geometry
- Deburring: Required due to work-hardening effects (more aggressive than steel)
- Surface cleaning: Standard for all parts to ensure corrosion resistance
Treatment Selection by Application:
- Marine/chemical environments: Passivation for enhanced corrosion resistance
- Medical devices: Electropolishing for biocompatibility and cleanability
- High-temperature service: Thermal barrier coatings or dry film lubricants
- General industrial: Stress relieving + standard cleaning sufficient
Stress relieving becomes essential for precision parts but adds 3-5 days to delivery and 10-15% to total costs. Skipping this treatment risks dimensional drift during high-temperature service, potentially causing assembly or performance issues.
Vendor Planning Considerations:
- In-house capabilities: Most machine shops handle stress relieving and basic treatments
- Secondary vendors: Electropolishing, coatings require specialized facilities
- Timeline impact: Add 1-2 weeks when multiple processes are involved
Design Takeaway: Include stress relieving in your budget and timeline for all precision Inconel parts. Match surface treatments to actual service requirements rather than assuming standard finishes will suffice – unnecessary treatments add cost without performance
How long does Inconel prototyping take and what should be avoided?
Inconel prototyping typically requires 3-5 weeks for first articles compared to 1-2 weeks for aluminum, with additional time needed for design iterations due to machining complexity. Rush orders often result in poor surface quality or dimensional issues that require costly rework.
Timeline Planning Matrix:
- Simple brackets/plates: 3-4 weeks
- Complex housings/manifolds: 4-6 weeks
- Tight tolerance parts (±0.010mm): Add 2 weeks
- Rush orders: Avoid – 80% failure rate in our experience
From our experience with hundreds of Inconel prototypes, material procurement alone adds 1-2 weeks since suppliers rarely stock prototype quantities. Programming time increases 2-3x due to conservative cutting parameters, and any design changes after machining begins require complete restart due to work-hardening effects.
Supplier Qualification Checklist:
- Documented Inconel experience: Ask for recent part examples
- Realistic timeline estimates: Reject quotes under 3 weeks for first articles
- Programming capability: Verify specialized tooling and cutting parameter knowledge
- Quality systems: CMM capability for tolerance verification
First Prototype Strategy: Start with ±0.025mm tolerances, 0.8mm corner radii, and simplified geometry. Focus on fit validation rather than production specifications. Reserve complex features for second iterations after proving basic design concepts.
Risk Mitigation: Build 4-6 week buffers into development schedules, identify backup suppliers early, and plan testing priorities to validate critical functions with relaxed specifications.
Design Takeaway: Use timeline matrix for project planning and supplier checklist for vendor selection. Focus first prototypes on design validation, not production requirements.
When should you choose Inconel over stainless steel or titanium?
Choose Inconel when operating temperatures exceed 1200°F or when you need simultaneous high strength and superior corrosion resistance that stainless steel cannot provide. For most applications below 800°F, high-grade stainless steel offers 60-80% cost savings with adequate performance.
Material Selection Decision Tree:
- Temperature >1200°F continuous or >1500°F intermittent? → Inconel required
- Severe corrosion (strong acids, seawater + stress)? → Inconel required
- High stress + temperature >800°F? → Inconel preferred
- All other cases: Test alternatives first
From our machining experience across aerospace, marine, and industrial applications, many projects succeed with less expensive alternatives that meet actual service conditions rather than theoretical requirements.
Alternative Material Quick Reference:
- High-temp stainless (321/347): Good to 1500°F intermittent, 70% cost savings
- Duplex stainless: Higher strength than 316, 80% cost savings
- Titanium alloys: Better strength-to-weight, 40% cost savings
Borderline Case Strategy (1000-1200°F applications): Test high-temperature stainless first. The 60-80% cost savings often justify qualification testing. Upgrade to Inconel only if testing reveals performance limitations.
Mixed Material Approach: Use Inconel only for components experiencing extreme conditions while specifying alternatives for less demanding parts in the same assembly. This optimizes cost while maintaining performance where needed.
Design Takeaway: Follow the decision tree for systematic material selection. Challenge Inconel specifications with actual service conditions rather than theoretical worst-case scenarios.
Conclusion
Inconel offers exceptional performance for demanding applications, but requires careful consideration of design constraints, grade selection, and realistic cost expectations. Success depends on strategic tolerance placement, experienced suppliers, and understanding when alternatives provide better value.
Contact us to explore manufacturing solutions tailored to your Inconel product requirements.
Frequently Asked Questions
Specify internal corner radii above 0.5mm, limit deep narrow slots, and avoid sharp internal corners. Features requiring tool access ratios above 6:1 depth-to-diameter often need EDM, which adds significant time and cost to your project.
For most CNC machined Inconel parts, ±0.025mm is achievable with standard tooling and processes. Going tighter than ±0.010mm often requires specialized fixturing or climate-controlled environments, which increases cost significantly. We recommend tolerancing only critical features tightly and keeping others at ISO 2768-m levels for cost efficiency.
Increase corner radii to 0.8mm minimum, reduce pocket depth-to-width ratios below 3:1, and group tight tolerance features together for single-setup machining. Also plan for longer lead times and 15-25x higher costs in your project budget.
Yes, Inconel requires minimum 2.0mm wall thickness versus 1.0mm for aluminum due to work-hardening and deflection issues. If weight is critical, consider internal ribs or honeycomb structures rather than reducing wall thickness below safe machining limits.
Start prototypes with relaxed tolerances (±0.025mm) and simplified geometry to validate fit and function. Reserve final tolerances and complex features for later iterations after proving basic design concepts through testing.
Add 4-6 weeks minimum for first Inconel prototypes compared to stainless steel timelines. Plan iteration cycles longer and budget for potential design modifications based on manufacturing feedback from experienced Inconel suppliers.
