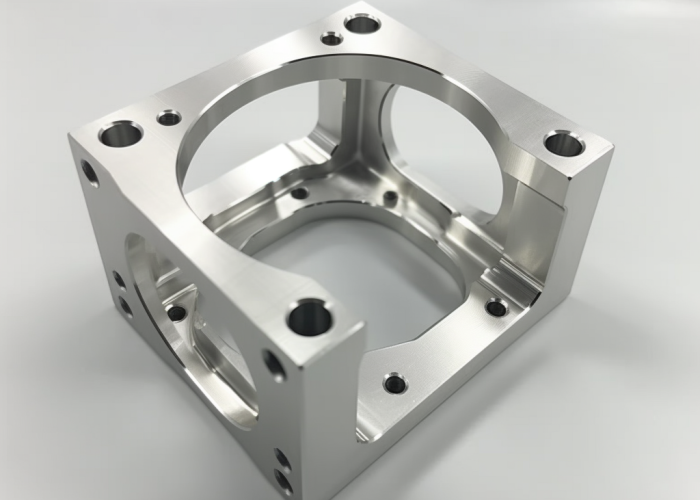

Engineers consistently ask us the same questions about aluminum machining: which alloy performs better, what tolerances are realistic, and how to avoid costly design mistakes. After machining thousands of aluminum parts across aerospace, audio, and medical sectors, we’ve seen how small design decisions dramatically impact both manufacturability and cost. Understanding aluminum’s unique machining characteristics isn’t just about material properties—it’s about making informed choices that optimize your entire production process.
Yes, aluminum is exceptionally easy to machine. 6061-T6 offers 90% machinability rating with standard tolerances of ±0.05mm readily achievable. Precision work reaches ±0.01mm using proper setup. Success depends on choosing the right alloy and preventing built-up edge formation.
Find the right aluminum alloy, reduce machining costs, and avoid common issues with expert design tips and proven optimization strategies.
Table of Contents

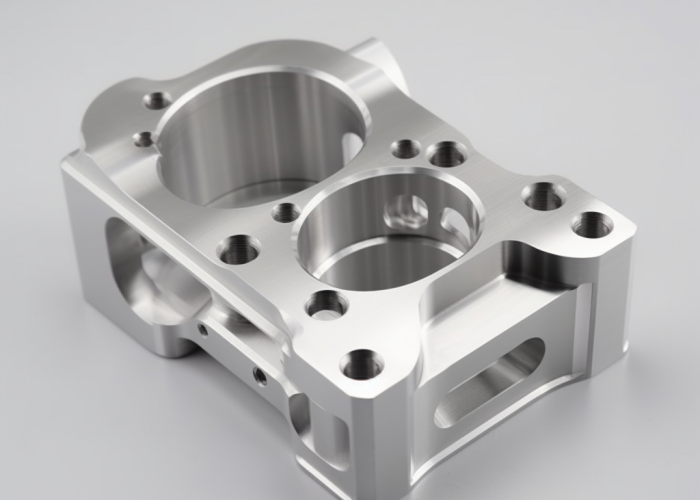

Is 6061 or 7075 Better for Machining Aluminum?
6061-T6 is superior for most CNC applications due to excellent machinability, consistent chip formation, and cost-effectiveness. 7075-T6 offers 40% higher strength but requires 30% slower cutting speeds and causes increased tool wear. Choose 6061 for prototypes and general parts, 7075 only when strength-to-weight ratio is critical.
Key Differences:
- Machinability: 6061 rates 90% vs 7075’s 70%
- Cutting speeds: 6061 runs 8,000-12,000 RPM vs 7075’s 6,000-8,000 RPM
- Material cost: 6061 costs $4-6/lb vs 7075’s $8-12/lb
- Strength: 7075 provides 83,000 PSI vs 6061’s 45,000 PSI tensile strength
In our machining experience, 6061-T6 consistently delivers superior chip formation with minimal built-up edge formation. We typically achieve excellent surface finishes with 0.005″ per tooth feed rates. 7075 requires reducing speeds by 25-30% to prevent excessive tool wear, extending cycle times significantly. The cost difference becomes substantial in production volumes—7075’s premium pricing combined with slower machining rates can double per-part costs.
6061 excels in audio enclosures where appearance and anodizing quality matter more than ultimate strength. We’ve machined hundreds of precision faceplates achieving Ra 1.6 µm finishes directly from the machine. 7075 becomes necessary for aerospace brackets and high-stress components where its superior strength-to-weight ratio justifies the additional complexity and cost.
Design Takeaway: Reserve 7075 for applications requiring maximum strength-to-weight performance. Use 6061 for 80% of CNC projects where its superior machinability, lower cost, and excellent surface finish capabilities provide better overall value.

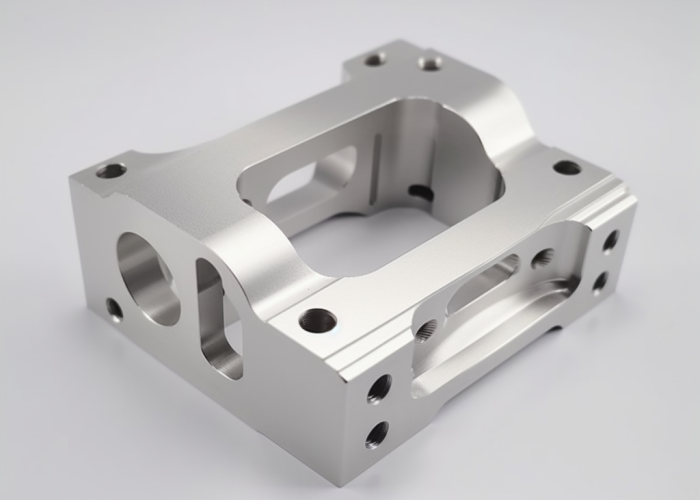

What Are the Design Limits for Machining Aluminum?
Key aluminum machining limits: 0.5mm minimum wall thickness, 4:1 maximum depth-to-width ratio for pockets, R 0.1mm minimum internal radii. Holes smaller than 0.5mm require micro-tooling. Undercuts need 5-axis capabilities or design modifications to eliminate.
Key Design Limits:
- Wall thickness: 0.5mm minimum for structural integrity
- Pocket depth: Maximum 4:1 depth-to-width ratio to prevent chatter
- Internal radii: R0.1mm minimum due to tool geometry
- Hole diameter: 0.5mm minimum with standard tooling
- Thread depth: 1.5x nominal diameter maximum in blind holes
From our production experience, thin walls below 0.8mm require specialized vacuum fixturing to prevent deflection during machining. We’ve successfully machined 0.5mm walls in 6061-T6 using climb milling strategies, but cycle times increase 40-60% due to reduced cutting forces required to avoid part distortion. Deep pockets exceeding 4:1 ratios create tool deflection issues and chatter problems that compromise surface quality.
Sharp corners are impossible due to end mill geometry—even a 0.5mm end mill leaves R0.25mm radii in internal corners. Undercuts present significant challenges, requiring specialized angle heads or 5-axis machining capabilities. We typically recommend eliminating undercuts through design modifications like split assemblies or threaded connections. For electronics enclosures, draft angles of 0.5-1.0 degrees facilitate easier part removal and reduce machining stress on features.
Design Takeaway: Design parts with 1.0mm minimum walls when possible, incorporate generous radii (R0.5mm+) in internal corners, and avoid deep narrow pockets. These modifications reduce machining time by 20-30% while improving part manufacturability and surface quality.

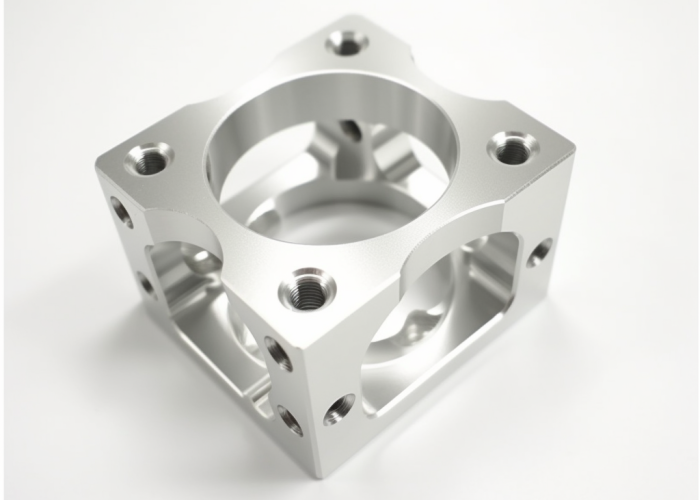

What Tolerances Can You Hold on Machining Aluminum?
Standard aluminum tolerance: ±0.05mm per ISO 2768-m guidelines. Precision machining achieves ±0.01mm with proper setup. Flatness holds ±0.02mm typical. Temperature control is essential due to aluminum’s 23.1 µm/m/°C expansion coefficient.
Tolerance Capabilities:
- General features: ±0.05mm (ISO 2768-m standard)
- Precision features: ±0.01mm with controlled setup
- Flatness/perpendicularity: ±0.02mm typical
- Hole positions: ±0.025mm with proper drilling sequences
- Thread locations: ±0.025mm positional accuracy
Our CMM verification consistently achieves ±0.01mm tolerance holding on 6061-T6 aluminum using climate-controlled machining centers and hydraulic workholding. Material stress relief through rough-finish cycles prevents dimensional shift during final operations. 7075-T6 requires 24-hour stress relief after rough machining to achieve similar precision due to higher residual stresses that can cause post-machining movement.
Medical device housings routinely require ±0.01mm tolerances for proper seal compression and component fit. We achieve these specifications through fixture-assisted machining and 100% CMM inspection using calibrated Mitutoyo equipment with 0.002mm resolution. Aerospace applications often specify geometric tolerancing per ASME Y14.5, requiring careful setup planning and process validation documentation.
Temperature variations of ±2°C can cause 0.005mm dimensional drift on larger parts, making climate control critical for precision work.
Design Takeaway: Reserve tight tolerances (≤±0.02mm) for functional features only. Over-tolerancing increases machining time 50-100% and inspection complexity without performance benefit. Specify standard tolerances elsewhere to optimize cost and lead time.

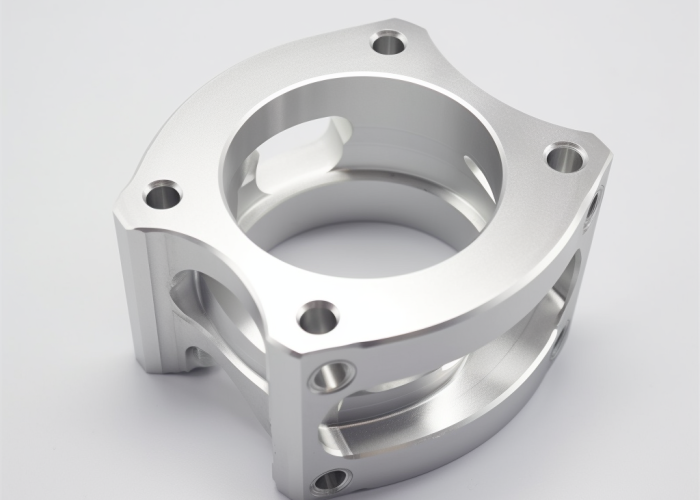

What Surface Finish Is Possible with Machining Aluminum?

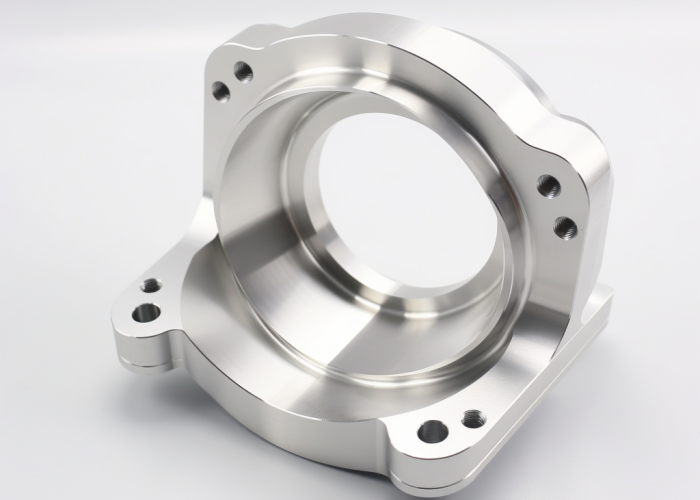

As-machined aluminum achieves Ra 1.6-3.2 μm surface finish typically. Fine machining reaches Ra 0.4-0.8 μm with sharp tools and optimized parameters. Post-processing like polishing achieves Ra 0.1-0.4 μm. Anodizing requires Ra ≤1.6 μm for uniform coating appearance.
Surface Finish Capabilities:
- As-machined: Ra 1.6-3.2 μm typical with standard parameters
- Fine machining: Ra 0.4-0.8 μm with optimized cutting conditions
- Polished finish: Ra 0.1-0.4 μm through mechanical polishing
- Anodizing prep: Ra ≤1.6 μm required for uniform coating
- Bead blasted: Ra 3.2-6.3 μm for textured appearance
From our surface measurement data using calibrated profilometers, we routinely achieve Ra 0.8 μm on aluminum faceplates using 0.5mm ball end mills at 12,000 RPM with flood coolant. Sharp carbide tools are essential—worn tools increase surface roughness by 200-300% and create built-up edge that mars the finish. Tool runout must stay below 0.002″ TIR to prevent chatter marks.
Audio equipment enclosures require mirror-like finishes for aesthetic appeal, achieved through progressive polishing from 320 to 2000 grit, followed by diamond paste finishing. Medical device housings need consistent Ra 0.8 μm for proper cleaning and sterilization—rougher surfaces harbor contaminants while smoother finishes resist bacterial adhesion.
Feed rate significantly impacts finish quality: reducing from 0.008″ to 0.003″ per tooth can improve surface finish by 40-50%. Spindle vibration control and proper coolant flow prevent surface defects that compromise part appearance and functionality.
Design Takeaway: Specify surface finish requirements based on function—Ra 1.6 μm handles most applications effectively. Mirror finishes should only be specified when appearance or cleanliness requirements demand them, as they require additional processing steps.

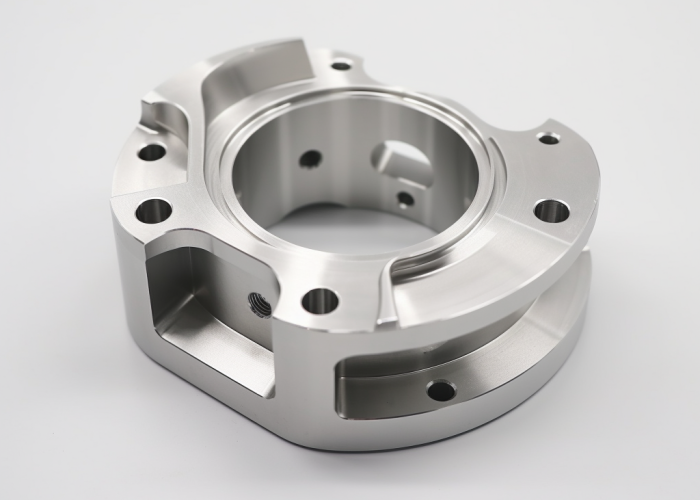

How Much Does Aluminum CNC Machining Cost?
Simple aluminum parts cost $50-200, complex parts range $200-1000+ depending on tolerances and features. Material costs: 6061-T6 runs $4-6/lb, 7075-T6 costs $8-12/lb. Setup time, tight tolerances, and secondary operations are primary cost drivers.
Cost Factors by Impact:
- Setup time: $150-300 per setup regardless of quantity
- Tight tolerances: 50-100% cost increase for ±0.01mm specs
- Material selection: 7075 costs 100% more than 6061 for raw material
- Secondary operations: Anodizing adds $25-50, polishing $50-150 per part
- Complexity: Deep pockets, thin walls increase cycle time 40-60%
Our pricing analysis shows setup represents 60-70% of cost for prototype quantities (1-10 parts). Machining time averages $85-120/hour depending on complexity and tolerance requirements. Tight tolerance work requiring CMM inspection adds $50-100 per part for verification and documentation. Surface finish requirements beyond Ra 1.6 μm significantly impact pricing through additional operations.
Volume significantly impacts per-part pricing: 100-piece quantities reduce per-part costs by 40-50% through setup amortization. Design optimization achieves 20-30% cost reduction—using standard tolerances, simplifying geometries, and selecting appropriate materials based on strength requirements rather than specifications.
Rush orders (under 5 business days) typically carry 25-50% premium pricing due to schedule disruption and overtime requirements. Standard lead times of 10-15 business days allow optimal scheduling and competitive pricing.
Design Takeaway: Optimize costs by using standard tolerances (±0.05mm), choosing materials based on actual strength requirements, and designing parts with generous radii and standard feature sizes. Consider volume breaks at 25, 100, and 500 pieces for significant per-part savings.
Why Does Aluminum Stick to Cutting Tools?
Built-up edge forms when aluminum adheres to cutting tools due to low cutting speeds, insufficient coolant, or dull tools. Solution: increase speed to 3,000+ surface feet per minute, use flood coolant at 5% concentration, and choose carbide or PCD tooling specifically designed for aluminum.
Built-Up Edge Prevention:
- Cutting speed: Maintain 3,000+ SFM to prevent aluminum adhesion
- Tool material: Use carbide or PCD tools with polished flutes
- Coolant flow: Flood coolant at 5-8% concentration minimum
- Tool geometry: Sharp cutting edges with 5-15° rake angles
- Feed rate: Maintain consistent chip load to prevent work hardening
From our troubleshooting experience, built-up edge occurs most frequently when operators reduce cutting speeds to “play it safe” with aluminum. This creates the opposite effect—aluminum’s tendency to cold-weld increases at lower speeds. We’ve eliminated 90% of built-up edge issues by maintaining minimum 8,000 RPM spindle speeds and ensuring flood coolant reaches the cutting zone effectively.
Dull tools exacerbate the problem by increasing cutting forces and heat generation. Tool life indicators include increased cutting noise, poor surface finish, and visible aluminum buildup on flutes. High-speed steel tools should be avoided for aluminum—carbide tools with uncoated, polished surfaces perform best. Coated tools can actually promote aluminum adhesion in some cases.
Work hardening compounds the issue when inconsistent feed rates cause the tool to rub rather than cut. This creates a hardened surface layer that dulls tools rapidly and promotes further aluminum buildup. Climb milling helps maintain consistent chip formation and reduces work hardening compared to conventional milling.
Proper chip evacuation prevents re-cutting of chips, which can weld to both the tool and workpiece. Air blast or high-pressure coolant ensures chips clear the cutting zone completely.
Design Takeaway: Specify aluminum-specific cutting parameters in your machining documentation. Request confirmation that machinists use appropriate speeds (8,000+ RPM), flood coolant, and sharp carbide tooling to prevent built-up edge formation that compromises surface quality and dimensional accuracy.
Conclusion
Aluminum’s exceptional machinability makes it ideal for precision CNC applications when properly specified. Choose 6061 for most projects, design within geometric limits, and apply standard tolerances to optimize cost without sacrificing quality. Success depends on understanding material behavior and machining best practices. Contact us to explore aluminum manufacturing solutions tailored to your product requirements.
Frequently Asked Questions
Simple aluminum parts cost $50-200, complex parts $200-1000+ depending on tolerances and geometry. Material represents 15-25% of total cost—machining time and setup are primary drivers for low-volume production.
Yes, we handle prototype quantities (1-10 parts) through production runs. Setup costs are amortized across quantity—100+ pieces reduce per-part costs by 40-50% compared to prototype pricing.
Yes, we offer design-for-manufacturing (DFM) consultation to optimize your parts for cost-effective aluminum machining while maintaining functionality and performance requirements.
Standard lead time is 10-15 business days for most aluminum parts. Rush orders (5 days) carry 25-50% premium. Complex parts requiring tight tolerances may need additional time for setup optimization and inspection.
Provide CAD files, material specification (6061 vs 7075), tolerance requirements, surface finish needs, and target quantity. Clear drawings with GD&T callouts expedite accurate quoting.
Avoid unnecessary tight tolerances (specify ±0.05mm instead of ±0.01mm), deep narrow pockets over 4:1 depth-to-width ratio, sharp internal corners, and undercuts. These features can increase costs 40-100%.
