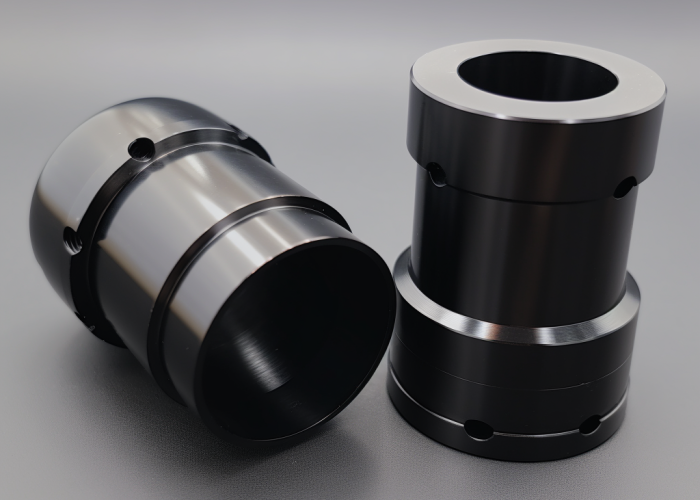

Selecting the right finish for steel components isn’t just about appearance—it’s about ensuring long-term performance without compromising precision or budget. Black oxide is often considered for its minimal thickness and cost-effectiveness, but many product developers question whether it provides adequate corrosion protection for their specific applications.
Black oxide offers limited rust protection on its own, typically requiring post-treatment with oil or wax to achieve meaningful corrosion resistance. Unlike anodizing or powder coating, black oxide is primarily a conversion coating that darkens the surface while adding only 0.0005-0.001 mm thickness.
Learn black oxide’s benefits and limits, and when to choose alternatives like zinc plating or anodizing for better part protection and performance.
Table of Contents
Can I use black oxide on stainless steel or only carbon steel?
Black oxide only works on carbon steel and low-alloy steels—stainless steel grades like 304 or 316 cannot accept black oxide due to their chromium content. If your design specifies stainless steel but requires a black finish, you’ll need either a material change or alternative coating process.
Material Compatibility Quick Reference:
- Carbon steel (1018, 1045, 4140): ✓ Black oxide compatible, 0.0005-0.001 mm thickness
- Stainless steel (304, 316): ✗ Not compatible—chromium blocks conversion process
- Tool steels (A2, D2): ✓ Compatible due to high carbon, low chromium content
From machining medical enclosures and audio faceplates, we regularly see this material-finish mismatch in initial designs. The passive chromium layer on stainless steel prevents the alkaline black oxide chemicals from creating the magnetite conversion layer that produces the black finish. Attempting the process results in blotchy, uneven coloring or complete failure.
Your Design Options:
| Material Choice | Cost Factor | Lead Time |
|---|---|---|
| Carbon steel + Black oxide | 1× baseline | 1–2 weeks |
| Stainless + PVD coating | 3–4× higher | 3–4 weeks |
| Stainless + Laser etching | 2× higher | 2–3 weeks |
Environment Considerations: Black oxide on carbon steel works well for indoor electronics, instrument housings, or dry environments below 60% humidity. For outdoor exposure, marine applications, or medical devices requiring wash-down, stick with stainless steel and budget for PVD coating at 2-5 μm thickness.
Design Takeaway: Don’t specify stainless steel hoping to add black oxide later. Either choose carbon steel from the start if your environment allows it, or budget 3-4x more for PVD-coated stainless steel to achieve both corrosion resistance and the black aesthetic.
Does black oxide prevent rust on steel parts?
Black oxide alone provides minimal rust protection (24-48 hours salt spray resistance)—it requires post-treatment with oil or wax to achieve 200-400 hours of meaningful corrosion resistance. Without post-treatment, expect surface rust within 2-8 weeks in normal indoor environments.
Decision Matrix by Environment:
| Your Environment | Black Oxide + Oil Result | Alternative if Inadequate |
|---|---|---|
| Indoor electronics (≤50% humidity) | ✅ 2–5 years | Black oxide acceptable |
| Industrial/shop (60–70% humidity) | ⚠️ 1–2 years | Zinc plating recommended |
| Outdoor/marine exposure | ❌ 6–12 months | Stainless steel required |
From manufacturing medical housings and precision tooling, we’ve tracked performance across humidity levels. Black oxide alone fails within weeks—the porous magnetite layer allows moisture penetration. However, with proper oil post-treatment (ISO VG 32), parts in controlled environments maintain protection for years.
Critical Specification Requirements: Always specify post-treatment on your drawings: “Black oxide per ASTM C633 + light oil coating.” Most shops apply 0.0001-0.0003 mm oil film automatically, but documenting this prevents protection failures during assembly or storage.
Design Takeaway: Never rely on black oxide alone for corrosion protection. If your application can’t handle periodic re-oiling (every 12-18 months), choose zinc plating or stainless steel instead of gambling with premature rust failure.
How does black oxide compare to anodizing or powder coat?
For tight-tolerance steel parts in dry environments, black oxide costs least and maintains dimensions best. For aluminum parts needing durability, anodizing provides superior protection. For maximum durability regardless of material, powder coating offers the longest service life. Your material choice often determines your finish options.
Performance and Cost Comparison:
| Finish Type | Material | Thickness Impact | Durability (Salt Spray) | Cost Factor | Best For |
|---|---|---|---|---|---|
| Black oxide + oil | Steel only | 0.001 mm | 200–400 hrs | 1× | Precision indoor parts |
| Type II Anodizing | Aluminum only | 0.013 mm | 500–1000+ hrs | 2–3× | Outdoor aluminum |
| Powder coating | Steel/Aluminum | 0.075 mm | 1000+ hrs | 1.5–2× | Harsh environments |
Tolerance Impact Decision Tree:
- Tolerances ≤±0.01 mm: Black oxide only (minimal thickness)
- Tolerances ±0.02-0.05 mm: Black oxide or anodizing acceptable
- Tolerances ≥±0.1 mm: Any finish works, powder coating for max durability
From finishing audio faceplates and medical enclosures, material compatibility drives the decision more than performance preferences. You can’t anodize steel or apply black oxide to aluminum—attempting either requires design changes and material switches that affect cost and lead time.
Mixed-Material Assembly Strategy: When your design includes both steel and aluminum components, powder coating is often the only finish that works on both materials, eliminating the complexity of managing multiple coating processes.
Design Takeaway: Choose your material first, then select the appropriate finish. If you need a specific finish (like black oxide), design around compatible materials from the start rather than trying to force incompatible combinations during manufacturing.
When is black oxide not enough for my application?
Black oxide becomes inadequate when your part faces outdoor exposure, high humidity (>70%), frequent handling, or requires more than 2 years of maintenance-free service. If your application involves saltwater, chemicals, or temperatures above 200°C, black oxide will fail regardless of post-treatment.
Black Oxide Suitability Quick Check:
- Indoor, dry environment (<70% humidity)? ✅ Black oxide works well
- Outdoor or high humidity (>70%)? ❌ Upgrade to zinc plating or stainless steel
- Chemical exposure (cleaning agents, acids)? ❌ Stainless steel required
- High temperature (>200°C operating)? ❌ Ceramic coating or stainless needed
- Frequent handling or maintenance access limited? ❌ Zinc plating or powder coating
From manufacturing medical devices and outdoor instrumentation, we’ve seen black oxide fail catastrophically in specific conditions. Surgical instrument housings exposed to cleaning chemicals showed rust breakthrough within 30 days. Marine electronics enclosures failed within weeks of saltwater exposure, even with heavy oil post-treatment.
Performance Breakdown Points: Black oxide protection degrades rapidly when the oil or wax post-treatment is removed by solvents, detergents, or abrasive contact. Parts requiring frequent cleaning, disassembly, or handling lose their protective layer and begin rusting immediately. Temperature cycling above 150°C causes the magnetite layer to become brittle and crack.
Critical Applications Requiring Alternatives:
- Medical devices (cleaning chemical exposure): Stainless steel required
- Food processing equipment (wash-down requirements): Stainless steel or NSF-approved coatings
- Marine/coastal environments (salt exposure): Stainless steel or anodized aluminum
- High-temperature applications (>200°C): Stainless steel or ceramic coatings
- Outdoor equipment (UV/weather exposure): Zinc plating or powder coating
- High-touch interfaces (frequent handling): Zinc plating or anodized aluminum
Design Takeaway: Don’t compromise on finish selection for critical applications. If your part failure could cause safety issues, equipment damage, or costly maintenance, budget for stainless steel or proper protective coatings rather than hoping black oxide will stretch beyond its capabilities.
How much thickness will black oxide add to my dimensions?
Black oxide adds 0.0005-0.001 mm (0.0002-0.0004 inches) to part dimensions, making it ideal for tight-tolerance components where dimensional stability is critical. This minimal thickness typically won’t affect fits, clearances, or threaded features in precision assemblies.
Thickness Comparison for Design Planning:
| Coating Type | Thickness Range | Impact on ±0.01 mm Tolerances | Thread Compatibility |
|---|---|---|---|
| Black oxide | 0.0005–0.001 mm | ✅ Negligible impact | ✅ No masking required |
| Zinc plating | 0.005–0.025 mm | ⚠️ May require adjustment | ⚠️ Threads may bind |
| Anodizing Type II | 0.010–0.025 mm | ❌ Tolerance adjustment needed | ❌ Mask or tap oversize |
| Powder coating | 0.050–0.100 mm | ❌ Major design changes | ❌ Mask all threads |
Dimensional Compensation Decision Tree:
- Tolerances ≥±0.01 mm? → No compensation needed, machine to nominal dimensions
- Tolerances ±0.002-0.01 mm? → Machine to nominal, thickness within tolerance band
- Tolerances <±0.002 mm? → Consider machining 0.0005 mm undersize on critical features
From machining precision audio components and medical device housings, black oxide is our go-to finish when maintaining exact CAD dimensions is essential. We regularly apply black oxide to parts with ±0.005 mm tolerances without any dimensional compensation or design modifications.
Clearance and Fit Guidelines:
- Slip fits: Maintain minimum 0.005 mm clearance – black oxide won’t cause binding
- Press fits: No compensation needed – 0.001 mm is within interference tolerance bands
- Threaded assemblies: Standard thread engagement works normally, no torque spec changes required
- Fluid passages: 0.001 mm reduction negligible for channels >2 mm diameter
Tolerance Stack-Up Considerations: In multi-part assemblies, 0.001 mm per part can accumulate. For 5-part stack-ups, expect 0.005 mm total growth. This is typically within design margin, but document “dimensions after black oxide” on assembly drawings for critical interfaces.
Design Takeaway: Black oxide is the only finish that won’t force tolerance adjustments on precision parts. For clearance fits, maintain >0.005 mm minimum clearance. Most applications require no dimensional compensation – only ultra-precision work needs special consideration.
Can black oxide handle complex part geometry?
Black oxide works well on most complex geometries including deep holes, internal channels, and intricate features because it’s a chemical conversion process that reaches all exposed steel surfaces. However, parts with extremely deep blind holes (>10:1 depth-to-diameter ratio) or sharp internal corners may experience uneven coating thickness.
Geometry Compatibility Assessment:
| Feature Type | Black Oxide Performance | Potential Issues | Design Recommendation |
|---|---|---|---|
| Deep holes (5:1 ratio) | ✅ Excellent coverage | None | No design changes needed |
| Deep blind holes (>10:1) | ⚠️ Uneven thickness | Poor chemical circulation | Add vent holes or limit depth |
| Sharp internal corners | ⚠️ Thin coating | Chemical pooling issues | Specify 0.5 mm minimum radius |
| Undercuts/overhangs | ✅ Good coverage | None | Chemical reaches all surfaces |
| Complex channels | ✅ Good coverage | None | Ensure entry/exit points |
From processing audio enclosure components with complex internal ribbing and medical device housings with intricate channel networks, the chemical bath reaches areas that would be impossible with spray coatings or plating processes. Unlike powder coating or anodizing, black oxide doesn’t require line-of-sight access to coat surfaces effectively.
Problematic Geometries: Deep, narrow blind holes create stagnant areas where fresh chemicals can’t circulate properly, leading to incomplete conversion. Sharp internal corners (radius <0.2 mm) can trap chemicals and create uneven coating thickness. Parts with completely enclosed cavities obviously cannot be coated internally.
Design Optimization Strategies:
- Deep blind holes: Add small vent holes (1-2 mm diameter) to improve chemical circulation
- Sharp corners: Specify minimum 0.5 mm radius on internal corners for consistent coating
- Complex channels: Ensure all passages have adequate entry/exit points for chemical flow
- Enclosed cavities: Design with removable covers or access ports if internal coating is required
Drainage and Rinsing Considerations: Complex parts must allow complete drainage during the multi-step process (cleaning, blackening, neutralizing, oiling). Parts that trap chemicals in pockets can experience continued reactions that damage the coating or cause dimensional changes.
Design Takeaway: Black oxide accommodates complex geometries better than most finishes, but avoid extremely deep blind holes (>10:1 ratio) and sharp internal corners. If your design has these features, add vent holes or corner radii rather than compromising the finish quality.
Can I mask specific areas during black oxide treatment?
Yes, specific areas can be masked during black oxide treatment using stop-off lacquers, tapes, or plugs, but masking adds 20-50% to finishing costs depending on complexity. Most commonly, threaded holes, precision bearing surfaces, and electrical contact areas are masked to maintain their original properties.
From manufacturing precision instrumentation and electronic enclosures, we regularly mask threaded fastener holes, sliding bearing surfaces, and electrical ground points. The black oxide process can make threaded surfaces slightly rougher, potentially causing assembly issues with fine-pitch fasteners (M3x0.5 or smaller) or precision fits.
Drawing Specification Requirements: Clearly callout masked areas using standard symbols or notes like “MASK DURING BLACK OXIDE” with leader lines to specific features. For threaded holes, specify “MASK THREADS M6x1.0” or use the standard masking symbol (circle with diagonal line). For surfaces, dimension the exact area to be protected with “MASK 10mm x 10mm AREA.”
Masking Capability Limits:
- Minimum hole size: 2 mm diameter (smaller holes difficult to plug reliably)
- Thread pitch limits: M2x0.4 and finer often fail during plug removal
- Surface area minimums: Areas smaller than 5mm x 5mm challenging to tape accurately
- Complex geometries: Internal corners with <0.5 mm radius may be impossible to mask completely
Design Sequence Planning: Plan masking during initial design phase, not as an afterthought. Threaded holes don’t require tap drill adjustments – standard machining applies since masking occurs after machining. However, factor masking removal into your timeline – it adds 1-2 days to lead time for inspection and cleanup.
Common Masking Applications and Risk Management:
- Threaded holes (silicone plugs): 98% success rate, failure typically means re-tapping threads
- Bearing surfaces (stop-off lacquer): 95% success rate, failure requires surface refinishing
- Electrical contacts (precision tape): 92% success rate, failure means part replacement
- Complex patterns: Partial masking (center protected, edges coated) achievable but increases failure risk to 85%
When Masking Fails: Budget 5-10% scrap rate for complex masking jobs. Failed masking typically means removing coating chemically and reprocessing, adding 1-2 weeks to delivery. For critical applications, consider designing with separate uncoated inserts, threaded bushings, or press-fit contact plates rather than risking masking failure.
Design Takeaway: Specify masking clearly on drawings with exact callouts and symbols. Avoid masking features smaller than 2 mm or finer than M2x0.4 threads. When masking complexity exceeds 3-4 features, consider alternative designs using separate uncoated components to reduce cost and failure risk.
Conclusion
Black oxide provides cost-effective protection for indoor steel components with minimal dimensional impact, but requires post-treatment and isn’t suitable for harsh environments. Choose alternatives like stainless steel or zinc plating for demanding applications. Contact us to explore black oxide finishing and manufacturing solutions tailored to your steel component requirements.
Frequently Asked Questions
No, black oxide must be completely removed from weld areas before welding. The coating will contaminate the weld pool and create weak joints. Plan welding operations before coating or mask weld zones.
Yes, black oxide creates a non-conductive magnetite layer that will interfere with electrical grounding or signal transmission. Mask all electrical contact surfaces if conductivity is required.
Standard processing takes 3-5 days including cleaning, conversion, neutralizing, and oiling steps. Add 1-2 days if masking is required for removal and inspection.
Yes, black oxide can be processed to MIL-DTL-13924 (formerly MIL-C-13924) Class 1 or 4 depending on requirements. Specify the standard on your drawings for aerospace applications.
Yes, black oxide can be chemically stripped and reprocessed, but this adds 1-2 weeks to lead time. The part must be thoroughly cleaned and may require re-machining if corrosion occurred before stripping.
Light machine oil (ISO VG 32) or carnauba wax must be applied immediately after processing. This adds 0.0001-0.0003 mm thickness and requires reapplication every 12-18 months for maintained protection.
