Specifying gear hardness often leads to the assumption that harder is always better — but this can result in brittle failures, unnecessary costs, and manufacturing complications. We’re writing this guide to help engineers make informed hardness decisions that balance performance requirements with practical manufacturing constraints.
Higher HRC isn’t always better for steel gears. While HRC 58-62 works for high-load applications, most gears perform optimally at HRC 45-55. Excessive hardness increases brittleness and machining costs without improving performance in many applications.
Learn when to specify higher hardness, how to avoid over-engineering, and how your HRC choice affects manufacturing costs and lead times.
Table of Contents
What does "higher hardness" mean in gear performance?
We specialize in hardened steel gear machining — get your drawings reviewed for manufacturability, heat treatment compatibility, and cost optimization.
Higher hardness in steel gears primarily increases wear resistance and contact fatigue strength, allowing gears to handle higher loads and run longer without tooth surface damage. However, increased hardness also reduces toughness, making gears more susceptible to impact damage and tooth breakage under shock loads.
Quick Decision Framework:
- High-duty applications (robotics, production equipment): Target HRC 52-58
- Moderate-duty applications (hand tools, periodic use): Target HRC 48-52
- Light-duty applications (manual equipment, <100 RPM): Target HRC 45-50
Carburized gear steels typically achieve surface hardness of HRC 61-63 with core hardness of HRC 45-46, while heavy-duty applications use 52-55 HRC and premium applications target 59-66 HRC. The performance gain is most noticeable in continuous-duty applications with high contact forces.
However, higher hardness increases brittleness risk. A gear at HRC 58 resists wear excellently but may chip under shock loads, while the same gear at HRC 50 shows gradual wear but survives impact damage.
In low-speed or intermittent-use applications, the life improvement often doesn’t justify the additional cost and machining complexity.
Design Takeaway: Reserve higher hardness for verified high-load, continuous-duty applications where the 1.5-3x life improvement justifies the cost premium. For most moderate-duty applications, standard hardness provides better value.
What HRC range do most steel gears actually need?
Most steel gears perform optimally between HRC 45-55, with the majority of industrial applications using HRC 48-52. Only high-load, continuous-duty gears typically require HRC 55+ hardness levels. Over-specifying hardness beyond functional requirements increases cost without meaningful performance gains.
General-purpose applications typically fall between 55-59 HRC, while heavy-duty tools use 52-55 HRC. Automotive transmission gears commonly use surface hardness of HRC 59-61 with core hardness of HRC 38-40, but these are specialized high-load applications with verified performance requirements.
For most product development scenarios, HRC 48-52 provides excellent durability while maintaining toughness for occasional shock loads or assembly misalignment. Moving to HRC 55+ should only be considered when you have confirmed high contact stresses or continuous operation requirements.
Design Takeaway: Start with HRC 48-52 for most applications unless you have verified high-load, continuous-duty requirements. We can review your application specs and confirm whether your target hardness aligns with similar successful projects we’ve produced.
What steel materials can achieve higher HRC values for gears?
For HRC 45-50: Use 1045 carbon steel. For HRC 50-55: Use 4140 alloy steel. For HRC 55-60: Use 4140 with carburizing. For HRC 60+: Consider tool steels or specialty gear alloys with higher material costs.
Carbon steels like 1045 are easy to machine and heat treat, with maximum hardness of HRC 55 through induction hardening. Alloy steels like AISI 4140 contain chromium, copper, and nickel, creating stronger steels that can be carburized to HRC 63.
Material selection by target hardness:
- HRC 45-50: 1045 carbon steel (good machinability, standard availability)
- HRC 50-55: 4140 alloy steel (wider hardness range capability)
- HRC 55-60: 4140 carburized (requires case hardening process)
- HRC 60+: Tool steels or specialty alloys (higher material costs and longer lead times)
Specialty GEAR-Steel grades can achieve HRC 61-63 with improved toughness, but standard grades like 1045 and 4140 handle most product development needs effectively.
Design Takeaway: Match material to your hardness target without over-specifying expensive alloys. We can validate whether your material choice supports your hardness requirements and suggest cost-effective alternatives if appropriate.
Do low-speed gears under 100 RPM need high HRC ratings?
No, low-speed gears under 100 RPM rarely need high HRC ratings. HRC 45-50 is typically sufficient for low-speed applications since wear rates are minimal at slow speeds. High hardness becomes important primarily at higher speeds where contact frequencies and heat generation increase significantly.
At low speeds, gears experience fewer contact cycles per hour, reducing cumulative wear. A gear running at 50 RPM completes only 3,000 contacts per hour compared to 60,000 contacts at 1,000 RPM. This dramatic difference in contact frequency means wear resistance from higher hardness provides minimal benefit in slow applications.
Low-speed applications also generate less heat from friction, eliminating one of the primary drivers for specifying higher hardness. The 1.5-3x life improvement from moving HRC 45 to HRC 55+ becomes negligible when the baseline life already exceeds equipment service intervals.
However, consider load magnitude alongside speed. A slow-moving gear handling very high torque may still benefit from moderate hardness (HRC 48-52) for load-bearing capacity, even if wear isn’t a primary concern.
Design Takeaway: For gears under 100 RPM, focus on adequate strength rather than maximum hardness. HRC 45-50 typically provides excellent service life while avoiding unnecessary heat treatment costs. We can help evaluate whether your low-speed application has other factors that might justify higher hardness specifications.
What HRC range should I target for different gear applications?
Target HRC based on operating conditions: HRC 45-50 for low-duty applications, HRC 50-55 for moderate-duty continuous use, and HRC 55-60 for high-load or high-speed applications. Match hardness to actual operating demands rather than defaulting to maximum values.
Application-based hardness targets:
- Manual/intermittent use: HRC 45-48 (hand tools, adjusters, occasional-use equipment)
- Moderate continuous duty: HRC 48-52 (conveyors, mixers, standard industrial drives)
- High-speed applications: HRC 52-55 (spindles, high-RPM drives, precision equipment)
- Heavy-load continuous: HRC 52-58 (construction equipment, high-torque transmissions)
Heavy-duty applications typically use 52-55 HRC for impact resistance, while specialized transmission gears may reach HRC 59-61 for extreme service conditions.
The key decision factors are contact frequency (speed), load magnitude, and duty cycle. Applications combining high speed AND high load benefit most from higher hardness, while low-speed or intermittent applications rarely justify the additional cost.
Design Takeaway: Start with your most demanding operating condition – peak load, maximum speed, longest continuous run time. We can review your operating parameters and help confirm whether your target hardness range aligns with similar successful applications we’ve produced.
Making gears in HRC 45+ steel?
We optimize geometry & material • Free manufacturability review
What problems does over-hardening cause in gear applications?
Over-hardening causes brittleness, leading to tooth chipping or catastrophic fracture under shock loads. Gears harder than HRC 58-60 become increasingly prone to sudden failure rather than gradual wear, making them unsuitable for applications with impact loading or potential misalignment.
Higher hardness increases brittleness, creating a trade-off between wear resistance and toughness. A gear at HRC 62 may resist surface wear excellently but crack completely under loads that would only cause minor damage to a gear at HRC 50.
Over-hardened gears also become difficult and expensive to machine if modifications are needed. Post-hardening machining requires specialized tooling and significantly longer cycle times, often making field repairs impractical.
Additionally, excessive hardness creates stress concentration points that can initiate fatigue cracks.Gear applications benefit from balanced properties rather than maximum hardness alone.
Cost implications include higher heat treatment expenses, increased scrap rates from brittleness failures, and potential system downtime from sudden gear failure versus predictable wear-out modes.
Design Takeaway: Specify the minimum hardness that meets your performance requirements rather than maximum achievable hardness. Over-engineering hardness increases costs and failure risks without proportional benefits. We can help review your specifications to ensure you’re not over-hardening for your actual application demands.
How do I specify gear hardness on drawings for CNC machining?
Specify hardness using “HRC XX ± Y” notation directly on the gear drawing, typically in the notes section or adjacent to the gear teeth. Include both target hardness and acceptable tolerance range (usually ±2-3 HRC) to give your machining partner flexibility while ensuring performance requirements are met.
Best practices for drawing specification:
- Location callout: Place hardness spec near gear teeth or in general notes
- Tolerance range: Use “HRC 50 ±2” rather than exact values like “HRC 50”
- Testing location: Specify where hardness should be measured (tooth face, root, etc.)
- Heat treatment notes: Include process requirements if you have preferences (carburizing, induction hardening)
For case-hardened applications, specify both case hardness and core hardness separately. Example: “Case: HRC 60 ±2, Core: HRC 40 ±3, Case depth: 0.030″ min.”
Avoid over-constraining the specification. Instead of dictating specific heat treatment processes, focus on the final hardness requirements and let your manufacturing partner recommend the most cost-effective method to achieve them.
Design Takeaway: Clear hardness specifications with reasonable tolerances help ensure you get the performance you need without unnecessary manufacturing constraints. We can review your drawing specifications and suggest optimal callout methods that work well for CNC machining and inspection.

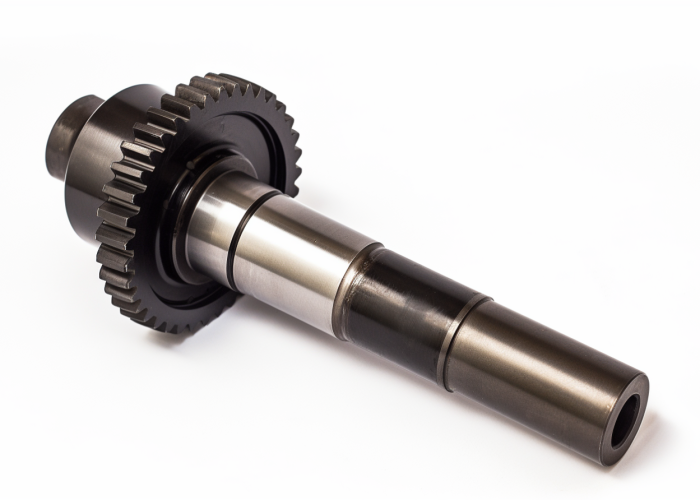

What heat treatment processes can increase gear hardness?
Three main processes increase gear hardness: induction hardening (surface heating to HRC 55), carburizing (case hardening to HRC 60+), and through-hardening with tempering (uniform hardness to HRC 50-58). Each process offers different hardness profiles, costs, and distortion characteristics.
Heat treatment options by hardness target:
- Induction hardening: Surface hardness to HRC 55, minimal distortion, moderate cost
- Carburizing: Case hardness to HRC 60-63, requires machining allowance for distortion
- Through-hardening + tempering: Uniform HRC 45-58, predictable properties, lowest cost
- Nitriding: Surface hardness to HRC 65+, minimal distortion, longer process time
Carbon steels respond well to induction hardening up to HRC 55, while alloy steels can be carburized to achieve higher surface hardness with tough cores.
Process selection depends on your hardness requirements, gear size, and tolerance for distortion. Induction hardening works well for moderate hardness with tight tolerances, while carburizing provides maximum surface hardness but requires post-machining to correct distortion.
Design Takeaway: Match the heat treatment process to your hardness needs and tolerance requirements. We can recommend the most suitable process based on your gear geometry and performance specifications, helping you balance hardness, cost, and dimensional accuracy.
How do I choose the right heat treatment for my gear's application?
Match heat treatment to your performance priorities: induction hardening for moderate hardness with minimal distortion, carburizing for maximum surface hardness in high-load applications, and through-hardening for cost-effective uniform properties. Start by identifying your most critical requirement.
Decision criteria by priority:
- Need tight tolerances: Choose induction hardening (minimal part distortion)
- Need maximum wear resistance: Choose carburizing (highest surface hardness)
- Need cost efficiency: Choose through-hardening + tempering (uniform properties, simpler process)
- Have complex geometry: Consider nitriding (reduced distortion vs carburizing)
Carbon steels work well with induction hardening for moderate hardness needs, while alloy steels like 4140 can be carburized when maximum surface hardness is required.
Quick assessment questions:
- Is dimensional accuracy more important than maximum hardness? → Induction hardening
- Do you need the hardest possible surface for extreme wear? → Carburizing
- Is this a cost-sensitive, moderate-duty application? → Through-hardening
Design Takeaway: Rank your priorities: dimensional accuracy, maximum hardness, or cost control. We can review your specific performance requirements and recommend the heat treatment process that best matches your primary objective.
Does gear hardness affect CNC machining costs and lead times?
Yes, higher hardness significantly increases both costs and lead times. The most cost-effective approach is soft machining followed by heat treatment, then finish-machining only critical surfaces. Pre-hardened machining should be avoided when possible.
Manufacturing sequence options:
- Most cost-effective: Soft machine → heat treat → finish critical surfaces only
- Moderate cost: Soft machine → heat treat → finish all surfaces
- Highest cost: Machine pre-hardened material (avoid when possible)
Hard machining requires specialized equipment and tooling, while very hard materials need advanced cutting tools like ceramics or CBN inserts, significantly increasing both tool costs and cycle times.
Planning considerations:
- Allow extra material for heat treatment distortion
- Identify which surfaces need tight tolerances post-heat treatment
- Consider heat treatment scheduling in your project timeline
- Plan for potential additional setups after hardening
Design Takeaway: Design your manufacturing sequence to minimize hard machining. Leave material allowance for heat treatment, then finish-machine only surfaces requiring precise tolerances. We can help optimize your manufacturing sequence to balance your performance requirements with cost efficiency.
Conclusion
Higher HRC isn’t always better for steel gears. Most applications perform optimally at HRC 48-55, balancing wear resistance with toughness and cost-effectiveness. Reserve maximum hardness for verified high-load, continuous-duty requirements to avoid unnecessary brittleness and expense.
Contact us to explore manufacturing solutions tailored to your gear requirements.
Frequently Asked Questions
Request a hardness test certificate showing actual measured values and test locations. Most suppliers can provide Rockwell hardness readings taken at specified locations on your gear teeth or designated test areas per your drawing requirements.
Heat treatment requirements vary by supplier and process type. Standard hardness ranges typically have more flexible quantity requirements than highly specialized specifications. Check with your manufacturer for specific minimums based on your requirements.
Material allowance depends on the heat treatment process, part geometry, and size. Carburizing typically requires more allowance than induction hardening due to the thermal cycle differences. Your manufacturer can provide specific recommendations based on your part design.
No, hardness cannot be increased after initial heat treatment without complete remanufacturing. You can only reduce hardness through tempering, which may compromise other properties. Always specify adequate hardness initially rather than planning upgrades.
Higher hardness materials may have different tribological properties, but most industrial lubricants work across common gear hardness ranges. Consult your lubricant supplier for specific recommendations based on your hardness specification.
Consider factors like continuous operation, high contact stresses, and demanding duty cycles. Applications requiring maximum wear resistance typically benefit from higher hardness, while intermittent or moderate-duty applications often perform well with standard hardness ranges.
