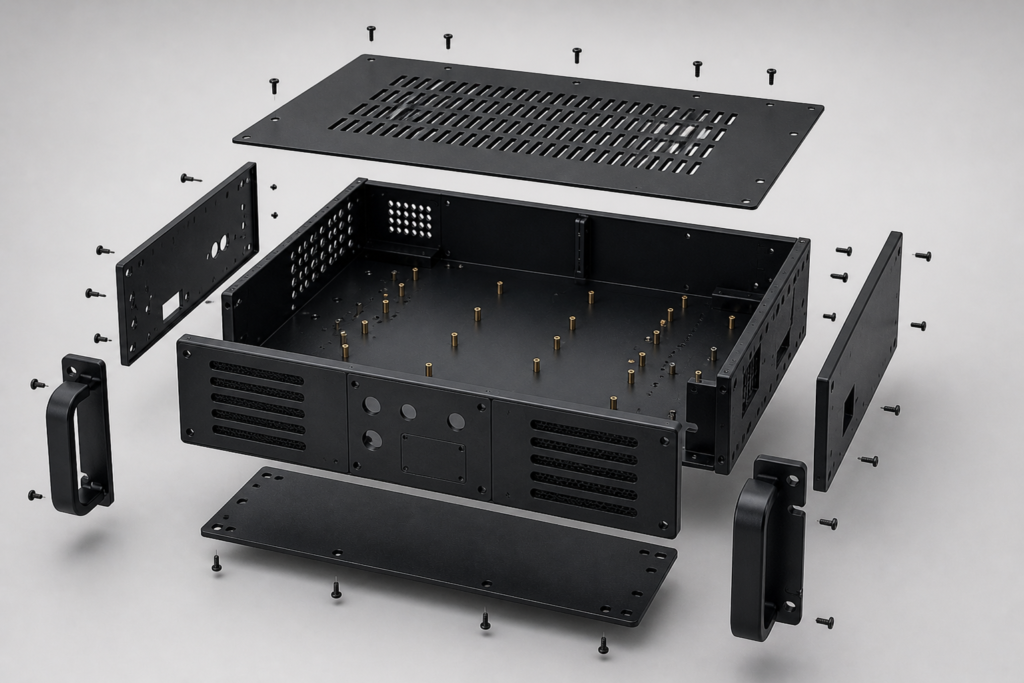

Marine Control Cabinet Manufacturer
Custom-built, build-to-print enclosures for marine control and automation—engineered for alignment, sealing surfaces, and production consistency.
Even early-stage designs can be reviewed before production decisions are locked in.
Built for OEM Marine Control Systems, Not Standard Catalog Enclosures
Marine control cabinets are not generic enclosures. They are built to integrate with specific control systems, layouts, and operating conditions.
In most OEM applications, enclosure dimensions, mounting points, and internal structure must match the system design from the start. There is little room for adjustment after fabrication.
Catalog enclosures are designed for flexibility across many use cases. Marine control cabinets are different—they are built around a defined system, where alignment, fit, and integration are already fixed by the design.
This is why build-to-print fabrication is typically required. The enclosure is not selected first and adapted later. It is designed and manufactured to match the system it supports.
The result is not just a box, but a component that fits directly into the overall system without rework.
Why Marine Control Cabinets Fail in Real-World Conditions
Marine control cabinets rarely fail because of design intent—they fail when real operating conditions expose weaknesses in fabrication, material choice, and assembly control.
Corrosion often begins at edges and welds, where coating coverage is less consistent. Water ingress can occur at doors when small changes in flatness reduce gasket compression after coating. Under vibration, fasteners may loosen and minor misalignments can grow over time.
These issues are usually not obvious during inspection. They tend to appear after installation, when the enclosure is already in use and rework becomes more difficult.
Most of these risks are not caused by the design itself—they come from how the enclosure is fabricated and controlled during production.
Common Applications for This Type of Enclosure (What Engineers Actually Call It)
You may be searching for a “marine control cabinet,” but in real projects, this type of enclosure is specified under different product names depending on the system.
If your part is used in any of the applications below, you’re looking at the same type of enclosure—just under a different name.
Control & Automation Systems
- Engine Control Unit (ECU) enclosure
- Drive Control Unit (DCU) housing
- PLC control panel enclosure
- Remote I/O enclosure
Marine Electronics & Navigation Systems
- Sonar processor enclosure
- Echo sounder unit housing
- Navigation electronics chassis
- Radar electronics enclosure
Power & Electrical Systems
- Power Distribution Unit (PDU) enclosure
- Switchgear cabinet
- Motor control enclosure
- Battery management system (BMS) housing
Communication & Instrumentation Systems
- Communication equipment enclosure
- Instrument enclosure
- HMI (interface) housing
- Data acquisition (DAQ) enclosure
Mechanical & Equipment Control Systems
- Thruster control enclosure
- Pump control panel
- Valve control box
- Actuator control housing
Safety & Critical Systems
- Alarm control panel enclosure
- Emergency shutdown (ESD) box
- Fire system control cabinet
- Safety relay enclosure
What this means for your project
These are not different products—they are variations of the same enclosure type, adapted to different systems and environments.
What matters is how the enclosure is built to support:
- Internal component layout
- Mounting and installation constraints
- Sealing and environmental protection
- Reliable assembly during integration
Not sure if your enclosure design fits this category?
Send your drawing—we’ll review it and confirm before production.
Why standard enclosures don’t work in marine applications
Standard enclosures are built for general-purpose environments. Marine control cabinets operate under continuous vibration, humidity, and salt exposure—conditions that quickly expose limitations in standard designs.
Where standard enclosures fall short:
- Sealing assumptions don’t hold → designs intended for indoor use struggle with moisture, spray, and pressure differences
- Coating systems are not marine-grade → corrosion begins early, especially at edges and joints
- Structural rigidity is insufficient → panels flex under vibration, affecting alignment and sealing surfaces
- Mounting and cutouts are generic → do not match system layouts, leading to rework and poor fit
What this means for OEM projects:
- Standard enclosures often require modification before use
- Modifications introduce new risks in sealing, alignment, and long-term durability
In marine control systems, enclosure performance depends on how well it is built for the actual environment—not how it performs under standard conditions.
When Custom Fabrication Is Required for Marine Control Cabinets
In marine control systems, the enclosure is often part of a fixed design—where integration, environmental performance, and long-term reliability are already defined by the application.
Custom fabrication becomes necessary when:
- System layout is fixed → mounting points, cutouts, and internal spacing must match existing components
- Sealing performance depends on structure → door flatness, panel alignment, and tolerances affect gasket compression
- Vibration is continuous → structural reinforcement and fastening strategy must be designed into the enclosure
- Corrosion exposure is high → material and coating must match real operating conditions, not standard assumptions
Where standard cabinets still work:
- Indoor or controlled environments with low vibration
- Non-critical systems where minor modification is acceptable
- Applications without strict sealing or corrosion requirements
In OEM marine projects, the enclosure is part of the system—not just a housing—so fit, durability, and consistency must be built in from the start.

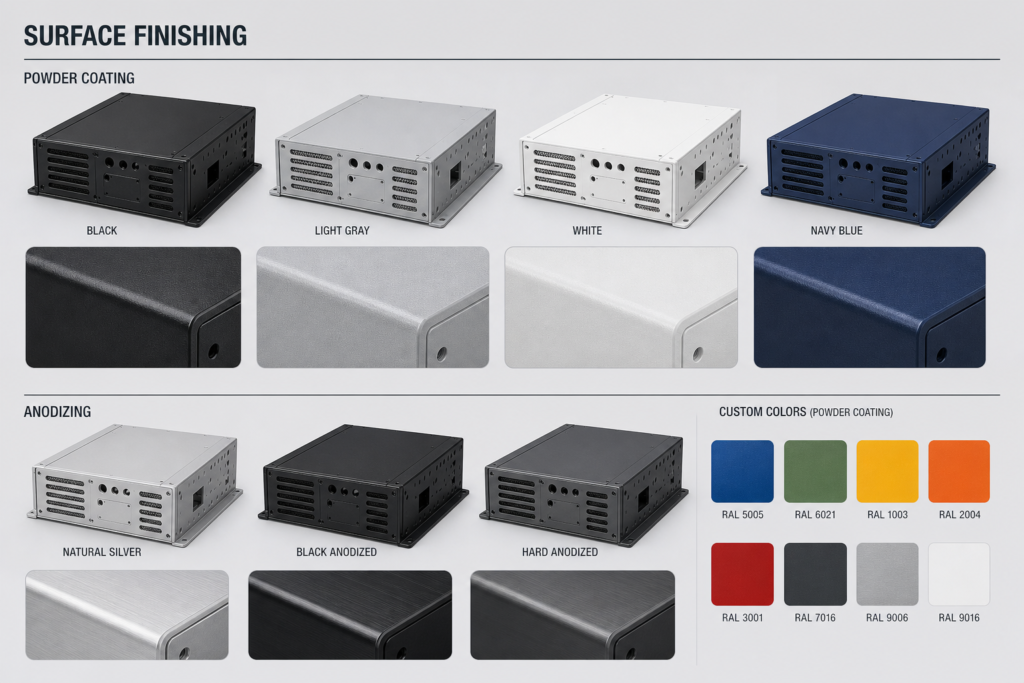

Corrosion resistance: material and coating decisions
Corrosion in marine environments doesn’t happen uniformly—it starts at weak points. Material choice and coating quality determine how early that breakdown begins and how fast it spreads.
Where corrosion typically starts:
- Edges and corners → thinner coating coverage, easier exposure to salt
- Welded areas → heat affects material structure and coating adhesion
- Fastener interfaces → gaps and contact points trap moisture
- Cutouts and holes → exposed surfaces are harder to protect consistently
Material vs coating: what actually matters:
- Stainless steel → better base resistance, but still affected at welds and joints
- Aluminum → lightweight, but depends heavily on surface treatment
- Carbon steel with coating → cost-effective, but coating consistency is critical
What affects long-term performance:
- Surface preparation before coating
- Coating thickness consistency across surfaces
- Post-fabrication handling (scratches, edge exposure)
In marine applications, corrosion resistance is not just about material selection—it depends on how fabrication and finishing are controlled at every step.
| Material + Finish | Corrosion Resistance (Marine) | Typical Use | Failure Triggers to Watch | Recommended When |
|---|---|---|---|---|
| Stainless Steel (304) | High (moderate marine) | Indoor marine systems, protected areas | Tea staining at welds, surface contamination after fabrication | Marine environments with limited direct salt exposure |
| Stainless Steel (316) | Very High | Offshore, exposed marine environments | Improper weld treatment leading to localized corrosion | Long-term exposure to salt spray and humidity |
| Aluminum + Anodizing | Medium–High | Lightweight enclosures, electronic systems | Scratches exposing base metal, edge coverage limitations | Weight-sensitive designs with controlled handling |
| Aluminum + Powder Coating | Medium | General marine use (indirect exposure) | Coating damage → rapid localized corrosion underneath | When appearance and moderate protection are needed |
| Carbon Steel + Powder Coating | Medium (depends on coating quality) | Cost-sensitive cabinets | Edge corrosion, weld areas, coating thickness inconsistency | Indoor or semi-protected marine environments |
| Carbon Steel + C5-M Coating System | High (marine-grade coating system) | Offshore / heavy-duty marine use | Poor surface prep → coating failure starts early | When using steel but requiring high corrosion resistance |

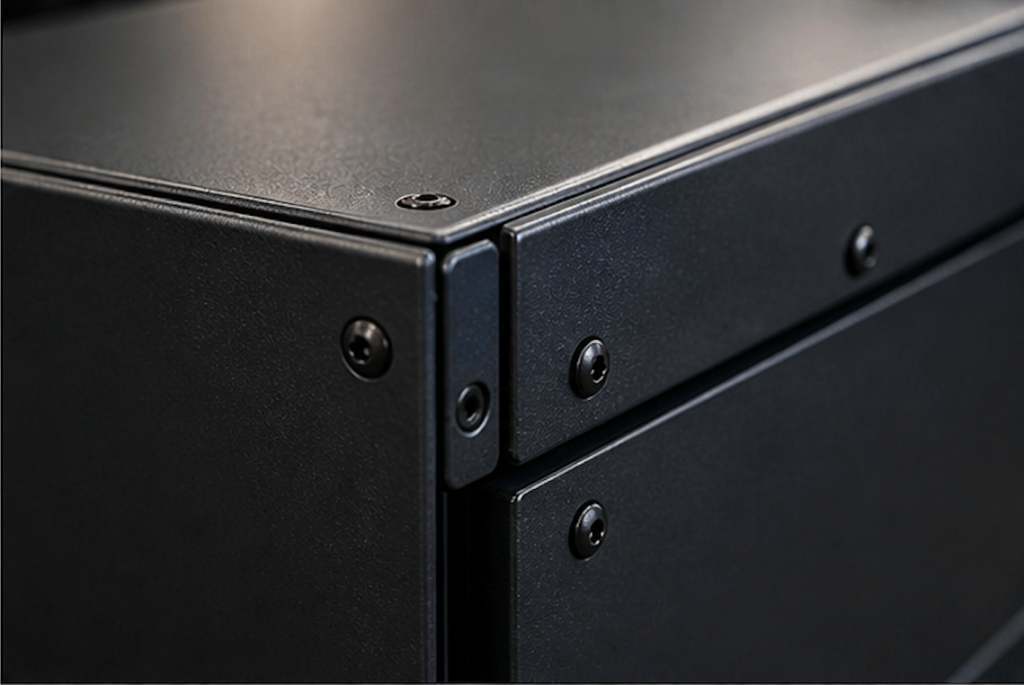

How Enclosure Design Affects Sealing Performance
IP-rated performance is often defined in design, but most sealing failures begin during fabrication. Small variations in flatness, tolerance, and finishing directly affect how well sealing components perform.
Where sealing issues typically begin:
- Door flatness after fabrication → slight distortion reduces gasket compression consistency
- Coating thickness variation → changes gap dimensions, affecting sealing contact surfaces
- Panel alignment and tolerance stack-up → creates uneven pressure along sealing paths
- Weld distortion near sealing edges → introduces local gaps that are difficult to detect
What this means in production:
- Sealing performance depends on how accurately sealing surfaces are formed and maintained
- Even well-designed gasket systems can fail if enclosure geometry shifts during fabrication
What we control in fabrication:
- Flatness of doors and sealing surfaces
- Consistency of bending and assembly tolerances
- Stability of critical features after welding and coating
In marine applications, sealing reliability is not just a design specification—it depends on how consistently the enclosure is fabricated and finished before sealing components are installed.
Vibration and shock: what causes long-term failure
In marine control systems, vibration is continuous—not occasional. Over time, even small inconsistencies in fabrication can lead to alignment shifts, loosening, and structural instability.
Where vibration-related failures begin:
- Fastener loosening → repeated vibration reduces clamping force, especially when mounting surfaces are not flat
- Panel flex and resonance → insufficient rigidity allows panels to move, affecting door alignment and sealing surfaces
- Tolerance accumulation → small misalignments grow under vibration, leading to fit issues over time
- Mounting point stress → uneven load distribution causes local deformation or fatigue
What this means in real use:
- Issues rarely appear during initial installation
- Failures develop gradually under continuous operation
What we control in fabrication:
- Flat and stable mounting surfaces for consistent fastening
- Structural rigidity through material selection and bending design
- Alignment consistency across panels and assembled features
In vibration-prone environments, long-term reliability depends on how stable the enclosure structure remains—not just how well it fits at assembly.

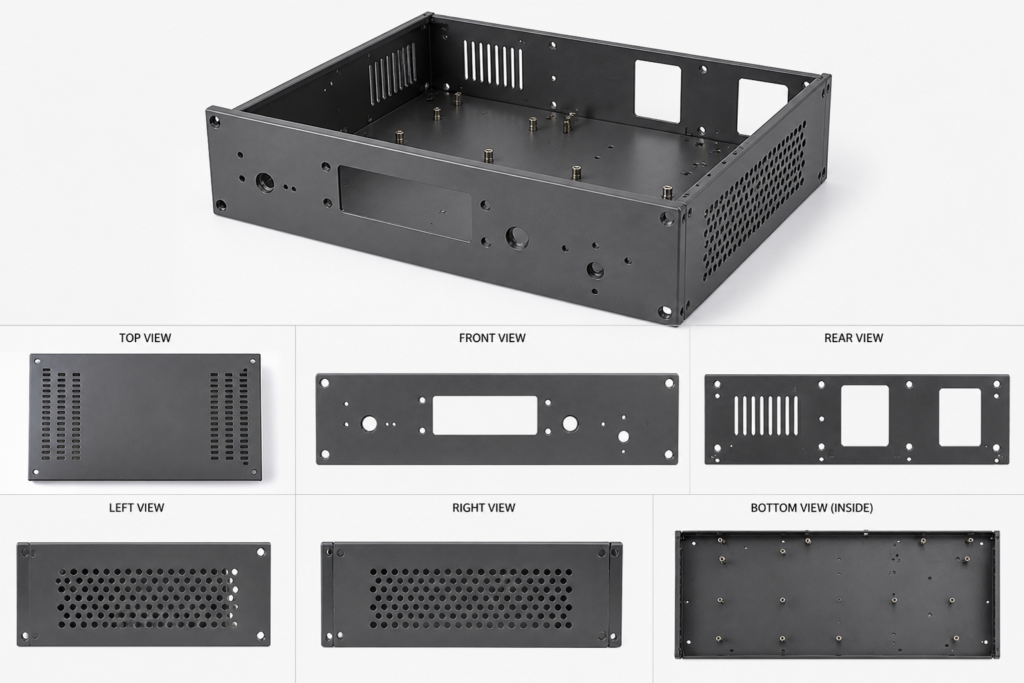

Structural Integrity: Preventing Deformation and Misalignment
Structural integrity is not just about strength—it’s about maintaining geometry over time. Even small deformation during fabrication can affect door alignment, sealing performance, and internal component fit.
Deformation often begins during forming and welding. Large panels with insufficient stiffness tend to lose flatness after bending, while heat input during welding can introduce localized distortion. These changes are usually within tolerance individually, but when combined, they lead to misalignment across the assembly.
Over time, vibration and load amplify these effects. Panels that are slightly flexible at installation can shift, causing doors to lose alignment and mounting points to move out of position.
To control this, fabrication must focus on stability—not just dimensions:
- Bending strategy must minimize panel distortion
- Weld sequencing must reduce heat-induced warping
- Reinforcement must be applied where large surfaces are exposed
- Assembly alignment must be maintained across all mating features
Structural reliability depends on how well the enclosure holds its shape over time—not just how it measures during inspection.

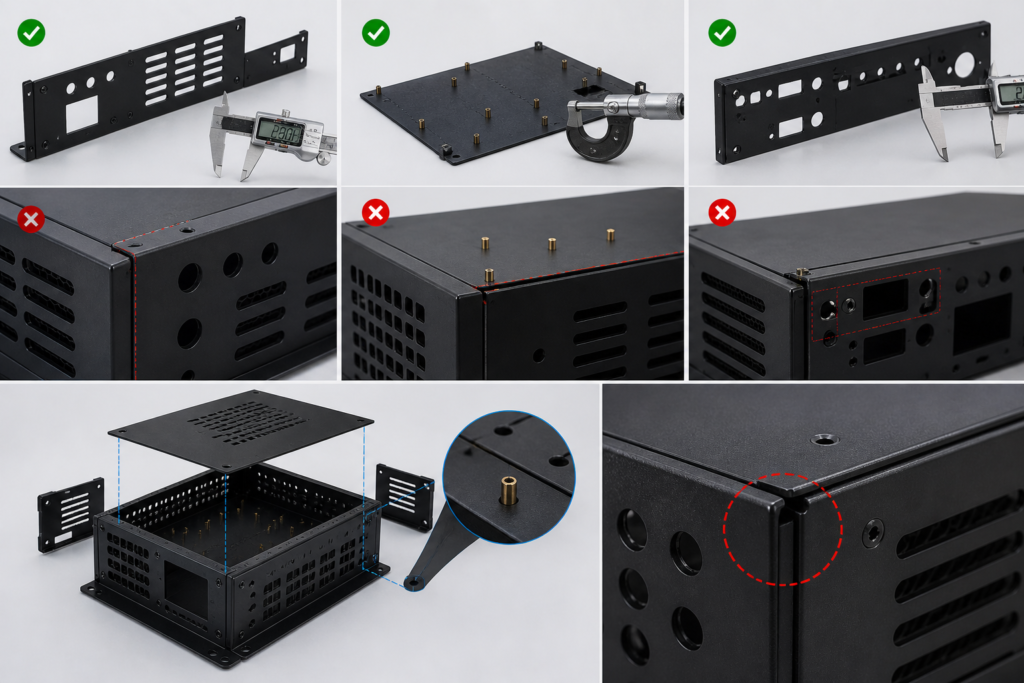

Precision and Fit: Why Alignment Failures Happen
Most fit issues don’t come from a single bad dimension—they come from tolerance accumulation across multiple features. What looks acceptable on individual parts can create misalignment once the enclosure is assembled.
This becomes critical in cabinets with:
- Multiple mounting interfaces
- Tight internal layouts
- Door and sealing dependencies
When tolerances stack up across panels, bends, and cutouts, even small deviations can lead to:
- Mounting holes not aligning with internal components
- Doors shifting out of square, affecting sealing contact
- Inconsistent gaps between panels and mating surfaces
These issues are often discovered during assembly—not during part inspection.
To maintain fit consistency, fabrication must focus on how dimensions interact—not just how they are measured:
- Bend accuracy must be consistent across all panels
- Hole positions must account for forming effects
- Assembly references must be controlled, not assumed
👉 Reliable fit is achieved when the enclosure is treated as a system—not a collection of individual parts.

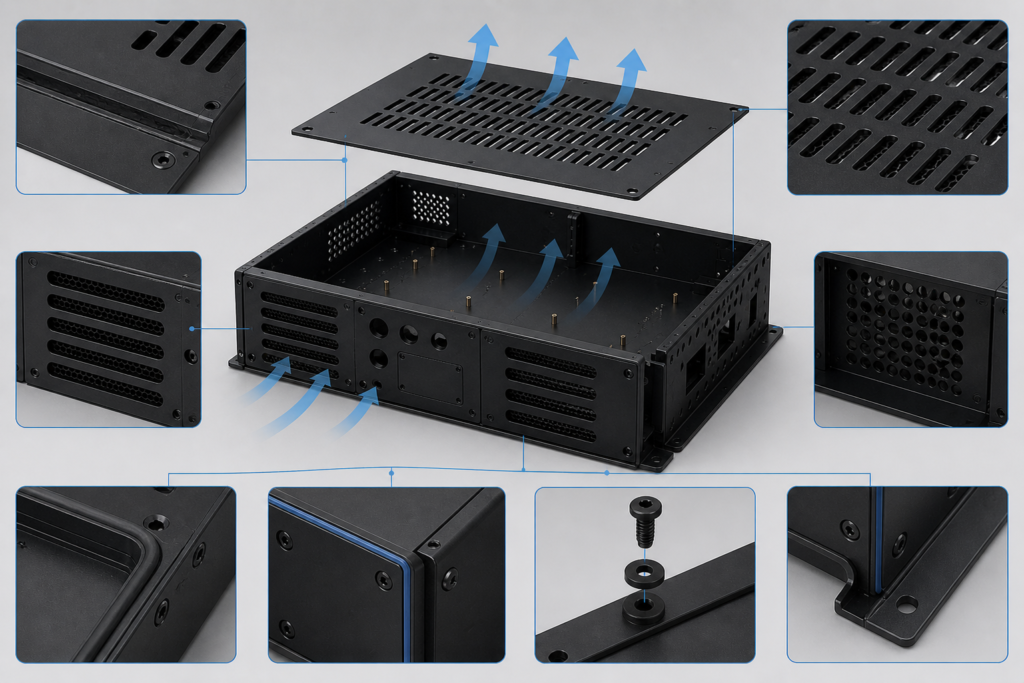

Design Trade-offs Between Ventilation and Sealing
Ventilation and sealing often work against each other. Designs that improve airflow reduce protection against moisture and contaminants, while fully sealed enclosures can trap heat and affect internal component performance.
This trade-off must be defined early in the design:
- Ventilated designs → improve heat dissipation but introduce exposure to humidity, salt, and airborne contaminants
- Sealed designs → improve environmental protection but rely on internal heat management, such as spacing, conduction, or external cooling
Problems begin when this balance is not clearly defined. Cabinets intended to be sealed may include features that compromise enclosure integrity, while ventilated designs may underestimate environmental exposure.
From a fabrication perspective, this decision directly affects:
- Whether openings, vents, or louvers are required
- How sealing surfaces must be designed and controlled
- How panel geometry is maintained during production
👉 Enclosure performance depends on choosing the right balance between protection and thermal management—and this decision cannot be corrected after fabrication.
Common Design Mistakes in Marine Control Cabinets
Most issues in marine control cabinets don’t come from major design errors—they come from small assumptions that don’t hold up in real operating conditions. These problems often only become visible during assembly or after installation.
Some of the most common issues include:
- Assuming sealing is only a gasket issue
→ door flatness, coating thickness, and tolerance all affect sealing performance - Ignoring deformation after welding or coating
→ small geometry changes lead to misalignment at doors and mounting points - Overlooking tolerance stack-up across panels
→ individual parts meet spec, but the full assembly does not align - Using standard thickness without considering panel size
→ large panels flex under vibration, affecting long-term stability - Placing cutouts too close to edges or bends
→ reduces structural strength and increases distortion risk
These issues are rarely obvious in drawings—they appear when fabrication and assembly interact.
👉 Reliable cabinet performance depends on understanding how design decisions behave during fabrication—not just how they look on paper.
How We Review Drawings Before Production
Every project goes through a structured drawing review before production begins. The goal is not just to confirm dimensions, but to identify risks that could affect assembly, sealing, and long-term reliability.
The focus is on how the design will behave during fabrication—not just how it looks on paper.
What we check during drawing review:
- Sealing-related geometry → door flatness, sealing paths, and tolerance interaction
- Deformation risks → panel size vs thickness, weld locations, and potential distortion
- Tolerance stack-up → how multiple features align across the full assembly
- Cutout placement → proximity to bends, edges, and structural features
- Assembly interfaces → mounting points, hardware alignment, and internal fit
Issues are often not visible in individual parts—they appear when components are combined. Reviewing these interactions early helps prevent rework and alignment problems later.
When risks are identified, feedback is provided before production—so adjustments can be made while changes are still low-cost and easy to implement.
👉 A thorough drawing review is often the difference between a cabinet that fits on paper and one that performs reliably in real conditions.
Not Sure If Your Design Will Work?
We review drawings for fit, sealing, and fabrication risks.
What We Flag Before Quoting (Hidden Risks Most Suppliers Miss)
A reliable quote requires more than checking dimensions and materials. Before quoting, we review how the design will behave during fabrication, assembly, and long-term use.
These risks are often not highlighted in drawings—but they directly impact fit, sealing, and production stability.
Common issues we flag early:
- Coating vs tolerance conflicts
→ added coating thickness can affect fit, sealing gaps, and assembly alignment - Bend sequence limitations
→ certain geometries may cause distortion or require process adjustments - Weld location risks
→ weld placement near critical features can lead to distortion or misalignment - Unclear assembly references
→ missing or inconsistent datums can cause alignment variation across parts - Cutout and feature conflicts
→ positioning too close to bends or edges increases distortion and weakens structure
These issues are often not identified during standard quoting—but they become problems during fabrication or assembly.
By flagging them early, adjustments can be made before production begins—reducing the risk of rework, delays, and unexpected fit issues.
👉 A reliable quote is not just a price—it reflects whether potential problems have already been considered.
How to Design for Reliable Sealing and Assembly
Reliable sealing and assembly don’t come from a single feature—they depend on how multiple design elements interact during fabrication and final fit.
A few key design decisions make the biggest difference:
Design guidelines that improve reliability:
- Keep sealing paths continuous and uninterrupted
→ avoid unnecessary joints or breaks along gasket lines - Allow sufficient spacing for gasket compression
→ tight gaps may look correct on drawings but fail after coating or assembly - Maintain consistent panel geometry across mating surfaces
→ uneven surfaces reduce sealing effectiveness and assembly stability - Position cutouts and openings away from critical structural areas
→ reduces distortion and helps maintain panel strength - Define clear assembly references (datums)
→ ensures alignment is consistent across parts and assemblies - Consider fabrication sequence early
→ bending, welding, and finishing all affect final geometry
Designs that account for these factors assemble more consistently and maintain performance over time—especially in vibration and moisture-exposed environments.
👉 Reliable results come from designing with fabrication behavior in mind—not just nominal dimensions.
How Fabrication Process Control Affects Cabinet Performance
The final performance of a control cabinet is determined by how each fabrication step is controlled—not just which processes are used.
Each stage introduces its own risks:
Cutting and forming define baseline accuracy.
Laser cutting sets feature precision, while bending must be tightly controlled to maintain panel flatness and consistent angles. Small variations at this stage directly affect how panels align during assembly.
Welding introduces the highest risk of distortion.
Heat input can shift geometry, especially near doors, mounting features, and sealing surfaces. Controlling weld sequence and location is critical to maintaining structural stability.
Finishing affects both protection and fit.
Processes like powder coating or anodizing protect against corrosion, but they also add surface thickness. Without proper control, this can affect tolerances, sealing gaps, and assembly interfaces.
Assembly brings all tolerances together.
Even when individual parts meet specification, final alignment depends on how features interact across the full cabinet. Consistency at this stage determines whether the enclosure fits and performs as intended.
👉 Fabrication is not just a sequence of steps—it’s how each stage is controlled to maintain geometry, alignment, and consistency from flat sheet to final assembly.
Surface Finishing for Marine Environments
Surface finishing in marine control cabinets is not only for corrosion protection—it also affects tolerance, sealing performance, and long-term durability. The same material can perform very differently depending on how the surface is treated and controlled during production.
Different finishing methods offer different levels of protection and introduce different risks:
| Finish Type | Corrosion Resistance | Typical Use | Key Risks | When to Use |
|---|---|---|---|---|
| Powder Coating | Medium–High (depends on system) | General marine enclosures | Edge coverage inconsistency, thickness affects sealing gaps | Cost-effective protection with controlled exposure |
| Anodizing (Aluminum) | Medium–High | Lightweight enclosures | Limited edge protection, surface damage exposes base metal | When weight and appearance are important |
| Stainless Steel (No Coating) | High (material-based) | Marine and offshore systems | Weld areas may corrode without proper treatment | Long-term durability with minimal coating dependency |
| C5-M Coating System (Multi-layer) | High (marine-grade system) | Offshore / heavy-duty marine | Requires strict surface prep and process control | High corrosion environments with long service life |
| Galvanizing | Medium–High | Structural components | Surface roughness, dimensional impact | Heavy-duty use where precision is less critical |
Each finishing method affects more than just corrosion resistance. Coating thickness, surface consistency, and edge coverage can influence how parts fit together, especially in areas related to sealing and assembly.
For example:
- thicker coatings may reduce available clearance
- uneven coverage can create weak points for corrosion
- surface damage during handling can expose underlying material
👉 In marine applications, selecting a surface finish is not just about protection—it must also match fabrication tolerances and assembly requirements.
Assembly Capability: From Flat Parts to Full Cabinets
Assembly is where all fabrication tolerances come together. Even when individual parts meet specification, final performance depends on how consistently those parts are aligned, fastened, and integrated.
Assembly is not just a final step—it determines whether the enclosure performs as intended.
Where assembly quality makes the biggest difference:
- Panel alignment and door fit
→ small variations during assembly affect sealing contact and overall geometry - Hardware integration (hinges, locks, fasteners)
→ installation consistency directly impacts long-term reliability under vibration - Fastening strategy
→ uneven clamping or inconsistent torque can lead to loosening over time - Interaction between coated surfaces
→ coating thickness and surface condition affect how parts sit and align
What this means in practice:
When assembly is not tightly controlled, cabinets may pass dimensional checks but still show:
- Misaligned doors
- Uneven gaps
- Inconsistent sealing performance
What we focus on during assembly:
- Consistent alignment across all mating features
- Controlled installation of hardware and fastening points
- Maintaining geometry after coating and handling
👉 Final performance depends on how consistently the cabinet is assembled—not just how accurately the parts are fabricated.
Cable Entry, Cutouts, and Integration Flexibility
Cable entry and cutout design are not just layout decisions—they directly affect structural stability, sealing performance, and ease of assembly.
Most issues come from how features are positioned relative to bends, edges, and mounting structures.
What matters in cutout and cable entry design:
- Position relative to bends and edges
→ features placed too close to bends increase distortion risk during forming - Spacing between multiple cutouts
→ tight spacing reduces panel stiffness and weakens structural integrity - Interaction with sealing areas
→ cutouts near sealing paths can compromise enclosure performance - Support for cable entry components
→ insufficient rigidity can lead to movement or loosening over time - Consistency across repeated features
→ variation affects alignment and installation efficiency
What this means in practice:
Well-designed cutouts and cable entries:
- Maintain panel strength
- Reduce deformation during fabrication
- Allow consistent installation of connectors and cable systems
Poorly placed features often lead to:
- Panel warping
- Misalignment during assembly
- Increased risk of sealing or vibration-related issues
👉 Integration features must be designed with fabrication behavior and structural stability in mind—not just layout convenience.
Quality Control: Why “Passed Inspection” Still Fails in Assembly
Many cabinets pass inspection—and still fail during assembly.
The issue is not a lack of measurement. It’s that the wrong features are being controlled.
In most projects, quality control focuses on checking individual dimensions against drawings. But assembly performance depends on how those dimensions interact—especially across panels, sealing surfaces, and mounting interfaces.
This is where problems begin:
- Parts are within tolerance, but holes don’t align
- Doors meet dimensional checks, but sealing contact is inconsistent
- Panels pass inspection, but gaps vary after assembly
These failures are not caused by bad machining—they come from how tolerances stack up and how geometry shifts during fabrication.
What actually needs to be controlled:
- Sealing surfaces → flatness, contact consistency, and alignment across mating parts
- Critical mounting features → hole positions and interfaces that define assembly reference points
- Panel geometry after processing → stability after bending, welding, and coating
- Assembly-level alignment → how parts fit together as a system, not as individual components
Controlling every dimension tightly does not solve this. It often slows production without improving performance.
What matters is identifying which features affect function—and controlling those consistently.
👉 Reliable quality control is not about more inspection—it’s about controlling the features that determine whether the cabinet fits, seals, and works in real use.
Prototyping and Validation Before Production
Many issues only become visible after parts are formed, coated, and assembled. Prototyping makes these interactions visible before committing to full production.
A prototype is not just a dimensional check—it shows how the enclosure behaves as a complete unit under real fabrication and assembly conditions.
At this stage, several problems tend to surface quickly:
- Panel alignment shifts after forming and welding
- Door fit and sealing contact under real assembly conditions
- Clearance changes caused by coating thickness
- Interference between hardware, cutouts, and internal components
These issues are rarely obvious in drawings. What appears acceptable on paper can lead to fit or assembly problems once multiple features interact.
More importantly, prototyping answers questions that drawings cannot:
- Will the door close consistently after coating?
- Do mounting points align without forcing adjustment?
- Are sealing surfaces maintaining uniform compression?
- Does the cabinet remain stable under handling and assembly?
When these issues are identified early, adjustments can be made to bend allowances, feature placement, and tolerance distribution—without disrupting the overall project timeline.
Skipping this step often leads to a different outcome: problems are discovered during production or installation, when changes are slower, more visible, and significantly more expensive.
👉 The goal of prototyping is not to confirm the drawing—it is to confirm that the enclosure works as intended after fabrication and assembly.
Avoid Rework Before Production Starts
Catch fit and sealing issues before coating and assembly.
Lead time: what actually affects delivery
Most delays don’t come from cutting or bending. They happen in the steps that follow—finishing, assembly, and how well the design translates into production.
This is why a timeline that looks reasonable on paper often slips in reality.
Common causes of delay:
- Finishing takes longer than expected
→ coating involves preparation, application, and curing cycles, often becoming the longest and least predictable stage - Assembly reveals issues not visible earlier
→ time is spent correcting alignment, fit, or hardware integration instead of moving forward - Unclear or incomplete design details
→ production pauses while decisions are clarified, creating delays that have nothing to do with capacity - First-time builds require adjustment
→ initial runs expose interactions between fabrication, coating, and assembly that need to be corrected before stabilizing - Process dependencies create chain reactions
→ delays in one stage affect everything that follows, especially when finishing and assembly are involved
A short lead time often assumes everything works perfectly the first time. In practice, delivery depends on how smoothly each stage connects—from fabrication to finishing to final assembly.
Projects move faster when risks are identified early and processes are aligned from the start. Repeat orders then benefit from stabilized workflows and shorter turnaround.
👉 Lead time is not just about speed—it’s about how predictable the process is from first build to final delivery.
Cost Drivers: Why Prices Increase—and How to Keep Them Under Control
Cost is rarely driven by material alone. Most cost differences come from how the design behaves during fabrication, finishing, and assembly.
This is why similar-looking designs can receive very different quotes.
What typically increases cost:
- Complex geometry with multiple bends or tight spaces
→ increases setup time, forming difficulty, and risk of distortion - Large panels without reinforcement
→ require additional control to maintain flatness and stability - High-grade materials or marine coating systems
→ add processing steps, inspection, and longer finishing cycles - Tight tolerances across interacting features
→ increase alignment effort and reduce process flexibility - Assembly with many hardware components
→ adds time for positioning, alignment, and verification
What helps keep cost under control:
- Consistent panel geometry and simplified bending
→ improves repeatability and reduces adjustment - Clear and realistic tolerance requirements
→ avoids over-processing features that don’t affect function - Well-defined interfaces for assembly
→ reduces alignment time and rework - Standardized features across parts
→ improves efficiency in both fabrication and assembly - Repeat production with stable processes
→ reduces variation and shortens overall production time
Small design changes often have a larger impact on cost than material selection alone. A simpler structure or clearer specification can reduce both effort and variability.
👉 Cost reflects how predictable and stable the manufacturing process is—not just what material is used.
How We Prevent Production Issues Before They Happen
Most production issues don’t come from a single mistake—they come from small mismatches between design, fabrication, and assembly. Preventing them requires control across the entire process, not just inspection at the end.
Our approach is built into how each stage connects:
It starts with drawing review.
Critical features are checked for how they will behave after bending, welding, and coating—not just whether dimensions match the drawing.
Fabrication is planned around stability, not just shape.
Bend sequences, weld locations, and reinforcement are defined to reduce distortion and maintain alignment throughout the process.
Finishing is treated as part of the geometry.
Coating thickness and surface variation are accounted for early, so they don’t interfere with fit or sealing later.
Assembly is used as a validation step.
Instead of assuming parts will align, the focus is on how components come together as a system—ensuring consistency across panels, hardware, and interfaces.
Each step reduces the risk of issues appearing later, when changes are slower and more costly.
👉 Reliable results come from controlling the process from the beginning—not fixing problems after production.
What Actually Causes Delays in Marine Enclosure Projects
Most delays don’t come from fabrication speed—they come from interruptions between stages.
Time is lost when the process stops, not when parts are being made.
The most common points where projects slow down:
Before production starts
Drawings that appear complete often require clarification once fabrication is reviewed in detail. Each unresolved question pauses the process before work can begin.
Between fabrication and finishing
Parts may meet dimensional requirements but still need adjustment before coating—especially when deformation or tolerance interaction affects fit. These corrections add unexpected time.
After finishing
Coating changes surface thickness and condition. If this isn’t accounted for earlier, fit issues appear late—when rework is slower and more expensive.
During assembly
Alignment issues only become visible when components come together. At this stage, even small corrections take longer because multiple parts are already involved.
During first-time builds
Initial production exposes interactions that were not fully predictable. Iteration at this stage extends lead time—even when individual processes run as planned.
When these transition points are not stable, delays compound. It’s not that one step is slow—it’s that the process has to stop, adjust, and restart.
👉 Most timeline issues come from rework and interruption—not from how fast fabrication runs.
What Happens When a Supplier Gets It Wrong
Most problems don’t show up during production—they show up when the cabinet reaches your site.
What you expect: clean installation, everything fits, system goes live.
What actually happens:
- Mounting points are slightly off → components don’t align
- Doors close, but sealing contact is inconsistent
- Cutouts don’t match → adjustments are needed after coating
- Installation turns into rework
At this point, nothing has “failed” yet—but everything becomes uncertain:
- Will it seal properly over time?
- Will vibration affect alignment?
- Do we accept it—or fix it now?
The real cost starts here:
- Extra handling and rework
- Delayed integration
- Teams waiting for decisions or replacement parts
- Increased pressure to keep the project moving
These issues are not major on their own—but together, they become difficult to manage.
👉 What matters is not whether problems occur—it’s whether they are discovered early, before production locks them in.
When to switch suppliers for control cabinet fabrication
Most teams don’t switch suppliers after a single issue. They switch when the same problems keep returning—and each time costs more to manage.
The real question is not whether problems exist, but whether they are predictable.
There are moments when staying with the current supplier becomes more expensive than changing:
Problems are discovered after production starts
Issues show up during coating or assembly, when changes require rework instead of adjustment.
Assemblies require manual correction every time
Parts fit, but not cleanly. Installation depends on adjustment rather than consistency.
Timelines shift for the same reasons on every order
Delays are not random—they repeat, driven by the same gaps between design and fabrication.
Feedback comes too late to be useful
Risks are identified after parts are made, not before they are committed.
Repeat orders don’t improve
The process doesn’t stabilize. Each batch behaves like a first-time build.
At this point, the cost is no longer in the part—it’s in the repetition of the same issues:
- rework becomes expected
- coordination increases
- timelines lose predictability
Switching is not about finding a cheaper supplier. It’s about moving to a process where problems are identified early and don’t repeat.
In many cases, switching does not require starting over. Existing designs can be reviewed and adjusted, allowing production to continue with fewer disruptions and more predictable results.
👉 When the same issues appear across multiple orders, staying becomes the higher-risk choice.
What Information We Need to Quote Your Project
You don’t need a complete package to get a quote—but a few key details help avoid delays and back-and-forth.
Most projects can be evaluated quickly when the following is available:
Basic requirements
- Drawings or sketches (2D or 3D)
- Overall dimensions and structure
Material and finishing (if known)
- Material type (steel, stainless, aluminum)
- Surface treatment or coating requirement
Functional details
- Mounting points, cutouts, and interfaces
- Sealing or environmental requirements (if applicable)
Quantity and timeline
- Prototype or production quantity
- Expected delivery timeframe
If some of this is not defined yet, you can still proceed. Early-stage designs can be reviewed and adjusted before finalizing details.
👉 A clear starting point helps identify risks early and leads to a more reliable quote—not just a faster one.
What You’ll Get From a Design Review
Once you send your drawing, the first step is not quoting—it’s identifying what may affect fabrication, assembly, and long-term performance.
The goal is to highlight risks early, before they turn into delays or rework.
What we look for:
- Alignment risks → where parts may not line up after bending, welding, or coating
- Sealing reliability → whether surfaces will maintain consistent contact after finishing
- Tolerance interactions → where individually acceptable dimensions may conflict in assembly
- Cutouts and interfaces → features that could affect structure, fit, or installation
What you’ll get back:
- Clear feedback on where the design may cause issues
- Explanation of why those issues happen in production
- Practical suggestions to improve fit, sealing, and assembly
This is not a checklist review—it’s based on how the design will behave under real fabrication and assembly conditions.
👉 Send your drawing—we’ll show you what to adjust before it becomes a production issue.
Will Your Cabinet Assemble Cleanly?
We flag alignment, sealing, and fabrication risks before production.
What You Can Expect When Working With Us
Working with a new supplier usually comes with uncertainty—especially when timelines, fit, and performance already matter.
Here’s what typically changes:
Issues are raised early, not after production
If something in the design is likely to cause alignment, sealing, or fabrication problems, it is flagged before work begins—not after parts are made.
You get feedback tied to real manufacturing behavior
Not just “within tolerance” checks, but how the design will behave after bending, welding, coating, and assembly.
Production focuses on consistency, not just speed
Parts are built to maintain geometry and alignment across the full cabinet—so assembly does not turn into adjustment work.
First builds are used to stabilize the process
Initial runs are treated as validation, so repeat orders become more predictable and require fewer iterations.
Communication stays focused on what affects the result
If something may impact fit, sealing, or delivery, it is raised early—while changes are still easy to make.
👉 The outcome is simple: parts that fit, assemble cleanly, and don’t create new problems downstream.
