Choosing the right material for CNC machined gears can make or break your project budget and performance targets. After machining thousands of custom gears for aerospace, medical, and audio applications, we’ve seen engineers struggle with the same critical decision: balancing material costs against performance requirements while ensuring manufacturability.
Material selection directly impacts both upfront machining costs and long-term gear performance, with poor choices increasing total project costs by 150-300%. Steel offers superior strength and precision (±0.01mm tolerances) but costs 40-50% more to machine than aluminum. Engineering plastics reduce noise and weight but require relaxed tolerances (±0.05mm) and modified designs.
Avoid over-specifying gears—match materials to load needs, control costs, and optimize design with real data on tolerances and performance trade-offs.
Table of Contents

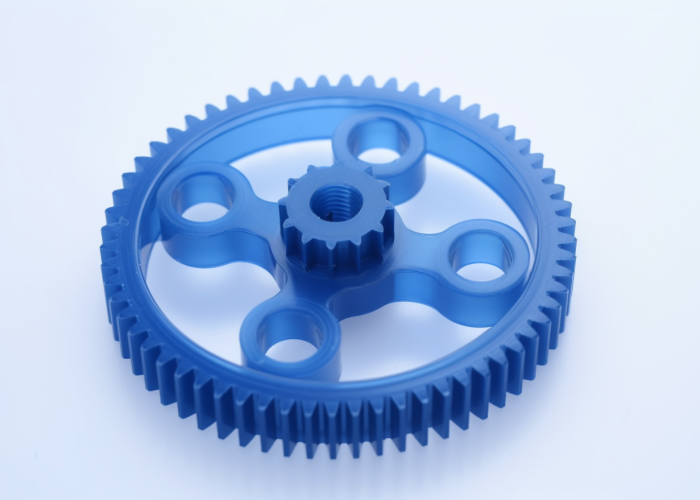

What's the Best Material for CNC Machined Gears?
Steel alloy 4140 is the best material for CNC machined gears, delivering superior strength (1500+ MPa), precision (±0.01mm tolerances), and proven reliability across industries. It handles the widest range of applications while maintaining cost-effectiveness for most gear projects.
Why Steel 4140 Dominates Gear Applications:
- Strength – Handles contact stresses above 1500 MPa after heat treatment
- Precision – Achieves ±0.01mm tolerances consistently on critical dimensions
- Versatility – Works for loads from 100-5000 Nm across all industries
- Cost-effective – Best strength-per-dollar ratio for general applications
- Proven track record – Industry standard with extensive performance data
Steel 4140 consistently delivers ±0.01mm tolerances with 58-62 HRC surface hardness after case hardening. We machine thousands of 4140 gears annually that handle contact stresses above 1500 MPa while maintaining dimensional stability across production runs. Its 180 ksi tensile strength provides the durability needed for aerospace gearboxes, medical equipment, and precision instrumentation without material property compromises.
Alternative materials serve specific niches where steel’s properties aren’t optimal. Aluminum 6061-T6 reduces weight by 60% and cuts machining time by 40% for aerospace applications where weight matters more than ultimate strength. POM plastics work in medical devices requiring biocompatibility and noise reduction below 40dB. Bronze offers self-lubrication for marine environments with corrosion concerns.
AGMA 2001 specifies steel alloys as the primary material class for power transmission gears, with 4140 representing the optimal balance of machinability, strength, and cost. ISO 6336 load calculations assume steel properties as the baseline for gear design standards.
Design Takeaway: Start with steel 4140 for any gear application unless specific requirements (weight reduction >50%, noise <40dB, or corrosion resistance) justify alternatives. Its proven performance, achievable tolerances, and cost-effectiveness make it the safest choice for 80% of CNC gear projects.
How Much Do Different Gear Materials Cost to Machine?
Aluminum gears cost $45-65 to machine while steel costs $80-120, saving $35-55 per part. POM plastic costs only $35-50 per gear, while titanium reaches $200-350 due to extended machining time requirements.
Total Machining Costs (per gear):
- POM Plastic – $35-50 per gear
- Aluminum 6061-T6 – $45-65 per gear
- Steel 4140 – $80-120 per gear
- Stainless 316 – $100-140 per gear
- Titanium – $200-350 per gear
Cost differences result from machining time variations and tooling expenses. Aluminum requires 90-minute cycle times versus steel’s 150 minutes, reducing labor costs by $25-35 per part at $80/hour shop rates. Tool replacement costs add $8-12 per aluminum gear compared to $15-20 for steel due to shorter tool life in harder materials. Titanium’s specialized tooling requirements contribute $50-75 per part in consumable costs alone.
Volume significantly impacts material cost advantage. At 100+ parts, aluminum saves $3,500-5,500 total versus steel. Below 25 parts, setup costs of $150-200 minimize material savings impact. Secondary operations affect final pricing: steel heat treatment adds $15-30 per gear, aluminum anodizing costs $8-12, while plastic parts typically ship as-machined with no additional processing costs.
Quality requirements influence inspection time and associated labor costs. Tighter tolerances increase inspection time by 15-25% regardless of material, but harder materials require additional tool wear verification, adding $5-8 per part in quality control expenses.
Design Takeaway: Choose aluminum when machining cost savings of $35-55 per gear justify any needed design modifications. Break-even typically occurs at 25+ part quantities where total savings exceed engineering revision costs.
Which Materials Work Best for High-Load Gear Applications?
Steel 4340 handles the highest loads at 2000+ MPa contact stress, followed by 4140 at 1800 MPa, then 17-4 stainless at 1600 MPa. Aluminum 7075-T6 maxes out at 600 MPa but offers 60% weight reduction for aerospace applications.
Load Capacity Rankings (contact stress limits):
- Steel 4340 (case-hardened) – 2000+ MPa, 58-62 HRC surface, aerospace gearboxes
- Steel 4140 (heat-treated) – 1800 MPa, 50-55 HRC surface, industrial drives
- 17-4 PH Stainless – 1600 MPa, corrosion resistance, marine environments
- Tool Steel A2 – 1900 MPa, abrasion resistance, harsh conditions
- Aluminum 7075-T6 – 600 MPa maximum, lightweight applications only
Load capacity directly correlates with surface hardness after heat treatment. Steel 4340 achieves 58-62 HRC through case hardening while maintaining a 30-35 HRC machinable core, enabling 2000+ MPa contact stress in aerospace gearboxes handling 5000+ Nm torque. Steel 4140 reaches 50-55 HRC through through-hardening, providing 1800 MPa capability at 40% lower cost for industrial applications. Aluminum’s 95-105 HB hardness limits contact stress to 600 MPa maximum.
Critical applications require fatigue life calculations beyond static load limits. Steel 4340 survives 2+ million cycles at design loads versus aluminum’s 100,000-cycle limit, justifying higher material costs for long-term reliability. Marine gearboxes specify 17-4 stainless despite 12% strength reduction because corrosion failures occur before load-related wear in saltwater environments.
Design Takeaway: Calculate actual contact stress using AGMA 908 formulas before specifying materials. Use 4340 only when loads exceed 1500 MPa or fatigue life requirements exceed 1 million cycles—4140 handles most applications at lower cost.
What Tolerances Can CNC Achieve with Different Gear Materials?
Steel achieves ±0.01mm tolerances, aluminum holds ±0.02mm, plastics require ±0.05mm. Material thermal stability during machining determines achievable precision on gear tooth profiles and bore dimensions.
CNC Tolerance Capabilities by Material:
- Steel (all grades) – ±0.01mm achievable on critical features
- Aluminum alloys – ±0.02mm standard capability
- Stainless steel – ±0.015mm with proper tooling
- Engineering plastics – ±0.05mm due to stress relief
- Bronze alloys – ±0.02mm typical performance
Tolerance achievement depends on material thermal expansion during cutting. Steel’s 11.7 μm/m/°C coefficient remains stable during machining, enabling ±0.01mm repeatability on 50mm gear diameters. Aluminum’s 23.1 μm/m/°C expansion causes 0.015mm growth on the same diameter without temperature compensation. Plastics exhibit unpredictable stress relief ranging from 0.02-0.08mm depending on molding history and machining parameters.
CMM verification confirms these capabilities across thousands of measured gears. Steel gears consistently measure within ±0.008mm on tooth spacing and ±0.012mm on bore concentricity. Aluminum parts achieve ±0.018mm tooth spacing with climate-controlled machining but require ±0.025mm bore tolerances due to thermal effects. Plastic gears need ±0.04mm minimum tolerances to account for post-machining dimensional changes over 24-48 hours.
ISO 2768-m tolerance standards apply to non-critical features, while AGMA 2015 defines gear-specific tolerance classes based on application requirements rather than material limitations.
Design Takeaway: Specify ±0.01mm only for steel gears requiring precision mesh. Design aluminum gears with ±0.02mm tolerance capability in mind. Allow ±0.05mm for plastic gears to prevent machining complications and cost escalation.
How Do I Choose Between Steel and Aluminum for Gears?
Use this decision tree: If load >1000 Nm or tolerance <±0.015mm, choose steel. If weight matters more than strength or budget is tight, choose aluminum. Steel costs 50% more to machine but handles 3x higher loads.
Quick Selection Criteria:
- Mandatory Steel: Torque >1000 Nm, tolerance <±0.015mm, fatigue life >1M cycles
- Mandatory Aluminum: Weight reduction >50% required, budget <$80 per gear
- Either Works: Torque 100-1000 Nm, tolerance ±0.02-0.05mm, moderate loads
- Consider Bronze: Marine/corrosive environments, self-lubrication needed
The 1000 Nm torque threshold represents aluminum’s practical load limit before gear tooth bending stress exceeds material yield strength. Steel’s 180 ksi tensile strength versus aluminum’s 45 ksi creates this 4:1 capability difference. Weight becomes the deciding factor when aluminum’s 65% reduction matters more than load capacity—common in handheld devices, drones, and fuel-sensitive applications.
Budget constraints often drive material selection. Aluminum machining costs $45-65 per gear versus steel’s $80-120, making aluminum attractive for cost-sensitive projects. However, steel eliminates heat treatment requirements that aluminum sometimes needs for strength improvement, potentially equalizing total costs on complex geometries.
Industry standards influence material choice. Aerospace applications favor aluminum despite strength penalties due to weight regulations. Medical devices often require steel for durability in repetitive-use instruments. Audio equipment benefits from aluminum’s vibration damping properties that steel cannot match.
Design Takeaway: Start with load calculations—use AGMA 908 formulas to determine minimum material strength. If aluminum meets load requirements, evaluate weight and cost priorities. Reserve steel for applications where aluminum’s limitations create performance risks.
When Should You Consider Alternative Gear Materials?
Consider bronze for self-lubricating applications, PEEK for chemical resistance, or powder metal for complex geometries when standard steel and aluminum cannot meet specific environmental or manufacturing requirements.
Alternative Material Applications:
- Bronze (C932, C954) – Self-lubricating, marine environments, no external lubrication possible
- PEEK Plastic – Chemical resistance, food grade, extreme temperatures (-40°C to +250°C)
- Powder Metal – Complex internal cooling channels, integrated mounting features
- Titanium Ti-6Al-4V – Extreme strength-to-weight, biomedical implants, space applications
- Cast Iron – High-volume production >10,000 units, vibration damping
Bronze becomes essential when lubrication systems fail or are prohibited. Marine gearboxes operating in saltwater spray cannot rely on external lubricants—bronze’s inherent lubricity prevents seizure during dry running conditions. Food processing equipment prohibits petroleum lubricants, making bronze the only viable option for gear trains in direct food contact zones.
PEEK plastic handles chemical environments that destroy metal gears. Semiconductor manufacturing equipment exposes gears to hydrofluoric acid and plasma etching chemicals that corrode steel within hours. PEEK maintains dimensional stability and 80 MPa tensile strength in these extreme chemical conditions where no metal alternative exists.
Powder metal enables impossible geometries through near-net-shape manufacturing. Gears requiring internal oil passages, integrated sensors, or complex mounting bosses become cost-effective only through powder metallurgy. Traditional machining would require 5+ separate operations and assembly, while powder metal produces complete parts in single pressing operations.
Regulatory requirements sometimes mandate exotic materials. FDA biocompatibility standards for implantable medical devices require titanium Ti-6Al-4V despite 5x higher costs than steel. Space applications demand materials proven through NASA outgassing tests—limiting options to qualified titanium and specialized plastics regardless of performance overkill.
Design Takeaway: Exhaust standard steel and aluminum options before considering alternatives. Justify exotic materials only when environmental conditions, regulatory requirements, or impossible geometries make conventional materials non-viable. Calculate total system cost—not just material cost—when evaluating alternatives.
Conclusion
Material selection directly impacts gear performance, manufacturing costs, and project success. Steel 4140 provides the best balance for most applications, while aluminum reduces weight and machining costs by 40-50%. Avoid over-specification and consider operating conditions before finalizing material choices. Contact us to explore CNC gear manufacturing solutions tailored to your product requirements.
Frequently Asked Questions
Expect slightly looser tolerances (±0.02mm vs ±0.01mm) and consider design adjustments for high-temperature applications. We’ll review your drawings and recommend any needed modifications to ensure optimal performance.
Steel for durable surgical instruments, lightweight aluminum for handheld equipment, or FDA-approved plastics for quiet operation. We can recommend the best option based on your specific device requirements and usage patterns.
Most likely yes, if your application doesn’t involve extreme loads or precision requirements. We can evaluate your current design and determine if aluminum works, potentially saving significant machining costs without performance compromise.
Steel may need heat treatment for hardness ($15-30 extra), aluminum can get protective coatings ($8-12 extra), while plastic gears usually ship ready-to-use. We’ll clarify all requirements upfront in your quote.
If your gear operates under normal loads without extreme conditions, aluminum likely works fine while saving $35-55 per gear. Steel is only necessary for heavy-duty applications, very tight tolerances, or high-cycle equipment.
Bronze for marine environments, stainless steel for corrosive conditions, or treated aluminum for general outdoor use. We’ll help select the right material based on your specific environmental challenges and budget requirements.
