Type III anodizing, also known as hard coat anodizing, is a specialized process that transforms the properties of aluminum and its alloys. For engineers and product developers, understanding material compatibility is crucial for achieving optimal performance and durability in their applications.
Material compatibility for Type III anodizing primarily depends on five key factors: base material requirements, alloy composition, coating thickness specifications (25-75 micrometers), process parameters (temperature and voltage), and testing for suitability. Each factor plays a critical role in determining the success of the anodizing process.
Let’s explore these crucial factors in detail and discover an alternative solution that might better suit your specific application needs.
Table of Contents

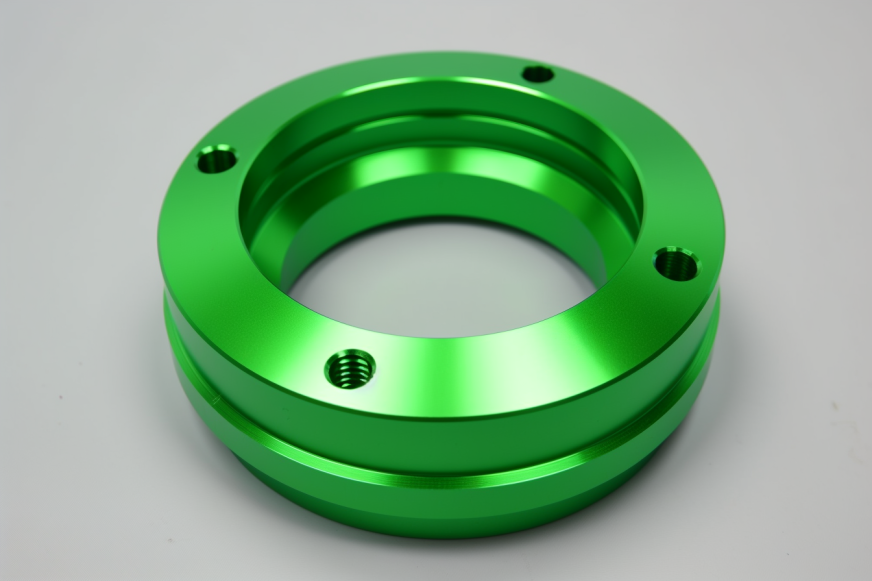

1. Base Material Requirements
Type III anodizing demands specific aluminum grades to achieve optimal results. For applications requiring pure aluminum, the 1100 series (99% pure) and 1199 series (99.99% pure) provide excellent anodizing characteristics with highly predictable outcomes. When higher strength is needed, the 6061-T6 and 7075-T6 alloys are industry favorites, offering an ideal balance of anodizing compatibility and mechanical properties.
When selecting your base material, consider that while 1100 series aluminum provides superior anodizing results, its relatively low strength (10-20 ksi yield strength) limits its applications. This is where 6061-T6 (40 ksi yield strength) becomes a popular choice, offering good anodizing characteristics while maintaining structural integrity. For maximum strength applications, 7075-T6 (70 ksi yield strength) can still achieve excellent anodizing results despite its high alloy content.
Keep in mind that surface preparation of your chosen material is equally important. Contamination or surface defects can compromise the anodizing process, potentially leading to inconsistent results or coating failures. Always verify material composition and maintain proper handling procedures to ensure optimal anodizing outcomes.
2. Alloy Composition
The alloy composition of your aluminum material significantly impacts the Type III anodizing process and its final results. The 6061 and 7075 series alloys have become industry standards due to their exceptional response to hard coat anodizing, but each brings distinct characteristics to your finished product.
6061-T6 aluminum, containing magnesium and silicon as primary alloying elements, produces a consistent anodized layer with good hardness (up to 350-400 Hv). It’s particularly favored in aerospace and marine applications where moderate strength combines with excellent anodizing response. Meanwhile, 7075-T6, with its zinc-based composition, can achieve higher hardness values (up to 450-500 Hv) during anodizing, making it ideal for high-wear applications.
However, be cautious with alloys containing high copper content (like 2024), as they can result in inconsistent coating thickness and reduced corrosion resistance. The specific alloy composition affects not only the final hardness but also the maximum achievable coating thickness, with some alloys limiting you to thinner coatings despite identical processing parameters.

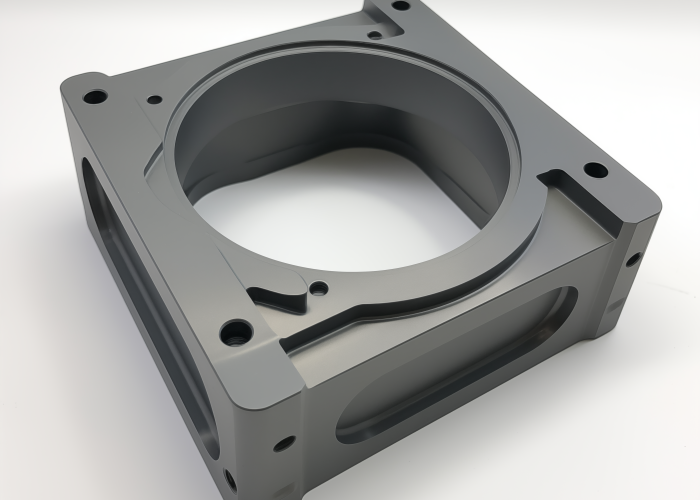

3. Thickness of Coating
The thickness of Type III anodized coatings plays a vital role in determining component performance and longevity. The standard range of 25 to 75 micrometers (1 to 3 mils) offers different levels of protection and wear resistance, with thicker coatings generally providing enhanced durability.
For heavy-wear applications, targeting the upper range of 50-75 micrometers provides maximum protection and hardness. However, thicker isn’t always better – components with tight tolerances might require thinner coatings in the 25-40 micrometer range to maintain dimensional accuracy. A critical consideration is that approximately 50% of the coating growth occurs inward into the base material, while the other 50% builds outward from the original surface.
Keep in mind that coating thickness uniformity depends on part geometry and current distribution during the anodizing process. Complex shapes with recessed areas or internal surfaces may experience variations in coating thickness, requiring careful process control to maintain specifications within the desired range.
4. Process Parameters
Type III anodizing’s success heavily depends on precise control of temperature and voltage during the process. Unlike Type II anodizing, this hard coat process requires significantly lower temperatures (typically 0-5°C/32-41°F) and higher voltages (40-100V) to achieve the desired coating properties.
Temperature control is particularly critical – even small deviations can affect coating quality. Running the process too warm can result in a “soft” coating, while maintaining the bath too cold may lead to excessive power consumption and potential burning. Most facilities maintain their Type III anodizing baths at around 0°C (32°F) for optimal results, using robust cooling systems to maintain these low temperatures during the exothermic anodizing reaction.
The voltage parameter must be carefully ramped up and monitored throughout the process. Starting with lower voltages (around 20V) and gradually increasing to the target voltage helps prevent burning and ensures uniform coating growth. This careful balance of temperature and voltage directly influences both the coating growth rate and its final properties.
5. Testing for Suitability
Field performance evaluation before full production is essential when implementing Type III anodizing. Testing reveals how your specific combination of material, coating thickness, and process parameters performs under real-world conditions. This validation step can save significant time and resources by identifying potential issues early.
Standard testing protocols typically include hardness testing (minimum 300 Hv), salt spray resistance (minimum 168 hours), and wear resistance evaluation using Taber abrasion testing. For specialized applications, customized testing may include thermal cycling, impact resistance, or specific industry standard tests. For instance, aerospace applications often require additional testing per MIL-A-8625 Type III specifications.
It’s important to note that variations in processing conditions can create significant differences in performance. A part that passes all tests in one production batch might show different results in another if process parameters aren’t strictly controlled. This makes systematic testing and documentation of results crucial for maintaining consistent quality across production runs.
Alternative Solution
When Type III anodizing isn’t the optimal choice for your application, PTFE (Polytetrafluoroethylene) coatings present a viable alternative. This coating option particularly shines in applications where low friction is paramount, offering a coefficient of friction as low as 0.02 compared to Type III anodizing’s typical 0.14-0.21.
PTFE coatings excel at providing:
- Superior lubricity for moving parts and assemblies
- Chemical resistance against most solvents and acids
- Non-stick properties for easy cleaning
- Operating temperature range up to 260°C (500°F)
However, it’s crucial to understand that PTFE coatings typically achieve hardness values of only 60-65 on the Rockwell R scale, significantly lower than Type III anodizing’s 60-70 on the Rockwell C scale. This makes PTFE more suitable for low-wear applications where friction reduction takes priority over abrasion resistance.
Conclusion
Understanding these five key aspects of material compatibility for Type III anodizing is essential for achieving optimal results in your manufacturing process. By carefully considering each factor and potentially exploring alternatives like PTFE coatings, you can make informed decisions that ensure your components meet their demanding requirements.
Frequently Asked Questions
Type III anodizing requires aluminum with at least 99% purity (1100 series) for optimal results. However, common alloys like 6061-T6 and 7075-T6 also provide excellent anodizing properties while offering higher strength.
The maximum practical coating thickness for Type III anodizing is 75 micrometers (3 mils). Attempting to exceed this thickness typically results in coating failure or burning of the surface.
Type III anodizing requires a bath temperature between 0-5°C (32-41°F), with optimal results achieved at 0°C (32°F). This temperature must be consistently maintained throughout the entire process.
7075-T6 aluminum alloy achieves the highest hardness values in Type III anodizing, reaching up to 450-500 Hv (Vickers hardness), compared to 350-400 Hv for 6061-T6 alloy.
A properly applied Type III anodized coating should withstand a minimum of 168 hours in salt spray testing. In real-world applications, this translates to several years of protection in most industrial and marine environments.
Yes, Type III anodizing can be applied to internal surfaces, but coating thickness may vary due to current distribution limitations. Internal diameters typically achieve 60-80% of the coating thickness compared to external surfaces.
