Designing gears that won’t fail under load requires balancing material selection, geometry optimization, and manufacturing precision. With over 15 years machining custom gears for robotics, and industrial equipment, we’ve seen how small design decisions dramatically impact strength, durability, and cost-effectiveness.
Four critical factors determine gear strength: material selection and heat treatment, tooth geometry optimization, manufacturing precision, and proper tolerancing. Most gear failures stem from inadequate material choice, over-aggressive sizing, or machining-induced stress concentrations that could be prevented during the design phase.
Learn how to boost gear tooth strength with the right materials, heat treatments, and geometry—plus machining tips to avoid weakening load-bearing features.
Table of Contents

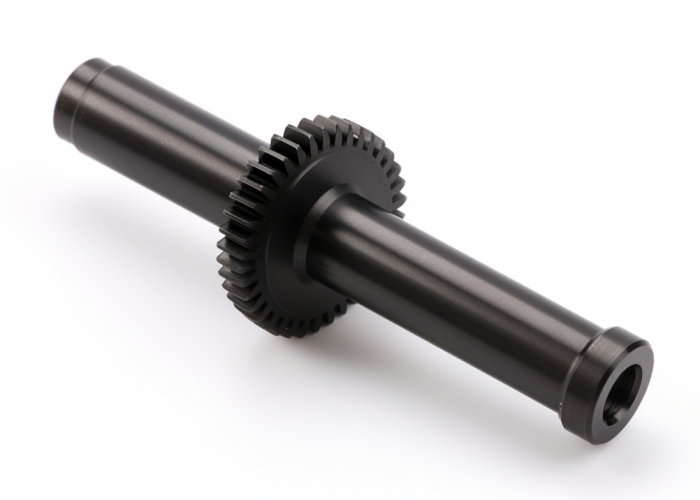

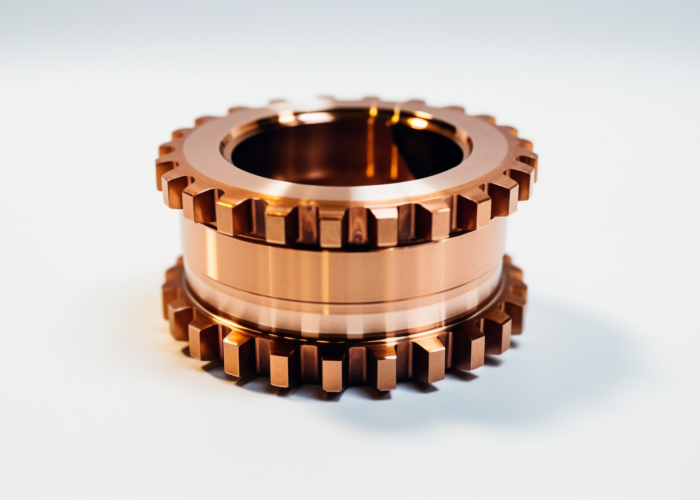

What gear material should I choose for strength and durability?
For reliable gear performance, choose 4140 steel as your default material. Aluminum works for light-duty, intermittent applications but will wear out quickly under continuous loading. For maximum durability in demanding applications, 8620 steel with case hardening provides superior wear resistance.
Quick Material Selection:
Aluminum (6061/7075) – Use when weight is critical and loads are light
- Camera mechanisms, audio equipment, light robotics
- Fails under continuous-duty or high-load applications
- Best for intermittent use applications
4140 Steel – Best all-around choice for reliable performance
- Industrial machinery, automotive transmissions, aerospace components
- Handles both impact loads and continuous operation
- Proven track record across demanding industries
8620 Steel (Case Hardened) – Maximum durability for critical applications
- High-duty cycle equipment, automotive differentials, difficult-to-replace gears
- Surface hardness up to 60+ HRC with tough core strength
- Higher material cost but justified for demanding applications
Common Mistakes to Avoid: Choosing aluminum to save weight in applications that actually need steel’s durability leads to premature wear and field failures. Conversely, over-specifying exotic materials wastes budget without performance gains.
Design Takeaway: Start with 4140 steel unless you have specific reasons to deviate. Only choose aluminum if weight is truly critical and operating loads are light and intermittent. Reserve 8620 for applications where gear failure would be costly or dangerous.
Load Type Material Choice Typical Applications
Light/Intermittent Aluminum Audio, cameras, light automation
General Purpose 4140 Steel Industrial drives, automotive
Heavy/Continuous 8620 Steel Heavy machinery, high-duty cycle
Should I use case hardening or through hardening for my gear application?
Case hardening provides 58-62 HRC surface hardness with tough cores for high-wear applications like automotive transmissions. Hardening delivers uniform 28-32 HRC throughout the gear for impact resistance. Choose case hardening when surface wear is your primary concern, through hardening when teeth crack or break under load.
The key insight is understanding where your gear will fail first. We’ve worked with customers who’ve learned this the hard way – specifying expensive case hardening for gears that ended up failing from tooth breakage, not surface wear. The treatment couldn’t prevent the actual failure mode.
Quick Decision Reference:
Your Application Choose This Surface Hardness Best For
Continuous operation, 8+ hrs/day Case hardening 58-62 HRC surface High-contact wear resistance
Variable loads, shock conditions Through hardening 28-32 HRC uniform Impact and tooth breakage prevention
High-speed meshing Case hardening 58-62 HRC surface Superior surface finish
General industrial use Through hardening 28-32 HRC uniform Predictable, reliable performance
Understanding Your Failure Mode:
Think about how your gears operate day-to-day. Are they constantly meshing and turning, like in a motor gearbox or conveyor system? That constant rubbing wears down surfaces over time. This is why automotive transmissions and differential gears use case hardening – the surfaces need to stay smooth and hard after millions of contact cycles.
Or do your gears see sudden load spikes – maybe from starting heavy machinery, emergency stops, or variable loads? Those shock forces can crack teeth right through the core. A super-hard surface won’t help if the tooth breaks off entirely.
Heat Treatment Standards: According to AGMA guidelines, case hardening typically achieves effective case depths of 0.020-0.080 inches with carburizing temperatures of 1700-1750°F. Through hardening uses quenching and tempering cycles at 1550-1650°F for optimal strength-toughness balance.
Design Takeaway: If your gears will run continuously and surface wear is your main concern, case hardening delivers superior durability with 58-62 HRC surface hardness. For general applications or when shock loads are possible, through hardening provides more reliable, predictable performance with uniform 28-32 HRC strength throughout.
What's the strongest gear type for limited space applications?

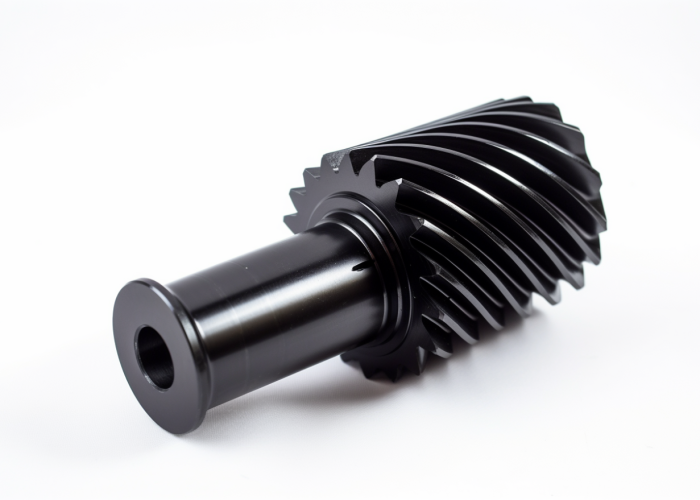

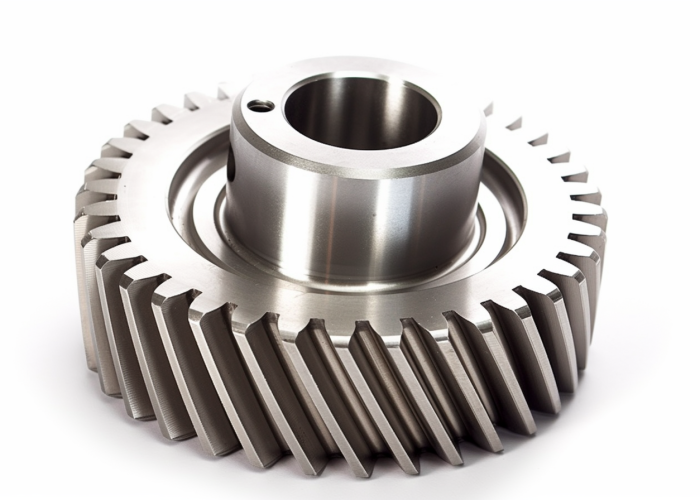

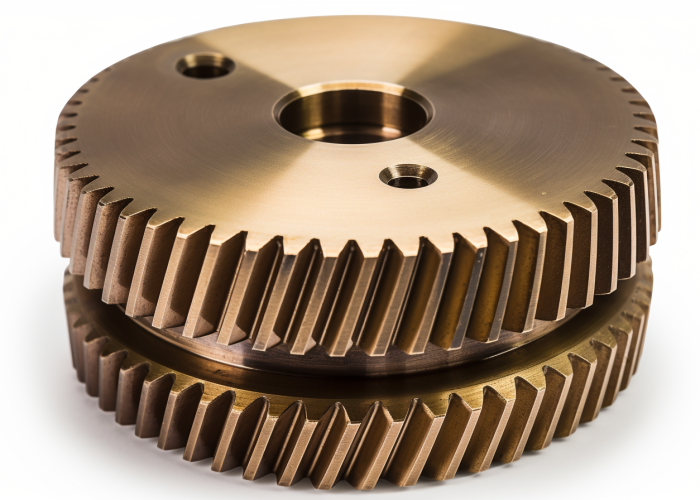

Helical gears offer the highest strength in limited space applications. Helical gears have greater tooth strength and a higher load carrying capacity than spur gears because multiple teeth share the load simultaneously, distributing stress more effectively than single-point spur gear contact.
Gear Type Strength Comparison:
Gear Type Strength Advantage Space Efficiency Design Complexity
Helical Higher load carrying capacity Same diameter as spur Requires axial thrust management
Spur Baseline strength Simple mounting Easiest integration
Planetary Highest torque density Maximum compactness Multiple components, higher complexity
Application Selection Criteria:
Choose Helical When:
- Need more strength than spur gears provide in same diameter
- Can accommodate axial thrust loads in housing design
- Space constraints prevent diameter increases
Choose Spur When:
- Adequate strength available with slightly larger diameter
- Simplest housing design preferred
- No axial load management desired
Choose Planetary When:
- Extreme space constraints require maximum torque density
- High reduction ratios needed simultaneously
- Complexity acceptable for performance gains
Manufacturing Considerations: Helical gears produce an axial thrust that needs to be accounted for, requiring thrust bearings or housing modifications. Spur gears create only radial forces, simplifying bearing selection and housing design.
Design Takeaway: Start with helical gears for space-constrained strength requirements. Only specify planetary systems when space absolutely prevents helical solutions and complexity is justified by performance needs.
Need stronger gears — but cost-effective?
We machine hardened materials reliably. Free review for heat treatment compatibility
How to maximize gear strength without changing gear diameter?
Increase face width first – face width typically ranges from 8 to 16 times the module, providing the most straightforward strength improvement while maintaining identical mounting dimensions and gear ratios.
Strength Optimization Decision Matrix:
Approach Manufacturing Impact When to Use
Face Width Increase Standard machining, no tooling changes First choice – predictable strength gains
Material Upgrade Same machining complexity When width constraints exist
Pressure Angle Change Requires custom tooling Maximum optimization needed
Face Width Guidelines:
- Recommended Range: Face width to module ratio of 8 to 16
- Standard Practice: Face width typically ranges from 8 to 16 times the normal module
- Practical Limit: Face width to pinion pitch diameter ratio should not exceed 2.0 for relatively stiff gear designs
Material Strength Improvements:
- Aluminum to Steel: Significant strength improvement with same machining processes
- Case Hardening: Maximum surface durability for wear resistance
- Maintains same mounting and meshing characteristics
Decision Tree:
- Try Face Width First – if housing can accommodate width and follows 8-16x module guidelines
- Upgrade Material – if width constraints prevent face width increases
- Optimize Geometry – only when maximum performance required from fixed constraints
Manufacturing Reality: Very wide gears beyond standard ratios can create deflection issues during machining and operation. Material upgrades provide strength gains without changing manufacturing complexity or requiring new tooling.
Design Takeaway: Follow the 8-16x module guideline for face width optimization as your first approach. Reserve material upgrades for width-constrained applications. Use geometry optimization only when other approaches are insufficient.
Should I increase module or material strength to boost load capacity?
Larger modules create teeth with greater load-bearing capacity, but require proportionally larger gear diameters. Material upgrades work within existing dimensions but only solve strength-related failures, not geometry limitations.
Quick Decision Matrix:
Your Constraint Choose This Strength Gain Size Impact
Space allows larger gears Increase module Much higher load capacity with larger teeth Gear diameter increases proportionally
Space is fixed Material upgrade 3-4x with steel vs aluminum Same mounting dimensions
Current teeth breaking Increase module Bigger, stronger teeth Larger housing needed
Current material wearing Material upgrade Better surface properties No geometry changes
Module vs. Material Trade-offs:
Increase Module When:
- Your space constraints allow larger gear diameters
- Need predictable, proportional strength improvements
- Working with standard materials and proven processes
Upgrade Material When:
- Fixed space prevents larger gears
- Current module size is adequate but material is failing
- Need to maintain compact design while improving performance
Reality Check: A gear with a 4mm module can typically handle much higher loads than an identical gear design with a 2mm module, simply because its teeth are more robust. But if your housing can’t accommodate the larger diameter, material upgrade becomes your only option.
Manufacturing Considerations: Larger modules use standard tooling and proven processes. Material upgrades work with existing gear geometry but may require heat treatment or specialized materials that affect cost and lead time.
Design Takeaway: If space allows, module increases provide more reliable strength gains. Reserve material upgrades for space-constrained applications where geometry changes aren’t possible.
How does face width affect gear load capacity?
Face width has a linear relationship with torque capacity – a 20% increase in face width increases torque capacity 20%, and a 125% increase provides 125% more capacity. For metric spur gears, recommended face width equals ten times the module
Face Width Guidelines:
- Standard Rule: Face width = 10 × module for spur gears
- Minimum Safe: 2.5 × tooth height to prevent premature root failure
- Practical Limit: Face width to pinion diameter ratio should not exceed 2.0
Quick Calculation Example:
- Module 2.5 gear → Recommended face width = 25mm
- Module 2.5 gear → Minimum face width = 14mm
- Module 4 gear → Recommended face width = 40mm
Strength Relationship: This relationship is linear – doubling face width nearly doubles your torque capacity while keeping the same gear diameter and ratios. Increase in face width results in decrease in bending stress and hence increase in bending strengthWhen Face Width Stops Working:
- Very wide gears create shaft deflection and non-uniform load distribution If face width ÷ module ratio >16, there’s likely a better solution than just adding width
- Requires stronger shafts and bearings to prevent deflection
Manufacturing Reality: Wide face width increases both bearing loads and shaft deflection because it creates longer moment arms. Your current shaft and bearing system must handle the additional loads.
Design Takeaway: Face width increases offer the most predictable strength improvements within the 10× module guideline. Check your shaft capacity before going wider – often upgrading to stronger materials costs less than redesigning the entire drivetrain.
How does pressure angle affect gear strength?
25° pressure angle provides approximately 15-20% stronger teeth than standard 20°, but creates higher bearing loads and requires specialized tooling. Most applications should stick with 20° unless tooth breakage is your primary failure mode and your system can handle increased thrust forces.
Pressure Angle Strength Comparison:
Pressure Angle Relative Tooth Strength Bearing Load Impact Tooling Availability Cost Impact
20° (Standard) Baseline strength Standard thrust loads Readily available Standard cost
25° (High-strength) 15-20% stronger teeth 30-40% higher thrust Specialized tooling 20-30% cost premium
Key Decision Factors:
Stick with 20° When:
- Your gears aren’t breaking at the tooth roots
- Efficiency and bearing life matter for your application
- Want standard tooling availability and cost-effective production
- Most reliable choice for proven performance
Consider 25° Only When:
- Gear teeth are actually breaking/cracking under load
- You’ve confirmed your bearings can handle 30-40% higher thrust loads
- Tooth strength is your limiting factor, not surface wear
- Cost premium (typically 20-30%) is justified by performance needs
Reality Check on Changing Pressure Angle: You cannot mix 20° and 25° gears – both mating gears must use the same pressure angle. This means changing pressure angle often requires redesigning your entire gear train, not just one gear.
Cost and Lead Time Impact: 25° pressure angle requires specialized hobs and cutting tools that most gear shops don’t stock. Expect 2-4 weeks additional lead time for tooling and 20-30% cost premium compared to standard 20° gears.
Design Takeaway: Pressure angle is typically set early in gear system design and difficult to change later. Unless you’re experiencing actual tooth breakage, the 15-20% strength gain from 25° rarely justifies the cost, complexity, and bearing load increases.
What machining considerations affect gear strength?
Specify tight root fillet requirements and verify your supplier’s quality control processes. Poor machining creates stress concentrations that can reduce gear strength by 30-50%, regardless of material or design. The right supplier specifications and quality checks prevent manufacturing-induced failures.
Critical Specifications for Strong Gears:
Drawing Requirements:
- Root fillet radius: Specify minimum 0.3 × module to prevent stress concentrations
- Surface finish: Ra 1.6 µm or better in root area to minimize crack initiation
- Tooth spacing tolerance: ±0.02mm or tighter to ensure even load distribution
- Runout limits: Total runout <0.05mm to prevent dynamic loading
Supplier Evaluation Questions:
Ask Your Gear Supplier Why This Matters Red Flag Response
What’s your gear grinding capability? Grinding produces stronger, more precise teeth We only use hobbing
How do you control root fillet quality? Poor fillets = stress concentrations We don’t specifically check that
What quality inspection do you perform? Catches manufacturing defects early Visual inspection only
Can you provide gear inspection reports? Verifies actual vs. specified quality We don’t typically provide those
Quality Control Checkpoints: Request inspection reports showing tooth spacing accuracy, surface finish measurements, and runout verification. A good supplier will provide CMM inspection data and surface finish readings without being asked.
Cost vs. Quality Trade-offs: Ground gears cost 40-60% more than hobbed gears but provide superior strength and accuracy. For critical applications, the reliability improvement justifies the cost. For general use, well-executed hobbing with proper quality control often provides adequate strength.
Supplier Red Flags: Avoid suppliers who can’t explain their quality control process, won’t provide inspection data, or seem unfamiliar with gear-specific tolerances. Poor machining can turn excellent gear designs into failure-prone components.
Design Takeaway: Include specific root fillet, surface finish, and accuracy requirements on your drawings. Work with suppliers who understand gear-specific quality requirements and can provide verification of their processes. The machining quality often matters more than the material choice.
What causes gear tooth breakage and how to prevent it?
Gear tooth fracture occurs when instantaneous impact loads exceed rated loads, or from fatigue cracks that develop when alternating stress exceeds the material’s bending fatigue limit. Starting torque can be up to 3 times higher than running torque, so size gears for peak loads, not average operation.
Quick Load Assessment:
Your Application Safety Factor Needed Why This Matters
Constant speed, smooth loads 1.5-2x calculated load Standard industrial practice
Motor startup, pump applications 2-3x calculated load Starting torque up to 3x running torque
Shock loads, emergency stops 3-5x calculated load Prevents sudden overload failure
Variable speed drives 2-3x calculated load Accounts for acceleration forces
Watch for unusual grinding noises during operation, fine metal shavings around your gearbox, or visible chipping on tooth tips. These warning signs mean your gears are operating beyond their design limits and heading toward failure. As a fatigue crack propagates, it leaves beach marks visible to the naked eye.
Cracks are usually formed at the root of the teeth where the highest tensile stresses occur. Sharp internal corners anywhere on your gear create stress concentrations that start cracks. Keep all internal radii generous – tooth root fillets should be as large as possible without interfering with mating gears.
During gear design, the bending fatigue strength of the tooth root should be checked. If your current gears are showing wear or making noise, first check if you’re asking them to handle loads they weren’t designed for. Often the solution is simply specifying larger gears or stronger materials.
Be honest about your actual application when working with suppliers. Include startup conditions, duty cycles, and any shock loads in your specifications. Fatigue fractures are the most common type of breakage, which arise from cracks at the root fillet that slowly progress.
Design Takeaway: Gear tooth fracture is the most severe form of failure and must be avoided. Use the safety factors above based on your application type, and specify generous root fillets to prevent stress concentrations.
What bore and hub details preserve gear strength under load?
Standard keyways create 2.5-3x stress concentration, reducing gear strength by 25-30%. Rim thickness factor KB reduces allowable loads when backup ratio falls below 1.2 for gears with insufficient material around the bore.
Bore Sizing Quick Reference:
Gear Application Max Bore/Root Diameter Connection Method Strength Impact
General industrial 50% of root diameter Standard keyway 25-30% strength reduction
High-load applications 40% of root diameter Rounded keyway ends 15-20% strength reduction
Maximum strength needed 35% of root diameter Splined connection 5-10% strength reduction
Critical applications Any size bore Interference fit No strength reduction
Connection Method Trade-offs:
Keyway stress concentration arises at the ends and edges, with severity depending on dimensional ratios. Standard keyways are convenient but weaken gears significantly. For high-load applications, splined connections distribute loads more evenly, while interference fits eliminate stress concentrations entirely.
For backup ratios below 0.5, rim failures become critical failure modes. When backup ratio value decreases under 0.5, the risk of rim breakage increases significantly. If you need a larger bore for your shaft size, consider using a larger gear or adding a separate hub component.
Hub length should roughly equal your bore diameter for adequate support. Analysis of shaft failures shows that keyway systems create localized stresses exceeding material limits, especially under cyclic bending. Concentrate material where stress is highest – near the root and around the bore.
Design Takeaway: Rim thickness factor KB is not sufficiently conservative for components with keyways. Use the sizing guidelines above and choose connection methods based on your actual strength requirements versus assembly convenience.
What gear tolerances and surface finish prevent premature wear?
AGMA quality grades range from A2 to A11, with lower numbers indicating higher precision. A hobbed gear would have accuracy grade N7, while ground finished teeth achieve N5 grade. Premium gears with ground teeth offer 3-5× longer service life than hobbed alternatives.
Quality vs. Cost Decision Matrix:
Application Type AGMA Grade Manufacturing Method Cost Premium Service Life
General industrial N7 (hobbed) Standard hobbing Baseline cost Standard life
Motor-driven precision N5 (ground) Precision grinding 40-60% premium 3-5× longer
Exact positioning systems A4-A5 Ultra-precision grinding 100%+ premium Maximum durability
Supplier Communication Guide:
Instead of specifying complex tolerances, tell your supplier: “precision ground gears” or “AGMA Quality A6 or better” for critical applications. For ordinary motor-driven applications, the N7 gear would be more than adequate. If the application requires exact positioning and repeatability then the N5 gear would be appropriate.
A good gear supplier will provide inspection reports showing actual measurements versus specifications without being asked. Surface finish has an effect on lubricant film-thickness requirements – heavier oil is needed when coarser finishes are present .
Cost Justification Guidelines:
- Easy replacement, non-critical → Standard hobbed gears
- Moderate downtime cost → Precision ground gears (40-60% premium justified)
- High replacement cost/difficulty → Ultra-precision grades (100%+ premium justified)
Tell your gear supplier about your actual operating conditions: continuous versus intermittent operation, cleanliness requirements, expected service life, and replacement consequences. Selecting the proper quality class should be a function of application, power level, and operating speed.
Design Takeaway: Consider total lifecycle costs: premium gears with ground teeth offer 3-5× longer service life. Match quality grade to replacement consequences using the guidelines above.
CONCLUSION
Gear strength depends on smart material selection, proper sizing for actual loads, and quality manufacturing. Avoid common mistakes like undersized bores, inadequate safety factors, and over-specifying tolerances. Most gear failures are preventable through better design choices and realistic load assessment. Contact us to explore manufacturing solutions tailored to your gear requirements.
Frequently Asked Questions
Ask for customer references with similar applications. Request sample inspection reports showing actual measurements. A good supplier explains their quality control process and suggests alternatives when your specs seem over or under-engineered. Avoid suppliers who can’t provide documentation or seem unfamiliar with your industry requirements.
Include actual operating conditions (not just calculated loads), duty cycle, expected service life, and replacement difficulty. Mention startup conditions, shock loads, and environmental factors. The more honest you are about real-world use, the better we can recommend appropriate materials and quality levels for your budget.
First, verify your actual space limitations – often small design changes elsewhere can accommodate larger gears. Consider helical gears for more strength in the same diameter. Material upgrades work when space is truly fixed. Weight reduction through internal lightening comes last, as it complicates manufacturing and increases cost.
Both mating gears must have the same pressure angle and module, but you can upgrade materials independently. Often upgrading just the pinion (smaller gear) to stronger material works well since it sees more stress cycles. However, surface hardness differences shouldn’t exceed 50 HRC between mating gears.
Modified standard gears change bore size, keyways, or hub length while keeping the same tooth geometry. Custom gears alter tooth count, module, or pressure angle. Modified standard gears cost 20-40% more than catalog items. Fully custom gears require tooling and typically cost 2-3x standard pricing but may be worth it for volume production.
Design issues show consistent patterns – all gears wear in the same spots or fail at similar intervals. Manufacturing defects are random – some gears fail early while others work fine. If you’re seeing consistent failure modes, it’s likely a design capacity or material selection problem that needs addressing.
