7 Mistakes to Avoid When Selecting Spur Gears

pom gear white, spur, transmission part

Selecting the right spur gear is crucial for ensuring optimal performance and longevity in mechanical systems. Whether you’re designing industrial machinery or precision equipment, avoiding these common mistakes can save you time, money, and countless headaches.

The 7 mistakes to avoid when selecting spur gears include choosing inappropriate materials, improper mounting considerations, underestimating loads, neglecting lubrication, ignoring noise factors, overlooking accuracy specifications, and disregarding application-specific requirements. Each of these factors can significantly impact gear performance and system reliability.

Let’s dive deeper into each of these mistakes and learn how to avoid them, ensuring your gear selection process leads to optimal performance and extended service life.

Table of Contents

Overlooking Material Selection

Material selection stands as the cornerstone of spur gear performance. The right material choice can mean the difference between a gear that lasts for years and one that fails prematurely, causing costly downtime and potential system damage.

Operating Conditions Impact

Failing to match your gear material to specific operating conditions sets the stage for premature failure. Each operating parameter places unique demands on your gear material, requiring careful consideration to ensure optimal performance.

  • Load requirements: Your gear material must withstand both continuous and shock loads without deformation. Carbon steel gears excel in high-load applications, while plastic gears might be suitable for lighter loads.
  • Speed considerations: High-speed operations generate more heat and require materials with excellent thermal stability. Materials like alloy steels with proper heat treatment can maintain their properties even at elevated temperatures.
  • Temperature environment: Will your gear operate in a hot engine compartment or a climate-controlled environment? Materials like bronze or stainless steel offer better performance in high-temperature settings.

Critical Material Properties

Understanding material properties directly influences gear longevity and reliability. The wrong combination of properties can lead to unexpected failures, even if individual specifications appear adequate.

  • Wear resistance: Look for materials that can maintain their tooth profile over time. Surface-hardened steels provide excellent wear resistance in demanding applications.
  • Strength-to-weight ratio: In applications where weight matters, materials like aluminum or reinforced plastics might offer the perfect balance between strength and mass.
  • Cost-effectiveness: While premium materials like tool steel offer outstanding performance, they might be overkill for less demanding applications. Balance performance requirements with budget constraints.

Heat Treatment and Surface Finish

Neglecting heat treatment and surface finish considerations can undermine even the best material selection. These finishing processes play a crucial role in achieving desired gear performance and durability.

  • Heat treatment options: Processes like carburizing or nitriding can significantly improve surface hardness and wear resistance.
  • Surface finish requirements: The right surface finish reduces friction and extends gear life. For precision applications, ground or honed finishes provide optimal surface characteristics.

Pro Tip: By carefully considering these material selection factors, you’ll avoid the costly mistake of choosing the wrong material for your application. Remember, in gear manufacturing, the right material choice is an investment in reliability and longevity.

spur gear, nylon, white

Ignoring Mounting Accuracy

Poor mounting practices can turn a perfectly manufactured spur gear into a source of constant problems. Precision in mounting directly impacts gear mesh, noise levels, and overall system reliability

Shaft Parallelism and Alignment

Misaligned shafts create uneven load distribution across gear teeth, leading to accelerated wear and potential failure. Proper shaft alignment serves as the foundation for optimal gear performance.

  • Parallel shaft positioning ensures even contact across the full face width of the gear teeth
  • Misalignment as small as 0.001 inches can significantly impact gear life
  • Regular alignment checks prevent gradual drift that occurs during operation

Center Distance Considerations

Incorrect center distance between mating gears compromises the fundamental gear mesh geometry. This critical dimension affects everything from backlash to contact patterns.

  • Proper center distance maintains optimal tooth engagement
  • Too tight spacing leads to interference and excessive wear
  • Too loose spacing results in backlash and increased noise
  • Temperature changes during operation can affect center distance

Mounting Surface Quality

The mounting surface quality determines how well your gear maintains its position under load. A compromised mounting surface leads to gear wobble and inconsistent mesh.

  • Surface flatness directly influences gear running accuracy
  • Proper cleaning and preparation of mounting surfaces prevents shifting
  • Use of appropriate mounting hardware ensures stable positioning
  • Regular inspection of mounting surfaces helps identify early signs of wear

Installation Practices

Proper installation techniques prevent common mounting errors that lead to premature gear failure. Each step in the installation process contributes to long-term reliability.

  • Use of calibrated torque tools ensures proper mounting force
  • Sequential tightening patterns distribute load evenly
  • Proper shaft key fitting prevents rotational play
  • Application of appropriate mounting compounds where necessary

Pro Tip: By following precise mounting procedures and maintaining proper alignment, you can extend gear life by up to 50% and significantly reduce operational noise. Small investments in proper mounting tools and procedures yield substantial returns in system reliability.

flat spur gear. anodizing. blue

Underestimating Load Capacity

Once you’ve selected the right material and ensured proper mounting, understanding and respecting load capacity becomes crucial. Load capacity isn’t just about the maximum weight a gear can handle – it’s about comprehending the complex interplay of forces that affect your gear system. Misjudging these forces can lead to sudden failures, unexpected downtime, and costly replacements.

Load Calculation Fundamentals

Before selecting a gear, you must understand how much force it needs to handle. Many engineers focus only on basic weight requirements, but real-world forces are far more complex and dynamic. Here’s what you need to consider:

  • Service factors account for real-world operating conditions
  • Peak loads often exceed calculated nominal values
  • System inertia affects actual loading conditions
  • Operating speed influences effective load capacit

Signs of Overload

Your gear will tell you when it’s working too hard – if you know what to look for. These warning signs often appear long before catastrophic failure, giving you a chance to take corrective action:

  • Tooth surface pitting indicates excessive surface pressure
  • Plastic deformation suggests load exceeds material strength
  • Unusual wear patterns point to load distribution issues
  • Increased operating temperature may signal overload conditions

Prevention Strategies

Protecting your gear from overload isn’t just about choosing the right size – it requires a comprehensive approach to load management. Here’s how to keep your gears operating within safe limits:

  • Safety factors appropriate for application type
  • Load sharing in multiple-gear trains
  • Proper gear size selection for anticipated loads
  • Regular monitoring of operating conditions

System Design Considerations

Every component in your system affects how much stress your gear experiences. Understanding these relationships helps you design a more resilient system:

  • Drive system acceleration and deceleration rates
  • Impact load absorption methods
  • Emergency stop procedures
  • Load distribution across gear train

Pro Tip: By accurately calculating load requirements and implementing proper monitoring systems, you can prevent up to 80% of premature gear failures. The initial investment in proper load analysis pays dividends through extended service life and reduced maintenance costs.

spur gear shaft, black, cast iron

Neglecting Lubrication Requirements

After ensuring proper load capacity, many engineers overlook the critical role of lubrication. Think of lubrication as your gear’s lifeline – it reduces friction, dissipates heat, and protects against wear. Without proper lubrication, even the most precisely engineered gear system can fail prematurely.

Types of Lubrication

Lubrication selection is a critical decision that impacts every aspect of gear performance. From oils to greases, each type of lubricant offers unique benefits and limitations that must be matched to your specific application requirements. Understanding these differences helps ensure optimal gear protection:

  • Viscosity requirements vary with operating speed and load
  • Temperature conditions affect lubricant performance
  • Ambient environment influences lubricant selection
  • Additive packages provide extra protection where needed

Application Methods

The effectiveness of your lubrication system depends heavily on how the lubricant reaches the gear teeth. A perfectly selected lubricant will fail to protect your gears if it’s not properly delivered to the contact surfaces. Each application method has its own strengths and ideal use cases:

  • Splash lubrication works well for enclosed systems
  • Oil mist systems suit high-speed applications
  • Grease applications protect against contamination
  • Automatic lubrication systems ensure consistent delivery

Common Lubrication Mistakes

The path to proper gear lubrication is lined with potential pitfalls that can compromise system performance. Many of these mistakes aren’t obvious until they’ve already caused damage, making prevention through knowledge and careful planning essential for long-term success:

  • Using incorrect viscosity for operating conditions
  • Mixing incompatible lubricants
  • Overlooking contamination control
  • Insufficient lubrication intervals
  • Ignoring lubricant degradation signs

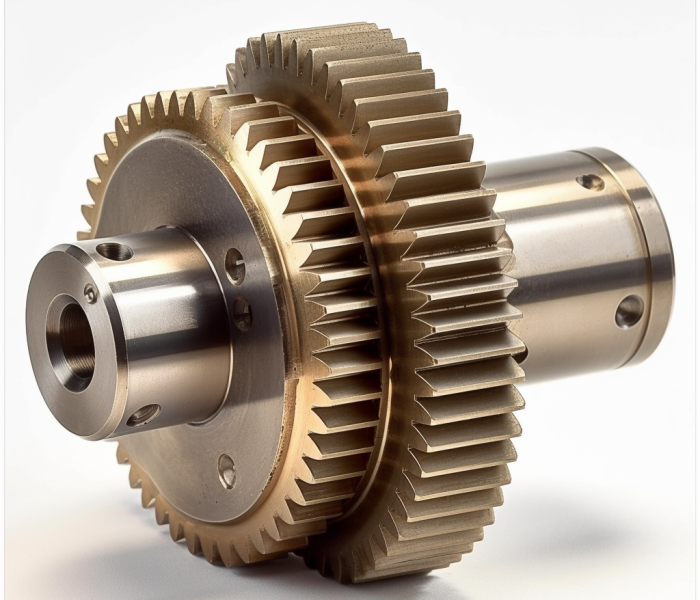

brass and steel spur gear

Warning Signs

Your gear system communicates potential lubrication problems through various indicators. Learning to recognize and interpret these warning signs can mean the difference between planned maintenance and emergency repairs. Early detection allows for corrective action before serious damage occurs:

  • Increased operating temperature indicates friction issues
  • Unusual noise suggests inadequate film thickness
  • Metal particles in oil signal accelerated wear
  • Color changes in lubricant indicate degradation

Pro Tip: By implementing a comprehensive lubrication program, you can extend gear life by up to 300% compared to poorly lubricated systems. The cost of proper lubrication is minimal compared to the expense of premature gear replacement and system downtime.

Disregarding Noise and Vibration Factors

Following proper lubrication practices sets the foundation for smooth operation, but noise and vibration control presents another critical challenge. High noise levels and excessive vibration not only indicate potential problems but can also lead to premature gear failure. Many engineers make the costly mistake of overlooking these factors during the selection process.

High-Speed Operation

 Effects The challenges of noise and vibration multiply significantly as operating speeds increase. These forces can quickly escalate from minor annoyances to serious performance issues that threaten your entire system’s reliability:

  • Tooth mesh frequency increases with speed
  • Vibration amplitudes grow exponentially
  • System resonance becomes more pronounced
  • Heat generation accelerates wear
spur gear, grey, nylon

Noise Source

Identification Gear noise rarely stems from a single source. The complex interaction of various factors creates unique acoustic signatures that help pinpoint potential problems before they lead to catastrophic failure:

  • Tooth profile errors produce distinct patterns
  • Mounting misalignment causes cyclical noise
  • Material defects generate irregular sounds
  • Load variations affect noise intensity

Vibration Control Methods

Controlling vibration requires a systematic approach that addresses both the source and transmission path. Each method plays a crucial role in maintaining system stability and preventing premature wear:

  • Base isolation techniques
  • Damping material selection
  • Housing design optimization
  • Tooth profile modifications

Alternative Solutions

 When standard spur gears can’t meet your noise and vibration requirements, alternative options exist. These solutions often provide substantial improvements in noise reduction and system stability:

  • Helical gear advantages
  • Multi-stage reduction options
  • Composite material applications
  • Advanced tooth profiles

Pro Tip: By addressing noise and vibration factors during the gear selection process, you can reduce operational noise by up to 6dB and extend system life by 40%. Early intervention in noise and vibration issues proves far more cost-effective than retrofitting solutio

aluminum anodizng helical gear, bike part

Overlooking Accuracy and Tolerance Specifications

While controlling noise and vibration is crucial, gear accuracy and tolerance specifications play an equally vital role in system performance. Many engineers fall into the trap of selecting standard tolerances without considering their application’s specific needs. This oversight can result in poor mesh quality, increased wear, and premature system failure

Critical Accuracy Parameters

 The precision of your gear system depends on six fundamental criteria that work together to ensure proper operation. These specifications form the backbone of gear quality and directly impact performance reliability:

  • Single pitch deviation affects smoothness of rotation
  • Cumulative pitch deviation influences overall accuracy
  • Profile deviation determines contact patterns
  • Helix deviation affects load distribution
  • Radial composite deviation impacts running quality
  • Runout affects dynamic behavior under load

Tolerance Grade Selection

Selecting the appropriate tolerance grade goes beyond picking a number from a chart. The choice impacts manufacturing costs, performance capabilities, and long-term reliability of your gear system:

  • Operating speed requirements dictate precision needs
  • Load conditions influence allowable deviations
  • Environmental factors affect maintenance of accuracy
  • System requirements determine acceptable variations

Verification Methods

Proper verification of accuracy specifications ensures your gears meet design requirements. Regular measurement and inspection protect against performance degradation:

  • Specialized gear measurement equipment requirements
  • Calibration and measurement procedures
  • Documentation of inspection results
  • Trend analysis for wear monitoring

Impact on Performance

Accuracy specifications directly affect every aspect of gear operation. The relationship between precision and performance determines system reliability:

  • Mesh quality affects noise levels
  • Running accuracy influences vibration
  • Load sharing depends on profile accuracy
  • Service life correlates with tolerance grade

Pro Tip: By selecting appropriate accuracy specifications and implementing proper verification procedures, you can reduce unplanned downtime by up to 60% and ensure consistent performance throughout your gear’s service life

aluminum gear, transmission

Ignoring Application-Specific Requirements

After addressing accuracy specifications, the final and perhaps most comprehensive mistake lies in overlooking application-specific requirements. Each gear application presents unique challenges and demands that go beyond standard specifications. Failing to account for these specific needs often leads to inappropriate gear selection and suboptimal system performance.

Environmental Considerations

 Every operating environment places distinct demands on gear performance. The surrounding conditions can make or break your gear system’s success, regardless of how well you’ve addressed other selection criteria:

  • Temperature fluctuations affect gear mesh
  • Dust and debris require special protection
  • Chemical exposure demands specific materials
  • Moisture levels influence lubrication needs

Power Transmission Requirements

The way power flows through your system dictates specific gear characteristics. A thorough analysis of power transmission needs prevents efficiency losses and system failures:

  • Load variation patterns affect gear design
  • Speed ratio requirements influence size selection
  • Torque transmission capabilities
  • Direction changes need special consideration

Space and Weight Constraints

Physical limitations often pose unique challenges in gear selection. These constraints require careful balance between performance requirements and practical limitations:

  • Available mounting space affects gear size
  • Weight restrictions influence material choice
  • Access for maintenance needs consideration
  • Heat dissipation requirements impact design

Special Operating Conditions

Unique operating scenarios demand specific attention during gear selection. These conditions often require modifications to standard gear designs:

  • Intermittent operation effects
  • Emergency stop requirements
  • Reversing operation needs
  • Start-up and shutdown conditions

Pro Tip: By thoroughly analyzing your application-specific requirements and incorporating them into your gear selection process, you can achieve up to 95% system efficiency and optimal performance for your unique operating conditions.

gear shaft, spur gear, black oxide

Conclusion

Selecting the right spur gear requires careful attention to multiple critical factors. From material selection and mounting accuracy to application-specific requirements, each aspect plays a vital role in system performance. By avoiding these seven common mistakes, you’ll ensure longer gear life, reduced maintenance costs, and optimal system efficiency.

Frequently Asked Questions

The top three critical factors are operating load conditions, required accuracy grade, and environmental conditions. These determine material selection, size requirements, and necessary modifications. Consider both continuous and peak loads, along with any special operating conditions like high temperatures or corrosive environments.

High-speed applications require enhanced lubrication systems, tighter accuracy grades, and special attention to noise and vibration control. Consider using higher grade materials with excellent thermal stability, implementing oil cooling systems, and ensuring precise mounting alignment to prevent dynamic issues.

 Mounting accuracy directly impacts gear life, noise levels, and system reliability. A misalignment of just 0.001 inches can reduce gear life by up to 50% and increase noise levels significantly. Proper shaft parallelism and center distance are crucial for optimal performance.

Watch for increased operating temperature, unusual noise during operation, visible wear patterns on tooth surfaces, and metal particles in the lubricant. Dark discoloration of the lubricant, coupled with increased power consumption, often indicates lubrication problems requiring immediate attention.

Select accuracy grade based on operating speed, load conditions, and noise requirements. Higher speeds typically require grades 6 or better, while standard industrial applications often use grades 8-10. Consider system precision requirements and cost constraints in your selection.

Conduct visual inspections monthly for wear patterns, tooth damage, and lubricant condition. Perform detailed measurements quarterly, including backlash checks and tooth profile analysis. For high-load applications, increase inspection frequency to weekly visual checks and monthly detailed inspections.

Get Instant Quote

You’re just a few details away from receiving your free quote for your custom part project.

Email: sales@okdor.com

okdor-logo-full
Ready to get your parts made?
okdor-logo-full

Team okdor

okdor is a custom part manufacturing service provider for CNC Machining, sheet metal fabrication, progress die stamping, and more.

Request a Rree Quote

Feel free to ask any questions or request a quote. You will hear from us ASAP!

Resources

The complete guide to custom manufacturing

Everything about custom manufacturing.

Collection of materials properties

Helpful tips and Advice

hand polishing part

About okdor

In a fast, efficient, and cost-effective manner, we provide services to product developers and engineers worldwide who are bringing new ideas to market.

The okdor story

Talk to us

why choose us

part inspection operating by CMM

Order flow, from quote to deliver

How do we quote and deliver parts so fast

How we deliver consistent quality

Lead time as fast as 24 hours

Service Overview

Our team works with hundreds of specialized manufacturers so you don’t have to. Quality is guaranteed even on the most complex prototypes and parts.

Open chat
Hey! Thanks for reaching out to okdor!

Got a question? We're here to help—drop us a message!

Our customer support team will get back to you soon!
