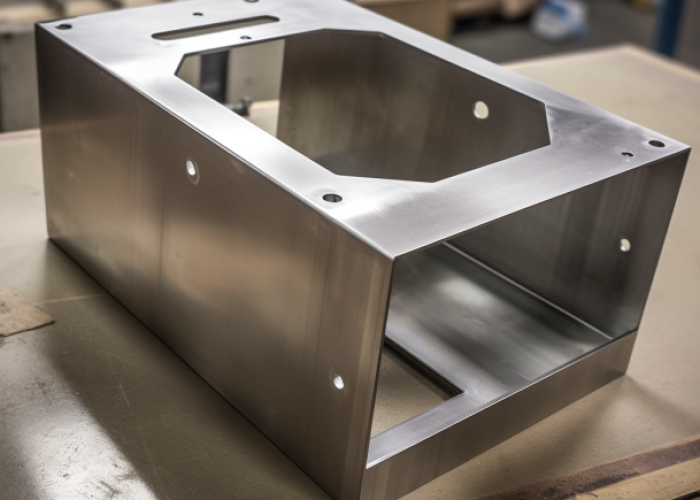

When designing sheet metal components, choosing between riveting and welding isn’t just about joining methods – it’s about optimizing your entire design approach. Engineers face critical decisions that impact structural integrity, production efficiency, and cost-effectiveness.
Sheet metal design optimization requires a systematic approach focusing on three key areas: riveting-specific considerations, welding-specific requirements, and universal design principles. For riveting, focus on six critical aspects including hole design, edge distance, and material configuration. For welding, concentrate on six essential elements: joint design, heat management, and process parameters. Additionally, implement four universal design principles including geometry simplification and standardization to ensure optimal manufacturability regardless of joining method.
Let’s explore detailed guidelines for each optimization method, including specific measurements, tolerances, and practical implementation steps to help you create more efficient and reliable sheet metal designs.
Table of Contents
#1 Optimizing for Riveting
In sheet metal design, riveting serves as a reliable mechanical fastening method that offers excellent fatigue resistance and the ability to join dissimilar materials. Successful riveting design hinges on three critical aspects: proper hole design, material configuration, and careful attention to spacing and tolerances.
By optimizing these elements – from hole size and edge distance to material overlap and surface preparation – engineers can ensure strong, durable joints that maintain structural integrity over time.
Hole Design and Alignment
Proper hole design and alignment form the foundation of a successful riveted joint, determining how effectively force is distributed across the connection. The precise sizing and positioning of rivet holes across mating components directly impacts joint strength, assembly efficiency, and long-term reliability.
The success of hole design depends on maintaining precise diameter ratios and ensuring perfect alignment between mating parts. This requires careful consideration of material thickness, rivet specifications, and manufacturing tolerances during the design phase to achieve optimal results.
Critical Specifications:
- Hole Diameter Ratios:
- Standard rivets: 1.5× rivet diameter
- Blind rivets: 1.6× rivet diameter
- Self-piercing rivets: 1.3× rivet diameter
- Tolerances:
- Hole diameter: +0.1mm/-0.0mm
- Position accuracy: ±0.2mm
- Perpendicularity: 0.5° maximum
Implementation Steps:
- Calculate hole diameter as 1.5× the rivet diameter to allow for proper rivet expansion
- Use drill templates or CNC programming to ensure consistent hole placement
- Consider using pilot holes for thick materials to maintain alignment accuracy
- Implement quality control measures to verify hole size and position tolerances
- Account for thermal expansion in applications with significant temperature variations
- Include alignment marks or features in the design to guide assembly
Edge Distance
Edge distance is a critical design parameter that prevents material failure at the edges of riveted joints. The space between rivet holes and component edges plays a vital role in maintaining structural integrity and preventing tear-out under load conditions.
Maintaining proper edge distance requires careful planning during the design phase, considering both material properties and anticipated load conditions. The goal is to ensure sufficient material strength while optimizing component size and weight.
Specific Guidelines:
- Minimum Edge Distance:
- Standard applications: 2× hole diameter
- High-load applications: 3× hole diameter
- Thin materials (<1.5mm): 2.5× hole diameter
- Corner Distance:
- Minimum: 2.5× hole diameter
- Optimal: 3× hole diameter
- Edge Reinforcement:
- Add tabs for edge distance <2× diameter
- Reinforcement thickness: 1.5× base material
Implementation Steps:
- Design edge distance as minimum 2× hole diameter from sheet edges
- Increase edge distance for softer materials or high-load applications
- Consider adding reinforcement tabs for edges under high stress
- Verify edge distance compliance across all hole patterns
- Account for manufacturing tolerances in edge distance calculations
- Avoid placing holes too close to bends or formed features
Consistent Spacing
Consistent rivet spacing ensures uniform load distribution across the joint and prevents localized stress concentrations. Proper pitch (distance between rivets) is essential for maintaining joint strength and preventing premature failure of the assembly.
Determining optimal rivet spacing involves balancing structural requirements with practical manufacturing considerations. The spacing must accommodate both the mechanical needs of the joint and the accessibility requirements for installation tools.
Spacing Specifications:
- Pitch (Center-to-Center) Distance:
- Minimum: 3× rivet diameter
- Optimal: 4-6× rivet diameter
- Maximum: 8× rivet diameter
- Row Spacing:
- Minimum: 2.5× rivet diameter
- Zigzag pattern: 1.5× standard row spacing
- Multiple row offset: 1× rivet diamete
Implementation Steps:
- Calculate uniform pitch based on material thickness and load requirements
- Maintain consistent center-to-center distances between rivets
- Adjust spacing patterns for corner joints and intersecting surfaces
- Consider tool access requirements when determining spacing
- Plan for symmetric rivet patterns where possible
- Avoid excessive spacing that could lead to joint separation
Material Overlap
Material overlap represents the shared surface area between joined components, crucial for creating strong and reliable riveted connections. The amount of overlap directly affects joint strength and load-bearing capacity.
The design of overlap areas requires careful consideration of material thickness, load requirements, and assembly constraints. Proper overlap ensures adequate surface area for load transfer while minimizing material usage and weight.
Overlap Requirements:
- Minimum Overlap:
- Standard joints: 3× material thickness
- High-load applications: 4× material thickness
- Vibration conditions: 5× material thickness
- Joint Configuration:
- Single shear: 4× rivet diameter
- Double shear: 3× rivet diameter
- Gap Control:
- Maximum gap: 0.2mm
- Shim requirements: >0.2mm gaps
Implementation Steps:
- Design overlap as 3× material thickness for optimal strength
- Increase overlap for high-load applications or thinner materials
- Consider asymmetric overlap for joints with different material thicknesses
- Plan for proper fit-up and alignment of overlapped sections
- Account for thermal expansion in large overlap areas
- Include alignment features to maintain proper overlap during assembly
Stacking Tolerance
Stacking tolerance addresses the cumulative effect of material and manufacturing variations in multi-layer assemblies. Proper tolerance management ensures consistent rivet grip length and joint quality across the entire assembly.
Managing stacking tolerance requires a systematic approach to tolerance analysis and specification. This includes considering the combined effect of material thickness variations, surface flatness, and assembly variations
Stack-Up Specifications:
- Total Stack Tolerance:
- 2 layers: ±0.2mm maximum
- 3-4 layers: ±0.3mm maximum
- 5+ layers: ±0.5mm maximum
- Grip Length Calculations:
- Minimum grip: Total stack + 0.4mm
- Maximum grip: Total stack + 1.2mm
- Grip adjustment increments: 0.4mm
- Surface Variations:
- Flatness tolerance: 0.1mm/100mm
- Surface roughness: Ra 3.2 µm maximum
- Coating thickness consideration: +0.02mm per layer
Implementation Steps:
- Calculate total stack-up including all material layers
- Account for material thickness variations in each layer
- Consider surface finish and coating thicknesses
- Specify appropriate rivet lengths for the total stack-up
- Plan for shimming or adjustment methods if needed
- Document tolerance requirements clearly in design specifications
Deburr Holes
Deburring is a crucial finishing step that ensures proper rivet seating and prevents installation issues. Clean, burr-free holes are essential for achieving consistent joint quality and preventing damage to both rivets and base materials.
The deburring process must be carefully specified in the design phase to ensure manufacturability and consistent quality. This includes considering both the method of hole creation and the subsequent finishing operations.
Deburring Specifications:
- Maximum Allowable Burr:
- Thin materials (<2mm): 0.1mm
- Medium materials (2-5mm): 0.15mm
- Thick materials (>5mm): 0.2mm
- Edge Condition Requirements:
- Break edge: 0.2-0.3mm × 45°
- Surface finish: Ra 1.6 µm
- No sharp edges permitted
- Inspection Criteria:
- Visual inspection: 100% of holes
- Tactile inspection: Random 10%
- Measurement check: 1 per 100 holes
Implementation Steps:
- Specify appropriate deburring methods for different materials
- Define acceptable burr height and edge condition requirements
- Consider automated deburring for high-volume production
- Include inspection criteria for hole edge quality
- Plan for proper cleaning after deburring operations
- Document surface finish requirements for hole edges
#2 Optimizing for Welding
Welding is a critical joining process that creates permanent, high-strength connections in sheet metal assemblies through localized fusion of materials. Success in welded designs requires careful consideration of joint configuration, heat management, and process parameters. By optimizing these key areas – from joint design and accessibility to heat control and post-weld treatments – engineers can achieve strong, reliable welds while minimizing distortion and maintaining material properties.
Joint Design
Joint configuration serves as the foundation for successful welding, determining weld strength, accessibility, and heat distribution. Proper joint selection and dimensioning directly impact your production costs and final assembly quality.
For optimal joint performance, follow these material-specific guidelines:
- Thin Materials (<3mm):
- Use lap joints with 3-5× material thickness overlap
- Maintain joint gap of 0.8-2.4mm for TIG welding
- For MIG welding, keep gap between 1.6-3.2mm
- Thick Materials (>3mm):
- Implement butt joints with proper beveling
- Use 30° bevel angle for 3-6mm thickness
- Increase to 45° bevel angle for materials >6mm
- Maintain root face between 1.5-3mm
Implementation Steps:
- Design joint gaps and fit-up tolerances based on your welding process
- Include alignment features (tabs or fixtures) for precise positioning
- Ensure minimum 30mm clearance around joints for tool access
- Plan joint preparation requirements (cleaning, beveling)
- Consider tack weld locations in your design
- Avoid joints requiring overhead welding position
Weld Accessibility
Weld accessibility ensures consistent quality and production efficiency. Poor access not only affects weld quality but also increases production time and costs. Proper clearance planning is essential for both manual and automated welding processes.
Critical clearance specifications:
- Minimum Tool Access:
- Manual welding torch: 40-50mm radial clearance
- Robotic welding head: 75-100mm radial clearance
- Additional 30mm for filler wire angle
- Approach Angles:
- Optimal torch angle: 15-20° from vertical
- Minimum access angle: 45° for confined spaces
- Line of sight: 300mm clear viewing distance
Implementation Steps:
- Design parts with welding position in mind (flat or horizontal preferred)
- Provide access from multiple angles when possible
- Create cut-outs or access ports for confined areas
- Minimum port size: 100mm × 150mm
- Edge distance from weld: 50mm minimum
- Consider fixturing requirements in access planning
- Allow space for wire feed systems and cables
- Include cooling airflow paths for automated systems
Heat Management
Heat control is crucial for preventing distortion and maintaining material properties. Proper heat management starts at the design phase and continues through production planning.
Specific Heat Control Parameters:
- Material-Specific Guidelines:
- Mild Steel (<3mm): 40-60 amps for TIG
- Stainless Steel: 25-30% lower heat input than mild steel
- Aluminum: Preheat to 50-150°C for thickness >6mm
- Cooling Considerations:
- Minimum cooling time between passes: 2-3 minutes
- Maximum interpass temperature: 150°C for most applications
- Cooling rate control: 25-30°C per minute maximum
Implementation Steps:
- Design heat sinks for critical areas
- Copper backing bars: 25mm minimum thickness
- Heat sink spacing: every 200-300mm
- Plan weld sequencing
- Maximum single weld length: 300mm
- Alternating weld pattern for large assemblies
- Implement pulsed welding for thin materials
- Pulse frequency: 1-10 Hz for most applications
- Base current: 30-40% of peak current
Post-Weld Treatments
Post-weld treatments ensure dimensional accuracy and restore material properties. Early planning for these treatments saves time and reduces rework.
Treatment Specifications:
- Stress Relief Parameters:
- Temperature range: 550-650°C for mild steel
- Hold time: 1 hour per 25mm thickness
- Cooling rate: 150°C per hour maximum
- Surface Finishing:
- Grinding depth: 0.2-0.3mm maximum per pass
- Surface roughness target: Ra 3.2 µm or better
Implementation Steps:
- Specify stress relief requirements based on material thickness
- Define acceptable distortion limits
- Plan inspection points and methods
- Document required surface finish
- Include provisions for non-destructive testing
- Establish acceptance criteria for finished welds
Automated Welding
Automation increases consistency and productivity but requires specific design considerations. Successful automated welding depends on proper part presentation and consistent joint geometry.
Design Requirements for Automation:
- Fixturing Requirements:
- Locating point accuracy: ±0.5mm
- Minimum clamp force: 2.5kN per clamp
- Reference point spacing: 200-300mm
- Path Planning:
- Minimum radius for continuous welds: 50mm
- Maximum torch angle change: 30° per 100mm
- Approach and retract clearance: 100mm minimum
Implementation Steps:
- Design consistent weld paths and access points
- Include datum features for robot programming
- Tolerance: ±0.2mm for critical features
- Minimum feature size: 10mm
- Plan for automated part handling
- Incorporate sensor mounting points
- Design robust fixturing systems
- Establish program verification procedures
#3 Universal Design Principles
Whether choosing riveting or welding, certain design principles apply universally to sheet metal fabrication. These fundamental guidelines ensure manufacturability, cost-effectiveness, and assembly efficiency. Understanding and implementing these principles early in the design phase prevents costly modifications and production issues.
Simplify Geometry
Complex geometry increases manufacturing costs and quality issues. Simplified designs reduce production time, tooling requirements, and potential failure points.
Design Guidelines:
- Bend Specifications:
- Minimum bend radius: 1× material thickness
- Preferred bend radius: 1.5-2× material thickness
- Maximum bend angle: 120° in single operation
- Minimum flange length: 4× material thickness
- Feature Spacing:
- Minimum distance between bends: 3× material thickness
- Hole distance from bend: 2× material thickness + bend radius
- Minimum tab width: 5× material thickness
- Part Reduction:
- Combine multiple bends instead of separate pieces
- Use tabs and slots instead of additional fasteners
- Integrate mounting features into main components
Implementation Steps:
- Evaluate each bend for necessity
- Replace welded corners with bend reliefs
- Design symmetrical parts where possible
- Use standard bend radii across the design
Standardize Features
Feature standardization reduces tooling costs, simplifies manufacturing, and improves quality control. Consistent features across designs enable efficient production.
Standardization Requirements:
- Hole Sizes:
- Use standard drill sizes (0.5mm increments)
- Maintain consistent hole types per assembly
- Limit variety of hole sizes per part
- Bend Radii:
- Standardize to 3-4 common radii
- Match available tooling capabilities
- Consider material limitations
- Corner Features:
- Standard notch sizes: 45° or 90°
- Relief hole diameters: 2-3mm standard
- Consistent corner radius: 1-2mm
Implementation Steps:
- Create standard feature library
- Document common dimensions
- Define preferred feature hierarchy
- Establish design review checklist
Material Selection
Proper material selection impacts both manufacturing process and product performance. Consider both joining method compatibility and functional requirements.
Material Guidelines:
- Thickness Recommendations:
- Riveting: 0.5-6mm optimal range
- Welding: 0.7mm minimum for MIG/TIG
- Mixed materials: Consider galvanic compatibility
- Material Compatibility:
- Aluminum: Good for riveting, requires special welding
- Steel: Suitable for both processes
- Stainless: Excellent for welding, watch for galling in rivets
- Cost Considerations:
- Standard sheet sizes: 1220×2440mm, 1500×3000mm
- Material utilization: >70% target
- Grain direction importance
Implementation Steps:
- Document material specifications
- Consider thermal properties
- Verify supplier availability
- Test prototype materials
Cost-Efficiency
Design decisions directly impact manufacturing costs. Early optimization reduces production expenses without compromising quality.
Cost Optimization Strategies:
- Nesting Efficiency:
- Minimum material utilization: 70%
- Optimal part orientation: 0°, 90°, 180°
- Standard sheet sizes: Align with supplier stock
- Tool Optimization:
- Common bend radii: Reduce tool changes
- Standard hole sizes: Minimize drill changes
- Consistent feature sizes: Reduce setups
- Production Efficiency:
- Batch size considerations: >50 pieces
- Setup reduction strategies
- Automated processing potential
Implementation Steps:
- Use nesting software for layout optimization
- Minimize unique features
- Plan for standard tool sizes
- Consider automation compatibility
Conclusion
By carefully considering these optimization strategies, engineers can create more efficient, cost-effective sheet metal designs. Whether choosing riveting or welding, success lies in understanding and applying these fundamental design principles while considering your specific application requirements.
Frequently Asked Questions
For manual welding, maintain 40-50mm radial clearance around the torch. Robotic welding heads require 75-100mm radial clearance, plus an additional 30mm for filler wire angle. The optimal torch angle is 15-20° from vertical, with a minimum access angle of 45° in confined spaces. Ensure 300mm clear viewing distance for line of sight.
For materials less than 3mm thick, use lap joints with an overlap of 3-5 times material thickness. For materials over 3mm thick, use butt joints with proper beveling – 30° bevel angle for 3-6mm thickness and 45° bevel angle for materials over 6mm. Maintain root face dimensions between 1.5-3mm for optimal results.
Standard rivets require a hole diameter of 1.5× the rivet diameter. Blind rivets need 1.6× of the rivet diameter. Self-piercing rivets require 1.3× of the rivet diameter. Maintain hole diameter tolerances of +0.1mm/-0.0mm and position accuracy of ±0.2mm.
The minimum center-to-center (pitch) distance should be 3× rivet diameter. The optimal spacing is 4-6× rivet diameter, while maximum spacing should not exceed 8× rivet diameter. For multiple rows, maintain minimum row spacing of 2.5× rivet diameter, with zigzag patterns requiring 1.5× standard row spacing.
For standard applications, maintain a minimum edge distance of 2× the hole diameter. For high-load applications, increase to 3× hole diameter. For thin materials under 1.5mm, use 2.5× hole diameter. When working with corners, maintain a minimum distance of 2.5× hole diameter, with 3× being optimal.
For riveting, the optimal material thickness range is 0.5-6mm. For welding, maintain a minimum thickness of 0.7mm for MIG/TIG processes. Aluminum is ideal for riveting but requires special welding procedures. Steel is suitable for both processes. Stainless steel excels in welding but watch for galling in riveted joints. Consider galvanic compatibility when joining dissimilar materials.
