8 Ways Pressure Angle Affects Machining Costs

plastic spur gears

In gear manufacturing, the pressure angle is a critical design parameter that significantly influences both production costs and final product performance. As manufacturers strive for cost-efficiency without compromising quality, understanding how pressure angle impacts various aspects of the manufacturing process becomes essential for informed decision-making.

Pressure angle affects manufacturing costs through eight key aspects: design flexibility, blank preparation, material removal and tool wear, machining complexity, tooling costs, production efficiency, heat treatment requirements, and quality control needs. Each factor contributes differently to the overall manufacturing cost structure.

While each of these factors has its cost implications, their interrelationships create opportunities for optimization that might not be immediately apparent. Continue reading to discover how understanding these relationships can help you make more cost-effective manufacturing decisions.

Table of Contents

1. Design Flexibility

The pressure angle selection during the design phase establishes the baseline for all manufacturing costs. This initial design decision directly shapes both technical requirements and financial outcomes throughout the production process.

Higher pressure angles, like 20°, generally offer more design flexibility than lower angles, such as 14.5°. This flexibility directly impacts manufacturing costs in several ways:

Minimum Tooth Count Impact:

Higher pressure angles allow for fewer minimum teeth without undercutting. A 20° pressure angle typically permits 13-14 teeth minimum, while a 14.5° angle requires 17-18 teeth minimum. This difference significantly affects material costs and manufacturing complexity. Designs with fewer teeth often result in smaller gears, reducing raw material needs and accelerating production cycles.

Design Space Optimization:

The pressure angle’s impact on gear size has significant cost implications for the entire manufacturing process. When a higher pressure angle enables more compact designs, it creates a cascade of cost-saving opportunities across manufacturing:

  • Reduced material usage across the entire assembly
  • Lower shipping costs due to smaller package sizes
  • More efficient use of manufacturing space
  • Decreased handling time during production

Manufacturing Complexity Trade-offs:

While higher pressure angles can reduce material costs, they also introduce specific manufacturing challenges that affect overall production costs. These cost implications must be carefully weighed against the potential savings:

  • More complex tooth profiles requiring precise machining
  • Potential need for specialized tooling
  • Stricter tolerance requirements affecting production time
pom spur gear

2. Blank Preparation

While design flexibility establishes the foundation for gear manufacturing, the pressure angle’s influence extends immediately into blank preparation costs. This transition from design to physical material represents a critical cost junction, as the pressure angle choice determines not just the blank size, but also the entire scope of raw material processing requirements. Understanding how pressure angle affects blank preparation is essential for manufacturers seeking to optimize their material costs while maintaining product quality.

Higher pressure angles create distinct blank preparation requirements that affect manufacturing costs in several ways:

Raw Material Requirements:

When manufacturing gears, the pressure angle dictates specific requirements for gear blank dimensions. A 20° pressure angle typically requires a different blank size compared to a 14.5° angle, even for gears with the same pitch diameter. These dimensional variations directly impact manufacturing costs through:

  • Increased raw material costs per gear
  • Higher material handling expenses
  • Additional storage space requirements
  • More complex inventory management needs

Material Selection Impact:

The pressure angle choice creates specific demands for material properties that significantly influence cost calculations. Higher pressure angles often require materials with different mechanical properties, affecting manufacturing costs through:

  • Specific material grade requirements based on tooth load capacity
  • Material availability and sourcing costs
  • Stock size optimization opportunities
  • Waste reduction considerations

Preliminary Processing Needs:

Different pressure angles necessitate varying levels of initial blank processing, each with its own cost implications. The relationship between pressure angle and preliminary processing directly affects manufacturing expenses through:

  • Blank face width requirements
  • Initial surface preparation specifications
  • Pre-machining operation needs
  • Setup time variations for different blank sizes
spur gear-ss

3. Material Removal and Tool Wear

After determining the blank specifications, the pressure angle’s impact becomes most evident in the machining process. Higher pressure angles require more aggressive material removal because they create deeper tooth profiles and steeper cutting angles. For example, a 20° pressure angle typically demands 15-20% more material removal compared to a 14.5° angle for the same module gear.

This increased material removal directly accelerates tool wear – cutting tools must work harder and longer to achieve the required tooth profile, significantly impacting both machining time and tool replacement costs.

Higher pressure angles have distinct effects on material removal and tool wear that directly impact manufacturing costs:

Material Removal Rate Impact:

The pressure angle’s geometry fundamentally affects how material must be removed during gear cutting. Higher pressure angles typically require more aggressive material removal, which creates specific cost implications:

  • Increased machining time per gear tooth
  • Higher power consumption during cutting
  • More demanding coolant requirements
  • Additional material handling needs during machining

Tool Wear Patterns:

Pressure angle choice creates specific patterns of tool wear that significantly influence production costs. The relationship between pressure angle and cutting tool longevity affects manufacturing expenses through:

  • Accelerated wear rates on cutting edges
  • Frequency of tool replacement needs
  • Higher costs for tool maintenance
  • Impact on production scheduling due to tool changes

Cutting Process Efficiency:

Different pressure angles require varying cutting strategies that directly affect manufacturing costs. The interaction between pressure angle and cutting process efficiency manifests in several ways:

  • Specific cutting speed requirements
  • Feed rate limitations
  • Depth of cut constraints
  • Multiple pass requirements for complex profiles
double spur gear

4. Machining Complexity

The pressure angle’s influence extends beyond basic material removal into overall machining complexity. A higher pressure angle of 20° compared to 14.5° creates steeper tooth profiles that demand more sophisticated cutting strategies and precise machine control. This increased complexity directly translates into higher manufacturing costs through multiple operational requirements and the need for advanced expertise.

Higher pressure angles create specific machining complexity challenges that affect manufacturing costs:

Setup Time Requirements:

In gear machining, every 5° increase in pressure angle requires approximately 25% more setup time due to tighter geometric tolerances. For a typical production run, this means a 20° pressure angle gear might require 45 minutes of setup compared to 35 minutes for a 14.5° angle, directly impacting manufacturing costs through:

  • Extended setup time for machine alignment
  • More frequent setup verification needs
  • Additional tooling preparation steps
  • Increased complexity in workpiece positioning

Operator Skill Level Impact:

Manufacturing gears with a 20° pressure angle typically requires operators with 5+ years of experience, compared to 3+ years for standard 14.5° angles. This skill requirement difference stems from the more complex cutting geometry and tighter tolerances, affecting costs through:

  • Higher-skilled machine operators
  • Additional training requirements
  • Increased supervision needs
  • More extensive quality checks during operation

Process Control Demands:

Higher pressure angles demand tighter process controls – typically ±0.0005″ tolerance for 20° versus ±0.001″ for 14.5° angles. This precision requirement increases manufacturing costs through:

  • More sophisticated CNC programming requirements
  • Enhanced monitoring systems needs
  • Stricter parameter control requirements
  • Additional in-process inspection points

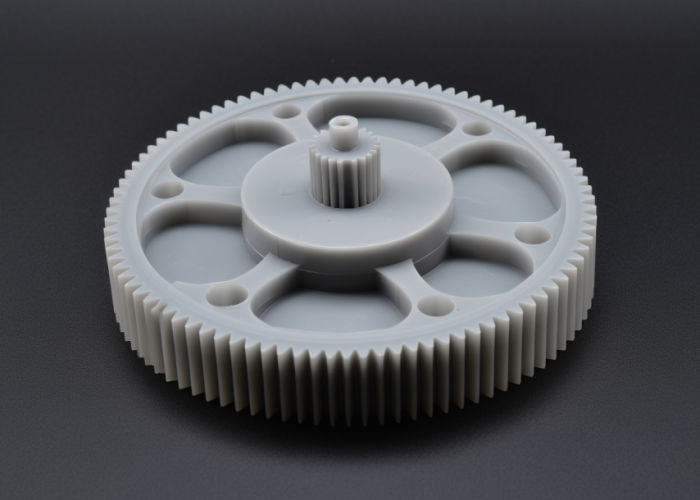

grey spur gear, double

5. Tooling Costs

The pressure angle significantly impacts tooling costs through specialized cutter requirements and inventory management needs. While standard 20° pressure angle tools are widely available, non-standard angles like 14.5° or 25° often require custom cutting tools that can cost 30-40% more. This specialization in tooling directly influences both immediate production expenses and long-term manufacturing costs.

Higher pressure angles create specific tooling requirements that affect manufacturing costs:

Cutting Tool Specialization:

Manufacturing gears with different pressure angles requires specific cutting tool geometries. A typical gear shop needs to invest 40-50% more in tooling inventory for non-standard pressure angles, impacting costs through:

  • Higher initial tool investment
  • Custom tool ordering lead times
  • Specialized coating requirements
  • Increased backup tool inventory needs

Tool Inventory Management:

The pressure angle choice directly affects tool inventory complexity and associated costs. For example, maintaining tools for both 14.5° and 20° pressure angles typically increases inventory management costs by 25-35%, leading to:

  • Expanded storage requirements
  • More complex tracking systems
  • Higher inventory-carrying costs
  • Additional maintenance requirements

Tool Life Economics:

Different pressure angles create varying patterns of tool wear and replacement needs. A 20° pressure angle tool typically achieves 15-20% less tool life compared to a 14.5° angle due to more aggressive cutting action, affecting costs through:

  • More frequent tool replacement cycles
  • Higher reconditioning expenses
  • Increased production downtime
  • Additional quality verification needs

6. Production Efficiency

The choice of pressure angle directly influences overall production efficiency through its effects on gear size and machining parameters. A 20° pressure angle typically enables a 15-20% reduction in gear size compared to 14.5° for the same power transmission, creating significant opportunities for cost optimization in high-volume production. This relationship between pressure angle and production efficiency becomes particularly crucial when balancing manufacturing costs against production targets.

Pressure angle selection affects production efficiency and related costs in several key areas:

Material Utilization Impact:

Higher pressure angles enable more compact gear designs, significantly affecting material costs and production efficiency. For example, using a 20° pressure angle instead of 14.5° can reduce raw material consumption by up to 25% for the same power rating, leading to:

  • Lower material costs per unit
  • Reduced material handling time
  • Decreased waste generation
  • More efficient use of machine capacity

Production Speed Optimization:

The pressure angle choice directly affects machining speeds and production rates. Higher pressure angles typically allow for 10-15% faster cutting speeds due to improved tool engagement, impacting costs through:

  • Increased parts per hour output
  • Reduced machine runtime per part
  • Lower energy consumption per unit
  • More efficient production scheduling

Manufacturing Batch Economics:

Different pressure angles create varying opportunities for batch size optimization. The relationship between pressure angle and production batch sizes affects manufacturing costs through:

  • Optimized setup-to-runtime ratios
  • Improved machine utilization rates
  • Enhanced production planning flexibility
  • Reduced work-in-progress inventory
plastic pom spur gear, transmission type

7. Heat Treatment Considerations

The pressure angle’s influence extends significantly into heat treatment costs and requirements. A 20° pressure angle gear typically exhibits 10-15% higher tooth strength compared to a 14.5° angle, which directly affects heat treatment parameters and associated costs. This relationship between pressure angle and heat treatment becomes crucial when optimizing both manufacturing expenses and final gear performance.

Pressure angle selection impacts heat treatment processes and costs in several ways:

Treatment Process Requirements:

The pressure angle directly influences heat treatment specifications and intensity needed. Higher pressure angles often allow for less intensive heat treatment due to better load distribution, affecting costs through:

  • Modified temperature requirements
  • Adjusted treatment duration needs
  • Different quenching specifications
  • Varied tempering parameters

Equipment Utilization Impact:

Different pressure angles create varying demands on heat treatment equipment. For example, processing 20° pressure angle gears typically requires 15-20% less treatment time than 14.5° angles, affecting manufacturing costs through:

  • Improved furnace loading efficiency
  • Reduced energy consumption
  • Lower processing time per batch
  • Better equipment utilization rates

Quality Verification Needs:

Pressure angle choice influences post-heat treatment quality control requirements. The relationship between pressure angle and heat treatment verification affects costs through:

  • Specific hardness testing protocols
  • Dimensional stability checks
  • Microstructure analysis needs
  • Surface finish verification requirements
nylon supur gear, machining type.

8. Quality Control

The pressure angle’s final impact on manufacturing costs manifests in quality control requirements. Higher pressure angles, particularly 20° compared to 14.5°, demand measurement accuracies that are typically 30-40% more precise. This increased precision requirement stems from the steeper tooth profiles and their effect on gear performance, directly influencing inspection costs and quality assurance expenses.

Pressure angle selection creates specific quality control demands that affect manufacturing costs:

Measurement Equipment Requirements:

The pressure angle directly determines the sophistication of measuring equipment needed. Higher pressure angles typically require more advanced measurement systems, impacting costs through:

  • Higher precision equipment investments
  • More frequent calibration needs
  • Additional maintenance requirements
  • Specialized operator training needs

Inspection Process Complexity:

Different pressure angles create varying inspection challenges. For example, a 20° pressure angle requires approximately 25% more inspection points compared to a 14.5° angle, affecting costs through:

  • Extended inspection time per gear
  • More complex measurement procedures
  • Additional data analysis requirements
  • Increased documentation needs

Quality Documentation Demands:

The pressure angle choice influences the extent of quality documentation required. Higher pressure angles typically demand more comprehensive quality records, impacting costs through:

  • More detailed inspection reports
  • Enhanced traceability requirements
  • Additional certification needs
  • Increased data storage demands

Conclusion

Understanding how pressure angle affects manufacturing costs enables informed decision-making in gear production. While higher pressure angles like 20° may require more precise machining and quality control, they often offer opportunities for cost optimization through reduced material usage, improved production efficiency, and potentially simplified heat treatment processes.

The key lies in balancing these factors against specific application requirements and production volumes to achieve optimal manufacturing costs

Frequently Asked Questions

Pressure angle significantly impacts tool life through cutting forces and material removal rates. Higher pressure angles (20°) typically reduce tool life by 15-20% compared to lower angles (14.5°) due to more aggressive cutting action and deeper material removal. However, this can be offset by faster production rates and improved gear performance.

Pressure angle directly influences material selection through its effect on tooth strength and stress distribution. Higher pressure angles typically allow for:

  • Use of standard material grades due to better load distribution
  • Smaller gear sizes requiring less raw material
  • More flexible material options due to improved tooth strength
  • Potentially lower-grade materials for same performance requirements

Yes, changing the pressure angle can reduce overall manufacturing costs, particularly when switching from non-standard to standard angles (like 20°). The cost reduction comes from multiple factors: readily available tooling, optimized material usage, faster production rates, and standardized quality control procedures. However, this must be balanced against application requirements.

Higher pressure angles require more stringent quality control measures. Key challenges include:

  • More precise measurement requirements (typically ±0.0005″ for 20° vs ±0.001″ for 14.5°)
  • Additional inspection points for tooth profile verification
  • More sophisticated measuring equipment needs
  • Increased inspection time per gear

 Yes, non-standard pressure angles come with several hidden costs:

  • 30-40% higher tooling costs due to custom cutting tool requirements
  • Extended lead times for specialized tool procurement
  • Increased inventory carrying costs for specialized tooling
  • Additional setup time and operator training needs
  • More complex quality control procedures
  • Higher spare parts inventory requirements

The 20° pressure angle is typically most cost-effective for general gear manufacturing. It offers a good balance between manufacturing efficiency and tooling availability. This standard angle benefits from readily available cutting tools, established machining parameters, and optimized material usage, leading to lower overall production costs compared to non-standard angles.
