Progressive Stamping Die Basics
Sheet Metal stamping is an efficient metal sheet that yields multiple flat blanks quickly and accurately. Achieving this goal is possible when using tooling by mechanical presses, which consists of numerous stations performing various operations on the raw material sheet as it goes through the die stations.
It progresses as each station completes its task, producing a finished part with dimensional stability
– all in just one press stroke during the die-stamping process!
Progressive vs. compound dies
Progressive and compound die are both used in sheet metal stamping. However, they vary significantly. A compound die comprises a single station that completes multiple processes on the sheet metal to create a finished part.
In contrast, progressive tool and die contain several stations, each carrying out an individual task; then, the press advances the steel strip through these stations.
Compared to progressive ones, which are more suitable for making complex geometries with multiple operations, compound dies can only produce a blank in one stroke.

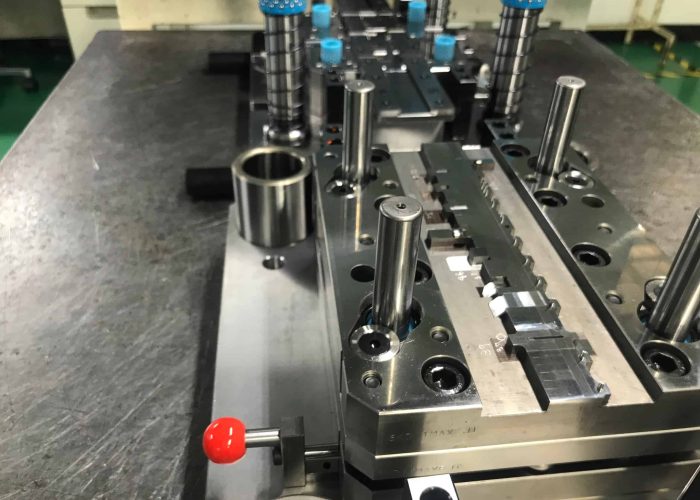

Components of a progressive die
A progressive die is made up of several elements, including punches, strippers, and guide pins, which enable the die to fulfill its function. The mold base is the main body containing individual stations for operations conducted on the processed sheet.
Meanwhile, punches cut and shape the flat material while strippers strip it from its respective punch–all guided along by precise guide pins ensuring natural progression through the stamping process.
Materials used in progressive dies
Progressive dies are versatile and can be used with various sheets, such as ferrous metal and non-ferrous. The type of sheet best suited to your part depends on its specific specifications; standard options include
- Brass.
- Steel.
- Stainless steel.
- Aluminum.
- Copper
How to Make a Progressive Die
With progressive stamping, intricate metal components can be produced in bulk using a specialized die. This process is reliable and efficient by leveraging an automated press that moves the sheet through each station for precise operations on the metal.
Role of tool and die makers
Tool and die makers are essential to developing progressive dies, being responsible for designing and fabricating the tooling necessary for stamping that must meet precise specifications. This role entails creating intricate designs, selecting suitable materials, and utilizing specialized machinery to generate the tools.
How progressive tooling is made
The process of making a tool and die involves several steps, including:
Designing the die: Putting together a comprehensive plan, such as the number of stations necessary, where they should be placed, what sizes and shapes those punches and dies need to be, and which materials are best suited for your job, can all play an essential role in creating this design.
Manufacturing the die blocks: Constructed from the highest grade of tool steel, the die block is a machined wonder that adheres to precision measurements – it being where individual stations go.
Adding the punches and dies: At each station, punches and dies are added to the die blocks to execute the necessary operations on the sheet.
Adding the guide pins and strippers: To guarantee precise positioning and progression of the sheet through the mold, guide pins and strippers attach to the die blocks.
Assembling and testing the mold: After all the pieces come together, the stamping die is carefully constructed and tested to guarantee that it can manufacture parts meeting stringent standards.
Stamping Die Materials
A successful design depends on selecting appropriate materials, such as high-quality tool steel, carbide, and hardened steel – which all possess excellent mechanical properties, including hardness, toughness, and wear resistance. This is why these materials are ideally suited for stamping operations.
Creating a high-quality component through this process requires immense expertise and various specialized steps; when manufacturers invest in proper tools and quality supplies, they can ensure cost-effectiveness while still producing parts that meet their strict requirements.
Types of Die Design
Ensuring the right die design is essential for producing precise metal parts – and luckily, there are numerous choices you can pick from. Here are a few of them:
Single-stage and multi-stage die
Single station tools/dies are perfect for components manufactured with one action. This die type includes a single station which means only one die that performs the desired operation on the metal sheet by the hydraulic press at one stroke.
On the other hand, multi-stage dies are best suited to complex parts requiring several steps. These consist of various stations, each fulfilling an individual task as it passes through consecutively until completion.
Progressive and transfer systems
Though they serve different purposes, progressive and transfer dies to do the same ideal for metal stamping.
While progressive dies contain various stations which perform particular operations on the sheet of metal as it moves through the die, transfer dies to utilize progressive or transfer systems to move that sheet from station to station.
This type of process is suitable for more significant parts requiring additional force or having intricate shapes.
Forming and cutting dies
Forming dies and cutting dies are used to create a variety of formed parts in the cutting operation. While forming dies generates components with intricate shapes or curves, cutting dies produces parts with sharp exterior edges or angles.
Moreover, these die types are applicable in single-stage and multi-stage processes and progressive AND transport systems for maximum efficiency.
When to Use Progressive Dies
When selecting the appropriate machinery for a project, multiple considerations must be considered, such as the size and complexity of the part to produce, critical dimensions, production quantity needed, resources available, and even the type of metal sheet required.
Moreover, there are additional factors to consider, like tooling cost and time frame to complete delivery. Therefore, evaluating all these components before opting for progressive dies is essential.
Applications of progressive die stamping
Progressive die stamping is ideal for manufacturing intricate items with stringent specifications, such as gears, brackets, and connectors.
This technique applies across various industries that involve automotive parts, consumer goods fabrication, electronic components production, and aerospace component assembly.
Advantages of progressive die stamping
Progressive die presents a variety of benefits over other processes for crafting metal components, such as:
1.Cost-effective production
A progressive die is a highly cost-efficient way of producing custom parts in bulk. Automating the entire process and utilizing specially designed tools will reduce labor costs significantly, minimize material waste, and increase production speed, resulting in lower overall costs.
2.Efficient use of materials and resources
The progressive die is highly resourceful and efficient. Not only does the automated process minimize material waste, but it also helps save energy and resources since multiple parts can be produced with just one press stroke. It is a highly effective way to manage production costs in an eco-friendly manner!
3.High accuracy and tight tolerances
The progressive die is a precise and efficient way to manufacture metal parts with strict accuracy and tight tolerances. Each operation station within the die was meticulously planned to ensure that each piece produced met the requirements.
4.Versatility and flexibility in part production
A progressive die is a superbly versatile solution for part production. With the technology to make multiple parts at once, you can expand your production capabilities and create an array of intricate components with varying shapes, sizes, and geometries in one press stroke!
Factors Affecting Progressive Die Design
The design of progressive dies is critical in producing high-quality custom parts.
Several factors can affect the design and performance of progressive dies, including:
- properties of the materials involved
- creation of the die blocks and toolings
- sheet metal forming sections
- checking fixtures and quality control.
Material properties and characteristics
Progressive dies profoundly affect the qualities and characteristics of their raw materials. It’s essential to consider the strength, flexibility, toughness, thickness, and smooth surface finish when deciding on a material for use in these dies. These features affect everything from punch and die performance to cutting precision and part quality.
Die block and tool design
The die block design and tooling are crucial in shaping the progressive die’s effectiveness.
Factors to station quantity & placement, punch & die shape/size, and material choice.
This selection of components will impact precision regarding cutting or forming operations, production speed & efficiency overall.
Sheet metal forming sections
A progressive die’s tool design and performance depend highly on its sheet metal forming sections. These components require careful consideration when designing, such as their shape, size, and positioning of guide pins, strippers, and punches.
An accurate formation will lead to high-quality parts in the end product; otherwise, it could result in errors that negatively impact the outcome.
Checking fixtures and quality control
Ensuring the accuracy and precision of your finished parts is paramount. That’s why progressive die design must incorporate checking fixtures for specific part measurements and quality control measures to identify and rectify any flaws in production.
With these safeguards, you can trust that your end products are up to standard and will always meet customer expectations!
Progressive die stamping Cons and limitations
CONS
Progressive die stamping provides numerous advantages over other metal fabrication processes. However, it is essential to remember that there are specific challenges one must be aware of. Such issues may include the stamping process’s complexity and potential problems that can emerge during production.
Limitations and challenges
Progressive die stamping presents a unique challenge in demanding setup and dies adjustment for every new part.
This can prove burdensome to manufacturers who require multiple features or frequent changes and those dealing with limited quantities.
The necessity of skillful operators further adds expenses, such as additional training or hiring costs.
Common problems and their solutions
Material distortion, inconsistent tolerances, and tooling wear can mar progressive die stamping. However, these issues can be addressed with thoughtful design of the dies, regular quality control evaluations, and precise adjustments when necessary.
For example, if you notice some material distortion during your production process, it could mean that the feed rate or pressure needs to get calibrated; likewise, for any discrepancies in tolerances – look into adjusting the positions or alignment between punches and the die itself.
Simultaneously, you can reduce tooling wear by consistently performing maintenance and replacing deteriorated components.
Comparison with other stamping methods
Progressive die stamping has immense advantages over other fabrication approaches. However, it is only sometimes the most suitable choice for all projects.
For instance, if you require a much higher external force to form the part or need intricate geometries created, transfer stamping could be better suited; conversely, single-stage stamping may be preferable when dealing with simpler parts produced in one cycle.
After assessing the requirements of the part being produced and accessible resources and equipment, you can determine whether progressive die stamping suits your manufacturing needs. By meticulously analyzing different methods’ potential merits and shortcomings, producers are guaranteed to make an educated decision that will serve their production purposes in the long run.
Conclusion
As we look ahead, expect to die design advancements to continue to increase process efficiency, dependability, and accuracy. With the emergence of innovative materials and technologies, manufacturers must be able to adjust their die designs accordingly to meet production needs and modern demand.
To sum up, the usefulness of progressive die design cannot be overstated. Manufacturers can guarantee they use the most efficient and cost-effective methods for producing top-notch metal parts by carefully evaluating their production requirements.
Whether for aerospace components or consumer goods manufacturing purposes – progressive die stamping plays a crucial role in contemporary production processes.
Frequently Asked Questions
Deep drawing is a metalworking process that produces parts with deep or complex geometries. It involves stretching a flat sheet over a blank holder and drawing it into a die cavity using a punch.
A stroke refers to the punch or die movement as it cuts or forms the sheet metal. Each stroke produces a specific shape or feature in the finished part.
It’s a metalworking process used to produce high volumes of custom parts efficiently and cost-effectively. It involves a series of punches and dies that work together to progressively cut and form a sheet as it progresses through the die stations.
Hand transfer dies are used to transfer the blank sheet from one stage to the next in stamping. They are typically used for larger parts or when a transport system is unavailable.
The dies and punches are arranged in a series of stations, each performing a specific cutting or forming operation. The metal sheet progresses through the stations in a specific order, with the dies and punches along the way.
The engineering department is responsible for designing and developing the progressive die stamping process, including the tooling and equipment needed to produce the finished parts.
The blank holder is a die component that holds the metal sheet in place as it is formed into the finished part. It helps prevent the sheet from wrinkling or tearing during stamping.
A transport system is a mechanical system that moves the metal sheet from one station to the next in the progressive die-stamping process. It can be used to increase production speed and efficiency.
What is the difference between a single machine and a larger group in progressive die stamping? A10. In a single-machine setup, the progressive die stamping process is performed on a single machine. In a larger group setup, multiple machines produce the finished parts simultaneously, increasing production efficiency and speed.
