Sheet metal bending failures start in the design phase, not the press brake. A poorly positioned hole or undersized bend relief creates cracked material, distorted features, and costly redesigns. With decades of experience manufacturing precision components for aerospace, audio, and medical sectors, small design decisions create massive downstream problems.
Design sheet metal parts for reliable bending by following four core rules: use minimum bend radius equal to material thickness, place holes at least 2.5× thickness from bend lines, add bend relief when bends intersect edges, and sequence bends in the same plane when possible. These geometric constraints prevent cracking, distortion, and manufacturing delays.
Learn the exact clearances, ratios, and specifications that ensure your sheet metal designs bend cleanly every time—plus troubleshooting strategies for when manufacturing issues arise.
Table of Contents
How Does Material Thickness Affect My Minimum Bend Radius?
Minimum bend radius equals material thickness for aluminum (1t rule) and 1.5× thickness for stainless steel to prevent cracking. Use this bend radius chart: 1mm aluminum = 1mm radius, 2mm aluminum = 2mm radius, while 1mm stainless steel = 1.5mm radius, 2mm stainless = 3mm radius.
Material Thickness to Minimum Bend Radius Chart
Material Thickness Minimum Radius Safety Margin Standard Tooling
6061-T6 Aluminum 0.5mm 0.5mm (1t) 0.6mm (1.2t) ✓ Available
6061-T6 Aluminum 1.0mm 1.0mm (1t) 1.2mm (1.2t) ✓ Available
6061-T6 Aluminum 3.0mm 3.0mm (1t) 3.6mm (1.2t) ✓ Available
304 Stainless 0.5mm 0.8mm (1.5t) 1.0mm (2t) ✓ Available
304 Stainless 1.0mm 1.5mm (1.5t) 2.0mm (2t) ✓ Available
304 Stainless 3.0mm 4.5mm (1.5t) 6.0mm (2t) Custom Required
316 Stainless 1.0mm 2.0mm (2t) 2.5mm (2.5t) ✓ Available
5052-H32 Aluminum 1.0mm 1.2mm (1.2t) 1.5mm (1.5t) ✓ Available
Cracking threshold data: Critical applications require 20% safety margins above minimum radius. Medical devices and aerospace components use the safety margin column to prevent stress concentration failures. Parts experiencing dynamic loads or temperature cycling need 2t minimum regardless of material to avoid fatigue cracking over service life.
Standard vs custom tooling breakpoints: Materials up to 4mm aluminum and 3mm stainless use standard press brake tooling. Beyond these limits, custom punch and die sets add $800-2000 to project costs and 2-3 weeks lead time.
Alternative solutions decision guide: When design requires radius smaller than material limits, consider these options:
- Radius ≤ 0.5t: Use coined edges or roll forming ($1200-3000 tooling)
- Complex curves: Hydroforming for smooth transitions ($2000-5000 tooling)
- High-volume production: Progressive dies eliminate multiple setups ($5000-15000 tooling)
- Cost comparison: Bending with 1t radius = standard cost; formed features = 40-60% cost premium but eliminate spring-back issues
Material grade comparison shows 6061-T6 handles 1t radius while 5052-H32 needs 1.2t due to work hardening. Similarly, 316 stainless requires 2t where 304 manages 1.5t because of different chromium content affecting ductility.
Design Takeaway: Reference the chart above during design phase. Use safety margin column for critical applications. When radius requirements exceed material capabilities, evaluate formed features early—tooling costs are offset by eliminating secondary operations and achieving tighter tolerances.
How Close Can I Place Holes or Slots to a Bend Line?
Place holes at least 2.5× material thickness from bend lines to prevent distortion, while slots require 4× thickness minimum clearance. For 1mm aluminum, holes need 2.5mm clearance and slots need 4mm clearance from the bend centerline to maintain dimensional accuracy and prevent edge cracking during forming.
Quick clearance reference:
- 0.5mm material: 1.25mm hole clearance
- 1mm material: 2.5mm hole clearance
- 2mm material: 5mm hole clearance
- Large holes (>10mm diameter): Add 1mm extra clearance
Setting up automatic clearance checks prevents design errors early. In SolidWorks, create design rules under Tools > Design Checker to flag holes within 2.5t of bend lines. In Fusion 360, use Parameters to define “MinHoleDistance = Thickness × 2.5” and apply constraints to hole placement for automatic warnings.
Repair strategies when clearance rules are violated:
- Move hole location 1-2mm beyond minimum clearance zone
- Convert round holes to slots oriented parallel to bend lines
- Redesign bend sequence to move problematic bend to different edge
- Split complex parts into multiple components where clearance cannot be achieved
Hole timing cost comparison:
- Pre-punch (>3mm from bend): Standard cost, faster production
- Post-bend (<2.5t from bend): 20-30% cost premium, prevents distortion
- Progressive dies (>1000 pieces): Combines operations, most cost-effective
Slots require different considerations than round holes due to their sharp ends that concentrate stress during bending. Slots need 4t minimum clearance versus 2.5t for round holes. Slots oriented parallel to bend lines handle closer placement than perpendicular slots, while elongated slots with ratios exceeding 3:1 need additional clearance.
Design Takeaway: Use 2.5t clearance for round holes, 4t for slots, set up CAD rules to catch violations early, and choose pre-punch timing whenever clearance allows to minimize cost and maintain quality.
How Do I Design Bend Relief to Prevent Tearing at Corners?
Design bend relief with width equal to material thickness and length exceeding bend radius by 1.5× to prevent tearing at corners. For 1mm material with 2mm bend radius, use 1mm relief width × 3mm relief length. Relief prevents material splitting when bends intersect edges or other features.
Relief sizing calculator:
- Relief width: Always equals material thickness (1mm material = 1mm width)
- Relief length: 2.5× material thickness minimum
- 0.5mm material: 0.5mm width × 1.25mm length
- 1mm material: 1mm width × 2.5mm length
- 2mm material: 2mm width × 5mm length
Relief style selection guide:
- Rectangular: Non-critical applications, materials ≤1mm thick, easiest to machine
- Round: Better stress distribution, 1-2mm thickness, moderate loads
- Teardrop: Optimal performance, materials >2mm, high-stress applications
Relief design affects part strength in predictable ways. Rectangular relief reduces local strength by 15-20% compared to solid material, while round relief reduces strength by 8-12%. Teardrop relief maintains 95% of original strength while providing excellent tear resistance. Avoid oversized relief exceeding 2t width as this reduces section modulus by 30-40%.
Parts without proper relief develop characteristic 45-degree tears extending from bend lines to edges during forming or service. These create sharp stress concentrations that propagate under load, leading to catastrophic failure in critical applications. Properly relieved parts bend cleanly with no edge distortion.
Multiple bend intersection strategies:
- Adjacent bends: Place relief at intersection corner, extend beyond both bend radii
- Perpendicular bends: Use teardrop relief oriented toward primary stress direction
- Complex geometries: Progressive relief sizing—larger for primary, smaller for secondary bends
- High-stress applications: Model with FEA to optimize relief placement and sizing
Design Takeaway: Calculate relief dimensions using material thickness as baseline, choose rectangular for simple applications and teardrop for critical parts, and verify relief placement covers all bend intersections to prevent tearing.
Which Bend Orientations Will Minimize Setup Time and Cost?
Keep all bends in the same plane and direction whenever possible to minimize press brake setups and reduce manufacturing costs by 30-50%. Parts requiring multiple orientations need repositioning between bends, adding setup time, fixturing complexity, and potential alignment errors that increase scrap rates.
Bend sequence decision tree:
- All bends same direction: Standard cost, 3-5 day lead time
- Two opposing directions: +25% cost, +1-2 days lead time
- Three+ orientations: +40-60% cost, +3-5 days lead time
- Complex sequences requiring fixtures: +100% cost, +1-2 weeks lead time
Design parts so all bends occur from the same side using consistent bend directions. This allows complete forming in a single setup with standard tooling. When opposing bends are unavoidable, group them strategically—complete all bends from one direction first, then flip the part once for remaining bends.
Tool accessibility planning:
- Primary bends first: Start with structural bends that define part shape
- Secondary features last: Add flanges and tabs after main geometry is established
- Clearance verification: Ensure ram and back gauge reach all bend lines
- Flange height limits: Keep formed features under 50mm to avoid tool interference

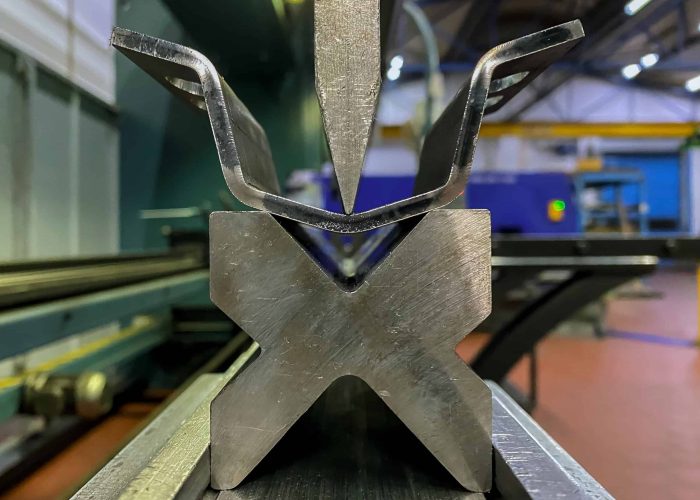

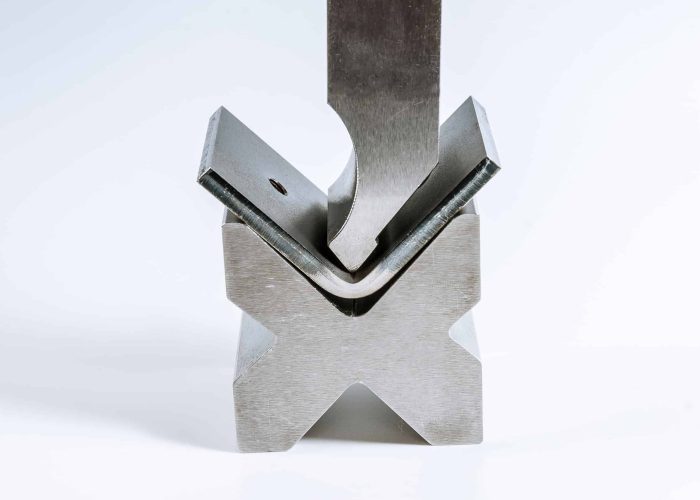

Press brake tooling access determines manufacturing feasibility. Deep flanges or tall features can block access to subsequent bend lines, forcing expensive custom tooling or secondary operations. Design so the tallest features form last, maintaining clear tool access throughout the sequence.
High-volume alternatives:
- Progressive stamping (>5,000 pieces annually): $5,000-15,000 tooling, eliminates all setups
- Transfer dies (1,000-5,000 pieces): $2,000-8,000 tooling, reduced setup time
- Compound dies (>500 pieces): $1,500-5,000 tooling, combines multiple operations
For prototype and low-volume work, accept multiple setups rather than investing in complex tooling. The break-even point for custom fixturing typically occurs around 100-200 pieces, depending on part complexity and required precision.
Design Takeaway: Plan bend sequences during initial design to keep orientations consistent, design tallest features to form last, and evaluate progressive tooling for volumes exceeding 1,000 pieces annually to eliminate setup costs entirely.
How Do I Account for Springback in Different Materials?
Compensate for springback by overbending 2-5 degrees beyond the target angle, with exact compensation varying by material type and bend angle. Use these starting values: aluminum 1-2 degrees, 304 stainless 4-5 degrees, 316 stainless 5-6 degrees, with verification through test bends for critical applications.
Immediate compensation reference:
- 6061-T6 Aluminum 90° bend: Overbend to 91-92°
- 304 Stainless 90° bend: Overbend to 94-95°
- 316 Stainless 90° bend: Overbend to 95-96°
- Mild Steel 90° bend: Overbend to 90.5-91°
- Acute angles (<90°): Add 0.5-1° extra compensation
- Obtuse angles (>90°): Reduce compensation by 0.5°
Springback increases with material yield strength and decreases with forming radius. Tighter bends approaching minimum radius show less springback due to work hardening, while large-radius bends exhibit maximum springback effects. Thicker materials generally show more springback than thin materials of the same alloy.
Test bend procedure for critical angles:
- Form three sample bends using target compensation angle
- Measure actual angle with digital protractor (±0.1° accuracy)
- Calculate average springback from the three samples
- Adjust press brake programming based on measured results
- Document compensation values for future identical parts
Modern CNC press brakes include material libraries with springback compensation, but these represent average values that may not match your specific material lot or forming conditions. Always verify compensation through test bends when angle tolerances are tighter than ±1°.
Production control methods:
- First piece inspection: Measure initial production part before continuing
- Periodic checks: Verify angles every 25-50 pieces during long runs
- Material certification: Request springback data from material supplier
- Statistical tracking: Monitor angle variation to detect tool wear or material changes
Temperature affects springback behavior—cold material at room temperature produces predictable results, while material heated during transport or storage may show different springback characteristics until it returns to ambient temperature.
What Bend Angle Tolerances Can I Realistically Expect?
Standard bend angle tolerance is ±1° for most sheet metal applications, with ±0.5° achievable for critical features using proper tooling and process control. Tighter tolerances require additional setup time, inspection procedures, and may increase costs by 25-40% due to slower forming speeds and enhanced quality control requirements.
Tolerance achievability matrix:
- 0.5-1.5mm thickness: ±0.5° with air bending, standard tooling
- 1.5-3mm thickness: ±1° standard, ±0.5° with bottoming dies
- 3-6mm thickness: ±1° standard, ±0.5° requires precision tooling
- >6mm thickness: ±1.5° typical, ±1° with custom tooling
Inspection method selection:
- ±2° or looser: Digital protractor sufficient (±0.1° accuracy)
- ±1°: Optical comparator or precision angle gauge required
- ±0.5°: CMM with touch probe necessary (±0.01° capability)
- ±0.25°: Specialized angle measurement fixtures required
Drawing specification guidelines: Use “BEND ANGLE 90° ±1° TYP” for non-critical bends. Specify tight tolerances only where function requires it: “BEND ANGLE 90° ±0.5°” with geometric dimensioning and tolerancing symbols when applicable. Always include bend radius callouts with angle tolerances since radius affects angle repeatability.
When ±0.5° tolerance is justified: Critical assembly interfaces where parts must mate precisely, optical reflector positioning requiring exact angles, mechanical linkages with angular motion requirements, or architectural applications with visible seam alignment needs.
When ±0.5° is unnecessary cost addition: Mounting flanges, stiffening ribs, general brackets, internal supports, non-visible structural elements, or assemblies with clearance allowances exceeding 1mm.
Process capability limits in production: Modern CNC press brakes achieve ±0.5° repeatability on appropriate parts with skilled operators. Older hydraulic equipment typically holds ±1° consistently. Acute angles below 30° may show ±1.5° variation due to material springback unpredictability. Very obtuse angles above 150° challenge standard tooling geometry.
Design Takeaway: Specify ±1° for standard applications to allow cost-effective manufacturing, reserve ±0.5° only for functional requirements, and include complete angle and radius callouts on drawings to ensure consistent results.
How Do I Prevent Warping in Parts with Multiple Bends?
Prevent warping by planning bend sequences to balance internal stresses and using support fixtures for parts with length-to-width ratios exceeding 4:1. Start with the primary structural bend and work symmetrically outward, completing opposing bends in alternating sequence to maintain stress equilibrium.
Warping risk assessment by geometry:
- High risk: Aspect ratio >4:1, thin gauge (<1.2mm), 4+ bends
- Medium risk: Aspect ratio 2-4:1, asymmetric bend patterns
- Low risk: Square proportions, thick gauge (>2mm), simple patterns
- Critical risk: Large unsupported flat areas between widely spaced bends
Bend sequence strategy for warping prevention: Identify the longest, most structural bend that defines primary part geometry—this becomes your first bend. For symmetrical parts, alternate between left and right features to balance stress buildup. Complete all same-direction bends before part repositioning to minimize accumulated distortion.
Fixture requirements and design: Parts exceeding 300mm length need support fixtures to prevent sagging during forming. Thin materials below 1.2mm thickness require backing support to prevent oil-canning. Create simple angle supports or custom-formed brackets that hold completed features while additional bends are formed. Avoid over-constraining—fixtures should support, not restrict natural material movement.
Stress relief techniques for distorted parts: Thermal stress relief at 260-320°C for aluminum or 400-500°C for stainless steel reduces locked-in forming stresses. Mechanical stress relief involves controlled flexing or light stretching to release internal tension. Localized flame heating can relieve specific stress concentrations but requires careful temperature control to avoid metallurgical changes.
Geometry redesign to eliminate warping tendency: Replace long flat panels with ribbed sections that provide inherent stiffness without weight penalty. Add shallow formed features or embossed areas to break up large flat surfaces. Consider modular designs where warp-prone sections become separate components joined after individual forming operations.
Design Takeaway: Evaluate warping risk using part proportions and bend complexity, plan symmetric forming sequences that balance internal forces, and modify geometry rather than rely on fixtures when aspect ratios exceed 5:1 for best results.
Conclusion
Tolerances tighter than ±0.5° and complex multi-bend sequences often increase costs without improving functionality. Focus bend relief design and sequence planning on preventing failures rather than over-specifying precision. Smart geometry choices eliminate most warping and tolerance issues during the design phase.
Contact us to explore sheet metal manufacturing solutions tailored to your product requirements.
Frequently Asked Questions
Keep all bends in the same direction to eliminate setups, use standard bend radii (1t for aluminum, 1.5t for stainless), and specify ±1° tolerances unless tighter fit is functionally required. These three changes typically reduce costs by 20-30%.
Parts requiring multiple orientations, custom bend radii smaller than 1t, tolerances tighter than ±0.5°, or complex relief patterns increase costs significantly. Ask suppliers for DFM feedback during the design phase to identify cost drivers early.
Ask about maximum material thickness, tightest bend radius they can hold, standard tolerance capabilities (±1° vs ±0.5°), and whether they offer design review services. Request examples of similar complexity parts they’ve produced successfully.
Design for production volumes from the start. Features that work for prototypes (tight radii, multiple orientations) often become cost prohibitive in production. Planning for progressive tooling saves redesign later if volumes exceed 5,000 pieces annually.
For most assemblies, ±1° provides adequate fit with clearance holes or slots. Use ±0.5° only when parts mate directly without fasteners or when visual alignment is critical. Tighter tolerances increase costs by 25-40% without improving most assemblies.
Provide 3D CAD files with bend lines clearly marked, material specifications, required tolerances, anticipated volumes, and delivery timeline. Include assembly context if fit relationships are critical—this helps suppliers optimize your design for cost and quality.
