Designing for CNC machining isn’t just about geometry — it’s about minimizing cost without compromising precision. With extensive experience manufacturing slotted components for aerospace, audio, and medical sectors, small design adjustments dramatically improve both machinability and budget performance.
Most slot designs fail due to unrealistic width-to-depth ratios, wrong material choices, or ignoring standard tool limitations. Successful slot machining requires evaluating geometry constraints, tool access, and material behavior before finalizing designs.
Learn how to assess slot feasibility, balance cost and precision, and explore alternatives—backed by real CNC examples and optimization strategies.
Table of Contents

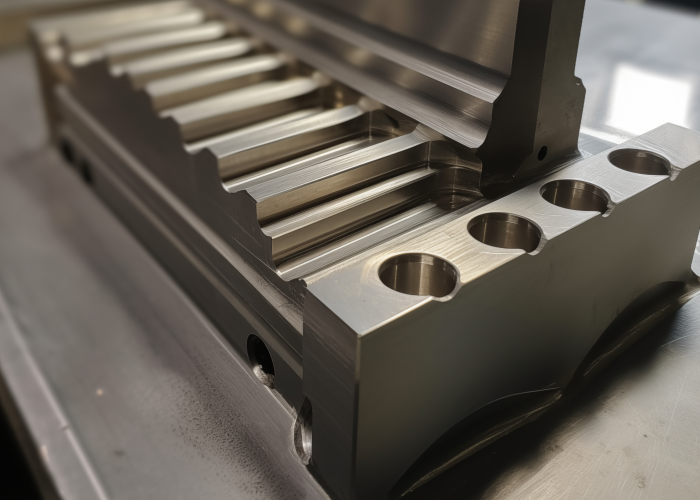

How Can Slot Features Be Made More Affordable to Machine?
Standard end mill sizes (1/8″, 1/4″, 3/8″) and 3:1 depth-to-width ratios prevent 40-60% cost increases from custom tooling. Closed-end slots and multi-setup orientations add 25-100% to machining time compared to through-slots accessible from one fixture position.
From machining thousands of slotted audio faceplates and medical housings, we consistently see cost spikes when designers specify 3.2mm slots instead of standard 3.175mm (1/8″). The custom end mill requirement alone adds $200-400 to prototype runs. Similarly, aerospace brackets with closed-end slots require corner-clearing operations that double cycle time versus open-ended geometry.
Cost multiplies quickly when tolerance specifications exceed what’s functionally necessary. Most slot applications work perfectly with ISO 2768-m general tolerances, which allow standard inspection methods and keep quality control straightforward. When designers over-specify to ±0.01mm without functional justification, inspection costs increase 25-40% due to CMM requirements and specialized slot gauging.
Design Takeaway: Always check standard end mill sizes first: 1/8″ (3.175mm), 1/4″ (6.35mm), 3/8″ (9.525mm). If your design falls between these, widen to the next standard size unless function absolutely prevents it.
What Tolerances Should Be Set for Slot Width and Depth?
Match tolerance to slot function: ±0.02mm for alignment/sliding fits, ±0.05mm for secure positioning, ±0.1mm (ISO 2768-m) for clearance access. Choosing the wrong tolerance either causes assembly problems or adds unnecessary machining cost.
Quick Function-Based Tolerance Guide:
- Alignment slots (PCB guides, locating features): ±0.02mm – prevents wobble, ensures repeatability
- Sliding fits (covers, actuators): ±0.02mm + surface finish Ra ≤1.6μm for smooth operation
- Secure positioning (mounting tabs): ±0.05mm – good fit without binding
- Clearance access (cable routing, tool access): ±0.1mm – standard tolerance, lowest cost
From producing medical device enclosures, we’ve seen ±0.02mm alignment slots work perfectly for PCB positioning, while the same tolerance on cable clearance slots added 40% to machining cost with zero functional benefit. Audio faceplate switch slots need ±0.02mm to prevent actuator binding, but nearby ventilation slots work fine at ±0.1mm.
Cost vs Function Reality Check: Standard ±0.1mm tolerances use pin gauges and add no inspection cost. Tightening to ±0.05mm requires careful measurement but uses standard tools. Specifying ±0.02mm demands CMM verification and increases quality control time by 25-40%.
Design Takeaway: Ask yourself: “Does this slot need to fit tightly or just provide access?” If it’s alignment or sliding fit, specify ±0.02mm. If it’s clearance or access, stick with ±0.1mm and save the money for features that actually matter.
Will Coating Thickness Affect Slot Dimensions?
Yes – anodizing adds 12-25μm per surface, powder coating adds 50-100μm, and plating can add 5-50μm depending on specification. For tight-fitting assemblies, these coating buildups can completely eliminate clearances or prevent proper mating part insertion.
In bracket assemblies, we’ve seen anodized slots shrink from 6.35mm to 6.30mm, preventing fastener hardware from fitting properly. The solution required opening slot dimensions by 0.05mm before anodizing to maintain final assembly clearances. Similarly, industrial enclosure slots for sliding panels need 0.1-0.15mm additional clearance when powder coating is specified to prevent binding during operation.
Coating penetration into narrow slots can be incomplete or create thickness variations. Anodizing typically reaches full depth in slots wider than 3mm, but narrow slots may have thinner coating at the bottom. Powder coating struggles with slots narrower than 5mm or deeper than 10mm, often requiring masking or post-coating machining to maintain dimensional accuracy.
For applications requiring electrical conductivity through slot contacts, anodizing and powder coating create insulating barriers. Parts requiring grounding or electrical continuity need either selective masking or post-coating removal in contact areas.
Design Takeaway: Add coating thickness to your slot width calculations early in design. For anodizing, open slots by 0.05mm; for powder coating, add 0.15-0.20mm clearance to maintain proper fit after finishing.
What Simpler Features Can Achieve the Same Assembly Result?
Press-fit pins, snap tabs, and locating bosses often provide better assembly function at lower cost than machined slots. Before committing to slot geometry, evaluate whether alternative features deliver the same positioning, retention, or alignment with simpler manufacturing per DFM guidelines.
Alternative Feature Decision Matrix:
- For alignment/positioning: Locating pins or dowel holes → easier to machine, better repeatability than slots
- For retention/securing: Snap tabs or cantilever features → eliminate mating hardware, reduce part count
- For sliding assemblies: Captured pins in grooves → smoother operation, less binding than slot-on-slot designs
- For access/routing: Simple cutouts or notches → faster machining, no depth control issues
From redesigning industrial equipment enclosures, switching from T-slots to simple pin-and-groove systems reduced machining time by 60% while improving assembly repeatability. The pins provide positive location without the complex tooling required for T-slot cutting. Similarly, automotive bracket assemblies using snap tabs instead of slotted connections eliminated 8 fasteners per unit and reduced assembly time by 40%.
Multi-Part Assembly Considerations: Sometimes splitting complex slotted features across multiple components makes more sense. A single complex part with intersecting slots might be better designed as two simple parts with basic holes and pins. This approach often reduces both machining complexity and allows different materials for different functions.
Design Takeaway: Ask “What does this slot actually do?” If it’s positioning, consider pins. If it’s retention, consider snaps. If it’s access, consider simple cutouts. Reserve slots only when the specific geometry is functionally required.
Which Materials Give the Cleanest Slot Edges for Applications?
6061-T6 aluminum and brass deliver slot edges that look finished straight from machining, while stainless steel and hardened materials often require additional deburring to achieve professional appearance. Material choice determines whether your slots need post-processing or can go directly to assembly.
Visual Quality Impact by Material:
- 6061-T6 Aluminum: Clean edges, minimal visible tool marks, ready for anodizing without additional prep
- Brass (360/361): Superior visual finish achieving Ra ≤1.6μm, no burr cleanup needed, ideal when slots are customer-facing
- 7075-T6 Aluminum: Good appearance but may show slight machining witness marks on edges

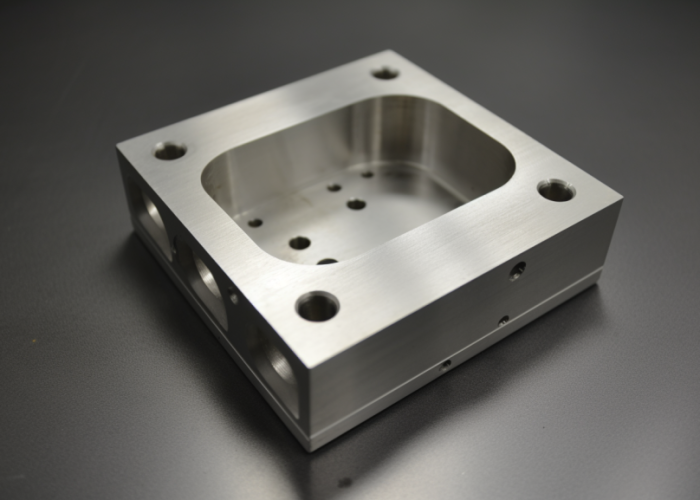

- 304 Stainless Steel: Requires deburring for professional look, edges often appear rough without finishing
Functional Assembly Considerations: Rough slot edges from stainless steel can interfere with sliding assemblies or cause binding in precision fits. We’ve redesigned robotics housing enclosures from stainless to aluminum specifically because slot edge quality affected smooth operation of sensor mounting systems. Instrumentation panels benefit significantly from brass slot edges when control openings are visible – the material produces clean, consistent appearance without secondary operations.
Cost Impact of Edge Quality: Materials requiring deburring add 15-30% to slot finishing time per ISO 9001 quality requirements. For prototype runs, this often means additional hand-work that delays delivery. Production volumes may justify tumbling or other automated deburring, but design-stage material selection can eliminate this entirely.
Design Takeaway: If your slots are visible to end users or require smooth assembly operation, choose 6061-T6 aluminum or brass. Reserve stainless steel for applications where corrosion resistance outweighs the additional finishing requirements.
What Materials Provide Backup Options if Slot Design Doesn't Work?
If your slot design fails, 6061-T6 aluminum and brass allow the easiest modifications to salvage existing parts, while stainless steel and hardened materials typically require complete remakes. Choose materials that give you recovery options when initial designs need adjustments.
Crisis Recovery by Material:
- 6061-T6 Aluminum: Can machine slots wider/deeper, drill relief holes, add features without cracking existing parts
- Brass (360/361): Easy to modify, minimal risk of part damage during rework operations
- Mild Steel (1018): Accepts modifications well, can weld additions if needed
- 304 Stainless Steel: Work-hardens during rework, high risk of part damage, usually requires remake
- 7075-T6 Aluminum: Prone to cracking during modifications, poor rework candidate
Practical Modification Guidelines: Most slots can be safely opened by 0.5-1.0mm in 6061-T6 aluminum using standard end mills, with 80% success rate when done carefully. Beyond 1.0mm widening, risk of part distortion increases significantly. Stainless steel modifications have much lower success rates due to work-hardening, making remake the safer choice than attempting risky rework.
Prevention Strategy for Next Time: During design phases, specify 6061-T6 aluminum for slot-critical prototypes. The material’s forgiving nature lets you incorporate feedback and design improvements without starting over. Once slot geometry is validated through testing, you can switch to production materials with confidence.
Design Takeaway: If you’re developing a new product with complex slots, choose 6061-T6 aluminum for first articles. It gives you the flexibility to fix problems rather than remake parts when design issues surface.
What Alternatives Exist if Slots Can't Be Machined?
Standard hardware solutions often replace complex slot requirements: threaded inserts with captured screws, commercial T-slot extrusions, and off-the-shelf sliding track systems. Before pursuing exotic manufacturing, evaluate whether catalog components solve the assembly problem more affordably.
Immediate Practical Alternatives:
- Commercial T-slot extrusions: 80/20, Item, or similar systems replace custom machined slots
- Threaded inserts + captured hardware: Often stronger and more adjustable than slots
- Off-the-shelf sliding tracks: Drawer slides, linear guides work for sliding assemblies
- Split the design: Two simple parts with basic holes/pins instead of one complex slotted part
Low-Cost Assembly Redesign: Instead of machining expensive T-slots in aluminum plates, consider mounting commercial 80/20 extrusion to your base part. The extrusion provides standard T-slot functionality at fraction of custom machining cost. Similarly, precision linear motion often works better with commercial linear guides than custom machined ways.
When to Change Assembly Methods: If slot machining exceeds 40% of total part cost, step back and reconsider the attachment method entirely. Snap fits, quarter-turn fasteners, or cam levers frequently provide equivalent function with simpler manufacturing. Equipment enclosure designs benefit significantly from this approach – standard fasteners often provide better serviceability than custom slots.
Design Takeaway: Check McMaster-Carr and other suppliers before designing custom slots. Commercial hardware solutions are often cheaper, stronger, and more reliable than one-off machined features. Save custom machining for truly unique requirements.
Conclusion
Slot machinability depends on geometry, material selection, and tolerance specifications – not guesswork. Stick with standard end mill sizes, choose aluminum for design flexibility, and account for coating thickness early. Evaluate simpler alternatives before committing to complex slot features.
Contact us to explore manufacturing solutions tailored to your slot design requirements.
Frequently Asked Questions
No – rotating end mills always leave corner radius equal to half the tool diameter. Sharp internal corners require EDM, laser cutting, or broaching. Design with 0.5-1.0mm corner radius to match standard tooling.
Depth-to-width ratios above 4:1 typically require roughing and finishing passes, increasing cycle time 40-60%. Tool deflection becomes problematic beyond 5:1 ratios, affecting dimensional accuracy and surface finish.
Yes – slots tighter than ±0.05mm often require CMM measurement instead of simple pin gauges, adding 15-25 minutes per part to quality control. Standard tolerances use go/no-go gauges for quick verification.
Maintain at least 2x thread diameter distance from slot edges to prevent thread distortion or breakthrough. Closer spacing often requires thicker material sections or design modifications.
For aluminum and brass, 1.5mm (0.060″) is typically the minimum practical width using carbide end mills. Narrower slots require specialized micro-tooling that increases cost significantly. Steel materials need wider minimums due to higher cutting forces.
3D printing or laser-cut acrylic mockups let you test fit and function before committing to metal machining. This catches design issues early when changes cost dollars instead of hundreds.
