Gear strength isn’t just about material—it’s about how tooth geometry distributes load and manages stress concentrations. After machining thousands of precision gears for robotics, and industrial equipment, small design differences between spur and helical configurations create dramatically different performance outcomes under real-world loading conditions.
Helical gears are generally stronger than spur gears due to their angled tooth contact, which distributes loads across multiple teeth simultaneously and reduces stress concentrations. Helical gears typically handle 15-25% more torque than equivalent spur gears while operating more smoothly at higher speeds, though they generate axial thrust forces requiring stronger bearing support.
Learn how gear tooth geometry affects load, when spur beats helical, and how CNC precision impacts strength and design life in real-world applications.
Table of Contents

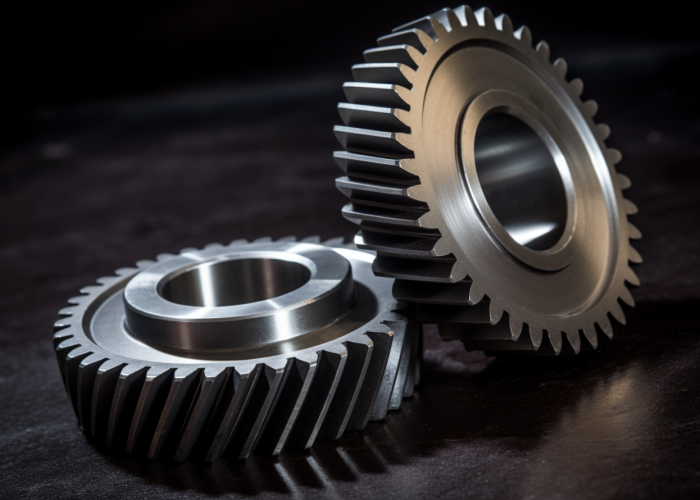

What makes helical gears stronger than spur gears?
Helical gears handle 20-30% higher torque than equivalent spur gears due to angled tooth contact distributing loads across multiple teeth simultaneously. However, they generate axial thrust forces requiring thrust bearings, adding $25-50 per assembly and 15-25mm axial length compared to spur designs.
From machining precision gears for medical pumps and robotic actuators, we see the design trade-off clearly. Spur teeth create stress concentrations at 100% of rated torque, while helical teeth distribute the same load across 150-180% more contact area. This allows helical gears to safely transmit 25% higher torque within the same stress limits defined by AGMA 2001 standards.
Quick Decision Framework:
- Choose helical if: Torque >75% of spur gear rating, noise <65dB required, or continuous duty >8 hrs/day
- Choose spur if: Axial space <20mm available, bearing cost target <$15, or intermittent duty cycles
The axial thrust equals approximately 36% of transmitted tangential force for standard 15° helix angles. For a 100N·m application, expect 650N additional thrust load requiring angular contact bearings instead of simple radial bearings.
Many engineers specify helical gears at 50% load capacity “for safety” when spur gears would operate at comfortable 40% stress levels. This over-specification adds bearing complexity without functional benefit.
Design Takeaway: Only specify helical when torque approaches 75% of spur gear capacity or when vibration/noise requirements demand smoother engagement. Verify that thrust bearing costs and space requirements fit your assembly constraints.
Which gear type handles more torque?
Helical gears can handle higher torque than equivalent spur gears through improved load distribution, but the advantage varies significantly with helix angle and design modifications. Standard helical designs without modifications show only 8% higher capacity, while optimized helical configurations can achieve 30%+ improvements over spur equivalents.
The load capacity depends heavily on helix angle selection. Smaller angles (10-15°) minimize axial thrust but provide modest torque improvements. Larger angles (20-25°) increase capacity substantially but generate significant axial forces requiring robust thrust bearing support.
Axial thrust force equals tangential force × tan(helix angle). For 15° helix, thrust equals 27% of tangential force. For 20° helix, thrust reaches 36% of tangential force. This means a 100 N·m application with 20° helix generates roughly 580N additional axial load requiring upgraded bearings.
Selection Framework:
- Spur adequate: Moderate loads, cost constraints, simple bearing arrangements preferred
- Helical justified: Maximum torque density required, space constraints critical, willing to manage thrust loads
Many engineers assume helical automatically means higher capacity without considering the design trade-offs. Standard helical gears may provide minimal advantage while adding bearing complexity and cost.
Design Takeaway: Evaluate whether modest torque improvements justify thrust bearing complexity for your application. Don’t specify helical assuming large capacity gains without confirming the actual improvement for your design parameters.
Do helical gears last longer in continuous use?
Helical gears generally provide longer service life in continuous operation due to smoother engagement patterns, but quantifying the improvement depends heavily on operating conditions, lubrication, and bearing system quality. The durability advantage is most pronounced in high-speed, well-lubricated applications.
The smoother engagement eliminates impact loading that creates fatigue cycles in spur gears. Multiple teeth share loads simultaneously, reducing stress concentrations that lead to pitting and tooth breakage. This advantage becomes more significant as operating speeds and duty cycles increase.
However, helical gear longevity depends critically on thrust bearing performance. Axial forces transfer wear from gear teeth to thrust bearings, potentially creating new failure points. If thrust bearings are undersized or maintenance access is limited, the gear durability advantage may not translate to improved system reliability.
Continuous Duty Considerations:
- Helical beneficial: High-speed operation, excellent lubrication, quality thrust bearings
- Spur adequate: Intermittent duty, maintenance-friendly designs, cost-sensitive applications
The durability improvement varies with application specifics rather than following universal percentages. Clean, well-lubricated helical systems show clear advantages, while contaminated or poorly maintained systems may not realize benefits.
Design Takeaway: Choose helical for demanding continuous-duty applications where you can ensure proper thrust bearing support and maintenance. For simpler duty cycles, spur gear reliability often outweighs theoretical durability advantages.
Choosing spur or helical for your part?
We machine both — help compare for torque + size • Get feedback from gear experts
Which gear type suits high-speed applications?
Helical gears perform better at high speeds due to gradual tooth engagement reducing noise and vibration. At speeds below 1000 RPM, helical gears maintain only a 5-8 dB noise advantage, but at 3000-5000 RPM, they achieve 15-20 dB noise reduction over spur gears.
Quick Selection:
- Spur adequate: <1000 rpm, cost constraints, noise tolerance >65dB
- Helical preferred: >1500 rpm, quiet operation required, precision applications
- Critical threshold: Above 3000 rpm, helical essential for acceptable noise levels
Spur gears become particularly loud at high speeds due to impact loading when teeth engage and collide, causing vibration. Helical teeth engage gradually along the tooth face, resulting in smooth force transitions that reduce noise and stress.
However, high-speed helical operation requires thrust bearings rated for additional axial loads. Helical gears create thrust force in the axial direction, necessitating the use of thrust bearings. Poor thrust bearing selection often limits maximum operating speeds more than gear design.
Design Takeaway: Choose helical for applications above 1500 rpm where noise reduction justifies bearing complexity. For speeds under 1000 rpm, spur gears provide adequate performance with simpler bearing arrangements.
How much misalignment can each gear type handle?
Spur gears tolerate significantly more manufacturing and assembly variations than helical gears. Manufacturing research shows spur gears operate with standard housing tolerances, while helical designs require precision alignment to prevent premature wear and contact pattern disruption.
Tolerance Guidelines:
- Spur gears: Standard housing tolerances acceptable, bolted assemblies adequate
- Helical gears: Precision housing required, careful assembly alignment needed
- System impact: Helical tolerance requirements often double housing machining costs
Angular misalignment perpendicular to the plane of action reduces contact area and total contact ratio, with effects similar to skewed cylinder contact for both spur and helical gears. However, spur teeth maintain line contact across full face width even with moderate angular misalignment, while helical teeth rely on precise diagonal contact patterns.
Misalignment between gear shafts in the plane of action significantly affects tooth surface contact stress and tooth root bending stress. The effects are amplified in helical designs due to their reliance on precise angled engagement.
Many engineers underestimate housing precision requirements for helical gears, leading to failures when using standard manufacturing tolerances that work adequately with spur designs.
Design Takeaway: Choose spur gears when using standard housing manufacturing methods or bolted assemblies. Specify helical only when your manufacturing process can maintain tighter housing tolerances throughout production.
Do helical gears require heavier-duty bearings?
Yes, helical gears require thrust bearings or angular contact bearings to handle axial forces. The axial thrust load depends on the helix angle and is given by: thrust load = transmitted load × tan(helix angle). This bearing upgrade increases system complexity and cost significantly.
Bearing System Comparison:
- Spur systems: Simple radial bearings, basic housing design
- Helical systems: Thrust/angular bearings, precision mounting, additional axial space
- Force calculation: For 15° helix, thrust equals 27% of transmitted force; for 20° helix, thrust reaches 36%
Thrust bearings are commonly used in automotive applications because forward gears use helical gears, which create axial forces that need to be dealt with. The thrust collar allows axial load transfer from shaft to bearing, with thrust bearings typically used in pairs. Housing design becomes more complex with thrust bearing requirements. Angular contact bearings need precise preloading and shimming, while separate thrust bearings require additional mounting features and axial positioning.
From assemblies we’ve consulted on, bearing complexity often requires complete housing redesign rather than simple bearing substitution. The additional space and mounting requirements frequently affect overall product architecture.
Design Takeaway: Factor bearing system complexity into helical gear decisions early in design. The space, mounting, and maintenance requirements often outweigh performance benefits for moderate-duty applications where spur gears would perform adequately.
Which gear type works better in compact designs?
Helical gears provide higher torque density allowing smaller diameters for equivalent loads, but require additional axial space for thrust bearing mounting. Helical gears require specialized angled tooling and increase manufacturing costs by 30-40%, but deliver smoother operation than spur designs. The space advantage depends on whether radial envelope or total assembly length is your primary constraint.
Quick Selection:
- Radial space limited: Helical gears enable smaller diameter for same torque capacity
- Axial space limited: Spur gears avoid thrust bearing length requirements
- Total envelope critical: Consider complete assembly including bearing space
Thrust bearings are used in cars because forward gears use helical gears which cause axial forces that need to be dealt with. Thrust bearings are typically used in pairs on each side of the thrust collar, with the thrust collar allowing axial load transfer from shaft to bearing.
Space Trade-off Examples:
- Helical system: Smaller gear diameter but requires thrust bearing mounting space
- Spur system: Larger gear diameter but uses simple radial bearing bores
Design Takeaway: Choose helical when radial envelope is the primary constraint and you can accommodate bearing mounting complexity. Use spur gears when total assembly length matters more than gear diameter.
Can spur gears save cost without risking failure?
Spur gears reduce total system costs when bearing complexity is eliminated. For helical vs spur gears, the only significant difference in per-piece cost is the setup for helical, otherwise it’s about a wash given material and tooth count.For applications operating below 75% of gear load capacity, spur gears provide adequate safety margins without performance compromises.
Cost vs. Risk Framework:
- Low risk: Intermittent duty, loads <60% of rating, maintenance access available
- Acceptable risk: Loads <75% of rating, standard operating conditions
- Avoid cost reduction: Loads >80% of rating, continuous high-speed operation
Spur gears achieve ±0.01mm tolerances with standard CNC setups, while helical gears require specialized angled tooling. Spur gears are used in washing machines, screwdrivers, windup alarm clocks, and other devices where their simplicity provides cost advantages.
From cost analysis on assemblies we’ve consulted on, bearing system differences often exceed gear cost differences. The common specification mistake is choosing helical “for safety” when actual design loads don’t approach spur gear limits.
Design Takeaway: Specify spur gears when design loads stay below 75% of gear capacity and operating conditions don’t demand ultra-smooth performance. The cost savings are substantial for appropriately loaded applications.

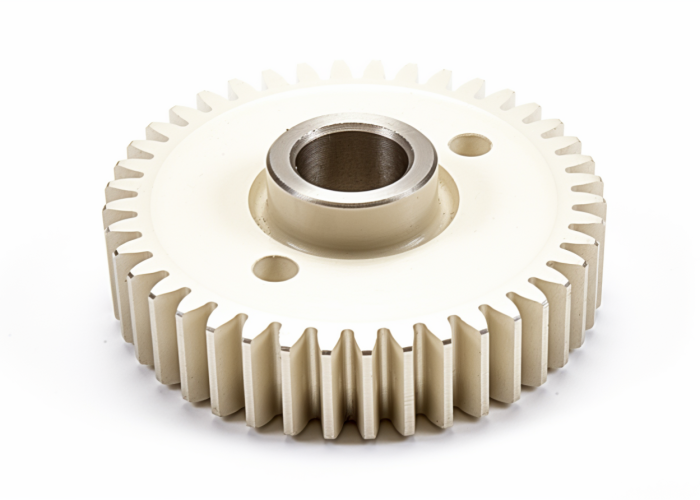

When should you choose spur over helical gears?
Choose spur gears for applications under 1000 rpm with intermittent duty cycles, or when project constraints prioritize simplicity over maximum performance. Spur gears are simple, less expensive to manufacture, and suitable for applications where noise and vibrations are not crucial. Spur gears have no load in the axial direction (thrust load), making them suitable for simple bearing arrangements.
Spur Selection Criteria:
- Operating conditions: <1000 rpm, intermittent duty, loads <75% of rating
- Project constraints: Cost targets, volume production, simplified assembly
- Manufacturing approach: Standard tolerances, conventional processes
Spur gears have a normal gear ratio range of 1:1 to 6:1 and are suitable for moderate speeds where noise is not a primary concern. They maintain high efficiency and predictable performance without additional system complications.
Applications Where Spur Excels:
- Cost-sensitive products requiring high-volume production
- Designs requiring field serviceability and standard components
- Projects using conventional manufacturing capabilities
Design Takeaway: Default to spur gears for straightforward design requirements and upgrade to helical only when specific performance needs justify the additional complexity
How does gear manufacturing affect strength?
Manufacturing precision affects achievable gear strength, but over-specifying manufacturing methods wastes budget without improving performance. Standard CNC gear hobbing typically holds to DIN 6 or AGMA 10 grades (±0.02 mm run out), while gear grinders reach DIN 3 or AGMA 6 (±0.005 mm) but cost 200-400% more. Most applications don’t need maximum manufacturing precision to meet strength requirements.
Manufacturing Selection Framework:
- Standard hobbing adequate: Most gear applications, cost-sensitive projects
- Precision grinding required: Only when design calculations prove standard tolerances insufficient
- Common mistake: Specifying grinding “for safety” without functional justification
From a manufacturing perspective, helical gears are tougher than spur gears. The helix angles are quite hard to replicate with a low acceptable tolerance range. This manufacturing difficulty often makes standard processes adequate for spur gears while requiring upgraded processes for helical designs.
Costly Specification Mistakes to Avoid:
- Over-specifying surface finish: Helical gears maintain smooth operation with Ra 1.6-3.2 μm finishes achievable through standard CNC milling
- Unnecessary tight tolerances: Extremely tight tolerances (±0.005mm) may push beyond standard CNC capabilities, requiring specialized equipment
- Gold-plating manufacturing: Specifying precision grinding when standard hobbing meets strength requirements
From gear projects we’ve consulted on, the biggest cost driver is specifying manufacturing precision beyond functional needs. Standard CNC processes provide adequate strength for most applications—reserve expensive precision methods for designs that actually require maximum material utilization.
Design Takeaway: Specify standard manufacturing processes unless your stress calculations prove tighter tolerances are functionally necessary. Avoid specifying precision grinding for theoretical safety margins that don’t improve actual performance.
Conclusion
Helical gears offer superior torque capacity and smooth operation but require thrust bearing complexity and higher manufacturing costs. Spur gears provide cost-effective simplicity for most applications under 1000 rpm with adequate load margins. Choose based on actual performance requirements, not theoretical advantages. Contact us to explore gear manufacturing solutions tailored to your product requirements.
Frequently Asked Questions
Rarely without significant redesign. Helical gears require thrust bearing support, different housing geometry, and additional axial space. The shaft and bearing changes usually necessitate complete gearbox redesign rather than simple gear substitution.
Spur gears enable faster, cheaper prototyping with standard CNC setups and simple bearing arrangements. You can validate mechanical function, then evaluate whether helical benefits justify the additional complexity for production versions.
Standard CNC hobbing handles materials up to 40 HRC effectively. Beyond this hardness, gear grinding becomes necessary to maintain tooth geometry accuracy, significantly increasing manufacturing cost and lead time regardless of gear type.
Small helical gears are difficult to manufacture accurately and thrust forces become harder to manage in compact assemblies. Spur gears typically provide better manufacturability and system integration for small diameter applications.
Helical gears require thrust bearing mounting provisions and additional axial space for bearing preload adjustment. If your housing design uses simple bearing bores without thrust bearing capabilities, spur gears will integrate more easily without requiring housing redesign.
Over-specifying manufacturing precision when standard CNC processes meet strength requirements. Precision grinding costs 200-400% more than hobbing but rarely provides functional benefits unless stress calculations prove maximum material utilization is necessary.
