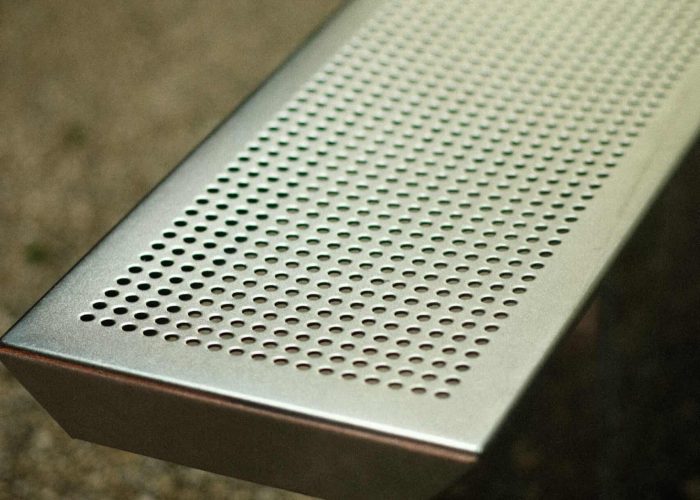

surface roughness
Picture of Written by Miss Tee

Written by Miss Tee

Over 15 years of hands-on experience in CNC machining and sheet metal fabrication, supporting product teams across medical, aerospace, audio, and industrial sectors. Specializes in tolerance-critical parts, DFM consultation, and prototype-to-production transition support.

All Posts

Specifying surface roughness shouldn’t be guesswork that drives up manufacturing costs. Product developers often over-specify surface finishes or choose requirements that don’t match their part’s actual function. With over 15 years of precision CNC experience across aerospace, medical, and audio industries, we’ve seen how the right surface specification balances performance with cost-efficiency.

Most CNC applications require Ra 0.8-6.3 μm depending on function. Grinding achieves Ra 0.2-1.6 μm for precision surfaces, while standard milling delivers Ra 0.8-6.3 μm for general applications. Polishing can reach Ra 0.05-0.2 μm when ultra-smooth finishes are functionally required.

This guide helps you make informed surface roughness decisions that optimize both part functionality and manufacturing economics.

Table of Contents

What Surface Roughness Can CNC Machining Achieve?

CNC milling achieves Ra 0.8-6.3 μm surface finish for most aluminum and steel parts. Grinding delivers Ra 0.2-1.6 μm for precision surfaces, while turning produces Ra 0.8-3.2 μm depending on material. Polishing can reach Ra 0.05-0.2 μm for ultra-smooth CNC surface quality when required.

Material properties directly impact CNC surface finish quality. Aluminum 6061 machines cleanly to Ra 1.6-3.2 μm with standard carbide end mills, but 304 stainless steel requires slower feeds to prevent work hardening that degrades surface roughness. Softer plastics like Delrin achieve Ra 0.8-1.6 μm easily but show tool marks if cutting speeds are excessive.

Surface roughness requirements vary dramatically by application. O-ring grooves need Ra 1.6 μm or smoother to prevent leak paths, while general structural features function perfectly with Ra 3.2-6.3 μm CNC surface finish. Mating surfaces requiring consistent contact pressure benefit from grinding to Ra 0.4-0.8 μm, justifying the additional machining cost.

We verify all CNC surface quality using calibrated profilometers following ISO 4287 measurement standards, ensuring consistent Ra readings across different projects and operators.

Design Takeaway: Standard CNC surface finish (Ra 0.8-3.2 μm) handles most mechanical applications effectively. Reserve precision grinding for functional surfaces like sealing grooves or bearing contacts where surface roughness directly impacts performance.

CNC ProcessSurface Roughness (Ra)Typical Applications
Milling0.8–6.3 μmGeneral parts, housings
Turning0.8–3.2 μmShafts, cylindrical features
Grinding0.2–1.6 μmPrecision mating surfaces
Polishing0.05–0.2 μmOptical, ultra-clean parts

When Does Surface Roughness Actually Matter for Part Function?

Surface roughness only matters when it creates leaks, increases wear, or concentrates stress. Most structural features work fine with standard CNC finishes – you’re wasting money specifying tight surface control on parts that don’t need it.

The biggest mistake we see is engineers calling out Ra 1.6 μm on every surface because they’re not sure which ones actually matter. Your mounting brackets, internal ribs, and clearance holes don’t care about surface finish. But your O-ring grooves absolutely do. A seal that works perfectly in your prototype can fail in production because the surface finish changed from hand-polished to standard machined.

Think about what happens at each surface in your assembly. Does it slide against something? Does it need to seal? Is it under cyclic stress? Those are the surfaces where roughness affects performance. Everything else is just adding cost. We’ve seen parts where 80% of the surfaces could run Ra 6.3 μm without any functional impact, but tight specifications across the board doubled the manufacturing cost.

Our profilometer measurements show that standard milling naturally produces Ra 1.6-3.2 μm on aluminum, which handles most applications perfectly. When engineers specify Ra 0.8 μm without a clear functional need, we end up grinding surfaces that were already good enough.

Design Takeaway: Audit every surface specification by asking what functional job it performs. Reserve tight surface control for sealing, sliding, and high-stress areas. Let everything else run with standard machining finish to avoid unnecessary cost escalation.

metal stand base

What Ra Value Should You Specify on Your Drawings?

Default to Ra 3.2 μm and only specify tighter when you can explain why that surface needs it. This approach covers most applications without extra cost, and you can always add precision where function demands it.

Most drawing reviews we see have the same problem: every surface gets the same tight specification because the engineer wasn’t sure what was actually achievable. Ra 3.2 μm happens naturally with good CNC practices. Ra 1.6 μm requires careful toolpath planning and adds 15-25% to cycle time. Ra 0.8 μm usually means grinding or polishing, which can increase part cost by 40-60% depending on geometry.

The decision framework is simple: ask what breaks if this surface is rougher. If the answer is “nothing,” use Ra 3.2 μm. If the answer is “the seal leaks” or “the bearing wears out,” then specify what you actually need. We regularly machine housings where external surfaces get Ra 1.6 μm for appearance, structural features stay at Ra 3.2 μm for cost, and sealing grooves hit Ra 0.8 μm for function.

Use ISO 1302 surface texture symbols on your drawings rather than vague notes like “smooth finish.” This gives your machinist exact targets and eliminates guesswork about what you actually need.

Design Takeaway: Start every drawing with Ra 3.2 μm as your baseline, then tighten specifications only where you can document a functional need. This prevents cost creep while ensuring performance where it actually matters.

What's the Cost Impact of Tighter Surface Specifications?

Tighter surface specifications can increase CNC part cost by 15-60% depending on the processes required. Ra 1.6 μm adds 15-25% to cycle time through slower feeds and optimized toolpaths, while Ra 0.8 μm typically requires grinding or polishing that can double your part cost.

The cost jumps happen at specific manufacturing thresholds, not gradually. Moving from Ra 6.3 μm to Ra 3.2 μm costs almost nothing – that’s just standard machining practice. But Ra 1.6 μm means cutting speeds drop by 30-40% to maintain surface quality, and tooling costs increase because you need sharper carbide end mills that wear faster.

Real example: an aluminum chassis costs $85 with standard Ra 3.2 μm finish. Specifying Ra 1.6 μm on visible surfaces bumps it to $105 due to slower machining and tool changes. If the engineer specs Ra 0.8 μm across the whole part, we’re grinding every surface, and the price hits $150. The functional difference between Ra 3.2 μm and Ra 0.8 μm is invisible for structural applications.

Secondary operations drive the biggest cost increases. Grinding requires specialized equipment and skilled operators, often doubling part cost for complex geometries. Hand polishing is even more expensive but sometimes necessary for optical applications requiring Ra 0.2 μm finishes.

Our production data shows that most tight surface specifications don’t improve part function but significantly increase manufacturing cost and complexity.

Design Takeaway: Budget surface finish costs early when specification changes are still feasible. Calculate the actual cost premium for tight specifications and compare against functional benefits – often that money delivers better value in material upgrades or design improvements.

anodizing cylindrical aluminum parts

Does Surface Roughness Affect Coating Adhesion on CNC Parts?

Surface roughness critically affects coating adhesion and appearance quality. Anodizing requires Ra 0.8-1.6 μm for uniform color distribution, while paint systems perform best with controlled roughness around Ra 1.6-3.2 μm that provides mechanical bonding without bridging defects.

Anodizing reveals every surface imperfection because the aluminum oxide layer grows directly from the base metal texture, amplifying tool marks and machining variations. We’ve measured significant color variation on parts where standard machining created visible striations that failed appearance standards for precision equipment housings.

Paint and powder coating adhesion depends on surface texture for mechanical grip. ASTM D3359 adhesion testing shows optimal performance around Ra 1.6-2.0 μm where coatings penetrate surface valleys without bridging over deep scratches. Surfaces smoother than Ra 0.8 μm can actually reduce adhesion because coatings lack mechanical bonding sites.

Surface preparation matters as much as roughness specification. Machining oils, coolant residue, or fingerprints contaminate surfaces and cause coating failures regardless of underlying texture quality. ISO 8501 surface preparation standards define cleaning requirements that ensure consistent coating performance.

Different coating systems have specific surface requirements. Chromate conversion coatings work differently than anodizing, which behaves differently than organic paint systems. Each chemistry optimizes adhesion at different roughness ranges.

Design Takeaway: Consult your coating vendor early about optimal surface preparation requirements. Match surface roughness specifications to coating chemistry rather than making assumptions, and specify cleaning procedures that maintain surface quality from machining through coating application.

brass nut, turning

When Is Polishing Worth the Extra Cost?

Polishing is worth the cost when your part actually breaks without it. Most engineers specify polishing because they think it’s “better,” but it only makes sense when standard CNC finishes cause functional failures – optical scatter, seal leaks, or contamination issues.

Here’s the reality check: if you can’t explain exactly why your part needs Ra 0.2 μm instead of Ra 1.6 μm, you’re probably wasting money. We’ve polished thousands of parts where the engineer couldn’t articulate the functional requirement beyond “it should be smooth.” Those projects always end up over budget with no performance improvement.

The applications that actually need polishing are pretty specific. Optical components scatter light if they’re too rough. High-pressure hydraulic systems leak past standard machined seals. Semiconductor tooling contaminates wafers when surface irregularities trap particles. But your typical housing, bracket, or connector doesn’t care about surface finish beyond what good CNC practices deliver naturally.

Geometry kills polishing projects more than cost does. You can polish flat surfaces and simple contours reasonably, but try polishing the inside of a complex pocket or a sharp internal corner – it’s either impossible or so expensive that redesigning the part makes more sense.

Before specifying polishing, ask whether optimized machining gets you close enough. Sometimes spending extra time on toolpath strategy delivers Ra 0.8 μm that works just as well as polished Ra 0.2 μm at half the cost.

Design Takeaway: Specify polishing only when you can explain exactly what fails without it. If the answer is “nothing specific,” stick with optimized CNC finishes and spend your money on improvements that actually matter.

Conclusion

Surface roughness selection should match functional requirements, not cosmetic preferences or uncertainty. Reserve tight specifications for sealing, wear, and coating applications where texture directly impacts performance. Standard CNC finishes handle most mechanical requirements cost-effectively. Contact us to explore manufacturing solutions tailored to your surface finish requirements.

Frequently Asked Questions

Anodizing needs Ra 0.8-1.6 μm for uniform appearance, while paint systems work best with Ra 1.6-3.2 μm for mechanical adhesion. Coordinate surface specs with your coating vendor early to avoid expensive rework.

Start with Ra 3.2 μm as your default specification. This covers most functional requirements without extra cost. Only tighten to Ra 1.6 μm for critical mating surfaces or Ra 0.8 μm when sealing performance demands it.

Ask what fails if the surface is rougher. If you can’t identify a specific functional failure mode, stick with standard Ra 3.2 μm finishes and invest the cost savings in other design improvements that actually impact performance.

No. Use zone-based specifications – Ra 3.2 μm for structural areas, Ra 1.6 μm for visible surfaces, and Ra 0.8 μm only for sealing grooves. This optimizes function and cost without over-specifying non-critical areas.

Only when your application requires Ra below 0.8 μm for optical performance, contamination control, or extreme sealing requirements. Most mechanical applications work fine with optimized CNC finishes at much lower cost.

Ra 3.2 μm delivers the best balance – achievable with standard CNC operations, no secondary processing required, and meets most functional requirements. Tighter specs add cost and time without proportional performance benefits.
