What Sets Threaded Holes Apart from Tapped Holes?
Threaded and tapped holes are fundamental components in many mechanical systems. But what distinguishes one from the other?
A threaded hole is modified to incorporate a spiral groove, or thread, along its interior surface. This internal thread is designed to accommodate a screw or bolt with a corresponding thread, allowing it to be twisted into the hole, thereby establishing a secure fastening.
Contrastingly, a tapped hole is a hole that has been specifically prepped for threading. This preparation involves drilling an initial hole, a pilot hole, and then employing a tapping tool to carve the threads. Consequently, while all tapped holes are threaded, not all threaded holes are tapped. Some threaded holes might be crafted using alternative methods, such as thread milling or forming.
Why are Pilot Holes Essential in the Threading Process?
The tap drill size chart determines the pilot hole’s size, which matches the hole size with the appropriate tap tool. The depth of the pilot hole is crucial, especially when dealing with varying diameters and hole sizes. For instance, a shallow hole may not allow for sufficient tread depth, while a too-deep pilot hole can lead to tap breakage.
The pilot hole is typically drilled using a pilot drill bit, and the process is carried out using various tapping tools, including a cutting tool, a single lip cutting tool, or a die tool. These tools create the screw threads in the hole, allowing for the secure fastening of threaded components such as machine screws.

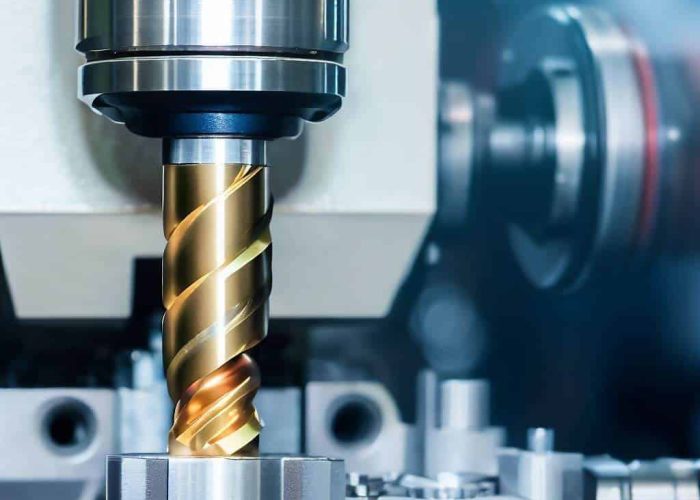

In more advanced settings, high-speed tapping centers and CNC machining are used to create threads, especially when dealing with harder materials or complex thread profiles. This process, known as thread milling, can create internal and external threads, including right and left.
In the end, whether you’re creating a smooth hole on an angled surface or threading your in a circular hole, understanding the difference between threaded and tapped holes, and the importance of pilot holes, is crucial to the successful assembly of mechanical systems.
How to Create Internal and External Threads?
Creating threads, whether internal or external, is a meticulous process that requires precision and the right tools. Internal threads, as found in a nut or a tapped hole, are typically created using a tool known as a tap. The process of using a tap to create threads is known as tapping.
Tapping begins with drilling a pilot hole of the correct size. The tap, a metal rod with threads and a pointed end is then inserted into the hole and turned. As the tap spirals into the hole, it cuts threads into the internal surface of the hole. Different taps are used in this process, including taper, plug taps, and forming taps, each serving a unique purpose and used in different stages of the threading process.
External threads, such as those on a bolt or a machine screw, are created using a tool known as a die. Using a die to create threads is known as threading or thread cutting. The die, which can be thought of as an external tap, is placed around the cylindrical object and turned. As it moves along the object, it cuts threads into the surface.
What Role Does Forming Tap and Cutting Tap Play in Creating Threads?
Forming taps and cutting taps are two types of taps used in the process of creating internal threads. They serve different purposes and are used in different situations.
A forming tap, a roll tap, does not cut material like a traditional tap. Instead, it displaces the material to form the threads. This process, known as thread forming, creates a stronger thread due to the absence of chips and the work-hardening of the material.
On the other hand, a cutting tap cuts material to form threads. It has flutes that carry away the chips produced during the cutting process. Cutting taps are commonly used when the material is too brittle for a forming tap.
What is the Difference Between Blind Holes and Through Holes?
A blind hole is a hole that does not go all the way through the material. It has a bottom. When a blind hole is tapped, the threads do not extend through the material. This type of hole is commonly used when the bolt or screw does not need to protrude out the other side of the material.
On the other hand, a through hole is a hole that goes all the way through the material. When a through hole is tapped, the threads extend from one side of the material to the other. This type of hole is used when the bolt or screw needs to go through the entire material.
How Does the Type of Hole Affect the Threading Process?
The type of hole affects the threading process in several ways. For instance, when tapping a blind hole, it’s important to use a bottoming tap to ensure the threads reach the bottom. A taper or plug tap can be used through holes, as the chips can exit the other side of the hole.
What Tools Are Used in Threading and Tapping?
Threading and tapping require various tools for a specific part of the process. The main tools used in threading and tapping are taps and dies. Taps are used to create internal threads, while dies are used to create external threads.
In addition to taps and dies, other tools are used in threading and tapping. These include drill bits for creating pilot holes, tap wrenches for turning taps, and die stocks for holding dies.
How Do You Choose the Right Tool for the Job?
Choosing the right tool for the job depends on several factors, including the type of hole (blind or through), the threaded material, and the required size and type of thread.
For instance, if you’re creating a threaded hole in a piece of soft metal, you might choose a taper tap for its ease of use. If you’re threading a blind hole in a piece of hard metal, you might choose a bottoming tap to ensure the threads reach the bottom of the hole.
How to Understand Thread Sizes, Major Diameter, and Thread Pitch?
Understanding thread sizes, primary diameter, and pitch is crucial to create threaded successfully and tapped holes. The thread size refers to the external diameter of the thread, also known as the primary diameter. The thread pitch, however, refers to the distance between each thread.
What is the Difference Between Metric and Standard Measurements?
Thread sizes and pitch values are usually expressed in metric or standard (imperial) units. Metric measurements are based on millimeters, while standard measurements are based on inches.
For example, a thread size of M6-1.0 in metric measurements indicates a major diameter of 6mm and a thread pitch of 1.0mm. In standard measurements, a thread size of 1/4-20 indicates a major diameter of 1/4 inch and 20 threads per inch.
Conclusion
In conclusion, creating threaded and tapped holes is a fundamental skill in manufacturing and construction. Understanding the differences between these holes, the importance of pilot holes, and the tools and techniques used in the threading process is crucial.
Whether working with high-speed tapping centers or manually threading with a tap tool, each step creates secure and durable mechanical systems. As we’ve seen, even the most minor components, like screws and bolts, play a significant role in the overall functionality of a machine or structure.
So, the next time you see a threaded hole or a machine screw, remember the intricate process behind its creation.
Frequently Asked Questions
A blind tap hole is a tapped hole that does not go through the material. The threads stop at some point before reaching the other side of the material.
Threading deeper holes typically requires a longer tap and careful attention to ensure the tap remains straight. It’s also important to regularly clear out chips to prevent them from clogging the hole.
Metal screws are a type of fastener designed for use in metal materials. Machine screws, on the other hand, are a specific type of metal screw typically used to fasten metal parts in machines.
Screw threads are the helical structures that wrap around a screw, allowing it to fasten into a matching threaded hole. Own threads refer to threads created or cut by an individual or machine instead of pre-made threads that come on screws or bolts.
A drilled hole is simply a hole created using a drill bit. On the other hand, a tapped or threaded hole is a drilled hole that has been further processed with a tap to create internal threads.
A tap drill is a specific drill bit used to create the initial hole that will be tapped. The tap drill bit size is chosen based on the tap size that will be used to create the threads.
The main tools used in the hole threading process are drill bits for creating the initial hole, taps for creating internal threads, and dies for creating external threads. Other tools like tap wrenches and die stocks may also be used.
A clearance hole is a hole that is drilled into a material to allow a screw or bolt to pass through without engaging the threads. This is different from a tapped hole, where the threads of the hole engage with the threads of the screw or bolt to create a secure fastening.
A CNC (Computer Numerical Control) machine is a high-precision tool that can be programmed to perform complex machining tasks, including threading. CNC machines can create threads faster and more accurately than manual threading methods.
Left-hand threads are threads designed to tighten when turned counterclockwise, the opposite of standard (right-hand) threads that tighten when turned clockwise. Left-hand threads are used in specific applications where right-hand threads may loosen due to rotational forces or vibration.
