When does gear undercut happen?

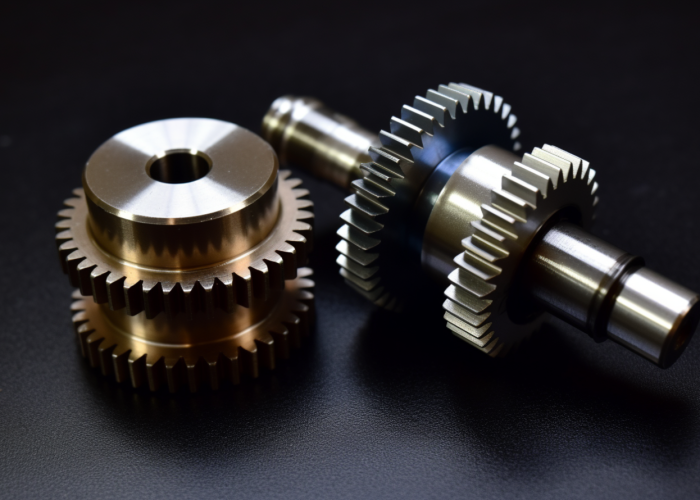

gear shaft, spur gear, black oxide
Picture of Written by Miss Tee

Written by Miss Tee

Over 15 years of hands-on experience in CNC machining and sheet metal fabrication, supporting product teams across medical, aerospace, audio, and industrial sectors. Specializes in tolerance-critical parts, DFM consultation, and prototype-to-production transition support.

All Posts

Gear undercut isn’t just a design calculation—it’s a manufacturing reality that can compromise tooth strength and create costly failures in precision assemblies. When designing gears for tight-tolerance applications like aerospace actuators or medical device housings, understanding undercut thresholds becomes critical to both performance and cost control.

Gear undercut happens during the manufacturing process when the cutting tool (hob, shaper, or planer) cuts deeper than the interfering point and removes part of the involute tooth profile near the root. This occurs specifically when gears have fewer than 17 teeth for standard 20° pressure angle gears, as the cutting tool’s geometry physically interferes with and removes material from the dedendum area.

Learn what causes gear undercut, how to calculate minimum tooth counts, and ways to eliminate undercut without sacrificing performance—plus machining warning signs.

Table of Contents

What design conditions lead to gear undercut?

Three design conditions trigger gear undercut risk: fewer than 17 teeth, standard 20° pressure angle, and standard addendum height (ha = 1.0).* When combined, the cutting tool removes involute tooth material, increasing machining cost 40-60%.

Undercut severity scales with tooth count. At 16 teeth, expect minor profile removal affecting mainly cost. At 12 teeth, material removal reaches 0.3-0.5mm depth, reducing tooth strength 25-35%. Smaller modules worsen this effect proportionally.

The root cause is geometric interference during manufacturing. Standard cutting tools cannot generate the full involute profile below 17 teeth without removing root material—this requires either profile shift correction or accepting weakened teeth.

ISO 6336 confirms undercut reduces bending strength by removing material at peak stress locations. However, many applications accept 10-20% strength reduction for significantly smaller assemblies or higher ratios.

Design Takeaway: Accept undercut if loads are well below capacity, size trumps cost, or volume under 100 units. Otherwise, start with 18+ teeth and optimize module/pressure angle for size targets with standard manufacturing.

What pressure angle prevents gear undercut?

25° pressure angle allows gears as small as 11 teeth, while 14.5° requires 32+ teeth compared to standard 20° (17 teeth minimum). ISO 6336 validates pressure angles “from 15° to 25°” for load capacity calculations, making your choice critical for both size and manufacturing feasibility.

Pressure AngleMin TeethNoise vs 20°Manufacturing CostBest Applications
14.5°32 teeth3-5 dB quieter+30-50% toolingMedical, precision instruments
20°17 teethBaselineStandardGeneral manufacturing
25°11 teethNoisier operation+30-50% toolingCompact, high-load designs

Decision Matrix for Pressure Angle Selection:

  • Choose 14.5° if: Noise is <60 dB requirement, you can accept 38% larger gear diameter, low-speed applications
  • Choose 20° if: Standard manufacturing, balanced performance, AGMA Q8-Q9 quality achievable with regular CNC
  • Choose 25° if: Space constraint <50% of standard design, can accept higher bearing loads, noise >70 dB acceptable



AGMA 2101-D04 compliance requires “ISO A7/AGMA Q8 for 90% of applications” with standard 20° tooling readily available across CNC shops, while custom angles add 2-4 weeks lead time.

Design Takeaway: Use 20° unless specific performance requirements drive the choice. For noise-critical products requiring <60 dB, use 14.5° despite size penalty. For ultra-compact designs, 25° enables smallest pinions but verify bearing capacity first.

brass gear and steel gear shaft

How many teeth minimum prevents gear undercut?

17 teeth minimum for 20° gears theoretically, but “gears with 16 teeth or less can be usable if their strength and contact ratio still meet design requirements” and “adverse effects can be neglected” for light loads. The key is understanding your actual load requirements versus theoretical limits.

Tooth CountRisk AssessmentLoad Limit GuidanceTesting Protocol
18+ teethZero undercutAny load levelStandard production
15-17 teethMinor undercut≤10% of bending capacityPrototype validation required
12-14 teethModerate undercut≤25% of surface capacityAccelerated life testing
<12 teethSevere undercutRisk assessment criticalExtensive validation

Load-Based Decision Framework: Engineering analysis shows “maximum allowable torque due to surface failure is only 2.83 Nm” for 20-tooth gears vs “46 Nm” for bending strength. For positioning mechanisms, instrumentation, or intermittent duty cycles operating below 25% of theoretical capacity, moderate undercut often acceptable.

Manufacturing Reality Check: AGMA inspection standards require “CMM capabilities, climate-controlled environment” for precision grades. Standard CNC achieves ±0.005mm accuracy with ISO A7/AGMA Q8 quality but undercut gears need enhanced inspection protocols.

Design Takeaway: Start with 18+ teeth for reliable production. If space forces <17 teeth, quantify your actual loads against gear capacity – many low-duty applications successfully use 15-16 teeth after prototype validation. Always test rather than assume failure.

Design might cause gear undercut?

We check module, pressure angle & tooth count • Get expert feedback before quoting

What problems does gear undercut cause?

Gear undercut creates three distinct problems: progressive noise increase, characteristic root wear patterns, and uneven power transmission. Unlike random gear failures, undercut issues are predictable and identifiable through specific symptoms.

Problem Identification Guide:

  • Noise signature: Whining or humming that worsens over time, not present at startup
  • Wear pattern: Horizontal grey-black line along tooth root – unique to undercut
  • Performance change: Increasing backlash, vibration during direction reversals



Quick Problem Assessment: If your product shows noise increase >3dB within first 100 operating hours, undercut is likely affecting performance. Uneven load sharing creates this progressive degradation pattern.

Immediate Decision Criteria:

  • Acceptable: Noise stays <60dB, no visible root scoring after 500 cycles
  • Monitor closely: 3-5dB noise increase, minor root wear visible
  • Action required: >5dB increase or deep horizontal scoring



Manufacturing cost impact: Profile shift corrections add 25-40% to gear cost but eliminate these progressive failure modes. Standard CNC achieves ±0.005mm without premium processes for most undercut prevention.

Design Takeaway: Undercut problems are gradual and recognizable – not catastrophic failures. If prototypes show stable noise/wear after 500 hours testing, undercut acceptable for your application. Budget 3-4 weeks additional development time if corrections are needed.

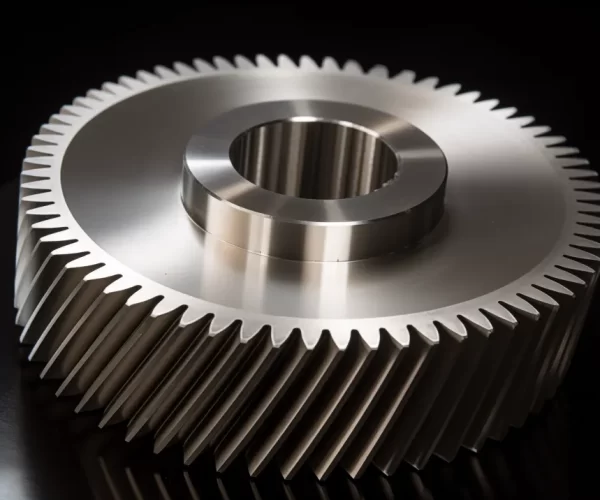

helical gear, flat, motor gear

When does gear undercut affect strength and performance?

Undercut becomes critical when operating torque exceeds 30% of gear’s theoretical capacity or when precision degrades below acceptable limits. Contact ratio below 1.2 creates dangerous load concentrations requiring immediate design changes.

Immediate Load Assessment Formula: Critical Threshold = (Your Peak Torque / Gear Pitch Diameter) × Safety Factor

  • Safe zone: <0.3 × theoretical capacity
  • Test zone: 0.3-0.6 × capacity – validate with accelerated testing
  • Danger zone: >0.6 × capacity – redesign with more teeth



Performance Impact Timeline: Minor undercut effects “can be neglected” below 25% capacity, but precision applications need tighter limits. Expect 10-15% precision loss at 40% capacity loading.

Go/No-Go Decision Matrix:

  • Production approved: Peak torque <30% capacity, positioning accuracy maintained after 1000 cycles
  • Extended testing required: 30-50% capacity utilization
  • Design revision mandatory: >50% capacity or precision loss >5% after 100 cycles



Manufacturing Timeline Impact: Profile shift corrections require 2-3 additional weeks for tooling but prevent field failures. Maintaining “contact ratio of 1 or greater” ensures reliable long-term performance.

Design Takeaway: Calculate your torque-to-capacity ratio immediately. Below 30%, proceed with confidence. Above 50%, add 3 weeks to development timeline for undercut corrections. Between 30-50%, build test units and validate performance over extended duty cycles.

How to fix gear undercut in existing designs?

Three ways to fix undercut: add more teeth (easiest), use profile shift (keeps size small), or switch to 25° pressure angle (most compact). Most product developers just need to know which option fits their constraints.

Simple Decision Guide:

  • Space available? Add 2-3 teeth – cheapest and fastest solution
  • Size critical? Apply profile shift – adds 25% to cost but keeps gear small
  • Ultra-compact needed? Switch to 25° pressure angle – enables smallest gears



Timeline Reality: Adding teeth: 2-3 weeks standard tooling Profile shift: 3-4 weeks for specialized setup Pressure angle change: 4-6 weeks for custom tooling

Cost Impact: Profile shift increases manufacturing cost 25-40% but may be worth it if your assembly space is severely constrained. Adding teeth is almost always cheaper if you can accept the size increase.

Design Takeaway: Try adding 2-3 teeth first – it’s the simplest fix. Only use profile shift or pressure angle changes when space absolutely requires it. Most undercut problems disappear with 18+ teeth.

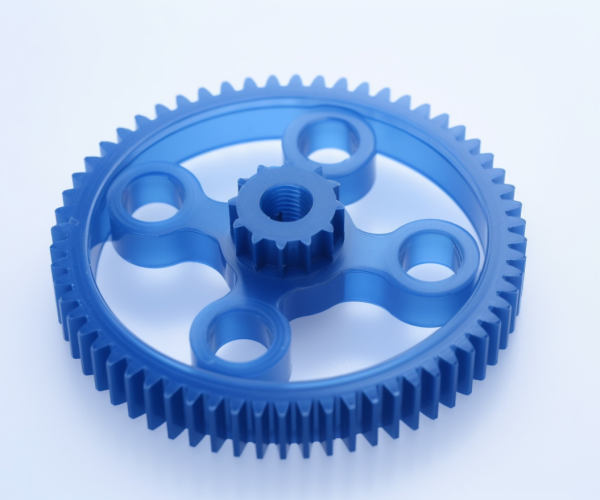

blue injection gear, spur, transmission gear
