When should you choose helical gears over spur gears?

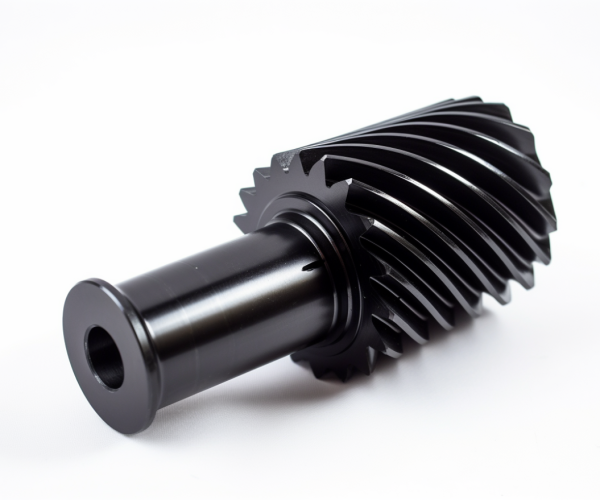

Choose helical gears when noise reduction, smooth operation at speeds above 300-500 RPM, or higher load capacity justify increased manufacturing complexity. Helical gears provide gradual tooth engagement through angled contact, reducing vibration and distributing loads across multiple teeth simultaneously.
Quick Decision Matrix:
- Noise-sensitive applications: Helical gears reduce operational noise through smoother engagement
- Moderate to high speeds (>300 RPM): Multiple tooth contact reduces impact loading
- Space-constrained designs: Higher load capacity per gear diameter
- Budget-sensitive projects: Spur gears eliminate axial thrust and complex tooling requirements
- Simple assemblies: Spur gears require no thrust bearing considerations
Helical gears engage multiple teeth at once, creating overlapping contact that distributes loads more evenly than single-point spur gear contact. This engagement pattern makes them valuable for applications where smooth power transmission affects product performance, such as precision positioning systems or consumer devices where operational noise matters.
The primary design challenge involves axial thrust forces generated by the helical angle. These forces require thrust bearings, reinforced shafts, or housing modifications that increase assembly complexity. According to AGMA standards, thrust loads equal transmitted load times the tangent of the helix angle.
Design Takeaway: Specify helical gears when smooth operation or load distribution provides functional benefits that justify increased assembly complexity. Select spur gears when simplicity and cost control outweigh operational refinement needs.
Is a helical gear better than a spur gear for high torque loads?
Helical gears enable more gradual load engagement and smoother operation, but may have lower rated capacity than equivalent spur gears. The choice depends on whether smooth operation and noise reduction justify potential capacity trade-offs and increased axial thrust management requirements.
Cost-Impact Decision Factors:
- Design complexity: Helical gears require thrust bearings and reinforced housings vs simpler radial-only bearing setups
- Assembly costs: Additional bearing types increase procurement complexity and inventory
- Housing modifications: Axial thrust may require stronger, more expensive housing designs
- Space utilization: Multiple tooth contact allows higher loads in smaller packages when space is premium
Engineering analysis shows helical gears can have 17-25% reduced allowable capacity compared to equivalent spur gears , but the expanded contact area can handle higher loads in space-constrained designs. This creates a sizing trade-off: larger helical gears for equivalent capacity, or smaller helical gears accepting reduced capacity.
The critical cost decision involves bearing and housing modifications. Axial thrust forces scale with transmitted torque, potentially requiring expensive bearing upgrades from simple cylindrical rollers to more complex angular contact or tapered roller bearings.
Design Takeaway: Choose helical gears when space constraints justify bearing complexity costs, or when smooth operation requirements outweigh capacity penalties. Specify spur gears when maximum load capacity per dollar and assembly simplicity are priorities.
Do helical gears last longer than spur gears under continuous operation?
Service life depends more on your material and finish specifications than gear type. Both achieve similar longevity when you specify appropriate materials and avoid over-tight tolerances that inflate manufacturing costs without improving durability.
Cost-Effective Longevity Specifications:
- Material selection: Heat-treated 4140 steel provides durability for both types without premium alloy costs
- Surface finish: Ra 1.6 µm achievable with standard CNC processes vs expensive grinding for finer finishes
- Tolerance optimization: Focus tight tolerances only on meshing surfaces, not entire gear body
- Inspection requirements: Helical gears need more complex measurement, increasing QC costs
The durability advantage often cited for helical gears requires maintaining precise manufacturing tolerances across the helical face. Uneven loading from poor manufacturing can actually reduce service life below spur gear levels, while adding inspection complexity and costs.
Most continuous duty applications achieve adequate life with either gear type using proper material selection. The choice should focus on whether helical advantages (smoother operation, noise reduction) justify their additional manufacturing precision requirements and associated costs.
Design Takeaway: Avoid over-specifying gear type for longevity—focus budget on proper materials and realistic surface finish requirements. Choose helical gears when their operational benefits justify additional manufacturing costs, not purely for extended life claims.
Do helical gears work in space-constrained designs?
Helical gears provide higher load capacity per unit size through improved tooth contact, but require additional bearing arrangements to handle axial thrust forces. The space advantage depends on whether load capacity benefits outweigh bearing complexity in your specific application.
The load capacity advantage comes from helical gears having greater tooth strength and higher load carrying capacity than spur gears due to multiple teeth in contact. This allows smaller gear sizing for equivalent torque transmission, particularly valuable in diameter-constrained applications.
However, helical gears produce thrust forces in axial directions requiring thrust bearings capable of resisting these forces. The bearing selection depends on application requirements – standard deep groove ball bearings handle modest thrust loads while higher forces require angular contact or tapered roller bearings.
For space-critical applications, evaluate whether the load capacity advantage justifies additional bearing complexity. With helix angles typically between 15-30°, thrust forces vary significantly with angle selection and transmitted load levels.
Design Takeaway: Choose helical gears for space-constrained designs when higher load capacity per diameter provides clear packaging advantages. Consider spur gears when bearing simplicity and assembly straightforward-ness outweigh potential size benefits.

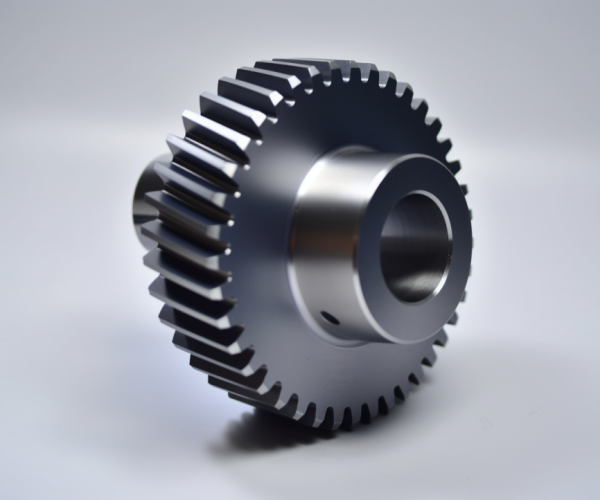

Considering helical gears for quiet load transfer?
We manufacture helical gears to spec • Compare trade-offs before production
How do you handle axial thrust in helical gear assemblies?
Axial thrust equals transmitted torque × tan(helix angle). For torque above 50 Nm with 20°+ helix angles, thrust forces typically require specialized bearings costing 2-3x standard types.
Thrust Force Calculator:
- Low thrust (<500N): Standard deep groove ball bearings adequate
- Moderate thrust (500-2000N): Angular contact bearings required
- High thrust (>2000N): Tapered roller bearings or opposing gear sets needed
- Force formula: Thrust = Torque × tan(helix angle) ÷ gear radius
According to AGMA standards, helical gears impose both radial and axial loads requiring bearings capable of combined loading. Double helical configurations eliminate net thrust but require precision manufacturing for proper load sharing between gear halves.
The most cost-effective approach involves reducing helix angles to 15° or less when possible, minimizing thrust forces without sacrificing helical advantages. This keeps thrust within standard bearing capacity while maintaining smoother operation than spur gears.
Design Takeaway: Calculate thrust forces early using the torque × tan(angle) formula. Reduce helix angles below 20° when possible to avoid specialized bearing requirements, or budget 2-3x bearing costs for higher angle applications requiring thrust management.
What limits the load capacity of a helical gear?
Load capacity is limited by material properties, heat treatment quality, and surface finish rather than gear geometry. Over-specifying premium materials or tight tolerances when standard options provide adequate strength creates the most costly specification mistakes.
Material selection drives both performance and cost. Heat-treated 4140 steel handles most general applications cost-effectively, while premium alloys like 4340 add 40-60% to material costs ISO 6336 standards calculate load capacity based on tooth root bending stress and surface contact pressure, but real-world failures often result from poor surface finish or inadequate heat treatment rather than insufficient material strength.
The biggest cost trap involves specifying premium materials when manufacturing quality improvements would be more effective. Achieving Ra 1.6 µm surface finish and proper heat treatment consistency often provides better load capacity than upgrading from 4140 to 4340 steel at much lower cost.
At pitch line velocities below 1 m/s, gear load capacity is often limited by abrasive wear rather than calculated stress levels. This makes surface finish specification more important than material grade for many applications.
Design Takeaway: Start with heat-treated 4140 steel and Ra 1.6 µm surface finish for most applications. Reserve premium alloys for applications where your system analysis shows standard materials are inadequate. Avoid over-specifying materials as insurance—proper manufacturing quality usually provides better value than expensive alloy upgrades.
Can you use helical gears for right-angle drives?
Crossed helical gears work for right-angle applications but with severe load limitations and manufacturing complexity that rarely justify their use over purpose-built alternatives. Most applications benefit from standard bevel or worm gear solutions despite higher initial costs.
Helical gears of the same hand can operate at right angles, but the point contact severely limits load capacity compared to line contact in parallel arrangements. Load capacity of crossed-axis helical gears is severely limited because of the point contact.
Crossed helical gears cannot provide speed reduction beyond 1:2 , limiting their usefulness for most right-angle applications. The machining setup time increases significantly due to compound angle requirements, often offsetting any material cost savings.
For right-angle drives, spiral bevel gears typically provide better value despite higher machining costs. Spiral bevel gears achieve 95-99% efficiency compared to much lower efficiency in crossed helical arrangements. Crossed helical gears are preferred for small power transmission, usually limited to 100kW.
Manufacturing reality: crossed helical gears require specialized fixturing and longer setup times that often cost more than machining standard bevel gears. The theoretical cost advantage rarely materializes in actual production.
Design Takeaway: Specify bevel gears for right-angle drives requiring reliable power transmission above 100kW. Consider worm gears for high ratios in space-constrained applications. Reserve crossed helical arrangements only for very light-duty positioning systems under 100kW where standard solutions won’t fit your envelope.
When should helical gears be avoided despite their advantages?
Avoid helical gears for low-speed applications, cost-sensitive projects, or when efficiency requirements are critical. Spur gears provide better value when noise isn’t customer-facing and axial thrust creates unnecessary design complications.
When to Choose Spur Gears Instead:
- Low speeds: Applications where noise isn’t critical to operation
- Cost-sensitive: Budget constraints prioritize manufacturing simplicity
- High efficiency: Applications where power transmission efficiency matters most
- Simple design: Parallel shafts with basic bearing requirements
Spur gears are very cheap and quick to manufacture thanks to their simplicity of design, while helical setup costs are higher, though per-piece costs are similar when amortized over large quantities. Spur gears are more efficient because helical gears have sliding contacts that produce axial thrust and generate more heat.
Helical gears produce axial thrust that needs to be accounted for, requiring thrust bearings, adding bearing complexity that often isn’t justified for simple applications. The thrust management requirements frequently exceed the value of smoother operation in applications where noise isn’t customer-facing.
Design Takeaway: Use spur gears when efficiency, cost, and simplicity outweigh smoothness benefits. Reserve helical gears for applications where their advantages solve specific performance problems rather than theoretical improvements.
When does the cost of helical gears outweigh their performance benefits?
Costs outweigh benefits when thrust bearing modifications create significant design complexity, speeds remain consistently low, or efficiency losses impact operating costs. Simple parallel-shaft applications rarely justify helical complexity over proven spur gear solutions.
Cost-Benefit Considerations:
- Bearing complexity: When thrust bearing upgrades complicate assembly design
- Speed requirements: Applications consistently operating at low speeds
- Efficiency impact: When power transmission losses affect operating costs
- Production volume: Low-quantity production where setup costs dominate
Setup differences between helical and spur are the main cost factor, making helical expensive for small production runs. Helical gears are less efficient due to sliding friction and axial thrust generation compared to spur gears.
The economic tipping point occurs when system complexity increases without solving customer-facing problems. Thrust bearing requirements, housing modifications, and efficiency penalties often cost more than the value of reduced noise in non-critical applications.
Design Takeaway: Calculate total system cost including bearings, housing modifications, and efficiency considerations. Choose helical gears only when smooth operation provides measurable customer value that justifies the complete system complexity, not just gear performance improvements.
Conclusion

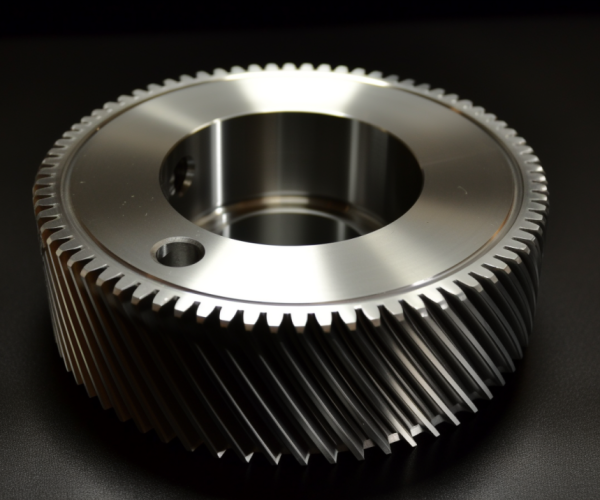

Helical gears excel in noise-sensitive, high-speed applications where their smooth operation justifies manufacturing complexity and thrust bearing requirements. Choose spur gears when efficiency, cost control, and simplicity outweigh operational refinement needs. Contact us to explore manufacturing solutions tailored to your helical gear requirements.
Frequently Asked Questions
Plastic housings may deflect under helical thrust loads, requiring reinforcement or bearing preloading. Metal housings handle thrust better but add weight and cost. Consider housing stiffness early when evaluating helical implementations.
Opposite-hand pairs eliminate thrust but require precise axial positioning and double machining complexity. Use only when thrust elimination is essential and assembly precision can be maintained consistently during production.
Specify 15-25° helix angles for optimal balance of smooth operation and reasonable thrust loads. Below 15° provides minimal noise benefits, while above 25° creates excessive thrust forces that complicate bearing selection and manufacturing.
Helical benefits become noticeable at module 1.5mm and above where tooth overlap provides substantial noise reduction. Fine-pitch gears below 1.0mm show minimal differences, making spur gears better for small precision applications.
Helical gears become cost-effective above 100-200 pieces where setup costs amortize. For prototype quantities under 50 pieces, spur gears typically offer better value unless smooth operation is critical for validation or customer demonstrations.
Retrofitting requires shaft length increases for thrust bearings and potential housing modifications. Bearing mounts need redesign for axial forces. Motor and coupling positions may require adjustment to maintain alignment with modified shafts.
