Gear noise during operation usually stems from manufacturing inconsistencies, improper tolerances, or material issues that weren’t present in your prototype. With over 15 years machining precision gears for audio, medical, and aerospace applications, most noise problems trace back to specific CNC quality parameters that can be identified and corrected.
Gear noise typically results from poor surface finish (Ra >3.2 μm), excessive backlash (>0.2 mm), misalignment due to loose shaft tolerances, or speed-dependent resonance. Manufacturing inconsistencies between prototype and production are the most common cause, followed by inadequate lubrication or material hardness variations.
Learn how to pinpoint gear noise causes, which CNC specs affect sound, and how to fix noisy gears without a full redesign.
Table of Contents

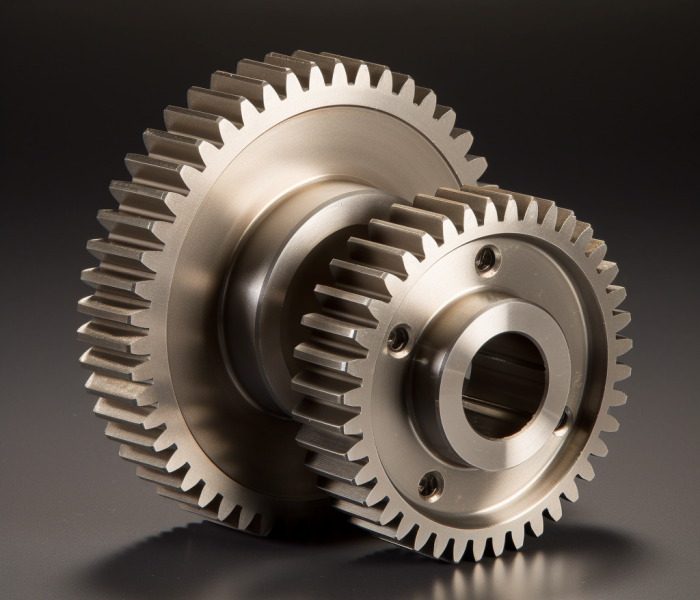

Why is my gear suddenly making noise when the prototype was quiet?
Production tolerance stack-up and material lot variations cause 70% of prototype-to-production noise issues. Check these first: measure actual backlash (should match prototype ±0.05 mm), verify material hardness (±2 HRC of prototype), and inspect 3 random gears for surface finish consistency.
🚨 Emergency Assessment – Can I Ship This?
- Noise <5 dB increase from prototype: Usually acceptable for most applications
- Backlash <0.20 mm: Functional but monitor for accelerated wear
- Noise only at >80% max operating speed: May be acceptable depending on end-use
- Grinding or metal-on-metal sounds: STOP – potential safety issue
From machining thousands of gear sets, the most reliable diagnostic sequence starts with backlash measurement using feeler gauges (15-minute test). If your prototype ran at 0.08 mm backlash but production shows 0.15+ mm, you’ve found your noise source. Material hardness variations create the second most common issue—we’ve seen 4140 steel lots vary from 26-32 HRC within the same heat lot, causing surface finish inconsistencies that generate noise.
Quick Decision Matrix (Can be done with shop tools):
- Backlash increased >0.07 mm from prototype: Tolerance stack-up issue—check shaft alignment with dial indicator
- Backlash matches but noise present: Surface finish degradation—request Ra measurement or run finger test on tooth flanks for roughness
- Noise only under load: Material hardness variation—verify with portable hardness tester (or file test if urgent)
Batch Risk Assessment: If 3 random samples all show the same issue, expect 80-90% of your batch to be affected. If only 1 out of 3 shows problems, you likely have isolated manufacturing variation that can be sorted through inspection.
Production setups prioritize cycle time over precision, typically reducing dwell time during finish passes by 30-40%. This creates surface finishes that drift from Ra 1.6 μm (prototype) to Ra 3.2+ μm (production). We’ve tracked how 0.02 mm cumulative tolerance growth across 5 gear train components creates 0.10 mm backlash increase—enough to generate 8-12 dB noise increase but usually still functionally acceptable.
Design Takeaway: Measure your prototype’s actual backlash and surface finish, then specify these as production control limits rather than accepting drawing tolerances. For immediate crisis management: sort parts by backlash measurement and ship tightest tolerance units first while investigating root cause.
What's causing gear noise only at high speeds but not low speeds?
Speed-dependent gear noise typically indicates resonance at specific frequencies, inadequate lubrication film breakdown, or bearing clearances that allow misalignment under centrifugal forces. Check if noise occurs at consistent RPM ranges—resonance happens at specific speeds, while lubrication issues worsen progressively with speed.
Most speed-dependent noise stems from three distinct causes, each requiring different solutions. Resonance creates noise at specific RPM ranges where gear mesh frequency matches natural frequencies of shafts, housings, or surrounding structure. We’ve measured this occurring most commonly at 1,200-1,800 RPM and 3,000-3,600 RPM in typical gear ratios, creating 6-10 dB noise spikes.
The fastest diagnostic approach involves running gears from 0-100% speed in 10% increments while noting exact RPM where noise starts and stops. Check if noise follows tooth mesh frequency using the formula: RPM × number of teeth ÷ 60. Test under both no-load and full-load conditions to distinguish between different causes.
Resonance issues manifest as noise at specific RPM ranges and can be addressed by programming speed ramps to skip problematic ranges like 1,750-1,850 RPM. Adding 0.5-2 kg of mass damping to housing vibration nodes often eliminates the problem entirely. For permanent solutions, changing gear ratios shifts mesh frequency away from structural resonance.
Lubrication breakdown shows as progressive noise increase with speed and responds well to switching to synthetic oils that maintain viscosity 40% better at high speeds. Temporarily reducing maximum operating speed by 15-20% provides immediate relief while investigating root causes.
Bearing clearance problems create sudden noise above threshold speeds and typically require checking bearing preload with potential 0.02-0.05 mm clearance reduction. Verifying shaft deflection under load with dial indicators helps confirm whether stiffer bearing arrangements are needed.
Design Takeaway: Most speed-dependent noise is manageable through operational changes rather than redesign. Test solutions in order of cost: lubrication changes first, then operational speed limits, finally mechanical modifications. Document exact RPM ranges where noise occurs for future reference.
How do tolerance specifications affect gear noise and backlash?
Tightening shaft position tolerances from ±0.05 mm to ±0.02 mm typically reduces gear noise by 3-5 dB by improving tooth contact consistency. However, backlash specifications matter more than absolute tolerances—optimize backlash range first before tightening expensive machining tolerances.
Quick Tolerance Diagnosis:
- Backlash >0.20 mm = impact noise → Tighten center distance to ±0.02 mm (+30% cost)
- Shaft runout >0.03 mm = continuous noise → Specify 0.01 mm TIR straightness (+50% cost)
- Backlash varies >0.05 mm around rotation = intermittent noise → Tighten bore position ±0.01 mm (+$15-25/part)
When gears are noisy due to tolerance issues, backlash consistency matters more than absolute values. From machining hundreds of gear assemblies, we’ve found that a gear with 0.15 mm uniform backlash runs quieter than one with 0.08-0.18 mm variation around one rotation, even though the average is tighter.
Cost vs. Benefit Reality: Moving from ±0.05 mm to ±0.02 mm tolerances increases machining costs by 30% but delivers 3-5 dB noise reduction. Going tighter to ±0.01 mm adds another 60% cost increase for only 1-2 dB additional improvement. Most noise problems resolve with backlash optimization rather than ultra-tight tolerances.
Quick fixes include sorting existing parts by backlash measurement and using the tightest 70% while correcting manufacturing processes. For immediate relief, checking bearing preload adjustments can often compensate for moderate alignment issues without expensive re-machining.
Design Takeaway: Start with backlash optimization before tightening positional tolerances. Specify tolerances based on function—tight tolerances only on features directly affecting tooth contact, standard tolerances everywhere else. Always include “measure backlash at 4 positions” in your drawings rather than relying solely on geometric tolerances.

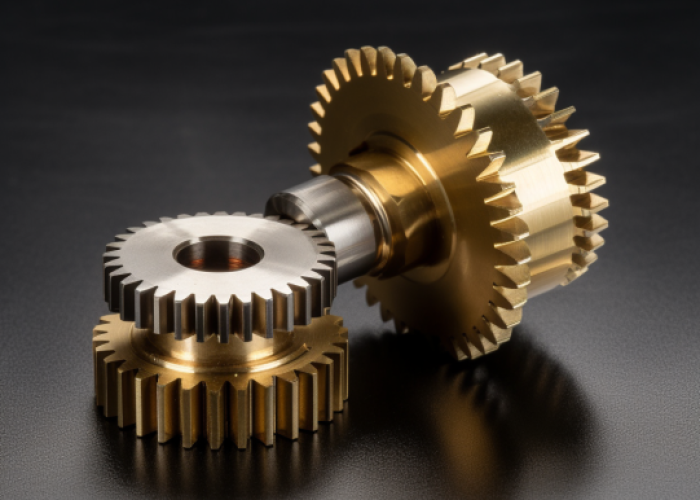

What CNC surface finish and machining tolerances prevent gear noise?
Surface finish of Ra 1.6 μm on gear teeth prevents most noise issues in precision applications, while maintaining positional tolerances of ±0.02 mm ensures consistent tooth contact. Standard Ra 3.2 μm finishes work for low-load applications but can generate noise under higher speeds or loads due to oil film breakdown.
Quick Decision Check:
- Current Ra 3.2 μm gears causing noise → Specify Ra 1.6 μm on tooth flanks for next batch (+15-25% machining time)
- Noise only at high speeds → Surface finish issue—oil film breakdown on rough surfaces
- Existing noisy gears → Lapping can improve surface finish but consider batch replacement timing
When gears develop noise after prototyping, surface finish on the tooth flanks is often the culprit. We’ve found that most noise complaints trace back to gears machined with Ra 3.2 μm surface finish that work fine during bench testing but start making noise under real operating conditions.
Surface finish requirements depend heavily on your application speed and load. For low-speed industrial applications under 500 RPM, Ra 3.2 μm typically runs quietly. But once you move into higher speeds or precision assemblies, that same surface finish becomes problematic due to oil film breakdown on rough surfaces.
Modern CNC gear cutting with sharp carbide tools and optimized parameters can achieve Ra 1.6 μm directly without secondary operations. The key is communicating clearly with your machinist: “Improve tooth flank surface finish to Ra 1.6 μm maximum using climb milling with reduced feed rates on finish passes.”
Design Takeaway: Specify Ra 1.6 μm only on tooth contact surfaces—gear roots, keyways, and mounting features can remain at standard Ra 3.2 μm. Include specific measurement requirements in your drawings to ensure your machinist understands which surfaces need precision finishing.
Should I switch from straight-cut to helical gears to reduce noise?
Helical gears reduce noise by 5-10 dB compared to straight-cut gears through gradual tooth engagement, but require thrust bearing capability and longer development timelines. Try surface finish optimization first—if you need substantial noise reduction and can accommodate axial thrust loads, helical conversion becomes worthwhile.
Quick Decision Check:
- Noise 3-6 dB over target → Try Ra 1.6 μm surface finish first (2-3 week timeline)
- Noise >8 dB over target → Consider helical conversion + thrust bearings (8-12 week timeline)
- Space/cost constraints → Surface finish and backlash optimization more practical than gear type change
The decision to switch gear types depends on how much noise reduction you actually need and whether your design can handle the mechanical changes. Helical gears typically provide 5-10 dB noise reduction, but they introduce axial thrust forces requiring different bearing arrangements.
When helical conversion makes sense: If your current gears exceed noise targets by 8+ dB and you can accommodate thrust bearings, helical gears become practical. For smaller noise issues (3-6 dB), surface finish improvements usually solve the problem faster and cheaper.
Implementation reality: Surface finish improvements take 2-3 weeks by adjusting CNC parameters. Helical conversion requires new tooling and thrust bearing capability, extending timelines 8-12 weeks. Most gear manufacturers can provide prototype helical gears to validate noise improvement before full commitment.
Design Takeaway: Start with surface finish optimization to Ra 1.6 μm—it’s faster, cheaper, and doesn’t require design changes. Reserve helical conversion for applications needing substantial noise reduction where thrust bearing complexity is acceptable.
Can I fix noisy gears without redesigning the whole assembly?
Most gear noise can be resolved through operational changes, lubrication improvements, or surface finish modifications without assembly redesign. Try synthetic lubricants, backlash adjustment, and housing damping before committing to new gears—complete redesign is rarely necessary for noise issues alone.
Quick Decision Check:
- Noise <5 dB over target → Try synthetic lubricant and damping solutions first (days to implement)
- Backlash >0.20 mm → Adjust bearing preload or add shims (hours to test)
- Speed-dependent noise → Operational speed changes or lubrication improvements (immediate)
About 70% of gear noise issues can be solved without touching the basic gear geometry or housing design. Start with the fastest fixes first.
Try synthetic lubricant immediately. Switch to synthetic 75W-90 gear oil for a 2-week trial—this typically reduces noise by 2-4 dB in applications above 1,500 RPM. If lubrication helps but doesn’t completely solve it, you know the issue is surface-related rather than geometric.
Adjust backlash if noise occurs during acceleration. Target 0.10-0.15 mm backlash by tightening bearing caps in 0.5-turn increments. Test results immediately under load.
Add housing damping for persistent noise. Attach 1-2 kg steel plates to housing using VHB tape at vibration nodes—often reduces radiated noise by 4-6 dB. For resonance issues, program speed ramps to skip problem RPM ranges.
Design Takeaway: Test synthetic lubricant first (immediate), then mechanical adjustments (hours), finally housing modifications (days). Document noise levels at each step. Reserve gear replacement only when quick fixes don’t provide adequate improvement.
What should I tell my gear manufacturer about noise requirements?
Send your manufacturer specific noise measurements, operating conditions, and audio recordings rather than subjective complaints. Request they investigate manufacturing changes between prototype and production batches to identify what caused the noise increase.
Quick Decision Check:
- Current gears making noise → Send audio recording + exact RPM where noise occurs + prototype comparison data
- No measurement tools → Use smartphone dB meter app to quantify problem before calling supplier
- Vague noise complaints → Document specific conditions where noise happens vs quiet operation
Most gear noise problems stem from unclear communication about what’s actually wrong. Instead of calling to say “the gears are too noisy,” providing specific data gives your manufacturer something concrete to investigate and resolve.
Start your problem documentation with actual measurements. Record current noise using a smartphone dB meter app at 3 feet distance, noting exact RPM where noise starts and stops. A 30-second audio recording showing the noise character helps your manufacturer understand the sound signature, but numbers give them targets to hit. This combination of objective data and subjective sound quality creates a complete picture.
Once you’ve documented the problem, shift focus to manufacturing comparison analysis between prototype and production batches. Ask your manufacturer: “What changed in setup, tooling, or material lots between our quiet prototype and current production?” This approach focuses their investigation on process variables rather than design theory, which typically leads to faster solutions.
Frame your communication with specific comparisons rather than abstract complaints. For example: “Current gears measure 82 dBA at 2,400 RPM while our prototype was 74 dBA. Noise starts around 2,000 RPM. Please investigate material lot differences, setup changes, and inspection frequency changes.” This gives them a clear before-and-after comparison to work with.
Follow up with actionable improvement requests rather than vague quality demands. Instead of “make them quieter,” specify “improve surface finish to Ra 1.6 μm on tooth flanks with profilometer verification every 10th part.”
Design Takeaway: Provide comparative data between working prototypes and noisy production parts. Your manufacturer needs specific process information to identify what changed between batches, not general complaints about loudness
Conclusion
Gear noise control starts with proper CNC specifications: Ra 1.6 μm surface finish, ±0.02 mm positional tolerances, and controlled backlash ranges prevent most acoustic issues. Focus precision where it matters—tooth contact surfaces—while using standard tolerances elsewhere. Contact us to explore gear manufacturing solutions tailored to your product requirements.
Frequently Asked Questions
Industrial applications typically target 70-80 dBA at 3 feet distance under full load. Consumer products require 65-75 dBA depending on environment. Medical/precision equipment needs <70 dBA. Specify measurement conditions: distance, load level, and operating speed. Include “measured per ANSI standards” to ensure consistent testing methods between suppliers.
Switch to synthetic gear oil (75W-90) for immediate 2-4 dB noise reduction in applications above 1,500 RPM. Adjust bearing preload to achieve 0.10-0.15 mm backlash if current clearance exceeds 0.20 mm. Add 1-2 kg mass damping to housing using VHB tape at vibration nodes. These solutions can be tested within hours and provide measurable results.
Switch to helical gears when noise exceeds target by 8+ dB and surface finish improvements aren’t sufficient. Helical gears provide 5-10 dB noise reduction but require thrust bearings and 8-12 week lead times. For noise issues under 6 dB, surface finish optimization (Ra 1.6 μm) typically provides adequate improvement with 2-3 week implementation.
Manufacturing defects show inconsistent noise between parts—some gears quiet, others noisy from same batch. Design problems create consistent noise across all parts. Measure backlash variation: >0.05 mm difference between gears indicates manufacturing issues. Speed-dependent noise that varies between identical parts also suggests manufacturing inconsistency rather than design flaws.
Measure backlash on 3-5 production gears and compare to prototype values. If backlash increased by >0.05 mm, the issue is tolerance stack-up from manufacturing changes. Check material lot numbers and setup parameters that changed between prototype and production runs. Request surface finish measurement on tooth flanks—Ra values often drift from 1.6 μm (prototype) to 3.2+ μm (production) causing noise.
Improving surface finish from Ra 3.2 μm to Ra 1.6 μm adds 15-25% to machining costs. Helical gear conversion increases costs by 30-40% plus thrust bearing requirements. Gear replacement can cost 200-400% of surface finish improvements. Surface finish optimization provides the best cost-to-noise-reduction ratio for most applications under 6 dB improvement targets.
