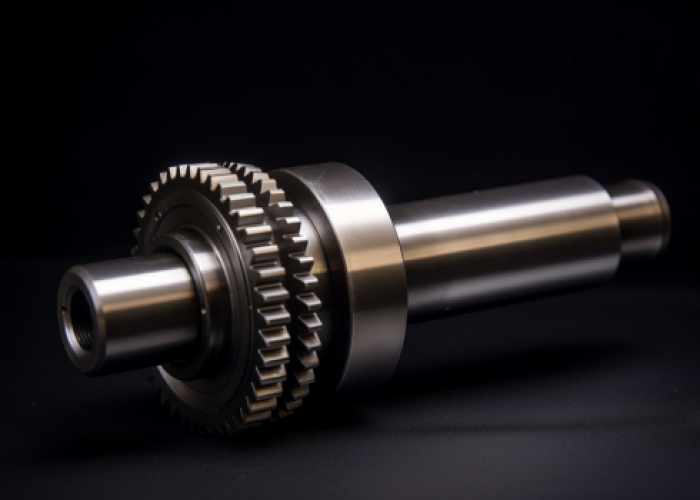

Selecting the right spur gear is crucial for ensuring optimal performance and longevity in mechanical systems. Whether you’re designing industrial machinery, robotics, or precision instruments, following a systematic approach to gear selection can prevent costly failures and maximize operational efficiency.
To select the right spur gear, follow a systematic 10-step process: determine requirements, calculate ratios, choose teeth count, select material, determine pitch, calculate dimensions, verify center distance, assess load capacity, consider manufacturability, and optimize the design. Each step ensures proper gear specification and performance.
In this comprehensive guide, we’ll dive deep into each step of the spur gear selection process, providing you with practical formulas, material considerations, and expert tips to help you make informed decisions for your specific application.
Table of Contents
1. Determine Application Requirements
Before diving into gear calculations and specifications, a thorough understanding of your application’s requirements forms the foundation of successful spur gear selection. This critical first step involves analyzing four key factors: power transmission needs, environmental conditions, operational precision requirements, and mounting constraints. Let’s explore how each of these factors influences your gear selection and why they’re essential for your application’s success.
Identify power, speed, and torque requirements
Power, speed, and torque requirements are the fundamental parameters that determine your spur gear’s basic specifications. These three elements directly impact your gear’s size, strength, and performance – getting them right is the first step toward selecting the perfect spur gear for your application.
For example, in a conveyor system, you’ll need to consider the motor’s power output (kW/HP), desired belt speed (RPM), and load-moving torque (N⋅m). These values directly influence your gear ratio and material choices.
To accurately identify these requirements:
- Check your motor or power source specifications for available power output
- Calculate the desired output speed based on your application needs
- Determine the required torque by analyzing your load conditions
- Consider any peak loads or sudden acceleration/deceleration
Consider environmental factors (temperature, lubrication, etc.)
Environmental factors refer to the physical conditions and surroundings in which your gear system will operate. Understanding these conditions is crucial as they can significantly affect your gear’s performance, durability, and maintenance requirements.
For example, in high-temperature environments like industrial ovens, you’ll need heat-resistant materials and specialized lubricants. In food processing equipment, food-grade materials and lubricants are essential for safety compliance.
To evaluate environmental conditions:
- Assess operating temperature range
- Identify exposure to moisture, dust, or chemicals
- Determine lubrication accessibility and requirements
- Consider any regulatory compliance needs
Assess noise and precision needs
Noise and precision requirements define how quietly and accurately your gear system needs to operate. These specifications are critical for determining the manufacturing quality and design modifications needed to meet your application’s performance standards.
For example, in medical equipment, you might need high-precision, low-noise gears, while industrial machinery might tolerate higher noise levels with standard precision tolerances.
To determine precision requirements:
- Specify acceptable noise levels for your application
- Define required positioning accuracy
- Consider speed consistency requirements
- Evaluate backlash tolerance needs
Evaluate mounting restrictions and shaft orientation
Mounting restrictions encompass all physical space limitations and installation requirements that will affect your gear system’s placement and configuration. These constraints are essential considerations that can make or break your gear selection’s success.
For example, in compact automation equipment, space limitations might restrict gear diameter, while in power transmission systems, shaft alignment and mounting options might be the primary concerns.
To assess mounting constraints:
- Measure available installation space
- Check shaft diameter and alignment requirements
- Consider mounting method options (keyed, splined, etc.)
- Evaluate accessibility for maintenance
2. Calculate Gear Ratio
Gear ratio is the mathematical relationship between the input and output speeds of a gear system. This crucial calculation determines how much your gear system will increase or decrease rotational speed, directly affecting the power transmission characteristics of your machinery. To determine this ratio, you’ll need to divide your input speed by the desired output speed.
For example, if your motor runs at 3,600 RPM and you need an output speed of 900 RPM, your gear ratio would be 4:1 (3,600 ÷ 900 = 4), meaning your input gear needs to rotate four times to make your output gear complete one revolution.
To calculate your gear ratio effectively:
- Document your input speed (from motor specifications)
- Define your required output speed (based on application needs)
- Perform the division calculation (input ÷ output)
- Consider standard ratio options for cost-effectiveness
3. Choose Number of Teeth
With your gear ratio calculated, the next critical step is determining the appropriate number of teeth for both your pinion and gear. This step involves two key factors: selecting the right tooth count to achieve your desired ratio and ensuring you meet the minimum tooth requirement for proper gear operation. Both factors work together to ensure smooth power transmission and optimal gear performance.
Select appropriate number of teeth for pinion and gear to achieve desired ratio
The number of teeth on your gears directly translates your calculated ratio into physical form. This selection affects not only the gear ratio but also the smoothness of operation and load distribution.
For example, if you need a 4:1 ratio, you could use a 20-tooth pinion driving an 80-tooth gear, or a 15-tooth pinion with a 60-tooth gear. Each combination achieves the same ratio but with different performance characteristics.
To select appropriate teeth numbers:
- Consider standard tooth combinations
- Calculate tooth numbers that match your ratio
- Factor in gear size limitations
- Account for backlash requirements
Ensure minimum of 18 teeth for 20° pressure angle gears
Meeting the minimum tooth requirement is crucial for preventing gear interference and ensuring proper tooth engagement. For standard 20° pressure angle gears, maintaining at least 18 teeth helps avoid undercutting and excessive wear.
To meet minimum teeth requirements:
- Verify tooth count meets or exceeds 18 teeth
- Consider pressure angle specifications
- Check for potential interference issues
- Calculate correct center distances
4. Select Material
After determining the gear geometry, choosing the right material is essential for ensuring your gear can handle the operating conditions you identified in step 1. This decision balances both material properties and economic factors through two key considerations: selecting for performance characteristics and evaluating material options.
Choose based on strength, wear resistance, and cost considerations
Material selection is a crucial balance between performance requirements and budget constraints. The right material ensures your gear can handle the required loads while maintaining dimensional stability and wear resistance over time.
For example, a heavy-duty conveyor system might require hardened steel for durability, while a low-load office printer could use cost-effective nylon gears with adequate performance.
To select appropriate materials:
- Evaluate load capacity requirements
- Consider operating temperature range
- Assess wear resistance needs
- Calculate material cost impact
Material Options
Each material category offers distinct advantages for different applications. Understanding these options helps you make an informed choice that balances performance and cost-effectiveness.
To choose between material options:
- Compare material strength properties
- Evaluate environmental compatibility
- Consider manufacturing complexity
- Assess material availability and cost
- Review maintenance requirements
| Material Type | Common Grades | Typical Applications | Key Properties |
|---|---|---|---|
| Steel | AISI 4140, 4340, 8620 | Heavy machinery, automotive, industrial equipment | High strength, excellent wear resistance, good heat treatment response |
| Stainless Steel | 303, 304, 316 | Food processing, marine equipment, corrosive environments | Corrosion resistant, moderate strength, good durability |
| Cast Iron | Gray Iron (Class 30-40), Ductile Iron (GGG-50/70) | General machinery, pump gears, slower speed applications | Good wear resistance, excellent dampening, cost-effective |
| Acetal (POM) | Delrin 100, Celcon M90 | Office equipment, consumer products, light-duty machinery | Low friction, good dimensional stability, chemical resistant |
| Nylon | PA6, PA66, PA12 | Light-duty automation, low-speed applications, quiet operation needs | Self-lubricating, quiet operation, cost-effective |
| Bronze | SAE 620, 630, 640 | Worm gears, marine applications, corrosive environments | Good wear properties, self-lubricating, corrosion resistant |
5. Determine Pitch or Module
After selecting your material, you need to establish the fundamental size parameters of your gear through either the diametral pitch (imperial) or module (metric) system. These two measuring standards serve the same purpose: defining the relationship between teeth size and gear diameter.
Diametral Pitch
For inch gears, calculate diametral pitch (DP) = (Number of teeth + 2) / Outer diameter. The diametral pitch system is commonly used in imperial measurements, particularly in North America. This standard defines how many teeth exist per inch of the gear’s pitch diameter.
For example, if you have a gear with 24 teeth and an outer diameter of 2.6 inches, your DP would be (24 + 2) / 2.6 ≈ 10, meaning there are 10 teeth per inch of pitch diameter.
To determine diametral pitch:
- Measure outer diameter accurately
- Count total number of teeth
- Apply the DP formula
- Round to standard DP values available
Metric Module
For metric gears, use module (M) = Pitch diameter / Number of teeth. The module system, preferred in metric countries, represents the pitch diameter per tooth. It’s the inverse relationship of diametral pitch and is expressed in millimeters.
For example, if you have a gear with a 60mm pitch diameter and 30 teeth, your module would be 60/30 = 2mm per tooth.
To calculate module:
- Measure pitch diameter in millimeters
- Count total number of teeth
- Apply the module formula
- Select nearest standard module size
| Standard Sizes | Diametral Pitch (DP) | Module (mm) |
|---|---|---|
| Fine | 32, 48, 64 | 0.5, 0.8, 1.0 |
| Medium | 16, 20, 24 | 1.25, 1.5, 2.0 |
| Coarse | 8, 10, 12 | 2.5, 3.0, 4.0 |
6. Calculate Dimensions
With your pitch or module determined, the next step is calculating the critical dimensions of your gear. These calculations ensure proper gear mesh and fit, focusing on two essential measurements that will determine your gear’s final size.
Pitch diameter
Pitch diameter = Number of teeth × Module (or Number of teeth / Diametral pitch)
The pitch diameter is the theoretical circle where gears mesh together, serving as the foundation for gear sizing. This crucial dimension determines how gears will interact with each other in your system.
For example, for a 24-tooth gear:
- Metric calculation: 24 teeth × 2mm = 48mm pitch diameter
- Imperial calculation (DP 12): 24 teeth ÷ 12 DP = 2 inches pitch diameter
To calculate pitch diameter:
- Use appropriate formula based on your measurement system
- Double-check your calculations
- Document the result for center distance calculations
- Consider standardized size ranges
Outside diameter
Outside diameter = (Number of teeth + 2) / Diametral pitch (for full depth teeth) or Outside diameter = (Module × Number of teeth) + (2 × Module) for metric
The outside diameter represents the total width of the gear from tip to tip. This measurement is crucial for physical space requirements and interference checking.
For example, for a 24-tooth gear:
- Imperial calculation (DP 12): (24 + 2) ÷ 12 = 2.167 inches outside diameter
- Metric calculation: (2mm × 24) + (2 × 2mm) = 52mm
To determine outside diameter:
- Calculate based on your measurement system
- Verify clearance in your assembly
- Check against standard sizes
- Consider manufacturing tolerances
7. Verify Center Distance
After calculating individual gear dimensions, determining the correct center distance between gears is crucial for proper mesh and operation. This step involves two different calculations depending on whether you’re working with a gear-to-gear system or a gear-and-rack configuration.
Gear-to-Gear Distance
Center Distance = (Pitch diameter of gear 1 + Pitch diameter of gear 2) / 2
This calculation determines the optimal distance between the centers of two meshing gears. Proper center distance ensures correct tooth engagement and smooth operation.
For example, with a 24-tooth pinion and 48-tooth gear (both Module 2):
- Pinion pitch diameter: 24 × 2mm = 48mm
- Gear pitch diameter: 48 × 2mm = 96mm
- Center distance: (48mm + 96mm) ÷ 2 = 72mm
To verify center distance:
- Calculate both gear pitch diameters
- Add pitch diameters together
- Divide by 2 for final center distance
- Check mounting capabilities
Gear-to-Rack Distance
Center Distance = (Pitch diameter of gear / 2) + Pitch height of rack
When meshing a gear with a rack, the center distance calculation differs slightly to account for the rack’s linear nature.
For example, with a 24-tooth gear (Module 2) and standard rack:
- Gear pitch diameter: 24 × 2mm = 48mm
- Center distance: (48mm ÷ 2) + 2mm = 26mm
To establish rack center distance:
- Calculate gear pitch diameter
- Divide by 2
- Add rack pitch height
- Verify mounting feasibility
8. Assess Load Capacity
With the geometric dimensions established, evaluating your gear’s ability to handle operational loads is crucial for ensuring long-term reliability. This step involves two critical assessments: calculating bending stress and analyzing surface wear factors.
Bending Stres
The Lewis formula is a fundamental method for calculating the bending stress at the root of gear teeth, helping determine if your gear can withstand operational forces without failure.
For example, in high-load applications, the calculated bending stress must stay well below the material’s yield strength, with appropriate safety factors applied.
To calculate bending stress:
- Apply the Lewis formula (σ = Ft/(b×m×Y))
- Consider speed factors
- Include safety margins
- Verify against material limits
Here’s a quick reference for Lewis form factors (Y):
| Number of Teeth | 12 | 15 | 20 | 30 | 40 | 60 |
|---|---|---|---|---|---|---|
| Form Factor (Y) | 0.245 | 0.290 | 0.328 | 0.358 | 0.384 | 0.409 |
Surface Wear
Surface wear assessment ensures your gear’s teeth can maintain their shape and function throughout their intended service life.
To assess wear resistance:
- Calculate contact stress
- Consider operating conditions
- Evaluate lubrication effects
- Factor in material hardness
- Review surface finish requirements
Materials and Their Typical Wear Resistance:
| Material | Surface Hardness (HB) | Wear Resistance Rating | Typical Applications |
|---|---|---|---|
| Carbon Steel (Heat Treated) | 250-400 | High | Heavy machinery |
| Cast Iron | 150-300 | Medium | General purpose |
| Nylon | 15-20 | Low | Light duty |
| Acetal | 20-25 | Low-Medium | Precision equipment |
9. Consider Manufacturability
After confirming your gear can handle the required loads, it’s essential to evaluate how feasible and cost-effective it will be to manufacture. This step focuses on two practical aspects: leveraging standard sizes and assessing custom manufacturing needs.
Use standard gear size
Using standard gear sizes can significantly reduce both cost and lead time compared to custom options. Off-the-shelf gears are readily available and have proven performance in various applications.
For example, if your calculations indicate a 25-tooth gear but a standard 24-tooth gear would work with minor design adjustments, the cost savings could be substantial.
To check standard availability:
- Review manufacturer catalogs
- Compare standard tooth counts
- Consider stock module/pitch options
- Evaluate cost differences
- Check lead time requirements.
Custom Requirements
Sometimes, standard gears won’t meet your specific requirements, necessitating custom manufacturing. This decision requires careful consideration of both technical needs and economic factors.
To assess custom gear needs:
- Compare performance requirements with standard options
- Calculate total cost impact
- Consider production volume
- Evaluate manufacturing method options
- Review quality control requirements
Here’s a comparison of standard versus custom manufacturing considerations:
| Aspect | Standard Gears | Custom Gears |
|---|---|---|
| Cost | Lower | Higher |
| Lead Time | Shorter | Longer |
| Design Flexibility | Limited | High |
| Minimum Order | Often single unit | Usually higher |
| Quality Control | Pre-established | Custom requirements |
10. Optimize Design
The final step in spur gear selection is optimizing your design to ensure the best balance of performance and cost. This involves fine-tuning your gear specifications while considering practical manufacturing and economic constraints.
Face width adjustments
Face width directly impacts load capacity and gear life. Adjusting this parameter helps optimize the gear’s strength and wear characteristics to match your application requirements.
For example, increasing face width can improve load capacity without changing other gear parameters, but it also increases material cost and weight.
To optimize face width:
- Calculate minimum width for load capacity
- Consider space constraints
- Balance strength requirements
- Account for material costs
- Verify manufacturability
Cost optimization
The final design must balance technical performance with economic feasibility. This often involves making strategic compromises while maintaining essential performance requirements.
To optimize costs:
- Review material selections
- Consider manufacturing processes
- Evaluate tolerance requirements
- Assess maintenance needs
- Compare alternative solutions
Conclusion
Following these 10 steps systematically will help you select the right spur gear for your specific application. From initial requirements analysis through optimization, each step ensures your gear selection meets performance needs while remaining cost-effective. Remember to carefully document your calculations and decisions at each stage, as this information will be valuable for future reference or modifications.
Frequently Asked Questions
For standard 20° pressure angle spur gears, a minimum of 18 teeth is recommended to prevent undercutting and ensure proper tooth engagement. Lower tooth counts may be possible with special profiles or non-standard pressure angles.
Gear ratio determines the relationship between input and output speeds. A larger ratio (e.g., 4:1) reduces speed but increases torque, while a smaller ratio (e.g., 1:2) increases speed but reduces torque.
Heat-treated steel and certain grades of stainless steel are optimal for high-temperature applications, capable of maintaining strength and dimensional stability at temperatures up to 300°C (572°F).
Premature gear wear typically results from improper lubrication, misalignment, excessive loads, contamination, or incorrect material selection. Regular maintenance and proper initial design can prevent most wear issues.
Typical backlash for spur gears ranges from 0.001 to 0.004 inches per inch of center distance. The exact amount depends on the application’s precision requirements and operating conditions.
Plastic gears offer lower weight, quieter operation, and self-lubrication properties at a lower cost, while metal gears provide higher strength, better heat resistance, and longer service life under heavy loads.
