Tolerance inconsistencies in plastic CNC parts frustrate product developers who need predictable, repeatable results for successful assemblies. After machining thousands of plastic prototypes and production parts across medical, audio, and aerospace applications, we’ve identified the root causes behind these variations.
Material thermal behavior and part geometry are the primary causes of inconsistent plastic CNC tolerances. Unlike metals, plastics expand and contract significantly during machining due to heat generation and clamping forces. Dimensional stability varies dramatically between materials—POM (Delrin) holds ±0.05 mm consistently, while ABS may vary ±0.10 mm depending on part geometry and machining parameters.
This post addresses the most common tolerance problems engineers face with plastic CNC parts and provides actionable solutions to achieve consistent results.
Table of Contents

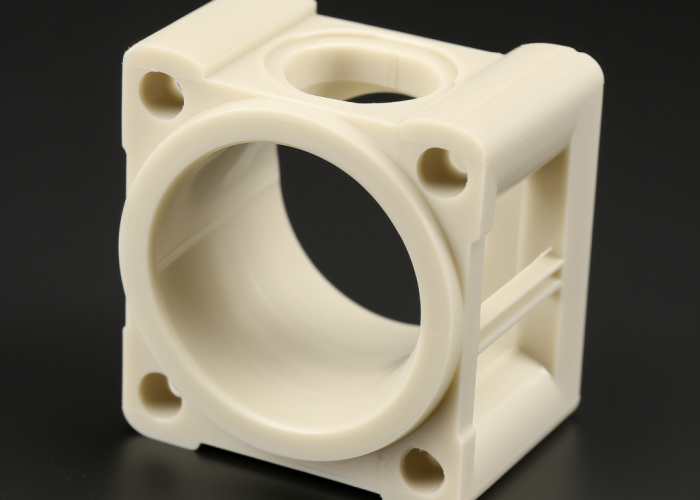

How Do I Know If My Plastic Material Is Causing Tolerance Problems?
If your parts consistently measure outside spec by more than ±0.05 mm across different geometries, but your drawings and machining setup are correct, material thermal behavior is likely the culprit. ABS and polycarbonate expand significantly during cutting, while POM (Delrin) and PEEK remain more stable. The key diagnostic: tolerance problems that follow the same pattern regardless of part complexity.
Look for these specific symptoms: dimensions that drift consistently in one direction, parts that measure differently when warm versus room temperature, or tolerance variations that worsen with longer machining cycles. We’ve measured this pattern using CMM inspection—ABS typically drifts ±0.10 mm from thermal expansion, while POM holds ±0.025 mm consistently when machined with proper temperature control.
In our experience machining audio housing projects, switching clients from polycarbonate to POM eliminated flatness issues that caused assembly gaps. Medical device manufacturers see similar improvements moving from ABS to acetal for sealing surfaces. The clearest diagnostic sign: when parts fail to meet ISO 2768-m medium tolerance class (±0.1 mm for features under 30 mm) despite proper machining setup, material thermal properties are usually the root cause.
Design Takeaway: Run a simple test—if the same tolerance problem appears on both thick and thin features of your part, switch to POM or PEEK and re-quote to compare cost impact versus scrap risk.

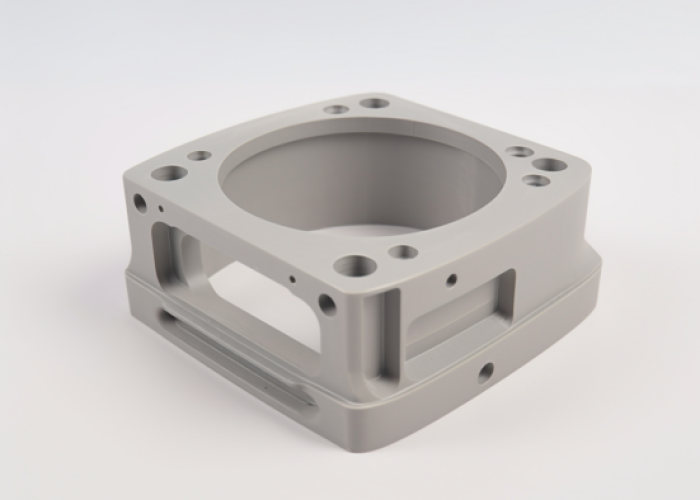

How Does My Part Geometry Affect Tolerance Consistency?
Thin walls, deep pockets, and complex internal features amplify tolerance inconsistencies in plastic parts because they create uneven heat distribution and deflection during machining. Wall thickness below 2.5 mm in plastics like ABS or polycarbonate can deflect under clamping pressure, causing dimensional variations of ±0.15 mm or more. Complex geometries with multiple setups also introduce cumulative tolerance stack-up that’s harder to control than simple, symmetric designs.
We’ve verified this using CMM measurements on identical parts with different wall thicknesses—3 mm walls in POM hold ±0.025 mm consistently, while 1.5 mm walls show ±0.08 mm variation due to deflection. Parts requiring multiple setups for internal features often accumulate an additional ±0.05 mm tolerance variation at each datum change.
In our audio enclosure projects, redesigning thin faceplates from 1.2 mm to 2.5 mm wall thickness eliminated warping issues that prevented proper button alignment. Medical device housings with deep internal pockets often require support ribs to maintain flatness tolerances. When parts exceed ISO 2768-m medium tolerance expectations due to geometric complexity, the geometry—not the machining—is usually the limiting factor.
Design Takeaway: Maintain minimum 2.5 mm wall thickness and consolidate features to minimize setups—simpler geometry consistently delivers better tolerance control at lower cost.
Are My Tolerance Specifications Realistic for This Plastic?
Most plastics can achieve ±0.05 mm on standard features, but specifying tighter tolerances like ±0.01 mm often creates unnecessary cost without functional benefit. POM (Delrin) reaches ±0.025 mm reliably, while ABS struggles beyond ±0.08 mm due to thermal expansion. The key question: does your application actually require the precision you’re specifying?
We consistently measure these capabilities across production runs using precision inspection—POM delivers ±0.025 mm, PEEK reaches ±0.015 mm with temperature control, while ABS varies ±0.08-0.12 mm. These limits are material-driven, making unrealistic specifications costly and frustrating.
Aerospace clients often specify ±0.01 mm tolerances copied from metal components, but functional analysis reveals ±0.05 mm works perfectly for bracket assemblies and enclosure fits. The cost difference between realistic and unnecessarily tight specifications can double machining time and require premium inspection methods. Most plastic parts perform excellently within ISO 2768-m medium tolerance ranges, which align well with achievable plastic machining capabilities.
Design Takeaway: Reserve tight tolerances for truly critical features only—functional analysis usually reveals that standard plastic capabilities meet performance requirements at much lower cost.
What's Causing Inconsistent Results Between Production Runs?
Temperature variations and inconsistent machining parameters cause identical plastic parts to measure differently across production batches. Even 5°C ambient temperature differences create ±0.05 mm dimensional variations in ABS and polycarbonate. Clamping pressure changes, different cutting tools, or operator variations also introduce run-to-run tolerance drift that’s predictable once identified.
We track these patterns using production logs and CMM verification—parts machined at 18°C consistently hold tighter tolerances than identical setups at 25°C. Tool wear progression affects heat generation differently between batches, while fixture wear creates varying clamping pressure. Spindle warm-up time differences between shifts often cause the first few parts to measure outside tolerance until thermal equilibrium stabilizes.
In our instrumentation housing projects, implementing temperature-controlled machining eliminated ±0.08 mm seasonal variation that caused assembly problems. Robotics manufacturers see similar improvements when standardizing tool change intervals and clamping procedures across all operators. For parts requiring statistical process control per ISO 9001 quality standards, documenting these environmental variables becomes essential for consistent production.
Design Takeaway: Establish documented machining parameters for each material and monitor ambient temperature—most run-to-run variations disappear with consistent environmental conditions and standardized procedures.
How Should I Communicate Requirements to My CNC Supplier?
Specify critical dimensions with GD&T callouts and explain functional requirements rather than applying blanket tight tolerances. Clear communication about which features truly matter for assembly enables suppliers to optimize costs and delivery. Include Ra surface finish values, material alternatives, and inspection requirements to prevent misunderstandings.
Effective supplier communication includes these key elements verified across hundreds of successful projects:
- Functional context for tolerances – Explain that ±0.025 mm bore tolerance ensures bearing fit, helping suppliers select proper tooling and parameters
- Numerical surface finish specs – Specify exact Ra values (like 1.6 μm) instead of subjective terms like “smooth”
- Material alternatives – Provide backup options when primary choices face supply delays
- Critical vs. non-critical dimensions – Separate structural tolerances from secondary features to enable cost optimization
Aerospace component projects benefit when designers distinguish between structural and aesthetic requirements. Electronics enclosure manufacturers achieve better outcomes by explaining EMI shielding needs versus purely visual surfaces, enabling optimized machining sequences. Following ASME Y14.5 geometric dimensioning standards ensures both parties interpret tolerance requirements consistently.
Design Takeaway: Create detailed prints with functional context for critical dimensions, specify numerical Ra values, and provide material alternatives—suppliers optimize both cost and quality when they understand your actual requirements.
When Should I Consider Design Changes vs Material Changes?
If your tolerance problems persist across multiple plastic materials, geometry modifications usually provide faster and cheaper solutions than upgrading to premium materials. The decision becomes clear when POM, ABS, and polycarbonate all struggle with the same features—your part design is pushing beyond what standard machining can reliably achieve, regardless of material choice.
We see this pattern frequently in our shop: clients try three different materials hoping to solve tolerance issues, only to discover that simple design changes eliminate the problems entirely. Adding wall thickness from 1.5 mm to 3 mm typically costs pennies per part, while switching from ABS to PEEK can add $15-25 per part. The math usually favors design optimization over material escalation.
Consider your timeline too—design changes can be implemented immediately with your existing supplier and material approvals, while material switches often require new sourcing, testing, and validation cycles. Medical device projects especially benefit from this approach since design modifications within approved materials avoid lengthy revalidation processes that material changes trigger.
The practical test: if you’re already using a reasonable engineering plastic and still seeing tolerance drift, look at your geometry first.
Design Takeaway: Before upgrading materials, try increasing wall thickness, adding support ribs, or simplifying complex features—most tolerance problems disappear with better geometry at a fraction of the cost.
Conclusion
Inconsistent plastic CNC tolerances stem from material thermal behavior, part geometry, and unrealistic specifications. Focus on material selection, design optimization, and clear supplier communication for predictable results. Most tolerance issues resolve through geometry improvements rather than expensive material upgrades. Contact us to explore manufacturing solutions tailored to your plastic component requirements.
Frequently Asked Questions
PEEK offers the best dimensional stability at ±0.015 mm with proper temperature control, followed by POM (Delrin) at ±0.025 mm. ABS and polycarbonate struggle beyond ±0.08 mm due to higher thermal expansion coefficients during machining.
Maintain minimum 2.5 mm wall thickness for consistent tolerance control. Walls below 2 mm deflect under clamping pressure, causing dimensional variations of ±0.15 mm or more in most plastic materials.
Yes, ISO 2768-m medium tolerance class aligns well with standard plastic machining capabilities and provides cost-effective precision for most applications. Tighter specifications often increase cost without functional benefit.
Consider metal when you consistently need tolerances tighter than ±0.025 mm across multiple features, or when thermal stability requirements exceed plastic material capabilities. Most plastic applications perform well within standard tolerance ranges.
Ambient temperature changes affect plastic dimensional stability during machining. A 5°C temperature difference can create ±0.05 mm variation in thermally sensitive materials like ABS and polycarbonate. Temperature-controlled machining environments eliminate seasonal tolerance drift.
±0.05 mm is achievable for most plastic materials on standard features. POM (Delrin) can hold ±0.025 mm consistently, while ABS typically varies ±0.08-0.10 mm due to thermal expansion. Reserve tighter tolerances for truly critical dimensions only.
