Does wider face width actually reduce gear noise?
Yes, increasing face width typically reduces gear noise by 3-6 dB through improved load distribution across tooth surfaces. Research shows that proper face width optimization can achieve 3-6.5 dB noise reduction, while advanced gear modifications demonstrate up to 35% noise amplitude reduction. The physics is straightforward: wider faces spread transmitted forces over larger contact areas, reducing peak contact stresses that create vibration and audible noise.
Wider face width distributes loads more evenly across gear teeth, creating larger contact areas that reduce peak stresses and vibrations. This improved load distribution is the primary mechanism for noise reduction. Uniform load distribution across the face width reduces stress concentrations and minimizes the oscillating forces that generate gear whine.
From our experience with custom gear projects, we consistently see noise improvements when clients move from minimal face widths to properly-sized widths. The wider contact area facilitates better meshing engagement, reducing the impact forces during tooth contact and minimizing vibrations that translate to audible noise.
Design Takeaway: Face width is an effective noise reduction strategy that works by spreading loads over larger contact areas. The key is finding the optimal width for your specific application rather than simply maximizing width.

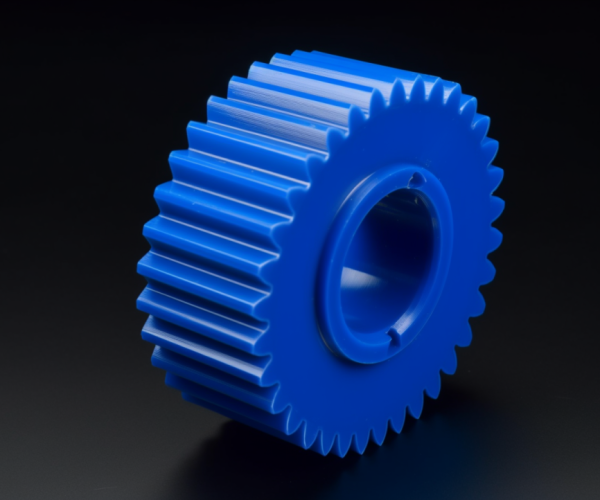

What's the optimal face width for noise reduction?
For optimal noise reduction, target face widths of 8-12 times the module, with the sweet spot at 10-12x module for most applications. Industry standards recommend face width of 8-14 times the module, with 10x module being standard for metric spur gears. Engineering guidelines specify face width to module ratios of 8 to 16 for optimal load distribution.
Quick Decision Framework:
- Budget-conscious applications: 8-10x module (adequate noise reduction)
- Noise-critical applications: 10-12x module (optimal performance-to-cost ratio)
- Extreme quiet requirements: Up to 14x module (diminishing returns, 40-60% cost increase)
Industry data shows noise benefits plateau beyond 12x module while manufacturing complexity increases exponentially. The 10-12x range provides 80% of maximum noise reduction potential at reasonable cost. Beyond 14x module, precision requirements for parallelism and face runout become extremely tight, often requiring specialized fixturing.
Design Takeaway: Specify 10-12x module for optimal noise-to-cost performance. This ratio provides significant noise reduction without the exponential cost increases seen beyond 14x module, while maintaining manufacturability with standard precision equipment.

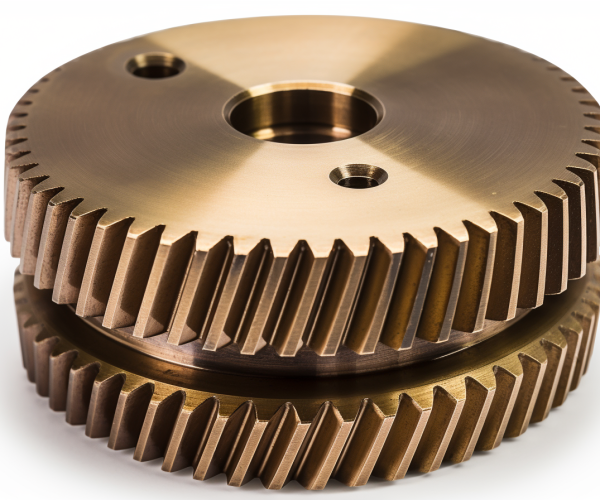

Does face width reduce noise differently in spur and helical gears?
Yes, spur gears benefit significantly more from face width optimization than helical gears for noise reduction. Helical gears operate 10-15 dB quieter than spur gears at standard speeds, reaching up to 20 dB difference at higher speeds . This baseline difference occurs because helical gears engage gradually while spur gears have sudden line contact.
Gear Type Selection Guide:
- Spur gears: Face width optimization provides 4-6 dB improvement, often justifying wider specifications
- Helical gears: Face width yields 2-3 dB gains—consider design alternatives first
- Cost-sensitive projects: Helical gears at 10x module often outperform wider spur gears
Helical gears achieve superior baseline acoustics through higher “face contact ratios” – more teeth sharing loads simultaneously. This means spur gears depend more heavily on face width for noise control, while helical gears can achieve quiet operation through helix angle optimization, contact ratio improvements, or material selection instead of simply increasing width.
Design Takeaway: For spur gears targeting noise reduction, face width optimization delivers measurable results and often justifies the manufacturing investment. For helical gears, evaluate helix angle or contact ratio optimization before specifying wider faces, as these alternatives may provide better noise improvement per dollar spent.
Wider face width in your gear design?
We evaluate alignment, noise, and wear impact • Confirm effectiveness before machining
How does face width affect noise under high load conditions?
Under high loads, face width becomes exponentially more effective for noise reduction because stress concentration amplifies acoustic disturbances. High-load applications require careful consideration of maximum allowable torque, which varies significantly with operational speed and can be limited by either bending strength or surface durability. For each increase in face width, gear strength increases proportionally – a 10% increase in face width results in a 10% increase in gear strength.
Load-Based Face Width Selection:
- Light duty (<50% rated capacity): Standard 8-10x module adequate
- Heavy duty (50-80% capacity): 12-14x module for stress distribution
- Extreme loads (>80% capacity): 14-16x module to prevent stress spikes
Under high loads, contact stresses can increase from 157 ksi to 242 ksi when gears experience stress concentration, directly correlating with noise generation. The physics: higher loads create more stored energy in tooth deflection, and wider faces distribute this energy release more gradually, reducing the acoustic “snap” as teeth disengage.
High-Load Noise Reduction Benefits:
- 3-5 dB improvement: Typical for moving from 8x to 12x module under heavy loads
- 5-8 dB improvement: Achievable at 14-16x module in shock-loading applications
- Diminishing returns: Beyond 16x module, noise benefits plateau while costs escalate
Cost justification improves under high loads because gear noise often indicates impending failure modes. The acoustic benefits scale directly with applied stress levels, making wider faces more cost-effective in demanding applications than light-duty use.
Design Takeaway: For applications exceeding 50% of rated gear capacity, specify 12-14x module to capitalize on load-proportional noise reduction. Above 80% capacity, 14-16x module often justifies the cost through both acoustic and durability improvements.
What alignment changes are required when increasing gear face width?
Wider faces require progressively tighter alignment control because angular errors create proportionally larger edge-loading effects across longer contact lines. Typical straightness tolerances for metric gears are 0.2mm per 1000mm of length, but even 0.002 inches of misalignment across face width can shift loads dramatically to tooth edges y.
Progressive Tolerance Tightening Schedule:
- 8-10x module: ISO standard tolerances (±0.05-0.1mm parallelism)
- 12-14x module: 50% tighter than standard (±0.025-0.05mm)
- 16x+ module: Precision tolerances (±0.01-0.02mm) with verification
Manufacturing Implementation Strategy:
- Housing preparation: Achieve ±0.02mm gear pitch and ±0.01mm bore alignment with CNC machining and optical verification
- Bearing positioning: Line boring required for faces >14x module
- Assembly sequence: Matched bearing sets prevent cumulative tolerance stack-up
- Verification: CMM inspection at multiple face width positions
Tolerance stacking analysis shows that housing bore, shaft alignment, and face width tolerances accumulate, requiring statistical methods rather than worst-case assumptions to avoid over-specification. The practical rule: every 2x increase in face width ratio requires approximately 50% tighter alignment control.
Implementation Cost Impact:
- Standard alignment: Conventional machining processes adequate
- Enhanced alignment: 25-40% longer setup and verification time
- Precision alignment: Specialized fixturing and measurement equipment required
Design Takeaway: Plan alignment specifications during design phase—retrofitting precision alignment is 3-5x more expensive than designing it initially. Specify progressive tolerance tightening based on face width ratio rather than blanket precision requirements to optimize manufacturing costs.
Are there better ways to reduce gear noise than increasing face width?
Yes, helical gear conversion typically provides 10-15 dB noise reduction versus 3-6 dB from face width alone, often at lower cost. Helical gears operate 10-15 dB quieter than spur gears with manufacturing costs increasing only 20-30% compared to 40-60% increases for extreme face widths.
Four critical parameters control gear noise: contact ratio, helix angle, material selection, and surface finish. When optimized together, these achieve up to 25 dB noise reduction . Surface finish improvements from Ra 3.2μm to 0.8μm add 2-3 dB reduction , while pressure angles of 15-17.5° target low noise applications.
Manufacturing economics favor helical conversion because it addresses fundamental tooth engagement physics rather than just load distribution. Profile corrections can achieve 20-40% noise amplitude reduction when combined with other strategies.
For retrofits where gear type cannot change, face width increases may be the only option. However, for new designs, combining helical conversion with moderate face width (10-12x module) typically outperforms extreme spur gear face widths while maintaining better tolerance sensitivity.
Design Takeaway: Evaluate helical conversion first—it delivers better noise reduction per dollar than extreme face widths. Use face width optimization as a secondary strategy or when gear type changes aren’t feasible.

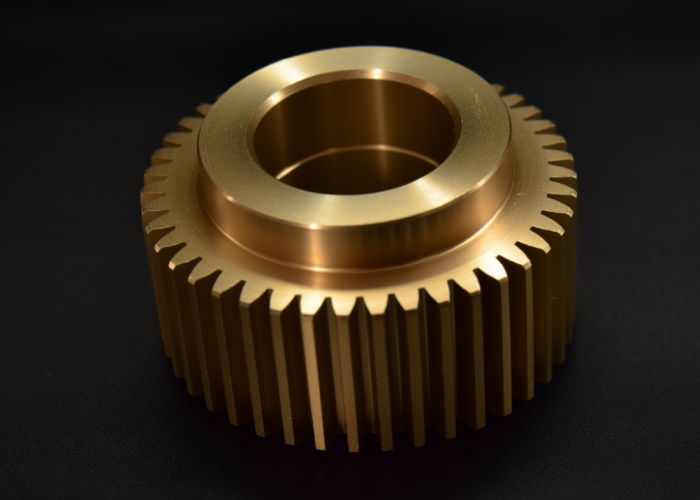

What face width ranges are common in quiet gear designs?
Quiet gear designs typically use 10-12 times the module, with industry standard being 10x module for general applications. Standardized face widths equal 10 millimeters multiplied by the module, with metric spur gears recommended at ten times the module. Practical guidelines suggest 9-15x module range for straight spur gears.
Engineering consensus places optimal face width within 8-14 times the module, balancing noise benefits with manufacturing feasibility. The 10-12x range delivers approximately 70-80% of maximum noise benefits while maintaining standard tolerance requirements.
Application Examples: Automotive transmissions specify 12-14x module for noise-critical applications, while industrial equipment uses 10-12x module for cost-performance balance. Modern practice limits face width to 1.25-1.50 times pinion pitch diameter to avoid manufacturing complications .
Manufacturing costs increase moderately up to 12x module, then escalate significantly beyond 14x module due to specialized tooling requirements. European standards favor 11-13x module with precision manufacturing, while North American practice often specifies 12-14x module.
Design Takeaway: Specify 10-12x module for most quiet applications—this delivers substantial noise reduction at reasonable cost. Reserve 12-14x module for noise-critical applications where acoustic benefits justify increased manufacturing complexity.
What are the trade-offs of increasing face width for noise control?
Increasing face width for noise control creates significant manufacturing cost increases and alignment sensitivity that often outweigh acoustic benefits beyond optimal ratios. Manufacturing and inspection costs escalate exponentially with tighter tolerance requirements, while tighter specs incur more scrap, longer lead times, and greater inspection overhead.
Cost-Benefit Decision Matrix:
- 10-12x module: Provides 70-80% of noise benefits at 20-30% cost increase – optimal for most applications
- 12-14x module: Marginal noise improvement but 40-60% cost increase – justify only for noise-critical applications
- Beyond 14x module: Minimal additional benefit with exponential cost increases – rarely cost-effective
Smaller tolerance fields lead to smaller deviations but manufacturing costs increase through longer cycle times and higher scrap rates. Precision tolerances like ±0.0005″ require tool changes every few parts, while standard ±0.005″ tolerances allow thousands of parts per tool.
Alternative Comparison: Before specifying extreme face widths, consider that helical gear conversion typically provides 10-15 dB noise reduction at only 20-30% cost increase – often better return on investment than wide spur gears at 40-60% cost increase.
Design Takeaway: Target 10-12x module for optimal cost-benefit performance. Beyond this range, evaluate whether 2-3 dB additional improvement justifies doubling manufacturing costs, or if alternative noise reduction strategies provide better value.
How does face width affect lubrication and maintenance?
Wider face widths require enhanced lubrication distribution and create accessibility challenges that increase maintenance complexity and frequency. Longer contact lines demand more uniform oil film distribution, while wider gear housings complicate inspection access and service procedures.
Practical Maintenance Impact:
- Service frequency: Plan for 25-40% longer maintenance intervals due to increased inspection complexity
- Oil volume requirements: Wider housings typically require 50-100% more lubricant capacity
- Downtime costs: Extended drain/refill cycles can double maintenance window duration
Manufacturing experience shows wide gears concentrate wear patterns differently than narrow gears. Edge loading from slight misalignments creates localized wear that’s harder to detect during routine inspection. Standard splash lubrication becomes inadequate beyond 12-14x module, often requiring forced circulation upgrades.
Cost Planning Considerations: Budget for circulation pump systems when specifying faces wider than 14x module. Enhanced filtration becomes necessary due to increased churning effects in larger oil volumes. Consider that maintenance cost increases may offset initial noise reduction benefits over equipment lifecycle.
Total Cost Reality: While wider faces may solve immediate noise issues, the ongoing operational costs often exceed the initial manufacturing premium, making alternative noise reduction strategies more economical long-term.
Design Takeaway: Factor 30-50% higher maintenance costs into wide face width specifications. For faces beyond 12x module, evaluate whether ongoing operational expenses justify the noise improvement compared to one-time helical conversion costs.
How do you measure noise reduction from face width changes?
Noise reduction from face width changes is measured using calibrated sound level meters following standardized procedures, comparing dB readings before and after modification under identical operating conditions. Proper measurement follows ISO 3744 standards for machinery noise assessment, with gear-specific procedures defined in ISO 8579-1 for determining airborne sound power levels emitted by gear units.
Practical Measurement Expectations:
- Typical results: Face width optimization usually delivers 2-4 dB reduction in overall levels
- Cost-benefit validation: 3 dB improvement may justify 40% cost increase for medical/precision equipment
- Measurement timing: Allow 50-100 hours break-in before final noise testing for accurate results
Methods are suitable for all types of noise including steady, non-steady, fluctuating, and isolated bursts of sound energy. Manufacturing verification focuses on gear mesh frequencies where face width changes show primary effects, typically in fundamental mesh frequency and first few harmonics.
Real-World Implementation: Shop floor testing requires background noise isolation and consistent operating conditions. Document baseline conditions thoroughly because temperature, load variations, and bearing condition significantly affect comparative results. Use identical gears with only face width differences to ensure valid conclusions.
ROI Validation: Compare measured noise reduction against manufacturing cost increase to validate design decisions. If noise improvement is less than 3 dB, face width optimization may not justify the cost premium compared to alternative strategies.
Design Takeaway: Plan measurement protocols before modifications to establish credible baselines. Expect 2-4 dB typical improvement from face width optimization – use this benchmark to evaluate whether the manufacturing investment delivers adequate return for your application requirements.
Conclusion
Optimizing gear face width for noise control requires balancing acoustic benefits against manufacturing costs and complexity. Target 10-12x module ratios for most applications, with wider faces justified only when noise reduction exceeds 3 dB improvement thresholds. Contact us to explore manufacturing solutions tailored to your gear noise requirements.
Frequently Asked Questions
Retrofitting isn’t practical due to housing and shaft constraints. Wider faces require corresponding increases in housing width, bearing spacing, and often shaft modifications. It’s more cost-effective to evaluate helical conversion or surface finish improvements for existing installations.
Machining time increases roughly proportionally with face width, but setup complexity grows exponentially. Expect 25-40% longer cycle times for 12-14x module gears due to additional inspection requirements and potential multiple setups for precision work.
Yes, wider gears have higher rotational inertia requiring balance consideration above 1000 RPM. Plan for dynamic balancing procedures when face width exceeds 1.5x the gear diameter to prevent vibration issues that could negate noise reduction benefits.
Under-specifying face width means missing noise reduction opportunities while still paying for non-standard manufacturing. It’s better to target the optimal 10-12x module range initially rather than incrementally increasing in future revisions.
Increases smaller than 20% (2x module) rarely provide measurable noise benefits and may not justify tooling changes. Target minimum 30-40% increases (3-4x module) to achieve perceptible noise reduction that validates the manufacturing investment.
Calculate your noise tolerance threshold first. If your application can accept current noise levels plus 3 dB, face width optimization likely isn’t cost-effective. For noise-sensitive environments requiring >3 dB reduction, the manufacturing premium often justifies the investment, especially compared to redesigning entire assemblies.
