Electrical Discharge Machining (EDM) excels at creating parts that other machining methods can’t achieve. EDM’s precision and versatility make it invaluable in modern manufacturing, from intricate medical components to complex aerospace parts.
In this guide, we’ll explore three main EDM processes – Wire, Sinker, and Drilling – to help you select the most suitable option for your manufacturing needs.
Table of Contents
Types of EDM Processes
Wire EDM
Think about cutting a slice of bread with a wire cutter – that’s similar to how Wire EDM works, but with incredible precision. A thin metal wire moves along a programmed path while electrical sparks do the actual cutting. What’s fascinating is that the wire never actually touches the metal it’s cutting!
When you need to cut really complex shapes with amazing accuracy,
Wire EDM is your go-to process. It’s particularly good at:
– Slicing through hardened steel like butter
– Cutting shapes that would be impossible with traditional tools
– Creating parts so precise they can measure up to ±0.0001 inches (that’s thinner than a human hair!)
– Making complex parts for aerospace and medical devices

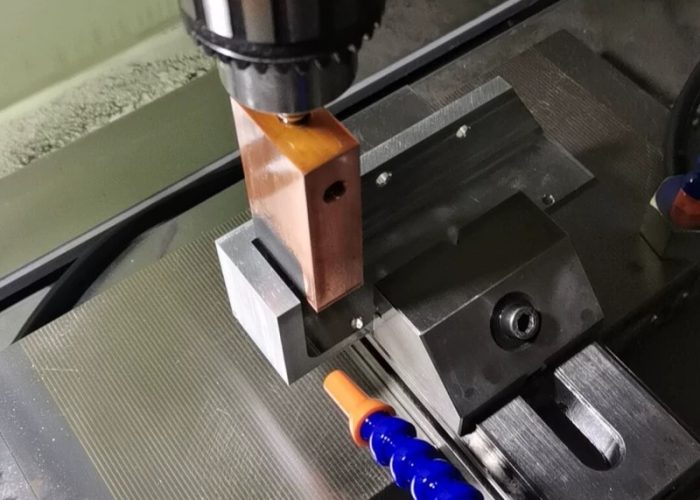

Die Sinking EDM
Imagine pressing a stamp into the clay – that’s basically how Die Sinking EDM works, except with metal. We start with an electrode (usually copper or graphite) shaped exactly like the cavity we want to create. Then, using electrical sparks, this electrode slowly “sinks” into the metal, creating a perfect mirror image.
This process really shines when you need to create:
– Complex cavities for injection molds
– Intricate 3D shapes that would be a nightmare to machine normally
– Dies for stamping out parts
– Detailed features in super-hard materials
EDM Drilling
Here’s something cool about EDM drilling – it can create holes deeper than any conventional drill bit could dream of. Using a hollow electrode and electrical sparks, it can drill holes 20 times deeper than they are wide. That’s like drilling a hole the width of a pencil to a depth of over 3 feet!
You’ll find EDM drilling being used for:
– Creating cooling channels in molds
– Making precise holes in jet engine parts
– Drilling starter holes for Wire EDM
– Producing tiny holes in medical devices
What makes this process special is its ability to drill perfectly straight holes through even the hardest metals, something that would be nearly impossible with conventional drilling.
Comparing EDM with Traditional Machining Methods
Let’s put things in perspective – if you’ve ever used CNC machining or laser cutting, you might be wondering when EDM makes more sense. Here’s the interesting part: sometimes it’s not about which method is “better,” but rather which one fits your specific needs.
Think of it like choosing between a Swiss Army knife and a specialized surgical tool. CNC machining is like that Swiss Army knife – versatile and great for many jobs. But when you need to cut through hardened steel with incredible precision, that’s where EDM becomes your surgical tool.
Here’s what makes EDM stand out:
– It can work with any conductive material, no matter how hard
– There’s no physical cutting force (which means no material deformation)
– You can create internal corners as sharp as you want
– Surface finish can be mirror-like without additional processing
But let’s be honest – EDM isn’t always the answer. It’s typically slower than CNC machining and often more expensive for simple shapes. The key is knowing when to use it.
For example:
– If you’re making simple parts in soft materials, stick with CNC machining
– Need to cut thin sheet metal? Laser cutting is probably your best bet
– But if you’re creating complex mold cavities in hardened steel? Now that’s where EDM shines
Think about it like this: you wouldn’t use a precision scalpel to cut cardboard, right? Similarly, you wouldn’t want to use a standard CNC mill to create microscopic features in hardened tool steel. That’s when EDM becomes not just useful, but essential.
Which EDM Process Is Right for Your Project?
Let’s make your decision easier by breaking things down into the key factors that matter. Think of this as your EDM cheat sheet – it’ll help you figure out which process fits your needs best.
Starting with Wire EDM:
– Your best choice when you need to cut completely through shapes
– Perfect for when precision is your top priority (like making medical device components)
– Great for projects where you need a superior surface finish
– Ideal for cutting thick metal plates – up to 20 inches in some cases!
Now, when should you pick Die Sinking EDM?
– When you need those complex 3D cavities
– If you’re working on injection molds
– When you need specific surface textures
– Perfect for creating deep ribs and slots
And what about EDM Drilling?
– When you need super deep, straight holes
– If you’re working on aerospace components that need cooling holes
– When conventional drilling just won’t cut it (literally!)
– If you need holes smaller than a human hair
Here’s a practical example: imagine you’re making a complex injection mold. You might need all three processes – EDM Drilling for cooling channels, Die Sinking for the cavity, and Wire EDM for cutting the insert shapes. They work together like a well-oiled machine!
Remember this simple rule: if it’s a through cut, think Wire EDM. If it’s a cavity, think Die Sinking. If it’s a deep, precise hole, EDM Drilling is your friend.
Design Considerations: Making Your Parts EDM-Friendly
Let’s talk about how to design your parts to get the best results from EDM. It’s kind of like cooking – even with the best ingredients, you need the right recipe for success!
For Wire EDM:
– Keep in mind that inside corners will have a radius – it’s just physics! The radius will be at least as large as your wire diameter (typically around 0.010 inches)
– Think about part fixturing early in your design. You’ll need some solid surfaces to clamp onto
– Remember that tall, thin walls can get wobbly during cutting. A good rule of thumb: try to keep wall height-to-thickness ratios under 10:1
When designing for Die Sinking:
– Draft angles are your friends! Even a 1-degree draft makes part removal much easier
– Deep ribs? Consider splitting them into multiple electrodes to avoid EDM instability
– Plan for electrode wear – especially in deep cavities. Sometimes you’ll need multiple electrodes to achieve the finish you want
For EDM Drilling:
– Design holes to be as straight as possible – while EDM can drill at angles, straight holes are more reliable
– If you need angled holes, try to keep them under 30 degrees from vertical
– For cooling channels, think about electrode reach – extremely deep holes might need special setups
Here’s a real-world tip: always discuss your design with your manufacturer early on. We’ve seen many cases where small design tweaks made huge differences in manufacturability and cost.
Cost Considerations: Understanding Your Investment
Let’s break down the costs of EDM processes so you can budget your project more effectively. Think of it like planning a home renovation – you need to consider both the obvious and hidden costs.
| Cost Factor | Wire EDM | Die Sinking EDM | EDM Drilling |
| Setup Time | Medium | Long | Short |
| Operating Cost | $75-150/hr | $85-175/hr | $65-125/hr |
| Material Impact | Minimal | High (electrode costs) | Medium |
| Surface Finish Cost | Lower for fine finish | Higher for fine finish | Standard |
| Complexity Impact | Minimal increase | Significant increase | Moderate increase |
Here's what really affects your costs:
For Wire EDM:
– Wire consumption adds to hourly rates
– Complex geometries take longer but don’t need special tooling
– Multiple parts can often be stacked to save costs
– Surface finish requirements directly impact cutting speed
For Die Sinking:
– Electrode costs can be significant – sometimes 30% of total cost
– Complex shapes might need multiple electrodes
– Fine finishes require multiple passes with different electrodes
– Programming time is usually higher than other methods
For EDM Drilling:
– Electrode tubes are relatively inexpensive
– Deep holes take longer and cost more
– Multiple similar holes can be efficient
– Angled holes increase setup time and cost
Here’s a money-saving tip: combining EDM processes in a single project can actually reduce overall costs. For example, using EDM drilling for starter holes before wire EDM can save significant time and money compared to using conventional methods.
Conclusion
Making the right choice between Wire, Sinker, and Drilling EDM can significantly impact your project’s success. Each process brings unique strengths to the table – Wire EDM for precise cutting, Die Sinking for complex cavities, and EDM Drilling for deep, accurate holes.
Remember:
– Wire EDM excels at precision through-cuts
– Die Sinking is your go-to for complex 3D cavities
– EDM Drilling handles those impossible-to-reach holes
Need help deciding which EDM process fits your project? Our engineering team at Okdor is ready to help you make the right choice. With our expertise in all three EDM processes, we can ensure your parts are manufactured efficiently and precisely.
Contact us to discuss your next project – whether it’s a complex mold, precision aerospace component, or medical device, we’ve got you covered.
Frequently Asked Questions
EDM works with any electrically conductive material. This includes all metals, but not plastics or ceramics (unless they’re specially treated to be conductive). Most commonly, we use it for tool steel, carbide, titanium, and other hard metals.
EDM drilling can create holes up to 20 times deeper than their diameter. For example, a 1mm diameter hole can go as deep as 20mm. Some specialized machines can even achieve ratios of 30:1 or higher.
Wire EDM can create features as small as 0.004 inches (0.1mm), while Die Sinking EDM and EDM Drilling can achieve even smaller features depending on electrode size. But remember, smaller features usually mean longer machining time.
EDM can achieve excellent surface finishes, often better than CNC machining. Think mirror-like finishes as fine as 2-3 microinches Ra. However, achieving these fine finishes takes more time and impacts cost.
Here’s something interesting – unlike conventional machining, material hardness doesn’t significantly affect EDM processing time. What matters more is the material’s electrical conductivity and melting point.
EDM is among the most accurate manufacturing processes available. Wire EDM typically achieves tolerances of ±0.0001 inches (±0.0025mm), while Die Sinking and Drilling EDM can maintain tolerances of ±0.0002 inches (±0.005mm) or better.
