In precision engineering, the difference between success and failure often comes down to material choice. When parts must maintain their shape under extreme conditions, engineers turn to high-stiffness materials to ensure dimensional stability, structural integrity, and optimal performance in demanding applications.
High-stiffness materials essential for engineering include advanced metals (titanium alloys, 6061, 2024), reinforced polymers (Nylon PA 12 CF, PEEK), and technical ceramics (silicon carbide). Selection criteria focus on specific stiffness-to-weight ratios, environmental resistance, and mechanical stress tolerance.
While selecting the right material might seem straightforward, the interplay between stiffness, strength, and practical considerations like cost and manufacturability creates complex engineering decisions. Let’s explore the specific materials that leading engineers rely on for their most demanding applications.
Table of Contents
Metals and Alloys
In the quest for high-stiffness materials, metals and alloys stand as the foundation of precision engineering. These materials represent the perfect balance of strength, machinability, and proven performance in demanding applications. Among our top 15 high-stiffness materials, the metal category includes titanium alloys, advanced aluminum grades, and specialized stainless steels, each offering unique combinations of specific stiffness and practical benefits that make them indispensable in modern engineering.
Titanium Alloys
Titanium alloys lead our list for their exceptional stiffness-to-weight ratio, with Ti-6Al-4V (Grade 5) being the most widely used. This alloy achieves a remarkable tensile strength of up to 1000 MPa while maintaining excellent fatigue resistance. Other crucial grades include Ti-6Al-2Sn-4Zr-6Mo for higher temperature applications and Ti-10V-2Fe-3Al for superior strength requirements.
What sets titanium alloys apart is their specific stiffness – the ratio of elastic modulus to density. Ti-6Al-4V boasts a specific stiffness of about 25.8 GPa·cm³/g, making it approximately 40% stiffer than many steel alloys when accounting for weight. This property becomes crucial when designing components where both rigidity and weight savings are
The aerospace industry particularly values titanium alloys for critical structural components. These materials excel in:
- Primary airframe structures requiring high fatigue resistance
- Engine components operating at elevated temperatures
- Landing gear assemblies demanding exceptional strength-to-weight ratios
- Fasteners and fittings exposed to severe environmental conditions

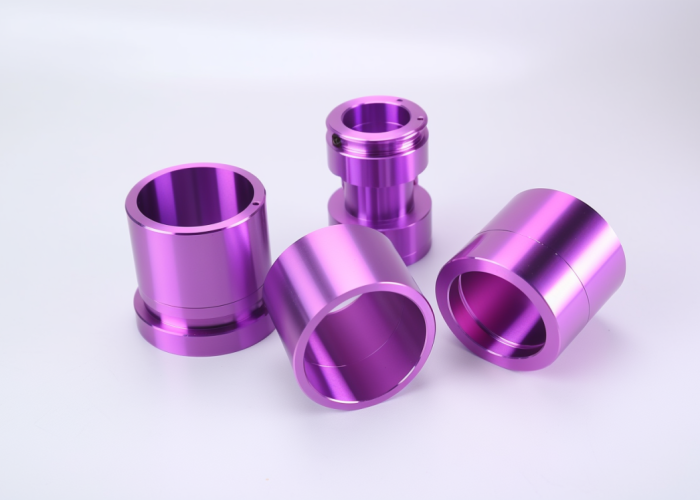

Aluminum Alloys
Leading the aluminum category are 6061 and 2024, two alloys that have become industry standards for high-stiffness applications. 6061, particularly in its T6 temper, delivers an optimal combination of high strength (290 MPa) and excellent corrosion resistance. AA2024, preferred in aerospace applications, offers higher specific stiffness values and superior fatigue performance.
The exceptional performance of these aluminum grades stems from their unique material properties:
- AA6061-T6: Offers a modulus of elasticity of 68.9 GPa
- AA2024-T3: Provides superior fatigue resistance with high strength-to-weight ratio
- AlSi10Mg: Delivers an impressive 290 MPa strength, particularly valuable in engine components
Industrial Applications
These aluminum alloys find their place in numerous demanding applications:
- Precision machined components in aerospace structures
- High-performance automotive engine parts
- Structural elements in transportation systems
- Load-bearing architectural components
Stainless Steels
Among high-stiffness stainless steels, 316L and 17-4 PH stand as premier choices for demanding applications. 316L, an austenitic grade, offers exceptional corrosion resistance while maintaining structural integrity. The precipitation-hardened 17-4 PH pushes the boundaries with impressive tensile strength up to 1070 MPa, positioning it as a go-to material for critical components.
When engineers demand materials that can withstand extreme conditions while maintaining dimensional stability, these stainless steel grades deliver exceptional performance characteristics. The material properties of these high-performance steels represent a careful balance of mechanical strength, corrosion resistance, and long-term reliability:
- 316L: Features an elastic modulus of 193 GPa, combined with outstanding chemical resistance and excellent formability. Its low carbon content prevents carbide precipitation during welding, making it ideal for fabricated components that must maintain their integrity in corrosive environments.
- 17-4 PH: Achieves its remarkable properties through a specialized heat treatment process, resulting in a unique combination of high strength, good corrosion resistance, and excellent mechanical properties at temperatures up to 316°C (600°F). The precipitation hardening process allows for exceptional dimensional control during heat treatment.
- Both grades offer industry-leading resistance to oxidation and corrosion, with 316L particularly excelling in chloride-rich environments and 17-4 PH providing superior mechanical properties without sacrificing corrosion resistance.
Industrial and Marine Applications
The versatility and reliability of these stainless steel grades have made them indispensable across numerous demanding industries where failure is not an option. Their combination of high stiffness, corrosion resistance, and mechanical properties creates value in applications that push the boundaries of material performance:
- Marine Equipment and Offshore Installations
- Propeller shafts and marine propulsion systems
- Offshore platform components exposed to constant salt spray
- Underwater fastening systems and structural supports
- High-pressure valve bodies and pump components
- Chemical Processing Equipment
- Reaction vessels requiring high pressure and temperature resistance
- Heat exchanger components exposed to corrosive media
- Processing equipment for aggressive chemicals
- High-purity pharmaceutical processing systems
- Industrial Systems
- Heavy-duty industrial fixtures requiring precise dimensional stability
- High-stress mechanical components in manufacturing equipment
- Precision instrumentation for measurement and control
- Critical fasteners and structural elements in demanding environments
Reinforced Polymers and Composites
Moving beyond traditional metals, reinforced polymers and composites represent the next frontier in high-stiffness materials. These engineered materials combine the lightweight characteristics of polymers with the strength-enhancing properties of reinforcing fibers, delivering exceptional specific stiffness values that often surpass traditional metals. In our top 15 list, this category includes advanced carbon fiber composites, high-performance thermoplastics, and specialized glass-reinforced materials, each pushing the boundaries of what’s possible in modern engineering applications.
Carbon Fiber-Reinforced Polymers (CFRP)
At the forefront of composite technology, materials like Nylon PA 12 CF and Jabil PA 4035 CF have revolutionized high-stiffness applications. These materials combine the processability of polymers with the exceptional mechanical properties of carbon fiber reinforcement. Nylon PA 12 CF stands out with its impressive tensile strength of approximately 70 MPa, while Jabil PA 4035 CF offers enhanced dimensional stability and a superior surface finish.
The remarkable properties of these CFRP materials stem from their engineered composition:
- Specific Stiffness: Carbon fiber composites achieve a specific modulus of around 300 GPa·cm³/g, surpassing most metals while weighing significantly less.
- Dimensional Stability: The carbon fiber reinforcement provides exceptional resistance to thermal deformation, with coefficients of thermal expansion as low as 2-3 ppm/°C.
- Design Flexibility: These materials allow for complex geometries while maintaining consistent mechanical properties throughout the part.
- Environmental Resistance: Advanced CFRP formulations offer excellent chemical resistance and UV stability, ensuring long-term performance in demanding environments.
Advanced Applications
CFRP materials have found their way into increasingly demanding roles across multiple industries:
- Aerospace Components
- Structural elements requiring high stiffness-to-weight ratios
- Interior components meeting strict flame, smoke, and toxicity requirements
- Secondary structures and aerodynamic surfaces
- Industrial Tooling
- 3D-printed fixtures and jigs for manufacturing
- Custom end-of-arm tooling for robotics
- Prototype tooling for injection molding
- Performance Racing
- Chassis components requiring exceptional rigidity
- Aerodynamic elements subject to high loads
- Suspension components where weight reduction is critical
PEEK Materials
Carbon fiber-filled PEEK (Polyether ether ketone) represents the pinnacle of high-performance thermoplastics in our materials lineup. This advanced polymer system combines the inherent benefits of PEEK’s chemical resistance with the enhanced stiffness provided by carbon fiber reinforcement. Leading manufacturers offer grades with fiber loadings ranging from 20% to 40%, each optimized for specific application requirements.
Superior Material Properties
PEEK-based composites have revolutionized engineering plastics by delivering an exceptional combination of mechanical strength, thermal stability, and chemical resistance. While traditional engineering plastics often force designers to compromise between different performance attributes, carbon fiber-filled PEEK maintains its impressive mechanical properties even under extreme conditions. These materials represent a quantum leap in polymer technology, offering metal-like performance in a lighter, more versatile package that can be processed using conventional thermoplastic techniques:
Mechanical Performance
- Flexural modulus exceeding 20 GPa in highly filled grades
- Operating temperatures up to 260°C (500°F) continuous use
- Exceptional creep resistance under sustained loading
- Superior fatigue resistance compared to traditional engineering plastics
Chemical and Environmental Resistance
- Excellent resistance to aggressive chemicals and solvents
- Inherent flame retardancy without additives (UL 94 V-0)
- Hydrolysis resistance in high-temperature steam
- Outstanding dimensional stability in extreme environments
Processing Characteristics
- Suitable for injection molding, compression molding, and additive manufacturing
- Excellent layer adhesion in 3D printing applications
- Consistent property retention after multiple processing cycles
- Superior wear resistance in tribological applications
Critical Applications
Carbon fiber-filled PEEK has established itself as an indispensable material in industries where component failure could result in catastrophic consequences. Its unique combination of properties – from exceptional mechanical performance to outstanding chemical resistance – makes it the material of choice when traditional options fall short. In environments where extreme temperatures, aggressive chemicals, and high mechanical loads converge, PEEK-based composites continue to perform when other materials would degrade or fail:
Semiconductor Manufacturing
- Wafer handling components requiring extreme cleanliness
- High-temperature process components
- Precision fixturing and alignment systems
- Static dissipative components in clean room environments
Oil and Gas Industry
- Downhole components exposed to high temperatures and pressures
- Sealing systems in aggressive chemical environments
- Bearing and wear components in pumping systems
- High-pressure valve components
Medical Devices
- Sterilizable surgical instruments
- Implantable medical devices requiring biocompatibility
- Diagnostic equipment components
- High-precision dental applications
Glass Fiber-Reinforced Materials
In the realm of high-stiffness materials, Ensinger TECAFIL PA 6 GF 30 stands as a prime example of glass fiber reinforcement technology. This engineered composite, featuring a 30% glass fiber content, demonstrates how traditional polyamide properties can be dramatically enhanced through strategic reinforcement. The material represents an optimal balance between performance and cost-effectiveness in the high-stiffness polymer category.
Glass fiber-reinforced polyamides have revolutionized the landscape of engineering plastics by offering an exceptional combination of mechanical properties and processing advantages. These materials deliver a compelling value proposition across multiple performance metrics that make them essential in modern engineering applications:
- Mechanical Properties
- 30% higher rigidity compared to standard nylon
- Enhanced dimensional stability under load
- Improved creep resistance at elevated temperatures
- Superior fatigue performance in cyclic loading conditions
- Excellent impact resistance combined with high stiffness
- Thermal Characteristics
- Heat deflection temperature up to 200°C
- Consistent performance across broad temperature ranges
- Reduced thermal expansion compared to unreinforced materials
- Enhanced thermal conductivity for better heat dissipation
- Temperature resistance suitable for automotive engine compartments
- Processing Benefits
- Excellent flow characteristics during injection molding
- Reduced warpage in molded components
- Good surface finish after processing
- Consistent shrinkage rates for predictable part dimensions
- Cost-effective processing with standard equipment
Industrial Applications
Glass fiber-reinforced polyamides have become integral in applications where cost-effective performance is crucial:
- Automotive Components
- Under-hood components requiring thermal stability
- Structural elements in vehicle interiors
- Electrical system housings and connectors
- Fuel system components requiring chemical resistance
- Load-bearing brackets and mounting systems
- Industrial Equipment
- Pump housings and impellers
- Conveyor system components
- Industrial fan and blower components
- Material handling equipment
- Gear systems requiring dimensional stability
- Consumer and Professional Products
- Power tool housings and structural components
- Sporting equipment requiring high impact resistance
- Professional appliance components
- Industrial furniture and fixtures
- Precision mechanical components
Advanced Composites and Ceramics
In the highest tier of engineered materials, advanced composites, and technical ceramics represent the ultimate achievement in stiffness and thermal performance. These materials push the boundaries of what’s possible in extreme environments, offering unprecedented combinations of properties that make them irreplaceable in cutting-edge applications. Among our top 15 high-stiffness materials, this category features silicon carbide, high-alumina ceramics, and specialized composite systems that define new possibilities in engineering.
Ceramic Materials
At the forefront of ceramic technology, silicon carbide (SiC) and high-alumina ceramics stand out for their exceptional mechanical properties. These materials achieve stiffness values that surpass virtually all other engineering materials, with silicon carbide offering an elastic modulus exceeding 410 GPa and high-alumina ceramics providing superior wear resistance along with excellent thermal stability.
Advanced Material Properties
Technical ceramics represent the culmination of decades of materials science advancement, offering a unique combination of properties that sets them apart from all other engineering materials. While metals may soften at high temperatures and polymers might degrade under harsh conditions, technical ceramics maintain their exceptional properties even in the most demanding environments. Their ability to combine extreme hardness, remarkable thermal stability, and outstanding wear resistance makes them the material of choice when conventional options reach their physical limits:
Mechanical Excellence
- Ultimate stiffness values reaching beyond 400 GPa
- Hardness values exceeding 9 on the Mohs scale
- Exceptional wear resistance in abrasive environments
- Near-zero creep at elevated temperatures
- Outstanding dimensional stability under extreme conditions
Thermal Performance
- Operating temperatures exceeding 1600°C for silicon carbide
- Thermal shock resistance superior to conventional materials
- Excellent thermal conductivity for heat management
- Minimal thermal expansion across broad temperature ranges
- Stability in oxidizing environments at high temperatures
Environmental Durability
- Nearly universal chemical resistance
- Zero corrosion in aggressive environments
- Excellent resistance to radiation damage
- Non-magnetic properties for specialized applications
- Biocompatibility for medical applications
Extreme Environment Applications
These advanced ceramics have become indispensable in applications that push the boundaries of material performance. In environments where extreme temperatures, aggressive chemicals, and severe mechanical stresses converge, traditional materials like metals and polymers often reach their operational limits. Technical ceramics continue to perform reliably under these challenging conditions, offering engineers solutions for applications that would be impossible with conventional materials:
Industrial Processing
- High-temperature kiln furniture
- Wear-resistant bearing components
- Chemical processing equipment
- Heat exchanger components
- Precision mechanical seals
Aerospace and Defense
- Turbine blade components
- Thermal protection systems
- Ballistic armor systems
- Radar transmission components
- High-temperature engine components
Special Resins
Leading our high-performance resin category is EPX 82, a revolutionary UV-stable photopolymer that delivers an impressive 82 MPa tensile strength. This advanced resin system represents a new generation of materials that bridge the gap between traditional thermoplastics and engineering-grade composites, offering unprecedented combinations of strength, precision, and processing flexibility for demanding applications.
Engineered Material Properties
The development of high-performance resin systems like EPX 82 marks a significant advancement in materials engineering, combining the processing advantages of photopolymers with mechanical properties previously associated only with traditional engineering materials. These sophisticated formulations offer engineers new possibilities in design and manufacturing:
- Mechanical Characteristics
- Tensile strength reaching 82 MPa for robust applications
- Exceptional dimensional accuracy after cure
- Superior surface finish quality
- High impact resistance without brittleness
- Excellent fatigue performance under cyclic loading
- Processing Advantages
- UV-stability for long-term outdoor applications
- Rapid cure response for efficient manufacturing
- Minimal post-cure shrinkage
- Excellent layer adhesion in additive manufacturing
- Consistent properties across varying wall thicknesses
- Performance Durability
- Long-term environmental stability
- Resistance to UV degradation
- Good chemical resistance to common solvents
- Thermal stability for functional prototypes
- Maintains properties over extended service life
Precision Engineering Applications
High-performance resins have revolutionized the way engineers approach prototype development and end-use part production, particularly in industries where precision and reliability are paramount:
- Prototyping and Product Development
- Functional prototypes requiring production-grade properties
- Design verification models
- End-use parts for small-series production
- Testing fixtures and validation tools
- Customer presentation models
- Industrial Manufacturing
- Custom jigs and fixtures
- Assembly aids and alignment tools
- End-of-arm tooling for automation
- Inspection gauges and measurement devices
- Production line wear components
- Specialized Applications
- Medical device prototypes requiring biocompatibility
- Aerospace interior components
- Consumer product development
- Custom tooling for composite manufacturing
- Precision optical alignment fixtures
Conclusion
The selection of high-stiffness materials remains crucial for engineering success across industries. From titanium alloys to advanced ceramics, each material category offers unique advantages in specific applications. Engineers must carefully balance stiffness requirements with factors like weight, cost, and manufacturability to achieve optimal performance. As material science advances, understanding these top 15 materials becomes essential for staying competitive in precision engineering.
Frequently Asked Questions
Carbon fiber-filled PEEK offers the highest stiffness among 3D printable materials, with a flexural modulus exceeding 20 GPa.
6061-T6 offers excellent machinability while maintaining good stiffness, making it ideal for precision-machined components.
Yes, silicon carbide (SiC) and alumina ceramics are used in highly loaded applications like bearing surfaces and turbine components due to their exceptional stiffness and wear resistance.
Glass-filled nylon composites, particularly Ensinger TECAFIL PA 6 GF 30, offer an excellent balance of stiffness and cost for industrial applications.
Ti-6Al-4V (Grade 5) offers the best combination of specific stiffness and strength, with a modulus of 114 GPa and density of 4.43 g/cm³.
316L stainless steel provides excellent corrosion resistance while maintaining good stiffness, making it ideal for marine and chemical processing applications.
