Selecting the right material for custom gears directly impacts performance, durability, and project success. For engineers and manufacturers, understanding the key selection criteria is essential for optimal gear design.
The most important factor in selecting materials for custom gears is the load capacity and performance requirements. This includes evaluating expected torque, speed, and operating conditions to ensure the chosen material can withstand the mechanical demands of your application.
Beyond load requirements, let’s explore the critical factors that will guide you to the optimal material choice for your custom gear project
Table of Contents
Load Capacity and Performance Requirements
Before diving into material options or manufacturing processes, evaluating load capacity and performance requirements is the critical first step in selecting materials for custom gears. While other factors like material properties and manufacturing considerations play important roles, understanding your gear’s operational demands lays the foundation for all subsequent decisions.
Load Capacity
Load capacity refers to the maximum force a gear can withstand during operation. This determines the required material strength for your application. Higher loads need stronger materials like carbon steel, while lighter loads may allow for aluminum or thermoplastics. When selecting gear material based on load:
- Static load: Consider the maximum stationary force the gear must support
- Dynamic load: Account for additional forces during rotation and movement
- Impact load: Factor in sudden force spikes that could cause material failure
Operating Environment
The environment where your gear will function directly impacts material selection. Different materials react differently to environmental conditions:
- Temperature: High temperatures can weaken some materials while low temperatures may cause brittleness
- Humidity: Moisture exposure requires materials with good corrosion resistance like stainless steel
- Chemical exposure: Presence of corrosive agents may eliminate certain material options
Lifespan Requirements
Expected service life influences material choice by determining needed durability:
- Continuous operation requires materials with excellent fatigue resistance
- Intermittent use may allow for less durable but more cost-effective materials
- Critical applications need materials with predictable wear patterns and failure modes
Essential Material Properties for Custom Gears
While load capacity and operating conditions set the baseline requirements, understanding material properties is crucial for making the right selection for your custom gears. These inherent characteristics determine how well a material will perform under your specific application demands and environmental conditions.
Strength
Strength refers to a material’s ability to withstand applied forces without failing. When selecting gear materials, higher strength allows the gear to handle greater loads and torque. For instance, high-strength materials like carbon steel are essential for heavy machinery gears, while lower-strength materials may suffice for light-duty applications.
Wear Resistance
Wear resistance is a material’s ability to maintain its surface integrity during continuous contact and motion. Better wear resistance means longer gear life and maintained precision. This property is particularly important for high-speed or continuous operation applications, where materials like hardened steel or bronze alloys are often preferred over softer materials.
Corrosion Resistance
Corrosion resistance determines how well a material withstands chemical and environmental degradation. This property is crucial for gear longevity, especially in harsh environments. Materials with poor corrosion resistance may fail prematurely, making corrosion-resistant options like stainless steel necessary for exposed or chemically challenging environments.
Weight
Weight, determined by material density, affects the gear’s rotational inertia and energy efficiency. Lighter materials reduce energy consumption and wear in high-speed applications, while heavier materials might be preferred for stability in stationary applications. This makes lightweight materials like aluminum popular for high-speed, dynamic applications.
Common Gear Materials and Their Applications
Having examined load requirements and material properties, selecting the right material for your custom gears comes down to understanding specific materials and their unique characteristics. Let’s explore common gear materials, starting with metals, which remain the most popular choice due to their proven performance and versatility across different applications.
Metals

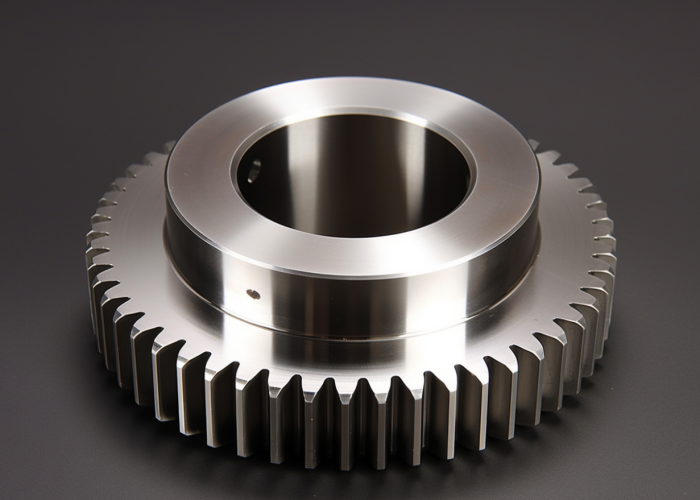

Carbon Steel
Carbon steel is the most commonly used gear material due to its excellent combination of strength and cost-effectiveness. The carbon content determines its properties – higher carbon content increases strength and hardness but may reduce machinability. This material is ideal for:
- General-purpose gear applications
- High-load environments
- Applications requiring good wear resistance
- Cost-sensitive projects needing reliable performance
Stainless Steel
Stainless steel offers excellent corrosion resistance along with good strength. While more expensive than carbon steel, it’s essential for environments where rust and corrosion are concerns. Best suited for:
- Food processing equipment
- Marine applications
- Chemical processing environments
- Outdoor installations
Brass
Brass offers good machinability and natural lubricity, making it suitable for lower-load applications where smooth operation is priority. Its antimicrobial properties make it unique among gear materials. Ideal for:
- Light-duty applications
- Self-lubricating requirements
- Applications needing corrosion resistance
- Clean environments
Phosphor Bronze
This material excels in applications requiring high wear resistance and low friction. Its self-lubricating properties make it particularly valuable for:
- Worm gear applications
- High-speed operations
- Applications with limited lubrication
- Precision mechanisms
Aluminum Bronze
Combines the lightweight properties of aluminum with excellent wear and corrosion resistance. This material is perfect for applications requiring both strength and corrosion resistance without the weight of steel. Suitable for:
- Marine environments
- High-speed applications
- Corrosive environments
- Weight-sensitive mechanisms
Non-metals

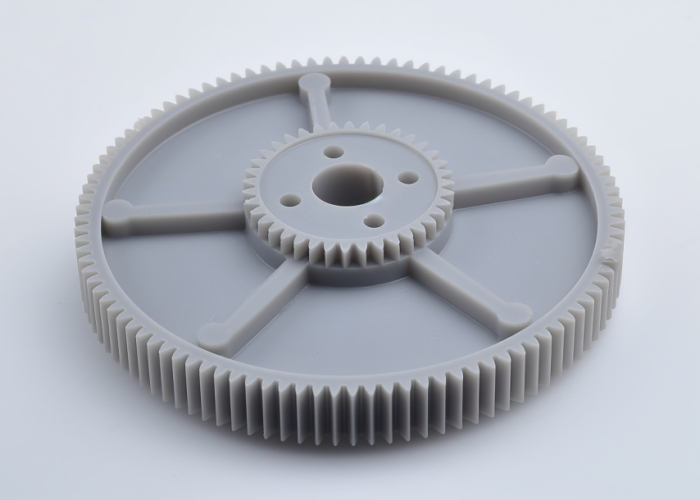

Thermoplastics (e.g., Acetal, Nylon)
Thermoplastics offer unique advantages in gear design through their lightweight and self-lubricating properties. These materials excel in applications where noise reduction, chemical resistance, and light weight are priorities. Best suited for:
- Low to medium-load applications
- Noise-sensitive environments
- Clean room operations
- High-speed, lightweight mechanisms
Composite Materials
Composites combine multiple materials to achieve specific performance characteristics. By blending different materials, composites can offer customized properties like high strength with low weight, or excellent wear resistance with good dampening. Ideal for:
- Applications requiring specific property combinations
- Weight-critical designs
- High-performance needs
- Specialized operating conditions
Comparative Analysis of Gear Materials:
Material Strength Cost Corrosion Resistance Wear Resistance Noise Level Weight Best Applications
Carbon Steel High Low Low High High Heavy Heavy-duty industrial, high-load applications
Stainless Steel Medium High High Medium High Heavy Food processing, corrosive environments
Brass Low Medium Medium Medium Medium Medium Light-duty, self-lubricating needs
Phosphor Bronze Medium Medium Medium High Medium Medium High-wear, precision applications
Aluminum Bronze Medium Medium High Medium Medium Light Marine, high-speed operations
Thermoplastics Low Low High Low Low Light Noise-sensitive, lightweight needs
Composites Medium High High Medium Low Light Specialized performance requirements
Manufacturing Considerations
After understanding material properties and comparing options, manufacturing considerations play a vital role in finalizing your gear material selection. Even the most suitable material can prove impractical if it’s too difficult or costly to manufacture into your desired gear specifications.
Machinability
Machinability refers to how easily a material can be cut, drilled, or shaped into a gear. High machinability means faster production and lower manufacturing costs. When selecting gear materials, poor machinability can make an otherwise ideal material impractical. For example, while hardened steels offer excellent strength, their poor machinability increases production time and tool wear, potentially making softer materials more cost-effective for certain applications.
- Highly machinable materials like brass and carbon steels are cost-effective choices
- Hard-to-machine materials like hardened steels require specialized tools and more time
- Material choice directly impacts production costs and manufacturing time
Surface Treatments
Surface treatments are processes that modify a material’s surface properties to enhance performance. Your material choice must be compatible with required treatments. For instance, steel can be nitrided to increase surface hardness and wear resistance, while aluminum cannot. This compatibility affects your material options when specific surface properties are needed.
Common treatments include:
- Nitriding: Increases surface hardness and wear resistance in steels
- Carburizing: Creates a hard surface while maintaining a tough core
- Heat treatment: Enhances overall material properties
- Material selection must account for treatment compatibility and cost
Expert Consultation
Expert consultation means involving manufacturers early in the design process to leverage their practical experience. Manufacturers can identify potential production issues, suggest material alternatives, and optimize designs for manufacturing. This early input helps avoid selecting materials that may look good on paper but create manufacturing challenges.
Benefits include:
- Material recommendations based on production capabilities
- Design optimization for manufacturing efficiency
- Cost-saving alternatives from practical experience
- Potential problem identification before production
Technical Documentation
Technical documentation provides all specifications needed to manufacture the gear correctly. Clear documentation prevents manufacturing errors and ensures material requirements are met. Poor documentation can lead to material selection mistakes or manufacturing problems, making even the best material choice ineffective.
Key elements include:
- Detailed material specifications and grade requirements
- Surface treatment parameters and requirements
- Tolerance specifications that match material capabilities
- Quality control requirements for material verification
Conclusion
Selecting the right material for custom gears requires careful consideration of multiple factors, with load capacity and performance requirements being the primary consideration. By evaluating material properties, understanding manufacturing considerations, and consulting with experts early in the design process, you can make informed decisions that ensure optimal gear performance and longevity while maintaining cost-effectiveness.
Frequently Asked Questions
For high-speed gear applications, lightweight materials with good wear resistance are optimal. Aluminum bronze and high-grade thermoplastics are excellent choices due to their low inertia and self-lubricating properties. These materials reduce energy consumption and heat generation during high-speed operation while maintaining dimensional stability.
For heavy-load applications, carbon steel and alloy steel are the best choices due to their high strength and durability. Case-hardened steels are particularly effective as they combine a tough core with a wear-resistant surface. The specific grade depends on the exact load requirements and operating conditions.
Key surface treatments include nitriding for improved surface hardness and wear resistance, carburizing for enhanced surface strength while maintaining core toughness, and shot peening for increased fatigue resistance. The choice depends on the base material and application requirements.
Material choice impacts costs through multiple factors: raw material price, machinability (affecting production time and tool wear), heat treatment requirements, and surface finishing needs. While some materials like carbon steel are cheaper to purchase, harder materials may increase manufacturing costs due to longer machining times and specialized tooling needs.
For corrosion resistance, consider the specific corrosive environment (chemical exposure, moisture, salt), operating temperature, and mechanical requirements. Stainless steel offers excellent corrosion resistance for many applications, while aluminum bronze provides good corrosion resistance with better wear characteristics. Specialty thermoplastics can offer superior chemical resistance for specific environments.
Environmental conditions directly impact material durability and performance. High temperatures require materials with good thermal stability like alloy steels. Humid or corrosive environments need corrosion-resistant materials such as stainless steel. Chemical exposure may require specialized materials like certain thermoplastics or corrosion-resistant alloys.
