Stainless steel laser cutting isn’t just about material selection — it’s about designing geometry that minimizes cost without sacrificing edge quality or dimensional accuracy. With experience fabricating precision stainless components for aerospace, medical, and audio applications, small design adjustments often deliver dramatic improvements in both manufacturability and price.
Optimize stainless steel designs by selecting appropriate thickness (1-3mm for best cost/quality balance), maintaining 1.5x material thickness spacing between features, and using 0.5mm minimum internal radii to prevent stress concentrations and improve cut quality.
Learn how thickness impacts edge finish, hole sizes prevent warping, and geometry tweaks can cut laser cutting costs by 25–40%.
Table of Contents
What Stainless Steel Thickness Should I Choose for My Application?
For electronic enclosures under 300mm span, use 1.5mm. For structural brackets or spans over 300mm, use 2mm minimum. Parts supporting concentrated loads over 15kg typically require 2.5mm to prevent deflection beyond 1mm under working loads.
Quick Selection Guide:
Application Type Recommended Thickness Max Span
Electronic enclosures 1.5 mm 250 mm
Control panels 1.5–2 mm 400 mm
Mounting brackets 2 mm 300 mm
Heavy-duty brackets 2.5 mm 500 mm+
We validate thickness adequacy using a 2x load test – applying double the expected force and measuring deflection with dial indicators. Deflection under 1mm at critical points confirms adequate thickness for most applications, following general engineering practice for safety factors.
For cost reference, stepping from 1.5mm to 2.5mm typically increases part cost by 65-80% due to both material volume and slower laser cutting speeds required for thicker sections.
Design Takeaway: Use the span rule – divide your longest unsupported dimension by 150 to get minimum thickness in mm (300mm span ÷ 150 = 2mm minimum). Test prototypes at your calculated thickness before committing to production quantities.
What Tolerances Can I Expect from Laser Cut Stainless Steel?
Laser cut stainless steel follows ISO 9013 standards, typically achieving general tolerances per DIN ISO 2768-1 medium class (±0.1mm for dimensions up to 6mm, ±0.2mm for 6-30mm dimensions). Actual tolerances depend on material thickness, part geometry, and cutting parameters, with tighter control possible on smaller features and looser expectations on large panels.
Standard Tolerance Guidelines (DIN ISO 2768-1 Medium):
Screw Size Close Fit Normal Fit Loose Fit
M3 3.2mm 3.4mm 3.6mm
M4 4.3mm 4.5mm 4.8mm
M5 5.3mm 5.5mm 5.8mm
M6 6.4mm 6.5mm 7.0mm
For precision assemblies, design with 0.3-0.5mm clearance minimum between mating parts to accommodate typical laser cutting variation per ISO 9013 quality class 2 requirements. Critical fit features requiring better than ±0.1mm may need secondary machining operations.
Heat-affected zones and material thermal expansion during cutting can cause dimensional shifts, particularly on thin materials under 1mm or complex geometries with high cutting density. Parts over 500mm in any dimension are more prone to thermal distortion.
Design Takeaway: Specify tolerances according to DIN ISO 2768-1 medium class unless tighter control is functionally required. For critical mating surfaces, budget for potential secondary operations if laser cutting alone cannot meet your assembly requirements.
What Hole Size Should I Specify for M3 Screws in Laser Cut Parts?
For M3 screws in laser cut stainless steel, use 3.4mm holes for normal assembly fit. This follows standard clearance hole sizing and accounts for typical laser kerf variation. Use 3.2mm for close fit applications requiring precise positioning, or 3.6mm for loose fit when tolerance stack-up or field assembly matters.
Standard clearance sizing for M3 screws: close fit (3.2mm), normal fit (3.4mm), loose fit (3.6mm). For other common sizes, M4 uses 4.5mm normal fit, M5 uses 5.5mm, and M6 uses 6.5mm.
Maintain minimum edge distance of 6mm for M3 holes (2x diameter rule) to prevent tear-out under load. For electronic enclosures, 3.4mm holes maintain EMI shielding effectiveness with standard gaskets while providing adequate assembly clearance.
When parts stack, use loose fit sizing (3.6mm) to handle cumulative tolerance variation. Single-sheet assemblies can use normal fit for better joint precision.
Design Takeaway: Use 3.4mm as your default M3 clearance hole size unless you have specific positioning requirements. Reference standard clearance tables for other screw sizes rather than guessing.
How Smooth Are Laser Cut Edges on Stainless Steel?
Laser cut stainless steel edges achieve Ra 3.2-6.3 μm surface finish – smooth enough for most functional applications but with visible striations that may snag fabric or cables. Edges are not sharp enough to cut skin but typically require secondary finishing for sliding surfaces, cosmetic applications, or user-contact areas.
As-cut edges work well for electronic enclosures, mounting brackets, and structural components where slight texture doesn’t affect function. The striations actually help with paint adhesion and don’t interfere with typical assembly clearances.
You’ll need secondary finishing for sliding surfaces (drawer guides, covers), user-contact areas (handles, control panels), precision sealing surfaces, or high-visibility cosmetic parts. Medical device housings often require deburred edges for cleanability per ISO 13485 requirements.
Quick evaluation method: run your finger along a prototype edge – if it feels acceptably smooth for your application and doesn’t snag, as-cut quality works. Industrial applications typically accept Ra 6.3 μm finish, while consumer products may need Ra 1.6-3.2 μm through deburring or grinding.
Edge finishing costs: deburring adds $0.50-2.00 per linear foot, grinding for precision surfaces runs $3-8 per linear foot. According to ISO 9013 standards, laser cut edges achieve quality class 2-3 finish suitable for general engineering applications.
Design Takeaway: Test edge quality on prototypes using the finger test. Only specify secondary finishing when user safety, sliding contact, or specific cosmetic requirements demand it – over-finishing adds 20-40% to part cost without functional benefit.

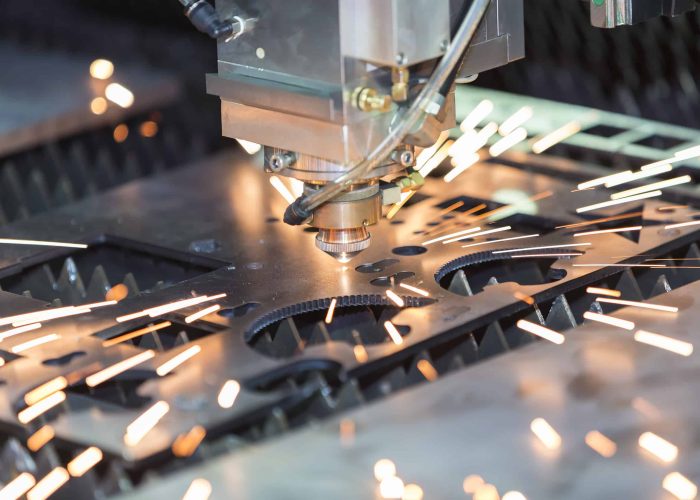

What Causes Warping in Laser Cut Stainless Steel Parts?
Thermal stress from laser cutting causes warping in thin materials (under 1.5mm), parts with length-to-width ratios over 4:1, or unbalanced cutout patterns. Expect 1-3mm flatness deviation on panels over 300mm, with distortion increasing on parts with clustered cutouts or extreme aspect ratios.
High-risk geometries include: panels over 400mm in any dimension with thickness under 2mm, parts with heavy cutouts on one side but solid material opposite, long narrow pieces like equipment rails, and designs with many clustered small holes creating heat concentration.
Prevention follows simple design rules: keep length-to-width ratios under 3:1 when possible, distribute cutouts symmetrically across the part, use 2mm minimum thickness for panels over 300mm, and break very large panels into smaller sections joined after cutting.
Most warping is predictable – if your part looks like it would flex when handled, it will likely warp during cutting. Control panel faces, large enclosure panels, and decorative grilles are common problem areas we encounter.
If warping occurs, options include: post-cutting flattening operations ($2-5 per part), redesigning with thicker material or modified geometry, or accepting the deviation if it doesn’t affect assembly function. Some applications tolerate 2-3mm bow without issues.
Design Takeaway: Follow the 3:1 aspect ratio rule and use 2mm thickness minimum for panels over 300mm. If your design violates these guidelines, prototype first to validate flatness – prevention through design costs less than corrective operations.

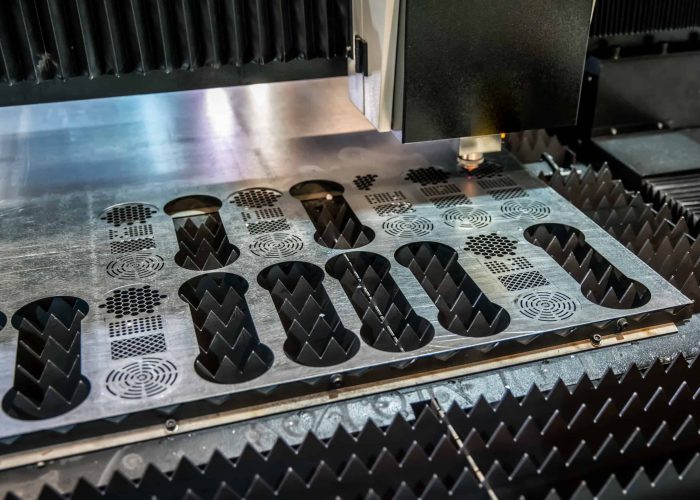

Do Small Cutouts Increase Laser Cutting Costs?
Yes, holes smaller than 3x material thickness drive up costs significantly through increased piercing time and cutting path length. For 2mm stainless steel, holes under 6mm diameter become expensive – a part with 20 small holes can cost 2-3x more than 5 larger slots providing equivalent function.
The cost calculation is simple: count your pierce points (each hole needs one) and total cutting perimeter. A control panel with 30 small ventilation holes requires 30 pierces plus cutting around each hole’s circumference. Switching to 8 elongated slots with the same airflow area cuts piercing by 75% and reduces total cutting time by 40-60%.
Quick cost assessment: if your part has more than 10 holes under 6mm diameter, explore consolidation options. Group adjacent holes into slots, combine multiple small openings into fewer large ones, or use perforated sections only where functionally critical.
For high volumes (over 500 pieces), punching becomes cost-effective for simple hole patterns. Standard punch tooling handles holes 3-25mm diameter with much faster cycle times than laser cutting, but requires dedicated tooling investment ($200-800 per punch size).
Volume threshold guideline: laser cutting works best for prototypes and low volumes, punching becomes economical above 500-1000 pieces for repetitive hole patterns, and combination processes (laser + punch) optimize both cost and flexibility for medium volumes.
Design Takeaway: Count your holes – if you have more than 10 small holes, redesign to combine them into larger openings where possible. For production quantities over 500 pieces, evaluate punching for simple, repetitive hole patterns.

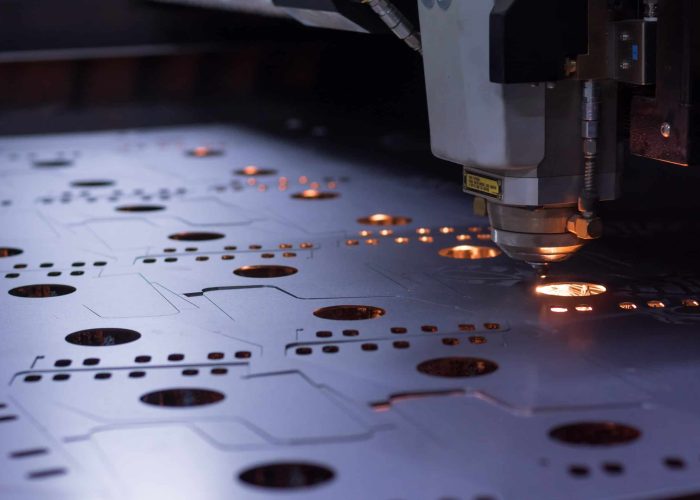

What Design Issues Cause Laser Cutting Production Delays?
File preparation problems and design rule violations cause 80% of production delays. The most common issues: holes too close to edges (under 1.5x material thickness), undersized features (smaller than material thickness), and incomplete CAD files requiring clarification before cutting can begin.
Pre-submission design checklist to prevent delays:
- Edge distances: minimum 1.5x material thickness from hole center to edge
- Hole sizes: larger than material thickness (2mm material = 2mm+ holes)
- File format: clean DXF with closed contours, 1:1 scale
- Tolerances: specify per ISO 2768 standards, avoid “tight as possible”
- Material orientation: note if grain direction or surface finish matters
File-related delays typically add 1-3 days: missing dimensions require clarification, open contours need correction, wrong scale files need rebuilding. Design violations often require 3-5 days for revision cycles, especially when edge distances or hole sizes need fundamental changes.
The fastest path to production: provide dimensioned drawings even with DXF files, include clear notes for special requirements, specify realistic tolerances using standard classes, and ask your fabricator to review complex geometries during design phase rather than after final submission.
Critical validation questions for your fabricator: “Will my edge distances work with this material thickness?” “Are my hole sizes manufacturable as drawn?” “Do my tolerances require secondary operations?”
Design Takeaway: Use the 1.5x thickness rule for all edge distances and ensure holes are larger than material thickness. When submitting files, include dimensioned drawings and ask for manufacturability feedback before finalizing your design – prevention beats revision cycles every time.

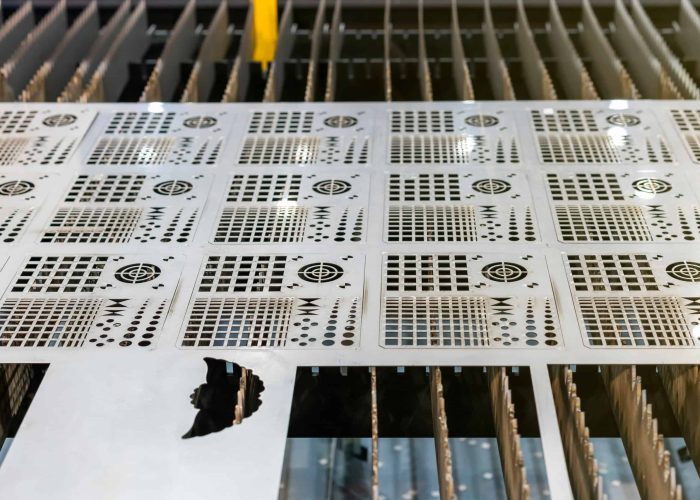

How Can I Reduce Laser Cutting Costs Through Design Changes?
Start with reducing pierce count – this delivers the biggest cost savings for the least design effort. Combining multiple small holes into larger openings or slots typically cuts costs by 25-40% immediately. Follow with material optimization and tolerance relaxation for additional 10-20% savings each.
Priority-ranked cost reduction strategies:
#1 Priority – Reduce piercing operations: Replace arrays of small holes with fewer larger openings. Example: a ventilation panel with 36 small holes (3mm each) redesigned to 12 elongated slots maintains same airflow but reduces pierce count by 67%, cutting cycle time from 8 minutes to 3 minutes per part.
#2 Priority – Optimize material thickness: Step down thickness where structurally acceptable. Moving from 2.5mm to 2mm stainless steel saves 20% on material cost plus enables faster cutting speeds. Quick validation: if your part doesn’t deflect noticeably when hand-pressed, try the next thinner gauge.
#3 Priority – Relax unnecessary tolerances: Change ±0.05mm callouts to ±0.2mm standard where function allows. Tight tolerances force slower cutting speeds and may require secondary operations. Most enclosures and brackets work fine with ISO 2768-1 medium class tolerances.
Cost estimation method: Count pierce points and measure total cutting perimeter. Parts with high pierce-to-perimeter ratios (many small features) cost most to produce. Your fabricator can provide rough cost feedback during design review – ask for estimates on 2-3 design alternatives.
Before committing to production: prototype both original and optimized designs to verify function isn’t compromised. Small design changes that maintain performance while reducing manufacturing complexity often deliver 30-50% cost savings.
Design Takeaway: Start with pierce count reduction first – easiest change with biggest impact. Then evaluate thickness and tolerance optimization. Always validate changes with prototypes before production quantities to ensure functionality isn’t compromised.
Conclusion
Smart stainless steel design balances thickness, geometry, and tolerances to minimize cost while achieving required performance. Start with appropriate material gauge selection, follow the 3:1 aspect ratio rule, and prioritize pierce count reduction for maximum savings. Contact us to explore manufacturing solutions tailored to your stainless steel laser cutting requirements.
Frequently Asked Questions
No, laser cutting creates holes for tapping but cannot create threads directly. Plan for secondary tapping operations if you need threaded features. We can provide pre-drilled holes sized correctly for your required thread pitch and tap drill specifications.
Yes, 304 stainless cuts cleanest with minimal dross formation, while 316 may require slower speeds due to higher nickel content. 430 stainless cuts well but can show more heat discoloration. Grade selection impacts both edge quality and cutting speed.
Use nitrogen assist gas instead of compressed air during cutting to minimize oxidation. Nitrogen cutting produces cleaner, brighter edges but increases processing cost by 15-25%. For cosmetic applications, specify nitrogen cutting in your requirements.
Laser cutting works effectively up to 25mm thickness in stainless steel, though edge quality and precision decrease above 12mm. Very thick sections require multiple passes and slower speeds, significantly increasing cost compared to thinner alternatives.
Maintain minimum wall thickness of 1x material thickness between cutouts to prevent burn-through or weak sections. For 2mm stainless steel, keep 2mm minimum between hole edges. Thinner walls may distort during cutting or fail under load.
DXF files with closed contours work best, saved at 1:1 scale. Include dimensioned PDF drawings for reference. Avoid 3D file formats – provide flat pattern layouts for bent parts rather than formed geometry for accurate quoting.
