Designing metal brackets requires validating both structural performance and manufacturing feasibility before production. With experience across aerospace, industrial, and medical bracket applications, asking the right questions upfront prevents costly redesigns and production delays.
Ask these 8 critical questions: load capacity validation, structural reinforcement needs, cost optimization, coating compatibility, material alternatives, design improvements, prototyping, and lead times. These cover the most common bracket design failure points and ensure both performance and manufacturability.
Learn the specific questions that prevent structural failures, cost overruns, and manufacturing problems in real bracket designs.
Table of Contents

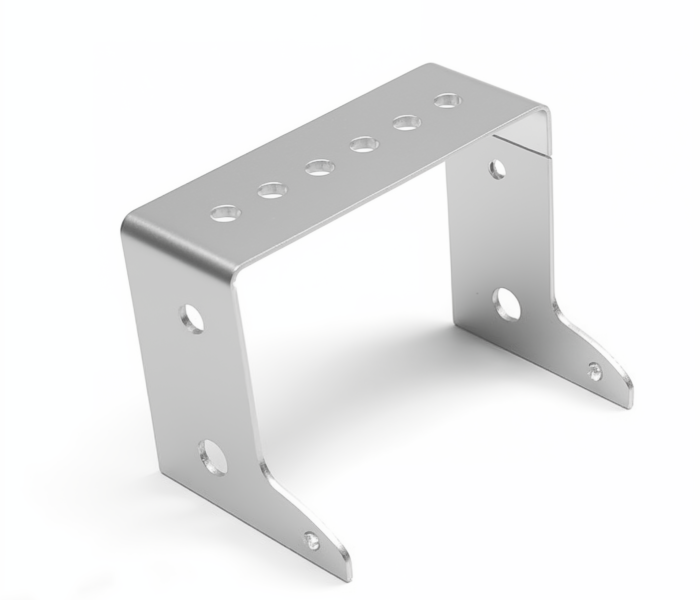

What Load Can a Metal Bracket Handle Without Failing?
Most aluminum brackets can handle 150-300 kg in bending before permanent deformation, while steel brackets typically support 500-1000 kg+, depending on thickness, geometry, and mounting configuration. The critical factor isn’t just material strength—it’s how your specific bracket geometry distributes stress under your actual loading conditions.
Send us your CAD file and load specifications—we can run FEA analysis on your exact geometry to verify it won’t fail under your conditions. We’ve seen too many 4mm aluminum L-brackets that should theoretically handle 200kg fail at just 60kg when loaded perpendicular to the mounting face due to stress concentrations around bolt holes or inadequate section modulus at the bend.
The real issue isn’t material strength—it’s whether your mounting hole placement, bend radius, and load attachment points create failure-prone stress concentrations. We routinely catch designs where a simple 2mm radius increase or moving a mounting hole 5mm away from the edge transforms a marginal design into a robust one. For dynamic or cyclic loading applications, these stress concentrations become even more critical and typically require 4:1 safety factors.
Design Takeaway: Always specify your actual load conditions (static/dynamic, direction, frequency) rather than just peak force values. This allows proper stress analysis of your specific geometry and ensures adequate safety factors for your application and environment.
What bracket design flaws lead to failure?
Avoid these three critical mistakes: mounting holes closer than 2x diameter from edges, sharp internal corners without adequate radius, and inadequate material thickness at bend lines. These design flaws cause 70% of bracket failures and are easily prevented during the CAD phase.
The most common failure we see is edge tearout from poorly placed mounting holes. If you’re using 6mm bolts, keep holes at least 12mm from any edge—closer placement creates a weak section that tears under load. For internal corners, always add a radius equal to at least half your material thickness. A 3mm aluminum bracket needs a minimum 1.5mm corner radius to prevent stress cracks.
Bend line failures occur when designers specify bend radii that are too tight for the material thickness. Sharp bends create stress concentrations that lead to cracking, especially in aluminum and stainless steel. We recommend a minimum bend radius of 1x material thickness for aluminum and 1.5x for stainless steel. A 4mm aluminum bracket should have at least 4mm bend radius to avoid micro-cracking during forming and under load.
Design Takeaway: Use the 2x diameter rule for hole placement, add corner radii equal to 0.5x material thickness, and specify bend radii of 1x thickness for aluminum or 1.5x for stainless steel. These simple checks prevent most bracket design problems.
Does My Metal Bracket Design Need Structural Reinforcement?
If your bracket span exceeds 20x the material thickness, supports cantilevered loads over 25kg, or has unsupported lengths above 150mm, add reinforcement through ribs, gussets, or thicker material. These geometric thresholds indicate when brackets typically become too flexible for reliable performance.
Check your design against these warning signs: spans over 100mm in 3-5mm material, L-brackets longer than 150mm, or any cantilever extending more than 75mm from the mounting points. A 200mm bracket in 4mm aluminum supporting 50kg will deflect 3-5mm—acceptable for some applications but problematic if you need precise positioning. Short brackets under 75mm rarely need reinforcement unless loads exceed 200kg.
Your reinforcement options depend on space and cost constraints. A simple 45-degree triangular gusset at the corner costs about $5-8 extra but reduces deflection by 60-80%. Formed ribs along the length are more effective but require press brake setup. Increasing thickness from 3mm to 5mm is often the most economical solution—adding $10-15 in material but eliminating deflection concerns entirely.
Design Takeaway: Apply the 20:1 span-to-thickness rule as your first check. If you exceed this ratio or have cantilevers over 75mm, plan for reinforcement early in your design rather than discovering flexibility issues during prototyping.
How Can I Make My Metal Bracket Design Stronger and Cheaper?
Optimize material thickness distribution, consolidate bent features to reduce setup operations, and design for standard material sizes to cut both material waste and fabrication time. The strongest, most cost-effective brackets use material strategically—thick where needed, standard gauge everywhere else.
Instead of using uniform 5mm thickness throughout, consider varying thickness based on stress requirements. A bracket might need 6mm material at mounting points but only 3mm for non-structural sections. We often suggest clients use heavier gauge material in a smaller footprint rather than oversizing thin material—a 100mm x 50mm piece of 5mm aluminum costs less and performs better than 150mm x 75mm of 3mm material for the same load capacity.
Bend consolidation dramatically reduces fabrication cost. A bracket requiring four separate forming operations costs 60-80% more than one designed for single-setup bending. Simple changes like aligning bend lines or designing uniform bend radii across all features can cut setup time from hours to minutes. Similarly, designing to standard sheet sizes (48″ x 96″ or 60″ x 120″) minimizes material waste—a bracket designed at 49″ width requires purchasing larger stock, increasing material cost by 20-30%.
Design Takeaway: Concentrate material thickness where loads are highest, align all bends to minimize setups, and size your bracket to fit efficiently within standard sheet dimensions. These changes typically reduce total cost by 25-40% while improving structural performance.
How Much Does Custom Metal Bracket Fabrication Cost?
For budgeting purposes, expect $15-45 per bracket for simple aluminum designs and $35-85 for steel brackets in prototype quantities. Costs drop significantly at 25+ pieces (30% reduction), 100+ pieces (50% reduction), and 500+ pieces (60-70% reduction) due to setup cost distribution.
When planning your bracket budget, quantity break points matter more than material selection for total project cost. A $40 prototype bracket typically drops to $28 at 25 pieces, $20 at 100 pieces, and $12-15 at 500+ pieces. We recommend getting quotes early in your design process—before finalizing dimensions—because small design changes can dramatically impact pricing.
Material choice and complexity drive the biggest cost variations. Aluminum brackets quote lower than stainless steel equivalents, while features like custom holes, threading, and welding increase fabrication time significantly. Secondary operations like powder coating or anodizing add to the base fabrication cost but may be necessary for your application requirements.
Design Takeaway: Get preliminary quotes during design phase with quantity ranges (25/100/500 pieces) to understand cost scaling. This helps you optimize both design complexity and order quantity for your budget targets.
Can You Powder Coat Aluminum Brackets?
Yes, aluminum brackets can be powder coated, but you also have anodizing and clear coating options depending on your performance and appearance requirements. Powder coating provides the most color choices and impact resistance, while anodizing offers better corrosion protection and wear resistance.
Powder coating adds approximately 2-4 mils (0.05-0.1mm) of thickness to all surfaces and works well when you need specific colors or enhanced scratch resistance. Anodizing creates a thinner, harder surface (0.5-2 mils) that’s ideal for precision parts or outdoor applications requiring maximum corrosion resistance. Clear anodizing maintains the aluminum appearance while adding protection, while colored anodizing offers limited but durable color options. Clear coating provides basic protection at the lowest cost.
Consider your application needs when choosing: powder coating for maximum color selection and impact resistance, anodizing for corrosion protection and wear resistance, or clear coating for basic protection without appearance changes. If your bracket has threaded holes or precision fits, anodizing affects dimensions less than powder coating due to its thinner application.
Design Takeaway: Choose powder coating for color variety and impact resistance, anodizing for corrosion protection and precision applications, or clear coating for basic protection. Plan for coating thickness in your design—powder coating requires more clearance than anodizing.
What Coating Options Work Best for Stainless Steel Brackets?
Most stainless steel brackets don’t need coating—but choose powder coating for color requirements, electropolishing for easy cleaning, or passivation for harsh environments. Your specific application problem determines the best coating solution.
You probably don’t need coating if you’re using 316 stainless for indoor applications with no appearance requirements—the material handles most environments without additional protection. However, specific problems require targeted solutions: powder coating solves color and scratch resistance needs, electropolishing eliminates fingerprints and improves cleanability for food service or medical applications, and passivation enhances corrosion resistance for marine or chemical environments.
Consider coating costs versus benefits for your application. Powder coating adds $8-15 per part but provides color options and impact resistance. Electropolishing costs more but creates ultra-smooth surfaces that clean easily and resist bacteria. Passivation is less expensive and maintains the original appearance while boosting corrosion performance in aggressive environments.
Design Takeaway: Ask yourself: Do I need color (powder coating), easy cleaning (electropolishing), or enhanced corrosion resistance (passivation)? If none apply, uncoated 316 stainless often provides adequate performance at lower cost.
Should I Prototype My Metal Bracket Before Production?
Yes, prototyping is essential for brackets with critical fits, untested load conditions, or assembly interfaces—especially if your production quantity exceeds 100 pieces. The cost of 2-5 prototypes is typically 5-10% of a production run but can prevent expensive tooling changes or complete redesigns.
We strongly recommend prototyping when your bracket interfaces with existing hardware, supports critical loads, or requires precise assembly clearances. A prototype lets you verify actual fit and function rather than relying on CAD assumptions. We’ve seen clients discover that their perfectly modeled bracket interfered with adjacent components, required different mounting hardware, or needed geometry adjustments for proper cable routing—all issues easily caught with physical prototypes.
Prototyping becomes even more valuable for brackets requiring custom tooling, welding fixtures, or complex bending operations. Testing the manufacturing process with prototypes helps us optimize production setup and identify potential quality issues before committing to larger quantities. For high-volume runs (500+ pieces), prototype validation can prevent costly mid-production design changes that affect delivery schedules.
Skip prototyping only for simple brackets with non-critical applications, proven designs, or when timeline constraints make it impossible. Even then, consider ordering a few extra pieces from your first production run for testing before proceeding with full quantities.
Design Takeaway: Budget 2-5 prototype pieces for any bracket with critical fits, untested applications, or production quantities over 100 pieces. The small upfront investment prevents much larger costs from production issues or design failures.
What Are Typical Lead Times for Metal Bracket Manufacturing?
Plan to contact us 6-8 weeks before you need parts—standard fabrication takes 2-3 weeks for prototypes and 3-4 weeks for production, but material procurement and finishing can add 2-3 weeks to your total timeline. Your specific lead time depends on material availability, complexity, and coating requirements.
Standard materials (6061 aluminum, 304 stainless) are readily available, but specialty alloys may require 1-2 weeks procurement time. Simple bent brackets move quickly through production, while welded assemblies or precision features need additional setup time. Finishing operations extend timelines significantly: powder coating adds 3-5 days, anodizing adds 5-7 days, and electropolishing can add 7-10 days.
Budget extra time for potential design iterations—minor prototype adjustments typically add 1-2 weeks while major redesigns can add 3-4 weeks to your timeline. Rush delivery with 50% expedite fees is possible, but standard timing provides better pricing and quality control. Lock in your delivery schedule when you approve final quotes to avoid production delays.
Design Takeaway: Contact us 6-8 weeks before you need parts, finalize specifications early to avoid redesign delays, and plan for standard lead times to optimize both cost and quality for your project.
Conclusion
Asking the right questions before finalizing your metal bracket design prevents costly failures, manufacturing delays, and budget overruns. Focus on load validation, design optimization, and realistic timeline planning to ensure your bracket performs reliably in production. Contact us to explore manufacturing solutions tailored to your bracket requirements.
Frequently Asked Questions
We typically quote brackets starting at 5-10 pieces for prototypes, with no strict minimums for most designs. Production pricing becomes more favorable at 25+ pieces due to setup cost distribution across larger quantities.
We can create technical drawings from your sketches, but we recommend bringing us into the design process early for optimal manufacturability. This collaborative approach typically results in better performance and lower production costs.
We provide dimensional inspection reports, material certifications, and photographs for all bracket orders. For regulated industries, we can supply additional documentation including FAIRs, COCs, and traceability records as required.
We’ll work with you to identify the issue and recommend design modifications. Minor adjustments typically require 1-2 weeks for revised prototypes, while major changes may need 2-3 weeks depending on the scope of modifications needed.
Absolutely. We often design brackets with both welded tabs and drilled holes to give you assembly flexibility during product development. This dual-option approach helps when final assembly methods aren’t fully determined.
Yes, we regularly help clients adapt proven bracket designs for new applications. Modifications like changing hole patterns, adjusting dimensions, or switching materials are often more cost-effective than starting from scratch.
