Manufacturing metal enclosures efficiently requires balancing material costs, fabrication complexity, and design requirements. With years of experience producing enclosures for electronics, industrial, and aerospace applications, small design adjustments can dramatically reduce production costs without sacrificing functionality.
Material selection, bend optimization, and smart tolerance specification can reduce metal enclosure costs by 20-40% compared to over-engineered designs. Focus on standard materials like 6061-T6 aluminum, minimize complex bends, and apply tight tolerances only where functionally required.
Discover cost-saving strategies from material selection to finishing—plus real design changes that reduced fabrication time and expenses.
Table of Contents
What's the Best Metal for My Enclosure Project?
6061-T6 aluminum is the optimal choice for 90% of metal enclosures, costing $3.50-4.50/lb with excellent machinability. Use 5052 for marine environments, 7075 for high-strength applications, or stainless steel only when regulatory compliance demands it.
Quick Material Selector:
- Budget + general use → 6061-T6 aluminum
- Outdoor/salt exposure → 5052 aluminum
- High stress/aerospace → 7075 aluminum
- Food/medical contact → 304 stainless steel
Material choice drives 20-30% of total project cost when factoring in both raw material and machining expenses. 6061-T6 aluminum machines 40-60% faster than stainless steel without work hardening, delivering clean finishes at high speeds. For electronics applications, aluminum provides natural EMI shielding without additional coatings. 7075 aluminum offers nearly double the tensile strength but costs 25-40% more and requires careful machining to prevent cracking.
Stainless steel becomes cost-effective only in very high volumes (1000+ units) where material savings can offset the higher machining expenses.
Design Takeaway: Start with 6061-T6 for standard enclosures and prototype first if uncertain about strength requirements. Avoid specifying 7075 or stainless “just because they’re stronger”—upgrade only when your application genuinely requires enhanced properties, not because premium materials sound more robust.
Can You Optimize My Enclosure Design Before Production?
Yes, early design review prevents costly revisions and can reduce fabrication costs by 15-30%. We analyze your CAD files for manufacturability issues like complex tolerances, difficult setups, and assembly constraints before you commit to production tooling.
Getting DFM feedback during the design phase—not after quotes—saves both time and money. Our experience reviewing hundreds of enclosure designs shows that 70% contain at least one element that increases cost unnecessarily: over-specified tolerances, complex assembly sequences, or features requiring secondary operations. A typical 5-10 minute design consultation (usually no charge for serious projects) identifies 3-5 optimization opportunities.
The best time for review is after functional requirements are locked but before ordering prototypes—this saves the most money by catching issues early. For simple rectangular boxes with standard mounting holes, formal review may be unnecessary, but complex enclosures with multiple bends, cutouts, or assembly requirements benefit significantly from expert feedback.
Common issues we catch early include tolerance specs tighter than functional requirements, hole patterns requiring multiple setups, and assembly methods that complicate fabrication. For example, switching from welded tabs to mechanical fasteners can reduce setup time significantly while improving serviceability. Relocating cable entry points to standard punch locations eliminates custom tooling costs.
What We Review:
- Assembly method optimization and fastener selection
- Tolerance requirements vs actual function
- Hole placement and standard tooling compatibility
- Material utilization and scrap reduction
- Surface finish requirements and coating compatibility
Design Takeaway: Share your enclosure design during the concept phase, not after final drawings. Early feedback prevents expensive revisions and ensures your design is optimized for both function and fabrication efficiency.
What Bend Radius and Wall Thickness Minimize Cost?
Use 1.5x material thickness for bend radius and 0.080″-0.125″ wall thickness for most aluminum enclosures. These standard specifications work with common tooling, prevent cracking, and provide adequate strength for typical electronics and industrial applications.
Standard Specs by Application:
- Handheld devices: 0.063″ wall, 0.090″ bend radius (adequate for lightweight components)
- Desktop electronics: 0.080″ wall, 0.120″ bend radius (supports typical component loads)
- Rack-mount chassis: 0.125″ wall, 0.190″ bend radius (handles heavy equipment mounting)
- Large enclosures (>20″ span): Consider 0.125″ minimum to prevent deflection
Wall thickness selection depends on your structural requirements and enclosure size. For most electronics enclosures under 20″ span, 0.080″ provides adequate strength for typical component loads. Large enclosures or those supporting heavy equipment typically require 0.125″ to prevent deflection. Going thinner than 0.063″ becomes difficult to handle during fabrication, while thicker than 0.125″ increases material cost substantially without proportional strength gains for most applications.
Bend radius impacts tooling costs significantly. Sharp bends (less than 1x thickness) require specialized dies and increase cycle time due to springback issues. Using 1.5x thickness works with standard press brake tooling that most fabricators stock, eliminating setup delays and tool charges. The industry standard 0.030″ radius works well for precision applications but may require custom tooling.
Cost Impact Examples:
- Standard 0.080″ + 0.120″ radius: baseline cost
- Thin 0.063″ walls: saves material cost, adds handling complexity
- Sharp bend radius: increases tooling cost, risks cracking
- Heavy 0.125″ walls: adds material cost, provides higher strength
Design Takeaway: Start with 0.080″ walls and 0.120″ bend radius for most enclosures. Only deviate when structural calculations show inadequate strength, large spans require additional rigidity, or when weight reduction justifies the additional fabrication complexity.
How Should I Specify Tolerances to Control Costs?
Reserve tight tolerances (±0.005″-±0.010″) only for critical mating surfaces. Use ISO 2768-m standard tolerances for non-critical features. Over-tolerancing sheet metal parts can increase fabrication complexity and costs—most enclosures need precision on less than 20% of features.
Tolerance Decision Framework:
- Critical function (assembly/sealing): ±0.005″-±0.010″
- Mounting holes: ±0.015″
- General dimensions: ISO 2768-m (varies by size)
- Large panels: ±0.060″ per foot flatness
Sheet metal fabrication tolerances differ significantly from machining tolerances. Standard sheet metal tolerances range from ±0.02″ to ±0.03″, much looser than precision machined parts which use ±0.005″. Applying machining-like tolerances to sheet metal parts can slow down the process and increase costs because they require more complex, time-consuming methods.
ISO 2768-m provides general tolerances that vary by dimension size—smaller features have tighter tolerances while larger dimensions allow more variation. This standard eliminates the need to specify tolerances on every dimension while maintaining appropriate control for functionality.
Flatness specifications require special attention for large panels. Specifying tight flatness on panels over 12″ may require secondary machining or stress-relieving operations. Standard practice allows ±0.060″ per foot for general enclosure work, with tighter specs only for sealing surfaces or precision assemblies.
Hole tolerances depend on fastener function. Standard clearance holes for #10 screws work with ±0.015″ tolerances, while bearing mounts or pivot points may require ±0.005″. Features located on the same surface can achieve ±0.005″ because laser cutting equipment can hold tolerances down to ±0.002″, but formed features like flanges need looser tolerances due to material stretching.
Design Takeaway: Apply tight tolerances only where function demands it. Use ISO 2768-m for general tolerances and clearly mark critical dimensions on drawings to avoid unnecessary fabrication complexity and cost increases.
Which Surface Finishes Offer the Best Value?
Powder coating provides the best durability-to-cost ratio for most enclosures. Use mill finish for internal components, clear anodizing for electronics (maintains conductivity), and hard anodizing for high-wear outdoor applications.
Finish Selection by Application:
- Indoor electronics: Clear anodizing (maintains EMI shielding, premium appearance)
- Outdoor equipment: Powder coating (cost-effective, excellent durability)
- Food/medical: FDA-approved powder coating (regulatory compliance)
- High-wear items: Hard anodizing (maximum wear resistance)
- Budget-critical: Mill finish (lowest cost, adequate indoors)
Powder coating is generally more cost-effective than anodizing and offers excellent durability at reasonable cost. Anodizing maintains electrical conductivity, making it ideal for electronics enclosures requiring EMI shielding. While anodizing costs more initially, it provides superior longevity and cannot peel off like coatings.
Material compatibility drives finish selection. Aluminum anodizes naturally and maintains the metallic appearance while providing corrosion protection. Steel requires protective coatings like powder coating to prevent rust. Stainless steel often needs only passivation for most applications.
Process timing affects project schedules. Mill finish adds no lead time, while both powder coating and anodizing require additional processing days. Plan finish application before final assembly to avoid masking complex geometries. Powder coating is a dry application process using no solvents, making it environmentally friendly.
Powder coating hides minor surface imperfections and weld marks, making it forgiving for fabricated assemblies. Anodizing reveals surface quality but delivers superior appearance with a deeper, richer metallic look because the coating becomes part of the aluminum itself. Textured powder coats provide better grip for handheld devices while hiding fingerprints and scratches.
Cost Considerations:
- Mill finish: Baseline cost
- Powder coating: Moderate increase, excellent value
- Clear anodizing: Higher cost, premium results
- Hard anodizing: Highest cost, maximum performance
Design Takeaway: Select powder coating for general-purpose enclosures, clear anodizing for electronics requiring EMI compatibility, and hard anodizing for premium outdoor applications. Standard colors cost less than custom color matching.
What Assembly Methods Work Best for Metal Enclosures?
Mechanical fasteners offer the best balance of assembly speed, serviceability, and cost for most enclosures. Use welding for permanent assemblies requiring maximum strength, and consider snap-fit designs for high-volume consumer products requiring tool-free assembly.
Assembly Method Selection:
- Electronics/serviceable: Mechanical fasteners (screws, PEM hardware)
- Permanent/structural: Welding (TIG, MIG, resistance)
- High-volume consumer: Snap-fit or quarter-turn fasteners
Self-tapping screws work best for prototypes and low-volume production with lowest tooling cost. PEM hardware like threaded inserts offers cost savings through reduced labor and allows use of thinner materials without sacrificing strength. Machine screws with nuts provide strong mechanical connections but require two-sided access.
Welding creates stronger joints than mechanical fasteners due to the continuity of the cross-section. TIG welding produces clean aluminum joints with minimal distortion, while MIG welding offers faster steel fabrication. Critical limitation: welding must occur before powder coating or anodizing—finished parts cannot be welded without coating damage.
Snap-fits eliminate fasteners entirely and become economical for high-volume production despite higher tooling costs. Quarter-turn fasteners provide quick field access while maintaining vibration resistance.
Volume and application requirements determine the most cost-effective approach. Lower volumes favor simple mechanical fasteners, while higher volumes can justify specialized assembly methods. Welding creates permanent joints while fasteners allow disassembly and reassembly as needed.
For IP65-rated enclosures, mechanical fasteners allow gasket replacement during service, while welded assemblies achieve permanent sealing but eliminate serviceability. Continuous welded seams provide superior moisture protection for outdoor applications.
Design Takeaway: Choose mechanical fasteners for serviceable enclosures, welding for permanent high-strength assemblies, and snap-fits for high-volume production. Plan assembly sequence around finishing operations—welding must precede coating application.

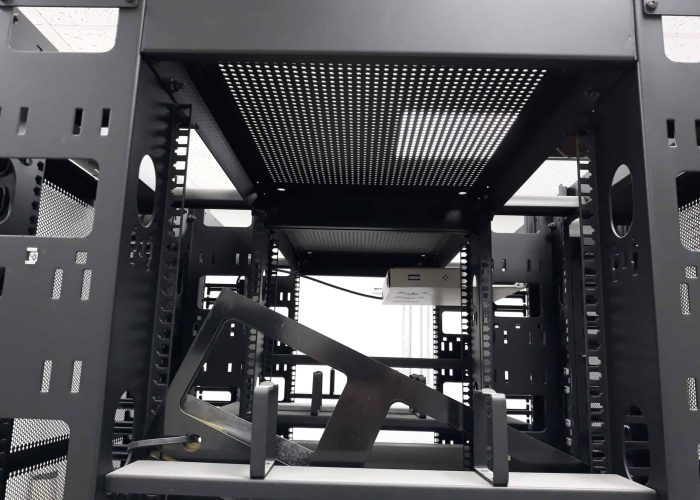

How Do I Design Openings, Cutouts, and Ventilation Features Cost-Effectively?
Standard punch sizes and laser-friendly geometries minimize tooling costs. Design ventilation based on heat dissipation requirements and use round holes for optimal strength-to-ventilation ratio.
Opening Design Guidelines:
- Round holes: Use standard drill sizes (.125″, .250″, .375″, .500″)
- Ventilation: Size based on heat load calculations
- Minimum spacing: 2x material thickness between hole edges
Standard round holes (.125″, .250″, .375″, .500″) eliminate custom tooling costs and provide clean edges. Quarter-inch holes in triangular patterns maintain good panel strength while providing airflow when holes occupy 30-40% of surface area.
Ventilation design requires calculating heat dissipation requirements to prevent overheating of electronic components. Staggered hole patterns distribute stress better than aligned rows while providing improved airflow compared to equivalent grid patterns. Heat load calculations should account for power consumption and ambient temperature differences.
Feature spacing critically affects both manufacturing and strength. Maintain 2x material thickness minimum between hole edges to prevent distortion during punching. Large cutouts over 4″ require reinforcement beads or flanged edges to maintain stiffness.
IP-rated considerations complicate ventilation design. IP54 allows louvers with drip shields for weather protection. IP65 requires sealed connectors with no direct ventilation—consider Gore vents for pressure equalization. Fan-forced ventilation may be necessary for sealed high-power electronics.
Cable cutouts should use D-shapes or rectangles with radiused corners for anti-rotation and stress distribution. Corner radius should equal or exceed material thickness to prevent stress concentrations.
For EMI-sensitive applications, hole size affects shielding effectiveness. Smaller holes provide better electromagnetic interference protection while larger holes offer increased airflow.
Design Takeaway: Start with standard round holes and calculate ventilation requirements based on actual heat loads. Use staggered patterns for optimal strength-to-ventilation ratio. Consider IP rating requirements early—they significantly affect both hole design and assembly methods.
Conclusion
Material selection, tolerances, assembly methods, and ventilation design directly impact both enclosure performance and manufacturing costs. Focus on 6061-T6 aluminum with standard tolerances, mechanical fasteners for serviceability, and calculated ventilation sizing to balance functionality with cost-effectiveness.
Contact us to explore manufacturing solutions tailored to your metal enclosure requirements.
Frequently Asked Questions
Welding must happen before anodizing. The heat damages anodized coatings and creates inconsistent appearance. Plan your assembly sequence: fabricate → weld → finish → final assembly with mechanical fasteners for any post-finish connections.
Likely insufficient bend radius. Use 1.5x material thickness minimum – tighter bends require specialized tooling and increase costs significantly. Sharp corners also concentrate stress. Change your design to use standard bend radii that work with common press brake tooling.
Likely over-tolerancing or non-standard features. Check if you’re specifying ±0.005″ tolerances where ±0.030″ would work, using custom hole sizes, or requiring post-weld machining. Share your design during concept phase to catch these issues before finalizing drawings.
se standard punch sizes (.125″, .250″, .375″, .500″) and group similar features together. Staggered patterns are stronger than grid layouts while using the same tooling. Avoid custom hole sizes that require special dies – this alone can save 20-30% on fabrication costs.
For electronics enclosures under 20″ span, 0.080″ thickness handles typical component loads effectively. Go to 0.125″ for rack-mount applications or heavy internal equipment. Large flat panels may need reinforcement ribs regardless of thickness to prevent deflection.
For IP54: use louvers with drip shields. For IP65: no direct ventilation allowed – use Gore vents for pressure equalization and consider fan-forced cooling. Calculate your actual heat load first to determine if sealed design is even feasible for your power requirements.
