Choosing between anodizing and powder coating isn’t just about appearance — it’s about balancing durability, cost, and manufacturing constraints. With extensive experience finishing aluminum components for aerospace, medical, and industrial applications, the right coating decision depends on your part geometry, tolerances, and performance requirements.
For most aluminum parts, anodizing offers superior corrosion resistance and dimensional stability, while powder coating provides better impact resistance and color options. Anodizing adds 12-25 microns of thickness, while powder coating adds 50-100 microns — critical for tight-tolerance assemblies.
Coating process guide: manufacturing method impacts, thickness effects on tolerances, and engineering/economic considerations for optimal selection.
Table of Contents
Can You Powder Coat Aluminum or Should You Anodize Instead?
Both processes work on aluminum, but your material and application determine the best choice. If you have steel parts, powder coating is your only option. For aluminum, anodizing delivers superior corrosion resistance while powder coating offers better impact protection and color variety.
Quick Decision Guide:
- Steel/other metals? → Powder coating only
- 6061 aluminum + outdoor use? → Anodizing (1000+ hours salt spray resistance vs 500-800 for powder coating)
- 7075 aluminum + color matching critical? → Powder coating (zinc content makes anodizing inconsistent)
- Tolerances tighter than ±0.05mm? → Anodizing (12-25 microns vs 50-100 microns for powder coating)
- Budget under $5/part for 200+ pieces? → Powder coating typically 30-40% less expensive
6061 yields excellent anodizing results with consistent coloration, while 7075’s high zinc content creates color variations and porous oxide layers. For CNC parts with press-fits or threaded features, anodizing’s thinner coating preserves critical dimensions. Powder coating requires less time, energy, and expensive materials, making it more cost-effective for most applications.
Sheet metal assemblies with welded joints favor powder coating — heat-affected zones from welding cause uneven anodizing colors, while powder coating provides uniform coverage regardless of base metal variations.
Design Takeaway: Start with your material (steel = powder coating only), then consider environment (outdoor = anodizing) and tolerances (tight = anodizing). For 7075 parts or budget-conscious projects needing vibrant colors, powder coating delivers more predictable results at lower cost.
How Much Thickness Does Each Coating Add to CNC Parts?
Anodizing adds 12-25 microns (0.0005-0.001″) while powder coating adds 60-125 microns (0.002-0.005″). For CNC assemblies with press-fits or threaded features, anodizing preserves critical dimensions while powder coating typically blocks fits and clogs threads smaller than M3.
Manufacturing Process Impact: For CNC machined parts, anodizing can be controlled to ±0.0002″ in well-controlled shops, with coating adding 0.00025″ per side. The coating grows 30% outward and 70% inward from the original surface, meaning a 20-micron anodized layer adds only 6 microns to external dimensions.
Sheet metal fabrication presents different challenges. Powder coating builds up at bend lines and welded joints, potentially interfering with nested assemblies. For parts combining CNC precision features with formed sheet metal sections, anodizing maintains consistent thickness across both manufacturing methods.
Drawing Specification Strategy: Best practice: dimension drawings to final coated size, then specify “allow 0.0008″-0.0012” per side for coating” in notes. This prevents machinists from having to calculate coating allowances for every critical dimension.
Real Application Examples:
- Precision bearing housing: 25mm bore ±0.01mm → Anodizing works, powder coating requires pre-machining to 24.85mm
- Sheet metal enclosure with CNC-machined connector holes: Choose anodizing to maintain connector tolerance without masking
- Threaded M2.5 standoffs: Powder coating clogs threads; anodizing allows standard engagement
Design Takeaway: For mixed CNC/sheet metal assemblies under ±0.05mm tolerance, specify anodizing. Reserve powder coating for non-critical sheet metal components where 0.1mm coating buildup won’t affect assembly or function.
Which Coating Survives Outdoor Use Better?
Anodizing delivers 15-20+ year performance in harsh outdoor environments through superior UV and corrosion resistance, while powder coating provides 8-12 years with better impact resistance. For marine or desert climates, anodizing justifies 40-60% higher initial cost through longer service life.
Climate-Specific Performance Data:
- Marine environments: Anodizing passes 336-hour salt spray standard for aluminum coatings; powder coating may achieve higher test hours but uses different standards
- Phoenix/desert UV: Anodized finishes resist UV damage without fading; powder coating shows chalking after 5-7 years
- Seattle/humid: Both perform well; choose based on cost and impact requirements
- Industrial/chemical: Powder coating handles solvents and acids better than anodized surfaces
Failure Mode Planning: Anodizing cannot peel since coating becomes part of the metal — failure shows as gradual dulling requiring complete refinishing. Powder coating can chip since it’s not integrated with substrate — but damaged areas can be sanded and locally recoated.
Cost-Performance Breakpoints:
- 20+ year installations (architectural): Anodizing ROI justifies higher initial cost
- 5-10 year replacement cycles (equipment housings): Powder coating offers better value
- High-impact applications (transportation): Powder coating prevents catastrophic coating loss from stone chips
Maintenance Schedules: Anodizing requires inspection every 5 years, cleaning annually. Powder coating needs touch-up every 3-5 years but can be field-repaired.
Design Takeaway: For static CNC-machined components in harsh environments, specify anodizing for maximum longevity. For sheet metal assemblies subject to handling or impact, choose powder coating for repairability and cost-effectiveness over 8-12 year service intervals.
Can You Still Ground Through Anodized Aluminum?
Standard anodizing creates an insulating aluminum oxide layer that blocks electrical continuity for grounding and EMI applications. For CNC parts requiring both corrosion protection and electrical contact, design dedicated grounding features that bypass the coating or specify conductive contact areas during manufacturing.
EMI Grounding Decision Matrix:
- Electronics enclosures: Machine EMI gasket grooves 0.5-1.0mm deep post-anodizing
- Medical devices: Design threaded grounding studs penetrating to base metal
- RF equipment: Spring-finger contacts at regular intervals around perimeters
- Outdoor equipment: Stainless grounding clips that bite through coating
Manufacturing Cost Analysis:
- High-volume production: Selective masking during anodizing increases coating costs significantly
- Low-volume/prototypes: Post-anodizing machined contacts add substantial machining time
- Critical applications: Press-fit grounding pins provide reliable contact through coating
From manufacturing experience with EMI-compliant enclosures, standard anodized aluminum has electrical resistivity between 10^11 and 10^13 Ω.cm — completely blocking electrical continuity. Most EMI compliance issues we’ve encountered were solved by adding machined contact points rather than changing coating specifications.
Process Timeline: Plan electrical contact features during initial design phase. EMI requirements added late in the project often cause significant delays for tooling modifications.
Design Takeaway: Never assume anodized aluminum maintains electrical continuity. Design grounding contact features early in the development process — retrofit solutions cost significantly more than initial design integration.
Will Powder Coating Clog My Threaded Holes?
Yes, powder coating clogs threads M3 and smaller unless masked. The 60-125 micron coating thickness reduces thread engagement significantly. Plan masking costs or thread alternatives based on production volume and thread size.
Thread Impact Decision Matrix:
- M2-M2.5: Avoid powder coating or mask (complete clogging likely)
- M3-M4: Mask for higher volumes, cleanup for smaller quantities
- M5+: Generally acceptable with standard powder coating thickness
- Fine pitch threads: Always mask regardless of size
Manufacturing Cost Analysis by Volume:
- Small quantities: Post-coating cleanup economical for individual threaded holes
- Medium volumes: Masking setup becomes cost-competitive
- Large volumes: Masking typically more economical than rework
From production experience, thread pitch diameter decreases by 4X the powder coat thickness. CNC-machined threads handle post-coating cleanup better than sheet metal formed threads, which may crack coating around openings during thermal cycling.
Proven Design Alternatives:
- Threaded inserts: Install post-coating for critical connections
- Captured fasteners: Quarter-turn or thumbscrews eliminate threading concerns
- Larger thread sizes: M5+ threads accommodate coating thickness without significant interference
Quality Considerations: Powder coating thickness varies significantly on complex geometries and inside corners. Test thread engagement on sample parts before committing to production volumes.
Design Takeaway: For parts with multiple small threads, consider anodizing instead of powder coating. When powder coating is required, budget additional cost for masking or specify larger thread sizes to accommodate coating thickness without assembly issues.

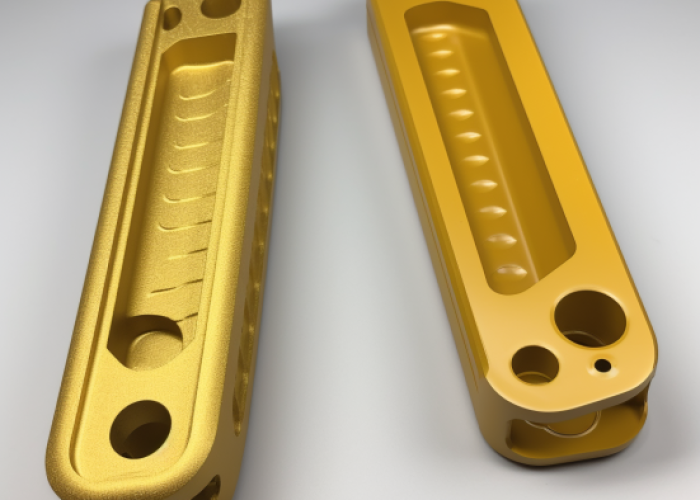

Which Process Gives More Consistent Color Matching?
Anodizing provides superior color consistency batch-to-batch, while powder coating offers vastly more color options but with greater variation. For parts requiring precise color matching across production runs, anodizing delivers better repeatability despite its limited palette.
Color Selection Decision Guide:
- Choose Anodizing: Architectural panels, medical devices, electronics requiring color consistency
- Choose Powder Coating: Custom brand colors, consumer products, decorative applications
- Avoid Mixing: Never combine coated and uncoated parts in visible assemblies
Manufacturing Process Impact: Anodizing color comes from dye absorption into oxide pores, creating predictable results. Anodizing preserves the metallic look of aluminum and offers a range of color options if dyed, though the color range is less extensive than powder coating. Parts from the same alloy batch show excellent consistency.
Powder coating color depends on pigment distribution, cure temperature, and thickness — variables creating batch-to-batch differences. Complex geometries receive uneven coating thickness, causing color variations on the same part.
Cost vs Quality Trade-offs: Anodizing costs more per part but eliminates color variation rework. Powder coating offers lower base cost but potential color mismatch penalties. For critical applications, some manufacturers anodize hero parts and powder coat hidden components.
Quality Control: Powder coating requires consistent cure schedules and thickness control. Tight film thickness tolerances (±5 microns) are extremely difficult to achieve, directly affecting color uniformity.
Design Takeaway: Specify anodizing when color consistency across batches is non-negotiable. Choose powder coating for specific brand colors with acceptable variation tolerance.
What's the Cost Difference for Low-Volume Production?
Powder coating costs 30-50% less than anodizing for low-volume production due to simpler equipment and faster processing. However, anodizing often provides better long-term value through superior durability in demanding applications.
Volume-Based Cost Guide:
- 1-50 pieces: Powder coating advantage most pronounced
- 50-200 pieces: Anodizing becomes competitive for standard colors
- 200+ pieces: Performance requirements drive selection over cost
Process Cost Factors: Powder coating is more cost-effective than anodizing since it requires less time, energy, and expensive materials . Anodizing requires specialized chemical infrastructure affecting small-batch pricing. Powder coating uses standard spray equipment available at most shops.
Hidden Costs: Anodizing includes etching and cleaning steps powder coating doesn’t require. However, powder coating needs extensive masking for threads and electrical contacts. For precision parts with tight tolerances, anodizing allows better dimensional control without coating buildup concerns.
Lead Time Impact: Powder coating offers same-day processing for simple parts. Anodizing requires multi-step chemical processing, typically 3-5 day minimum lead time.
Total Cost Analysis: Factor service life differences — anodizing’s outdoor durability may justify higher initial costs for weather-exposed equipment. Powder coating’s lower upfront cost suits indoor applications with shorter replacement cycles.
Design Takeaway: Choose powder coating for cost-sensitive indoor applications. Specify anodizing when long-term durability justifies higher investment, especially for outdoor or high-wear applications.
How Do You Mask Threads During Anodizing vs Powder Coating?
Both processes require thread masking for dimensional accuracy, but powder coating tolerates less precise masking. Anodizing demands tighter control since any exposed aluminum will process, while powder coating overspray can be mechanically removed before curing.
Masking Decision Matrix:
- Low volume (<100 pieces): Disposable tape/plugs for both processes
- Medium volume (100-500): Custom fixtures become cost-effective
- High volume (500+): Dedicated masking tooling justified
- Alternative: Specify M5+ threads to eliminate masking entirely
Process-Specific Requirements: Anodizing masking must withstand sulfuric acid and electrical current — use acid-resistant tape or precision plugs. Any exposed aluminum will anodize and become electrically insulating. Powder coating masking survives 400°F cure temperatures but allows more forgiving application since overspray removes mechanically.
CNC vs Sheet Metal Strategies: CNC machined threads use precision silicone plugs for repeatability. Sheet metal formed threads often use tape due to irregular quality and access limitations. Thread pitch diameter decreases by 4X the coating thickness, requiring oversized taps if powder coating isn’t masked.
Cost vs Quality Trade-offs: Precision masking costs significantly more than post-process cleanup but delivers consistent results. Budget additional setup time for complex patterns.
Design Takeaway: Plan masking during initial design, not as afterthought. Specify accessible thread orientations for masking equipment. Consider larger thread sizes or captured fasteners to eliminate masking requirements entirely.
Conclusion
For most aluminum applications, anodizing provides better dimensional control and corrosion resistance, while powder coating offers cost advantages and color flexibility. Both processes require careful design considerations for tolerances, threads, and electrical requirements. The right choice depends on your specific performance needs, volume, and budget constraints. Contact us to explore manufacturing solutions tailored to your aluminum finishing requirements.
Frequently Asked Questions
7075 is more challenging to anodize due to high zinc content and tendency to form porous oxide layers, often resulting in odd coloration and inconsistencies. 6061 yields the best anodizing results with consistent, even coloration. For 7075 parts requiring finishing, powder coating often delivers more uniform appearance.
With increased anodizing thickness, there is typically a reduction in fatigue strength, though some may be restored by the sealing process. For fatigue-critical applications, specify thinner coatings like chromic anodizing or thin-film sulfuric anodizing to minimize strength reduction.
Yes, but it requires complex masking and separate processing steps, significantly increasing costs. More practical alternatives include using different materials (anodized aluminum + powder-coated steel) or designing assemblies where each component gets optimal finishing for its function.
Powder coating typically offers same-day turnaround for simple parts, while anodizing requires 3-5 days minimum due to multi-step chemical processing. For urgent prototypes, powder coating provides faster delivery, though anodizing may be worth the wait for performance-critical applications.
Specify final dimensions after coating, then add notes like “allow 0.0008″-0.0012″ per side for anodizing” or “mask threads during powder coating.” This prevents machinists from calculating coating allowances and ensures consistent results across suppliers.
Standard powder coating adds 60-125 microns, which will significantly impact ±0.01mm tolerances. Even thin-film powder coatings at 30-50 microns exceed your tolerance requirements. For such tight tolerances, specify anodizing (12-25 microns) or design larger clearances to accommodate coating thickness.
