Join us as we delve into effective methods, from laser cutting to creating compound curves, ensuring every metal sheet transforms into a robust metal part. Ready for some insightful, action-ready tips? Let’s get started.
Table of Contents
Ever wondered what makes sheet metal parts so enduring? It’s all about smart sheet metal design – blending the right material thickness with structural integrity. Let’s dive into enhancing the durability of your flat sheet metal, ensuring it stands the test of time.
Strengthening sheet metal is about choosing the right materials, balancing bend radius for structural rigidity, and employing techniques like press brakes for precise bending angles. We’ll explore practical sheet metal design tips to maximize strength and functionality.
1. Material Selection and Thickness
In sheet metal fabrication, the strength and efficiency of your sheet metal parts hinge significantly on two critical factors: the choice of sheet metal materials and their thickness. This decision impacts everything from the structural integrity to the manufacturing process.
Selecting the Right Sheet Metal
The variety of sheet metal materials, from flat sheet metal to thicker materials, offers diverse properties. Steel, a go-to metal for robust applications, provides more strength, while aluminum, lighter in weight, is favored for its corrosion resistance and ease of handling. The choice of material influences everything from the final shape to how the sheet metal part withstands stress.
Gauging Material Thickness
Material thicknesses play a fundamental role in determining the durability of bent sheet metal parts. Thicker materials enhance structural strength but may add additional cost and require more powerful equipment like a press brake. Conversely, a thinner flat pattern might be easier to work with, using tools like a metal brake, but could compromise on strength.
Practical Application in Design
Decisions about material and sheet thickness are crucial in sheet metal designs. For instance, the right thickness in automotive manufacturing ensures that a metal part can hold tension effectively without adding unnecessary weight, affecting fuel efficiency.
By thoughtfully considering the type of metal—a metal plate or metal wire—and the sheet thickness, you ensure the final product meets both functional and aesthetic standards.
2. Bending Techniques and Their Impact
Bending sheet metal is not just about changing its shape; it’s a meticulous process that, when done correctly, can significantly enhance the strength and functionality of sheet metal parts. The bending method, bending angle, and bend radius are key factors that affect the outcome.
Bending Stress and Techniques
The bending process—edge bending, using a panel beater bag, or employing a power hammer—involves altering the material’s inner radius and bend radius. Techniques like V-bending or edge bending are common, with each method offering different advantages in maintaining the bending radius without compromising the structural integrity.
Technical Considerations in Bending
Key elements like bend relief, minimum bend radius, and bend allowance play a crucial role. Bend reliefs help prevent cracks at the part edge, especially when dealing with a tight bend radius. The minimum flange length and minimum bend radius ensure the material doesn’t stretch beyond its capacity, which could lead to weakened or stretched metal.
Advanced Bending Practices
Using advanced tools like CAD software, bead rollers for Z-shaped bends, and an English wheel for more complex shapes allows for precision in creating structural grooved seams or closed hems. The bending force applied, whether using a press brake or other tools, must be carefully calibrated to maintain the neutral axis and prevent deformation.
Incorporating these principles into the bending process, from considering the arc length to the nearest wall of the bend, depends on achieving optimal results. It’s not just about shaping the metal; it’s about enhancing its performance and longevity.
3. Design Enhancements: Ribs, Flanges, and Hems
Improving the strength and functionality of sheet metal parts involves strategic design choices. Incorporating ribs, flanges, and hems into flat sheet metal augments the structural integrity and adds to the overall utility and aesthetic of the metal part.
Strengthening with Ribs
Ribs add significant rigidity to sheet metal parts, helping distribute stress and minimize bending or buckling. This design feature is crucial in applications where the material thickness alone may not provide the necessary strength, such as in certain metal parts used in construction or automotive industries.
Utilizing Flanges
Flanges, which extend from the main body of the sheet metal part, enhance attachment capabilities and structural support. The minimum flange length is a key consideration, as it impacts the manufacturing process, including operations like laser cutting and forming grooved seams.
Hemming for Durability
Hems, created by folding the edge of the sheet metal, increase edge strength and improve safety by eliminating sharp edges. Both open hems, which provide additional clearance, and closed hems, which completely encase the edge, are used depending on the application’s requirements.
By thoughtfully designing sheet metal parts with these elements, manufacturers can ensure their products balance strength, functionality, and aesthetic appeal.
4. Precision in Bend Allowance and K-Factor
In the manufacturing process of sheet metal parts, precise calculations of bend allowance and K-Factor are essential for achieving the desired shape and functionality. These factors determine how the metal will conform to the intended design, especially when working with flat sheet metal and complex shapes.
Calculating Bend Allowance
Bend allowance is critical in determining how much additional sheet metal is required to accommodate a bend. It’s particularly important when working with flat patterns destined to become three-dimensional shapes. Accurate calculations ensure the final product aligns perfectly with its design specifications, avoiding material waste and extra processing.
The Importance of K-Factor
The K-factor, which indicates the neutral axis’s location during bending, directly influences the bend allowance. This factor varies with the material type, thickness, and the bend’s inside diameter, making it a complex yet essential aspect of the bending process. Understanding the K-factor is crucial for achieving precise bends and maintaining the integrity of the sheet metal part.
Practical Considerations
In practical terms, these calculations affect everything from the part edge to the overall shape of the metal. For instance, in laser cutting and bending operations, knowing the exact bend allowance and K-factor means that the pieces fit together seamlessly, maintaining the structural integrity of the assembled product.
Accurate bend allowance and K-factor calculations are not just theoretical concerns; they are integral to the successful manufacturing of sheet metal parts, ensuring each bend contributes to the overall strength and utility of the final product.
5. Advanced Bending Methods
Advancements in sheet metal fabrication have introduced a range of advanced bending methods. These techniques enhance the precision in shaping sheet metal parts and significantly contribute to their structural rigidity and durability.
High-Precision Bending with Press Brakes
Press brakes represent a leap in bending technology. These machines offer unmatched precision in bending angle and bend radius, crucial for sheet metal parts requiring exact specifications. The uniform application of bending force prevents material stretching and maintains the neutral axis, preserving the metal’s integrity.
Rotary Bending for Delicate Sheet Metal
Rotary bending is an advanced technique for flat metal and metal sheets with pre-finished surfaces. This method reduces direct contact with the metal, thus preserving the surface from scratches and ensuring the quality of bent sheet metal parts.
Complex Shapes with Three-Point Bending
This method creates compound curves and complex shapes in sheet metal design. The three-point bending process, which can be fine-tuned using CAD software, is especially useful for designs requiring intricate bending patterns, such as Z-shaped bends or gradual curves
These innovative bending methods, from the precise control offered by press brakes to the delicate handling of rotary bending, open new possibilities in sheet metal design, enhancing the final products’ aesthetic and functional aspects.
6. Hardware Integration for Enhanced Strength
The strategic integration of hardware and fasteners is critical to strengthening sheet metal parts. This approach enhances the structural integrity of the parts and contributes to the overall durability and functionality of sheet metal designs.
Fasteners for Secure Joints
Utilizing rivets, screws, and bolts is essential in sheet metal fabrication. These fasteners are crucial for maintaining structural rigidity, particularly in metal parts exposed to high stress. The choice of fastener, from the size to the material, plays a significant role in the overall strength of the assembly.
Welding and Soldering for Durability
Techniques like laser cutting and welding add immense strength to sheet metal parts. These methods create strong, permanent joints, essential for parts that require closed hems or complex structural grooved seams. Laser welding, in particular, offers precision and strength, ideal for intricate sheet metal design.
Inserts and Bushings
Incorporating threaded inserts and bushings in areas of repetitive stress or critical attachment points significantly boosts the durability of sheet metal parts. These elements provide a robust surface for screws and bolts, ensuring the longevity and reliability of the assembly, especially in designs with open hems or intricate edge work.
By carefully selecting and integrating hardware into sheet metal designs, manufacturers can significantly improve their products’ strength, durability, and functionality, meeting the demands of various applications and ensuring long-term performance.
7. Surface Treatments for Durability
Surface treatments are crucial in augmenting the durability and longevity of sheet metal parts. These treatments protect the metal from environmental damage and enhance its mechanical and aesthetic properties.
Protective Coatings for Corrosion Resistance
Corrosion is a major challenge for sheet metal parts, especially those used in outdoor or harsh environments. Protective coatings like powder coating, galvanization, or anodizing can significantly reduce corrosion.

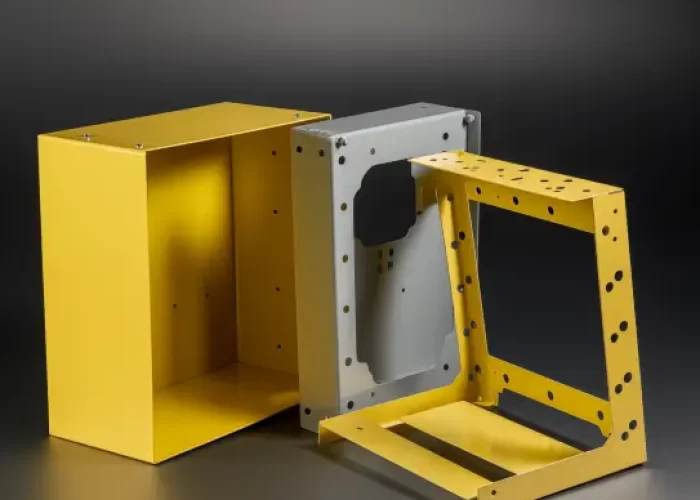

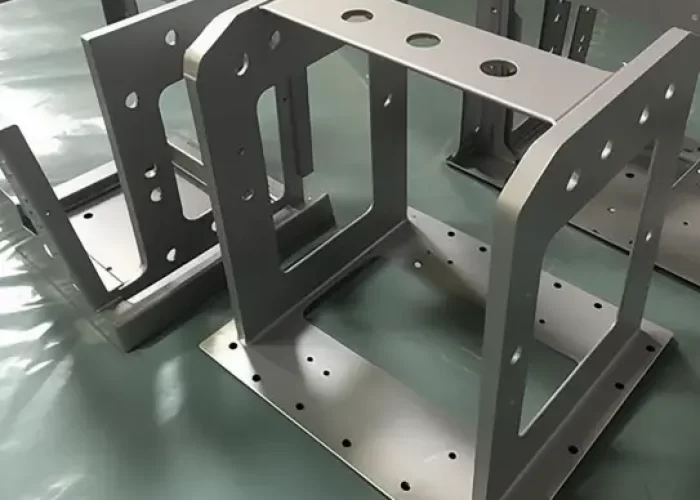

For instance, powder coating on flat sheet metal provides a robust barrier against rust and offers a smooth finish, complementing the sheet metal design. Galvanization, which involves a zinc coating, effectively protects the material, especially at the bend radius and bend reliefs, where stress concentration can lead to cracks.
Electroplating for Enhanced Surface Properties
Electroplating is a process where a metal, such as nickel or chromium, is deposited onto the sheet metal surface. This technique improves wear resistance and enhances electrical conductivity, which is crucial for metal parts in electronic devices. The process also ensures that areas like the inner radius and the edges of bent sheet metal parts are uniformly covered, enhancing durability and appearance.
Heat Treatments to Improve Metal Strength
Heat treatment techniques, including annealing and tempering, modify the microstructure of sheet metal materials, enhancing their strength and ductility. This is especially important for parts subject to high bending forces or requiring specific material thickness for functionality. Controlled heating and cooling allow for fine-tuning of the metal’s properties, making it suitable for diverse applications.
Finishing Techniques for Aesthetics and Function
Surface finishing methods like brushing, polishing, or sandblasting are essential for achieving the desired appearance and texture. These processes improve the visual appeal of sheet metal parts and prepare the surface for better adhesion of coatings or paints. They are particularly important for flat sheet metal parts where surface quality can impact the product’s look and performance.
By incorporating these surface treatments, manufacturers can ensure that their sheet metal parts meet the required aesthetic standards and exhibit increased strength and resilience, making them more suitable for various applications.
Conclusion
This article explored essential techniques to enhance the strength and longevity of sheet metal parts. From material selection and advanced bending methods to hardware integration and surface treatments, each strategy plays a pivotal role in ensuring robust and durable sheet metal components, crucial for a wide range of applications.
For expert custom part manufacturing, including CNC machining and sheet metal fabrication, contact Okdor. Their team is ready to assist with your specific needs. Reach out to sales@okdor.com for tailored solutions.
Additional Design Tips
Optimize Flange Length: Ensure the minimum flange length is appropriate for the bending process to maintain structural integrity and ease of fabrication.
Strategic Hole Placement: Position holes away from bends and edges to prevent material weakening and deformation.
Maintain Symmetry in Design: Symmetrical designs help evenly distribute stress and maintain balance in the part.
Consider Material Properties: Choose materials based on their properties like strength, ductility, and corrosion resistance to match the specific application needs.
Account for Material Stretch: Consider how the material will stretch, especially near bend reliefs and edges, when designing bent sheet metal parts.
Utilize CAD Software: Employ CAD software for precise design and simulation, which helps anticipate issues like material warping or bending inaccuracies.
Incorporate Bend Allowance: Accurately calculate bend allowance and K-factor for precise bending without material waste.
Factor in Surface Treatment Needs: Design with surface treatments in mind, ensuring the treatments complement the part’s functionality and aesthetic.
Frequently Asked Questions
The rule of thumb for sheet metal design is to use the same radii across all bends, and the flange length must be at least four times the material thickness.
Types of sheet metal joints include Folding/Tab Joints, Pulling Rivets, Self-clinching, Screw Joint/Fasteners, Pressing Rivets, and Welding Joints.
The fundamental processes in sheet metal forming are bending, drawing, and stretching. Additional methods include Stamping, Laser Cutting, and CNC Punching.
Techniques for strengthening sheet metal include Bending, Hemmed edges, Avoiding flat design, Stretching the metal profile, Adding Ribs, Beaded and Punched Holes, Adding Straight Bend, Flange, or Hems, and Adding Triangular Ribs to Bending Place.
Methods to make sheet metal brackets stronger include Bending (with consideration of bending radius), Punching holes and slots, Wire edging, Using a grooved seam, and Changing the profile of the sheet metal.
In a closed hem, the edge bends flush over the rest of the metal sheet with no gap, whereas in an open hem, there remains an air pocket between the folded flange and the sheet metal.
A general rule for hem allowance is 43% of the material thickness. For example, for a material thickness of 0.0598″ and a desired hem of 1/2″, the allowance would be 43% of 0.0598″, added to the 1/2″, giving a total of 0.5257″.
